Peugeot 301 2015 Owner's Manual

04
VOL+
VOL-
189
301_en_Chap12a_RD5(RD45)_ed01-2014

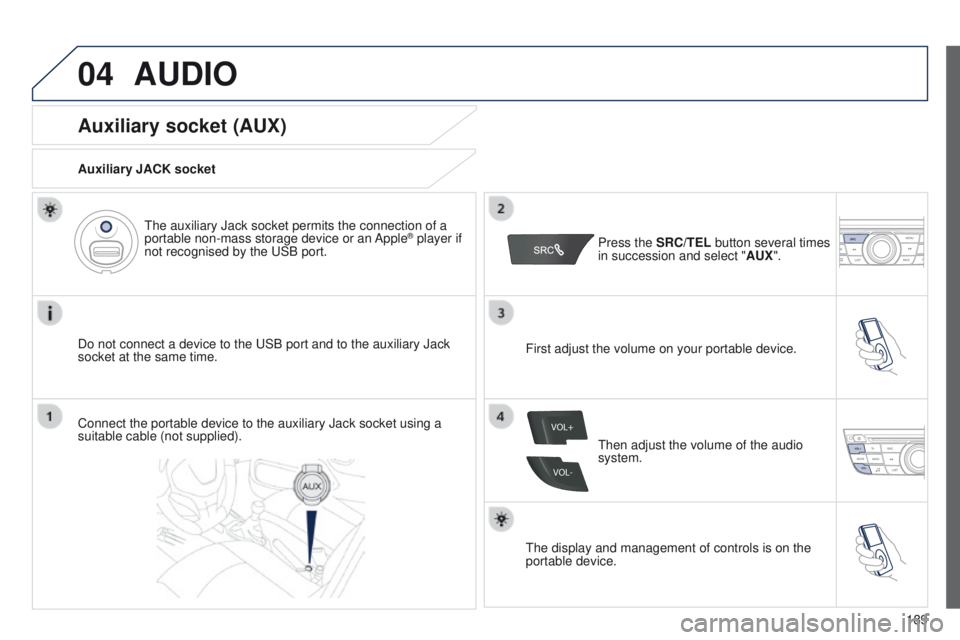

AUDIO
Auxiliary socket (AUX)
Auxiliary JACK socket
Do not connect a device to the USB port and to the auxiliary Jack
socket at the same time.The auxiliary Jack socket permits the connection of a
portable non-mass storage device or an Apple
® player if
not recognised by the USB port.
Connect the portable device to the auxiliary Jack socket using a
suitable cable (not supplied). Press the
SRC/TEL button several times
in succession and select " AUX".
First adjust the volume on your portable device.
Then adjust the volume of the audio
system.
The display and management of controls is on the
portable device.

04
190
301_en_Chap12a_RD5(RD45)_ed01-2014

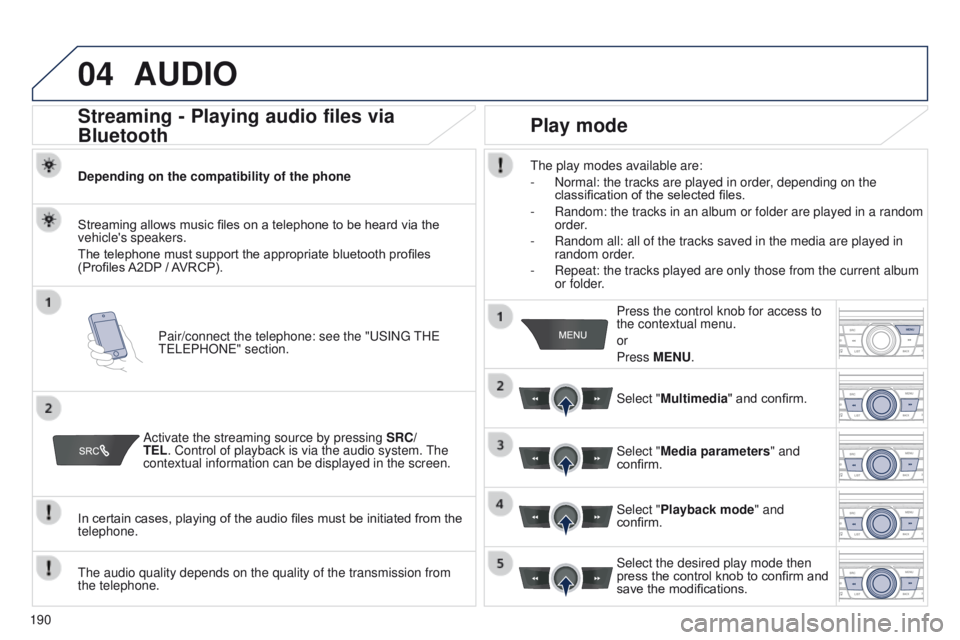

AUDIO
Streaming - Playing audio files via
Bluetooth
Depending on the compatibility of the phonePair/connect the telephone: see the "USING THE
TELEPHONE" section.
Streaming allows music files on a telephone to be heard via the
vehicle's speakers.
The telephone must support the appropriate bluetooth profiles
(Profiles A2DP / AVRCP).
Activate the streaming source by pressing SRC/
TEL. Control of playback is via the audio system. The
contextual information can be displayed in the screen.
In certain cases, playing of the audio files must be initiated from the
telephone.
The audio quality depends on the quality of the transmission from
the telephone.
Play mode
The play modes available are:
-
Normal: the tracks are played in order
, depending on the
classification of the selected files.
-

Random: the tracks in an album or folder are played in a random
order

.
-

Random all: all of the tracks saved in the media are played in
random order

.
-

Repeat: the tracks played are only those from the current album
or folder

.Press the control knob for access to
the contextual menu.
or
Press MENU.
Select "Multimedia" and confirm.
Select "Media parameters " and
confirm.
Select "Playback mode" and
confirm.
Select the desired play mode then
press the control knob to confirm and
save the modifications.

05
191
301_en_Chap12a_RD5(RD45)_ed01-2014

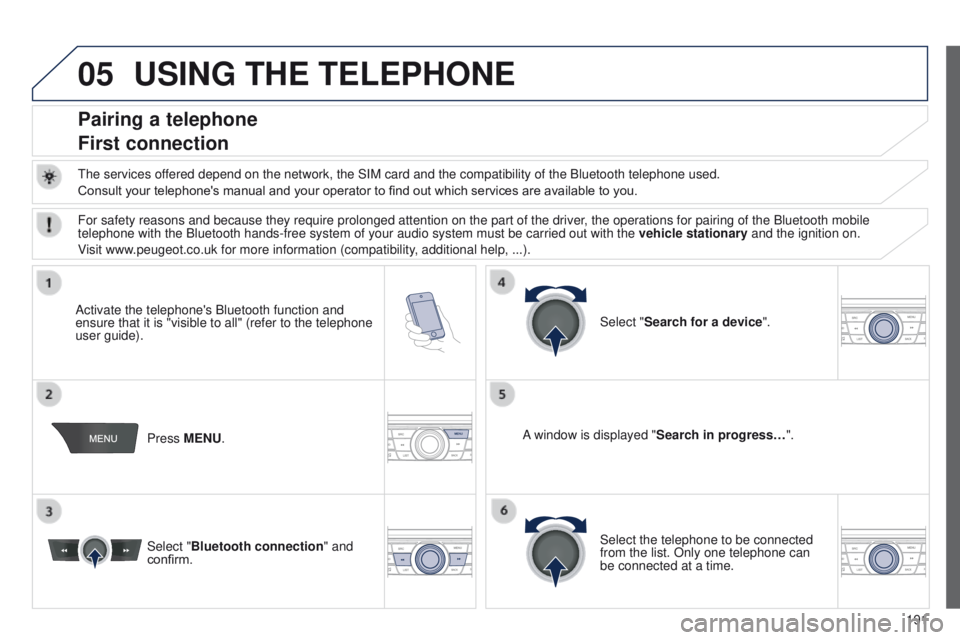

USING THE TELEPHONE
Pairing a telephone
First connection
The services offered depend on the network, the SIM card and the compatibility of the B\
luetooth telephone used.
Consult your telephone's manual and your operator to find out which services are available to you.
Activate the telephone's Bluetooth function and
ensure that it is "visible to all" (refer to the telephone
user guide). Press MENU. A window is displayed "
Search in progress…".
Select the telephone to be connected
from the list. Only one telephone can
be connected at a time. Select "Search for a device".
For safety reasons and because they require prolonged attention on the p\
art of the driver, the operations for pairing of the Bluetooth mobile
telephone with the Bluetooth hands-free system of your audio system must\
be carried out with the
vehicle stationary and the ignition on.
Visit www.peugeot.co.uk for more information (compatibility, additional help, ...).
Select "Bluetooth connection " and
confirm.

05

192
301_en_Chap12a_RD5(RD45)_ed01-2014

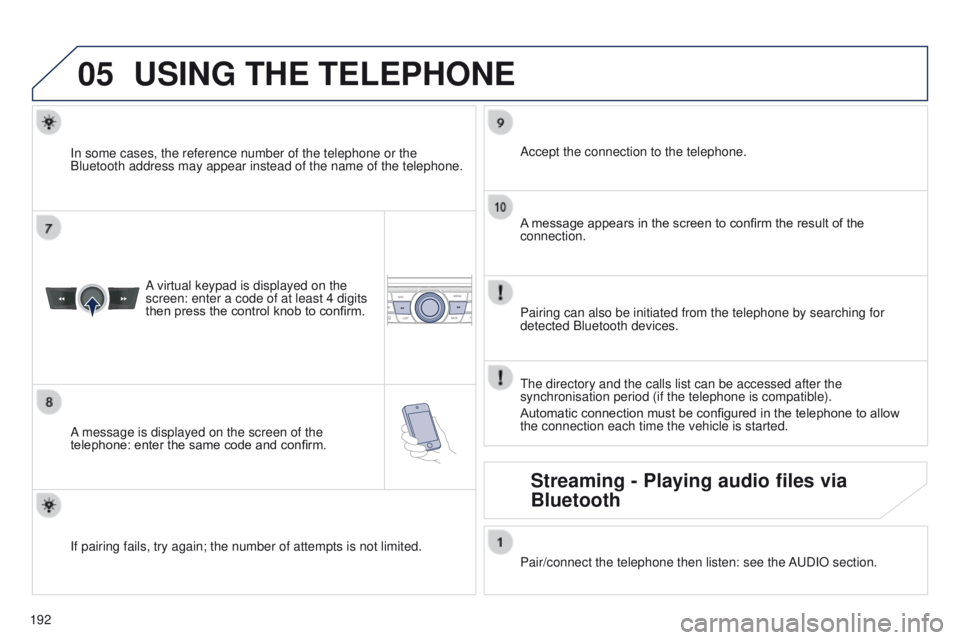

USING THE TELEPHONE
A virtual keypad is displayed on the
screen: enter a code of at least 4 digits
then press the control knob to confirm.
A message is displayed on the screen of the
telephone: enter the same code and confirm. A message appears in the screen to confirm the result of the
connection.
Pairing can also be initiated from the telephone by searching for
detected Bluetooth devices. Accept the connection to the telephone.
If pairing fails, try again; the number of attempts is not limited. The directory and the calls list can be accessed after the
synchronisation period (if the telephone is compatible).
Automatic connection must be configured in the telephone to allow
the connection each time the vehicle is started.
In some cases, the reference number of the telephone or the
Bluetooth address may appear instead of the name of the telephone.
Pair/connect the telephone then listen: see the AUDIO section.
Streaming - Playing audio files via
Bluetooth

05
193
301_en_Chap12a_RD5(RD45)_ed01-2014

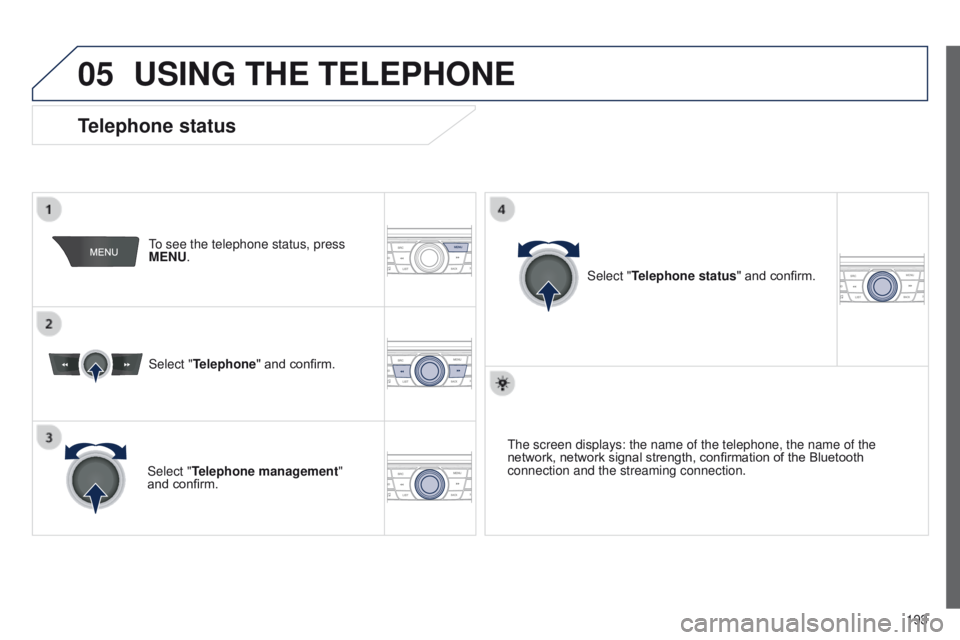

USING THE TELEPHONE
To see the telephone status, press
MENU.
Select "Telephone" and confirm.
Select "Telephone management"
and confirm. Select "Telephone status" and confirm.
Telephone status
The screen displays: the name of the telephone, the name of the
network, network signal strength, confirmation of the Bluetooth
connection and the streaming connection.

05


194
301_en_Chap12a_RD5(RD45)_ed01-2014

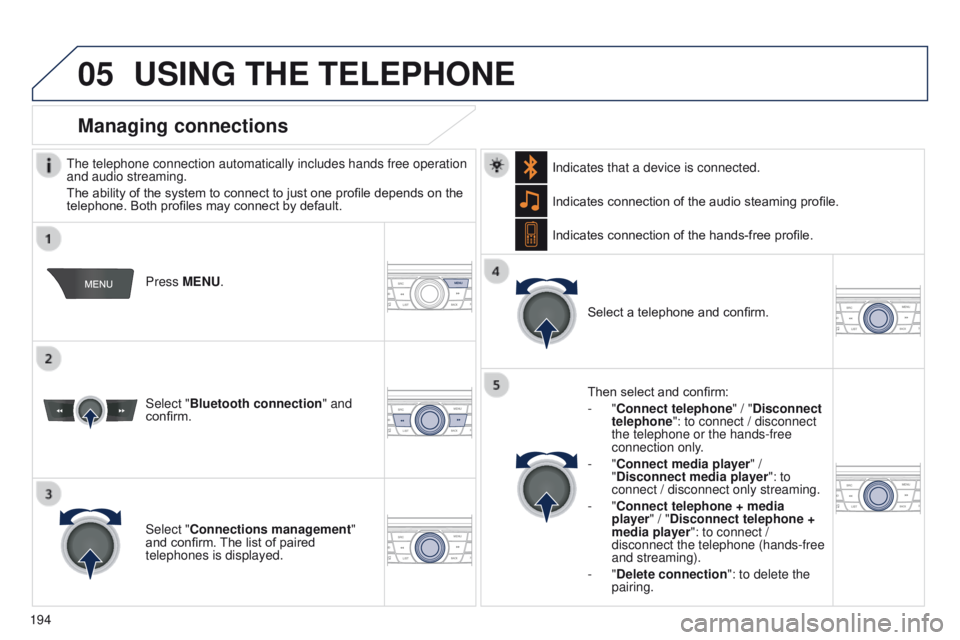

USING THE TELEPHONE
The telephone connection automatically includes hands free operation
and audio streaming.
The ability of the system to connect to just one profile depends on the
telephone. Both profiles may connect by default. Press MENU.
Select "Bluetooth connection " and
confirm. Indicates connection of the audio steaming profile.
Managing connections
Select "Connections management"
and confirm. The list of paired
telephones is displayed. Select a telephone and confirm.
Indicates connection of the hands-free profile.
Then select and confirm:
- "Connect telephone
" / "Disconnect
telephone": to connect / disconnect
the telephone or the hands-free
connection only.
- "Connect media player" /
"Disconnect media player": to
connect / disconnect only streaming.
- "Connect telephone + media
player" / "Disconnect telephone +
media player": to connect /
disconnect the telephone (hands-free
and streaming).
-
"Delete connection": to delete the
pairing.
Indicates that a device is connected.

05


195
301_en_Chap12a_RD5(RD45)_ed01-2014

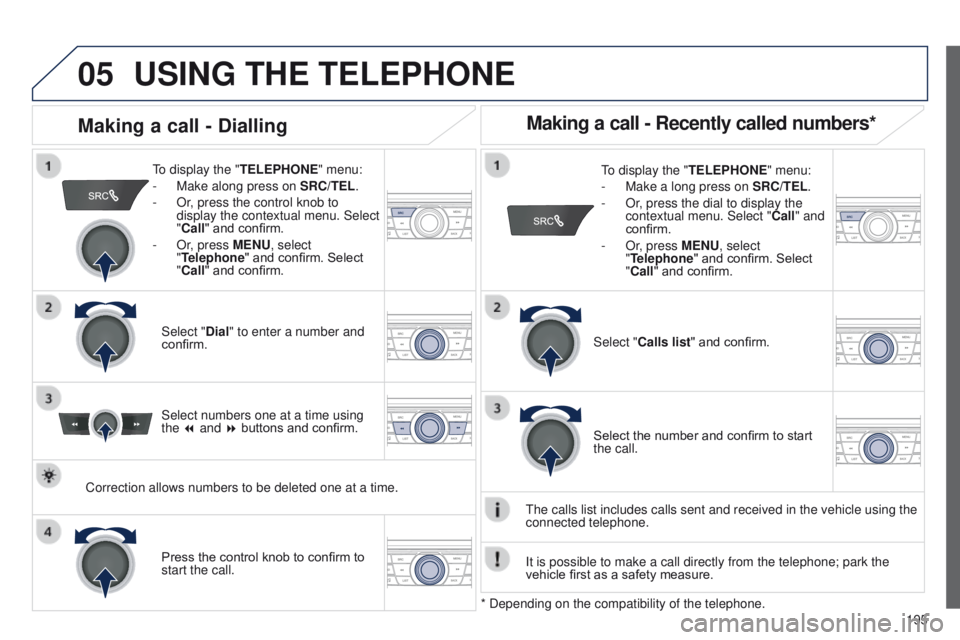

USING THE TELEPHONE
To display the " TELEPHONE" menu:
-
Make along press on SRC/TEL

.
-

Or
, press the control knob to
display the contextual menu. Select
"Call" and confirm.
-

Or
, press MENU, select
"Telephone" and confirm. Select
"Call" and confirm.
Select "Dial" to enter a number and
confirm. To display the "
TELEPHONE" menu:
-

Make a long press on SRC/TEL

.
-

Or
, press the dial to display the
contextual menu. Select " Call" and
confirm.
-

Or
, press MENU, select
"Telephone" and confirm. Select
"Call" and confirm.
Press the control knob to confirm to
start the call. Select "Calls list" and confirm.
Making a call - Dialling
Select numbers one at a time using
the 7 and 8 buttons and confirm.
Making a call - Recently called numbers*
Select the number and confirm to start
the call.
The calls list includes calls sent and received in the vehicle using the\

connected telephone.
* Depending on the compatibility of the telephone.
Correction allows numbers to be deleted one at a time.
It is possible to make a call directly from the telephone; park the
vehicle first as a safety measure.

05
BACK


196
301_en_Chap12a_RD5(RD45)_ed01-2014

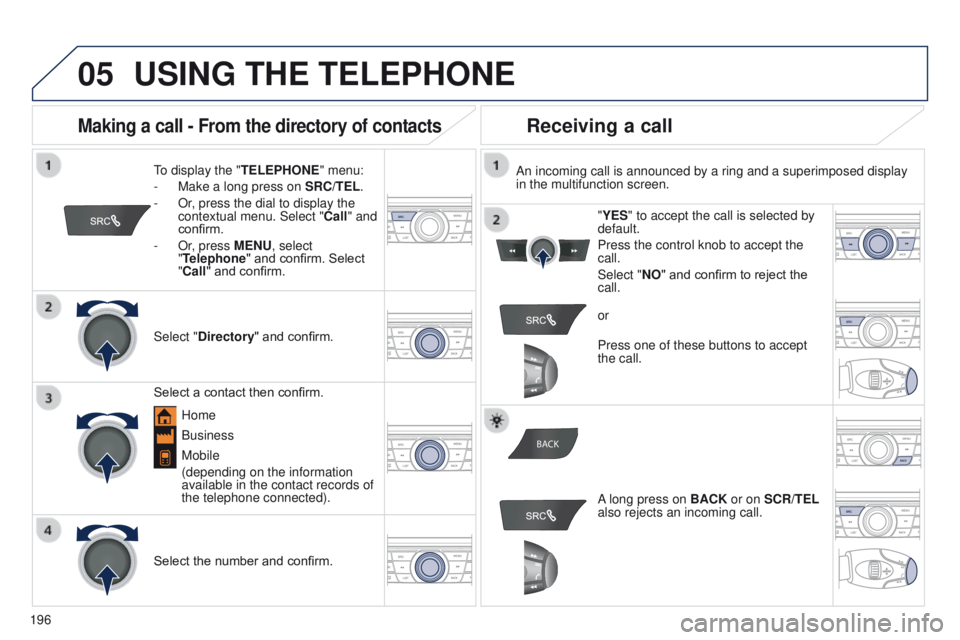

USING THE TELEPHONE
To display the " TELEPHONE" menu:
-
Make a long press on SRC/TEL

.
-

Or
, press the dial to display the
contextual menu. Select " Call" and
confirm.
-

Or
, press MENU, select
"Telephone" and confirm. Select
"Call" and confirm.
Select "Directory " and confirm. An incoming call is announced by a ring and a superimposed display
in the multifunction screen.
Mobile
(depending on the information
available in the contact records of
the telephone connected). "YES" to accept the call is selected by
default.
Press the control knob to accept the
call.
Select "NO" and confirm to reject the
call.
Making a call - From the directory of contacts
Select a contact then confirm.
Receiving a call
Select the number and confirm.
A long press on BACK
or on SCR/TEL
also rejects an incoming call.
Business Home or
Press one of these buttons to accept
the call.

05
197

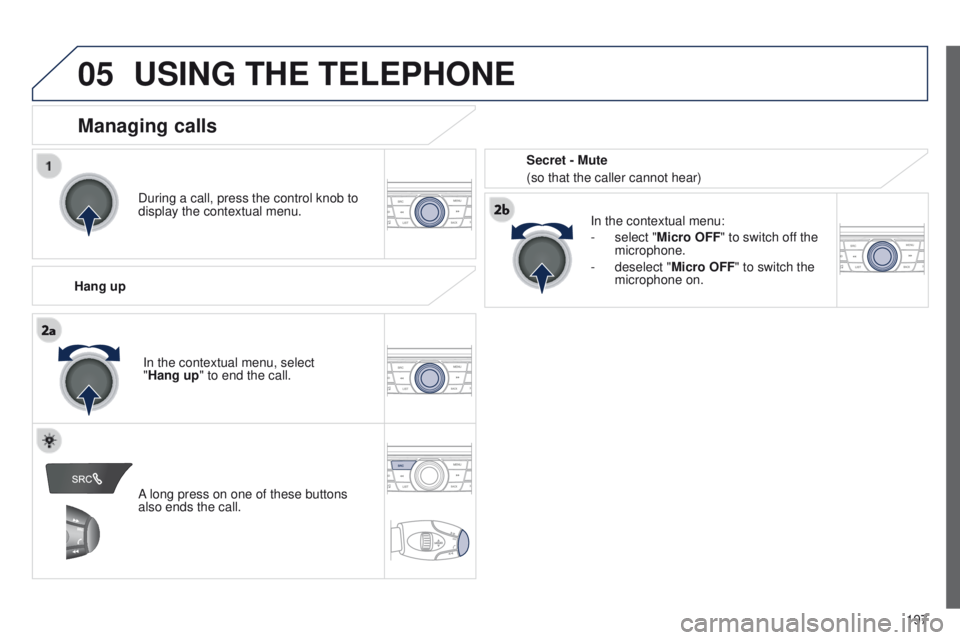

301_en_Chap12a_RD5(RD45)_ed01-2014
USING THE TELEPHONE
During a call, press the control knob to
display the contextual menu.
Hang up In the contextual menu:
-

select "
Micro OFF" to switch off the
microphone.
-

deselect "
Micro OFF" to switch the
microphone on.
Managing calls
A long press on one of these buttons
also ends the call. In the contextual menu, select
"Hang up
" to end the call. Secret - Mute
(so that the caller cannot hear)

05

198

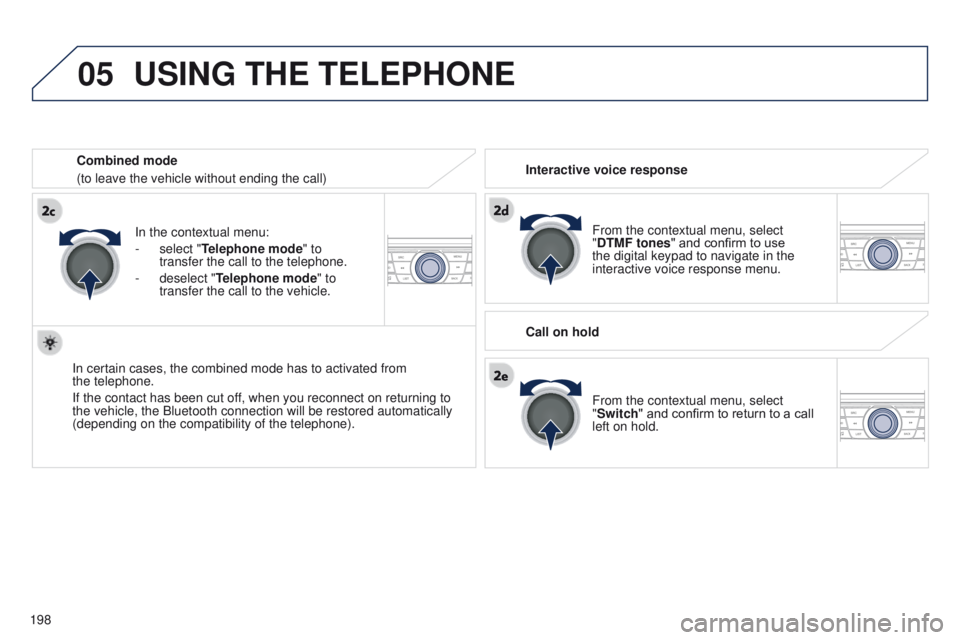

301_en_Chap12a_RD5(RD45)_ed01-2014
USING THE TELEPHONE
From the contextual menu, select
"DTMF tones" and confirm to use
the digital keypad to navigate in the
interactive voice response menu.
From the contextual menu, select
"Switch" and confirm to return to a call
left on hold.
Interactive voice response
Call on hold
In the contextual menu:
-

select "

Telephone mode " to
transfer the call to the telephone.
-

deselect "

Telephone mode" to
transfer the call to the vehicle.
In certain cases, the combined mode has to activated from
the

telephone.
If the contact has been cut off, when you reconnect on returning to
the vehicle, the Bluetooth connection will be restored automatically
(depending on the compatibility of the telephone). Combined mode
(to leave the vehicle without ending the call)
