Peugeot 301 2017 Workshop Manual

49
Returning the backrest to the normal position
F Straighten the seat back 2 and secure it.
F U nbuckle and reposition the seat belt on
the side of the backrest.
When repositioning the seat backrest,
take care not to trap the seat belts.
Ensure that the backrest has latched
properly into place.
Adjustable head restraints
These have one position for use (up) and a
stowed position (down).
They can be removed and are interchangeable
side to side.
To remove a headrest:
F

P
ull the headrest upwards to the stop.
F

P
ress on lug A .
Never drive with the headrests removed;
they must be fitted and correctly adjusted.
3
Ease of use and comfort

50

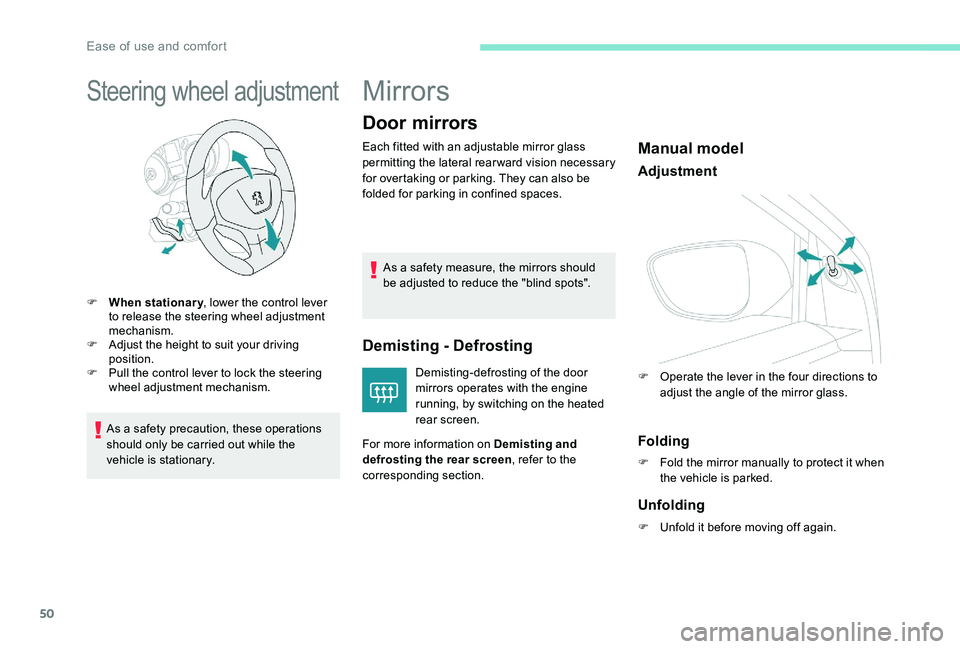

Steering wheel adjustment
F When stationary, lower the control lever
to release the steering wheel adjustment
mechanism.
F

A
djust the height to suit your driving
position.
F

P
ull the control lever to lock the steering
wheel adjustment mechanism.
As a safety precaution, these operations
should only be carried out while the
vehicle is stationary.
Mirrors
Door mirrors
Each fitted with an adjustable mirror glass
permitting the lateral rearward vision necessary
for overtaking or parking. They can also be
folded for parking in confined spaces.
As a safety measure, the mirrors should
be adjusted to reduce the "blind spots".
Demisting - Defrosting
Demisting-defrosting of the door
mirrors operates with the engine
running, by switching on the heated
rear screen.
For more information on Demisting and
defrosting the rear screen , refer to the
corresponding section.
Manual model
Adjustment
F Operate the lever in the four directions to adjust the angle of the mirror glass.
Folding
F Fold the mirror manually to protect it when the vehicle is parked.
Unfolding
F Unfold it before moving off again.
Ease of use and comfort

51

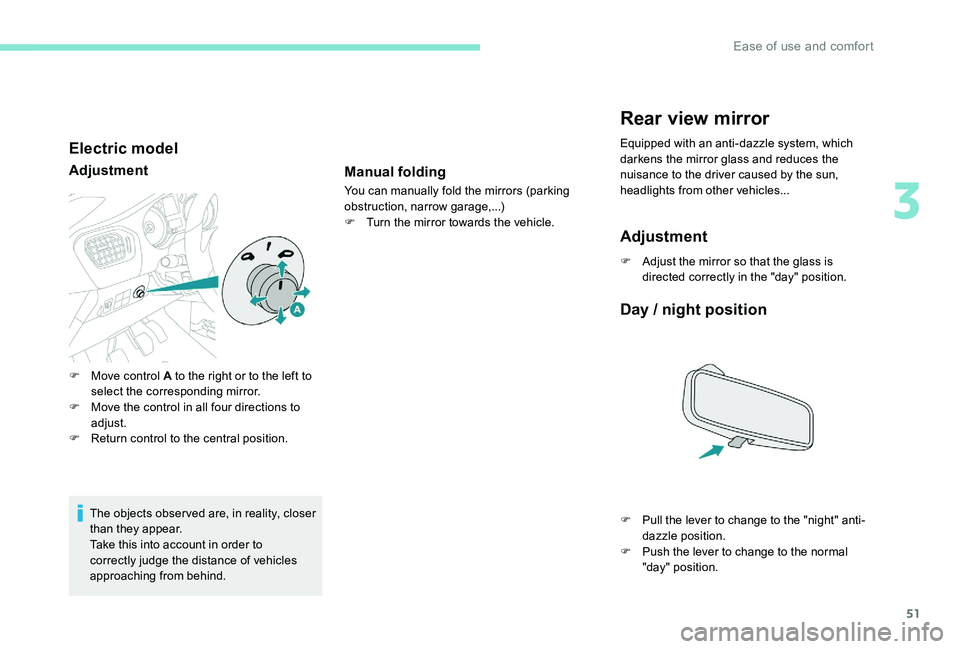

Electric model
Adjustment
The objects observed are, in reality, closer
than they appear.
Take this into account in order to
correctly judge the distance of vehicles
approaching from behind.
F

M
ove control A to the right or to the left to
select the corresponding mirror.
F

M
ove the control in all four directions to
adjust.
F

R
eturn control to the central position.
Manual folding
You can manually fold the mirrors (parking
obstruction, narrow garage,...)
F

T
urn the mirror towards the vehicle.
Rear view mirror
Equipped with an anti-dazzle system, which
darkens the mirror glass and reduces the
nuisance to the driver caused by the sun,
headlights from other vehicles...
Adjustment
Day / night position
F Pull the lever to change to the "night" anti-dazzle position.
F

P
ush the lever to change to the normal
"day" position.
F

A
djust the mirror so that the glass is
directed correctly in the "day" position.
3
Ease of use and comfort

52

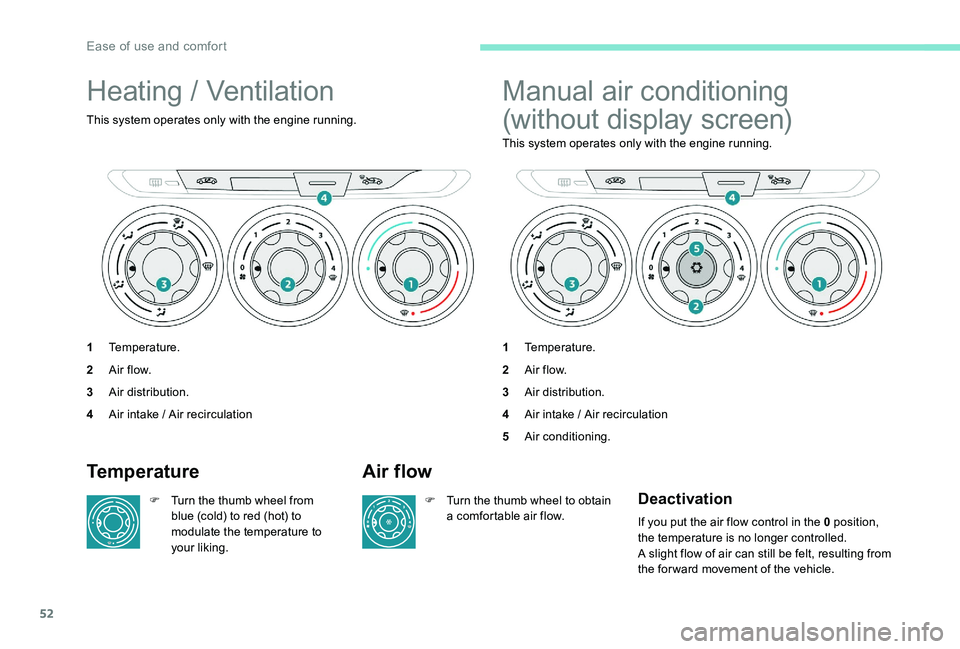

Heating / Ventilation
This system operates only with the engine running.
1Temperature.
2 A ir f low.
3 Air distribution.
4 Air intake / Air recirculation
Manual air conditioning
(without display screen)
This system operates only with the engine running.
1Temperature.
2 A ir f low.
3 Air distribution.
4 Air intake / Air recirculation
5 Air conditioning.
Temperature
F Turn the thumb wheel from
blue (cold) to red (hot) to
modulate the temperature to
your liking.
Air flow
F Turn the thumb wheel to obtain a comfortable air flow.Deactivation
If you put the air flow control in the 0 position,
the temperature is no longer controlled.
A slight flow of air can still be felt, resulting from
the for ward movement of the vehicle.
Ease of use and comfort

53
Air distribution
Windscreen and side windows.
Windscreen, side windows and
footwells.
Footwells.
Centre and side air vents, footwells.
Central and side vents.
The air distribution can be adapted
by placing the thumb wheel in an
intermediate position or by closing
the vents.
Air intake / Air recirculation
Recirculation of the interior air isolates the
passenger compartment from exterior odours
and fumes.
Return to exterior air intake as soon as possible
to avoid deterioration of the air quality and the
formation of mist.F

M
ove the manual control to the
left for the "Recirculation of
interior air" position.
F

M
ove the manual control to the
right to return to the "Exterior air
intake" position.
Air conditioning
The air conditioning is designed to operate
efficiently in all seasons, with the windows
closed.
It allows you:
-

i
n summer, to lower the temperature,
-
i

ncrease the effectiveness of the demisting
in winter, above 3°C.
Switching on
F Press this button, its indicator light comes on.
The air conditioning does not operate
when the air flow adjustment control is in
position "0".
To obtain cool air more quickly, you can
use recirculation of the interior air for a few
moments. F

M
ove the manual control to the
left for the "Recirculation of
interior air" position.
F

T
hen, move the manual control
to the right to return to the
"Outside air intake" position.
Switching off
F Press this button again, its indicator light goes off.
Switching the system off could result in
discomfort (humidity, condensation).
3
Ease of use and comfort

54

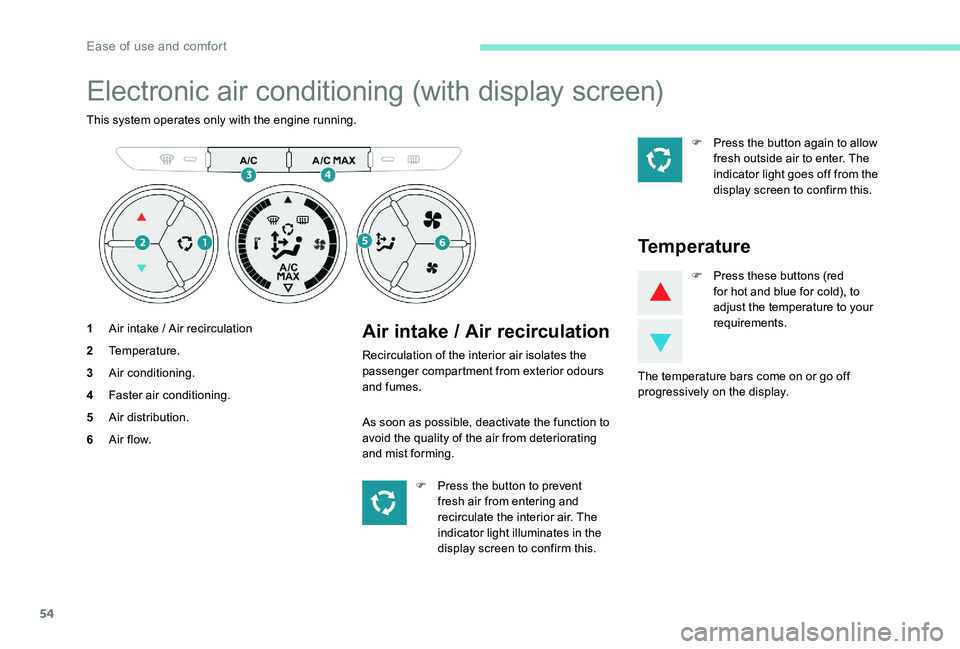

Electronic air conditioning (with display screen)
This system operates only with the engine running.
1Air intake / Air recirculation
2 Temperature.
3 Air conditioning.
4 Faster air conditioning.
5 Air distribution.
6 A ir f low.
Air intake / Air recirculation
Recirculation of the interior air isolates the
passenger compartment from exterior odours
and fumes.
As soon as possible, deactivate the function to
avoid the quality of the air from deteriorating
and mist forming.
F

P
ress the button to prevent
fresh air from entering and
recirculate the interior air. The
indicator light illuminates in the
display screen to confirm this. F

P
ress the button again to allow
fresh outside air to enter. The
indicator light goes off from the
display screen to confirm this.
Temperature
F Press these buttons (red for hot and blue for cold), to
adjust the temperature to your
requirements.
The temperature bars come on or go off
progressively on the display.
Ease of use and comfort

55
Air conditioning
Switching on
F Press this button, its indicator light appears on the display.
Switching off
F Press this button again, the indicator light goes off.
Switching the system off could result in
discomfort (humidity, condensation).
Faster air conditioning
This button activates rapid cooling of the air in
the passenger compartment.
Switching on
F Press this button, its indicator light appears in the display.
Switching off
F Press this button again, its indicator light goes off.
Air distribution
F Press this button repeatedly to direct the air flow towards:
-

w
indscreen and side windows
(demisting or defrosting),
-

w
indscreen, side windows and
air vents,
-

w
indscreen, side windows, air
vents and foot wells,
-

w
indscreen, side windows and
foot wells,
-

f
oot wells,
-

a
ir vents and foot wells,
-

a
ir vents.
3
Ease of use and comfort

56

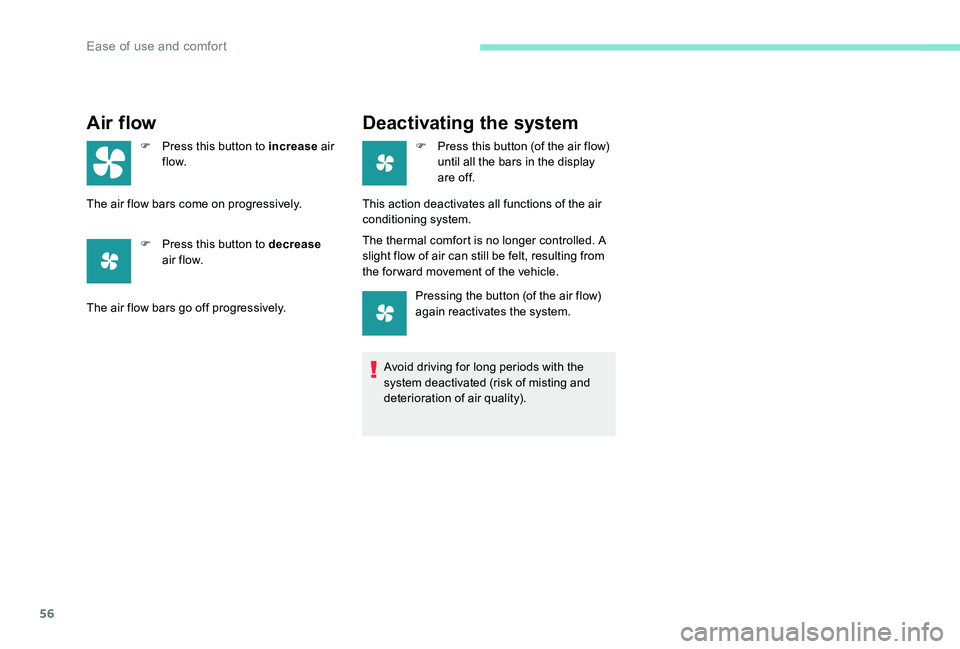

Air flow
F Press this button to increase air
f low.
The air flow bars come on progressively. F

P
ress this button to decrease
air f low.
The air flow bars go off progressively.
Deactivating the system
Avoid driving for long periods with the
system deactivated (risk of misting and
deterioration of air quality). F

P
ress this button (of the air flow)
until all the bars in the display
are of f.
This action deactivates all functions of the air
conditioning system.
The thermal comfort is no longer controlled. A
slight flow of air can still be felt, resulting from
the for ward movement of the vehicle. Pressing the button (of the air flow)
again reactivates the system.
Ease of use and comfort

57
Front demist - defrost
These markings on the control panel indicate the control positions for rapid demisting or defrosting of the windscreen and side windows.
With the heating /
ventilation system
F Put the temperature and air flow controls to the dedicated marked position.
F

P
ut the air intake control to the "Exterior air
intake" position (manual control moved to
the right).
F

P
ut the air distribution control to the
"Windscreen" position.
With the manual air
conditioning system
(without screen)
F Put the temperature and air flow controls to the dedicated marked position.
F

P
ut the air intake control to the "Exterior air
intake" position (manual control moved to
the right).
F

P
ut the air distribution control to the
"Windscreen" position.
F

S
witch on the air conditioning by pressing
the appropriate button; the lighting of the
associated control comes on.
With the electronic air
conditioning system
(with screen)
F Press this button.
The light in the button comes on.
F

P
ress this button again to switch
it of f.
The light in the button goes off.
3
Ease of use and comfort

58

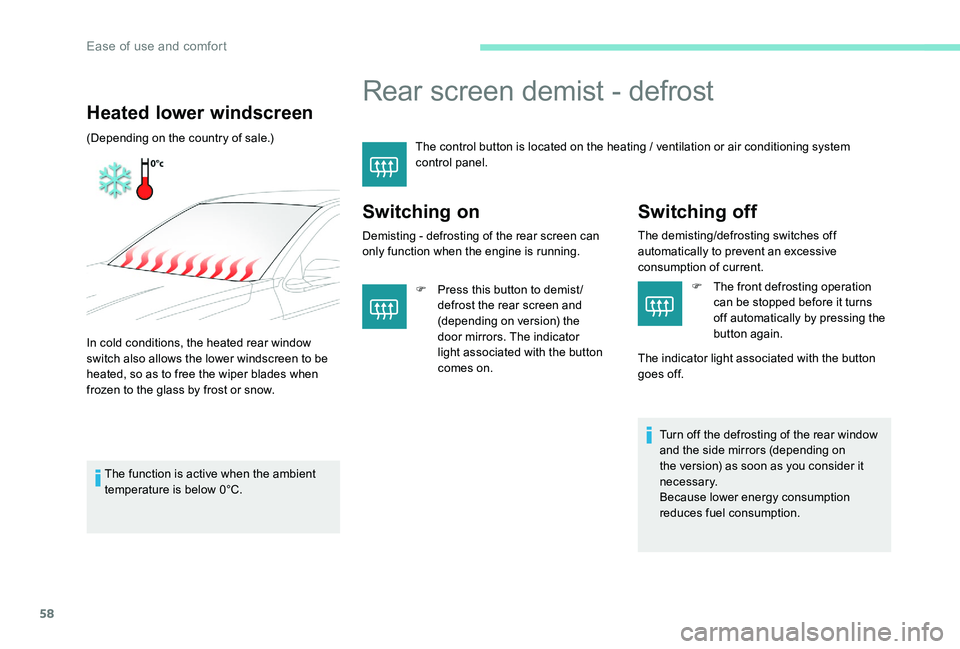

Rear screen demist - defrost
The control button is located on the heating / ventilation or air conditioning system
control panel.
Switching on
Demisting - defrosting of the rear screen can
only function when the engine is running.F

P
ress this button to demist /
defrost the rear screen and
(depending on version) the
door mirrors. The indicator
light associated with the button
comes on. The demisting/defrosting switches off
automatically to prevent an excessive
consumption of current.
Switching off
F The front defrosting operation
can be stopped before it turns
off automatically by pressing the
button again.
The indicator light associated with the button
goes off.
Turn off the defrosting of the rear window
and the side mirrors (depending on
the version) as soon as you consider it
necessary.
Because lower energy consumption
reduces fuel consumption.
Heated lower windscreen
(Depending on the country of sale.)
In cold conditions, the heated rear window
switch also allows the lower windscreen to be
heated, so as to free the wiper blades when
frozen to the glass by frost or snow.
The function is active when the ambient
temperature is below 0°C.
Ease of use and comfort
