Peugeot 301 2017 Owner's Guide

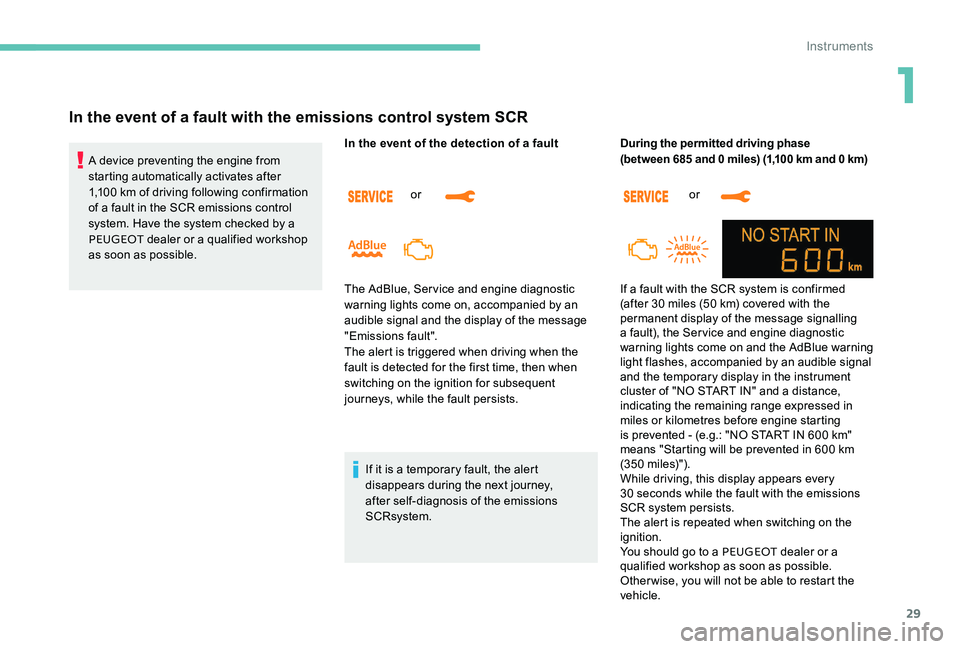

29
In the event of a fault with the emissions control system SCR
A device preventing the engine from
starting automatically activates after
1,100 km of driving following confirmation
of a fault in the SCR emissions control
system. Have the system checked by a
PEUGEOT dealer or a qualified workshop
as soon as possible. In the event of the detection of a fault
If it is a temporary fault, the alert
disappears during the next journey,
after self-diagnosis of the emissions
SCRsystem. or
If a fault with the SCR system is confirmed
(after 30 miles (50 km) covered with the
permanent display of the message signalling
a fault), the Service and engine diagnostic
warning lights come on and the AdBlue warning
light flashes, accompanied by an audible signal
and the temporary display in the instrument
cluster of "NO START IN" and a distance,
indicating the remaining range expressed in
miles or kilometres before engine starting
is prevented - (e.g.: "NO START IN 600 km"
means "Starting will be prevented in 600 km
(350 miles)").
While driving, this display appears every
30 seconds while the fault with the emissions
SCR system persists.
The alert is repeated when switching on the
ignition.
You should go to a PEUGEOT dealer or a
qualified workshop as soon as possible.
Other wise, you will not be able to restart the
vehicle. During the permitted driving phase
(between 685 and 0 miles) (1,100 km and 0 km)
or
The AdBlue, Service and engine diagnostic
warning lights come on, accompanied by an
audible signal and the display of the message
"Emissions fault".
The alert is triggered when driving when the
fault is detected for the first time, then when
switching on the ignition for subsequent
journeys, while the fault persists.
1
Instruments

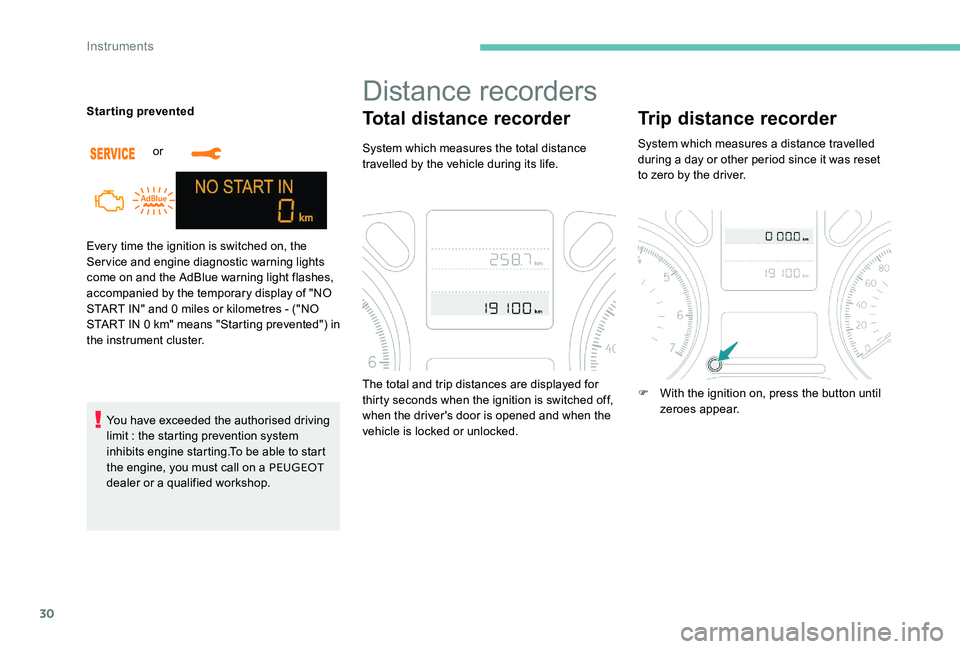

30
Every time the ignition is switched on, the
Service and engine diagnostic warning lights
come on and the AdBlue warning light flashes,
accompanied by the temporary display of "NO
START IN" and 0 miles or kilometres - ("NO
START IN 0 km" means "Starting prevented") in
the instrument cluster. Starting preventedYou have exceeded the authorised driving
limit : the starting prevention system
inhibits engine starting.To be able to start
the engine, you must call on a PEUGEOT
dealer or a qualified workshop.
Distance recorders
Total distance recorder
System which measures the total distance
travelled by the vehicle during its life.
The total and trip distances are displayed for
thirty seconds when the ignition is switched off,
when the driver's door is opened and when the
vehicle is locked or unlocked.
Trip distance recorder
System which measures a distance travelled
during a day or other period since it was reset
to zero by the driver.
F

W
ith the ignition on, press the button until
zeroes appear.
or
Instruments

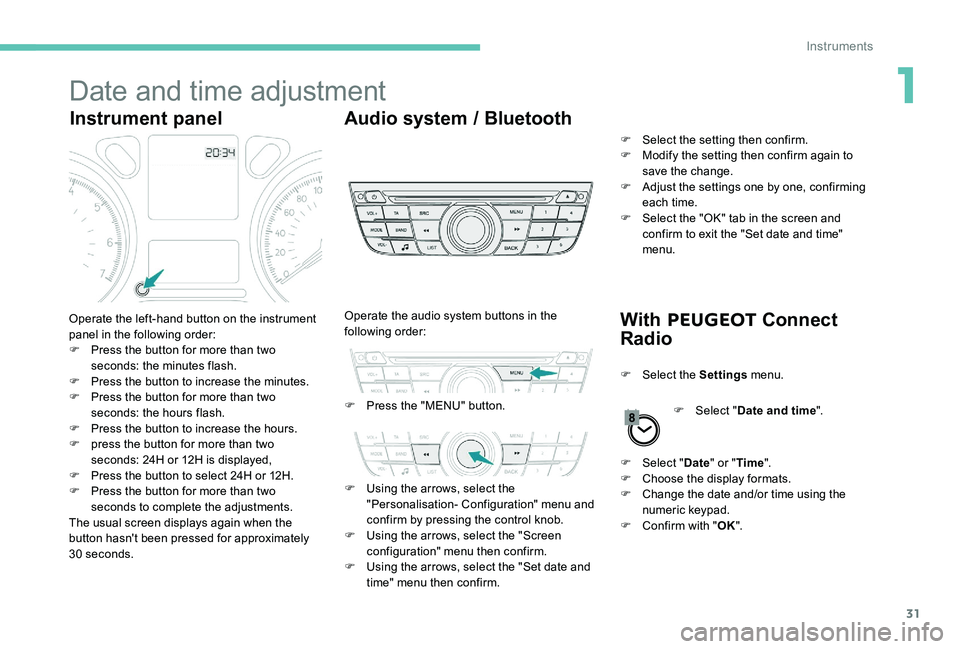

31
Date and time adjustment
Instrument panelAudio system / Bluetooth
With PEUGEOT Connect
Radio
Operate the left-hand button on the instrument
panel in the following order:
F

P
ress the button for more than two
seconds: the minutes flash.
F

P
ress the button to increase the minutes.
F

P
ress the button for more than two
seconds: the hours flash.
F

P
ress the button to increase the hours.
F

p
ress the button for more than two
seconds: 24H or 12H is displayed,
F

P
ress the button to select 24H or 12H.
F

P
ress the button for more than two
seconds to complete the adjustments.
The usual screen displays again when the
button hasn't been pressed for approximately
30 seconds. F

P
ress the "MENU" button.
Operate the audio system buttons in the
following order:
F

U
sing the arrows, select the
"Personalisation- Configuration" menu and
confirm by pressing the control knob.
F

U
sing the arrows, select the "Screen
configuration" menu then confirm.
F

U
sing the arrows, select the "Set date and
time" menu then confirm. F

S
elect the setting then confirm.
F
M
odify the setting then confirm again to
save the change.
F
A
djust the settings one by one, confirming
each time.
F
S
elect the "OK" tab in the screen and
confirm to exit the "Set date and time"
menu.
F
Sel
ect the Settings menu.
F

Sel
ect "Date " or "Time ".
F

C
hoose the display formats.
F

C
hange the date and/or time using the
numeric keypad.
F

C
onfirm with "OK".
F

Sel
ect "Date and time ".
1
Instruments

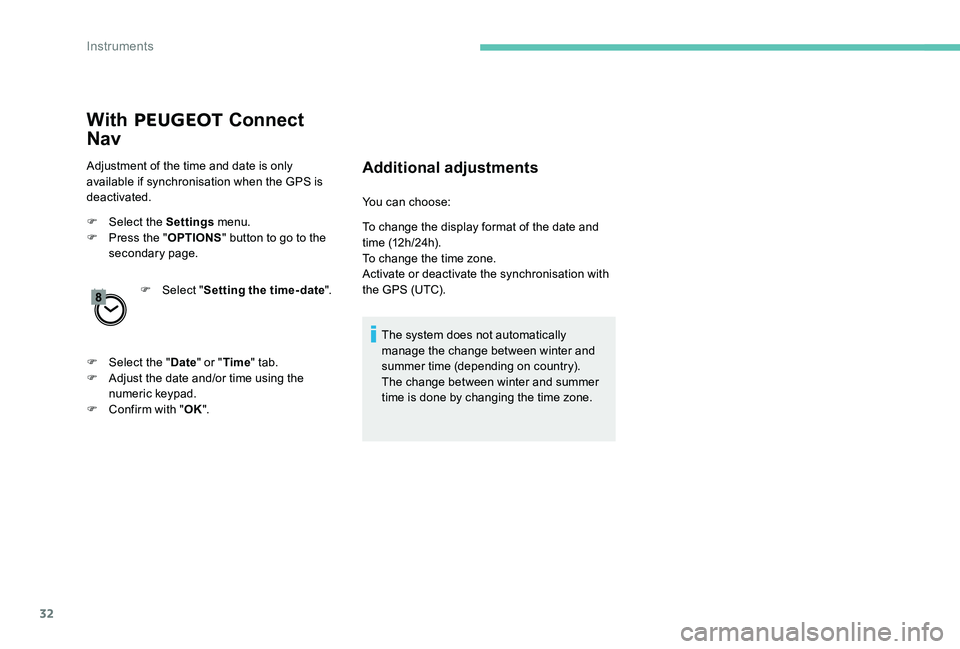

32
With PEUGEOT Connect
Nav
Adjustment of the time and date is only
available if synchronisation when the GPS is
deactivated.
F

Sel
ect the Settings menu.
F

P
ress the " OPTIONS " button to go to the
secondary page.
F

Sel
ect "Setting the time- date".
F

Sel
ect the " Date" or "Time " tab.
F

A
djust the date and/or time using the
numeric keypad.
F

C
onfirm with " OK".Additional adjustments
You can choose:
To change the display format of the date and
t i m e (12 h / 24 h).
To change the time zone.
Activate or deactivate the synchronisation with
the GPS (UTC).
The system does not automatically
manage the change between winter and
summer time (depending on country).
The change between winter and summer
time is done by changing the time zone.
Instruments

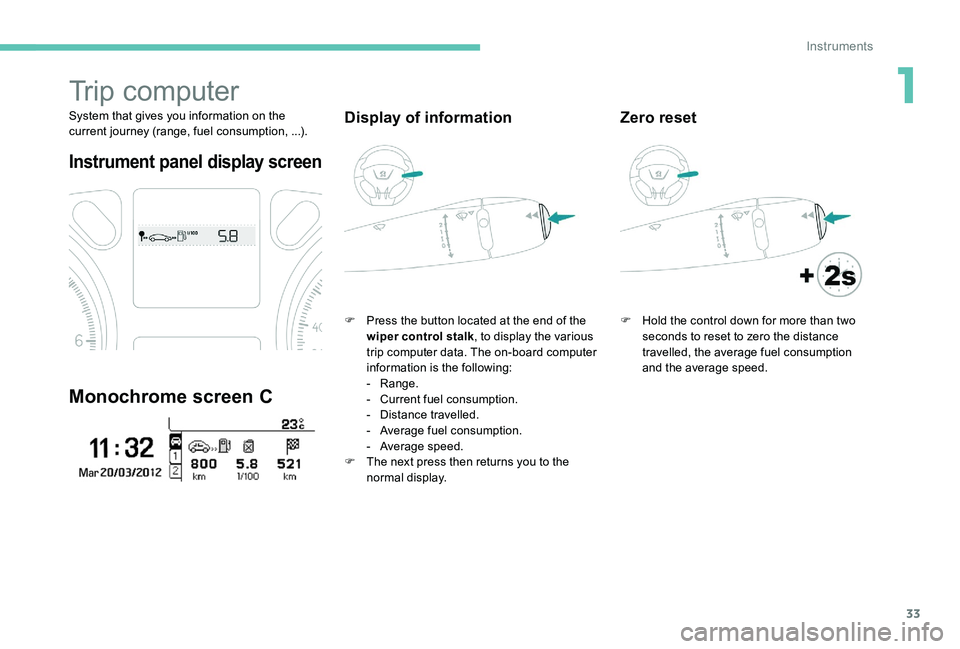

33
Trip computer
System that gives you information on the
current journey (range, fuel consumption, ...).
Instrument panel display screen
Monochrome screen C
Display of information
F Press the button located at the end of the wiper control stalk , to display the various
trip computer data. The on-board computer
information is the following:
-


Range.
-

C
urrent fuel consumption.
-
D

istance travelled.
-
A

verage fuel consumption.
-
A

verage speed.
F

T
he next press then returns you to the
normal display.
Zero reset
F Hold the control down for more than two seconds to reset to zero the distance
travelled, the average fuel consumption
and the average speed.
1
Instruments

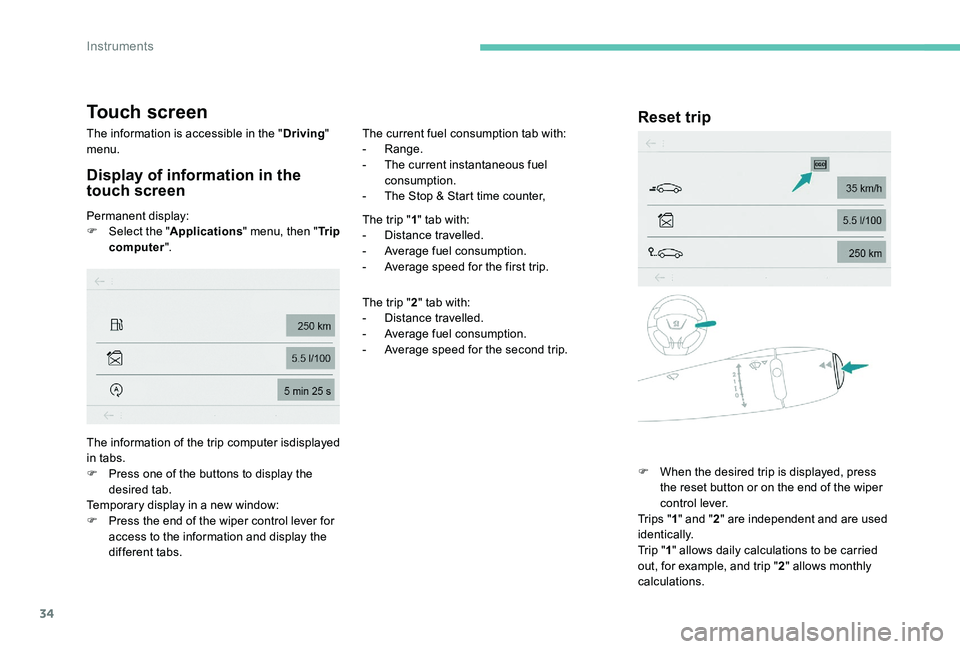

34
Touch screen
The information is accessible in the "Driving"
menu.
Display of information in the
touch screen
Permanent display:
F Sel ect the " Applications " menu, then " Tr i p
computer ". The current fuel consumption tab with:
-


Range.
-
T
he current instantaneous fuel
consumption.
-
T
he Stop & Start time counter,
The trip " 1" tab with:
-
D

istance travelled.
-
A

verage fuel consumption.
-

A
verage speed for the first trip.
The trip " 2" tab with:
-
D

istance travelled.
-
A

verage fuel consumption.
-

A
verage speed for the second trip.
Reset trip
The information of the trip computer isdisplayed
in tabs.
F
P
ress one of the buttons to display the
desired tab.
Temporary display in a new window:
F

P
ress the end of the wiper control lever for
access to the information and display the
different tabs. F

W
hen the desired trip is displayed, press
the reset button or on the end of the wiper
control lever.
Tr i p s " 1" and " 2" are independent and are used
identically.
Tr i p " 1" allows daily calculations to be carried
out, for example, and trip " 2" allows monthly
calculations.
Instruments

35

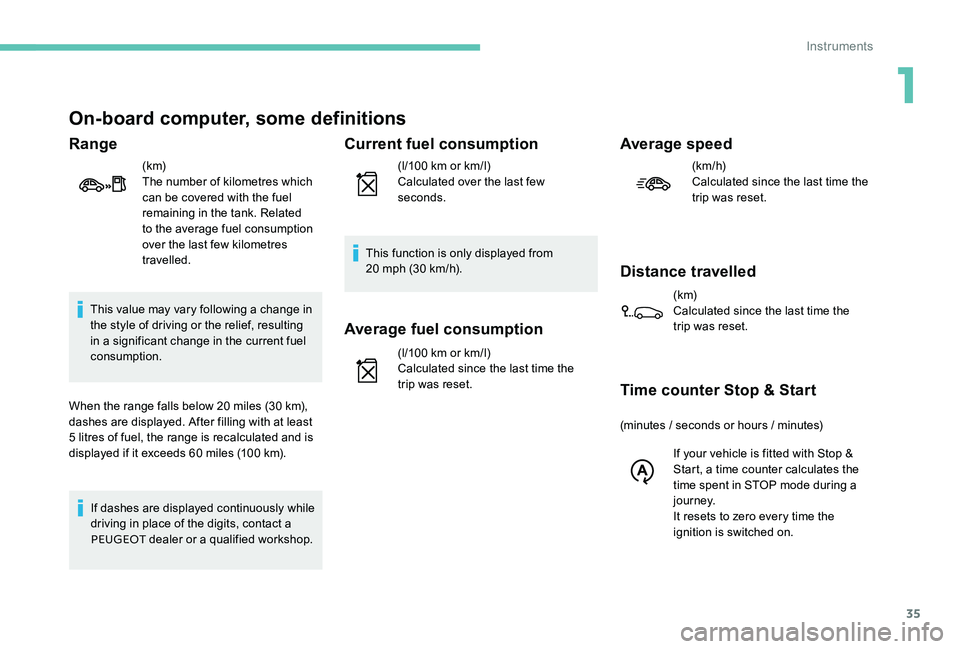

On-board computer, some definitions
Range
(k m)
The number of kilometres which
can be covered with the fuel
remaining in the tank. Related
to the average fuel consumption
over the last few kilometres
travelled.
This value may vary following a change in
the style of driving or the relief, resulting
in a significant change in the current fuel
consumption.
When the range falls below 20 miles (30 km),
dashes are displayed. After filling with at least
5 litres of fuel, the range is recalculated and is
displayed if it exceeds 60 miles (100 km).
If dashes are displayed continuously while
driving in place of the digits, contact a
PEUGEOT dealer or a qualified workshop.
Current fuel consumption
(l/100 km or km/l)
Calculated over the last few
seconds.
This function is only displayed from
20 mph (30 km/h).
Average fuel consumption
(l/100 km or km/l)
Calculated since the last time the
trip was reset.
Average speed
(km/h)
Calculated since the last time the
trip was reset.
Distance travelled
(k m)
Calculated since the last time the
trip was reset.
Time counter Stop & Start
If your vehicle is fitted with Stop &
Start, a time counter calculates the
time spent in STOP mode during a
j o u r n ey.
It resets to zero every time the
ignition is switched on.
(minutes / seconds or hours / minutes)
1
Instruments

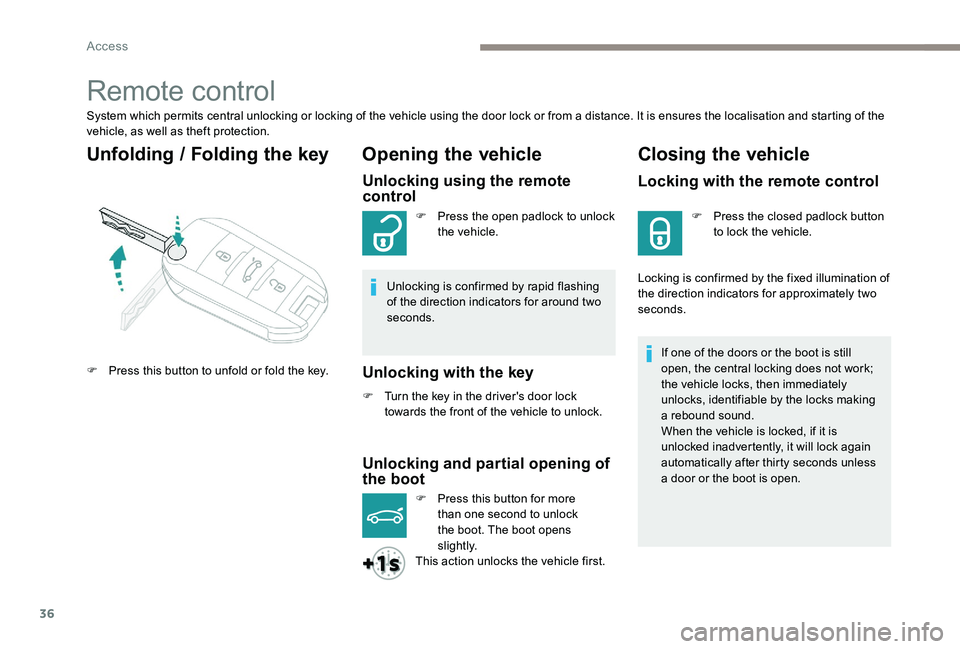

36
Remote control
System which permits central unlocking or locking of the vehicle using the door lock or from a distance. It is ensures the localisation and starting of the
vehicle, as well as theft protection.
Unfolding / Folding the key Opening the vehicle
Unlocking using the remote
control
F Press the open padlock to unlock the vehicle.
Unlocking is confirmed by rapid flashing
of the direction indicators for around two
seconds.
Unlocking with the key
F Turn the key in the driver's door lock towards the front of the vehicle to unlock.
Unlocking and partial opening of
the boot
F Press this button for more than one second to unlock
the boot. The boot opens
s li g ht l y.
This action unlocks the vehicle first.
Closing the vehicle
Locking with the remote control
F Press the closed padlock button to lock the vehicle.
If one of the doors or the boot is still
open, the central locking does not work;
the vehicle locks, then immediately
unlocks, identifiable by the locks making
a rebound sound.
When the vehicle is locked, if it is
unlocked inadvertently, it will lock again
automatically after thirty seconds unless
a door or the boot is open.
Locking is confirmed by the fixed illumination of
the direction indicators for approximately two
seconds.
F

P

ress this button to unfold or fold the key.
Access

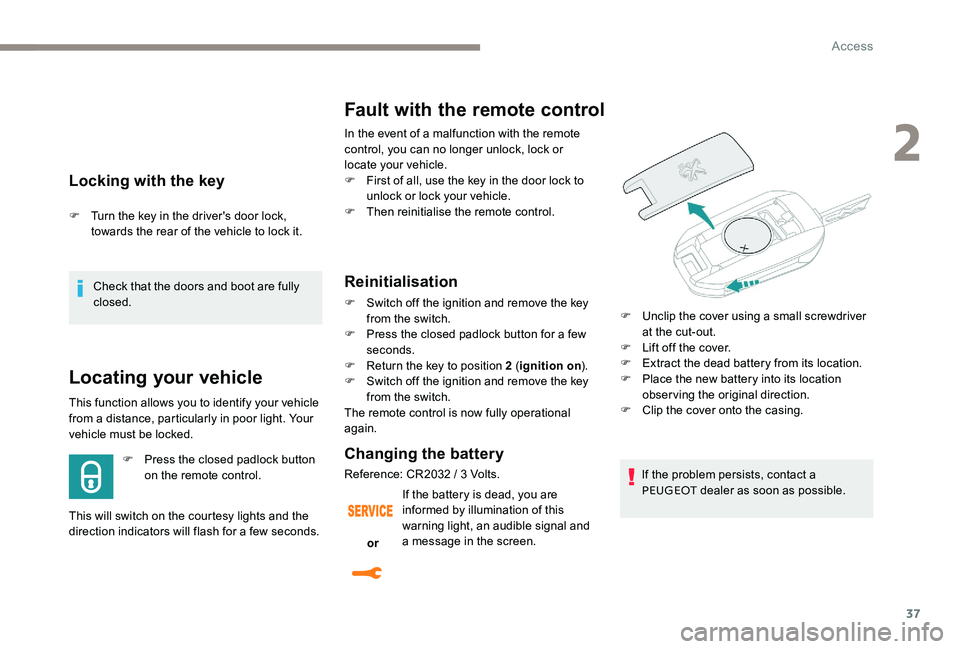

37
Locking with the key
F Turn the key in the driver's door lock, towards the rear of the vehicle to lock it.
Check that the doors and boot are fully
closed.
Locating your vehicle
This function allows you to identify your vehicle
from a distance, particularly in poor light. Your
vehicle must be locked. F

P
ress the closed padlock button
on the remote control.
This will switch on the courtesy lights and the
direction indicators will flash for a few seconds.
Fault with the remote control
In the event of a malfunction with the remote
control, you can no longer unlock, lock or
locate your vehicle.
F

F
irst of all, use the key in the door lock to
unlock or lock your vehicle.
F

T
hen reinitialise the remote control.
Reinitialisation
F Switch off the ignition and remove the key from the switch.
F

P
ress the closed padlock button for a few
seconds.
F

R
eturn the key to position 2 ( ignition on).
F

S
witch off the ignition and remove the key
from the switch.
The remote control is now fully operational
again.
Changing the battery
Reference: CR2032 / 3 Volts. If the problem persists, contact a
PEUGEOT dealer as soon as possible.
or If the battery is dead, you are
informed by illumination of this
warning light, an audible signal and
a message in the screen. F

U
nclip the cover using a small screwdriver
at the cut-out.
F
L
ift off the cover.
F
E
xtract the dead battery from its location.
F
P
lace the new battery into its location
observing the original direction.
F
C
lip the cover onto the casing.
2
Access

38

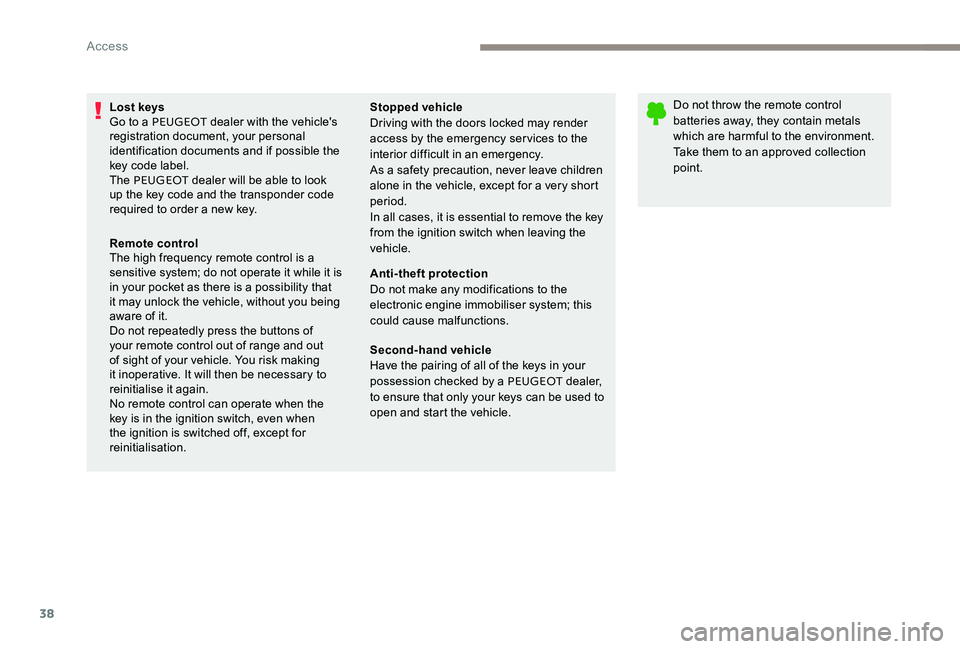

Lost keys
Go to a PEUGEOT dealer with the vehicle's
registration document, your personal
identification documents and if possible the
key code label.
The PEUGEOT dealer will be able to look
up the key code and the transponder code
required to order a new key.
Remote control
The high frequency remote control is a
sensitive system; do not operate it while it is
in your pocket as there is a possibility that
it may unlock the vehicle, without you being
aware of it.
Do not repeatedly press the buttons of
your remote control out of range and out
of sight of your vehicle. You risk making
it inoperative. It will then be necessary to
reinitialise it again.
No remote control can operate when the
key is in the ignition switch, even when
the ignition is switched off, except for
reinitialisation. Stopped vehicle
Driving with the doors locked may render
access by the emergency services to the
interior difficult in an emergency.
As a safety precaution, never leave children
alone in the vehicle, except for a very short
period.
In all cases, it is essential to remove the key
from the ignition switch when leaving the
vehicle.
Anti-theft protection
Do not make any modifications to the
electronic engine immobiliser system; this
could cause malfunctions.
Second-hand vehicle
Have the pairing of all of the keys in your
possession checked by a PEUGEOT
dealer,
to ensure that only your keys can be used to
open and start the vehicle. Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.
Access
