ESP Peugeot 306 Break 2002 Owner's Manual

98
YOUR 306 IN DETAIL
- Switch on the ignition.
- The display begins a 10 secondcountdown.
- Release the button before the countdown finishes.
- The service interval is displayed.
- Each brief press of button 1alter-
nates the service intervals.
To change the service interval
- Switch off the ignition.
- Press and hold button 1. Example:
- When the chosen service interval
is displayed, press button 1for
10 seconds (countdown) to confirm. Reset
Your PEUGEOT dealer carries out this operation after each service.
However, if you service the vehicleyourself, reset as follows:
- Switch off the ignition.
- Press and hold button
1.
- Switch on the ignition.
- The display begins a 10 second countdown.
- Keep button 1pressed for
10 seconds.
- The display shows [= 0]and the
service symbol disappears.
Service intervals If your vehicle is used in certain par-
ticularly difficult conditions it is nec-essary to follow the "Arduous condi-tions" servicing schedule, whichinvolves shorter intervals between
services (see your Warranty andMaintenance Record booklet). Comment:
If the time limit between
two services is reached before the rel- evant mileage limit, the servicespanner symbol will light up and thedisplay will show 0.
1

98
YOUR 306 IN DETAIL
- Switch on the ignition.
- The display begins a 10 secondcountdown.
- Release the button before the countdown finishes.
- The service interval is displayed.
- Each brief press of button 1alter-
nates the service intervals.
To change the service interval
- Switch off the ignition.
- Press and hold button 1. Example:
- When the chosen service interval
is displayed, press button 1for
10 seconds (countdown) to confirm. Reset
Your PEUGEOT dealer carries out this operation after each service.
However, if you service the vehicleyourself, reset as follows:
- Switch off the ignition.
- Press and hold button
1.
- Switch on the ignition.
- The display begins a 10 second countdown.
- Keep button 1pressed for
10 seconds.
- The display shows [= 0]and the
service symbol disappears.
Service intervals If your vehicle is used in certain par-
ticularly difficult conditions it is nec-essary to follow the "Arduous condi-tions" servicing schedule, whichinvolves shorter intervals between
services (see your Warranty andMaintenance Record booklet). Comment:
If the time limit between
two services is reached before the rel- evant mileage limit, the servicespanner symbol will light up and thedisplay will show 0.
1

20TYPES OF SERVICE
Each vehicle has its own servicing cycle, defined by the manufacturer in accordance with each vehicleÕs specific technical features.
This cycle consists of alternating 2 types of service A and C, intermediate visits, and a few additional operations depending on your vehicle ; these correspond to key stages in the life of your 306. Services of type B are designed for less recent vehicles.
Your dealer will indicate the type and content of the next service when the first service is carried out, and at each subsequent service.
Intermediate visit
* Whichever comes first Automatic gearbox oil level every 40,000 miles (60,000km) Brake fluid
replacement every 2 years or every 40,000 miles (60,000km)
These operations are carried out with synthetic based oil; Fuel Economy oil or
MAINTENANCE OF YOUR 306
THE MAINTENANCE CYCLE FOR YOUR PETROL 306
Service every 20,000 miles (30 000 km) or 2 years
MILES (KM) 20,000 (30 000) 40,000 (60 000) 60,000 (90 000) 80,000 (120 000)
1st service at
6,000 miles (10 000 km)* or 6 months
The validity of the
Warranty depends on this service.
100,000 (150 000) 120,000 (180 000) 140,000 (210 000) 160,000 (240 000) 180,000 (270 000)
+ timing belt replacement + timing belt replacement
AA
A
CC
AACC

YOUR 306 IN DETAIL61
Manual station search Press the Ò MANÓ button.
Briefly press button ÒJÓ orÒKÓ respectively to increase or reduce the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency. Scrolling stops as soon as you release the button.Pressing the ÒMANÓbutton again returns you to automatic station search.
Manual storing of stations in the memory Select the station required. Press for more than two seconds one of the buttons Ò 1Ó to Ò 6Ó.
The sound stops then becomes audible again, confirming that the station has been stored in memory. Automatic storing of FM stations in the memory (autostore) Press the Ò BND/ASTÓ button for more than two seconds, to automatically store the 6 stations with the strongest
signal in FM. These stations are stored in the FMIII waveband.
- If it is not possible to find 6 stations, the remaining memories are empty.
Recalling stations stored in the memory For each waveband, briefly pressing the buttons Ò1Óto Ò6Ó recalls the corresponding stored station.
RDS FUNCTION Using the RDS (Radio Data System) function on FM RDS allows you to continue to listen to the same station, whatever frequency it is using for the region you are going through.
Switch the function on or off by briefly pressing the Ò RDSÓ button.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best reception and which is transmitting the same programme.

64
YOUR 306 IN DETAIL
CD MULTI-CHANGER (Available as an accessory) Selecting the CD changer Press the "SRC"button until the CD changer is selected.
Selecting a discPress a button from Ò 1Ó to Ò 6Ó to select the corresponding disc.
Selecting a trackPress button Ò JÓ to select the next track.
Press button Ò KÓ to return to the start of the current track or to select the previous track.
Accelerated playPress the Ò MANÓ button.
Keep button Ò JÓ or Ò KÓ pressed for forwards or backwards accelerated play.
Accelerated play stops as soon as you release the button. Buttons Ò JÓ and Ò KÓ resume the Òtrack selectionÓ function when the Ò MANÓ button is pressed again.
Shuffle (RAND) When the CD multi-changer is selected, keep the Ò SRCÓ button pressed for two seconds. The tracks will be played
in random sequence. Pressing the Ò SRCÓ button again for two seconds returns you to normal play.

70
YOUR 306 IN DETAIL
RADIO Notes on radio reception
Your car radio receiver is subject to phenomena which do not affect domestic sets. Both MW/LW and FM recep- tion are subject to various forms of interference which are not a reflection on the quality of your set, but are dueto the nature of the signals and the way in which they are transmitted.
On MW/LW, interference may be noticed when passing underneath high voltage power lines or bridges or in tunnels.
On FM, interference may be the result of distance from the transmitter, reflection of the signal by obstacles (moun-
tains, hills, buildings etc), or of being in an area which is not covered by a transmitter. Selecting the radio Press the " J" button.
Selecting a waveband By short presses on the Ò JÓ button, you can select the FM1, FM2, FM3 and AM wavebands.
Automatic station searchBriefly press button Ò GÓ or Ò HÓ to search for the station immediately above or below. By continuing to press the button
in the direction selected, you will obtain continuous scrolling of the frequency. The scrolling stops on the first station found immediately after you release the button.
If TA, traffic information programme, is selected, only stations broadcasting this type of programme are selected.Searching for a station occurs first in Ò LOÓ sensitivity (selection of the most powerful transmitters) during
scanning of the waveband, then in Ò DXÓ sensitivity (selection of the weakest and most distant transmitters).
To scan the waveband in Ò DXÓ sensitivity, press twice on button Ò GÓ or Ò HÓ.
Manual station search Press the Ò MANÓ button.
Briefly press button ÒGÓor ÒHÓ respectively to increase or reduce the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency. Scrolling stops as soon as you release the button.Pressing the ÒMANÓbutton again returns you to automatic station search.

71
YOUR 306 IN DETAIL
Manual storing of stations in the memory Select the station required. Press for more than two seconds one of the buttons Ò 1Ó to Ò 6Ó.
The sound stops then becomes audible again, confirming that the station has been stored in memory. Automatic storing of FM stations in the memory (autostore) Press the Ò JÓ button for more than two seconds, to automatically store the 6 stations with the strongest signal in
FM. These stations are stored in the FM3 waveband.
- If it is not possible to find 6 stations, the remaining memories are empty. Recalling stations stored in the memory For each waveband, briefly pressing the buttons Ò1Óto Ò6Ó recalls the corresponding stored station.

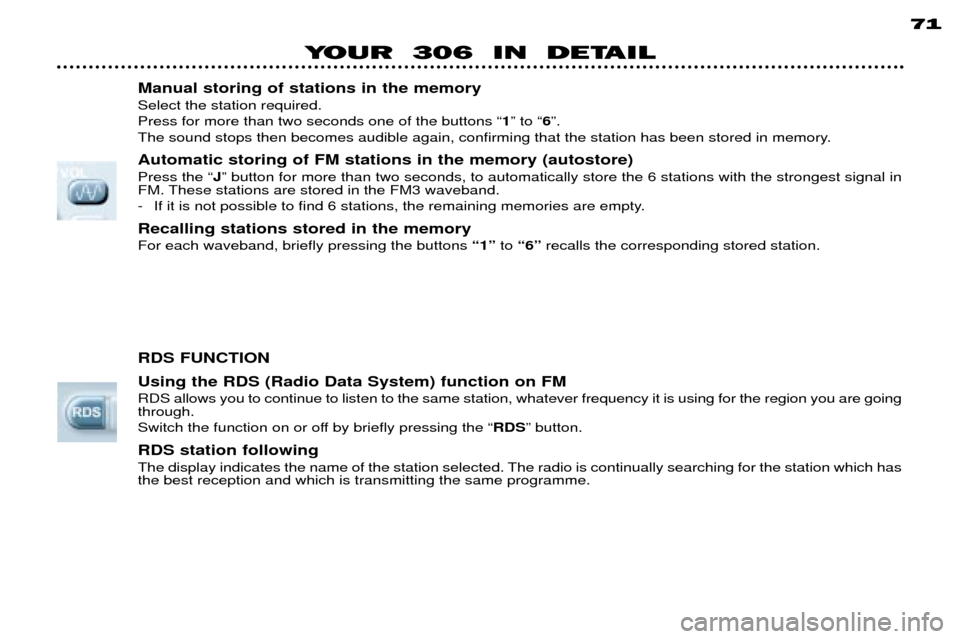

RDS FUNCTION Using the RDS (Radio Data System) function on FM RDS allows you to continue to listen to the same station, whatever frequency it is using for the region you are going through.
Switch the function on or off by briefly pressing the Ò RDSÓ button.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best reception and which is transmitting the same programme.

72
YOUR 306 IN DETAIL
Traffic information programme Press the Ò TAÓ button to switch the function on or off.
Any traffic information flash will be broadcast as a priority, whether you are using the radio, CD, CD multi-
changer. If you wish to interrupt a message, press the ÒTAÓbutton; this switches off the function.
Note : the volume of the traffic information announcements is independent of the volume of normal radio
listening. You can adjust it using the volume button. The setting will be stored and will be used when thenext messages are broadcast.
While traffic information is being broadcast, the display will alternately show Ò TRAFFICÓ and the name of the
station.
When the station selected cannot broadcast traffic information, the display shows Ò NO TAÓ.
Regional following mode (REG) When they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With regional following mode you can keep listening to the same programme.
To do this press the ÒRDSÓbutton for more than two seconds to switch this function on or off.
PTY function This allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock etc.). With FM selected, press the Ò TAÓ button for two seconds to switch this function on or off.
To find a PTY programme:
- switch on the PTYfunction,
- briefly press button ÒGÓor ÒHÓ to scroll down the list of the various types of programmes offered,
- when the programme of your choice is displayed, keep button ÒGÓ orÒHÓ pressed for more than two seconds
to carry out an automatic search (after an automatic search the PTY function is switched off).
In PTY mode the different types of programmes can be stored in memory. To do this, press down the preselec-
tion buttons Ò1Óto Ò6Ó for more than two seconds. Recalling the type of programme stored in the memory is by
a brief press on the corresponding button.

74
YOUR 306 IN DETAIL
CD MULTI-CHANGER Selecting the CD multi-changer Press the Ò LÓ button.
Selecting a discPress a button from Ò 1Ó to Ò 6Ó to select the corresponding disc.
Selecting a trackPress button Ò GÓ to select the next track.
Press button Ò HÓ to return to the start of the current track or to select the previous track.
Accelerated playPress the Ò MANÓ button.
Keep button Ò GÓ or Ò HÓ pressed for forwards or backwards accelerated play.
Accelerated play stops as soon as you release the button. Buttons Ò GÓ and Ò HÓ resume the Òtrack selectionÓ function when the Ò MANÓ button is pressed again.
Shuffle (RDM) When the CD multi-changer is selected, keep the Ò LÓ button pressed for two seconds. The tracks will be played
in random sequence. Pressing the Ò LÓ button again for two seconds returns you to normal play.

84
YOUR 306 IN DETAIL

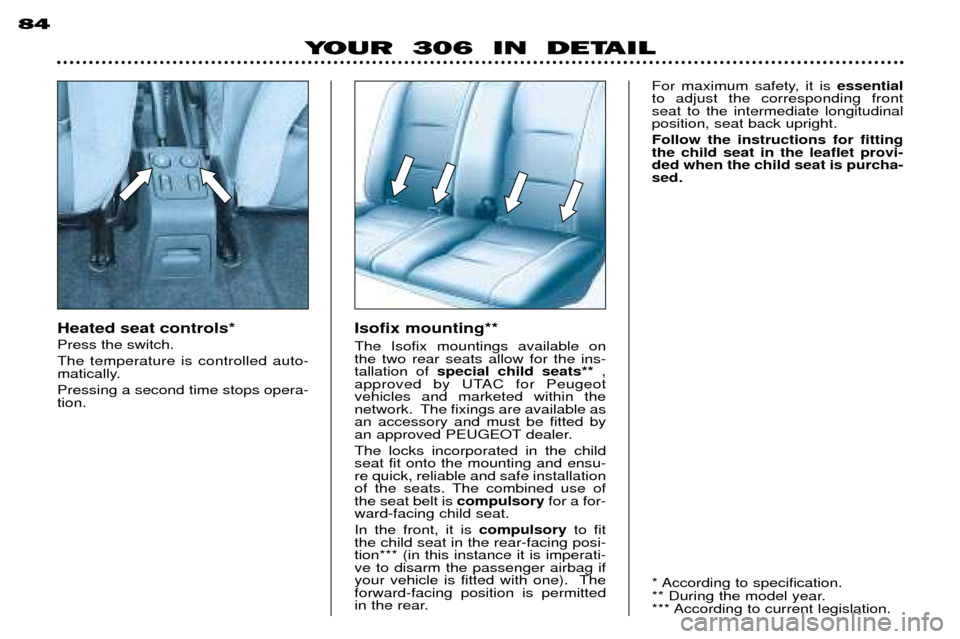

Heated seat controls* Press the switch.The temperature is controlled auto-
matically. Pressing a second time stops opera- tion.Isofix mounting** The Isofix mountings available on the two rear seats allow for the ins-tallation of
special child seats** ,
approved by UTAC for Peugeotvehicles and marketed within the
network. The fixings are available asan accessory and must be fitted by
an approved PEUGEOT dealer. The locks incorporated in the child seat fit onto the mounting and ensu-re quick, reliable and safe installation
of the seats. The combined use ofthe seat belt is compulsoryfor a for-
ward-facing child seat. In the front, it is compulsoryto fit
the child seat in the rear-facing posi- tion*** (in this instance it is imperati-ve to disarm the passenger airbag if
your vehicle is fitted with one). Theforward-facing position is permitted
in the rear.
* According to specification.
** During the model year.
*** According to current legislation.
For maximum safety, it is essential
to adjust the corresponding front seat to the intermediate longitudinalposition, seat back upright. Follow the instructions for fitting the child seat in the leaflet provi-ded when the child seat is purcha-sed.
