92
YOUR 306 IN DETAIL
1Low coolant level*.
2 Headlamp main beam.
3 Pre-heat (Diesel).
4 Headlamp dipped beam.
5 Water in fuel filter warning light* (Diesel).
6 Speedometer.
7 Left indicator.
8 Low oil pressure warning light.
9 Handbrake low brake fluid level andelectronic brake force distribution.
10 Battery charge. 11
Right indicator.
12 Rev counter.
13 Front fog lamps*.
1 4 Rear fog lamp.
15 ABS: anti-lock braking system*.
16 Fuel gauge.
17 Low fuel level.
18 STOP warning.
19 Seat belt not fastened warning light*.
20 Disarming of passenger airbag**. 21
Side airbags warning light*.
22 Front* and side** airbag warninglight and disarming passengerairbag*.
23 Autodiagnostics*.
24 Trip recorder and service indicator.
25 Trip recorder zero reset and clocksetting.
26 Coolant temperature gauge.
* According to specification or country.
** According to model.
56 78 910 11 12 13 14 15
4 321
26 25 24 23 22 21 20 19 18 17 16
INSTRUMENT PANEL

93
YOUR 306 IN DETAIL
13 14

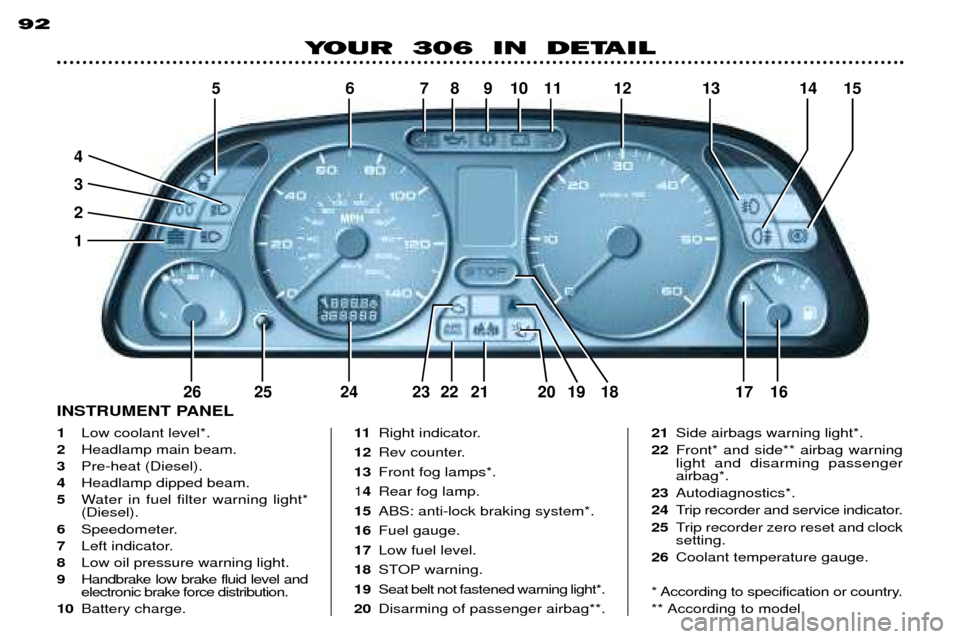

1Low coolant level.
2 Headlamp main beam.
3 Headlamp dipped beam.
4 Speedometer.
5 Left indicator.
6 Low oil pressure warning light.
7 Handbrake low brake fluid level and electronic brake force distribution.
8 Battery charge.
9 Right indicator.
10 Rev counter.
11 Front fog lamps. 12
Brake pad wear warning light*.
13 Rear fog lamp.
14 ABS: anti-lock braking system*.
15 Fuel gauge.
16 Low fuel level.
17 Oil level and temperature gauge.
18 STOP warning.
19 Seat belt not fastened warninglight*.
20 Disarming of passenger airbag**.
21 Side airbags warning light*. 22
Front* and side** airbag warninglight and disarming passengerairbag*.
23 Autodiagnostics*.
24 Trip recorder and service indicator.
25 Trip recorder zero reset and clocksetting.
26 Coolant temperature gauge.
* According to specification or country.
** According to model.
12 3 4 56789 1 0 11 1 2
26 25 24 23 22 21 20 19 18 17 16 15
13 14
INSTRUMENT PANEL

94
YOUR 306 IN DETAIL

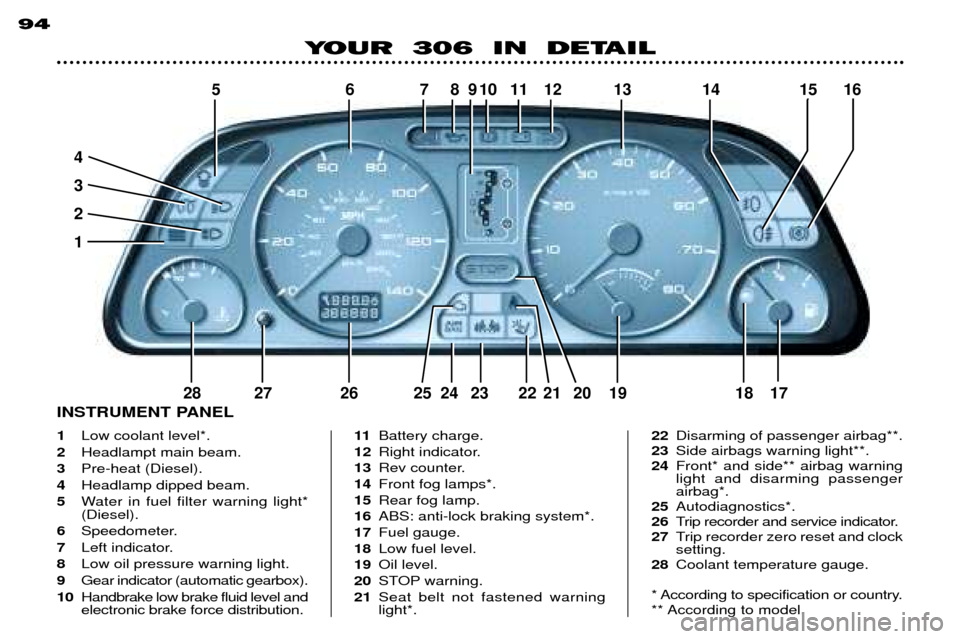

1Low coolant level*.
2 Headlampt main beam.
3 Pre-heat (Diesel).
4 Headlamp dipped beam.
5 Water in fuel filter warning light* (Diesel).
6 Speedometer.
7 Left indicator.
8 Low oil pressure warning light.
9 Gear indicator (automatic gearbox).
10 Handbrake low brake fluid level andelectronic brake force distribution. 11
Battery charge.
12 Right indicator.
13 Rev counter.
14 Front fog lamps*.
15 Rear fog lamp.
16 ABS: anti-lock braking system*.
17 Fuel gauge.
18 Low fuel level.
19 Oil level.
20 STOP warning.
21 Seat belt not fastened warninglight*. 22
Disarming of passenger airbag**.
23 Side airbags warning light**.
24 Front* and side** airbag warninglight and disarming passengerairbag*.
25 Autodiagnostics*.
26 Trip recorder and service indicator.
27 Trip recorder zero reset and clocksetting.
28 Coolant temperature gauge.
* According to specification or country.
** According to model.
56 78910 11 12 13 14 15 16
4 321
28 27 26 25 24 23 22 21 20 19 18 17
INSTRUMENT PANEL

YOUR 306 IN DETAIL
102
Rear screen demisting Rear screen (and mirrors)* electric demisting control. Goes out automatically after
approximately 12 minutes to avoid excessive power consumption. Pressing the button again will operate the demisting for another 12 minutes.
* According to specification.

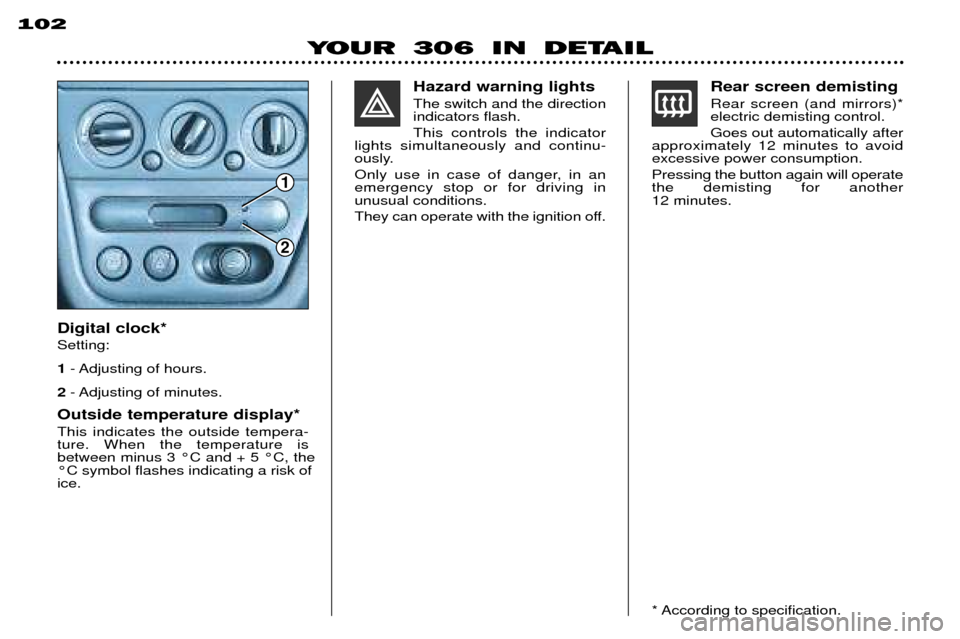

Digital clock* Setting: 1
- Adjusting of hours.
2 - Adjusting of minutes.
Outside temperature display* This indicates the outside tempera- ture. When the temperature isbetween minus 3 ¡C and + 5 ¡C, the¡C symbol flashes indicating a risk ofice.Hazard warning lights The switch and the direction indicators flash. This controls the indicator
lights simultaneously and continu-
ously.
Only use in case of danger, in an emergency stop or for driving inunusual conditions.
They can operate with the ignition off.
1
2
