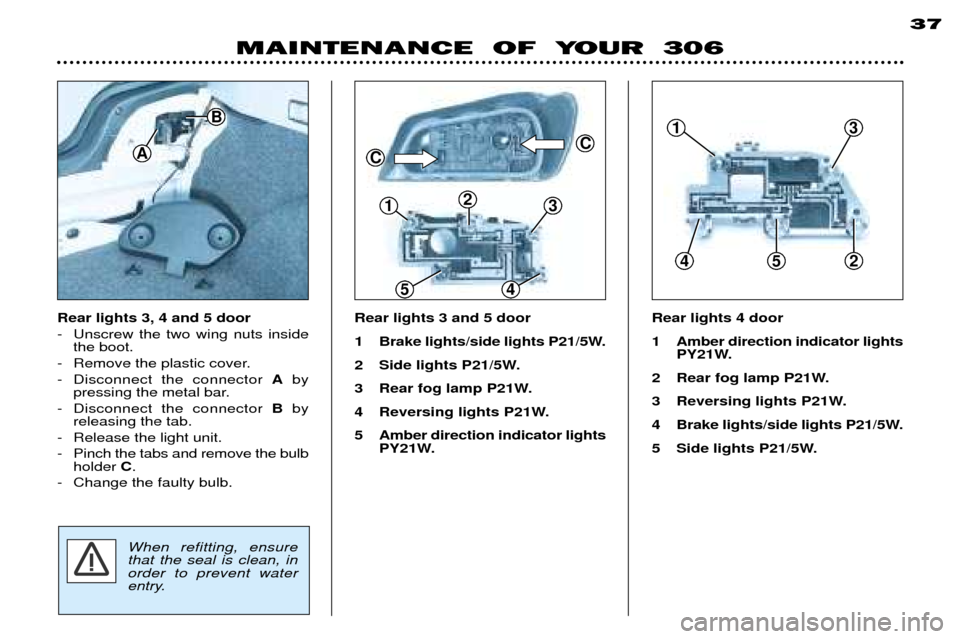

MAINTENANCE OF YOUR 30637
Rear lights 3 and 5 door
1 Brake lights/side lights P21/5W.
2 Side lights P21/5W.
3 Rear fog lamp P21W.
4 Reversing lights P21W.
5 Amber direction indicator lights PY21W.
Rear lights 3, 4 and 5 door
- Unscrew the two wing nuts inside
the boot.
- Remove the plastic cover.
- Disconnect the connector Aby
pressing the metal bar.
- Disconnect the connector Bby
releasing the tab.
- Release the light unit.
- Pinch the tabs and remove the bulb holder C.
- Change the faulty bulb.
Rear lights 4 door
1 Amber direction indicator lights PY21W.
2 Rear fog lamp P21W.
3 Reversing lights P21W.
4 Brake lights/side lights P21/5W.
5 Side lights P21/5W.
12
54
3
A
B1
452
3
When refitting, ensure that the seal is clean, inorder to prevent water
entry.
CC
Page 109 of 131
MAINTENANCE OF YOUR 306
38
Rear lights (estate)
- Open the storage compartment
inside the boot.
- Open the access flap.
- Unscrew the wing bolt on the inside.
- Unscrew the second wing bolt outside the vehicle.
Use the wheelbrace to make it easier to unscrew the bolts. Warning:never
use it for refitting.
- Release the light unit.
- Disconnect the connector by pres- sing the metal bar.
- Pinch the tabs and remove the bulb holder.
- Change the faulty bulb.
Fog lamp P21W
This is located in the bumper.Additional brake light 5 bulbs W5WRemove the plastic protector by pres- sing the notches
A.
Squeeze the tabs Bto release the
lamp holder. Change the faulty bulb.
1 Amber direction indicator lights
PY21W.
2 Reversing lights P21W.
3 Brake lights/side lights P21/5W.
AA
BB
1
2
3The bulbs must be repla- ced by bulbs of identical
specification and colour.
