MAINTENANCE OF YOUR 30623
PEUGEOT SERVICING LEVELS A AND C
First Level
Operations Description of operations
serviceACIntermediate visit
DRAIN AND REFILL- Engine oil.- Bleed fuel filter (diesel).- Oil filter.- Fuel filter (Petrol).REPLACEMENT- Fuel filter element (Diesel).- Air filter element.- Spark plugs (Petrol).- Engine oil (check + top up).- Manual gearbox oil (check + top up).- Battery (check + top up) if cap is removable.LEVEL- Front/rear windscreen wash (check + top up).- Coolant (check + top up).- Brake fluid (check + top up).- Power steering fluid (check + top up according to specification).- Operation of lights and indicators.- Condition of glass, headlamp and light lenses and mirrors.- Horn.- Windscreen washer jets.- Condition of wiper blades.- Condition and tension of ancillary drive belts.- Handbrake.- Condition of hydraulic circuits (hoses and covers), check for leaks.CHECK- Condition of rubber boots and gaiters.- Brake pad wear. - Play in hubs, rods, ball joints, flexible mountings.- Shock absorbers for leaks.- Rear drum brake lining wear.- Condition and pressure of tyres (including spare wheel).- Emission control check according to current legislation (Petrol).- Smoke opacity (Diesel).- Pollen filter check (according to specification). - Visual check of the whole vehicle by a PEUGEOT dealer.
: All driving conditions : Arduous conditions

25
MAINTENANCE OF YOUR 306
Recommendations for approved lubricants
The oils which appear in the tableopposite are suitable for most purposes. The diagram opposite states the optimum range of viscosity depen-ding on the temperatures at which theoils are to be used. It is also possible to use synthetic oils of Ôsuperior qualityÕ. In the absence of semi-synthetic or
synthetic oils, oils of API SH/SJquality (for petrol engines), or CD/CF(for diesel engines) may be used byfollowing the ÔArduous ConditionsÕmaintenance schedule which speci-fies shorter intervals. Do not hesitate to ask for advice from
a PEUGEOT dealer to maintaindriving pleasure and to minimise themaintenance cost of your vehicle. For countries outside Europe, please
contact a local PEUGEOT dealer.
0W203040
50
20W
15W
10W
5W
ESSENTIAL ESSENTIAL
Manual gearbox ESSO GEAR OIL BVTOTAL TRANSMISSION BV75W 80 PR 9736.41 75W 80
Automatic ESSENTIAL
gearbox AL4 ATF 4HP20-AL4 PR 9736.22
Automatic ESSO ATF D TOTAL FLUIDE AT42
gearbox PR 9730.944 HP-14
Power steering ESSO ATF D TOTAL FLUIDE AT42 PR 9730.94
Brake fluid PEUGEOT DOT4 Coolant PROCOR TM108 / GLYSANTIN G33 or REVKOGEL 2000
ESSENTIAL Protection to minus 35 ¡C
Other approved products

107
DRIVING YOUR 306
Handbrake Application When you have parked the vehicle, pull up the handbrake to apply it.
To ease application and release of the handbrake, press the brake pedal andpull up the handbrake with the enginerunning. Release Press the button before releasing the handbrake.THE ABS ANTI-LOCK BRAKING SYSTEM* In conjunction with tyres of an approved make and in good condi-
tion, the ABS system with electronicbrake force distribution improves thestability and handling of your vehicle,particularly on an uneven or slipperysurface. The anti-lock braking system comes into operation automatically whenthere is a risk of wheel lock.

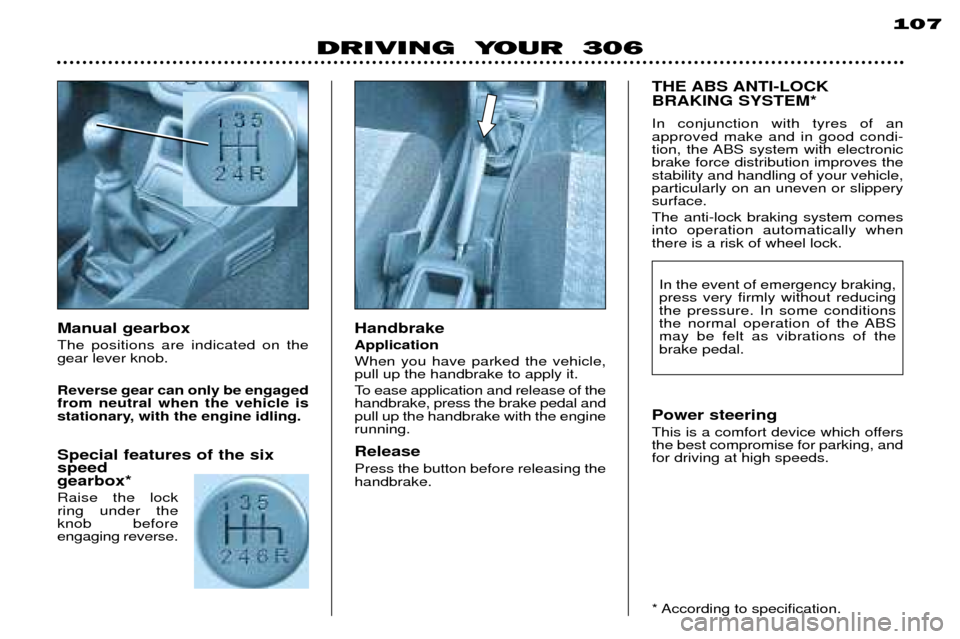

Manual gearbox The positions are indicated on the gear lever knob. Reverse gear can only be engaged from neutral when the vehicle is
stationary, with the engine idling. Special features of the six speedgearbox* Raise the lock ring under theknob beforeengaging reverse. In the event of emergency braking,press very firmly without reducingthe pressure. In some conditions
the normal operation of the ABSmay be felt as vibrations of thebrake pedal.
* According to specification.
Power steering
This is a comfort device which offers the best compromise for parking, andfor driving at high speeds.

26
MAINTENANCE OF YOUR 306
1Power steering fluid reservoir*.
2 Engine oil filler cap.
3 Air filter. 4
Brake fluid reservoir.
5 Battery.
6 Engine oil dipstick. 7
Oil filter.
8 Coolant reservoir.
9 Screenwash reservoir.
* According to specification.
1
9
8
7
6
5
432
1.4 litre and 1.6 litre petrol engine

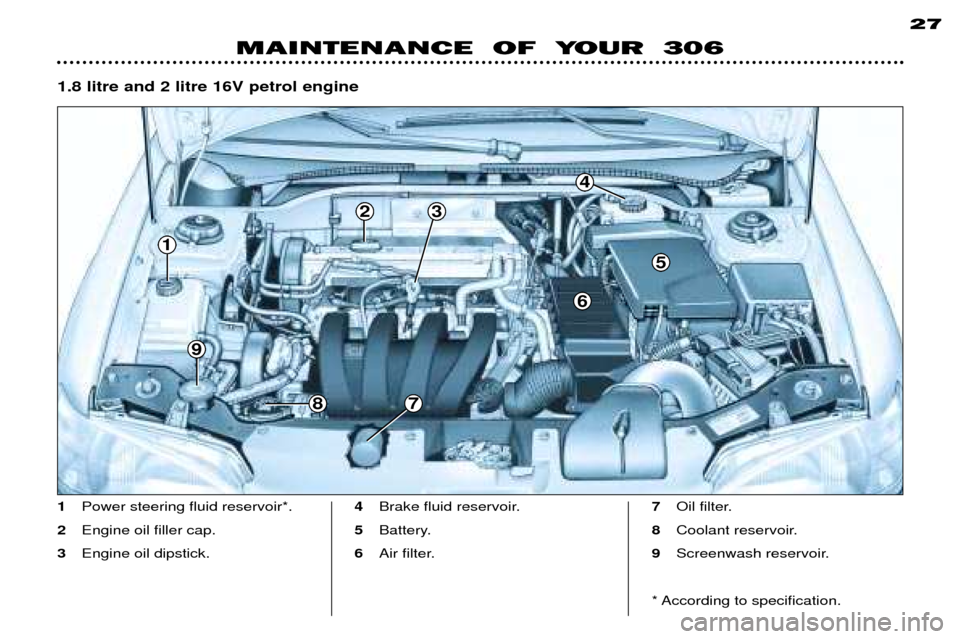

1.8 litre and 2 litre 16V petrol engine27
MAINTENANCE OF YOUR 306
1
9
7
6
5
4
8
23
1
Power steering fluid reservoir*.
2 Engine oil filler cap.
3 Engine oil dipstick. 4
Brake fluid reservoir.
5 Battery.
6 Air filter. 7
Oil filter.
8 Coolant reservoir.
9 Screenwash reservoir.
* According to specification.

MAINTENANCE OF YOUR 306
28
1
Power steering fluid reservoir*.
2 Engine oil dipstick.
3 Engine oil filler cap. 4
Brake fluid reservoir.
5 Battery.
6 Air filter. 7
Oil filter.
8 Coolant reservoir.
9 Screenwash reservoir.
* According to specification.
1
9
5
3
2
4
8
6
7

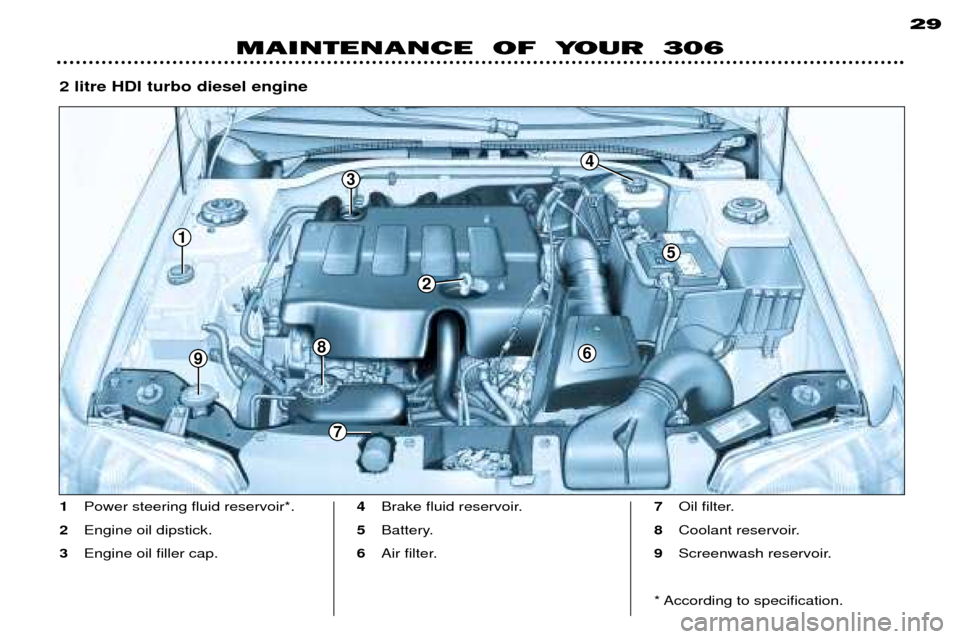

1.9 litre diesel engine

MAINTENANCE OF YOUR 30629
1
Power steering fluid reservoir*.
2 Engine oil dipstick.
3 Engine oil filler cap. 4
Brake fluid reservoir.
5 Battery.
6 Air filter. 7
Oil filter.
8 Coolant reservoir.
9 Screenwash reservoir.
* According to specification.
1
9
5
3
2
4
8
7
6

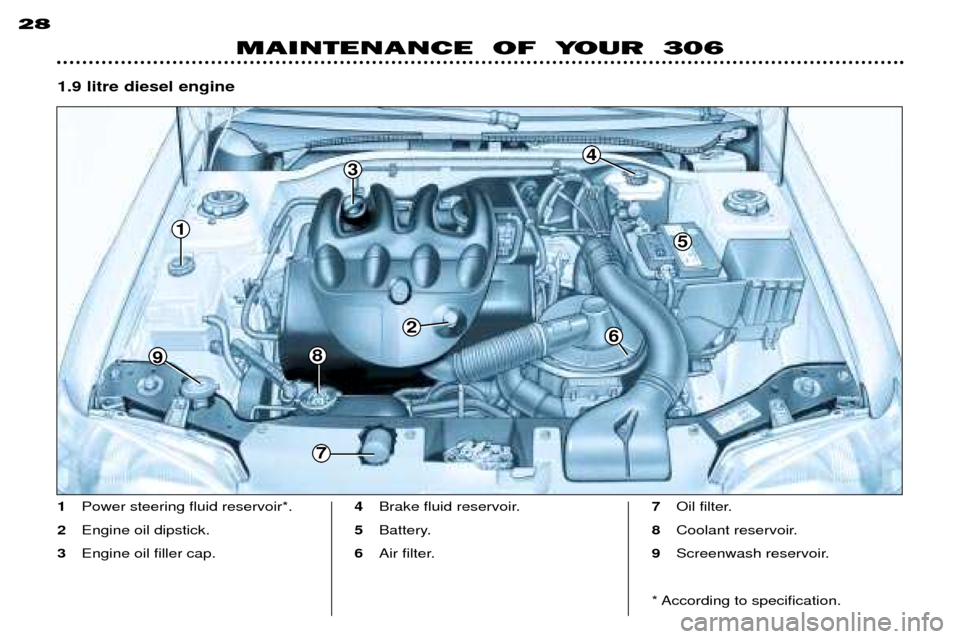

2 litre HDI turbo diesel engine

MAINTENANCE OF YOUR 30631
Power steering reservoir
Open the reservoir, with the engine cold, at outside temperature, the levelshould always be above the MINImark, close to the MAXI mark.
Windscreen and headlamp wash reservoir* For best quality cleaning and for your
safety, we recommend that you useproducts approved by PEUGEOT(capacity 4,4 litres or 6 litres withheadlight wash). Battery
At the start of winter, have your battery checked by a PEUGEOT
dealer. Air filter Regular replacement of the filter element is essential. If you drive invery dusty conditions, change it twiceas often. Brake pads Brake pad wear depends on the style of driving, in particular for vehicleswhich are used in town or for shortjourneys or which are driven in a
sporty manner, it may be necessaryto check the thickness of the padseven between services. Manual gearbox This does not need an oil change. Check the level according to the
manufacturerÕs service schedule. Autoadaptive automatic gearbox This does not need an oil change: have the level checked by a
PEUGEOT dealer according to the
manufacturerÕs service schedule.
Only use products appro-
ved by Automobiles
PEUGEOT.
To ensure best perfor-
mance from components as impor- tant as the power steering and thebraking system, PEUGEOT selectsand offers quite specific products.
Fuel supply cut-off* In a serious collision, a system pre- vents fuel from reaching the engine.
To re-establish the fuel supply, press the switch on the angle of the front
left-hand suspension assembly, underthe bonnet.
* According to specification.

MAINTENANCE OF YOUR 30631
Power steering reservoir
Open the reservoir, with the engine cold, at outside temperature, the levelshould always be above the MINImark, close to the MAXI mark.
Windscreen and headlamp wash reservoir* For best quality cleaning and for your
safety, we recommend that you useproducts approved by PEUGEOT(capacity 4,4 litres or 6 litres withheadlight wash). Battery
At the start of winter, have your battery checked by a PEUGEOT
dealer. Air filter Regular replacement of the filter element is essential. If you drive invery dusty conditions, change it twiceas often. Brake pads Brake pad wear depends on the style of driving, in particular for vehicleswhich are used in town or for shortjourneys or which are driven in a
sporty manner, it may be necessaryto check the thickness of the padseven between services. Manual gearbox This does not need an oil change. Check the level according to the
manufacturerÕs service schedule. Autoadaptive automatic gearbox This does not need an oil change: have the level checked by a
PEUGEOT dealer according to the
manufacturerÕs service schedule.
Only use products appro-
ved by Automobiles
PEUGEOT.
To ensure best perfor-
mance from components as impor- tant as the power steering and thebraking system, PEUGEOT selectsand offers quite specific products.
Fuel supply cut-off* In a serious collision, a system pre- vents fuel from reaching the engine.
To re-establish the fuel supply, press the switch on the angle of the front
left-hand suspension assembly, underthe bonnet.
* According to specification.
