technical data Peugeot 306 Break 2002 Owner's Manual

112
TECHNICAL DATA
(1) With air conditioning. (2) Without air conditioning.

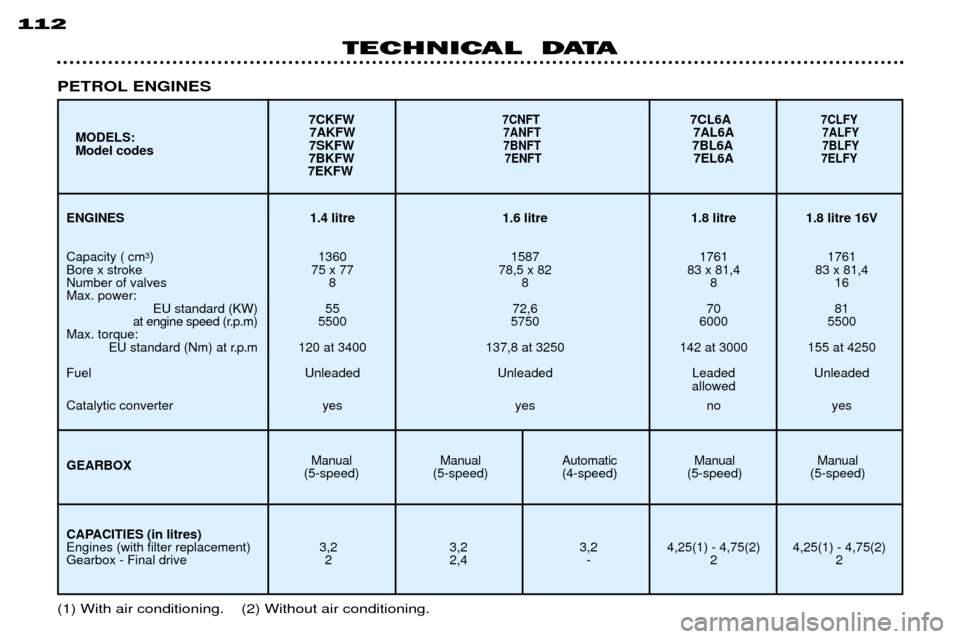

PETROL ENGINES
ENGINES 1.4 litre 1.6 litre 1.8 litre 1.8 litre 16V Capacity ( cm
3
) 1360 1587 1761 1761
Bore x stroke 75 x 77 78,5 x 82 83 x 81,4 83 x 81,4
Number of valves 8 8 8 16Max. power: EU standard (KW) 55 72,6 70 81
at engine speed (r.p.m) 5500 5750 6000 5500
Max. torque: EU standard (Nm) at r .p.m120 at 3400 137,8 at 3250 142 at 3000 155 at 4250
Fuel Unleaded Unleaded Leaded Unleaded
allowed
Catalytic converter yes yes no yes 7CKFW
7CNFT7CL6A7CLFY7AKFW7ANFT7AL6A7ALFY7SKFW7BNFT7BL6A7BLFY7BKFW7ENFT7EL6A7ELFY7EKFW
CAPACITIES (in litres)
Engines (with filter replacement) 3,2 3,2 3,2 4,25(1) - 4,75(2) 4,25(1) - 4,75(2)
Gearbox - Final drive 2 2,4 - 2 2 Manual Manual Automatic Manual Manual
(5-speed) (5-speed) (4-speed) (5-speed) (5-speed)
MODELS: Model codes
GEARBOX

113
TECHNICAL DATA
(1) With air conditioning. (2) Without air conditioning.

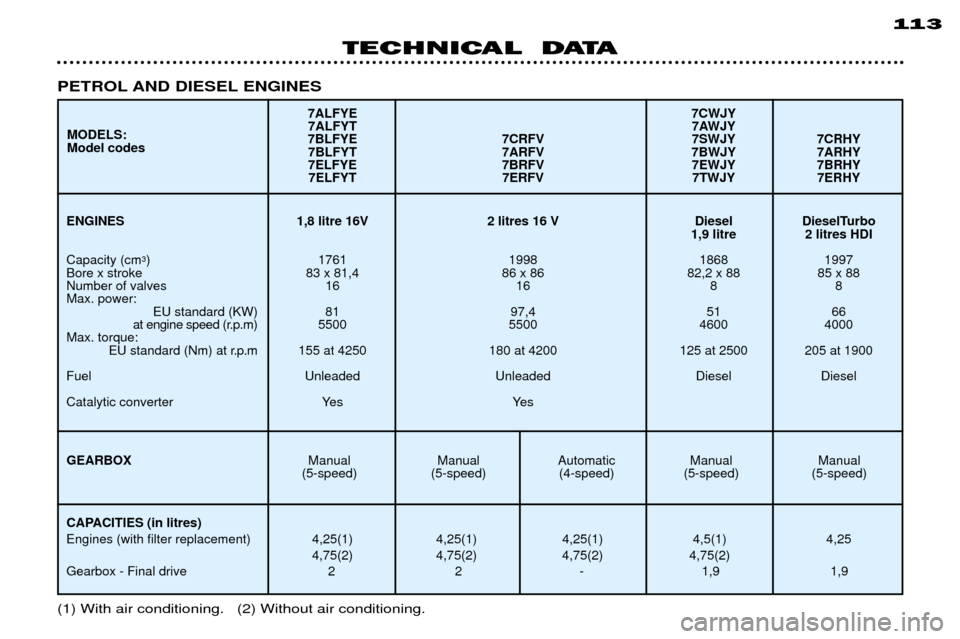

PETROL AND DIESEL ENGINES
ENGINES 1,8 litre 16V 2 litres 16 V Diesel DieselTurbo
1,9 litre 2 litres HDI
Capacity (cm 3
) 1761 1998 1868 1997
Bore x stroke 83 x 81,4 86 x 86 82,2 x 88 85 x 88
Number of valves 16 16 8 8Max. power: EU standard (KW) 81 97,4 51 66
at engine speed (r.p.m) 5500 5500 4600 4000
Max. torque: EU standard (Nm) at r .p.m155 at 4250 180 at 4200 125 at 2500 205 at 1900
Fuel Unleaded Unleaded Diesel Diesel
Catalytic converter Yes Yes 7ALFYE
7CWJY
7ALFYT 7AWJY
7BLFYE 7CRFV 7SWJY 7CRHY 7BLFYT 7ARFV 7BWJY 7ARHY
7ELFYE 7BRFV 7EWJY 7BRHY 7ELFYT 7ERFV 7TWJY 7ERHY
CAPACITIES (in litres)
Engines (with filter replacement) 4,25(1) 4,25(1) 4,25(1) 4,5(1) 4,25 4,75(2) 4,75(2) 4,75(2) 4,75(2)
Gearbox - Final drive 2 2 - 1,9 1,9
GEARBOX
Manual Manual Automatic Manual Manual
(5-speed) (5-speed) (4-speed) (5-speed) (5-speed)
MODELS: Model codes

113
TECHNICAL DATA
(1) With air conditioning. (2) Without air conditioning.
PETROL AND DIESEL ENGINES
ENGINES 1,8 litre 16V 2 litres 16 V Diesel DieselTurbo
1,9 litre 2 litres HDI
Capacity (cm 3
) 1761 1998 1868 1997
Bore x stroke 83 x 81,4 86 x 86 82,2 x 88 85 x 88
Number of valves 16 16 8 8Max. power: EU standard (KW) 81 97,4 51 66
at engine speed (r.p.m) 5500 5500 4600 4000
Max. torque: EU standard (Nm) at r .p.m155 at 4250 180 at 4200 125 at 2500 205 at 1900
Fuel Unleaded Unleaded Diesel Diesel
Catalytic converter Yes Yes 7ALFYE
7CWJY
7ALFYT 7AWJY
7BLFYE 7CRFV 7SWJY 7CRHY 7BLFYT 7ARFV 7BWJY 7ARHY
7ELFYE 7BRFV 7EWJY 7BRHY 7ELFYT 7ERFV 7TWJY 7ERHY
CAPACITIES (in litres)
Engines (with filter replacement) 4,25(1) 4,25(1) 4,25(1) 4,5(1) 4,25 4,75(2) 4,75(2) 4,75(2) 4,75(2)
Gearbox - Final drive 2 2 - 1,9 1,9
GEARBOX
Manual Manual Automatic Manual Manual
(5-speed) (5-speed) (4-speed) (5-speed) (5-speed)
MODELS: Model codes

114
TECHNICAL DATA
PETROL ENGINE FUEL CONSUMPTION
7CRFV
2 litres 16 V Manual 7ARFV
22.0 (12.8) 40.4 (7.0) 31.0 (9.1) 219 g/km
7BRFV 7ERFV
In accordance with directive 93/116 in MPG (litres/100km)
Engines Gearbox Model Urban Inter-urban Mixed Emission
codes driving driving driving of CO 2by mass
7CKFW 7AKFW
1,4 litre Manual 7SKFW 32.8 (8,6) 51.4 (5.5) 42.8 (6.6) 156 g/km 7BKFW7EKFW
7CNFT
1,6 litre Manual 7ANFT
31.0 (9.1) 50.4 (5.6) 40.9 (6.9) 165 g/km
7BNFT7ENFT
7CLFYT 7ALFYT 24.4 (11.6) 46.3 (6.1) 34.9 (8.1) 193 g/km7BLFYT
1,8 litre 16 V Manual 7ELFYT 24.1 (11.7) 45.6 (6.2) 34.4 (8.2) 196 g/km 7CLFYE7ALFYE 23.5 (12.0) 44.8 (6.3) 34.0 (8.3) 198 g/km7BLFYE
7ELFYE 22.8 (12.1) 44.1 (6.4) 33.6 (8.4) 198 g/km
7CRFVW
2 litres 16 V Automatic 7ARFVW
20.6 (13.7) 43.5 (6.5) 30.7 (9.2) 221 g/km
7BRFVW 7ERFVW 7CNFT
1,6 litre Automatic 7ANFT
25.7 (11.0) 47.9 (5.9) 36.2 (7.8) 185 g/km
7BNFT7ENFT
Consumption

115
TECHNICAL DATA
The fuel consumption values given are correct at the time of going to press.
CONSUMPTION FOR PETROL/LPG ENGINES
According to directive 93/116 (litres/100 km)
Engine Gearbox Model Urban Inter-urban Mixed Emission of codes roads roads roads C02 by mass
7CWJY 7AWJY
Diesel 1,9 litre Manual 7BWJY
34.0 (8.3) 56.5 (5.0) 44.8 (6.3) 166 g/km
7EWJY 7SWJY
7TWJY
7CRHY
Diesel turbo Manual7ARHY 40.4 (7.0) 64.2 (4.4) 53.3 (5.3) 143 g/km
2 litres HDI 7BRHY 7ERHY
Consumption

116
TECHNICAL DATA
* The speed of a towing vehicle is limited to 60 mph (100 Km/h).
TOWING WEIGHTS AND LOADS (IN KG)
Engines
1.4 litre 1.6 litre 1.6 litre 1.8 litre 2 l 16 V 2 l 16 V 1.9 l D 2 l HDI
Gearbox Manual Manual
Auto.Manual Manual Auto.Manual Manual
Model codes : 7CÉ KFW N F T N F T LFY/L6A RFV R F V W J Y R H Y
¥
Kerb weight1 013 1 071 1 108 1 096 1 160 1 208 1 100 1 142
¥ Gross vehicle weight (GVW) 1 460 1 535 1 550 1 560 1 625 1 650 1 530 1 585 ¥
Gross Train weight (GTW)*2 360 2 435 2 450 2 560 2 625 2 650 2 480 2 585
¥ Unbraked trailer 540 570 575 580 610 630 570 600¥
Braked trailer (within GTW)1 200 1 200 1 200 1 200 1 200 1 200 1 200 1 200
Engines 1.4 litre 1.6 litre 1.6 litre 1.8 litre 1.8 l 16 V 2 l 16 V 2 l 16 V 1.9 l D 2 l HDI
Gearbox Manual Manual
Auto.Manual Manual Manual Auto.Manual Manual
Model codes : 7AÉ KFW
NFT NFT LFY/L6A
FYE/FYT RFV
RFV WJY RHY
¥
Kerb weight1 043 1 106 1 125 1 116 1 116 1 194 1 242 1 118 1 213
¥ Gross vehicle weight (GVW) 1 480 1 580 1 600 1 600 1 670 1 640 1 650 1 580 1 630 ¥
Gross Train weight (GTW)*2 380 2 480 2 500 2 600 2 670 2 640 2 650 2 530 2 630
¥ Unbraked trailer 550 580 585 590 625 620 640 580 610¥
Braked trailer (within GTW)1 200 1 200 1 200 1 200 1 200 1 200 1 200 1 200 1 200
5 DOOR
Engines 1.4 litre 1.9 l D1.8 l 16 V1.9 l D
Gearbox Manual Manual Manual Manual
Model codes : 7SÉ / 7TÉ KFW WJY FYE/FYT WJZ
¥
Kerb weight1 013 1 100 1 096 1 118
¥ Gross vehicle weight (GVW) 1 460 1 530 1 670 1 580 ¥
Gross Train weight (GTW)*2 360 2 480 2 670 2 530
¥ Unbraked trailer Ñ Ñ Ð Ð¥
Braked trailer (within GTW)1 200 1 200 1 200 1 200
3 DOOR VAN 7S... 5 DOOR VAN 7T...
3 DOOR

117
TECHNICAL DATA
* The speed of a towing vehicle is limited to 60 mph (100 Km/h).
TOWING WEIGHTS AND LOADS (IN KG)
Engines
1.4 litre 1.6 litre 1.6 litre 1.8 litre 1.8 l 16 V 2 l 16 V 2 l 16 V 1.9 l D 2 l HDI
Gearbox Manual Manual
Auto.Manual Manual Manual Auto.Manual Manual
Model codes : 7BÉ KFW N F T N F T LFY/L6AFYE/FYT
RFV RFV WJY RHY
¥
Kerb weight1 042 1 117 1 180 1 162 1 162 1 198 1 225 1 227 1 225
¥ Gross vehicle weight (GVW) 1 515 1 575 1 610 1 615 1 695 1 635 1 660 1 590 1 635 ¥
Gross Train weight (GTW)*2 415 2 475 2 510 2 615 2 695 2 635 2 660 2 540 2 635
¥ Unbraked trailer 555 585 605 600 640 630 650 590 620¥
Braked trailer (within GTW)1 200 1 200 1 200 1 200 1 200 1 200 1 200 1 200 1 200
4 DOOR
Engines 1.4 litre 1.6 litre 1.6 litre 1.8 litre 1.8 l 16 V 2 l 16 V 2 l 16 V 1.9 l D 2 l HDI
Gearbox Manual Manual
Auto.Manual Manual Manual Auto.Manual Manual
Model codes : 7BÉ KFW N F T N F T LFY/L6AFYE/FYT
RFV RFV WJY RHY
¥
Kerb weight1 088 1 150 1 165 1 185 1 185 1 195 1 225 1 172 1 260
¥ Gross vehicle weight (GVW) 1 550 1 605 1 635 1 645 1 725 1 665 1 675 1 625 1 655 ¥
Gross Train weight (GTW)*2 450 2 505 2 535 2 645 2 725 2 665 2 675 2 575 2 655
¥ Unbraked trailer 570 590 620 630 675 640 650 600 635¥
Braked trailer (within GTW)1 000 1 000 1 000 1 000 1 000 1 000 1 000 1 000 1 000
ESTATE

4267 m m
118
TECHNICAL DATA
815 m m
2580 m m
4030 m m
1462 - 1465 m m635 m m
1680 m m
1380 m m
1431 - 1435 m m
815 m m 2580 m m 872 m m
1386 m m
1433 - 1439 m m1680 m m
1454 - 1462 m m
Dimensions 3 or 5 door Dimensions 4 door

119

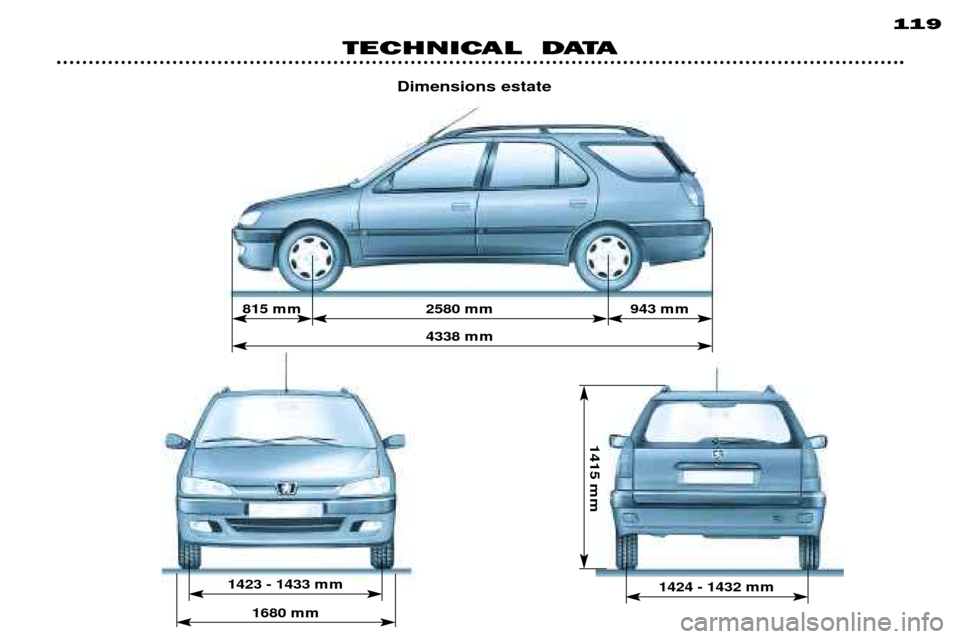

TECHNICAL DATA
815 m m 2580 m m4338 m m
1423 - 1433 m m 943 m m
1680 m m
1424 - 1432 m m
1415 m m
Dimensions estate

IDENTIFYING FEATURES OF YOUR 306
A. ManufacturerÕs plate.
B. Model serial number.
C. Tyre pressures and paint colour code. The label Caffixed to the centre pillar of the driverÕs side door indicates:
Ð the wheel and tyre sizes,
Ð the brands of tyres approved by the manufacturer,
Ð inflation pressures (the inflation pressure check must be carried out cold, at least once a month).
Ð the paint colour code.
120
TECHNICAL DATA
C
A
BBB
CC
AA
