Peugeot 306 Break Dag 2002 User Guide

1
B
A
YOUR 306 AT A GLANCE13
THE AUTOMATIC
AUTOADAPTIVE GEARBOX
P.Park.
R. Reverse.
N. Neutral.
D. Drive: in this position, all four gears change automatically.
3. Automatic changing of the first three gears only.
2. Automatic changing of the first two gears only.
1. Selection of first gear only. Selection of first gear is from position 2by pressing switch 1.
A. Sport programme.
B. Snow programme.
Position of selector leverThis is shown by an indicator on the instrument panel.
Starting
To start the engine, place the selector lever in position
Nor P.
Press the brake pedal when start-ing the engine or when selecting a
forwards or reverse gear.
105

123
123
41
45
5

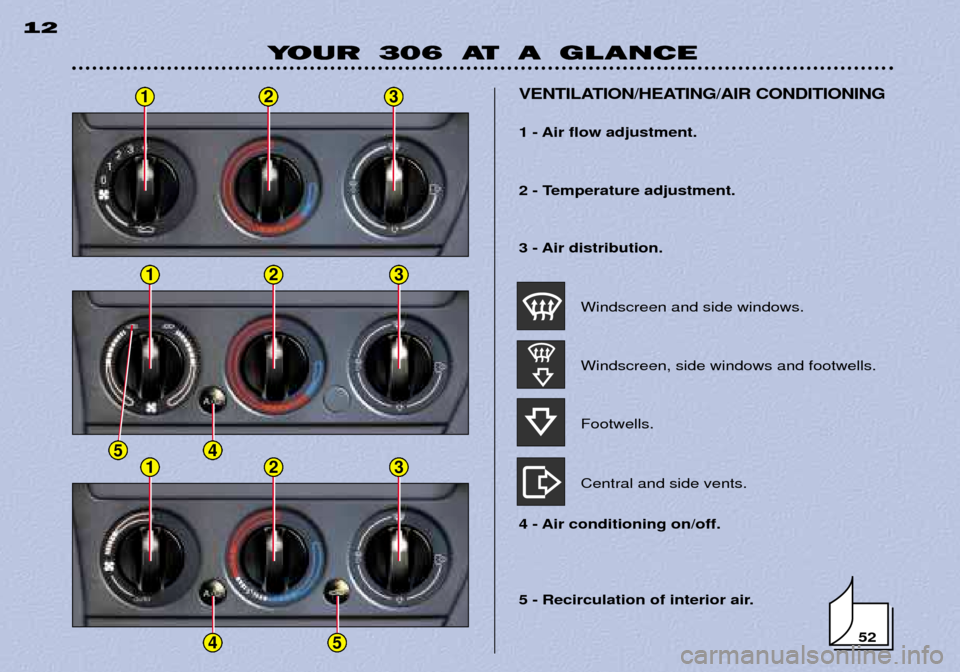

YOUR 306 AT A GLANCE
12
5 - Recirculation of interior air.
VENTILATION/HEATING/AIR CONDITIONING
1 - Air flow adjustment.
2 - Temperature adjustment.
3 - Air distribution.
Windscreen and side windows. Windscreen, side windows and footwells. Footwells. Central and side vents.
4 - Air conditioning on/off.
23
52

MAINTENANCE OF YOUR 306
18
PEUGEOT SERVICING
Your vehicle benefits from extended service iintervals.
¥ For petrol engines: every 20,000 miles (30,000 km) or every two years
¥ For direct injection diesel engines: every 12,000 miles (20,000 km) or every two years.
¥ For indirect injection diesel engines: evey 10,000 miles (15,000 km) or every two years. The extension of the service intervals means that the engine oil level must be checked regularly: topping up of the oil between oil changes is normal. That is why the PEUGEOT network is offering you an intermediate visit between each regular service.
The date of this visit is not shown by the service indicator. It is to be carried out at least every 10 000 Miles (15 000km) for petrol and twin-fuel engines; every 6 000 miles (10 000 km) for direct injection diesel engines and every5 000 miles (7 500 km) for indirect injection diesel engines.
A Peugeot dealer will carry out a rapid check and top up fluids as necessary (oil, coolant, windscreen wash fluid to the 2 litre limit). If the oil level is too low there is a risk of serious damage to the engine : check the engine oil level at least every 2,000 to 3,000 miles (3,000 to 5,000 km), depending on the conditions of use. This extended servicing has been made possible by modifications to our vehicles and to the lubricants:
THUS IT IS ESSENTIAL TO ONLY USE ENGINE LUBRICANTS WHICH ARE APPROVED AND RECOMMENDED BY THE
MANUFACTURER.

MAINTENANCE OF YOUR 30619
SPECIAL FEATURES
Some of your vehicleÕs vital components have specific servicing schedules. The airbags and the pretensioning seat belts must be replaced every 10 years. The brake fluid must be replaced every 36/40,000 miles (60,000 km) or every 2 years.
The pollen filter must be checked at each visit to the PEUGEOT dealer (intermediate visits and regular services). NB:
the coolant does not need to be renewed.
Arduous conditions of use If the vehicle is used under certain particularly arduous conditions: ¥Continuous door-to-door use.
¥ Town use (e.g. taxi).
¥ Repeated short journeys, with the engine cold in low temperatures,
Or in long stays under the following conditions: ¥ Hot countries with temperatures often above 30 ¡C.
¥ Cold countries with temperatures often below minus 15 ¡C.
¥ Countries with a dusty atmosphere.
¥ Countries whose lubricants or fuels do not conform to our recommendations.
It is necessary to follow an ÒArduous conditionsÓ service schedule which includes special operations and shorter service intervals: ¥ Every 12,000 miles (20 000 km) or every year for petrol vehicles.
¥ Every 9,000 miles (15 000 km) or every year for Direct Injection Diesel engine vehicles.
¥ Every 6,000 miles (10 000 km) or every year for Indirect Injection Diesel engine vehicles.

97
YOUR 306 IN DETAIL
5 seconds after switching on the igni- tion the display resumes normal oper-ation and shows the total and trip dis-tances.
SERVICE INDICATOR This is a reminder of when the next service is due in accordance with the
manufacturerÕs maintenance sched-ule. Operation The spanner symbolising the service operations comes on for five seconds
when the ignition is switched on. Thetotal distance recorder displays the dis-tance remaining (in round figures)before the next service. When the distance remaining beforethe next service is less than 1000 km.
When a service is overdue. For five seconds after the ignition is switched on, the service symbol andthe excess distance flash.
Example: 4800 km remain before the
next service is due. For five secondsafter the ignition is switched on, thedisplay shows:
5 seconds after switching on the igni-tion, the display resumes normal oper-ation and the service symbol remains
lit. The display shows the total and tripdistances.
5 seconds after switching on the igni-tion, the display resumes normal oper-ation and the symbol remains lit. This indicates that a service should
be carried out shortly. The displayshows the total and trip distances. Example:
the service is overdue by
300 km The vehicle should be ser-viced very soon. For five seconds after the ignition is switched on, the display shows:
Example:
900 km remain before the
next service is due. For five seconds after the ignition is switched on, the display shows:

1
98
YOUR 306 IN DETAIL
- Switch on the ignition.
- The display begins a 10 secondcountdown.
- Release the button before the countdown finishes.
- The service interval is displayed.
- Each brief press of button 1alter-
nates the service intervals.
To change the service interval
- Switch off the ignition.
- Press and hold button 1. Example:
- When the chosen service interval
is displayed, press button 1for
10 seconds (countdown) to confirm. Reset
Your PEUGEOT dealer carries out this operation after each service.
However, if you service the vehicleyourself, reset as follows:
- Switch off the ignition.
- Press and hold button
1.
- Switch on the ignition.
- The display begins a 10 second countdown.
- Keep button 1pressed for
10 seconds.
- The display shows [= 0]and the
service symbol disappears.
Service intervals If your vehicle is used in certain par-
ticularly difficult conditions it is neces-sary to follow the "Arduous conditions"servicing schedule, which involvesshorter intervals between services
(see your Warranty and MaintenanceRecord booklet). Comment:
If the time limit between
two services is reached before the rel- evant mileage limit, the servicespanner symbol will light up and thedisplay will show 0.

1
98
YOUR 306 IN DETAIL
- Switch on the ignition.
- The display begins a 10 secondcountdown.
- Release the button before the countdown finishes.
- The service interval is displayed.
- Each brief press of button 1alter-
nates the service intervals.
To change the service interval
- Switch off the ignition.
- Press and hold button 1. Example:
- When the chosen service interval
is displayed, press button 1for
10 seconds (countdown) to confirm. Reset
Your PEUGEOT dealer carries out this operation after each service.
However, if you service the vehicleyourself, reset as follows:
- Switch off the ignition.
- Press and hold button
1.
- Switch on the ignition.
- The display begins a 10 second countdown.
- Keep button 1pressed for
10 seconds.
- The display shows [= 0]and the
service symbol disappears.
Service intervals If your vehicle is used in certain par-
ticularly difficult conditions it is neces-sary to follow the "Arduous conditions"servicing schedule, which involvesshorter intervals between services
(see your Warranty and MaintenanceRecord booklet). Comment:
If the time limit between
two services is reached before the rel- evant mileage limit, the servicespanner symbol will light up and thedisplay will show 0.

MAINTENANCE OF YOUR 30619
SPECIAL FEATURES
Some of your vehicleÕs vital components have specific servicing schedules. The airbags and the pretensioning seat belts must be replaced every 10 years. The brake fluid must be replaced every 36/40,000 miles (60,000 km) or every 2 years.
The pollen filter must be checked at each visit to the PEUGEOT dealer (intermediate visits and regular services). NB:
the coolant does not need to be renewed.
Arduous conditions of use If the vehicle is used under certain particularly arduous conditions: ¥Continuous door-to-door use.
¥ Town use (e.g. taxi).
¥ Repeated short journeys, with the engine cold in low temperatures,
Or in long stays under the following conditions: ¥ Hot countries with temperatures often above 30 ¡C.
¥ Cold countries with temperatures often below minus 15 ¡C.
¥ Countries with a dusty atmosphere.
¥ Countries whose lubricants or fuels do not conform to our recommendations.
It is necessary to follow an ÒArduous conditionsÓ service schedule which includes special operations and shorter service intervals: ¥ Every 12,000 miles (20 000 km) or every year for petrol vehicles.
¥ Every 9,000 miles (15 000 km) or every year for Direct Injection Diesel engine vehicles.
¥ Every 6,000 miles (10 000 km) or every year for Indirect Injection Diesel engine vehicles.

AA
A
CC
AACC
MILES (KM) 20,000 (30 000) 40,000 (60 000) 60,000 (90 000) 80,000 (120 000)
1st service at
6,000 miles (10 000 km)* or 6 months*
The validity of the
Warranty depends
on this service.
100,000 (150 000) 120,000 (180 000) 140,000 (210 000) 160,000 (240 000) 180,000 (270 000)
20
TYPES OF SERVICE
Each vehicle has its own servicing cycle, defined by the manufacturer in accordance with each vehicleÕs specific technical fea- tures.
This cycle consists of alternating 2 types of service A and C, intermediate visits, and a few additional operations depending on your vehicle ; these correspond to key stages in the life of your 306. Services of type B are designed for less recent vehicles.
Your dealer will indicate the type and content of the next service when the first service is carried out, and at each sub- sequent service.
Intermediate visit
* Whichever comes first Automatic gearbox oil level every 40,000 miles (60,000km) Brake fluid
replacement every 2 years or every 40,000 miles (60,000km)
These operations are carried out with synthetic based oil; Fuel Economy oil or
synthetic oil can also be used.
MAINTENANCE OF YOUR 306
THE MAINTENANCE CYCLE FOR YOUR PETROL 306
Service every 20,000 miles (30 000 km) or 2 years
+ timing belt replacement+ timing belt replacement

AAA
AAA
C
CC
MAINTENANCE OF YOUR 30621
Intermediate visit
Brake fluid
replacement every 2 years or every 36,000 (60 000km).
These operations are carried out with synthetic based oil; Fuel Economy oil or
synthetic oil can also be used. THE MAINTENANCE CYCLE FOR YOUR 306 DIESEL TURBO HDI
Service every 12,000 miles (20 000 km) or 2 years
MILES (KM) 12,000 (20 000) 24,000 (40 000) 36,000 (60 000) 48,000 (80 000)
1st Service at 6,000 miles
(10 000 km)* or 6 months*
The validity of the Warranty depends on this service.
60,000 (100 000) 72,000 (120 000) 84,000 (140 000) 96,000 (160 000) 108,000 (180 000)
+ timing belt replacement
* Whichever comes first
