3YOUR 307 AT A GLANCE
1. Speaker (tweeter) location.
2. Side window demisting vent.
3. Windscreen demisting vents.
4. Passenger air bag.
5. Brightness sensor.
6. Multifunction display.
7. Alarm button.
8. Central locking button.
9. Hazard warning lights switch.
10. ESP/ASR switch*.
11. Lights and direction indicators stalk.
12. Instrument dials.
13. Steering wheel adjustment control. 14. Windscreen wash/wipe
stalk.
Trip computer stalk.
15. Driver's air bag. Horn.
16. Radio remote control stalk.
17. Headlamp height adjustment.
18. Electric mirror controls. Window controls. Rear window lockingcontrol.
19. Steering lock and ignition.
20. Cruise control switch.
21. 12 V accessories socket
22. Passenger air bag disarming switch.
23. Rubbish container.
24. Cup / can holder.
25. Handbrake. 26. Rear footwell heating vent.
27. Gear lever.
28. Front ash tray.
29. Heating / air conditioning
controls.
30. CD changer.
31. RB3 / RD3 audio equipment.
32. Central adjustable heating / ventilation vent and air flow regulation.
33. Side adjustable heating / ventilation vent and airflow regulation.
34. Fuse box.
35. Glove box.
36. Opening the bonnet.
37. Heated seat controls.
* During the year.

5YOUR 307 AT A GLANCE

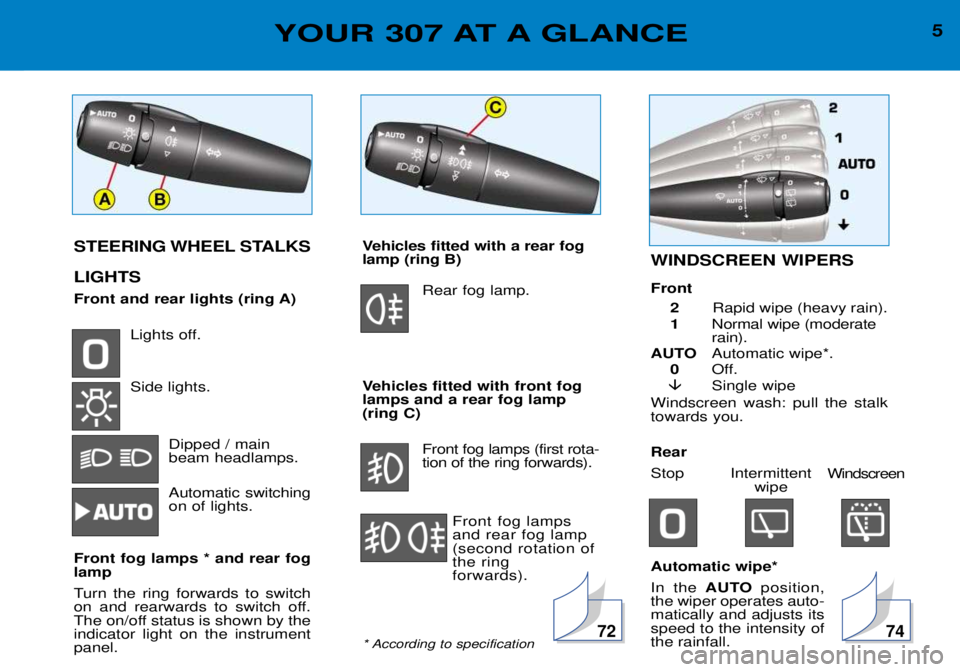

STEERING WHEEL STALKS LIGHTS
Front and rear lights (ring A)Lights off. Side lights.
Dipped / main beam headlamps. Automatic switching on of lights.
Front fog lamps * and rear foglamp
Turn the ring forwards to switch
on and rearwards to switch off.
The on/off status is shown by theindicator light on the instrumentpanel.Vehicles fitted with a rear fog lamp (ring B) Rear fog lamp.
Vehicles fitted with front foglamps and a rear fog lamp(ring C) Front fog lamps (first rota-tion of the ring forwards).
Front fog lampsand rear fog lamp(second rotation ofthe ring forwards).
* According to specification
72
WINDSCREEN WIPERS Front 2 Rapid wipe (heavy rain).
1 Normal wipe (moderate rain).
AUTO Automatic wipe*.
0 Off.
Single wipe
Windscreen wash: pull the stalktowards you. Rear
Stop Intermittent wipe
Automatic wipe*In the AUTO position,
the wiper operates auto- matically and adjusts itsspeed to the intensity ofthe rainfall.
74
Windscreen

PEUGEOT SERVICING25
A AND C SERVICE LEVELS AND THE INTERMEDIATE VISIT
Level
Operations Description of operation 1st service
A C Intermediate
DRAIN/REFILL- Engine oil.- Bleed fuel filter (diesel).- Oil filter.- Fuel filter (petrol).REPLACE- Fuel filter element (diesel).- Air filter element.- Spark plugs (petrol).- Engine oil (check + top-up). - Manual gearbox oil (check + top-up).- Battery (check + top-up) if cap is removable.LEVEL- Screen wash (check + top-up).- Coolant (check + top-up).- Brake fluid (check + top-up).- Power steering fluid (check + top up according to specification).- Operation of lights and indicators.- Condition of glass, headlamp and light lenses and mirrors.- Horn.- Windscreen washer jets.- Condition of wiper blades.- Condition and tension of the ancillary drive belts.- Handbrake.- Condition of hydraulic circuits (hoses and covers).CHECK- Condition of rubber boots and gaiters.- Brake pads. - Play in hubs, link rods, ball joints, flexible mountings.- Shock absorbers.- Rear drum brake lining wear.- Condition and pressure of tyres (including spare wheel).- Emission control check as per current legislation (petrol).- Smoke opacity (diesel).- Pollen filter (according to specification). - Visual check of the whole vehicle.ROAD TEST
: All driving conditions: Arduous conditions

1 -Rev counter.
2 - Seat belt not fastened warning light.
3 -
Engine autodiagnostics warning light.
4 - Handbrake and low brake fluid level warning light.
5 - Left-hand direction indicator.
6 - Coolant temperature indicator. 7 -
Battery charge warning light.
8 - Central (STOP) warning light.
9 - Engine oil pressure warning light.
10 - Low fuel level warning light.
11 - Right-hand direction indicator.
12 - Fuel gauge.
13 - ABS warning light. 14 -
Air bag warning light.
15 - Passenger air bag disarming indicator light.
16 - Speedometer.
17 - Service indicator, oil level and
total distance recorder.
18 - Trip recorder zero reset.
19 - Rear fog lamp indicator light.
20 - ESP/ASR warning light*.
21 - Front fog lamps indicator light*.
22 - Diesel engine preheat light.
23 - Main beam headlamps indicatorlight.
24 - Low coolant level warning light*.
25 - Dipped beam headlampsindicator light.
26 - Water in diesel filter warning light*.
27 - Lighting rheostat.
* According to specification.
INSTRUMENTS AND CONTROLS
28
INSTRUMENT PANEL DIALS: PETROL / DIESEL

INSTRUMENTS AND CONTROLS29
1 -
Rev counter.
2 - Seat belt not fastened warning light.
3 -
Engine autodiagnostics warning light.
4 - Handbrake and low brake fluid level warning light.
5 - Left-hand direction indicator.
6 - Coolant temperature indicator. 7 -
Battery charge warning light.
8 - Central (STOP) warning light.
9 - Engine oil pressure warning light.
10 - Low fuel level warning light.
11 - Right-hand direction indicator.
12 - Fuel gauge.
13 - ABS warning light. 14 -
Air bag warning light.
15 - Passenger air bag disarming indicator light.
16 - Speedometer.
17 - Service indicator, oil level and
total distance recorder.
18 - Trip recorder zero reset.
19 - Rear fog lamp indicator light.
20 - ESP/ASR warning light*.
21 - Front fog lamps indicator light*.
22 -
Main beam headlamps indicator light.
23 - Low coolant level warning light*.
24 - Dipped beam headlampsindicator light.
25 - Lighting rheostat.
26 - Sport programme.
27 - Snow programme.
28 - Gear lever position indicator.
* According to specification.
INSTRUMENT PANEL DIALS: AUTOMATIC GEARBOX

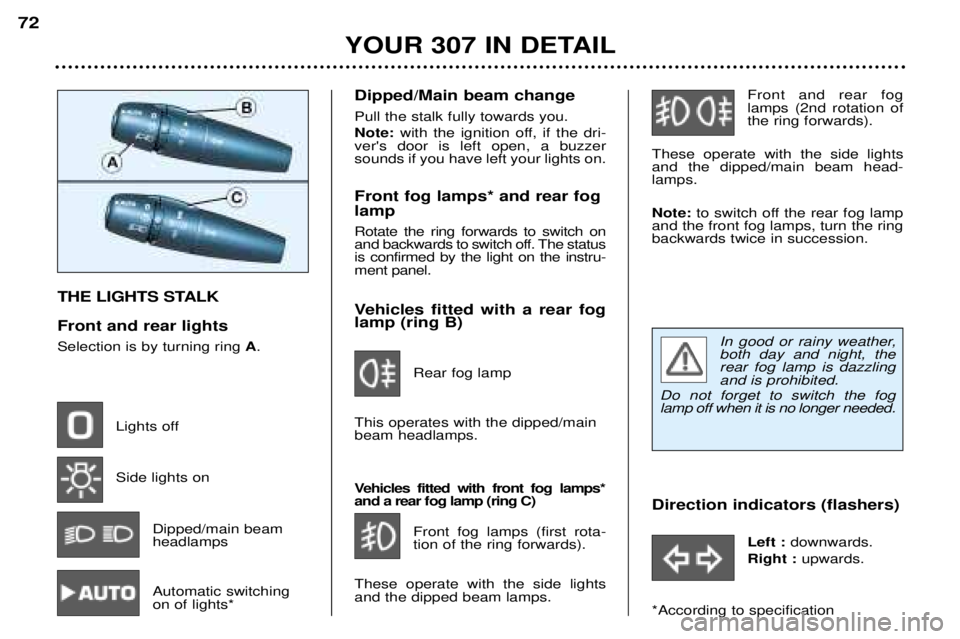

THE LIGHTS STALK Front and rear lights Selection is by turning ring A.
Lights off Side lights on Dipped/main beam headlamps Automatic switching on of lights* Dipped/Main beam change Pull the stalk fully towards you. Note:
with the ignition off, if the dri-
ver's door is left open, a buzzer sounds if you have left your lights on. Front fog lamps* and rear fog lamp Rotate the ring forwards to switch on
and backwards to switch off. The statusis confirmed by the light on the instru-ment panel.
Vehicles fitted with a rear fog lamp (ring B)
Rear fog lamp
This operates with the dipped/mainbeam headlamps.
Vehicles fitted with front fog lamps* and a rear fog lamp (ring C) Front fog lamps (first rota-tion of the ring forwards).
These operate with the side lightsand the dipped beam lamps. Front and rear foglamps (2nd rotation ofthe ring forwards).
These operate with the side lightsand the dipped/main beam head-lamps. Note: to switch off the rear fog lamp
and the front fog lamps, turn the ring backwards twice in succession. Direction indicators (flashers)
Left : downwards.
Right : upwards.
*According to specification
YOUR 307 IN DETAIL
72
In good or rainy weather, both day and night, therear fog lamp is dazzlingand is prohibited.
Do not forget to switch the foglamp off when it is no longer needed.

Operation In position 1or 2, when the vehicle
stops, the windscreen wiper changes to a lower wiping speed, thenresumes its initial speed when thevehicle starts again. When the ignition has been swit- ched off for more than a minute
with the control in the AUTO posi-tion*, it is necesary to reactivatethis function.
To do this, move the control to any position, then move it back to the
AUTO* position.
Screenwash/headlamp wash* Pull the windscreen wiper stalk towards you. The windscreen wash then the wind- screen wipers operate simultaneous-ly for two seconds, only if the dip-
ped beam or main beam head-lamps are on.
YOUR 307 IN DETAIL
74
WINDSCREEN WIPER STALK Front windscreen wipers2 Fast wipe (heavy rain).
1 Normal wipe(moderately heavy rain).
AUTO Automatic wipe*
0 Off
Single wipes (press downwards)
Automatic timed windscreen wipers* In the AUTOposition, the wind-
screen wipers operate automatically and adapt their speed to the intensi-ty of the rainfall.
Operating check ActivationWhen the function is activated, the message "Automatic windscreen
wipers activated" appears on the
multifunction display. Switching off
Switching off the function is accom- panied by an audible signal. In the event of malfunction, the driver is informed by an audible signal andthe message "Automatic wind-
screen wipers faulty" on the multi-
function display. In the event of malfunction in the
AUTO position, the windscreen
wiper will operate intermittent mode.
Contact a PEUGEOT dealer to have the system checked.
* According to specification

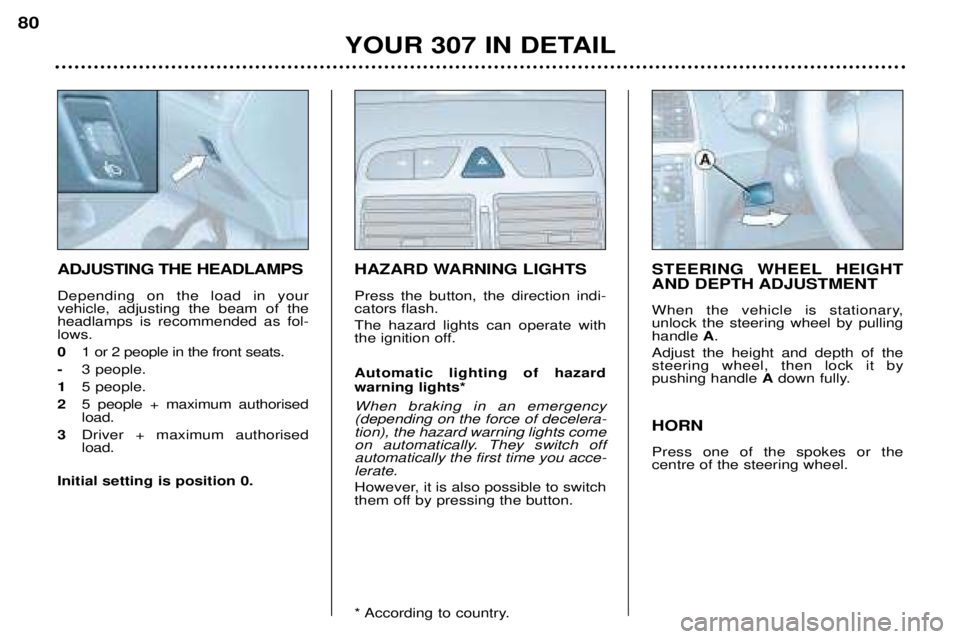

ADJUSTING THE HEADLAMPS Depending on the load in your vehicle, adjusting the beam of theheadlamps is recommended as fol-lows. 0 1 or 2 people in the front seats.
- 3 people.
1 5 people.
2 5 people + maximum authorised load.
3 Driver + maximum authorisedload.
Initial setting is position 0. HAZARD WARNING LIGHTS Press the button, the direction indi- cators flash. The hazard lights can operate with
the ignition off. Automatic lighting of hazard warning lights* When braking in an emergency (depending on the force of decelera-tion), the hazard warning lights come
on automatically. They switch offautomatically the first time you acce-lerate.
However, it is also possible to switch
them off by pressing the button.
* According to country.STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT
When the vehicle is stationary, unlock the steering wheel by pullinghandle
A.
Adjust the height and depth of thesteering wheel, then lock it bypushing handle Adown fully.
HORN Press one of the spokes or the centre of the steering wheel.
YOUR 307 IN DETAIL
80

1.4 LITRE PETROL ENGINE 1 -Power steering reservoir
2 - Windscreen/headlamp wash reservoir*
3- Coolant reservoir 4 -
Brake fluid reservoir
5 - Battery
6 - Fuse box
7 - Air filter 8 -
Dipstick
9 - Engine oil filler cap
* According to specification
PRACTICAL INFORMATION
94

PRACTICAL INFORMATION95
1.6 LITRE 16V PETROL ENGINE 1 -
Power steering reservoir
2 - Wash/wipe and headlamp wash reservoir*
3 - Coolant reservoir 4 -
Brake fluid reservoir
5 - Battery
6 - Fuse box
7 - Air filter 8 -
Dipstick
9 - Engine oil filler cap
* According to specification
