BATTERY
To charge the battery using a battery charger:
- Disconnect the battery,
- Follow the instructions for use given by the battery charger manufacturer,
- Reconnect starting with the negative (-) terminal,
- Check that the terminals and connectors are clean. If they are covered with sul-phate (white or greenish deposit), disconnect them and clean them.
To start the vehicle from another battery:
- Connect the red cable to the positive (+) terminals of the two batteries,
- Connect one end of the green or black cable to the negative (-) terminal of the slave battery,
- Connect the other end of the green or black cable to an earth point on the bro- ken down vehicle as far as possible from the battery,
Operate the starter, let the engine run.
Wait for the engine to return to idle, then disconnect the cables.
PRACTICAL INFORMATION 153
- Never disconnect a ter-
minal when the engine is running.
- Never charge a battery without first disconnecting the terminals.
- After every reconnection of the battery, switch on the ignitionand wait 1 minute before star-ting to allow the electronic sys-tems to be initialised. If slight dif-ficulties are experienced afterthis, please contact a
PEUGEOT dealer.
It is advisable to disconnect the battery if the vehicle is not to be used for a period of more than one month.

14-04-2003
TOWING YOUR VEHICLE
Without lifting (4 wheels on the road)
You should always use a tow bar. The removable towing eye is inside the boot right-hand trim. From the front: Unclip the cover, by pressing the bottom part,
 Screw in the removable towing eye as far as it will go.
From the rear: Unclip the top of the cover using a coin,
 Screw in the removable towing eye as far as it will go.
Lifting (2 wheels only on the road ) It is preferable to raise the vehicle with a professional lifting device. Special features of the automatic gearbox When towing with four wheels on the ground, the following rules must beobeyed:
- lever in position
N,
- tow the vehicle at less than 50 km/h over a maximum distance of 50 km,
- do not add oil to the gearbox.
PRACTICAL INFORMATION
154
When towing with the engine switched off, thereis no braking or steeringassistance.

14-04-2003
TOWING A TRAILER,
CARAVAN, BOAT ETC.
Only use original PEUGEOT tow bars that have been tested andapproved from the design stage of
your vehicle. The tow bar must be fit-
ted by a PEUGEOT dealer.
Your vehicle is basically designed for transporting people and luggage butit may also be used for towing a trai-
ler. Driving with a trailer subjects the towing vehicle to more significantstress and its driver must be particu-larly careful. Air density decreases with altitude, thus reducing engine performance.Above 1000 metres, the maximumtowing load must be reduced by 10%and so on for every 1000 metres ofaltitude.Driving advice Distribution of loads Distribute the load in the trailer so that the heaviest items are as closeas possible to the axle and the noseweight approaches the maximumpermitted without exceeding it. Cooling
Towing a trailer on a slope increases the temperature of the coolant. As the fan is electrically controlled, its cooling capacity is not dependenton the engine speed.
On the contrary, use a high gear to lower the engine speed, and reduceyour speed. The maximum towing load on a long slope depends on the gradient andthe outside temperature. In all cases, pay attention to the coolant temperature. If the warning light comes on, stop
the vehicle and switch off the engineas soon as possible.Tyres Check the tyre pressures of the
towing vehicle and of the trailer,observing the recommended pres-sures. Braking
Towing increases the braking distance. Lights Check the electrical signalling on the
trailer. Side wind
Take into acount the increased sen- sitivity to side wind.
PRACTICAL INFORMATION
155

14-04-2003
REMOVING THE MAT When removing the mat on the dri- ver's side, push the seat as far backas possible and unscrew the fixings. When refitting, position the mat and replace the fixings by pressing them in.FITTING ROOF BARS When fitting transverse roof bars, ensure that they are positioned cor-
rectly. The correct positions are shown by marks on each of the longitudinalbars.Use accessories approved by
PEUGEOT and follow the manufac-turer's fitting instructions.
PRACTICAL INFORMATION
156
Maximum authorised
weight on the roof rack 100 kg

14-04-2003

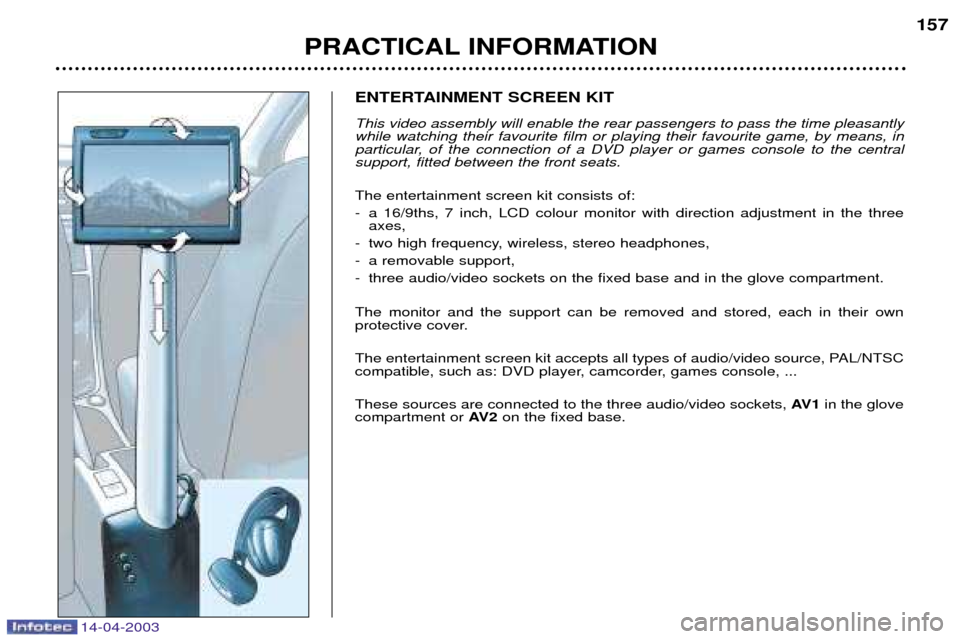

ENTERTAINMENT SCREEN KIT This video assembly will enable the rear passengers to pass the time pleasantly while watching their favourite film or playing their favourite game, by means, in
particular, of the connection of a DVD player or games console to the central support, fitted between the front seats. The entertainment screen kit consists of:
- a 16/9ths, 7 inch, LCD colour monitor with direction adjustment in the threeaxes,
- two high frequency, wireless, stereo headphones,
- a removable support,
- three audio/video sockets on the fixed base and in the glove compartment. The monitor and the support can be removed and stored, each in their own
protective cover.
The entertainment screen kit accepts all types of audio/video source, PAL/NTSC
compatible, such as: DVD player, camcorder, games console, ... These sources are connected to the three audio/video sockets, AV 1in the glove
compartment or AV 2on the fixed base.
PRACTICAL INFORMATION 157

14-04-2003
Various controls are incorporated in the headphones: A-Housing for the two LR03 batte- ries.
B - Headphones on/off button.
C - On/off indicator light.
D - Tuning frequency adjustmentcontrol.
E - Headphones volume adjustmentcontrol.
The get the best out of the head-phones, you must adjust their size tosuit you, find their tuning frequency byrotating control D, then adjust the
volume by rotating control E.
PRACTICAL INFORMATION
158
The upper face of the monitor incor- porates the following controls: 1 -
"POWER" button to switch the
monitor on/off.
2 - "FUNC" button for selection of
the input source, AV1 or AV2.
3 - "WIDE" button to change the dis-play format (normal, full screen,wide, cinema).
4 - "MENU" button for selection ofthe menus and settings.
5 - " " and " " buttons to change
the settings.
By pressing buttons 4and 5, you can
adjust the brightness, the contrast,the colours, ... For further details, refer to the opera-
ting manuals "Video kit operation"and "VMA8582 7 inch LCD colourmonitor".

14-04-2003
PRACTICAL INFORMATION159
ACCESSORIES FOR YOUR 307 SW
For your PEUGEOT only use accessories and original parts approved by the manufacturer.
These accessories and parts are all adapted to your PEUGEOT, after being tested and approved for reliability and
safety, which PEUGEOT cannot guarantee for other products.
A wide choice of original accessories, approved by PEUGEOT, is available through the dealer network. They all carry
the PEUGEOT guarantee.
- Safety :
Anti-theft alarm, window engraving, wheel locks, first aid kit, warning triangle, rear parking assistance.
- Comfort : Telephone console, front centre arm rest, covers compatible with side air bags, mats, boot
tray, cool box, door deflectors, CD storage, side sun blinds and rear blind, additionalseats...
- Communication : Audio system, telephone, hands-free kit, speakers, amplifiers, CD changer, navigation
systems, entertainment screen kit, DVD player...
- Customising : Alloy wheels, trims, sport exhaust, aluminium or PVC door sills, mud flaps...
- Leisure : Tow bar, transverse roof bars, roof box, snow chains, ski carrier, roof bars bicycle carrier,tailgate bicycle carrier*...
- Children : Booster seats and child seats...
- Maintenance products : Screenwash, interior and exterior cleaning and maintenance products...
- Commercial use : Kit for transformation into a van...
* During the year.
Before installing any electrical accessory on your vehicle, contact a PEUGEOT dealer.

14-04-2003
TECHNICAL DATA
160
3HNFUB 3HNFUE 3HRFNC/IF 3HRFNE
3HNFUC/IF 3HNFUF/IF
Manual Automatic Manual Automatic
(5 speed) (4 speed) (5 speed) (4 speed) PETROL ENGINES
ENGINES
1.6 litre 16V 2 litre 16V
Cubic capacity (cm 3
) 1 587 1 997
Bore x stroke (mm) 78,5 x 82 85 x 88 EU standard maximum power (kW) 80100
Maximum power at engine speed (rpm) 5 8006 000
EU standard maximum torque (Nm)147 190
Maximum torque at engine speed (rpm)4 0004 100
Fuel Unleaded Unleaded
Catalytic converter Yes Yes
OIL CAPACITIES (litres)
Engine (with cartridge replacement) 3 3 4,25 4,25
Gearbox-Final drive 2 - 1,9 -
MODELS: Model codes GEARBOX

14-04-2003
TECHNICAL DATA161
3HRHYB 3HRHSB
Manual Manual
(5 speed) (5 speed) DIESEL ENGINES
ENGINES 2 litre T
urbo HDI 90 bhp 2 litre Turbo HDI 110 bhp
Cubic capacity (cm 3
) 1 998 1 997
Bore x stroke (mm) 85 x 88 85 x 88 EU standard maximum
power (kW) 66 79
Maximum power at engine
speed (rpm) 4 000 4 000
EU standard maximum torque (Nm)205250
Maximum torque at engine speed (rpm)1 9001 750
Fuel Diesel Diesel
Catalytic converter Yes Yes
Particulate emission filter Non Yes
OIL CAPACITIES (litres)
Engine (with cartridge replacement) 4,5 4,5
Gearbox-Final drive 1,9 1,85
MODELS: Model codes GEARBOX

14-04-2003
Consumption In accordance with directive 99/100 [In MPG (litres/100km)]
Engine Gearbox Model Circuit Circuit Circuit Emission of
codes Urban Inter-urban Mixed CO 2by
weight (g/km)
1,6 litre 16V Manual 9,9 6,3 7,7 178
1,6 litre 16V Automatic 11,2 6,4 8,3 194
2 litre 16V Manual 3HRFNC/IF 11,5 6,3 8,3 194
2 litre 16V Automatic 3HRFNE 13,1 6,5 8,8 206
2 litre Turbo HDI 90 hpManual3HRHYB 7,1 4,5 5,4 143
2 litre Turbo HDI 110 hpManual3HRHSB 7,2 4,4 5,4 143
TECHNICAL DATA
162
Fuel consumption values correct at time of printing. 3HNFUB
3HNFUC/IF
3HNFUE
3HNFUF/IF
