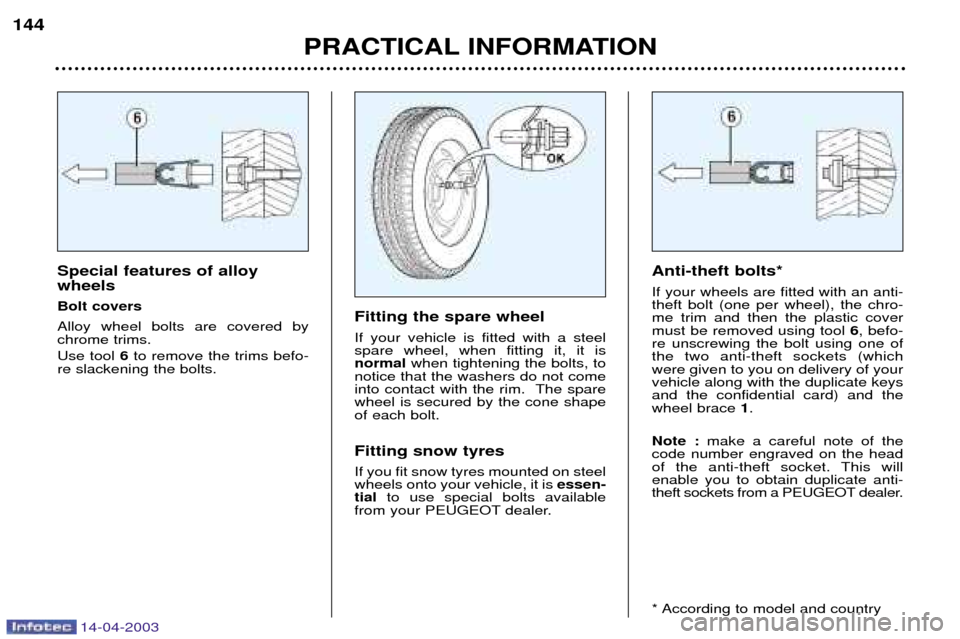

Special features of alloy wheels Bolt coversAlloy wheel bolts are covered by chrome trims. Use tool 6to remove the trims befo-
re slackening the bolts. Fitting the spare wheel If your vehicle is fitted with a steel spare wheel, when fitting it, it is normal
when tightening the bolts, to
notice that the washers do not come
into contact with the rim. The sparewheel is secured by the cone shapeof each bolt. Fitting snow tyres If you fit snow tyres mounted on steel wheels onto your vehicle, it is essen-
tial to use special bolts available
from your PEUGEOT dealer. Anti-theft bolts* If your wheels are fitted with an anti- theft bolt (one per wheel), the chro-me trim and then the plastic covermust be removed using tool
6, befo-
re unscrewing the bolt using one ofthe two anti-theft sockets (whichwere given to you on delivery of yourvehicle along with the duplicate keysand the confidential card) and thewheel brace 1.
Note : make a careful note of the
code number engraved on the head
of the anti-theft socket. This willenable you to obtain duplicate anti-
theft sockets from a PEUGEOT dealer.
* According to model and country
PRACTICAL INFORMATION
144

14-04-2003
CHANGING A BULB Front lights Note:on the right-hand side, remove the style cover, fixed
with two plastic screws, to access the bulbs. Handle the bulbs with a dry cloth.
1 - Dipped beam headlamps (H7-55W).
2 - Main beam headlamps (H1-55W).
3 - Front fog lamps (H1-55 W). Turn the protective cover corresponding to the faulty bulb a quarter of a turn and remove it.
 Disconnect the connector.
 Press the end of the securing clip to free it. Changethe bulb. When fitting the new bulb, ensure that the direction notches are positioned correctly and the securing clip
is fixed properly.
 Reconnect the connector.
 Refit the protective cover, positioning it with the arrowupwards, then turn it a quarter of a turn to the right. The headlamps are fitted with polycarbonate glass with aprotective coating.
Do not clean them with a dry or
abrasive cloth, nor with a detergent or solvent product. Use a sponge and soapy water.
4 - Side lights W 5 W.  Pull the socket rearwards, remove the bulb and chan- ge it.
5 - Direction indicators (PY 21 W amber).  Turn the bulb holder a quarter of a turn and remove it.
 Change the bulb.
Note: In certain climatic conditions (low temperature,
humidity), condensation inside the headlamp glass is
normal ; it disappears a few minutes after the lights are
switched on.
PRACTICAL INFORMATION 145

14-04-2003
Direction indicator side
repeaters (WY 5W amber). Push the repeater forwards and
release the assembly.
 Hold the connector and turn thelens a quarter turn.
 Change the bulb.
PRACTICAL INFORMATION
146
Amber coloured bulbs (direction indicators andside repeaters), must bereplaced with bulbs ofidentical specification
and colour.

14-04-2003
PRACTICAL INFORMATION147
Third brake light: 4 W 5 W bulbs.  Remove the tailgate upper trim carefully by unclipping it on eitherside, perpendicular to its direc-tion of engagement.
 Insert a screwdriver into the twoouter holes Bto press on the two
tabs C.
 Push the light unit outwards whilemaintaining the pressure on thetabs.
 Pull the light unit outwards whiletilting it.
 Change the faulty bulb.
 When refitting, ensure that thelight unit tabs are engaged cor-rectly and that the tailgate uppertrim has been put back in place
correctly.
Press the tab Aand remove the
bulb holder.
 Change the faulty bulb.
Note: if necessary use the wheelbra-
ce to remove the bolts. When refitting, take care to position
the bulb holder and the bulb correctly. Number plate lights (W 5 W)  Insert a small screwdriver in one of the external holes of the lens.
 Push the lens outwards to unclipit.
 Remove the lens.
 Change the faulty bulb.
Rear lights
1 - Brake lights (P 21 W).
2 - Side lights (R 5 W).
3 - Direction indicators (P 21 W).
4 - Reversing lights (P 21 W), left
side.
Fog lamp (P 21 W), right side.
These 5 bulbs are changed by remo- ving the light:  Remove the respective boot side trim to access the light.
 Remove the mounting nut for thelight inside the boot.
 Remove the mounting nut for thelight outside the boot.
 Remove the light.
 Unclip the harness.

CHANGING A FUSE The fuse boxes are located under the fascia (left-hand side) and in theengine compartment. The spare fuses and special pliers A
are fixed to the inside of the lid of the instrument panel fuse box. Removing and changing a fuse Before changing a fuse you must establish the cause of the fault and
have it corrected. The fuse numbersare indicated on the fuse box.  Use the special pliers A.
Always change a faulty fuse for one of the same rating. Instrument panel fuses
Unscrew the bolt a quarter of a turn with a coin, then pull thehandle to open the cover andaccess the fuses.
PRACTICAL INFORMATION
148
Fuse no. Rating Functions
1 10 A Rear fog lamp.
2 15 A Rear screen wiper.
4 15 A Front electric windows.
5 15 A Left brake light including trailer.
7 30 A Rear courtesy light, front courtesy light, map readers - 12V front socket - Glove box lighting -
Sunroof shutter.
Correct
Pliers AIncorrect
14-04-2003

14-04-2003
Engine compartment fuses Fuse box
To access the fuse box in the engine compartment (next to the battery): unclip the cover.
Carefully close the cover and refit the style cover when you havefinished.
PRACTICAL INFORMATION
150
The electrical system of your vehicle is designedto operate with standardor optional equipment.
Before installing other electricalequipment or accessories on yourvehicle, contact a PEUGEOT
dealer. PEUGEOT will not accept respon- sibility for the cost incurred inrepairing your vehicle or for recti-fying the malfunctions resultingfrom the installation of accesso-ries not supplied and not recom-mended by PEUGEOT and notinstalled in accordance with itsinstructions, in particular wherethe equipment in questionconsumes more than 10 milliam-peres. * The maxi-fuses provide additio- nal protection for the electrical
systems. All work must be carried
out by a PEUGEOT dealer.
Fuse no. Rating Functions 1* 50 A Fan unit.
2* 30 A ESP/ABS pump motor.
3* 30 A ESP/ABS solenoid valves.
4* 70 A Built-in Systems Interface supply.
5* 70 A Built-in Systems Interface supply.
6* Ð Not used.
7* 30 A Ignition switch, power.
8* 70 A Power steering electro-pump unit.

14-04-2003
PRACTICAL INFORMATION151
Fuse N¡ Rating
Functions
1 10 A Automatic gearbox reversing lights switch - Automatic gearbox starting inhibitor relay
control - Manual gearbox reversing lights switch - Vehicle speed sensor - Water in diesel
sensor.
2 15 A Canister solenoid valve - Fuel pump.
3 10 A Power steering control unit - ABS or ESP control unit.
4 10 A Injection control unit - Fan unit relay control - Additional heating relay control - Automatic
gearbox control unit - Automatic gearbox sequential control - Automatic gearbox shiftlock
relay.
5 15 A Particulate emission filter control unit.
6 15 A Front fog lamps.
7Ð Not used.
8 20 A Fan unit relay control - Engine control unit supply - Injection pump (Diesel).
9 15 A Left dipped beam.
10 15 A Right dipped beam.
11 10 A Right main beam.
12 10 A Left main beam.
13 15 A Horn.
14 10 A Front and rear headlamp wash pump.
15 30A Oxygen sensors - Exhaust gas recirculation solenoid valve - Ignition coil - Diesel high
pressure regulator - Injectors supply (petrol) - Pre-heat unit - Air flow sensor (Diesel) -
Engine control unit supply (Diesel) - Injection pump (Diesel) - Diesel heater.
16 30A Petrol engine air pump with automatic gearbox.
17 30A Low/high speed front wiper.
18 40A Air conditioning blower.

CHANGING A FUSE The fuse boxes are located under the fascia (left-hand side) and in theengine compartment. The spare fuses and special pliers A
are fixed to the inside of the lid of the instrument panel fuse box. Removing and changing a fuse Before changing a fuse you must establish the cause of the fault and
have it corrected. The fuse numbersare indicated on the fuse box.  Use the special pliers A.
Always change a faulty fuse for one of the same rating. Instrument panel fuses
Unscrew the bolt a quarter of a turn with a coin, then pull thehandle to open the cover andaccess the fuses.
PRACTICAL INFORMATION
148
Fuse no. Rating Functions
1 10 A Rear fog lamp.
2 15 A Rear screen wiper.
4 15 A Front electric windows.
5 15 A Left brake light including trailer.
7 30 A Rear courtesy light, front courtesy light, map readers - 12V front socket - Glove box lighting -
Sunroof shutter.
Correct
Pliers AIncorrect
14-04-2003

14-04-2003
PRACTICAL INFORMATION149
Fuse no. Rating
Functions
9 30 A Front electric windows - Press operation electric windows (incompatible with non-press
operation electric windows) - Sunroof shutter.
10 15A Diagnostic plug - 12 volts rear socket - trailer.
11 20A Audio equipment - Multifunction displays - Steering wheel controls - Automatic gearbox.
12 10A Front right side light, rear right side light - Number plate and trailer lighting - Central
locking switch lights/ alarm//hazard warning lights - Air conditioning/ashtray light -
Automatic gearbox switch lights - Lighter.
14 30 A Door opening/closing controls - Deadlocking controls.
15 30A Press operation electric rear windows.
16 10A Engine fuse box - Alarm - Particulate emission filter - Steering wheel controls - Air bags.
17 10A Rear right brake light, 3rd brake light.
18 10 A Diagnostic plug - Steering wheel controls - Electrochromatic interior mirror - Brake pedal(stop) and clutch switches - Coolant level switch - Second brake switch.
19 30 A PARC shunt.
22 10 A Front left side light, rear left side light - Number plate and trailer lighting.
23 15 A Alarm siren - Interior alarm control unit.
24 15 A
Instrument panel - Audio equipment - Multifunction displays - Air conditioning - Rear parking assistance.
26 30 A Heated rear screen.

14-04-2003
CHANGING A WINDSCREEN WIPER BLADE Placing the wiper blades in the maintenance position Within one minute of switching
off the ignition, operate thewipers stalk to position the wiperblades in the centre of the wind-screen (maintenance position).
Changing a wiper blade  Lift the wiper arm, then unclip the blade and remove it.
 Fit the new blade and push backthe arm.
Note : the shortest blade is fitted on
the vehicle's right-hand windscreenwiper arm.
To return the windscreen wipers to their normal position, switch onthe ignition and operate the wiperstalk. ECONOMY MODE FUNCTION After the engine has stopped, certain functions (windscreen wipers, elec-tric windows, panoramic roofconcealing flap, courtesy lights,audio equipment etc.) can only beused for thirty minutes, to prevent
discharging the battery.
Once the thirty minutes are over, the message
"Economy mode active"
appears on the multi-function displayand the active functions are put on
standby.
To resume use of these functions, start the engine and let it run for afew seconds. LOAD REDUCTIONFUNCTION When driving, certain functions (air conditioning, heated rear screen,heating system for passenger com-partment of diesel vehicles, etc.)
may be switched off temporarily,depending on the level of batterycharge. Reactivation of these functions is automatic, once the battery charge is
sufficient. Note:
at the risk of discharging the
battery, the functions that have been
switched off may be reactivated
manually.
PRACTICAL INFORMATION
152
A flat battery will prevent the engine from starting.
