Peugeot 307 SW 2003 User Guide

REAR PARKING
ASSISTANCE This system, located in the rear
bumper, detects any obstacle(person, vehicle, tree, gate.)behind the vehicle. Activation With the engine running, the sys- tem is activated as soon asreverse gear is engaged; a bleepshows that it is active. Proximity information is given by an audible signal, consisting ofbleeps which become more rapidas the vehicle approaches theobstacle. When the distance between the rear of the vehicle and the obs-tacle is less than approximately25 centimetres, the signalbecomes continuous. Change to neutral, the system becomes inacti-ve.
11
OPENING THE BONNET Inside the vehicle: Push the
handle on the left side, under the fascia. Outside the vehicle: Lift
the catch, raise the bon- net and secure the strutto keep the bonnet open.
FILLING WITH FUEL This operation must be carried out with
the engine switched off .
A label on the inside of the flapshows which type of fuel to use. The capacity of the tank is approximately 13 gallons
(60 litres). When you fill your tank, do not
continue after the third cut-off ofthe pump, to avoid a possiblemalfunction. Low fuel level warning light From the time this light comes on, the range remai-ning is approximately
30 miles .YOUR 307 SW AT A GLANCE
109109132
14-04-2003

14-04-2003
12YOUR 307 SW AT A GLANCE
AUTOMATIC GEARBOX "PORSCHE TIPTRONIC SYSTEM" The four speed automaticgearbox offers a
choice between the comfort of automatic inte-
gral regulation enhanced by a sportand snow
programme , or the pleasure of manual gear
changing .
Gear selection gate  Move the lever in the gate to select one of the
functions. Once the function is selected, the indicator light for that function illuminates on the instru-
ment panel display.
S : sport programme.


:snow programme.
P ark: to immobilise the vehicle or to start the engine , with the hand-
brake on or off.
R everse: to reverse(select this function with the vehicle stationary and the
engine at idle).
N eutral: to start the engine or to park, with the handbrake on.
Note: if position Nis engaged by mistake while the car is moving, allow the engine
to return to idling speed before engaging function Dto accelerate.
D rive: for automatic gear changing.
M anual: for manualgear changing.
To change the four gearsmanually:
 Push the lever to the +symbol to change up to the next gear and pull
the handle towards the -symbol to change down to the next gear.
Note: the S(sport) and

(snow) programmes do not operate in manual
mode. Moving Off With the engine running, to move
off from position
P:
 It is essential to press thebrake pedal to exit position
P,
 Select function R, D or M, then
gradually release the pressureon the brake pedal; the vehicle
will move off immediately.
You can also move off from position N:
 Release the handbrake, withyour foot on the brake.
 Select function R, D or Mthen
gradually release the pressureon the brake pedal; the vehicle
will move off immediately.
When the engine is idlingwith the brakes notapplied, if function R, D
or Mis selected, the
vehicle moves without the acce-lerator being pressed. For this reason, do not leave
children unsupervised inside the vehicle, with theengine running.
127

14-04-2003
13
N¡ Symbol Function
YOUR 307 SW AT A GLANCE
AIR CONDITIONING
84
Setting the air distribution.
1
Air intake control.
2
Temperature adjustment.
3
Demisting the rearscreen and mirrors.
4
Air flow adjustment.
5
Air conditioning control.
6

14-04-2003
14
N¡ Symbol Function
YOUR 307 SW AT A GLANCE
AUTOMATIC AIR CONDITIONING
86
Air flow adjustment. Setting the air distribution.
1 23 4 56 7 8 9 Air intake control. Air conditioning control.
Switching off.
Demisting the rear screen and mirrors.
Temperature adjustment. Automatic comfort programme. Automatic visibility programme.

14-04-2003
PEUGEOT SERVICING
Your vehicle benefits from extended service intervals.
¥ For petrol engines: every 20,000 miles (30 000 km) or every two years.
¥ For direct injection diesel engines: every 12,000 miles (20 000 km) or every two years. The extension of the service intervals means that the engine oil level must be checked regularly: topping up of the oil between oil changes is normal. It is for this reason that the PEUGEOT network invites you to an intermediate visit between regular services.
The date of this service is not shown by the service indicator. It is to be carried out at least every 10,000 miles (15 000 km) for petrol engines and every 6,000 miles (10 000 km) for direct injection diesel engines.
A Peugeot dealer will carry out a quick check, and will top up the levels if necessary (oil, coolant, screenwash up to 2 litres). If the oil level is too low there is a risk of serious damage to the engine: check the engine oil level at least every 2,000 miles (3 000 km) or 3,000 miles (5 000 km), depending on the conditions of use. The extended service intervals have been made possible by technical modifications to the vehicles and lubricants:
THUS IT IS ESSENTIAL TO ONLY USE ENGINE LUBRICANTS WHICH ARE APPROVED AND RECOMMENDED BY THE
MANUFACTURER
PEUGEOT SERVICING
18

14-04-2003
PEUGEOT SERVICING
20

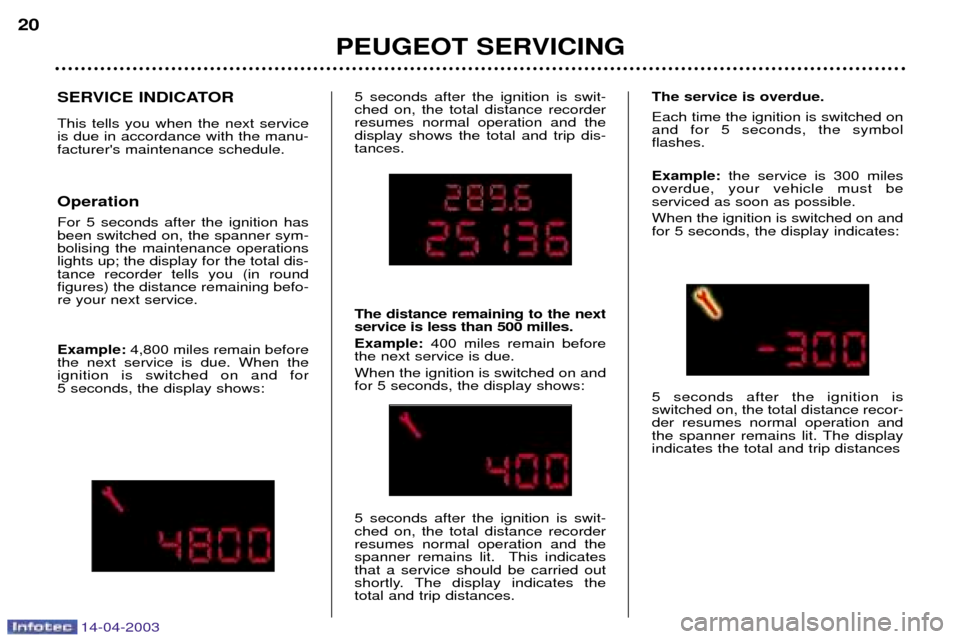

SERVICE INDICATOR This tells you when the next service is due in accordance with the manu-facturer's maintenance schedule. Operation For 5 seconds after the ignition has been switched on, the spanner sym-bolising the maintenance operationslights up; the display for the total dis-tance recorder tells you (in roundfigures) the distance remaining befo-re your next service. Example:
4,800 miles remain before
the next service is due. When the ignition is switched on and for 5 seconds, the display shows: 5 seconds after the ignition is swit-ched on, the total distance recorderresumes normal operation and thedisplay shows the total and trip dis-tances. The distance remaining to the next service is less than 500 milles. Example:
400 miles remain before
the next service is due.When the ignition is switched on and for 5 seconds, the display shows: 5 seconds after the ignition is swit- ched on, the total distance recorderresumes normal operation and the
spanner remains lit. This indicatesthat a service should be carried out
shortly. The display indicates thetotal and trip distances. The service is overdue. Each time the ignition is switched on and for 5 seconds, the symbolflashes. Example:
the service is 300 miles
overdue, your vehicle must be serviced as soon as possible. When the ignition is switched on and for 5 seconds, the display indicates: 5 seconds after the ignition is switched on, the total distance recor-der resumes normal operation and
the spanner remains lit. The displayindicates the total and trip distances

14-04-2003
Zero re-set
Your PEUGEOT dealer carries out this operation after each service.
However, if you carry out the service yourself, the re-set procedure is asfollows: Switch off the ignition,
 Press and hold the trip recorder re-set button,
 Switch on the ignition.
The display begins a countdown. When the display shows 0, release the button; the service symbol disap-pears. Important: after this operation, if you
wish to disconnect the battery, lock the vehicle and wait for at least fiveminutes, otherwise the zero re-setwill not be registered. MAINTENANCE OF PARTS SUBJECT TO WEAR and a check of consumables Certain essential components on your vehicle are subject to checks at specific frequencies: ¥ The
brake fluid is to be replaced at a maximum of every 36,000/40,000 miles
(60 000 km) or every two years.
¥ The passenger compartment filter must be checked at each serviceby a
PEUGEOT dealer (services and intermediate visits) or more often, depending
on the environment (dust, pollution, etc.)
¥ Replacement of the timing belt: consult a PEUGOT dealer.
¥ For the 2 litre HDI turbo diesel engine (110 bhp) , maintenance of the
particulate emission filter and topping up of the additive reservoir must be
carried out at a maximum of every 72,000 miles (120 000 km) , by a
PEUGEOT dealer.
¥ Air bags and pretensioning parts on seat belts must be checked every
10 years .
¥ The check on tyre inflation pressure must be carried out cold at least once a
month .
PEUGEOT SERVICING 21

14-04-2003
THE SERVICE LEVELS Each vehicle has its own servicing cycle, based upon the engine type.
This cycle consists of alternating 2 types of service, A and C, intermediate visits and a few additional operations specific to
your vehicle; these correspond to key stages in the life of your 307 SW. At your first and each subsequent service, your dealer will advise you of the type and content of the next service due.
PEUGEOT SERVICING
22
MAINTENANCE CYCLE FOR YOUR 307 SW PETROL ENGINE
Service every 2 years or 20,000 miles (30 000 km) maximum
1st service at 6,000 miles (10 000 km) or 6 months*.
This is necessary in order to benefit from the warranty.
These services are to be carried out with synthetically based oil.
Synthetic oil or Fuel economy oil may also be used.
Arduous conditions of use (see corresponding section).
* Whichever comes first.
Intermediate top-up visit included in the Fixed Services.
MILES (KM) 20,000 (30 000) 40,000 (60 000) 60,000 (90 000)
80,000 (120 000) 100,000 (150 000) 120,000 (180 000) 140,000 (210 000) 160,000 (240 000)

14-04-2003
PEUGEOT SERVICING23
MAINTENANCE CYCLE FOR YOUR 307 SW DIESEL
Service every 2 years or 12,000 miles (20 000 km) maximum
1st service at 6,000 (10 000 km) or 6 months*.
This is necessary
in order to benefit from the warranty.
+ maintenance of
particulate emission filter
2,0 l HDI 110 bhp + maintenance of
particulate emission filter for engine
2.0 l HDI 110 bhp
These services are to be carried out: - imperatively with 5W40 synthetic oil for the HDI Turbo Diesel engines fitted with a particulate emissions filter ,
- with synthetically based oil , synthetic oil or Fuel Economy oil for the other HDI Turbo Diesel engines .
Arduous conditions of use (see corresponding section).
* Whichever comes first.
Intermediate top-up visit included in the Fixed Services.
72,000 (120 000) 84,000 (140 000) 96,000 (160 000) 108,000 (180 000) 120,000 (200 000) 132,000 (220 000) 144,000 (240 000)
MILES (KM) 12,000 (20 000) 24,000 (40 000) 36,000 (60 000) 48,000 (80 000) 60,000 (100 000)

14-04-2003
Arduous conditions of use
¥ Continuous door-to-door use.
¥ Town use (e.g. taxi).¥ Repeated short journeys, with the engine cold at low temperatures.
¥ A prolonged stay under the following conditions : - countries with temperatures often above +30 ¡C,
- countries with temperatures often below -15 ¡C,
- countries with a dusty atmosphere,
- countries whose lubricants or fuels do not conform to our recommendations.
PEUGEOT SERVICING
24
