display Peugeot 307 SW 2003 Owner's Guide

14-04-2003
PTY function: Audio RD3 This allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock etc.).With FM selected, press the "TA" button for two seconds to switch this function on or off.
To search for a PTYprogramme:
- select the PTYfunction,
- briefly press button Lor Nto scroll down the list of the various types of programmes offered.
- when the programme of your choice is displayed, keep button Lor Npressed for two seconds
to carry out an automatic search (after an automatic search the PTYfunction is switched off).
In PTY mode the different types of programmes can be stored in the memory. To do this, press the preselection buttons "1"
to "6" for two seconds.
Briefly press the corresponding button to recall the type of programme stored in the memory.
EON system: Audio RD3
This connects stations which are part of the same network. It enables the broadcast of traffic information or a PTY
programme, by a station that is part of the same network as the station to which you are listening. This service is available when you have selected the TAtraffic information programme or the PTYfunction.
YOUR 307 SW IN DETAIL 47

14-04-2003
YOUR 307 SW IN DETAIL51
Stalk movement Function
1 - Press (behind) Increase volume
2 - Press (behind) Decrease volume
1 + 2 - Press together Switch off sound (mute); restore sound by pressing any button
3 - Press Automatic search of upper frequencies (radio) - Selection of next track (CD/CD changer)
Continuous pressure until release: fast forwards (CD/CD changer)
4 - Press Automatic search of lower frequencies (radio) - Selection of previous track (CD/CD changer)
Continuous pressure until release: rewind (CD/CD changer)
5 - Press end Change source (radio/CD/CD changer) - Confirmation of selection (on a menu or screen) -
Call connect/Call disconnect (Tel./incoming call - Call disconnect (Tel./Engaged)
Press for more than 2 seconds: display contextual menu (Tel./Not engaged)
6 - Rotation (clockwise) Selection of higher station stored in memory or storing in memory in position 1 for station not in memory (radio) - Selection of following CD - Selection of following item (on a menu or screen)
7 - Rotation (anti-clockwise) Selection of lower station stored in memory or storing in memory in position 6 for station not in
memory (radio) - Selection of previous CD - Selection of previous item (on a menu or screen)
AUDIO/TELEPHONE RT3

14-04-2003
YOUR 307 SW IN DETAIL
52

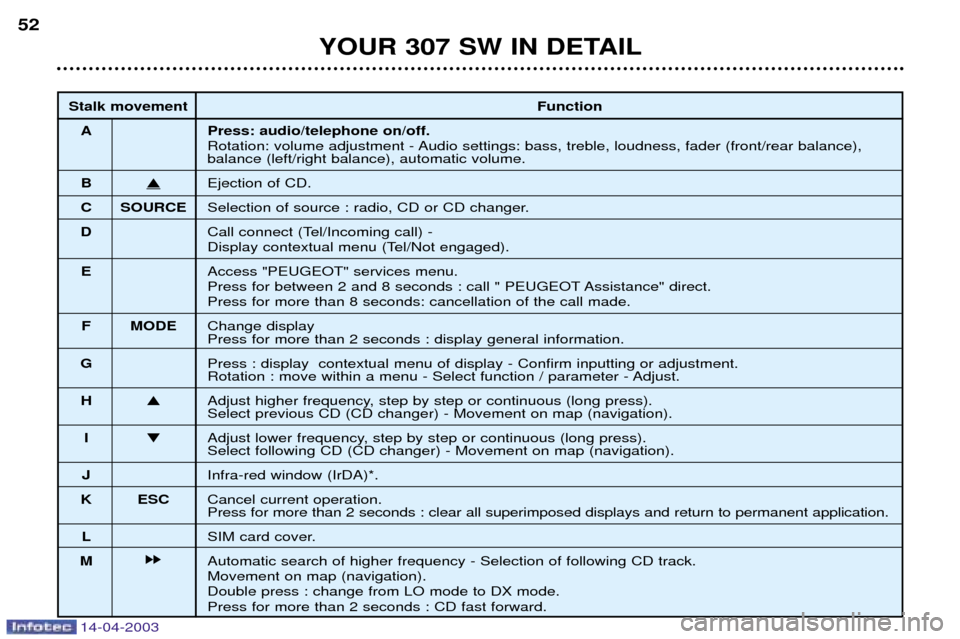

Stalk movement Function
A Press: audio/telephone on/off. Rotation: volume adjustment - Audio settings: bass, treble, loudness, fader (front/rear balance),
balance (left/right balance), automatic volume.
BEjection of CD.
C SOURCE Selection of source : radio, CD or CD changer.
D Call connect (Tel/Incoming call) -
Display contextual menu (Tel/Not engaged).
E Access "PEUGEOT" services menu.
Press for between 2 and 8 seconds : call " PEUGEOT Assistance" direct.
Press for more than 8 seconds: cancellation of the call made.
F MODE Change display
Press for more than 2 seconds : display general information.
G Press : display contextual menu of display - Confirm inputting or adjustment.
Rotation : move within a menu - Select function / parameter - Adjust.
H Adjust higher frequency, step by step or continuous (long press).
Select previous CD (CD changer) - Movement on map (navigation).
I Adjust lower frequency, step by step or continuous (long press).
Select following CD (CD changer) - Movement on map (navigation).
J Infra-red window (IrDA)*.
K ESC Cancel current operation.
Press for more than 2 seconds : clear all superimposed displays and return to permanent application.
LSIM card cover.
M kkAutomatic search of higher frequency - Selection of following CD track. Movement on map (navigation).Double press : change from LO mode to DX mode.Press for more than 2 seconds : CD fast forward.

14-04-2003
YOUR 307 SW IN DETAIL53
Stalk movement Function
N jjAutomatic search of lower frequency - Selection of previous CD track. Movement on map (navigation).Double press : change from LO mode to DX mode.
Press for more than 2 seconds : CD rewind.
O DARK 1st press : display top band (remainder of screen is black) - 2nd press: brightness removed (black screen) - 3rd press: return to normal screen.
Press for more than 5 seconds: reinitialisation of the system.
P MENU Display general menu - Press for more than 2 seconds : display help screen and list of voice
commands.
Q Disconnect.
Press for more than 2 seconds: transfer of the call to the voice mail or to a call diversion number.
R BAND Select FM1, FM2, FMast, AM wavebands.
ASTPress for more than 2 seconds : automatic storing of stations (autostore).
S TA/PTY Traffic information priority on/off
Press for more than 2 seconds: PTY function on/off.
T RDS RDS function on/off.
Press for more than 2 seconds : regional following mode on/off
U AUDIO Display window for adjusting bass, treble, loudness, sound distribution and automatic correction of
volume.
V SOS Press between 2 and 8 seconds : emergency call.
Press for more than 8 seconds: cancellation of the call made.
1 to 6 1 2 3 4 5 6 Select station in memory.
Press more than 2 seconds : store station in memory while listening.
1 to 5 1 2 3 4 5 Selection of CDs in the CD changer.
0 to 9 * #0 1 2 3 4 5Alphanumeric keypad for entering text and telephone numbers.
6 7 8 9 * #
* During the year.

14-04-2003
YOUR 307 SW IN DETAIL
55
Bass setting When "Bass" is displayed, turn button Ato vary the setting.
- "-9" for minimum bass setting
- "0" for normal setting
- "+9" for maximum bass setting
Treble setting When "Treble" is displayed, turn button Ato vary the setting.
- "-9" for minimum treble setting
- "0" for normal setting
- "+9" for maximum treble setting
Adjusting the loudness
This function automatically emphasises bass and treble tones when the volume is low. Rotate button Ato switch the function on or off.
Setting the front/rear sound distribution (Fader) When "Fader" is displayed:
- Turn button Aclockwise to increase the volume in the front.
- Turn button Aanti-clockwise to increase the volume in the rear.
Setting the right/left sound distribution (Balance)When "Balance" is displayed:
- Turn button Aclockwise to increase the volume on the right.
- Turn button Aanti-clockwise to increase the volume on the left.
Automatic volume adjustment "CAV"This function allows the volume to be adjusted automatically depending on the level of noise produced by the speed of the vehicle. Press button Ato switch the function on or off.

14-04-2003
YOUR 307 SW IN DETAIL57
Manual station search
Briefly press button Hor I to increase or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency. Scrolling stops at the first station found as soon as the button is released.
Manual station storing Select the station required. Press one of the buttons "1"to "6" for more than two seconds.
An audible signal is emitted, confirming that the station has been stored in the memory. Automatic storing of FM stations in the memory
Press the''BAND/AST'' button for more than two seconds.
Your audio/telephone automatically stores the 6 stations with the strongest signal in FM. These stations are stored in the FMast waveband.
If it is not possible to find 6 stations, the remaining memories are empty. Recalling stations stored in the memory For each waveband, briefly press the buttons "1"to "6" to recall the corresponding stored station.

14-04-2003
YOUR 307 SW IN DETAIL
58
RDS SYSTEM Using the RDS (Radio Data System) function on FM Radio Data System allows you to continue listening to the same station, whatever frequency it is using for the region you are going through. Briefly press the "RDS"button to switch the function on or off.
The multi-function screen will show: - RDS if the function is active
- RDS crossed out or greyed out if the function is active but not available.
RDS station following
This display indicates the name of the station selected. The audio/telephone is continuously searching for the station which has the
best reception and which is transmitting the same programme. This search may cause slight interference with the transmission.
Traffic information programme Press the "TA/PTY" button to switch the function on or off.
The multi-function screen will show: - TA if the function is selected
- TA crossed out or greyed out if the function is selected but not available.
Any traffic information flash will be given priority, whatever source you are listening to (radio, CD or CD changer).If you wish to interrupt the broadcasting of a message, press the ''TA/PTY''button.
Note: the volume of the traffic information is independent of the volume of normal radio/telephone listening. You can
adjust it by using the volume button. The setting will be stored and will be used when the next messages are broadcast. Regional following mode (REG) When they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With regional following mode you can keep listening to the same programme.
To do this, press the "RDS"button for more than two seconds to switch the function on or off.
The multi-function screen will show:- REG if the function is active,
- REG crossed out or greyed out if the function is active but not available.

14-04-2003
YOUR 307 SW IN DETAIL59
PTY function This allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock etc.) When FM is selected, press button "TA/PTY"for more than two seconds to switch the function on or off.
To find a PTYprogramme:
- select the PTYbutton,
- turn button Gto scroll down the different types of programmes offered, then confirm your choice,
- when the programme of your choice is displayed press button Mor Nto carry out an automatic
search (after an automatic search the PTYfunction is switched off if no station has been found).
In PTY mode the different types of programmes can be stored in the memory. To do this, press the preselection buttons "1"
to " 6'' for more than two seconds. To recall the type of programme stored in the memory, briefly press the corrresponding
button.
EON system
This system connects stations which are part of the same network. It enables the broadcast of traffic information or a PTY
programme, by a station that is part of the same network as the station to which you are listening. The service is available when you have selected the TAtraffic information programme or the PTYfunction.
Contextual menu The contextual menu allows you to access the following functions:- "Inputting a frequency"- "Display Radio text" to display information connected with the station being listened to.

14-04-2003
YOUR 307 SW IN DETAIL
62
TELEPHONE
This function is a GSM dual-band telephone (900 and 1 800 MHz) incorporated in the RT3 audio system. It is a ''hands free'' telephone. This function is provided by a microphone located next to the front courtesy light, the
speakers and a steering column control which allows access to most of the functions (the audio/telephone control panel buttons allow access to all the functions). Display of the principal ''mobile''type functions, as well as consultation of the indexes, is provided by the multi-function
display.This function is active , whatever position the ignition key is in even after thirty minutes, when the message ''Economy
mode active'' appears on the multi-function display.
Using the menus Press the ''MENU'' button to display the general menu. Select the telematicsapplication, validiate "Telephone functions"
to access the principal telephone functions, then the various menus, in order to reach the one required. This menu allows you to access the following functions:
- Network: allows you to select the network search mode and to see the networks avai-
lable.
- Duration of calls: allows you to consult the duration recorder of calls made and zero
re-set.
- Security: allows you to use or modify the PIN code and to erase the list of calls and
mini-messages (SMS).
- Telephone options: allows you to configure the calls with entering of my number,
automatic answering after X rings, specification of ring options and allows you to confi-
gure the call diversion number.
Within each menu: Move around and select a function by turning the Gbutton then validate by pressing the button.
Cancel an operation using the ''ESC''button.

14-04-2003
YOUR 307 SW IN DETAIL65
Making a call Press button Dto display the contextual menu of the telephone.
Note: pressing the end 5 of the steering column control for more than 2 seconds calls
up a contextual menu limited to the "Directory", "List of calls" and"Voice mail"
functions.
Entering a number Select the function ''Enter number'' then enter the number of the person you wish to speak to using the alpha-
numeric keypad. Press button Dto make the call.
Making a call from a directory Select the "Directory" function to access all the files containing a telephone number or the "List of calls"function to access
the list of the last ten incoming (if the number display option is active) or outgoing calls. Note: there are two directories, the RT3 audio/telephone directory and the SIM card directory. To consult the SIM directory,
insert your SIM card and enter your PIN code.
Receiving a call When a ringing sounds to let you know that a call is waiting, you can choose either to accept it by pressing button Dor the end of the steering wheel remote control or not to accept it by pressing the button Qor by
selecting and validating the "NO"button on the "Answer?"screen.
If you accept the call, to end your communication, press button Q.
If you do not accept the call, it is transferred to your voice mail or to a call diversion number.
