PRACTICAL INFORMATION
Parking the vehicle

 As far as possible, park the
vehicle on level, stable and non-
slippery ground.

 Apply the handbrake, switch off
the ignition and engage i rst or
reverse gear (position P for the
automatic gearbox). Access to the spare wheel

 Open the boot.

 Open the l ap using the lug
to release the winch and gain
access to its control nut.

 Unscrew the nut fully, using the
wheelbrace 1 , to unroll the winch
cable.
Tools
The following tools are located:
- in the right-hand trim of the boot,

1. Wheelbrace.

2. Removable towing eye.

3. Socket for anti-theft bolts.
- in the holder in the centre of the spare wheel,

4. Jack with handle.

5. Centralising tool.

6. Bolt cover tool.
CHANGING A WHEEL

10
116
PRACTICAL INFORMATION

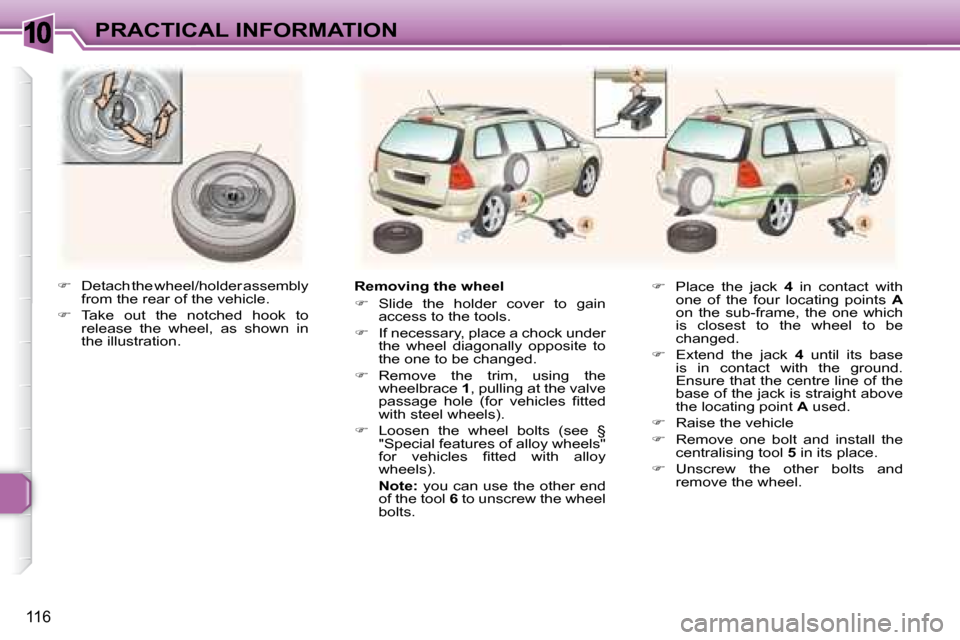

 Detach the wheel/holder assembly
from the rear of the vehicle.

 Take out the notched hook to
release the wheel, as shown in
the illustration. Removing the wheel

 Slide the holder cover to gain
access to the tools.

 If necessary, place a chock under
the wheel diagonally opposite to
the one to be changed.

 Remove the trim, using the
wheelbrace 1 , pulling at the valve
passage hole (for vehicles i tted
with steel wheels).

 Loosen the wheel bolts (see §
"Special features of alloy wheels"
for vehicles i tted with alloy
wheels).
Note: you can use the other end
of the tool 6 to unscrew the wheel
bolts.
 Place the jack 4 in contact with
one of the four locating points A
on the sub-frame, the one which
is closest to the wheel to be
changed.

 Extend the jack 4 until its base
is in contact with the ground.
Ensure that the centre line of the
base of the jack is straight above
the locating point A used.

 Raise the vehicle

 Remove one bolt and install the
centralising tool 5 in its place.

 Unscrew the other bolts and
remove the wheel.

10
117
PRACTICAL INFORMATION

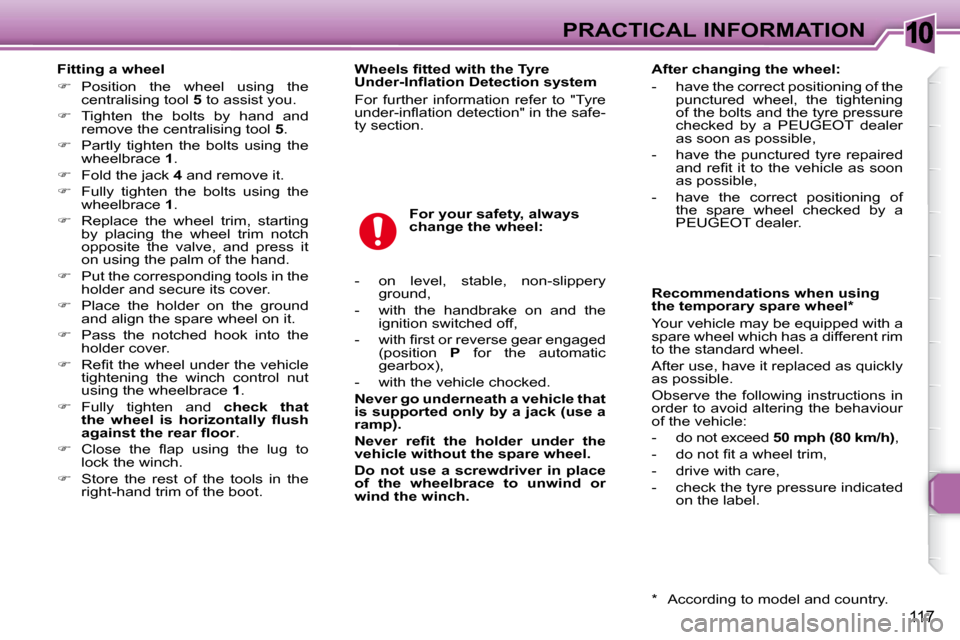

Fitting a wheel

 Position the wheel using the
centralising tool 5 to assist you.

 Tighten the bolts by hand and
remove the centralising tool 5 .

 Partly tighten the bolts using the
wheelbrace 1 .

 Fold the jack 4 and remove it.

 Fully tighten the bolts using the
wheelbrace 1 .

 Replace the wheel trim, starting
by placing the wheel trim notch
opposite the valve, and press it
on using the palm of the hand.

 Put the corresponding tools in the
holder and secure its cover.

 Place the holder on the ground
and align the spare wheel on it.

 Pass the notched hook into the
holder cover.

 Rei t the wheel under the vehicle
tightening the winch control nut
using the wheelbrace 1 .

 Fully tighten and check that
the wheel is horizontally l ush
against the rear l oor .

 Close the l ap using the lug to
lock the winch.

 Store the rest of the tools in the
right-hand trim of the boot. For your safety, always
change the wheel:
- on level, stable, non-slippery ground,
- with the handbrake on and the ignition switched off,
- with i rst or reverse gear engaged (position P for the automatic
gearbox),
- with the vehicle chocked.

Never go underneath a vehicle that
is supported only by a jack (use a
ramp).

Never rei t the holder under the
vehicle without the spare wheel.

Do not use a screwdriver in place
of the wheelbrace to unwind or
wind the winch. Recommendations when using
the temporary spare wheel *
Your vehicle may be equipped with a
spare wheel which has a different rim
to the standard wheel.
After use, have it replaced as quickly
as possible.
Observe the following instructions in
order to avoid altering the behaviour
of the vehicle:
- do not exceed
50 mph (80 km/h) ,
- do not i t a wheel trim,
- drive with care,
- check the tyre pressure indicated on the label.
* According to model and country.
After changing the wheel:
- have the correct positioning of the punctured wheel, the tightening
of the bolts and the tyre pressure
checked by a PEUGEOT dealer
as soon as possible,
- have the punctured tyre repaired and rei t it to the vehicle as soon
as possible,
- have the correct positioning of the spare wheel checked by a
PEUGEOT dealer.
Wheels i tted with the Tyre
Under-Inl ation Detection system
For further information refer to "Tyre
under-inl ation detection" in the safe-
ty section.

10
118
PRACTICAL INFORMATION
Bolt covers
Alloy wheel bolts are covered by
chrome trims.
Use the yellow tool 6 to remove the
trims before slackening the bolts. If your vehicle is i tted with a steel
spare wheel, when i tting it, it is
nor-
mal when tightening the bolts to no-
tice that the washers do not come
into contact with the rim. The spare
wheel is secured by the cone shape
of each bolt.
Fitting snow tyres
If you i t snow tyres mounted on steel
wheels onto your vehicle, it is es-
sential to use special bolts available
from your PEUGEOT dealer.

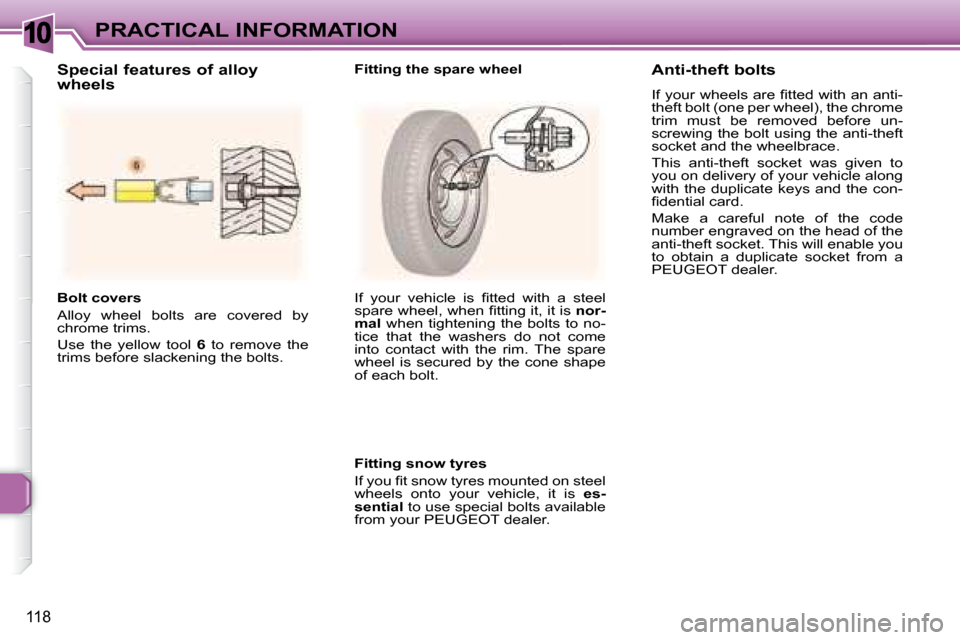

Special features of alloy
wheels Fitting the spare wheel Anti-theft bolts
If your wheels are i tted with an anti-
theft bolt (one per wheel), the chrome
trim must be removed before un-
screwing the bolt using the anti-theft
socket and the wheelbrace.
This anti-theft socket was given to
you on delivery of your vehicle along
with the duplicate keys and the con-
i dential card.
Make a careful note of the code
number engraved on the head of the
anti-theft socket. This will enable you
to obtain a duplicate socket from a
PEUGEOT dealer.

10
119
PRACTICAL INFORMATION

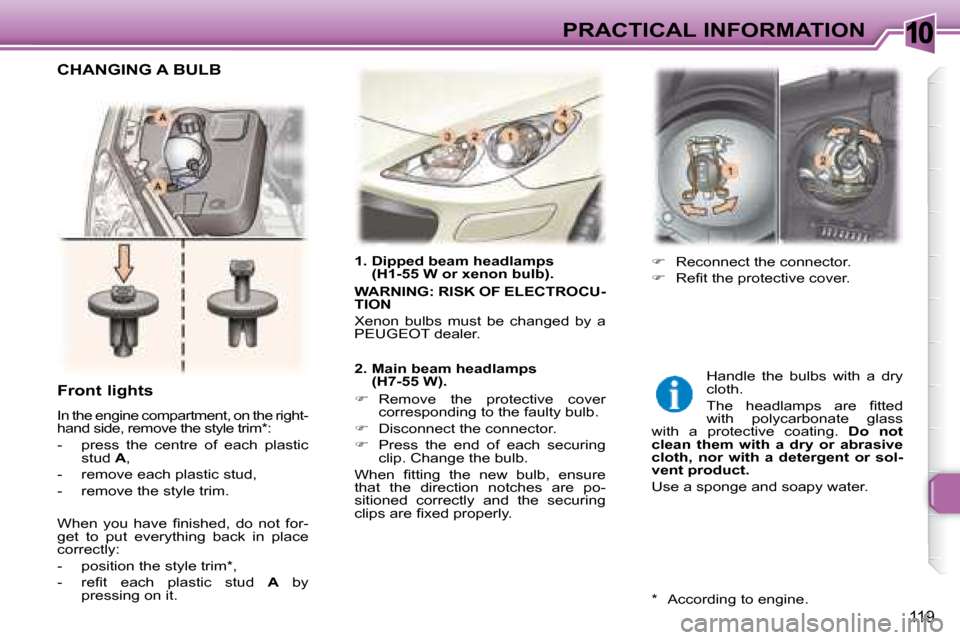

1. Dipped beam headlamps (H1-55 W or xenon bulb).

WARNING: RISK OF ELECTROCU-
TION
Xenon bulbs must be changed by a
PEUGEOT dealer.
2. Main beam headlamps (H7-55 W).

 Remove the protective cover
corresponding to the faulty bulb.

 Disconnect the connector.

 Press the end of each securing
clip. Change the bulb.
When i tting the new bulb, ensure
that the direction notches are po-
sitioned correctly and the securing
clips are i xed properly.
 Reconnect the connector.

 Rei t the protective cover.
Front lights
In the engine compartment, on the right-
hand side, remove the style trim * :
- press the centre of each plastic
stud A ,
- remove each plastic stud,
- remove the style trim.
When you have i nished, do not for-
get to put everything back in place
correctly:
- position the style trim * ,
- rei t each plastic stud A by
pressing on it. Handle the bulbs with a dry
cloth.
The headlamps are i tted
with polycarbonate glass
with a protective coating. Do not
clean them with a dry or abrasive
cloth, nor with a detergent or sol-
vent product.
Use a sponge and soapy water.
CHANGING A BULB
* According to engine.

10
120
PRACTICAL INFORMATION

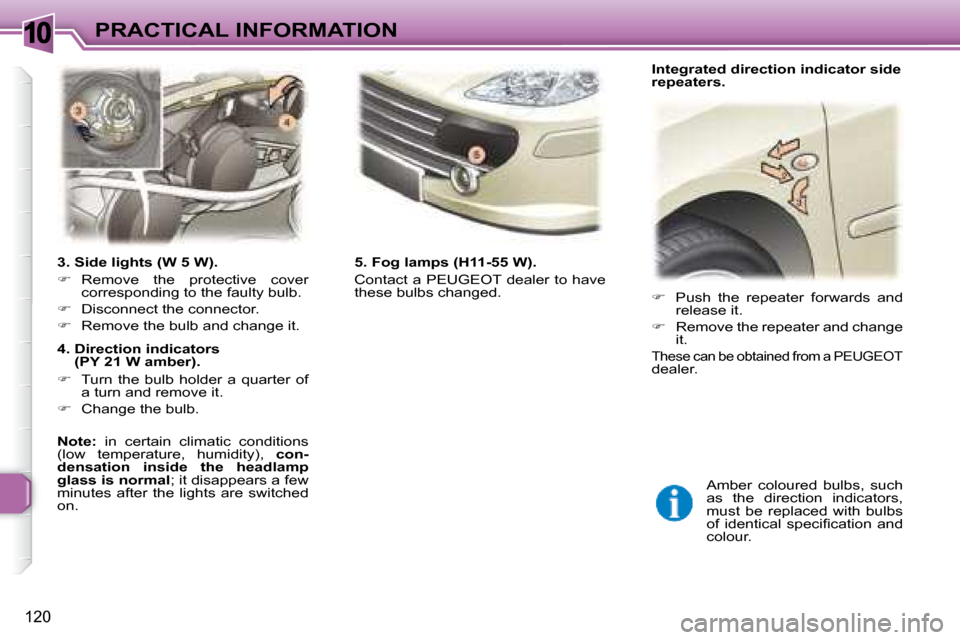

3. Side lights (W 5 W).

 Remove the protective cover
corresponding to the faulty bulb.

 Disconnect the connector.

 Remove the bulb and change it.
4. Direction indicators (PY 21 W amber).

 Turn the bulb holder a quarter of
a turn and remove it.

 Change the bulb.

Note: in certain climatic conditions
(low temperature, humidity), con-
densation inside the headlamp
glass is normal ; it disappears a few
minutes after the lights are switched
on. 5. Fog lamps (H11-55 W).
Contact a PEUGEOT dealer to have
these bulbs changed.

 Push the repeater forwards and
release it.

 Remove the repeater and change
it.

These can be obtained from a PEUGEOT
dealer.
Amber coloured bulbs, such
as the direction indicators,
must be replaced with bulbs
of identical specii cation and
colour.
Integrated direction indicator side
repeaters.

10
121
PRACTICAL INFORMATION

1. Brake lights (P 21 W).

2. Side lights (x 2) (R 5 W).

3. Direction indicators (P 21 W).

4. Reversing light (P 21 W), left
side.
Fog lamp (P 21 W), right side.
These 6 bulbs are changed by re-
moving the light:

 Remove the respective boot side
trim to access the light,

 Remove the mounting nut for the
light inside the boot.

 Remove the mounting nut for the
light outside the boot.

 Remove the light.

 Unclip the harness.
 Press the tabs A and remove the
bulb holder,

 Change the faulty bulb.

Note: if necessary use the wheel-
brace to remove the nuts.
When rei tting, take care to position the
bulb holder and the bulb correctly.
 Remove the tailgate upper trim
carefully by unclipping it on either
side, perpendicular to its direction
of engagement.

 Insert a screwdriver into the two
outer holes B to press on the two
tabs C .

 Push the light unit outwards while
maintaining the pressure on the
tabs.

 Pull the light unit outwards while
tilting it.

 Change the faulty bulb.

 When rei tting, ensure that the
light unit tabs are engaged
correctly and that the tailgate
upper trim has been put back in
place correctly.
Number plate lights (W 5 W)

 Insert a small screwdriver in one
of the external holes of the lens

 Push the lens outwards to unclip
it.

 Remove the lens.

 Change the faulty bulb.
Third brake light: 4 W 5 W
bulbs.
Rear lights

10
122
PRACTICAL INFORMATION
CHANGING A FUSE
The fuse boxes are placed in the low-
er part of the fascia (passenger side)
and in the engine compartment (left-
hand side). Correct Incorrect
 Open the glove box lid to gain
access to the fuses.
Replacing a fuse
Before replacing a fuse, the cause of
the incident must be found and recti-
i ed. The fuse numbers are indicated
on the fuse box.
Always replace a faulty fuse with a
fuse of the same rating (same co-
lour).
Use the special pliers located on the
inside of the fascia fuse box cover,
this support also contains the re-
placement fuses.
Fascia fuses

Fuse N° Rating Functions

F1 15 A Rear wiper.

F2 30 A Locking and deadlocking.

F3 5 A Air bags and pre-tensioners unit.

F4 10 A Brake and clutch pedals switch, engine coolant
level switch, steering wheel angle sensor,
diagnostic socket, ESP sensor, electrochromatic
mirror, particle emission i lter pump.

F5 30 A Front electric windows and panoramic roof
concealing shutter supply, heated mirrors.

10
122
PRACTICAL INFORMATION
CHANGING A FUSE
The fuse boxes are placed in the low-
er part of the fascia (passenger side)
and in the engine compartment (left-
hand side). Correct Incorrect
 Open the glove box lid to gain
access to the fuses.
Replacing a fuse
Before replacing a fuse, the cause of
the incident must be found and recti-
i ed. The fuse numbers are indicated
on the fuse box.
Always replace a faulty fuse with a
fuse of the same rating (same co-
lour).
Use the special pliers located on the
inside of the fascia fuse box cover,
this support also contains the re-
placement fuses.
Fascia fuses

Fuse N° Rating Functions

F1 15 A Rear wiper.

F2 30 A Locking and deadlocking.

F3 5 A Air bags and pre-tensioners unit.

F4 10 A Brake and clutch pedals switch, engine coolant
level switch, steering wheel angle sensor,
diagnostic socket, ESP sensor, electrochromatic
mirror, particle emission i lter pump.

F5 30 A Front electric windows and panoramic roof
concealing shutter supply, heated mirrors.

10
123

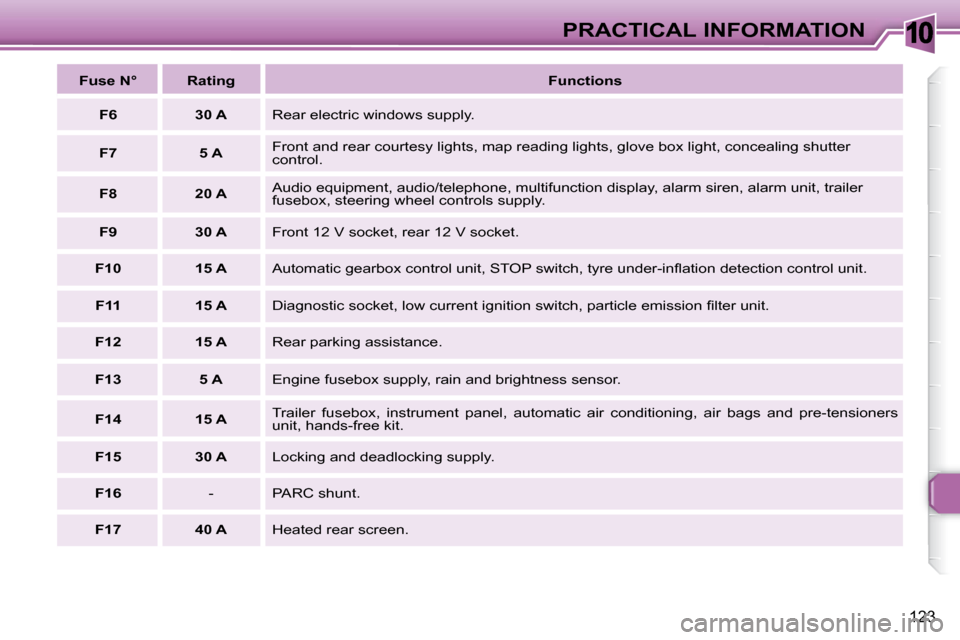

PRACTICAL INFORMATION

Fuse N° Rating
Functions

F6 30 A Rear electric windows supply.

F7 5 A Front and rear courtesy lights, map reading lights, glove box l
ight, concealing shutter
control.

F8 20 A Audio equipment, audio/telephone, multifunction display
, alarm siren, alarm unit, trailer
fusebox, steering wheel controls supply.

F9 30 A Front 12 V socket, rear 12 V socket.

F10 15 A Automatic gearbox control unit, STOP switch, tyre under-inl atio n detection control unit.

F11 15 A Diagnostic socket, low current ignition switch, particle emission i lter unit.

F12 15 A Rear parking assistance.

F13 5 A Engine fusebox supply, rain and brightness sensor.

F14 15 A Trailer fusebox, instrument panel, automatic air conditioning
, air bags and pre-tensioners
unit, hands-free kit.

F15 30 A Locking and deadlocking supply.

F16 - PARC shunt.

F17 40 A Heated rear screen.
