11
(
134
TECHNICAL DATA

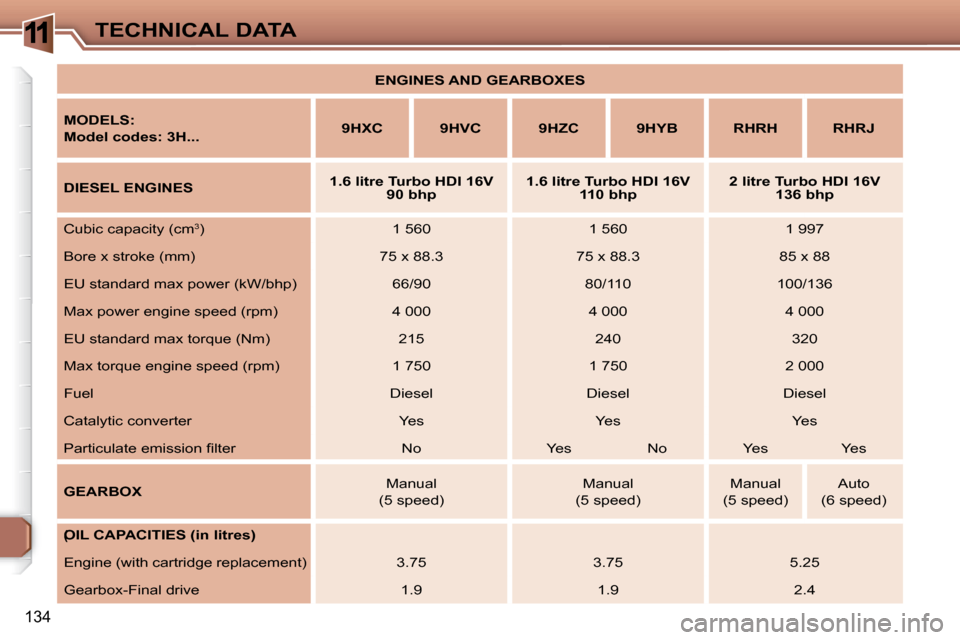

ENGINES AND GEARBOXES
MODELS:
Model codes: 3H...
9HXC 9HVC 9HZC 9HYB RHRH RHRJ
DIESEL ENGINES
1.6 litre Turbo HDI 16V
90 bhp
1.6 litre Turbo HDI 16V
110 bhp
2 litre Turbo HDI 16V
136 bhp
C u b i c c a p a c i t y ( c m
3) 1 560 1 560 1 997
B o r e x s t r o k e ( m m ) 7 5 x 8 8 . 3 7 5 x 8 8 . 3 8 5 x 8 8
E U s t a n d a r d m a x p o w e r ( k W / b h p ) 66/90 80/110 100/136
M a x p o w e r e n g i n e s p e e d ( r p m ) 4 000 4 000 4 000
E U s t a n d a r d m a x t o r q u e ( N m ) 215 240 320
M a x t o r q u e e n g i n e s p e e d ( r p m ) 1 750 1 750 2 000
Fuel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes
P a r t i c u l a t e e m i s s i o n i l t e r No Yes No Yes Yes
GEARBOX Manual
( 5 s p e e d ) Manual
( 5 s p e e d ) Manual
( 5 s p e e d ) Auto
( 6 s p e e d )
OIL CAPACITIES (in litres)
E n g i n e ( w i t h c a r t r i d g e r e p l a c e m e n t ) 3.75 3.75 5.25
G e a r b o x - F i n a l d r i v e 1.9 1.9 2.4
Page 152 of 199
![Peugeot 307 SW 2007.5 Owners Manual 11
135
TECHNICAL DATA
CONSUMPTION
In accordance with EC Directive 80/1268 (as amended)
[In MPG (litres/100 km)]
Engine Gearbox
Model
Codes 3H...
Urban Circu](/img/29/11362/w960_11362-151.png "Peugeot 307 SW 2007.5 Owners Manual 11
135
TECHNICAL DATA
CONSUMPTION
In accordance with EC Directive 80/1268 (as amended)
[In MPG (litres/100 km)]
Engine Gearbox
Model
Codes 3H...
Urban Circu")
11
135
TECHNICAL DATA
CONSUMPTION
In accordance with EC Directive 80/1268 (as amended)
[In MPG (litres/100 km)]
Engine Gearbox
Model
Codes 3H...
Urban Circuit
Inter-urban
Circuit
Mixed Circuit
Emission of
CO
2 by weight g/km
1.6 litre 16V Manual NFUC 9.9 6.3 7.7 178
1.6 litre 16V Automatic NFUF 11.4 6.3 8.3 194
1.6 l. 16V BioFlex Manual NFUC/FF 9.9 (1)
13.9 (2) 6.3 (1)
8.5 (2) 7.7 (1)
10.4 (2) 178 (1)
169 (2)
2 litre 16V Manual RFJC 11.0 6.1 7.9 188
2 litre 16V Automatic RFJF 12.2 6.3 8.4 199
1.6 l. Turbo HDI 16V
90 bhp Manual
9HXC 6.3 4.5 5.1 134
9HVC 6.3 4.5 5.1 134
1.6 l. Turbo HDI 16V
110 bhp Manual
9HZC 6.3 4.5 5.1 134
9HYB 6.2 4.4 5.0 131
2 l. Turbo HDI 16V Manual
RHRH 7.3 4.7 5.6 148
Automatic RHRJ 9.5 5.4 6.9 183
T h e c o n s u m p t i o n v a l u e s p r e s e n t e d h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g . T h e c o n s u m p t i o n
v a l u e s w e r e e s t a b l i s h e d i n a c c o r d a n c e w i t h E C D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d ) . T h e y m a y v a r y i n r e l a t i o n t o t h e s t y l e o f d r i v i n g ,
d r i v i n g c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e v e h i c l e l o a d , t h e m a i n t e n a n c e o f t h e v e h i c l e a n d t h e u s e o f t h e a c c e s s o r i e s .
( 1 ) U n l e a d e d . - ( 2 ) E 8 5 .
Page 153 of 199
11
136
TECHNICAL DATA

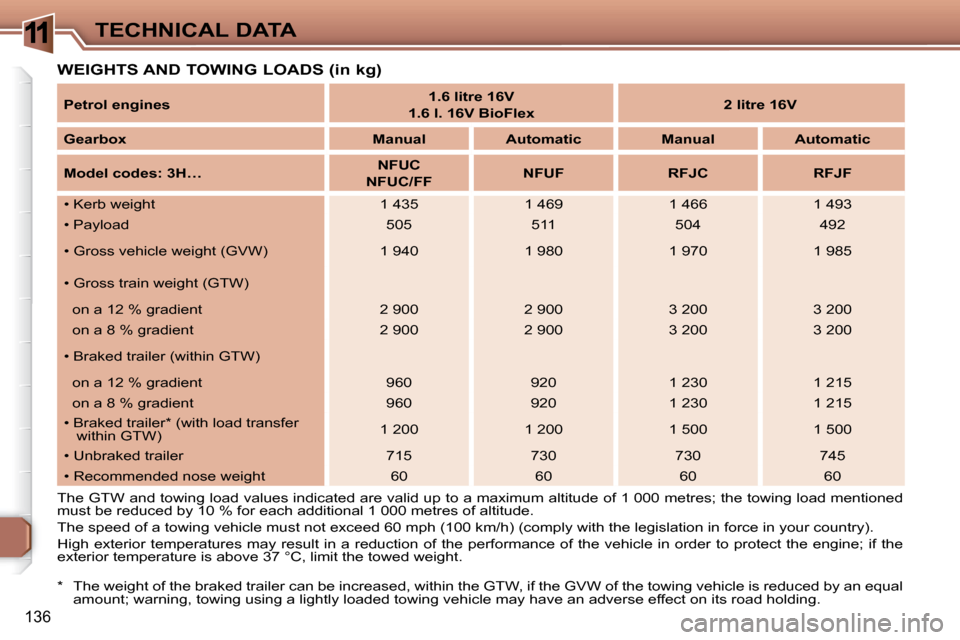

WEIGHTS AND TOWING LOADS (in kg)
Petrol engines
1.6 litre 16V
1.6 l. 16V BioFlex
2 litre 16V
Gearbox Manual Automatic Manual Automatic
Model codes: 3H…
NFUC
NFUC/FF
NFUF RFJC RFJF
• K e r b w e i g h t 1 435 1 469 1 466 1 493
Page 154 of 199
11
137
TECHNICAL DATA

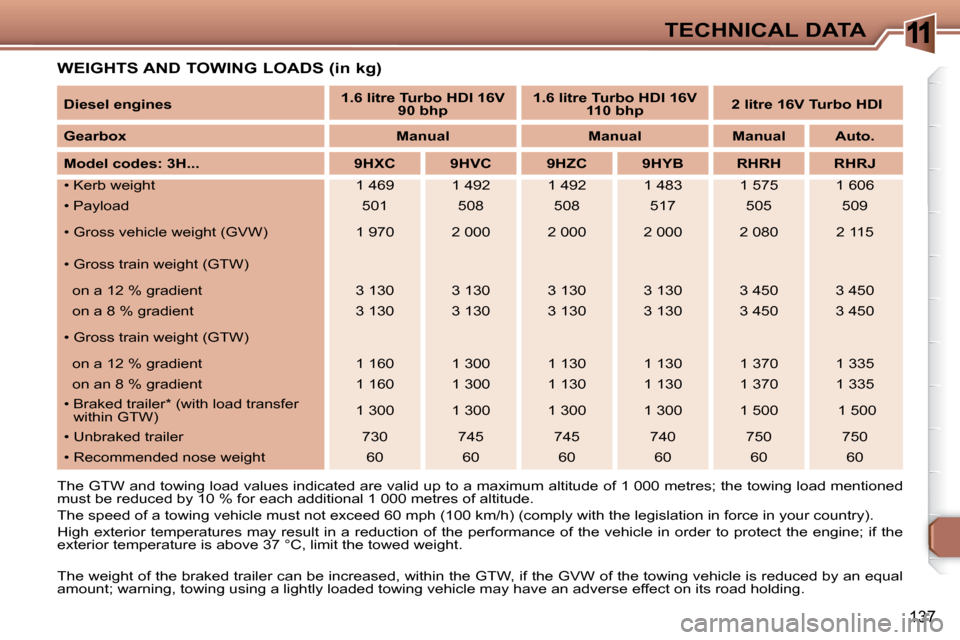

WEIGHTS AND TOWING LOADS (in kg)
T h e G T W a n d t o w i n g l o a d v a l u e s i n d i c a t e d a r e v a l i d u p t o a m a x i m u m a l t i t u d e o f 1 0 0 0 m e t r e s ; t h e t o w i n g l o a d m e n t i o n e d
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
T h e s p e e d o f a t o w i n g v e h i c l e m u s t n o t e x c e e d 6 0 m p h ( 1 0 0 k m / h ) ( c o m p l y w i t h t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y ) .
H i g h e x t e r i o r t e m p e r a t u r e s m a y r e s u l t i n a r e d u c t i o n o f t h e p e r f o r m a n c e o f t h e v e h i c l e i n o r d e r t o p r o t e c t t h e e n g i n e ; i f t h e
e x t e r i o r t e m p e r a t u r e i s a b o v e 3 7 ° C , l i m i t t h e t o w e d w e i g h t .
T h e w e i g h t o f t h e b r a k e d t r a i l e r c a n b e i n c r e a s e d , w i t h i n t h e G T W , i f t h e G V W o f t h e t o w i n g v e h i c l e i s r e d u c e d b y a n e q u a l
a m o u n t ; w a r n i n g , t o w i n g u s i n g a l i g h t l y l o a d e d t o w i n g v e h i c l e m a y h a v e a n a d v e r s e e f f e c t o n i t s r o a d h o l d i n g .
Diesel engines
1.6 litre Turbo HDI 16V
90 bhp
1.6 litre Turbo HDI 16V
110 bhp
2 litre 16V Turbo HDI
Gearbox
Manual Manual Manual Auto.
Model codes: 3H... 9HXC 9HVC 9HZC 9HYB RHRH RHRJ
• K e r b w e i g h t 1 469 1 492 1 492 1 483 1 575 1 606
Page 155 of 199
11
138
TECHNICAL DATA

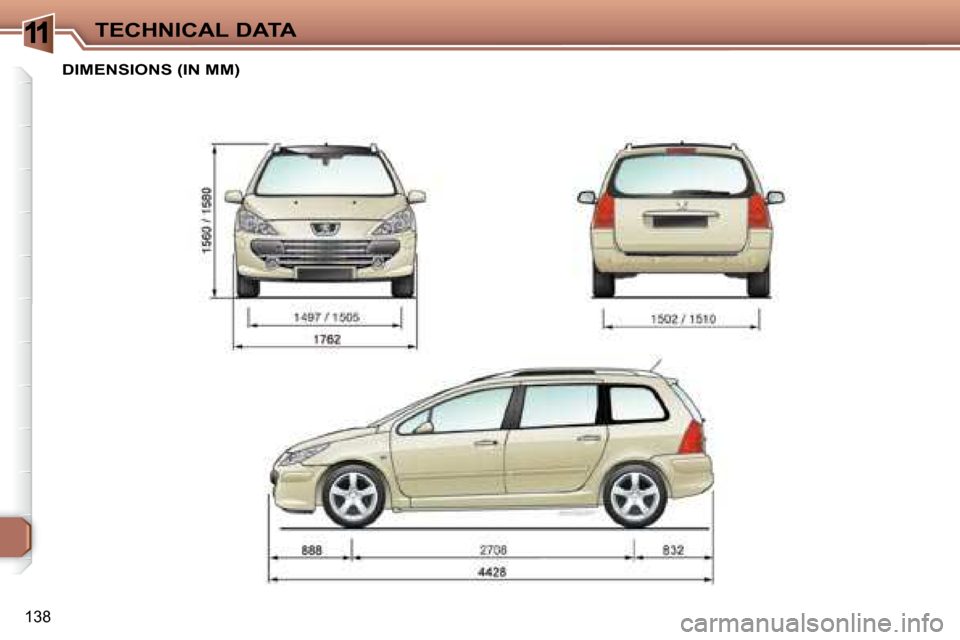

DIMENSIONS (IN MM)
Page 156 of 199
11TECHNICAL DATA
A. Manufacturer’s plate. D. Tyres and paint colour reference.
The label D on the pillar, near the
hinges of the driver’s door, gives:
- the wheel and tyre sizes,
- the brands of tyres * approved by the manufacturer,
- the tyre pressures,
- the paint colour reference * . The tyre pressure must be
checked when the tyre is
cold, at least once a month.
Low tyre pressures increase
fuel consumption.
B. Serial number on the
bodywork.
C. Serial number on the fascia.
E . F u e l c o n s u m p t i o n i g u r e s * i n the corner of the windscreen.

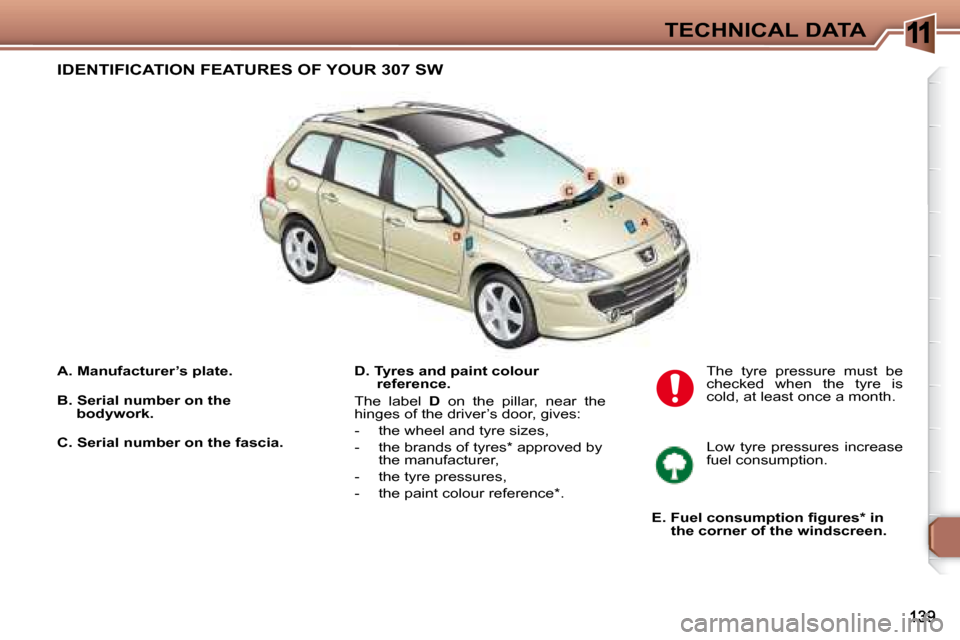

IDENTIFICATION FEATURES OF YOUR 307 SW
Page 157 of 199
141
S
O S SOURCE
MODE BAND ESC
2
abc
5
jkl
8
tuv 3
def
6
mno
9
wxyz
1 4
ghi
7
pqrs
0 # MENU LIST
TA
PTY
DARK

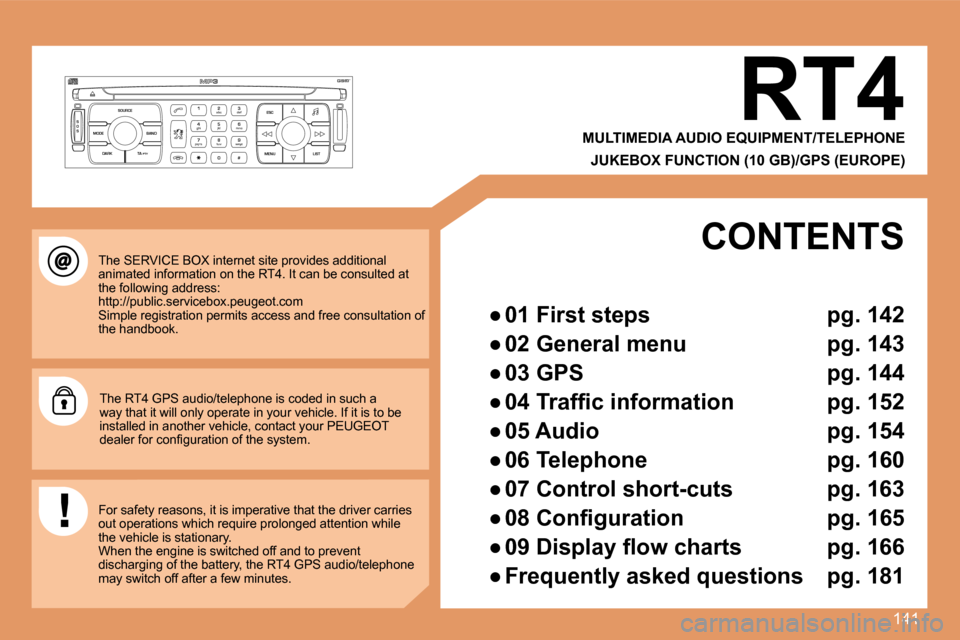

The SERVICE BOX internet site provides additional
animated information on the RT4. It can be consulte d at
the following address:
http://public.servicebox.peugeot.com
Simple registration permits access and free consult ation of
the handbook.
The RT4 GPS audio/telephone is coded in such a
way that it will only operate in your vehicle. If i t is to be
installed in another vehicle, contact your PEUGEOT
d e a l e r f o r c o n i g u r a t i o n o f t h e s y s t e m .
For safety reasons, it is imperative that the drive r carries
out operations which require prolonged attention wh ile
the vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the RT4 GPS audio/telep hone
may switch off after a few minutes. RT4
MULTIMEDIA AUDIO EQUIPMENT/TELEPHONE JUKEBOX FUNCTION (10 GB)/GPS (EUROPE)
CONTENTS
Page 158 of 199
142
S
O S
SOURCE
MODE BAND ESC
2
abc
5
jkl
8
tuv 3
def
6
mno
9
wxyz
1 4
ghi
7
pqrs
0 # MENU LIST
TA
PTY
DARK
2
1
5
3 4
89 10
1 5
11 17 18
12 16
14
7
6
13
01

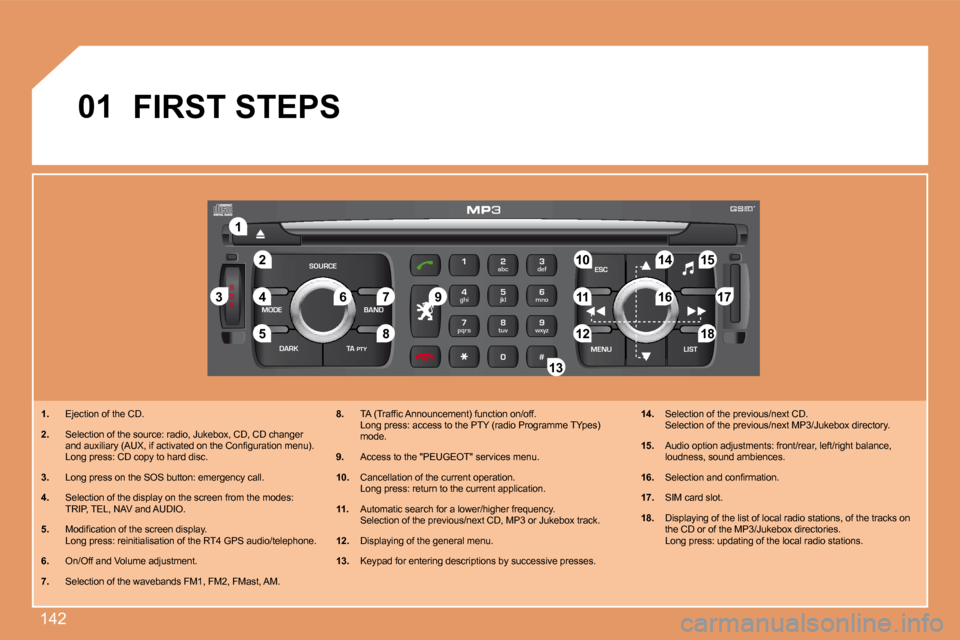

1. Ejection of the CD.
2. Selection of the source: radio, Jukebox, CD, CD ch anger
a n d a u x i l i a r y ( A U X , i f a c t i v a t e d o n t h e C o n i g u r a t i o n m e n u ) .
Long press: CD copy to hard disc.
3. Long press on the SOS button: emergency call.
4. Selection of the display on the screen from the mo des:
TRIP, TEL, NAV and AUDIO.
5 . M o d i i c a t i o n o f t h e s c r e e n d i s p l a y .
Long press: reinitialisation of the RT4 GPS audio/ telephone.
6. On/Off and Volume adjustment.
7. Selection of the wavebands FM1, FM2, FMast, AM. 8.
T A ( T r a f i c A n n o u n c e m e n t ) f u n c t i o n o n / o f f .
L o n g p r e s s : a c c e s s t o t h e P T Y ( r a d i o P r o g r a m m e T Y p e s )
mode.
9. Access to the "PEUGEOT" services menu.
10. Cancellation of the current operation.
Long press: return to the current application.
11. Automatic search for a lower/higher frequency.
Selection of the previous/next CD, MP3 or Jukebox track.
12. Displaying of the general menu.
13. Keypad for entering descriptions by successive pre sses.14.
Selection of the previous/next CD.
Selection of the previous/next MP3/Jukebox director y.
1 5 . Audio option adjustments: front/rear, left/right b alance,
loudness, sound ambiences.
16. S e l e c t i o n a n d c o n i r m a t i o n .
17. SIM card slot.
18. Displaying of the list of local radio stations, of the tracks on
the CD or of the MP3/Jukebox directories.
Long press: updating of the local radio stations.
FIRST STEPS
Page 159 of 199
143
02

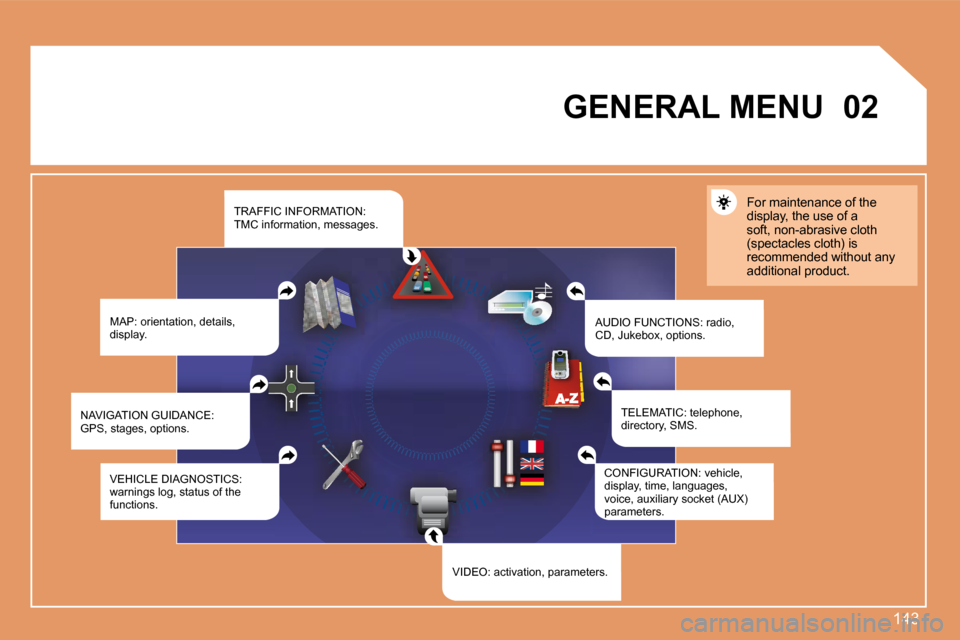

GENERAL MENU
MAP: orientation, details,
display. AUDIO FUNCTIONS: radio,
CD, Jukebox, options.For maintenance of the
display, the use of a
soft, non-abrasive cloth
( s p e c t a c l e s c l o t h ) i s
recommended without any
additional product.
TELEMATIC: telephone,
directory, SMS.
CONFIGURATION: vehicle,
display, time, languages,
v o i c e , a u x i l i a r y s o c k e t ( A U X )
parameters.
VIDEO: activation, parameters.
VEHICLE DIAGNOSTICS:
warnings log, status of the
functions.
NAVIGATION GUIDANCE:
GPS, stages, options. TRAFFIC INFORMATION:
TMC information, messages.
Page 160 of 199
144
MENUESCLIST
MENU
ESC
MENU LISTESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
1
2
3 5
7
4 6
8
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
03 GPS

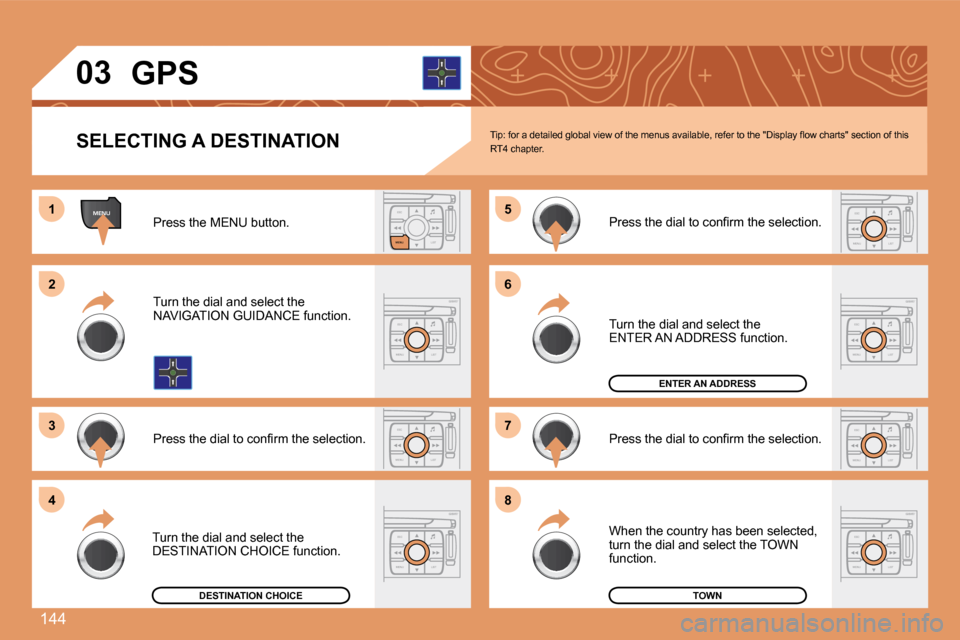

SELECTING A DESTINATION
Press the MENU button.
Turn the dial and select the
NAVIGATION GUIDANCE function.
P r e s s t h e d i a l t o c o n i r m t h e s e l e c t i o n .
Turn the dial and select the
DESTINATION CHOICE function. P r e s s t h e d i a l t o c o n i r m t h e s e l e c t i o n .
P r e s s t h e d i a l t o c o n i r m t h e s e l e c t i o n .
Turn the dial and select the
ENTER AN ADDRESS function.
When the country has been selected,
turn the dial and select the TOWN
function.
TOWN
ENTER AN ADDRESS
DESTINATION CHOICE T i p : f o r a d e t a i l e d g l o b a l v i e w o f t h e m e n u s a v a i l a
b l e , r e f e r t o t h e " D i s p l a y l o w c h a r t s " s e c t i o n o f t h i s
RT4 chapter.
