Peugeot 308 2014.5 - RHD (UK, Australia) Repair Manual

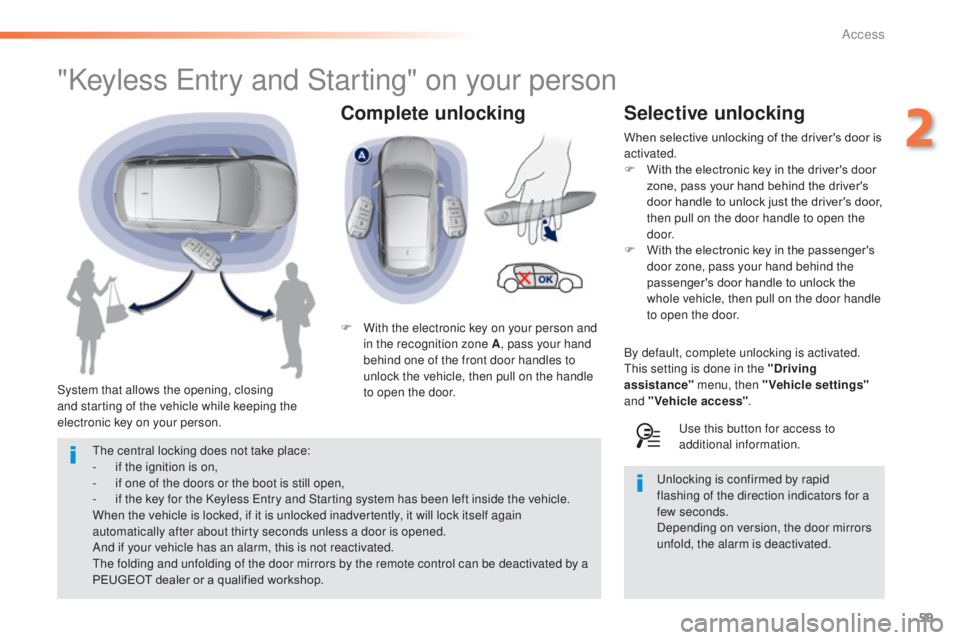

59
Complete unlocking
"Keyless entry and Starting" on your person
System that allows the opening, closing
and starting of the vehicle while keeping the
electronic key on your person. F

W
ith the electronic key on your person and
in the recognition zone A , pass your hand
behind one of the front door handles to
unlock the vehicle, then pull on the handle
to open the door.
th

e central locking does not take place:
-

i
f the ignition is on,
-

i
f one of the doors or the boot is still open,
-

i
f the key for the Keyless e
n
try and Starting system has been left inside the vehicle.
When the vehicle is locked, if it is unlocked inadvertently, it will lock itself again
automatically after about thirty seconds unless a door is opened.
And if your vehicle has an alarm, this is not reactivated.
th

e folding and unfolding of the door mirrors by the remote control can be deactivated by a
PEUGEOT dealer or a qualified workshop.
Selective unlocking
When selective unlocking of the driver's door is
activated.
F

W
ith the electronic key in the driver's door
zone, pass your hand behind the driver's
door handle to unlock just the driver's door,
then pull on the door handle to open the
d o o r.
F

W
ith the electronic key in the passenger's
door zone, pass your hand behind the
passenger's door handle to unlock the
whole vehicle, then pull on the door handle
to open the door.
By default, complete unlocking is activated.
th

is setting is done in the "Driving
assistance" menu, then "Vehicle settings"
and "Vehicle access" .
us

e this button for access to
additional information.
un

locking is confirmed by rapid
flashing of the direction indicators for a
few


seconds.
Depending on version, the door mirrors
unfold, the alarm is deactivated.
2
Access

60

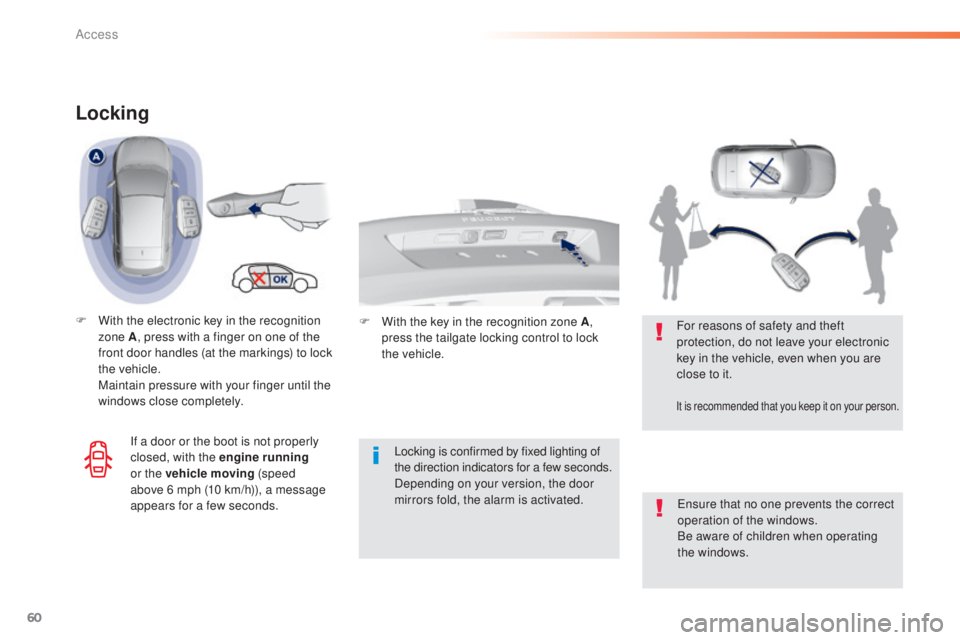

Locking
F With the electronic key in the recognition zone A , press with a finger on one of the
front door handles (at the markings) to lock
the vehicle.
M

aintain pressure with your finger until the
windows close completely.
Locking is confirmed by fixed lighting of
the direction indicators for a few
seconds.
Depending on your version, the door
mirrors fold, the alarm is activated.
en

sure that no one prevents the correct
operation of the windows.
Be aware of children when operating
the windows.
For reasons of safety and theft
protection, do not leave your electronic
key in the vehicle, even when you are
close to it.
It is recommended that you keep it on your person.
If a door or the boot is not properly
closed, with the engine running

or the vehicle moving (speed
above 6
mph (10 km/h)), a message
appears for a few seconds. F

W
ith the key in the recognition zone A
,
press the tailgate locking control to lock
the

vehicle.
Access

61

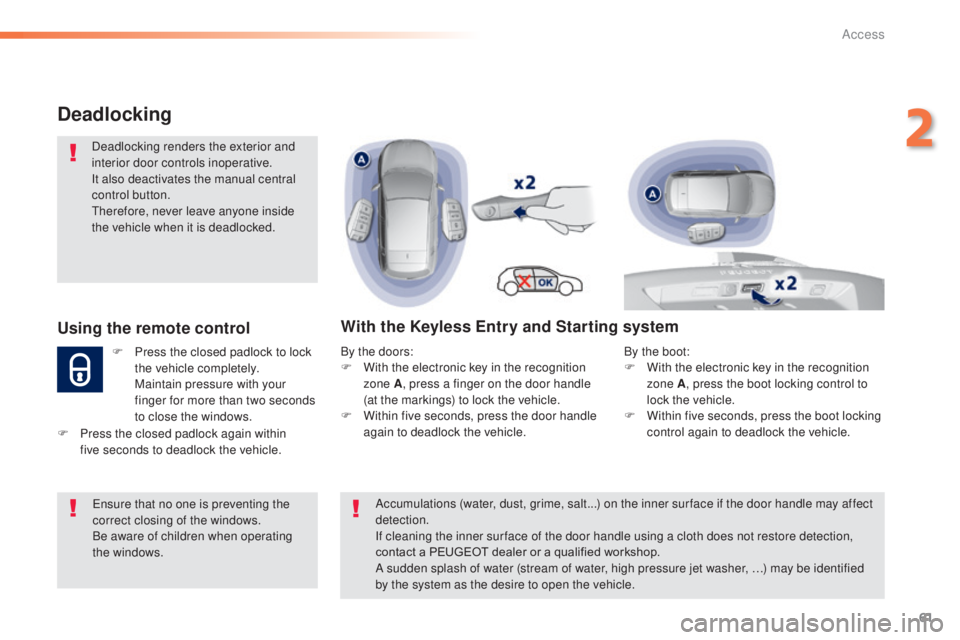

Deadlocking
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
th
erefore, never leave anyone inside
the vehicle when it is deadlocked.
Using the remote control
F Press the closed padlock to lock the vehicle completely.
M

aintain pressure with your
finger for more than two seconds
to close the windows.
With the Keyless Entry and Starting system
By the doors:
F W ith the electronic key in the recognition
zone A , press a finger on the door handle
(at the markings) to lock the vehicle.
F

W
ithin five seconds, press the door handle
again to deadlock the vehicle.
en

sure that no one is preventing the
correct closing of the windows.
Be aware of children when operating
the windows.
F

P

ress the closed padlock again within
five


seconds to deadlock the vehicle. Accumulations (water, dust, grime, salt...) on the inner sur face if the door handle may affect
detection.
If cleaning the inner sur face of the door handle using a cloth does not restore detection,
contact a PEUGEOT dealer or a qualified workshop.
A sudden splash of water (stream of water, high pressure jet washer, …) may be identified
by the system as the desire to open the vehicle.By the boot:
F
W ith the electronic key in the recognition
zone A , press the boot locking control to
lock the vehicle.
F

W
ithin five seconds, press the boot locking
control again to deadlock the vehicle.
2
Access

62
Boot
F After unlocking the vehicle with the remote control, press the
opening control and then open
the boot.
Opening using the "Keyless Entry and Starting" remote
control
F Press this button, the vehicle is
unlocked.
Opening using the key
Complete unlocking is selected by default.th is setting is done in the "Driving
assistance" menu, then "Vehicle settings"
and "Vehicle access" .
Complete unlocking Selective unlocking
F Press this button, the boot is
unlocked.
us

e this button for access to
additional information.
F

P

ress the opening control, then open the
boot.
F

P

ress the opening control, then raise the
tailgate.
Access

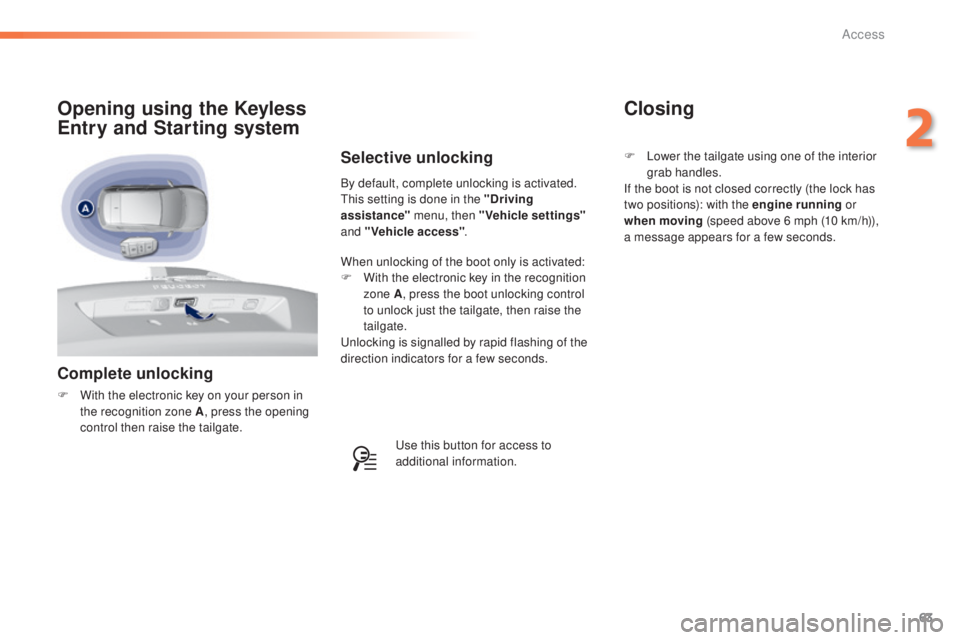

63
Complete unlocking
F With the electronic key on your person in the recognition zone A , press the opening
control then raise the tailgate.
Opening using the Keyless
Entry and Starting system
By default, complete unlocking is activated.th is setting is done in the "Driving
assistance" menu, then "Vehicle settings"
and "Vehicle access" .
Selective unlocking
When unlocking of the boot only is activated:
F
W ith the electronic key in the recognition
zone A , press the boot unlocking control
to unlock just the tailgate, then raise the
tailgate.
un

locking is signalled by rapid flashing of the
direction indicators for a few seconds.
us

e this button for access to
additional information.
Closing
F Lower the tailgate using one of the interior grab handles.
If the boot is not closed correctly (the lock has
two positions): with the engine running or
when moving (speed above 6 mph (10 km/h)),
a message appears for a few seconds.
2
Access

64

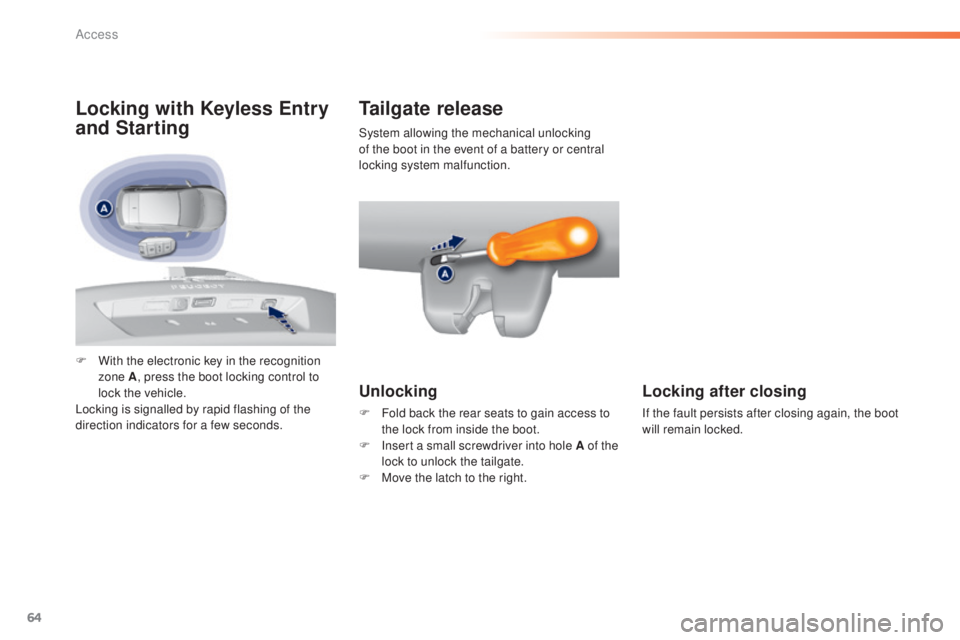

Tailgate release
Unlocking
F Fold back the rear seats to gain access to the lock from inside the boot.
F

I
nsert a small screwdriver into hole A of the
lock to unlock the tailgate.
F

M
ove the latch to the right.
Locking after closing
If the fault persists after closing again, the boot
will remain locked.
System allowing the mechanical unlocking
of the boot in the event of a battery or central
locking system malfunction.
F

W

ith the electronic key in the recognition
zone A , press the boot locking control to
lock the vehicle.
Locking is signalled by rapid flashing of the
direction indicators for a few seconds.
Locking with Keyless Entry
and Starting
Access

65

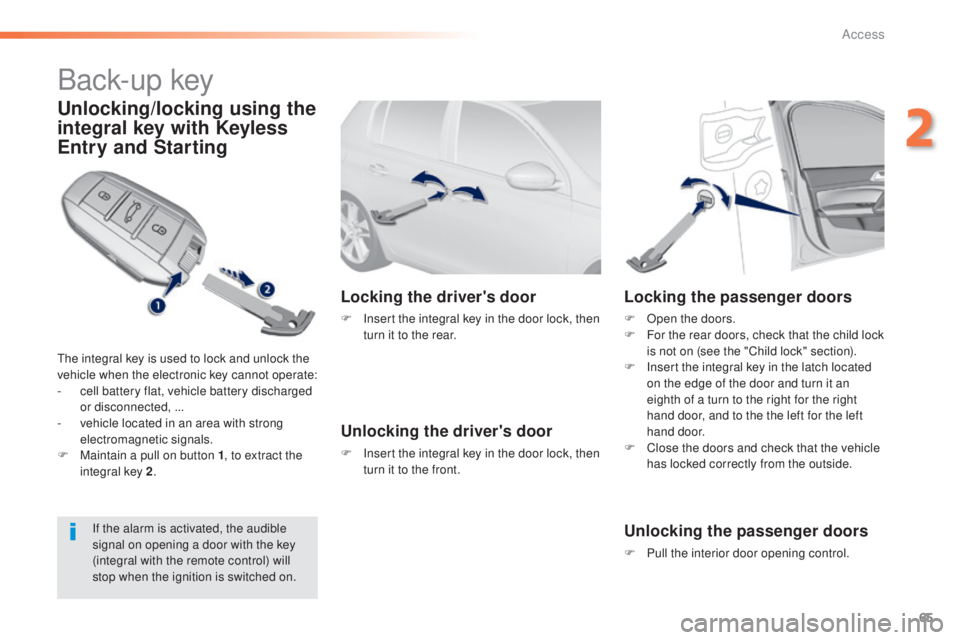

Back-up key
Unlocking/locking using the
integral key with Keyless
Entry and Starting
the integral key is used to lock and unlock the
vehicle when the electronic key cannot operate:
-
c
ell battery flat, vehicle battery discharged
or disconnected, ...
-

v
ehicle located in an area with strong
electromagnetic signals.
F

M
aintain a pull on button 1 , to extract the
integral key 2 .
Locking the driver's door
F Insert the integral key in the door lock, then
turn it to the rear.
Unlocking the driver's door
F Insert the integral key in the door lock, then turn it to the front.
Locking the passenger doors
F Open the doors.
F F or the rear doors, check that the child lock
is not on (see the "Child lock" section).
F

I
nsert the integral key in the latch located
on the edge of the door and turn it an
eighth of a turn to the right for the right
hand door, and to the the left for the left
hand door.
F

C
lose the doors and check that the vehicle
has locked correctly from the outside.
Unlocking the passenger doors
F Pull the interior door opening control.
If the alarm is activated, the audible
signal on opening a door with the key
(integral with the remote control) will
stop when the ignition is switched on.
2
Access

66

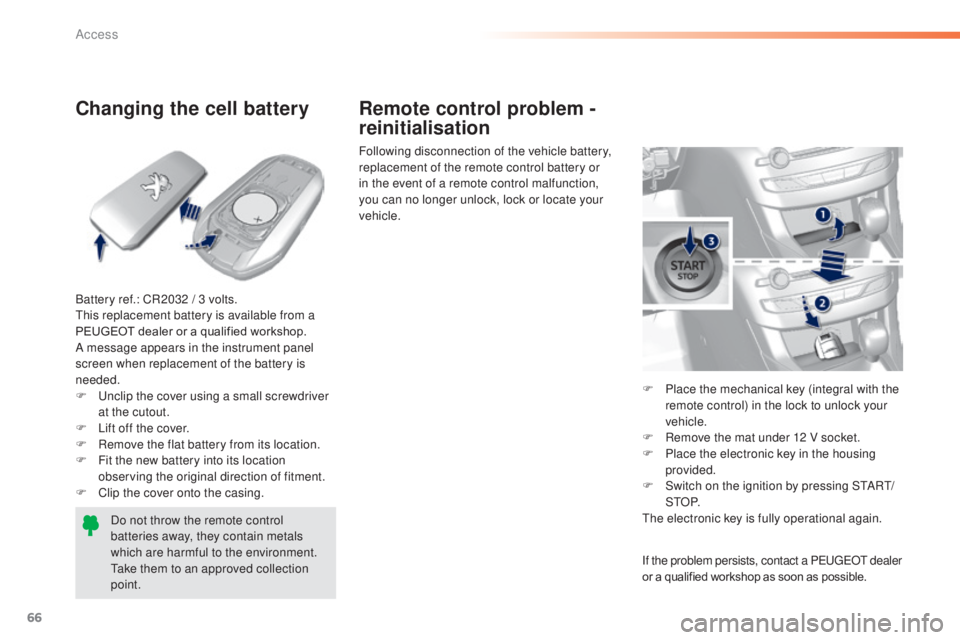

Changing the cell battery
Battery ref.: CR2032 / 3 volts.this replacement battery is available from a
PEUGEOT dealer or a qualified workshop.
A message appears in the instrument panel
screen when replacement of the battery is
needed.
F
u
n
clip the cover using a small screwdriver
at the cutout.
F

L
ift off the cover.
F

R
emove the flat battery from its location.
F

F
it the new battery into its location
observing the original direction of fitment.
F

C
lip the cover onto the casing.Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
ta

ke them to an approved collection
point. Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction,
you can no longer unlock, lock or locate your
vehicle.
F
P
lace the mechanical key (integral with the
remote control) in the lock to unlock your
vehicle.
F

R
emove the mat under 12 V socket.
F

P
lace the electronic key in the housing
provided.
F

S
witch on the ignition by pressing S
tA
R
t/
StO

P.
th

e electronic key is fully operational again.
Remote control problem -
reinitialisation
If the problem persists, contact a PeugeOt dealer
or a qualified workshop as soon as possible.
Access

67

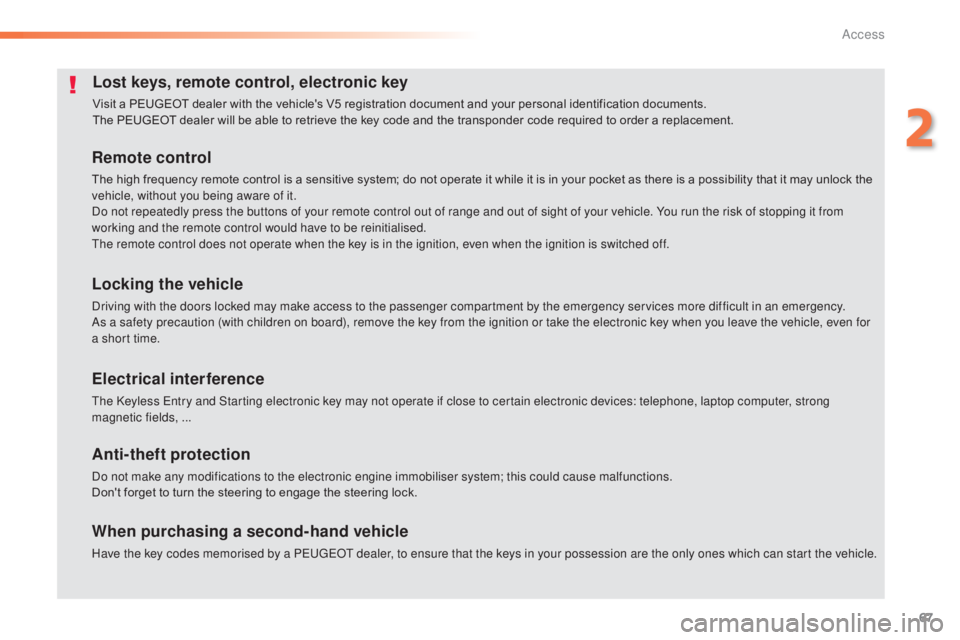

Lost keys, remote control, electronic key
Visit a PEUGEOT dealer with the vehicle's V5 registration document and your personal identification documents.
The PEUGEOT dealer will be able to retrieve the key code and the transponder code required to order a replacement.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the
vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from
working and the remote control would have to be reinitialised.
th
e remote control does not operate when the key is in the ignition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
As a safety precaution (with children on board), remove the key from the ignition or take the electronic key when you leave the vehicle, even for
a short time.
Electrical interference
the Keyless en try and Starting electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strong
magnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.
Don't forget to turn the steering to engage the steering lock.
When purchasing a second-hand vehicle
Have the key codes memorised by a Pe ugeOt dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.
2
Access

68

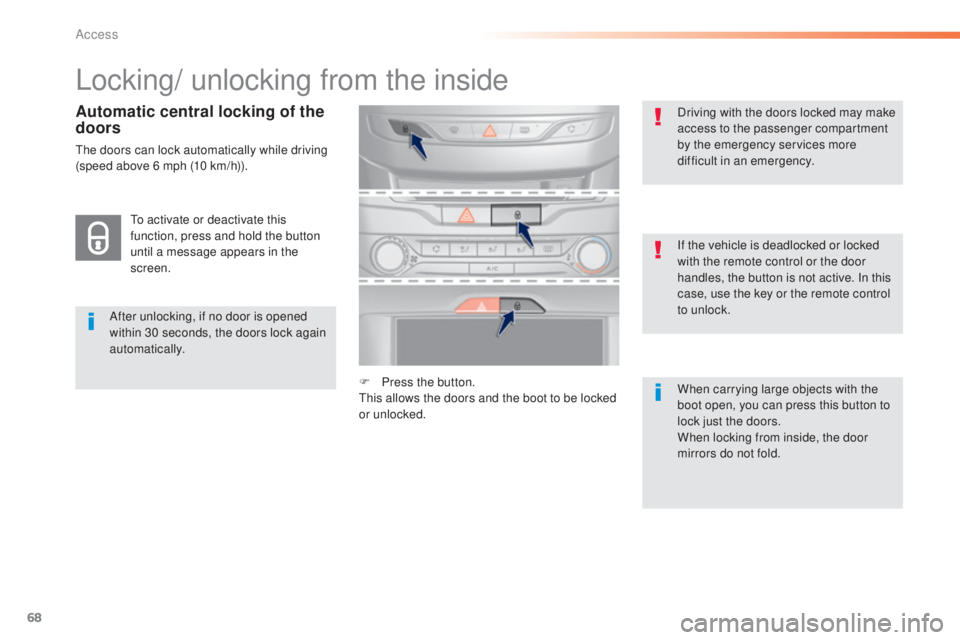

Locking/ unlocking from the inside
After unlocking, if no door is opened
within 30 seconds, the doors lock again
automatically.If the vehicle is deadlocked or locked
with the remote control or the door
handles, the button is not active. In this
case, use the key or the remote control
to unlock. Driving with the doors locked may make
access to the passenger compartment
by the emergency services more
difficult in an emergency.
F
P
ress the button.
th

is allows the doors and the boot to be locked
or unlocked. When carrying large objects with the
boot open, you can press this button to
lock just the doors.
When locking from inside, the door
mirrors do not fold.
to a
ctivate or deactivate this
function, press and hold the button
until a message appears in the
screen.
Automatic central locking of the
doors
the doors can lock automatically while driving
(speed above 6 mph (10 km/h)).
Access
