Peugeot 308 2014.5 - RHD (UK, Australia) Workshop Manual

49

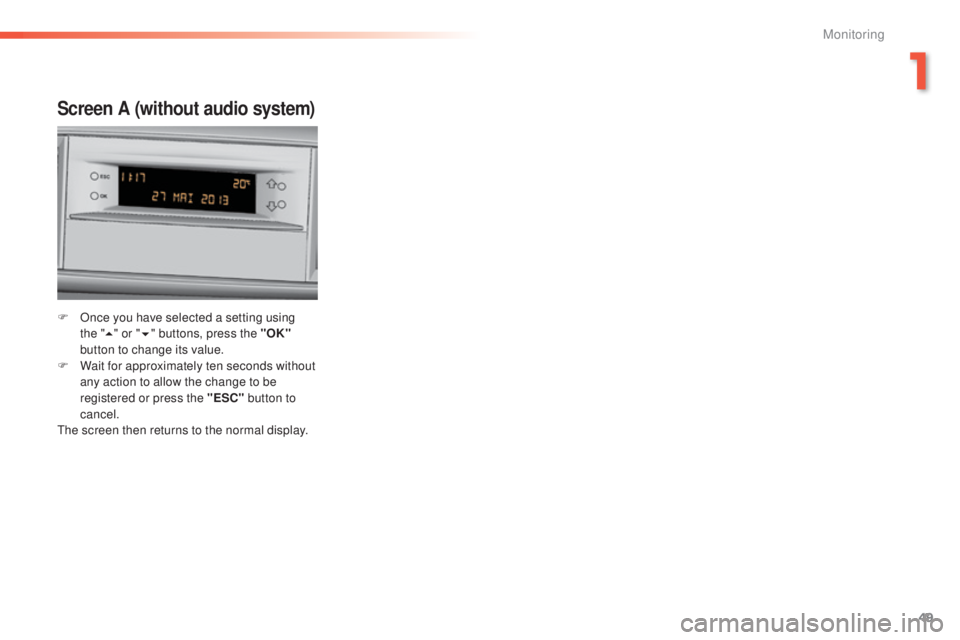

Screen A (without audio system)
F Once you have selected a setting using the "5 " or " 6" buttons, press the "OK"
button to change its value.
F

W
ait for approximately ten seconds without
any action to allow the change to be
registered or press the "ESC" button to
cancel.
th

e screen then returns to the normal display.
1
Monitoring

50
System which permits central unlocking or locking of the vehicle using the lock barrel or from a distance. It is also used to locate and start the vehicle,
as well as providing protection against theft.

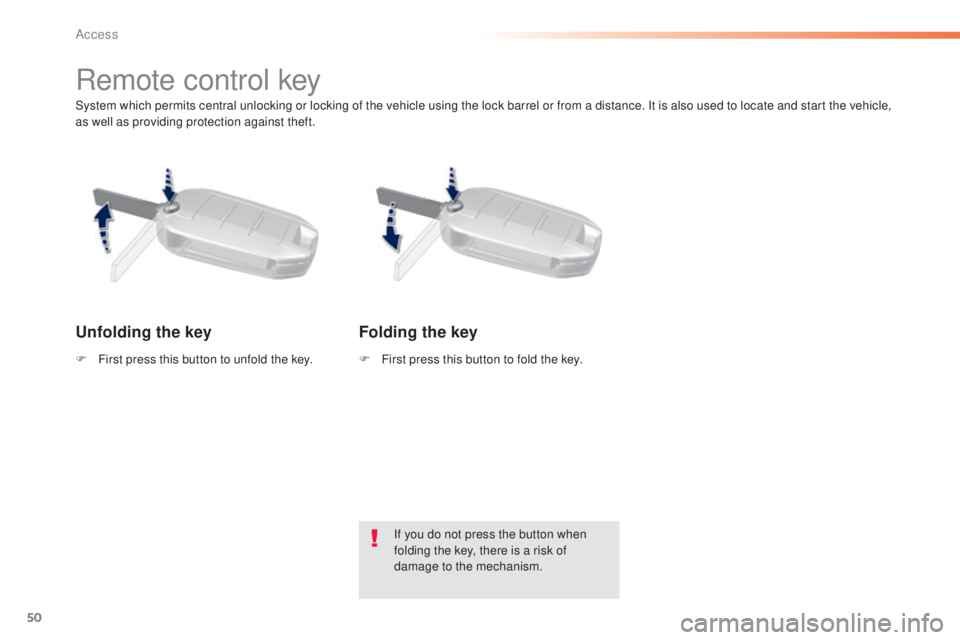

Remote control key
Unfolding the key
F First press this button to unfold the key.F F irst press this button to fold the key.
If you do not press the button when
folding the key, there is a risk of
damage to the mechanism.
Folding the key
Access

51
Selective unlocking
F To unlock the driver's door only press the open padlock once.
Using the remote control
Complete unlocking is activated by default.this is set in the " Driving assistance " menu,
then " Vehicle settings " and "Vehicle access ".
un

locking is confirmed by rapid
flashing of the direction indicators for
approximately two seconds.
According to version, the door mirrors
unfold at the same time as the first
unlocking action.
F
t
o u
nlock the other doors and the boot,
press the open padlock again.
Complete unlocking
Using the key Using the remote control
F Press the open padlock to unlock
the vehicle.
un

locking is confirmed by rapid
flashing of the direction indicators for
approximately two seconds.
According to version, the door mirrors
unfold at the same time.
F
tu
rn the key to the front of the vehicle to
unlock the vehicle.
If your vehicle has an alarm, this is not
deactivated. Opening a door will trigger the
alarm, which can then be stopped by switching
the ignition on.
us
e this button for access to
additional information.
2
Access

52
Locking is confirmed by fixed
lighting of the direction indicators for
approximately two seconds.
According to version, the door mirrors
fold at the same time.
Driving with the doors locked may
render access for the emergency
services difficult in an emergency.
As a safety measure (children on
board), never leave the vehicle without
taking your key, even for a short period.

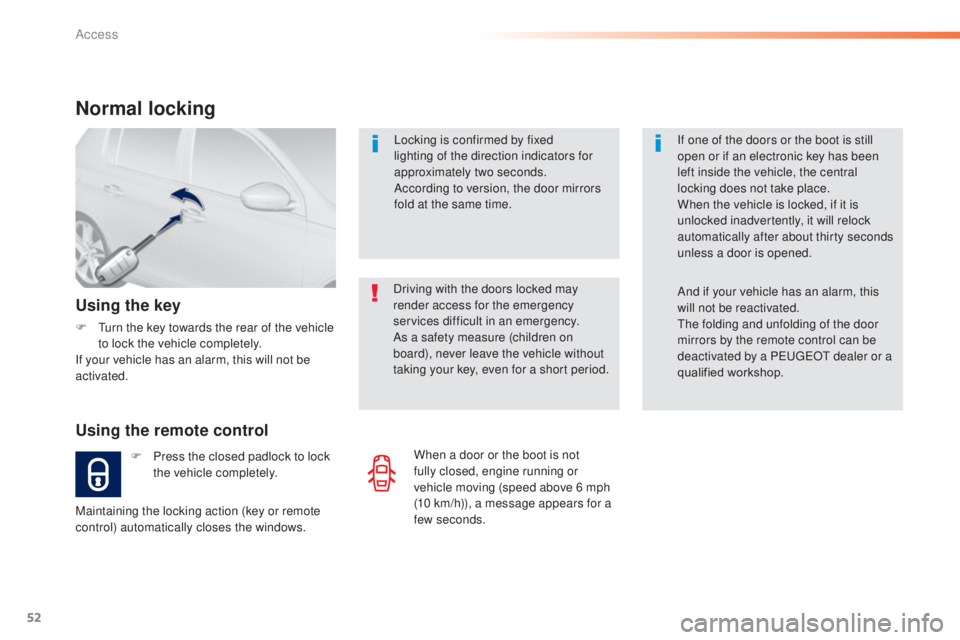

Normal locking
Using the remote control
F Press the closed padlock to lock the vehicle completely.
Using the key
F turn the key towards the rear of the vehicle to lock the vehicle completely.
If your vehicle has an alarm, this will not be
activated.
Maintaining the locking action (key or remote
control) automatically closes the windows. If one of the doors or the boot is still
open or if an electronic key has been
left inside the vehicle, the central
locking does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after about thirty seconds
unless a door is opened.
And if your vehicle has an alarm, this
will not be reactivated.th
e folding and unfolding of the door
mirrors by the remote control can be
deactivated by a P
e

uge
Ot
dealer or a
qualified workshop.
When a door or the boot is not
fully closed, engine running or
vehicle moving (speed above 6 mph
(10
km/h)), a message appears for a
few seconds.
Access

53

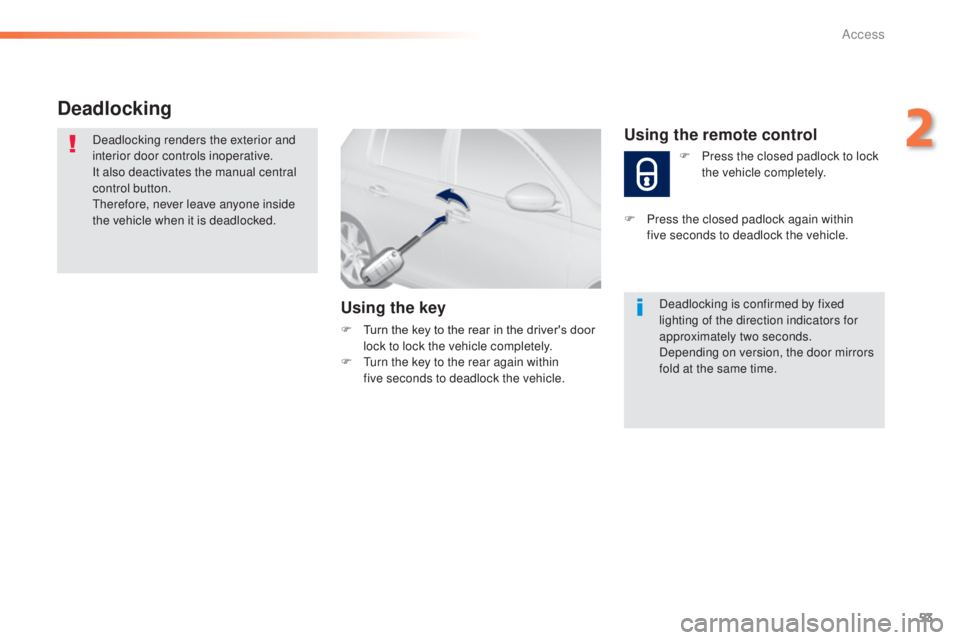

Deadlocking
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
th
erefore, never leave anyone inside
the vehicle when it is deadlocked.
Using the key
F Turn the key to the rear in the driver's door lock to lock the vehicle completely.
F
t
u
rn the key to the rear again within
five


seconds to deadlock the vehicle. Deadlocking is confirmed by fixed
lighting of the direction indicators for
approximately two seconds.
Depending on version, the door mirrors
fold at the same time.
Using the remote control
F Press the closed padlock to lock
the vehicle completely.
F

P

ress the closed padlock again within
five


seconds to deadlock the vehicle.
2
Access

54

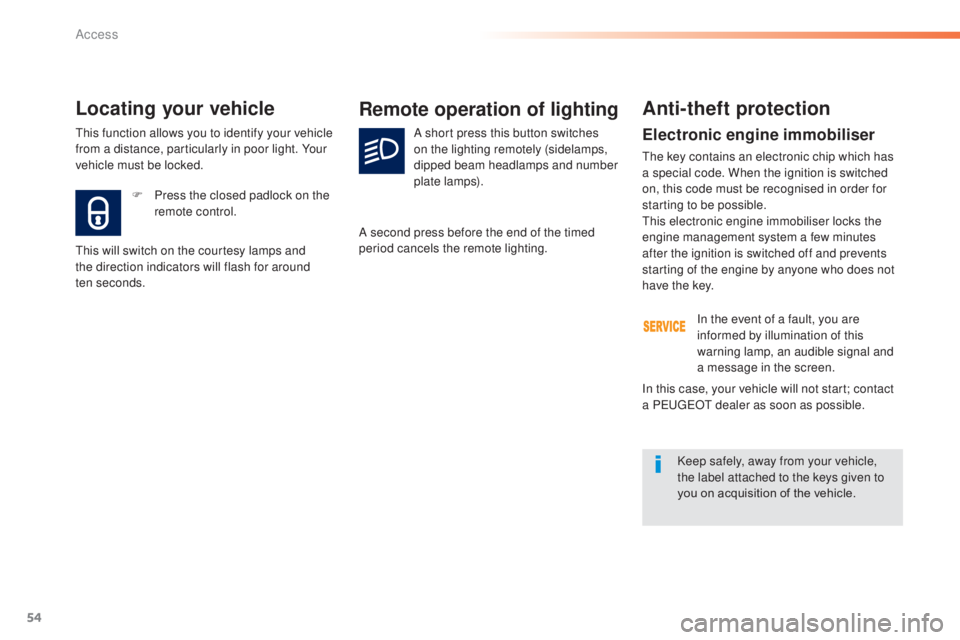

Electronic engine immobiliser
the key contains an electronic chip which has
a special code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
th
is electronic engine immobiliser locks the
engine management system a few minutes
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
F

P

ress the closed padlock on the
remote control.
Locating your vehicle
this will switch on the courtesy lamps and
the direction indicators will flash for around
ten


seconds.
Remote operation of lighting
A short press this button switches
on the lighting remotely (sidelamps,
dipped beam headlamps and number
plate lamps).
A second press before the end of the timed
period cancels the remote lighting.
Anti-theft protection
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal and
a message in the screen.
Keep safely, away from your vehicle,
the label attached to the keys given to
you on acquisition of the vehicle.
In this case, your vehicle will not start; contact
a P
e

uge
Ot
dealer as soon as possible.
th

is function allows you to identify your vehicle
from a distance, particularly in poor light. Your
vehicle must be locked.
Access

55

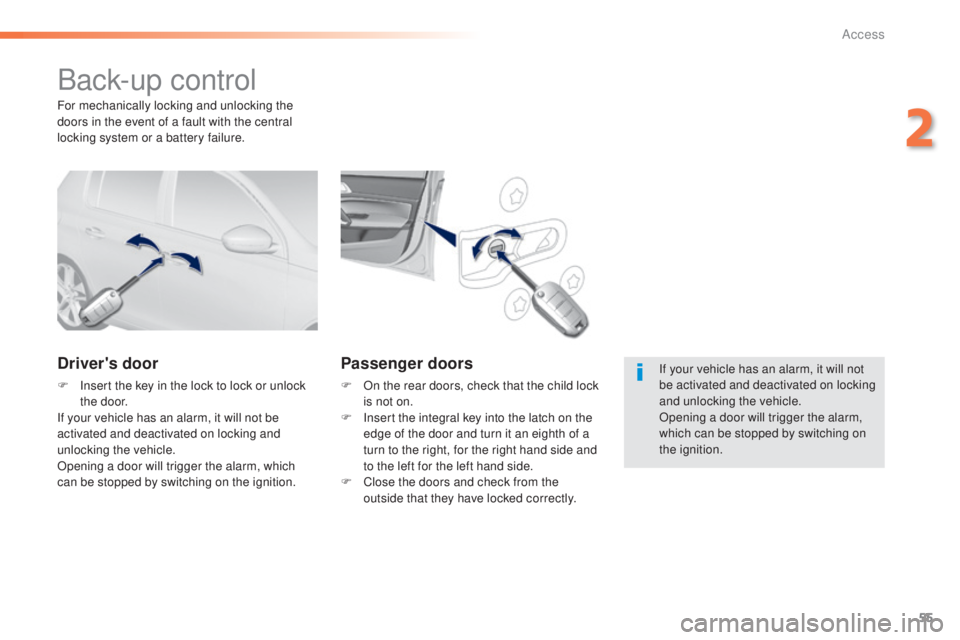

Back-up control
Driver's door
F Insert the key in the lock to lock or unlock the door.
If your vehicle has an alarm, it will not be
activated and deactivated on locking and
unlocking the vehicle.
Opening a door will trigger the alarm, which
can be stopped by switching on the ignition.
Passenger doors
F On the rear doors, check that the child lock is not on.
F

I
nsert the integral key into the latch on the
edge of the door and turn it an eighth of a
turn to the right, for the right hand side and
to the left for the left hand side.
F

C
lose the doors and check from the
outside that they have locked correctly.
For mechanically locking and unlocking the
doors in the event of a fault with the central
locking system or a battery failure.
If your vehicle has an alarm, it will not
be activated and deactivated on locking
and unlocking the vehicle.
Opening a door will trigger the alarm,
which can be stopped by switching on
the ignition.
2
Access

56

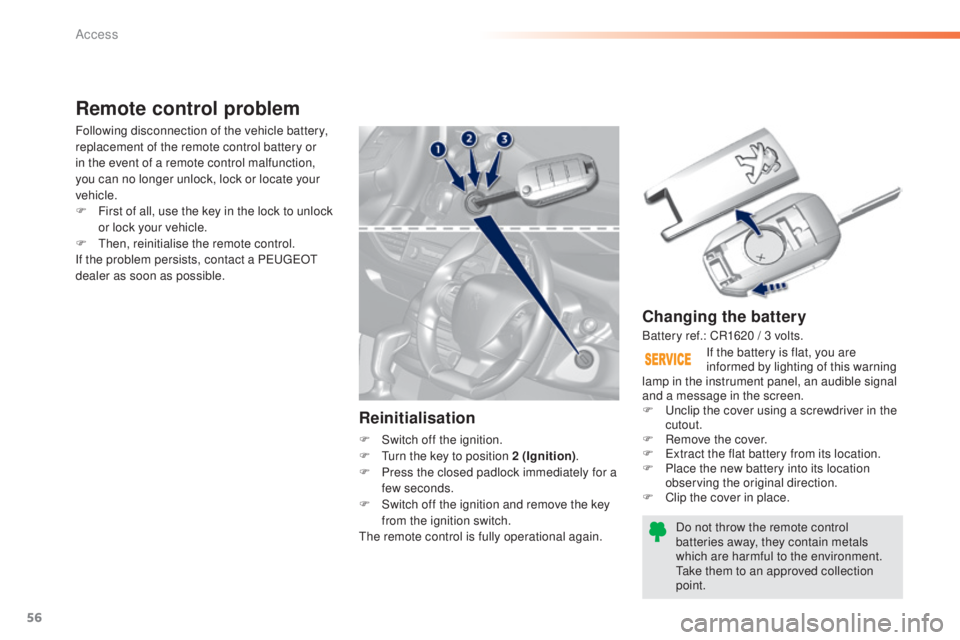

Changing the battery
Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
ta
ke them to an approved collection
point. If the battery is flat, you are
informed by lighting of this warning
lamp in the instrument panel, an audible signal
and a message in the screen.
F
u
n
clip the cover using a screwdriver in the
cutout.
F

R

emove the cover.
F
e
x
tract the flat battery from its location.
F

P

lace the new battery into its location
observing the original direction.
F

C

lip the cover in place.
Remote control problem
Reinitialisation
F Switch off the ignition.
F
tu rn the key to position 2 (Ignition) .
F

P
ress the closed padlock immediately for a
few seconds.
F

S
witch off the ignition and remove the key
from the ignition switch.
th

e remote control is fully operational again.
Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction,
you can no longer unlock, lock or locate your
vehicle.
F

F

irst of all, use the key in the lock to unlock
or lock your vehicle.
F
t
hen

, reinitialise the remote control.
If the problem persists, contact a P
e

uge
Ot


dealer as soon as possible.
Battery ref.: CR1620 / 3 volts.
Access

57

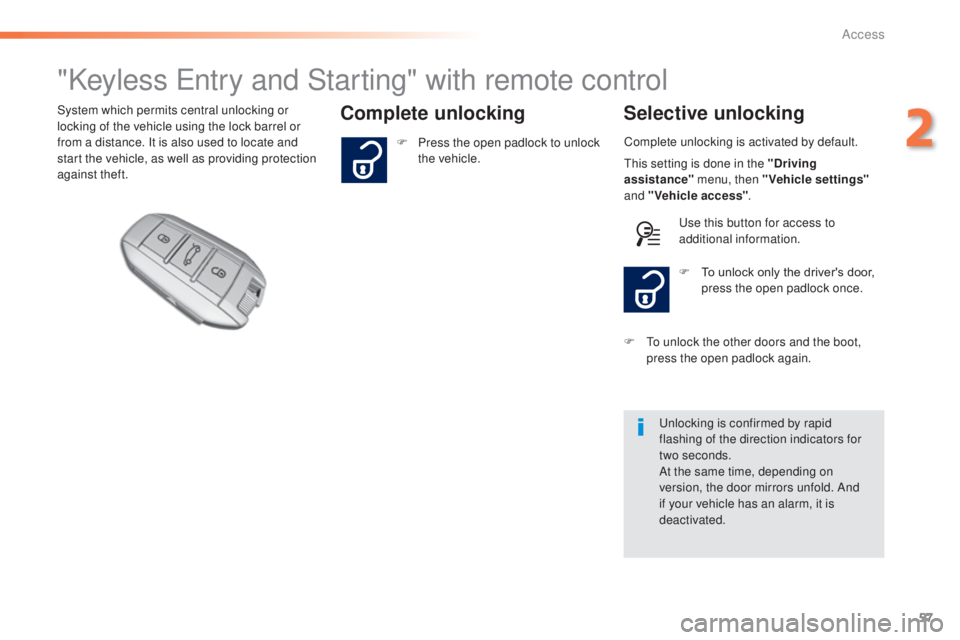

"Keyless entry and Starting" with remote control
Complete unlocking Selective unlockingSystem which permits central unlocking or
locking of the vehicle using the lock barrel or
from a distance. It is also used to locate and
start the vehicle, as well as providing protection
against theft. Complete unlocking is activated by default.
un

locking is confirmed by rapid
flashing of the direction indicators for
two


seconds.
At the same time, depending on
version, the door mirrors unfold. And
if your vehicle has an alarm, it is
deactivated. F

T
o unlock only the driver's door,
press the open padlock once.
F

P
ress the open padlock to unlock
the vehicle.
F
t
o u
nlock the other doors and the boot,
press the open padlock again.
th

is setting is done in the "Driving
assistance" menu, then "Vehicle settings"
and "Vehicle access" .
us

e this button for access to
additional information.
2
Access

58

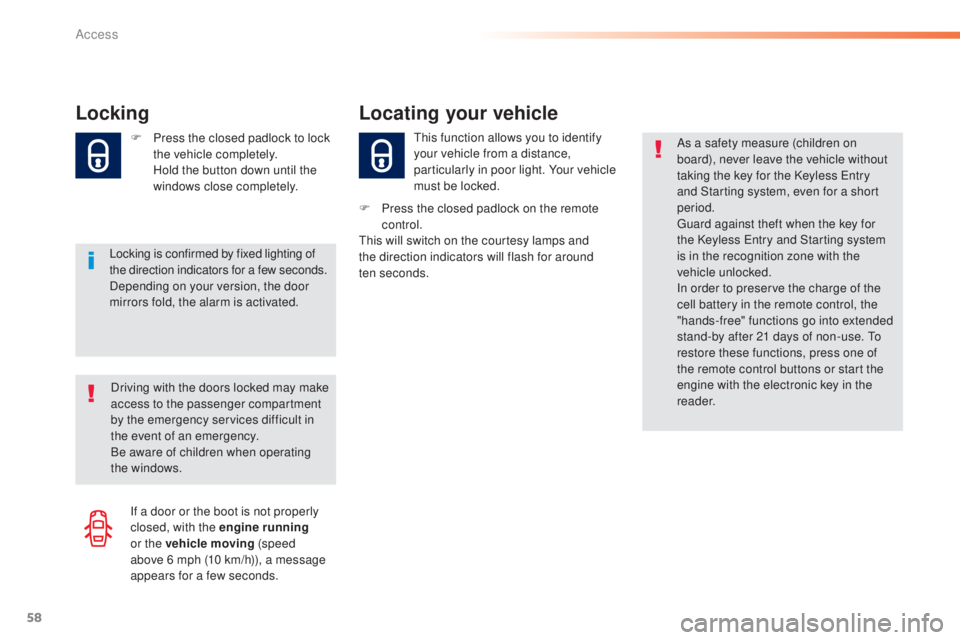

Locking
Locking is confirmed by fixed lighting of
the direction indicators for a few seconds.
Depending on your version, the door
mirrors fold, the alarm is activated. F

P
ress the closed padlock to lock
the vehicle completely.
H
old the button down until the
windows close completely.
th
is function allows you to identify
your vehicle from a distance,
particularly in poor light. Your vehicle
must be locked.
Locating your vehicle
F Press the closed padlock on the remote control.
th

is will switch on the courtesy lamps and
the direction indicators will flash for around
ten


seconds.
Driving with the doors locked may make
access to the passenger compartment
by the emergency services difficult in
the event of an emergency.
Be aware of children when operating
the windows. As a safety measure (children on
board), never leave the vehicle without
taking the key for the Keyless
e
n
try
and Starting system, even for a short
period.gu ard against theft when the key for
the Keyless
e
n
try and Starting system
is in the recognition zone with the
vehicle unlocked.
In order to preserve the charge of the
cell battery in the remote control, the
"hands-free" functions go into extended
stand-by after 21 days of non-use.
t
o
r

estore these functions, press one of
the remote control buttons or start the
engine with the electronic key in the
reader.
If a door or the boot is not properly
closed, with the engine running
or the vehicle moving (speed
above 6

mph (10 km/h)), a message
appears for a few seconds.
Access
