Peugeot 308 2014 - RHD (UK, Australia) Workshop Manual

49
2
Access

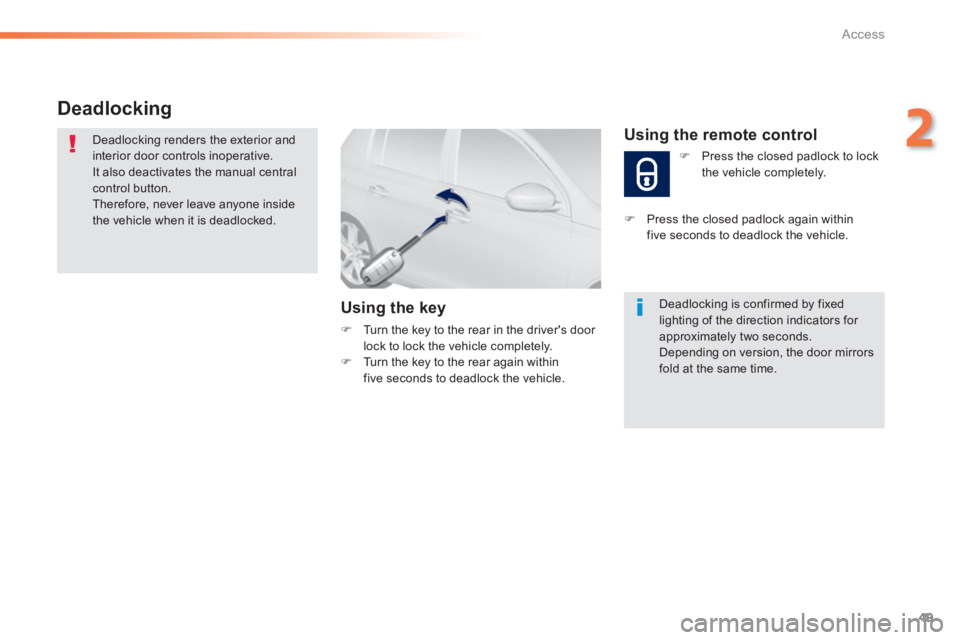

Deadlocking
Deadlocking renders the exterior and interior door controls inoperative. It also deactivates the manual central control button. Therefore, never leave anyone inside the vehicle when it is deadlocked.
Using the key
 Turn the key to the rear in the driver's door lock to lock the vehicle completely.  Turn the key to the rear again within five seconds to deadlock the vehicle.
Deadlocking is confirmed by fixed lighting of the direction indicators for approximately two seconds. Depending on version, the door mirrors fold at the same time.
Using the remote control
 Press the closed padlock to lock the vehicle completely.
 Press the closed padlock again within five seconds to deadlock the vehicle.

50
Access
Electronic engine immobiliser
The key contains an electronic chip which has a special code. When the ignition is switched on, this code must be recognised in order for starting to be possible. This electronic engine immobiliser locks the
engine management system a few minutes after the ignition is switched off and prevents starting of the engine by anyone who does not have the key.
 Press the closed padlock on the remote control.

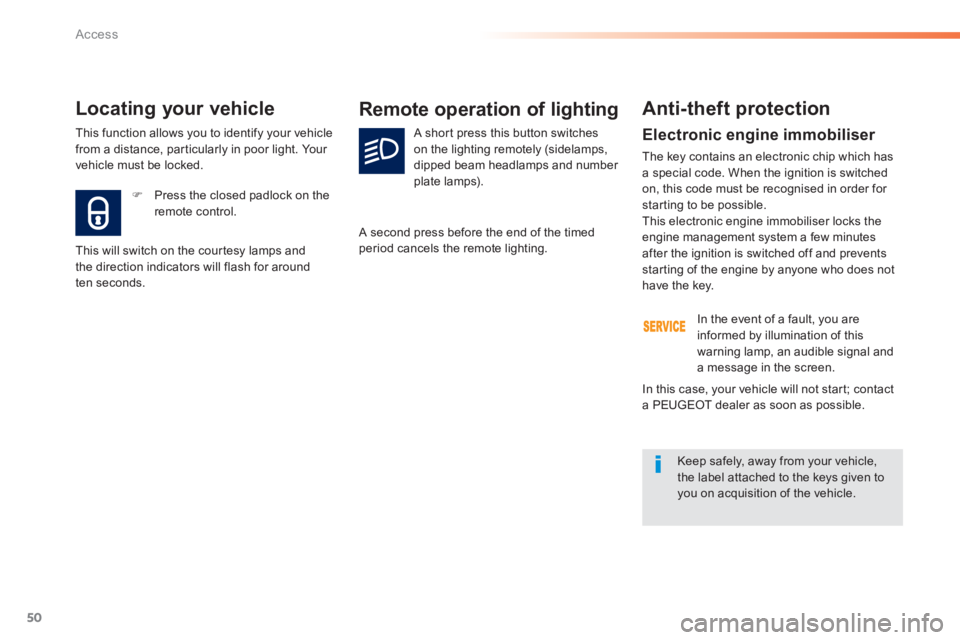

Locating your vehicle
This will switch on the courtesy lamps and the direction indicators will flash for around ten seconds.
Remote operation of lighting
A short press this button switches on the lighting remotely (sidelamps, dipped beam headlamps and number plate lamps).
A second press before the end of the timed period cancels the remote lighting.
Anti-theft protection
In the event of a fault, you are informed by illumination of this warning lamp, an audible signal and a message in the screen.
Keep safely, away from your vehicle, the label attached to the keys given to you on acquisition of the vehicle.
In this case, your vehicle will not start; contact a PEUGEOT dealer as soon as possible.
This function allows you to identify your vehicle from a distance, particularly in poor light. Your vehicle must be locked.

51
2
Access

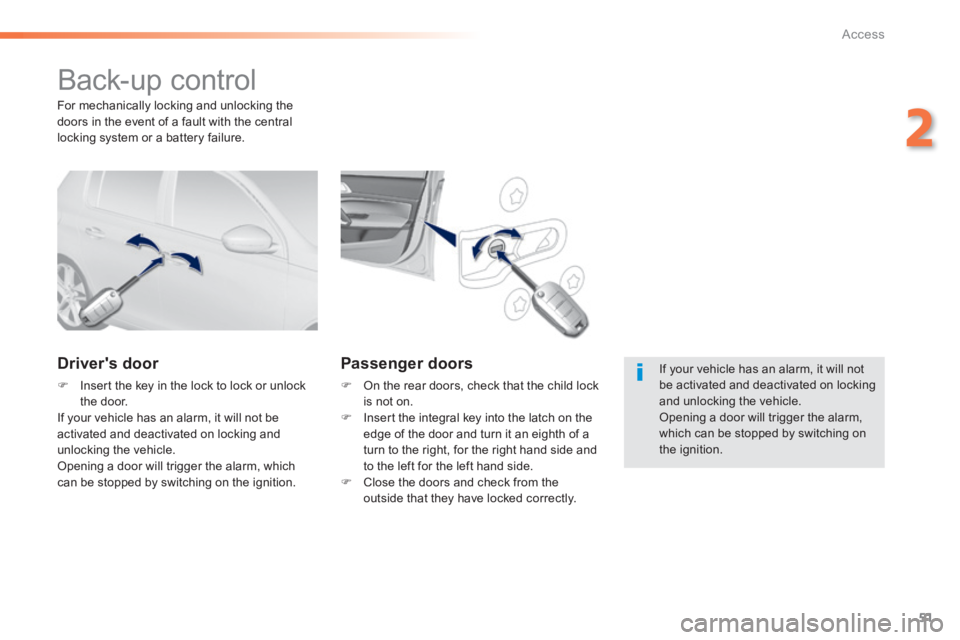

Back-up control
Driver's door
 Insert the key in the lock to lock or unlock the door. If your vehicle has an alarm, it will not be activated and deactivated on locking and unlocking the vehicle. Opening a door will trigger the alarm, which can be stopped by switching on the ignition.
Passenger doors
 On the rear doors, check that the child lock is not on.  Insert the integral key into the latch on the edge of the door and turn it an eighth of a turn to the right, for the right hand side and to the left for the left hand side.  Close the doors and check from the outside that they have locked correctly.
For mechanically locking and unlocking the doors in the event of a fault with the central locking system or a battery failure.
If your vehicle has an alarm, it will not be activated and deactivated on locking and unlocking the vehicle. Opening a door will trigger the alarm,
which can be stopped by switching on the ignition.

52
Access

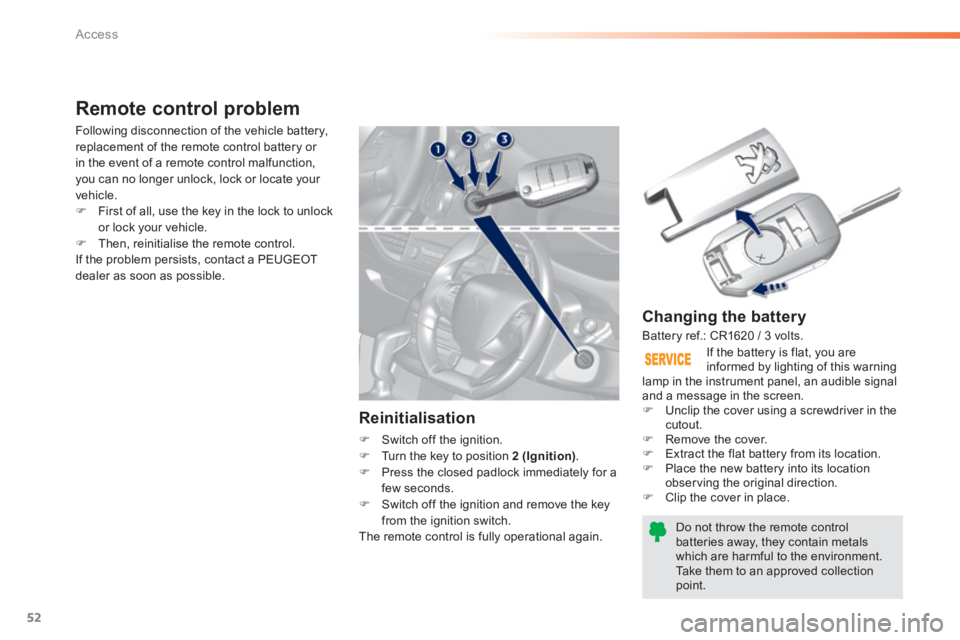

Changing the battery
Do not throw the remote control batteries away, they contain metals which are harmful to the environment. Take them to an approved collection point.
If the battery is flat, you are informed by lighting of this warning lamp in the instrument panel, an audible signal and a message in the screen.  Unclip the cover using a screwdriver in the cutout.  Remove the cover.  Extract the flat battery from its location.  Place the new battery into its location observing the original direction.  Clip the cover in place.
Remote control problem
Reinitialisation
 Switch off the ignition.  Turn the key to position 2 (Ignition) .  Press the closed padlock immediately for a few seconds.  Switch off the ignition and remove the key from the ignition switch. The remote control is fully operational again.
Following disconnection of the vehicle battery, replacement of the remote control battery or in the event of a remote control malfunction, you can no longer unlock, lock or locate your vehicle.  First of all, use the key in the lock to unlock
or lock your vehicle.  Then, reinitialise the remote control. If the problem persists, contact a PEUGEOT dealer as soon as possible.
Battery ref.: CR1620 / 3 volts.

53
2
Access

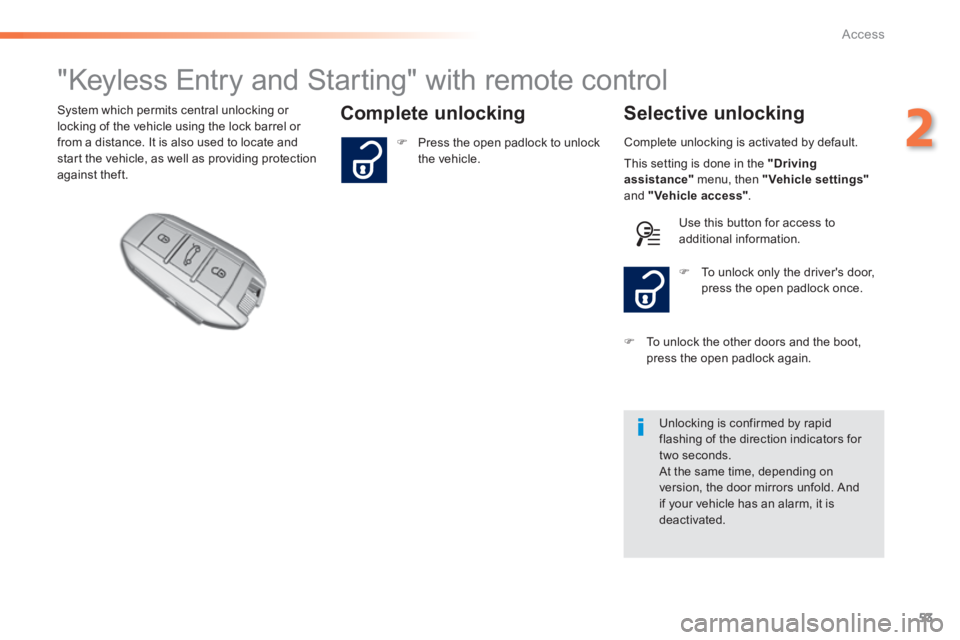

"Keyless Entry and Starting" with remote control
Complete unlocking Selective unlocking System which permits central unlocking or locking of the vehicle using the lock barrel or from a distance. It is also used to locate and start the vehicle, as well as providing protection against theft.
Complete unlocking is activated by default.
Unlocking is confirmed by rapid
flashing of the direction indicators for two seconds. At the same time, depending on version, the door mirrors unfold. And if your vehicle has an alarm, it is deactivated.
 To unlock only the driver's door, press the open padlock once.
 Press the open padlock to unlock the vehicle.
 To unlock the other doors and the boot, press the open padlock again.
This setting is done in the "Driving assistance" menu, then "Vehicle settings"and "Vehicle access" .
Use this button for access to additional information.

54
Access

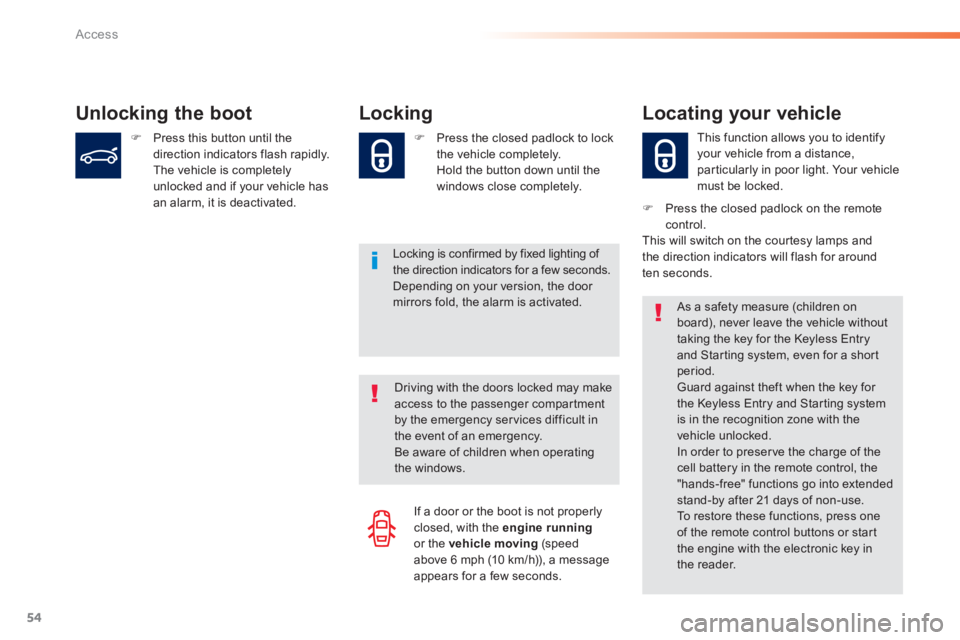

Unlocking the boot Locking
Locking is confirmed by fixed lighting of the direction indicators for a few seconds. Depending on your version, the door mirrors fold, the alarm is activated.
 Press the closed padlock to lock the vehicle completely. Hold the button down until the windows close completely.
 Press this button until the direction indicators flash rapidly. The vehicle is completely unlocked and if your vehicle has an alarm, it is deactivated.
This function allows you to identify your vehicle from a distance, particularly in poor light. Your vehicle must be locked.
Locating your vehicle
 Press the closed padlock on the remote control. This will switch on the courtesy lamps and the direction indicators will flash for around ten seconds.
Driving with the doors locked may make access to the passenger compartment by the emergency services difficult in
the event of an emergency. Be aware of children when operating the windows.
As a safety measure (children on board), never leave the vehicle without taking the key for the Keyless Entry and Starting system, even for a short period. Guard against theft when the key for the Keyless Entry and Starting system is in the recognition zone with the vehicle unlocked. In order to preserve the charge of the cell battery in the remote control, the "hands-free" functions go into extended stand-by after 21 days of non-use. To restore these functions, press one of the remote control buttons or start the engine with the electronic key in the reader.
If a door or the boot is not properly closed, with the engine runningor the vehicle moving (speed above 6 mph (10 km/h)), a message appears for a few seconds.

55
2
Access
Complete unlocking

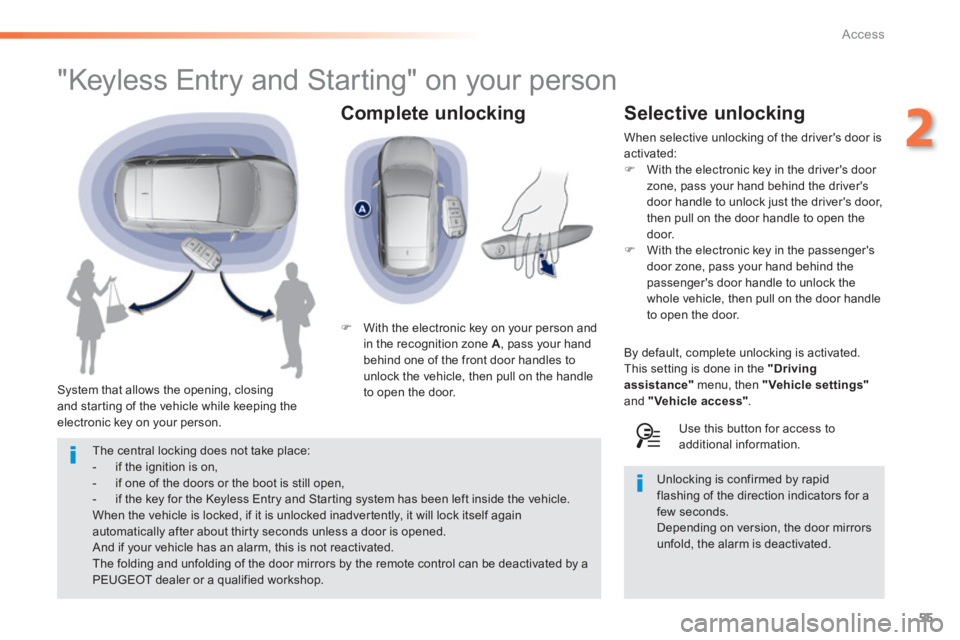

"Keyless Entry and Starting" on your person
System that allows the opening, closing and starting of the vehicle while keeping the electronic key on your person.
 With the electronic key on your person and in the recognition zone A , pass your hand behind one of the front door handles to unlock the vehicle, then pull on the handle to open the door.
The central locking does not take place: - if the ignition is on, - if one of the doors or the boot is still open, - if the key for the Keyless Entry and Starting system has been left inside the vehicle. When the vehicle is locked, if it is unlocked inadvertently, it will lock itself again automatically after about thirty seconds unless a door is opened.
And if your vehicle has an alarm, this is not reactivated. The folding and unfolding of the door mirrors by the remote control can be deactivated by a PEUGEOT dealer or a qualified workshop.
Selective unlocking
When selective unlocking of the driver's door is activated:  With the electronic key in the driver's door zone, pass your hand behind the driver's door handle to unlock just the driver's door, then pull on the door handle to open the d o o r.  With the electronic key in the passenger's door zone, pass your hand behind the passenger's door handle to unlock the whole vehicle, then pull on the door handle to open the door.
By default, complete unlocking is activated. This setting is done in the "Driving assistance" menu, then "Vehicle settings"and "Vehicle access" .
Use this button for access to additional information.
Unlocking is confirmed by rapid flashing of the direction indicators for a few seconds. Depending on version, the door mirrors unfold, the alarm is deactivated .

56
Access

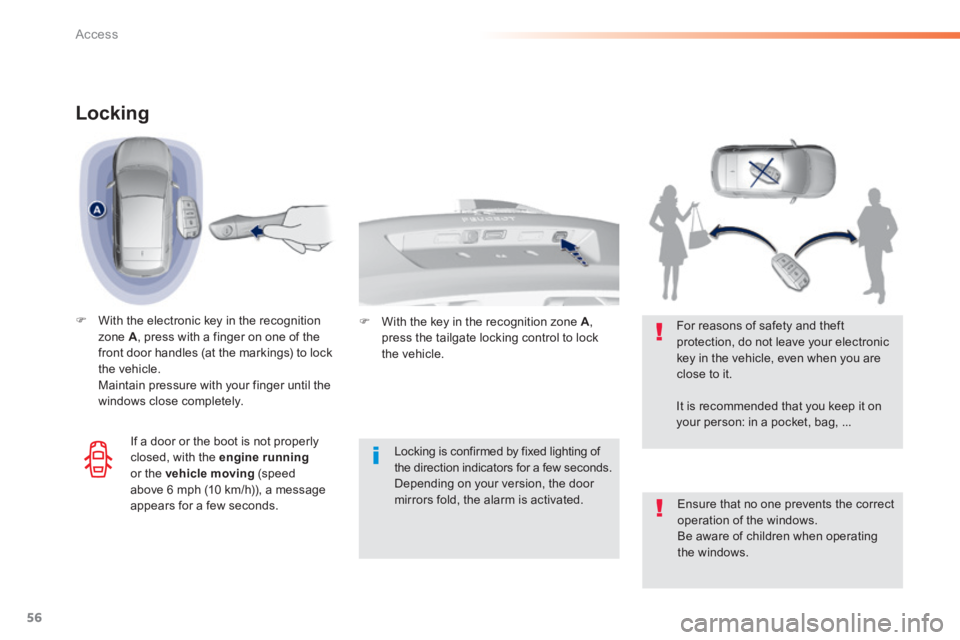

Locking
 With the electronic key in the recognition zone A , press with a finger on one of the front door handles (at the markings) to lock the vehicle. Maintain pressure with your finger until the windows close completely.
Locking is confirmed by fixed lighting of the direction indicators for a few seconds. Depending on your version, the door mirrors fold, the alarm is activated. Ensure that no one prevents the correct operation of the windows.
Be aware of children when operating the windows.
For reasons of safety and theft protection, do not leave your electronic key in the vehicle, even when you are close to it.
It is recommended that you keep it on your person: in a pocket, bag, ...
If a door or the boot is not properly closed, with the engine runningor the vehicle moving (speed above 6 mph (10 km/h)), a message appears for a few seconds.
 With the key in the recognition zone A , press the tailgate locking control to lock the vehicle.

57
2
Access

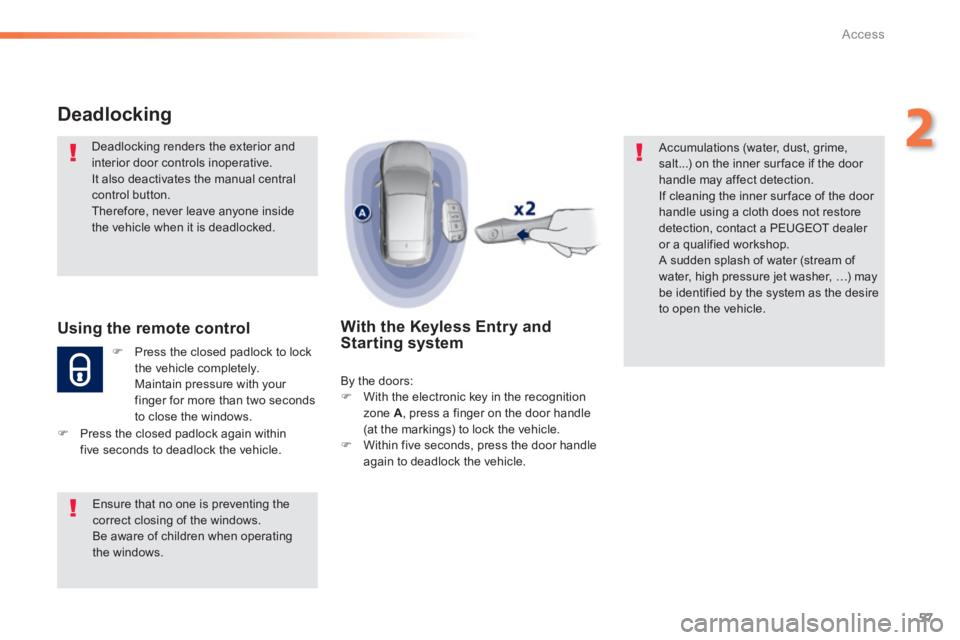

Deadlocking
Deadlocking renders the exterior and interior door controls inoperative. It also deactivates the manual central control button. Therefore, never leave anyone inside
the vehicle when it is deadlocked.
Using the remote control
 Press the closed padlock to lock the vehicle completely. Maintain pressure with your finger for more than two seconds to close the windows.
With the Keyless Entry and Starting system
By the doors:  With the electronic key in the recognition zone A , press a finger on the door handle (at the markings) to lock the vehicle.  Within five seconds, press the door handle again to deadlock the vehicle.
Ensure that no one is preventing the correct closing of the windows.
Be aware of children when operating the windows.
 Press the closed padlock again within five seconds to deadlock the vehicle.
Accumulations (water, dust, grime, salt...) on the inner sur face if the door handle may affect detection. If cleaning the inner sur face of the door handle using a cloth does not restore
detection, contact a PEUGEOT dealer or a qualified workshop. A sudden splash of water (stream of water, high pressure jet washer, …) may be identified by the system as the desire to open the vehicle.

58
Access

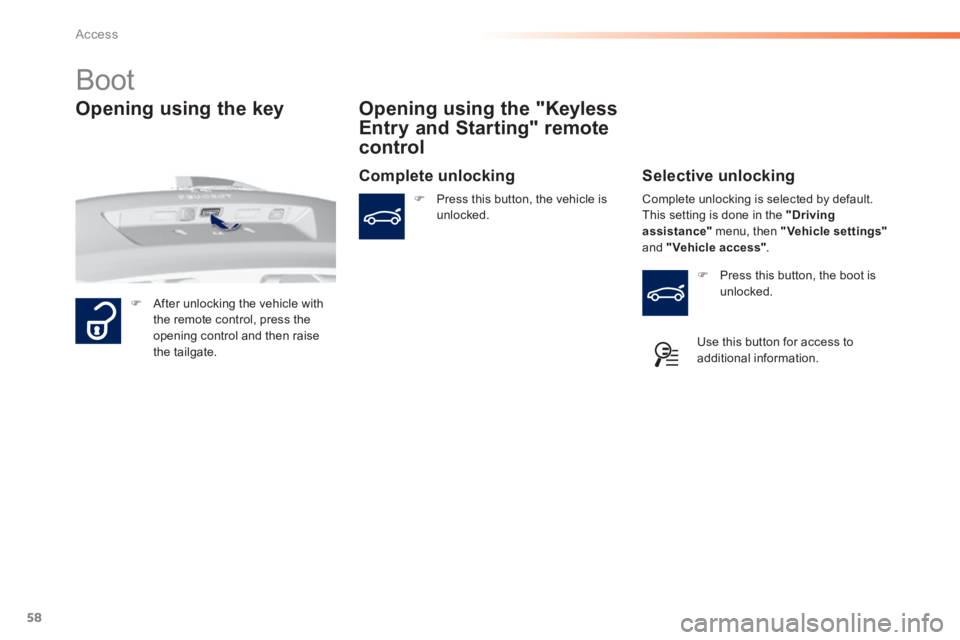

Boot
 After unlocking the vehicle with the remote control, press the opening control and then raise the tailgate.
Opening using the "Keyless
Entry and Starting" remote
control
 Press this button, the vehicle is unlocked.
Opening using the key
Complete unlocking is selected by default. This setting is done in the "Driving assistance" menu, then "Vehicle settings"and "Vehicle access" .
Complete unlocking Selective unlocking
 Press this button, the boot is unlocked.
Use this button for access to additional information.
