Peugeot 308 2014 Owner's Manual

169
4
Driving
308_EN_CHAP04_CONDUITE_ED02-2013

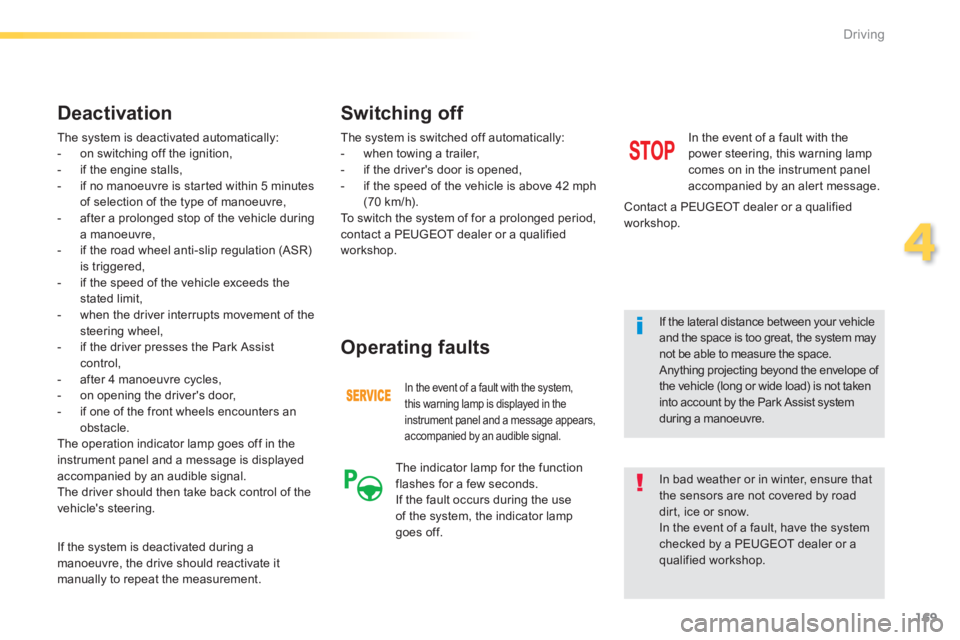

The system is deactivated automatically: - on switching off the ignition, - if the engine stalls, - if no manoeuvre is started within 5 minutes of selection of the type of manoeuvre, - after a prolonged stop of the vehicle during a manoeuvre, - if the road wheel anti-slip regulation (ASR) is triggered, - if the speed of the vehicle exceeds the stated limit, - when the driver interrupts movement of the steering wheel, - if the driver presses the Park Assist control, - after 4 manoeuvre cycles, - on opening the driver's door, - if one of the front wheels encounters an obstacle.
The operation indicator lamp goes off in the instrument panel and a message is displayed accompanied by an audible signal. The driver should then take back control of the vehicle's steering.
Deactivation
If the system is deactivated during a manoeuvre, the drive should reactivate it manually to repeat the measurement.
The system is switched off automatically: - when towing a trailer, - if the driver's door is opened, - if the speed of the vehicle is above 42 mph (70 km/h). To switch the system of for a prolonged period, contact a PEUGEOT dealer or a qualified workshop.
In the event of a fault with the system, this warning lamp is displayed in the instrument panel and a message appears, accompanied by an audible signal.
Operating faults
In the event of a fault with the power steering, this warning lamp comes on in the instrument panel accompanied by an alert message.
Contact a PEUGEOT dealer or a qualified workshop.
Switching off
If the lateral distance between your vehicle and the space is too great, the system may not be able to measure the space. Anything projecting beyond the envelope of the vehicle (long or wide load) is not taken into account by the Park Assist system during a manoeuvre.
In bad weather or in winter, ensure that the sensors are not covered by road dirt, ice or snow. In the event of a fault, have the system checked by a PEUGEOT dealer or a qualified workshop.
The indicator lamp for the function flashes for a few seconds. If the fault occurs during the use of the system, the indicator lamp goes off.

170
Visibility
308_EN_CHAP05_VISIBILITE_ED02-2013

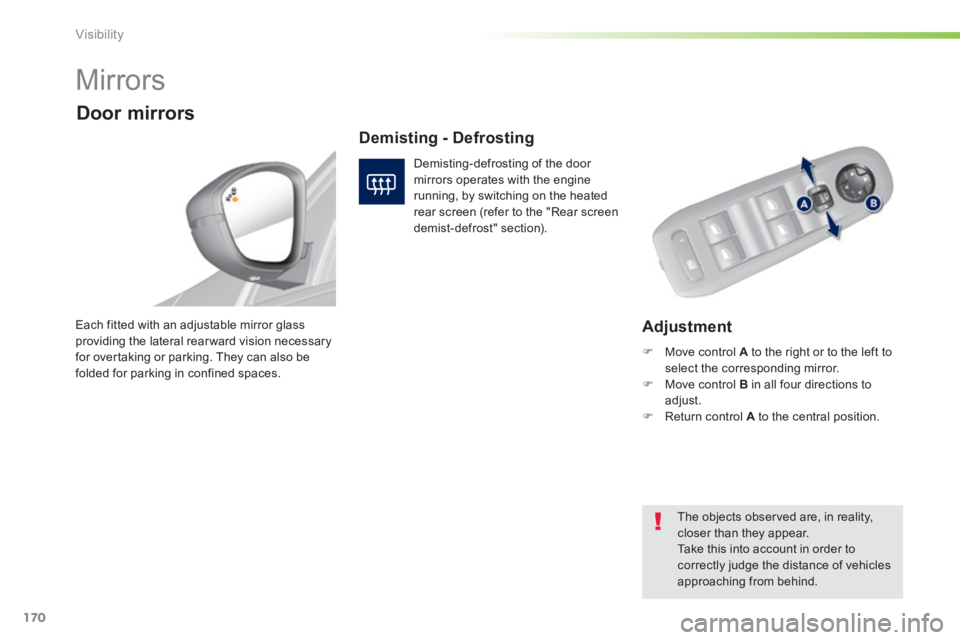

Mirrors
Adjustment Each fitted with an adjustable mirror glass providing the lateral rear ward vision necessary for overtaking or parking. They can also be folded for parking in confined spaces.
Demisting - Defrosting
Door mirrors
Demisting-defrosting of the door mirrors operates with the engine running, by switching on the heated rear screen (refer to the "Rear screen
demist-defrost" section).
The objects observed are, in reality, closer than they appear. Take this into account in order to correctly judge the distance of vehicles approaching from behind.
 Move control A to the right or to the left to select the corresponding mirror.  Move control B in all four directions to adjust.  Return control A to the central position.

171
5
Visibility
308_EN_CHAP05_VISIBILITE_ED02-2013

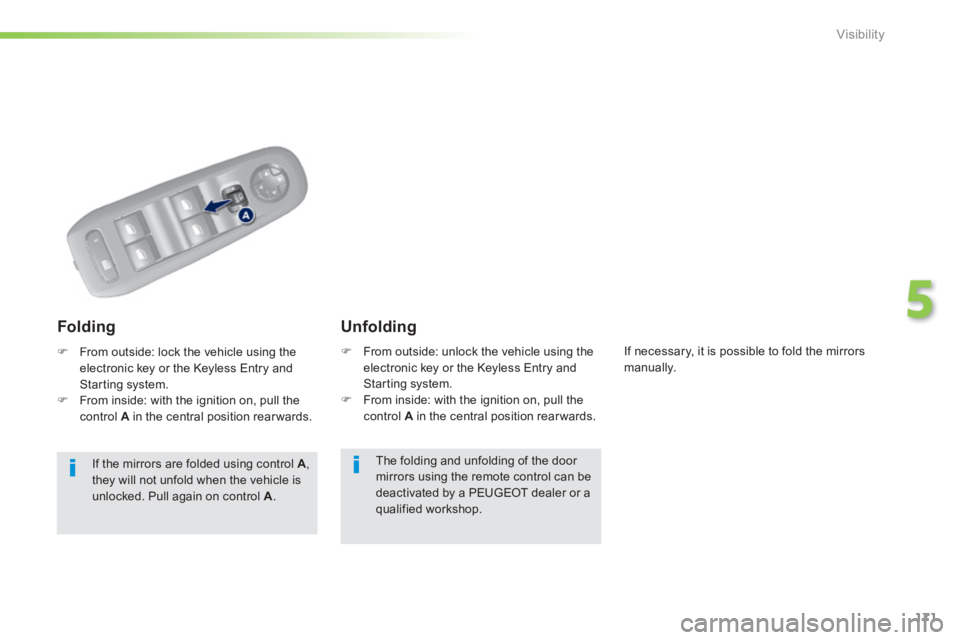

The folding and unfolding of the door mirrors using the remote control can be deactivated by a PEUGEOT dealer or a qualified workshop.
 From outside: unlock the vehicle using the electronic key or the Keyless Entry and Starting system.  From inside: with the ignition on, pull the control A in the central position rear wards.
Unfolding Folding
 From outside: lock the vehicle using the electronic key or the Keyless Entry and Starting system.  From inside: with the ignition on, pull the control A in the central position rear wards.
If the mirrors are folded using control A , they will not unfold when the vehicle is unlocked. Pull again on control A .
If necessary, it is possible to fold the mirrors manually.

172
Visibility
308_EN_CHAP05_VISIBILITE_ED02-2013

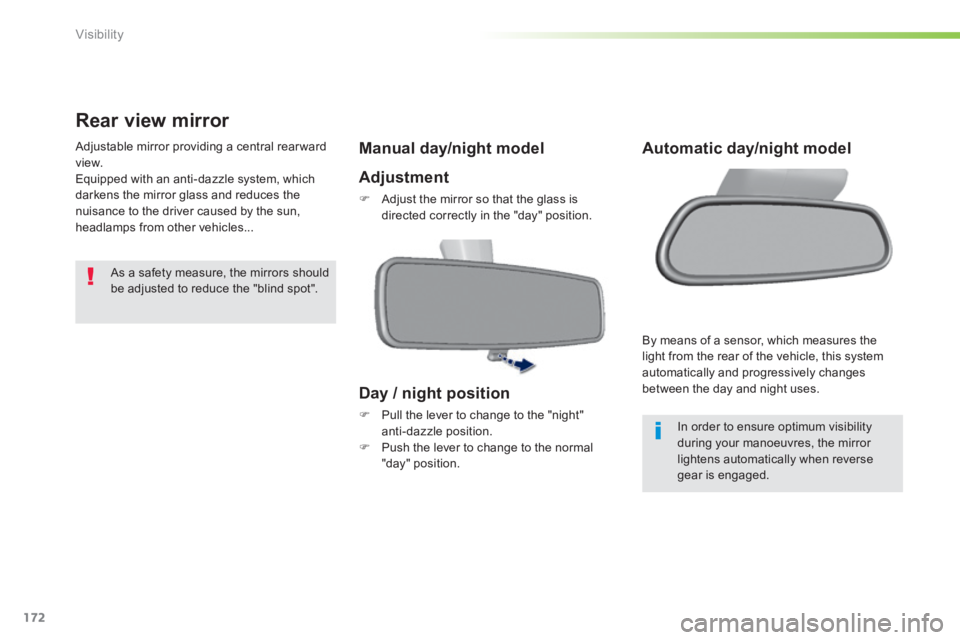

Rear view mirror
Adjustable mirror providing a central rearward view. Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to the driver caused by the sun, headlamps from other vehicles...
Manual day/night model
Adjustment
 Adjust the mirror so that the glass is directed correctly in the "day" position.
As a safety measure, the mirrors should be adjusted to reduce the "blind spot".
In order to ensure optimum visibility during your manoeuvres, the mirror lightens automatically when reverse gear is engaged.
Day / night position
 Pull the lever to change to the "night" anti-dazzle position.  Push the lever to change to the normal "day" position.
Automatic day/night model
By means of a sensor, which measures the light from the rear of the vehicle, this system automatically and progressively changes between the day and night uses.

173
5
Visibility
308_EN_CHAP05_VISIBILITE_ED02-2013

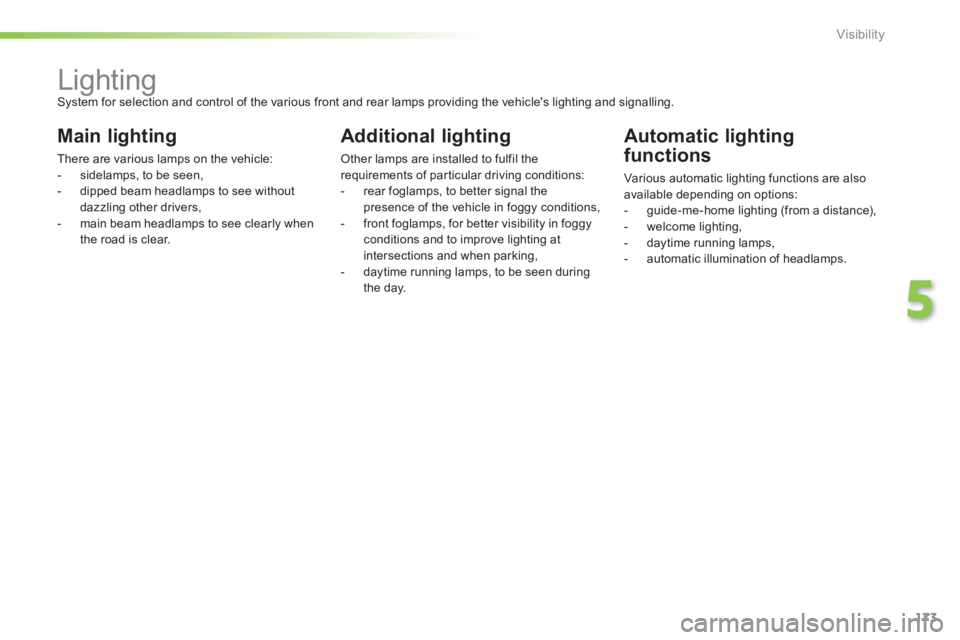

Lighting System for selection and control of the various front and rear lamps providing the vehicle's lighting and signalling.
Main lighting
There are various lamps on the vehicle: - sidelamps, to be seen, - dipped beam headlamps to see without dazzling other drivers, - main beam headlamps to see clearly when the road is clear.
Additional lighting
Other lamps are installed to fulfil the requirements of particular driving conditions: - rear foglamps, to better signal the presence of the vehicle in foggy conditions,
- front foglamps, for better visibility in foggy conditions and to improve lighting at intersections and when parking, - daytime running lamps, to be seen during the day.
Automatic lighting
functions
Various automatic lighting functions are also available depending on options: - guide-me-home lighting (from a distance), - welcome lighting, - daytime running lamps, - automatic illumination of headlamps.

174
Visibility
308_EN_CHAP05_VISIBILITE_ED02-2013

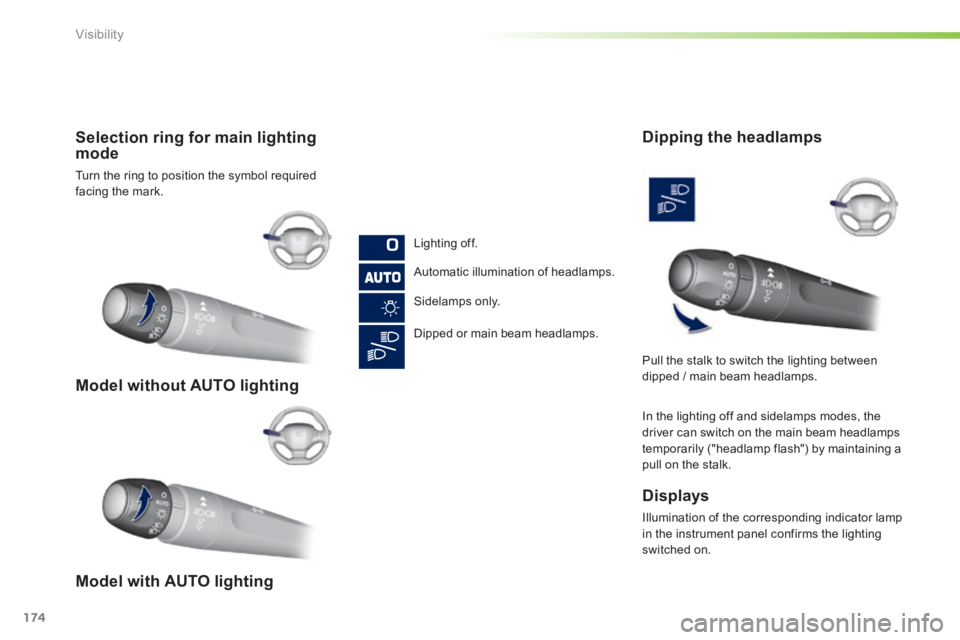

Model without AUTO lighting
Model with AUTO lighting
Selection ring for main lighting mode
Turn the ring to position the symbol required facing the mark.
Lighting off.
Automatic illumination of headlamps.
Sidelamps only.
Dipped or main beam headlamps.
Dipping the headlamps
In the lighting off and sidelamps modes, the driver can switch on the main beam headlamps temporarily ("headlamp flash") by maintaining a pull on the stalk.
Displays
Illumination of the corresponding indicator lamp in the instrument panel confirms the lighting switched on.
Pull the stalk to switch the lighting between dipped / main beam headlamps.

175
5
Visibility
308_EN_CHAP05_VISIBILITE_ED02-2013

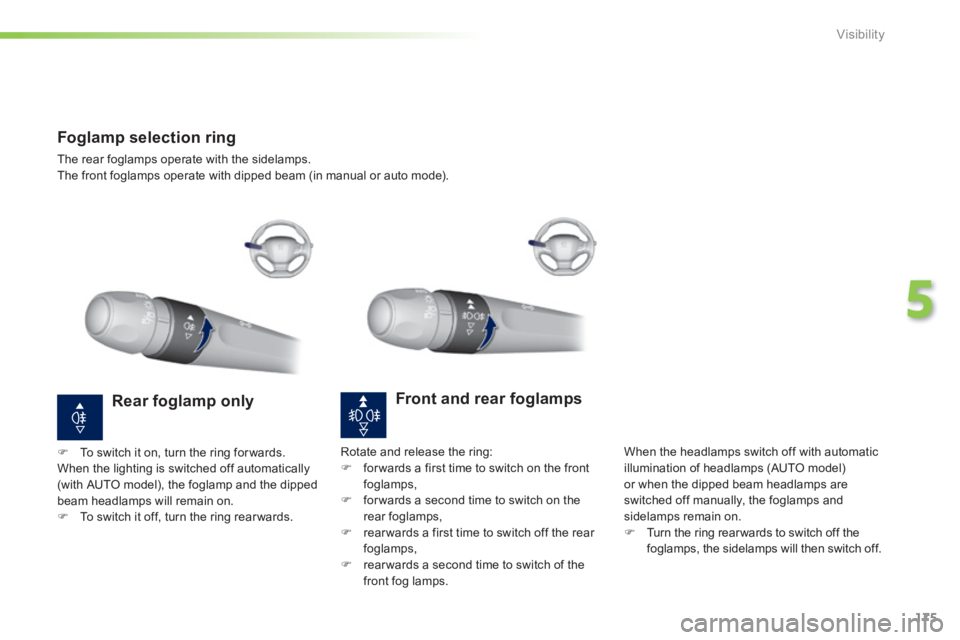

Foglamp selection ring
The rear foglamps operate with the sidelamps. The front foglamps operate with dipped beam (in manual or auto mode).
Front and rear foglamps
When the headlamps switch off with automatic illumination of headlamps (AUTO model) or when the dipped beam headlamps are switched off manually, the foglamps and sidelamps remain on.  Turn the ring rear wards to switch off the foglamps, the sidelamps will then switch off.
Rear foglamp only
 To switch it on, turn the ring for wards. When the lighting is switched off automatically (with AUTO model), the foglamp and the dipped beam headlamps will remain on.  To switch it off, turn the ring rear wards.
Rotate and release the ring:  for wards a first time to switch on the front foglamps,  for wards a second time to switch on the rear foglamps,  rear wards a first time to switch off the rear foglamps,  rear wards a second time to switch of the front fog lamps.

176
Visibility
308_EN_CHAP05_VISIBILITE_ED02-2013

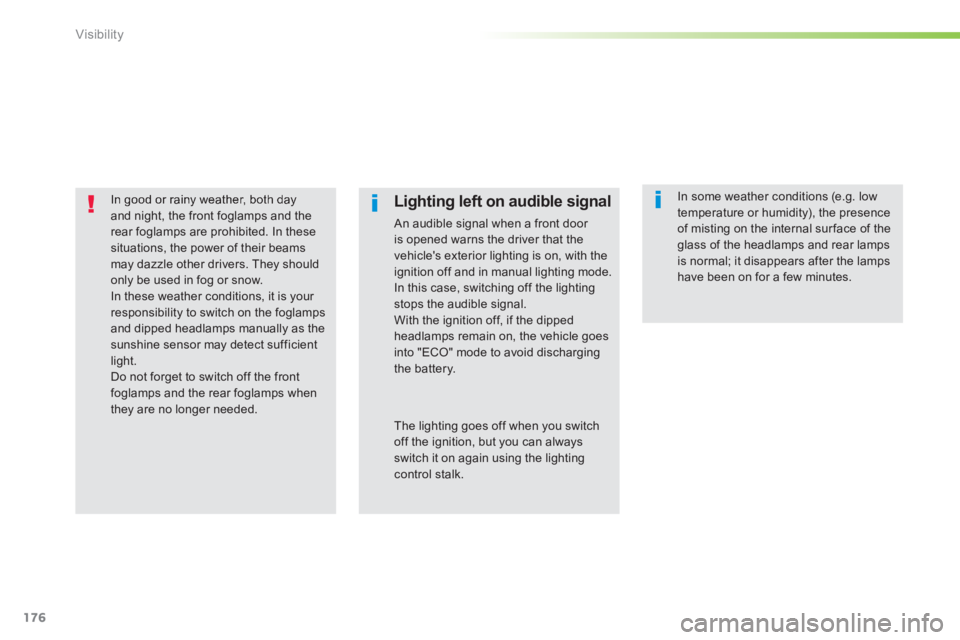

In good or rainy weather, both day and night, the front foglamps and the
rear foglamps are prohibited. In these situations, the power of their beams may dazzle other drivers. They should only be used in fog or snow. In these weather conditions, it is your responsibility to switch on the foglamps and dipped headlamps manually as the sunshine sensor may detect sufficient light. Do not forget to switch off the front foglamps and the rear foglamps when they are no longer needed.
Lighting left on audible signal
An audible signal when a front door is opened warns the driver that the vehicle's exterior lighting is on, with the ignition off and in manual lighting mode. In this case, switching off the lighting stops the audible signal. With the ignition off, if the dipped headlamps remain on, the vehicle goes into "ECO" mode to avoid discharging the battery.
In some weather conditions (e.g. low temperature or humidity), the presence of misting on the internal sur face of the glass of the headlamps and rear lamps is normal; it disappears after the lamps have been on for a few minutes.
The lighting goes off when you switch off the ignition, but you can always switch it on again using the lighting control stalk.

177
5
Visibility
308_EN_CHAP05_VISIBILITE_ED02-2013

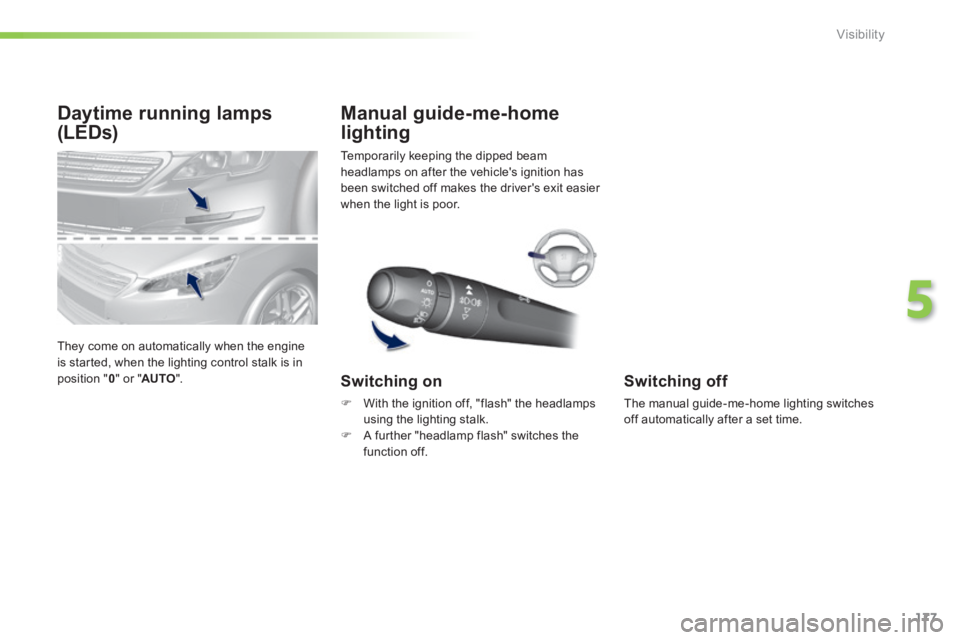

Daytime running lamps
(LEDs)
They come on automatically when the engine is started, when the lighting control stalk is in position " 0 " or " AUTO ".
Temporarily keeping the dipped beam headlamps on after the vehicle's ignition has been switched off makes the driver's exit easier when the light is poor.
Manual guide-me-home
lighting
Switching on
 With the ignition off, "flash" the headlamps using the lighting stalk.  A further "headlamp flash" switches the function off.
Switching off
The manual guide-me-home lighting switches off automatically after a set time.

178
Visibility
308_EN_CHAP05_VISIBILITE_ED02-2013

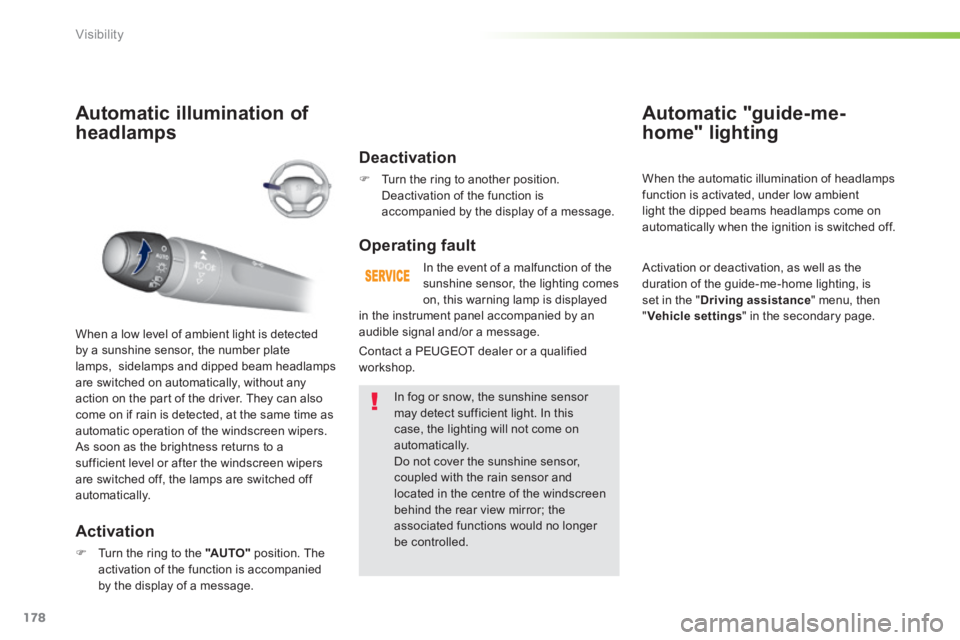

Automatic illumination of
headlamps
Activation
 Turn the ring to the "AUTO" position. The activation of the function is accompanied by the display of a message.
When a low level of ambient light is detected by a sunshine sensor, the number plate lamps, sidelamps and dipped beam headlamps are switched on automatically, without any action on the part of the driver. They can also come on if rain is detected, at the same time as
automatic operation of the windscreen wipers. As soon as the brightness returns to a sufficient level or after the windscreen wipers are switched off, the lamps are switched off automatically.
Deactivation
 Turn the ring to another position. Deactivation of the function is accompanied by the display of a message.
Operating fault
In the event of a malfunction of the sunshine sensor, the lighting comes on, this warning lamp is displayed
In fog or snow, the sunshine sensor may detect sufficient light. In this case, the lighting will not come on automatically. Do not cover the sunshine sensor, coupled with the rain sensor and located in the centre of the windscreen behind the rear view mirror; the associated functions would no longer be controlled.
Automatic "guide-me-
home" lighting
When the automatic illumination of headlamps function is activated, under low ambient light the dipped beams headlamps come on
automatically when the ignition is switched off.
Activation or deactivation, as well as the duration of the guide-me-home lighting, is set in the " Driving assistance " menu, then " Vehicle settings " in the secondary page.
Contact a PEUGEOT dealer or a qualified workshop.
in the instrument panel accompanied by an audible signal and/or a message.
