Peugeot 308 2015 Owner's Guide

19
308_en_Chap01_controle-de-marche_ed01-2015
Warning / indicator lamp State Cause Action / Observations
Service on temporarily. A minor fault has occurred for which
there is no specific warning lamp. Identify the fault by means of the associated
message, such as:
-

l
ow engine oil level,
-

l
ow screenwash/headlamp wash fluid level,
-

d
ischarged remote control battery,
-

l
ow tyre pressures,
-

s
aturation of the particle filter (FAP) on Diesel
vehicles.
For more information on the FAP, refer to the
"Checks
- particle filter" section.
For any other faults, contact a P
e

uge
Ot
dealer or a
qualified workshop.
fixed. A major fault has occurred for which
there is no specific warning lamp. Identify the fault by reading the message and contact
a P
e

uge
Ot
dealer or a qualified workshop.
fixed, associed with
flashing and then fixed
display of the service
spanner.
the

servicing interval has been
exceeded. Only on BlueHDi Diesel versions.
Your vehicle must be serviced as soon as possible.
1
Monitoring

20
308_en_Chap01_controle-de-marche_ed01-2015
Warning / indicator lamp State Cause Action / Observations
Electric parking
brake flashing.
th

e electric parking brake is not
applied automatically.
th

e application/release is faulty.You must stop as soon as it is safe to do so.
Park on flat level ground, engage a gear (or place the
lever in position P for an automatic gearbox), switch
off the ignition and contact a P
e

uge
Ot
dealer or a
qualified workshop.
Electric parking
brake fault fixed.
th

e electric parking brake has a fault. Contact a P
e
uge
Ot
dealer or a qualified workshop
without delay.
For more information on the electric parking brake,
refer to the corresponding section.
Deactivation of
the automatic
functions of the
electric parking
brake fixed.
th

e "automatic application"
(on switching off the engine) and
"automatic release" functions are
deactivated or faulty.
In the event of a fault, illumination of
this warning lamp is accompanied by
a message.
to r

eactivate the automatic functions, refer to the
"
el

ectric parking brake" section.
Contact a P
e

uge
Ot
dealer or a qualified workshop if
automatic application


/ release is not possible.
th

e parking brake can be released manually.
For more information on the electric parking brake,
refer to the corresponding section.
Monitoring

21
308_en_Chap01_controle-de-marche_ed01-2015
Warning / indicator lamp State Cause Action / Observations
Anti-lock
Braking System
(ABS) fixed.
th

e anti-lock braking system has a
fault.
th

e vehicle retains conventional braking.
Drive carefully at reduced speed and contact a
P
e

uge
Ot
dealer or a qualified workshop without
d e l ay.
Dynamic
stability control
(DSC/ASR) flashing.
th

e DSC/ASR regulation is
operating.
th

e system optimises traction and improves the
directional stability of the vehicle in the event of loss of
grip or trajectory.
fixed.
th

e DSC/ASR system has a fault. Have it checked by a P
e
uge
Ot
dealer or a qualified
workshop.
Braking
fixed.
th

e brake fluid level has dropped
significantly. You must stop as soon as it is safe to do so.
to

p up with brake fluid listed by P
e
uge
Ot.
I

f the problem persists, have the system checked by a
P
e

uge
Ot
dealer or a qualified workshop.
+ fixed, associated
with the ABS warning
lamp.
th

e electronic brake force distribution
(
eB

FD) system has a fault.You must stop as soon as it is safe to do so.
Have it checked by a P
e

uge
Ot
dealer or a qualified
workshop.
1
Monitoring

22
308_en_Chap01_controle-de-marche_ed01-2015
Engine
autodiagnosis
systemflashing.the
engine management system has
a fault. Risk of destruction of the catalytic converter.
Have it checked by a Pe
ugeOt dealer or a qualified
workshop.
fixed.
th

e emission control system has a
fault.
the warning lamp should go off when the engine is started.
If it does not go off, contact a Pe ugeOt dealer or qualified
workshop without delay.
Emergency
Collision
Braking System flashing.the
em ergency Collision Braking
System is active.th e system brakes briefly so as to reduce the speed
of collision with the vehicle ahead.
fixed,
accompanied by
a mesage and an
audible signal
the

e
m
ergency Collision Braking
System has a fault. Have it checked by a P
e

uge
Ot
dealer or a qualified
workshop.
fixed.
the emergency Collision Braking System
has been deactivated (via the menu).
Warning / indicator lamp State Cause Action / Observations
Low fuel level fixed, with the needle
in the red zone. When it first comes on there remains
less than 10 litres of fuel
in the
tank. You must refuel as soon as possible to avoid running
out of fuel.
th

is warning lamp will come on every time the ignition
is switched on, until a sufficient addition of fuel is
made.
Fuel tank capacity: approximately 53 litres or 45 litres
depending on version.
Never continue to drive until you run out of fuel as
this could damage the emission control and injection
systems.
Monitoring

23
308_en_Chap01_controle-de-marche_ed01-2015
Warning / indicator lamp State Cause Action / Observations
Battery charge *fixed.
th

e battery charging circuit has a
fault (dirty or loose terminals, slack or
cut alternator belt, ...).
th

e warning lamp should go off when the engine is
started.
If it does not go off, contact a P
e

uge
Ot
dealer or a
qualified workshop.
* According to destination country. Seat belt(s)
not fastened
/
unfastened fixed
or flashing
accompanied by an
audible signal. A seat belt has not been fastened or
has been unfastened.
Pull the strap then insert the tongue in the buckle.
Airbags on temporarily.
th

is lamp comes on for a few
seconds when you turn on the
ignition, then goes off.
th

is lamp should go off when the engine is started.
If it does not go off, contact a P
e

uge
Ot
dealer or a
qualified workshop.
fixed. One of the airbag or seat belt
pretensioner systems has a fault. Have it checked by a P
e

uge
Ot
dealer or a qualified
workshop.
1
Monitoring

24
308_en_Chap01_controle-de-marche_ed01-2015
Engine oil
pressurefixed.th
ere is a fault with the engine
lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a Pe
ugeOt
dealer or a qualified workshop.
Deflated tyre fixed.
th

e pressure in one or more tyres is
too low. Check the pressures of the tyres as soon as possible.
th

is check should preferably carried out with the tyres
cold.
flashing then fixed.
th

e under-inflation detection system
has a fault. Have it checked by a P
e

uge
Ot
dealer or a qualified
workshop.
For more information on under-inflation detection,
refer to the corresponding section.
Warning


/ indicator lamp
State Cause Action

/ Observations
Foot on the
brake pedal fixed.
th

e brake pedal must be pressed. With an automatic gearbox, press the brake pedal, engine running, before releasing the parking brake, to
unlock the lever and come out of position P .
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will
remain on.
Foot on the
clutch fixed.
In the S
tO

P mode of Stop & Start,
changing to S
tA

R
t
mode is refused
because the clutch pedal is not fully
down. You must declutch fully to allow the change to engine
S
t

A R
t m
o d e .
Monitoring

25
308_en_Chap01_controle-de-marche_ed01-2015
Warning or indicator lamp
in the instrument panelState
Cause Action
/ Observations
Door(s) open fixed, associated with
a message identifying
the door, if the speed is
below 6 mph (10
km/h).A door or the boot is still open. Close the door or boot.
fixed, associated
with a message
identifying the door,
and accompanied by
an audible signal if the
speed is above 6 mph
(10 km/h).
1
Monitoring

26
308_en_Chap01_controle-de-marche_ed01-2015
AdBlue® additive
(BlueHDi Diesel) fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating the
remaining driving range.the
remaining driving range is
between 350 miles (600 km) and
1500 miles (2400 km). Have the AdBlue® additive tank topped up as soon
as possible: go to a Pe ugeOt dealer or a qualified
workshop, or carry out this operation yourself by
referring to the corresponding section.
+ flashing associated with
the S
eR

VIC
e
w

arning
lamp, accompanied by
an audible signal and a
message indicating the
remaining driving range.
the

remaining driving range is
between 0 and 375 miles (600 km). You must top-up the AdBlue
® additive tank to avoid
a breakdown : go to a Pe
ugeOt delaer or a qualified
workshop, or carry out this operation yourself by
referring to the corresponding section.
flashing, associated
with the S
eR

VIC
e

w

arning lamp,
accompanied by an
audible signal and a
message indicating that
starting is prevented.
th

e AdBlue
® tank is empty: the
starting inhibition system required
by legislation prevents starting of
the


engine.to b e able to start the engine, you must top-up the
AdBlue® additive tank: go to a Pe ugeOt dealer or a
qualified workshop, or carry out this operation yourself
by referring to the corresponding section.
It is essential to add at least 3.8 litres of AdBlue
® to
the additive tank.
Warning or indicator lamp
in the instrument panel
State
Cause Action


/ Observations
Monitoring

27
308_en_Chap01_controle-de-marche_ed01-2015
Warning or indicator lamp
in the instrument panelState
Cause Action
/ Observations
+
+ SCR emissions
control system

(BlueHDi Diesel) fixed, on switching on
the ignition, associated
with the S
eR

VIC
e
and
engine diagnostic warning
lamps, accompanied by
an audible signal and a
message. A fault with the SCR emissions
control system has been detected.
th

is alert disappears once the exhaust emissions
return to normal levels.
flashing, on switching on
the ignition, associated
with the S
eR

VIC
e
and
engine diagnostic warning
lamps, accompanied by
an audible signal and a
message indicating the
remaining driving range. After confirmation of the fault with the
emissions control system, you can
drive for up to 650 miles (1 100 km)
before the engine starting inhibition
system is triggered.
Contact a P
e

uge
Ot
dealer or a qualified
workshop without delay , to avoid a breakdown.
flashing, on switching on
the ignition, associated
with the S
eR

VIC
e
and
engine diagnostic warning
lamps, accompanied by
an audible signal and a
message. You have exceeded the authorised
driving limit following confirmation
of a fault with the emissions
control system: the engine starting
inhibition system prevents starting of
the


engine.
to b
e able to start the engine, you must call on a
P
e

uge
Ot
dealer or a qualified workshop.
1
Monitoring

28
308_en_Chap01_controle-de-marche_ed01-2015

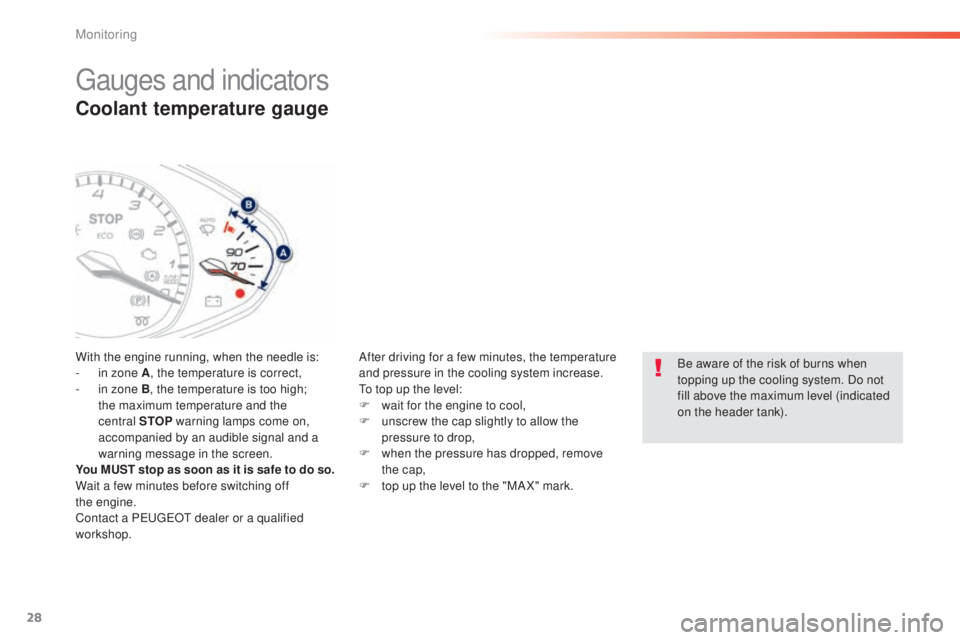

Coolant temperature gauge
With the engine running, when the needle is:
- i n zone A , the temperature is correct,
-

i
n zone B, the temperature is too high;
the maximum temperature and the
central STOP warning lamps come on,
accompanied by an audible signal and a
warning message in the screen.
You MUST stop as soon as it is safe to do so.
Wait a few minutes before switching off
the


engine.
Contact a P
e

uge
Ot
dealer or a qualified
workshop. After driving for a few minutes, the temperature
and pressure in the cooling system increase.
to t

op up the level:
F

w
ait for the engine to cool,
F

u
nscrew the cap slightly to allow the
pressure to drop,
F

w
hen the pressure has dropped, remove
the cap,
F

t
op up the level to the "MA X" mark.Be aware of the risk of burns when
topping up the cooling system. Do not
fill above the maximum level (indicated
on the header tank).
gauges and indicators
Monitoring
