Peugeot 308 2015 Owner's Guide

29
308_en_Chap01_controle-de-marche_ed01-2015

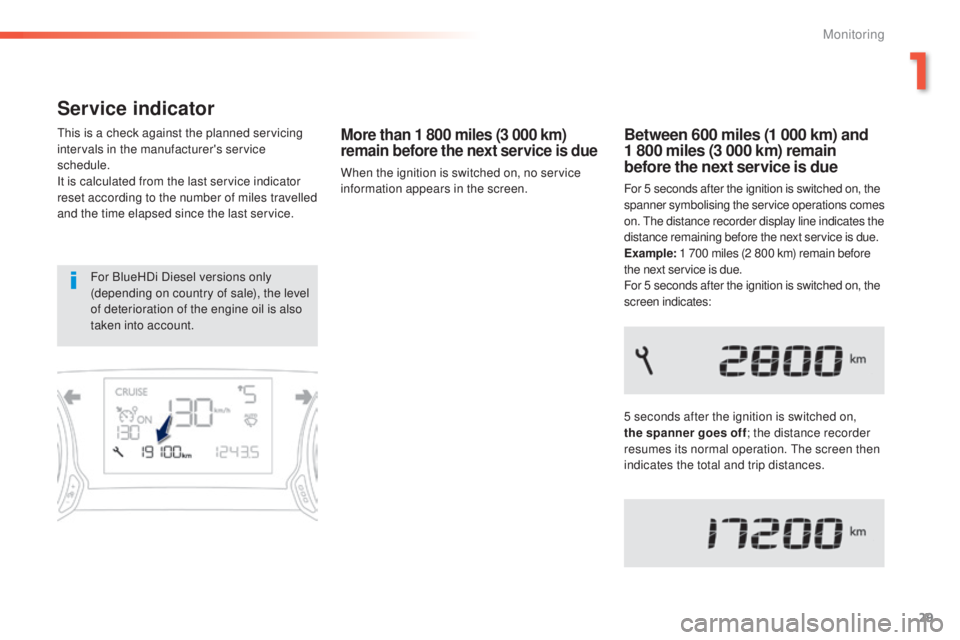

Service indicator
this is a check against the planned servicing
intervals in the manufacturer's service
schedule.
It is calculated from the last service indicator
reset according to the number of miles travelled
and the time elapsed since the last service.More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no service
information appears in the screen.
Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain
before the next service is due
For 5 seconds after the ignition is switched on, the
spanner symbolising the service operations comes
on.
t
h
e distance recorder display line indicates the
distance remaining before the next service is due.
Example: 1 700 miles (2 800 km) remain before
the next service is due.
For 5 seconds after the ignition is switched on, the
screen indicates:
5 seconds after the ignition is switched on,
the spanner goes off ; the distance recorder
resumes its normal operation.
t
h
e screen then
indicates the total and trip distances.
For BlueHDi Diesel versions only
(depending on country of sale), the level
of deterioration of the engine oil is also
taken into account.
1
Monitoring

30
308_en_Chap01_controle-de-marche_ed01-2015

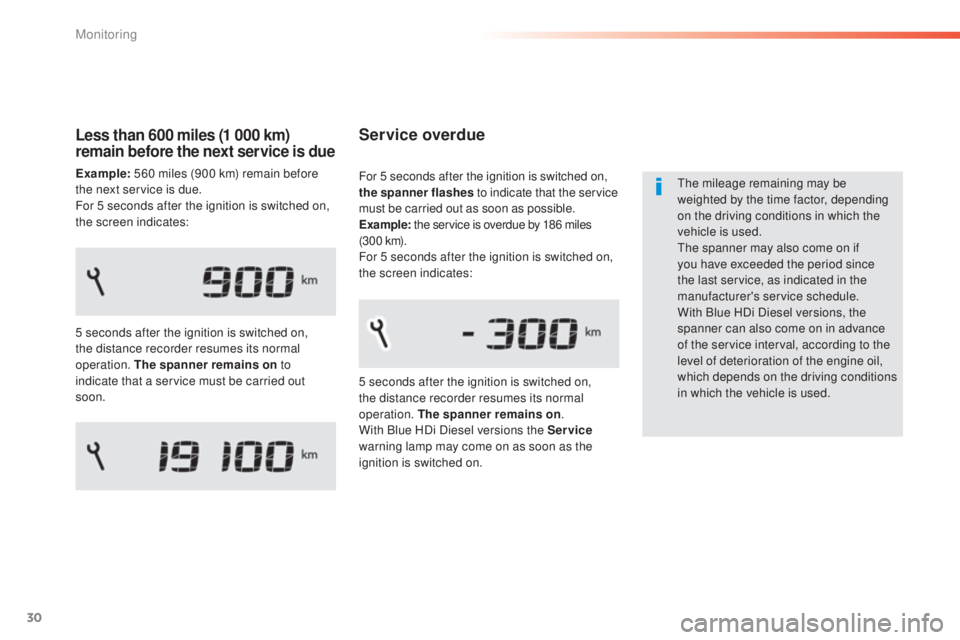

Service overdue
the mileage remaining may be
weighted by the time factor, depending
on the driving conditions in which the
vehicle is used.
th
e spanner may also come on if
you have exceeded the period since
the last service, as indicated in the
manufacturer's service schedule.
With Blue HDi Diesel versions, the
spanner can also come on in advance
of the service interval, according to the
level of deterioration of the engine oil,
which depends on the driving conditions
in which the vehicle is used.
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on
.
With Blue HDi Diesel versions the Service
warning lamp may come on as soon as the
ignition is switched on. For 5 seconds after the ignition is switched on,
the spanner flashes to indicate that the service
must be carried out as soon as possible.
Example: the service is overdue by 186 miles
(3 0 0 k m).
For 5 seconds after the ignition is switched on,
the screen indicates:
Less than 600 miles (1 000 km)
remain before the next service is due
Example: 560 miles (900 km) remain before
the next service is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on to
indicate that a service must be carried out
soon.
Monitoring

31
308_en_Chap01_controle-de-marche_ed01-2015

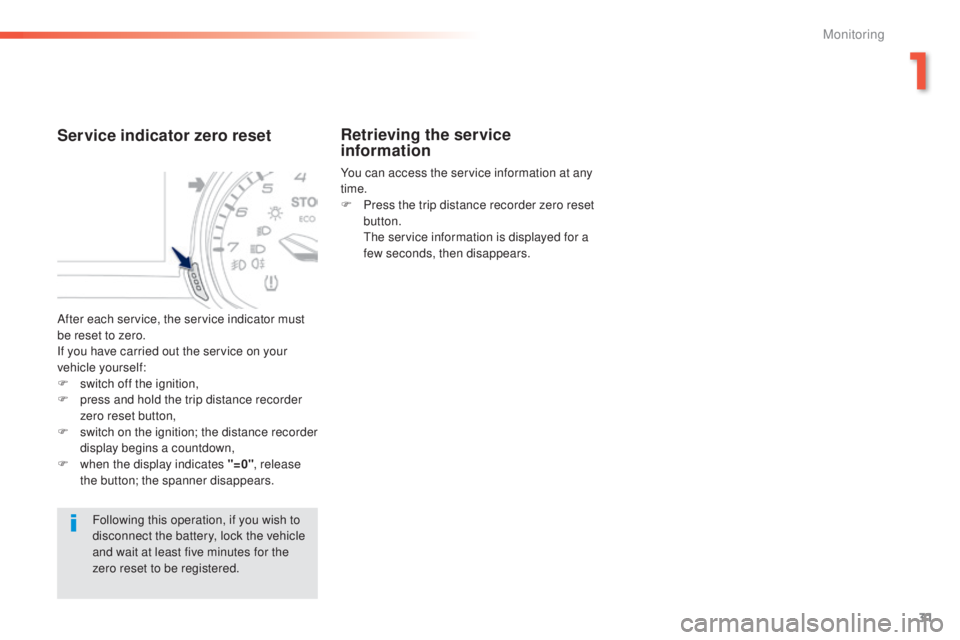

Service indicator zero reset
Following this operation, if you wish to
disconnect the battery, lock the vehicle
and wait at least five minutes for the
zero reset to be registered.
Retrieving the service
information
You can access the service information at any
time.
F
P
ress the trip distance recorder zero reset
button.


t
h
e service information is displayed for a
few seconds, then disappears.
After each service, the service indicator must
be reset to zero.
If you have carried out the service on your
vehicle yourself:
F

s

witch off the ignition,
F

p

ress and hold the trip distance recorder
zero reset button,
F

s

witch on the ignition; the distance recorder
display begins a countdown,
F

w

hen the display indicates "=0" , release
the button; the spanner disappears.
1
Monitoring

32
308_en_Chap01_controle-de-marche_ed01-2015

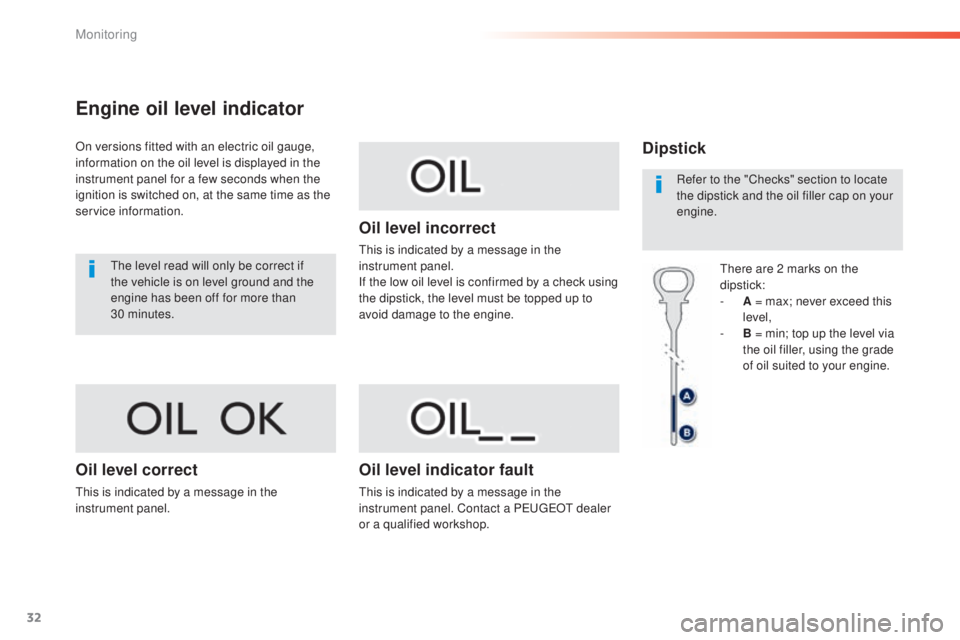

Engine oil level indicator
On versions fitted with an electric oil gauge,
information on the oil level is displayed in the
instrument panel for a few seconds when the
ignition is switched on, at the same time as the
service information.
th
e level read will only be correct if
the vehicle is on level ground and the
engine has been off for more than
30


minutes.
Oil level correct
this is indicated by a message in the
instrument panel.
Oil level incorrect
this is indicated by a message in the
instrument panel.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
avoid damage to the engine.
Oil level indicator fault
this is indicated by a message in the
instrument panel. Contact a Pe ugeOt dealer
or a qualified workshop.
Dipstick
there are 2 marks on the
dipstick:
-

A
= max; never exceed this
level,
-

B
= min; top up the level via
the oil filler, using the grade
of oil suited to your engine.
Refer to the "Checks" section to locate
the dipstick and the oil filler cap on your
engine.
Monitoring

33
308_en_Chap01_controle-de-marche_ed01-2015

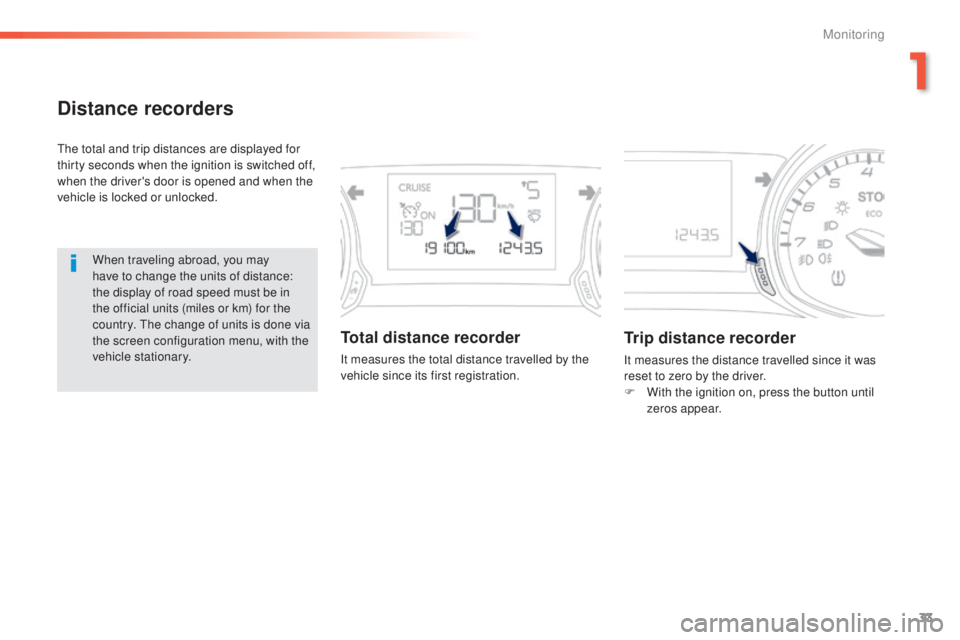

Distance recorders
the total and trip distances are displayed for
thirty seconds when the ignition is switched off,
when the driver's door is opened and when the
vehicle is locked or unlocked.When traveling abroad, you may
have to change the units of distance:
the display of road speed must be in
the official units (miles or km) for the
country.
t
h
e change of units is done via
the screen configuration menu, with the
vehicle stationary.
Total distance recorder
It measures the total distance travelled by the
vehicle since its first registration.
Trip distance recorder
It measures the distance travelled since it was
reset to zero by the driver.
F

W
ith the ignition on, press the button until
zeros appear.
1
Monitoring

34
308_en_Chap01_controle-de-marche_ed01-2015
Lighting dimmer control
System for the manual adjustment of the
brightness of the instrument panel and touch
screen to suit the ambient light level.
Instrument panel
With the exterior lighting on, press this button
to adjust the brightness of the dashboard
lighting, the touch screen and the mood
lighting. As soon as the lighting reaches the
required level of brightness, release the button.
Touch screen
F Press on the "Configuration" menu.
F A djust the brightness (only on the
touch
screen) by pressing on the " +"
or " -"


buttons.
Monitoring

35
308_en_Chap01_controle-de-marche_ed01-2015

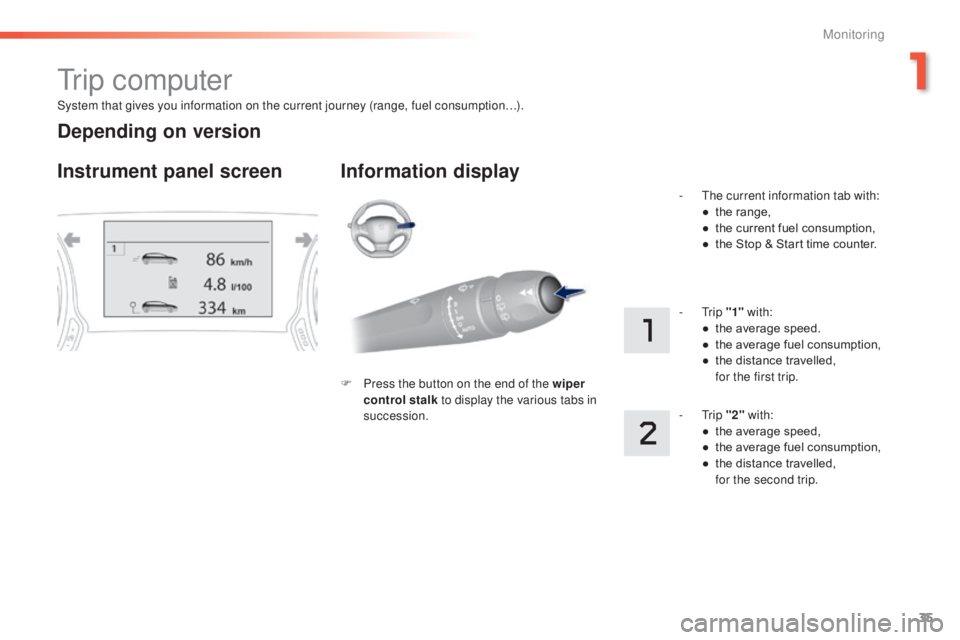

System that gives you information on the current journey (range, fuel consumption…).
tr i p c o m p u t e r
Instrument panel screen Information display
F Press the button on the end of the wiper control stalk to display the various tabs in
succession. -
t
h
e current information tab with:
●
t
he range,
●
t
he current fuel consumption,
●
t
he Stop & Start time counter.
- t
r
ip
"1" with:
●
t
he average speed.
●
t
he average fuel consumption,
●
t
he distance travelled, f
or the first trip.
- t
r
ip "2" with:
●

t
he average speed,
●

t
he average fuel consumption,
●

t
he distance travelled,
f

or the second trip.
Depending on version
1
Monitoring

36
308_en_Chap01_controle-de-marche_ed01-2015
Trip reset
F When the trip required is displayed, press the control for more than two seconds
or use the left hand thumb wheel of the
steering mounted controls.
t

r i p s "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.
Monitoring

37
308_en_Chap01_controle-de-marche_ed01-2015

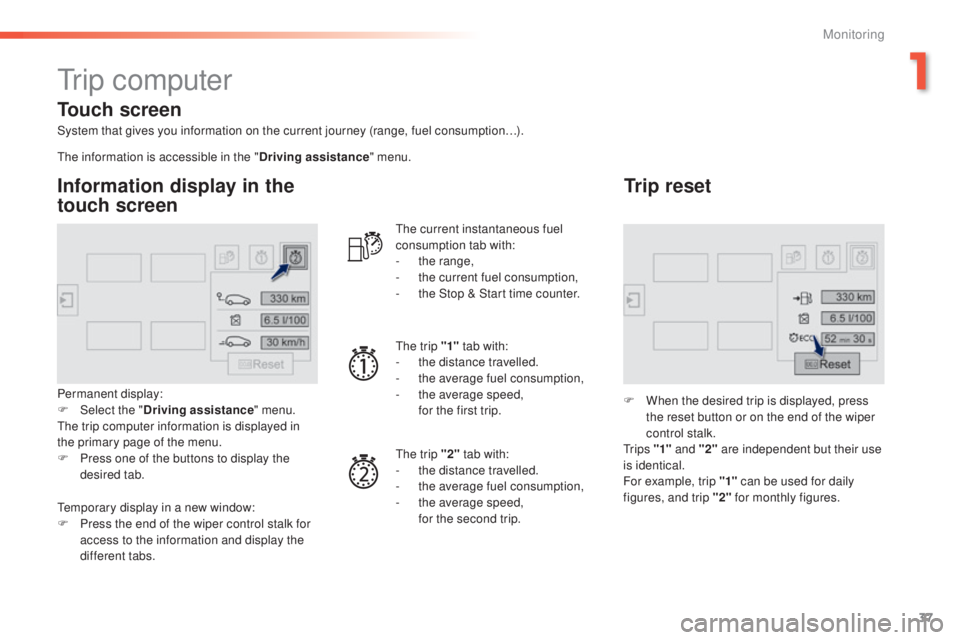

tr i p c o m p u t e r
System that gives you information on the current journey (range, fuel consumption…).
Information display in the
touch screen
Permanent display:
F Sel ect the " Driving assistance " menu.
th

e trip computer information is displayed in
the primary page of the menu.
F

P
ress one of the buttons to display the
desired tab.
th
e current instantaneous fuel
consumption tab with:
-
t
he range,
-
t
he current fuel consumption,
-
t
he Stop & Start time counter.
th

e trip "1"
tab with:
-
t
he distance travelled.
- t he average fuel consumption,
- t he average speed,
f

or the first trip.
th

e trip "2" tab with:
-

t
he distance travelled.
-
t

he average fuel consumption,
-

t
he average speed,
f

or the second trip.
Trip reset
F When the desired trip is displayed, press the reset button or on the end of the wiper
control stalk.
t

r i p s "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.
th

e information is accessible in the "
Driving assistance" menu.
te

mporary display in a new window:
F

P

ress the end of the wiper control stalk for
access to the information and display the
different tabs.
Touch screen
1
Monitoring

38
308_en_Chap01_controle-de-marche_ed01-2015

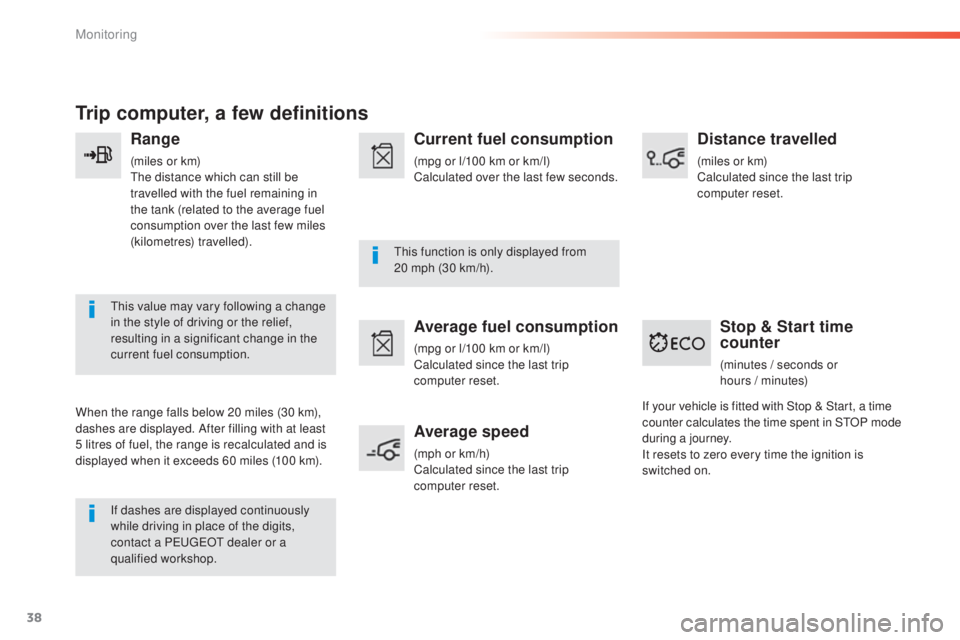

Trip computer, a few definitions
Range
(miles or km)the distance which can still be
travelled with the fuel remaining in
the tank (related to the average fuel
consumption over the last few miles
(kilometres) travelled).
th

is value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.
When the range falls below 20 miles (30 km),
dashes are displayed. After filling with at least
5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km). If dashes are displayed continuously
while driving in place of the digits,
contact a P
e

uge
Ot
dealer or a
qualified workshop.
th

is function is only displayed from
20
mph (30 km/h).
Current fuel consumption
(mpg or l/100 km or km/l)
Calculated over the last few seconds.
Average fuel consumption
(mpg or l/100 km or km/l)
Calculated since the last trip
computer reset.
Average speed
(mph or km/h)
Calculated since the last trip
computer reset.
Distance travelled
(miles or km)
Calculated since the last trip
computer reset.
Stop & Start time
counter
(minutes / seconds or
h ours / minutes)
If your vehicle is fitted with Stop & Start, a time
counter calculates the time spent in S
tO

P mode
during a journey.
It resets to zero every time the ignition is
switched on.
Monitoring
