the system will be deactivated
a utomatically if a trailer is being
towed or a bicycle carrier is fitted on
a towbar (vehicle fitted with a towbar
installed in line with the manufacturer's
recommendations).

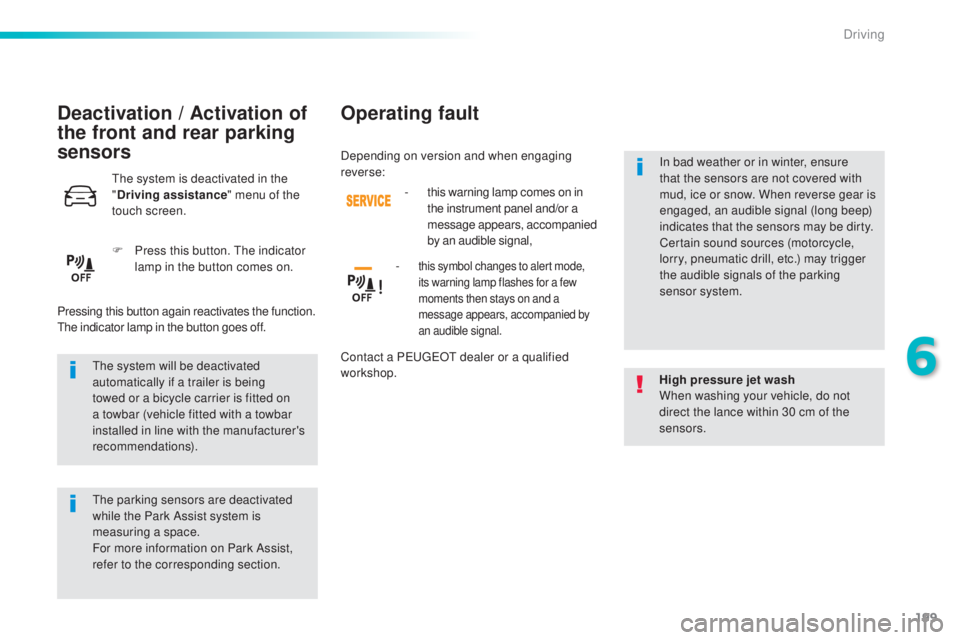

Deactivation / Activation of
the front and rear parking
sensors
the system is deactivated in the
" D
riving assistance " menu of the
touch screen.
F
Pr

ess this button.
the i
ndicator
lamp in the button comes on.
Pressing this button again reactivates the function.
the i

ndicator lamp in the button goes off.
the p

arking sensors are deactivated
while the Park Assist system is
measuring a space.
For more information on Park Assist,
refer to the corresponding section. High pressure jet wash
When washing your vehicle, do not
direct the lance within 30 cm of the
sensors.
Operating fault
- this warning lamp comes on in
t
he instrument panel and/or a
message appears, accompanied
by an audible signal,
-
this symbol changes to alert mode,
its warning lamp flashes for a few
moments then stays on and a
message appears, accompanied by
an audible signal.
Contact a Peu geOt d ealer or a qualified
workshop. In bad weather or in winter, ensure
that the sensors are not covered with
mud, ice or snow. When reverse gear is
engaged, an audible signal (long beep)
indicates that the sensors may be dirty.
Certain sound sources (motorcycle,
lorry, pneumatic drill, etc.) may trigger
the audible signals of the parking
sensor system.
Depending on version and when engaging
reverse:
6
Driving

200
308_en_Chap06_conduite_ed02-2015

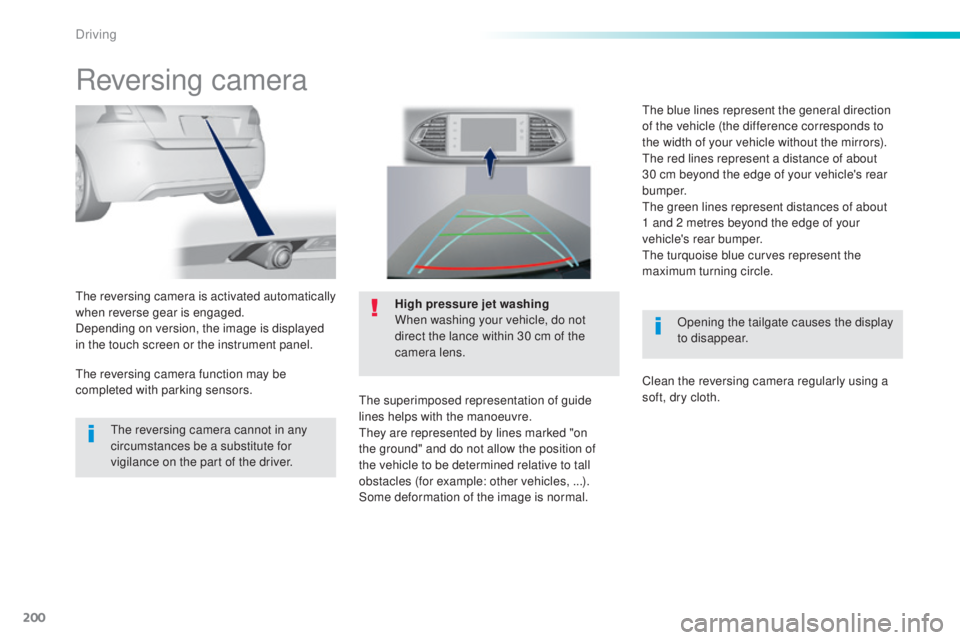

Reversing camera
Opening the tailgate causes the display
to disappear.
the

reversing camera is activated automatically
when reverse gear is engaged.
Depending on version, the image is displayed
in the touch screen or the instrument panel. High pressure jet washing
When washing your vehicle, do not
direct the lance within 30 cm of the
camera lens.
the s

uperimposed representation of guide
lines helps with the manoeuvre.
the

y are represented by lines marked "on
the ground" and do not allow the position of
the vehicle to be determined relative to tall
obstacles (for example: other vehicles, ...).
Some deformation of the image is normal.
the r

eversing camera cannot in any
circumstances be a substitute for
vigilance on the part of the driver.
the r

eversing camera function may be
completed with parking sensors.
the b

lue lines represent the general direction
of the vehicle (the difference corresponds to
the width of your vehicle without the mirrors).
the r

ed lines represent a distance of about
30 cm beyond the edge of your vehicle's rear
b u m p e r.
the g

reen lines represent distances of about
1
a

nd 2 metres beyond the edge of your
vehicle's rear bumper.
the t

urquoise blue curves represent the
maximum turning circle.
Clean the reversing camera regularly using a
soft, dry cloth.
Driving

201
308_en_Chap06_conduite_ed02-2015

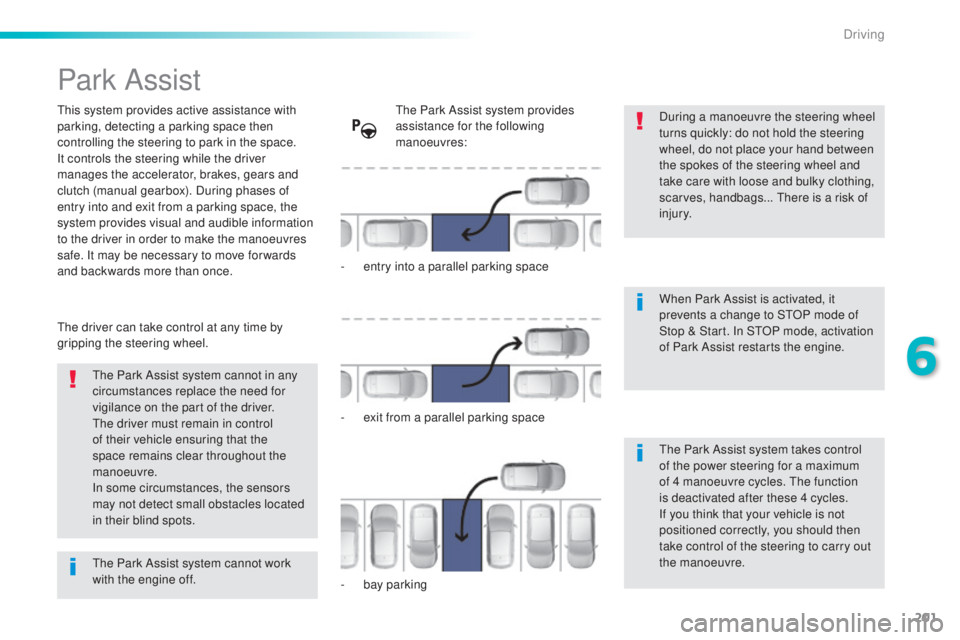

Park Assist
this system provides active assistance with
par king, detecting a parking space then
controlling the steering to park in the space.
It controls the steering while the driver
manages the accelerator, brakes, gears and
clutch (manual gearbox). During phases of
entry into and exit from a parking space, the
system provides visual and audible information
to the driver in order to make the manoeuvres
safe. It may be necessary to move for wards
and backwards more than once. During a manoeuvre the steering wheel
turns quickly: do not hold the steering
wheel, do not place your hand between
the spokes of the steering wheel and
take care with loose and bulky clothing,
scarves, handbags...
the

re is a risk of
injury.
When Park Assist is activated, it
prevents a change to S
tOP m

ode of
Stop & Start. In S
tOP m

ode, activation
of Park Assist restarts the engine.
the P

ark Assist system cannot in any
circumstances replace the need for
vigilance on the part of the driver.
the d

river must remain in control
of their vehicle ensuring that the
space remains clear throughout the
manoeuvre.
In some circumstances, the sensors
may not detect small obstacles located
in their blind spots.
the d

river can take control at any time by
gripping the steering wheel.the P ark Assist system provides
assistance for the following
manoeuvres:
-
en

try into a parallel parking space
-
ex

it from a parallel parking space
-
ba

y parking
the P
ark Assist system takes control
of the power steering for a maximum
of 4 manoeuvre cycles.
the f

unction
is deactivated after these 4 cycles.
If you think that your vehicle is not
positioned correctly, you should then
take control of the steering to carry out
the manoeuvre.
the P

ark Assist system cannot work
with the engine off.
6
Driving

202
308_en_Chap06_conduite_ed02-2015

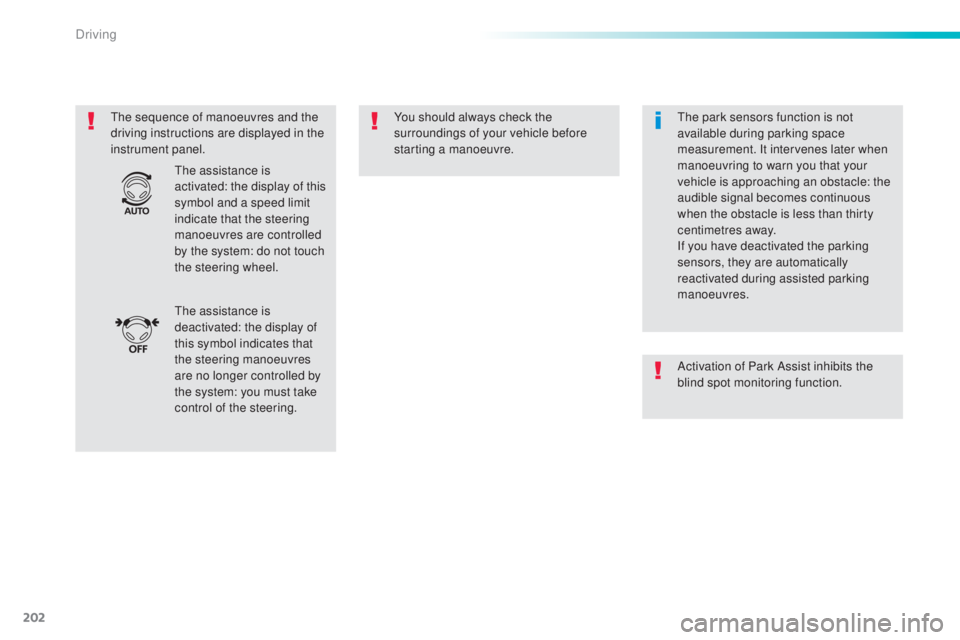

the sequence of manoeuvres and the
d riving instructions are displayed in the
instrument panel. You should always check the
surroundings of your vehicle before
starting a manoeuvre.
the a

ssistance is
deactivated: the display of
this symbol indicates that
the steering manoeuvres
are no longer controlled by
the system: you must take
control of the steering.
the a

ssistance is
activated: the display of this
symbol and a speed limit
indicate that the steering
manoeuvres are controlled
by the system: do not touch
the steering wheel.the p ark sensors function is not
available during parking space
measurement. It intervenes later when
manoeuvring to warn you that your
vehicle is approaching an obstacle: the
audible signal becomes continuous
when the obstacle is less than thirty
centimetres away.
If you have deactivated the parking
sensors, they are automatically
reactivated during assisted parking
manoeuvres.
Activation of Park Assist inhibits the
blind spot monitoring function.
Driving

203
308_en_Chap06_conduite_ed02-2015

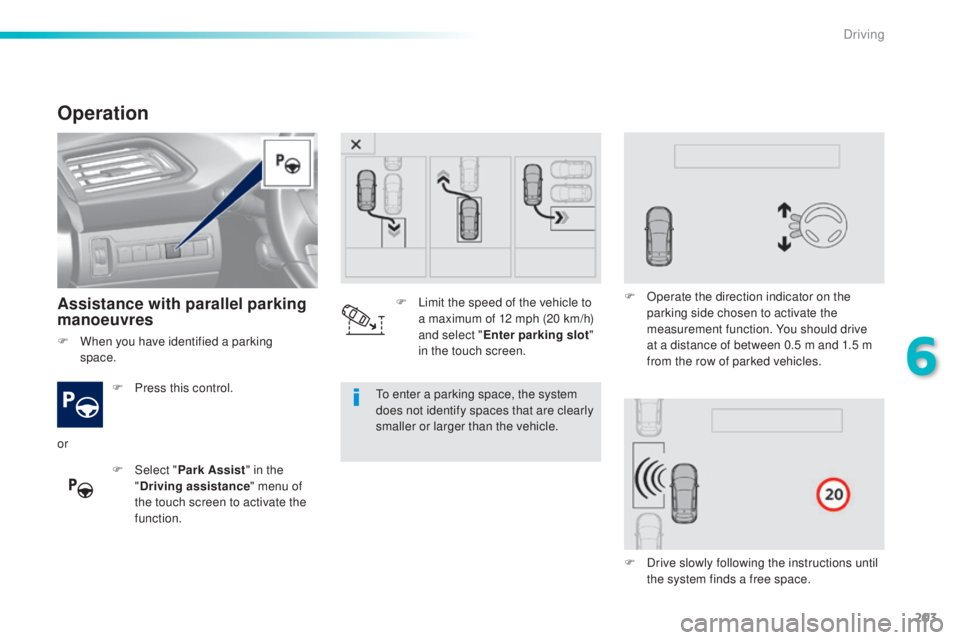

Operation
Assistance with parallel parking
manoeuvres
F Press this control.
F
Selec
t "Park Assist " in the
" Driving assistance " menu of
the touch screen to activate the
function.to en ter a parking space, the system
does not identify spaces that are clearly
smaller or larger than the vehicle.
or F
Li

mit the speed of the vehicle to
a maximum of 12 mph (20 km/h)
and select " Enter parking slot "
in the touch screen. F
Op
erate the direction indicator on the
parking side chosen to activate the
measurement function. You should drive
at a distance of between 0.5 m and 1.5 m
from the row of parked vehicles.
F
Dr
ive slowly following the instructions until
the system finds a free space.
F
Wh

en you have identified a parking
space.
6
Driving

204
308_en_Chap06_conduite_ed02-2015

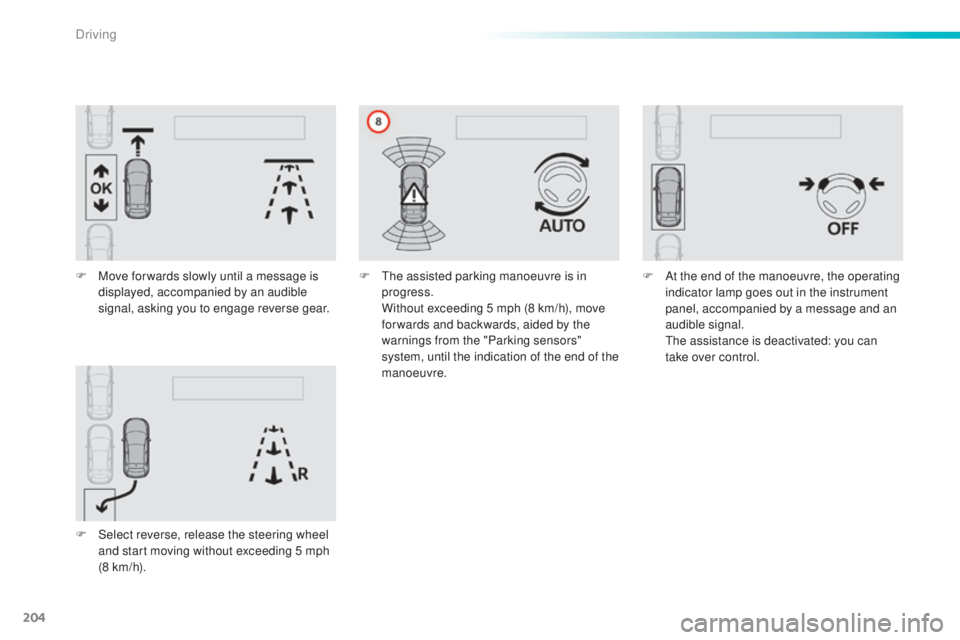

F Move for wards slowly until a message is
displayed, accompanied by an audible
signal, asking you to engage reverse gear.
F
Se

lect reverse, release the steering wheel
and start moving without exceeding 5 mph
(8 km/h). F
the a ssisted parking manoeuvre is in
progress.
Wi

thout exceeding 5 mph (8 km/h), move
for wards and backwards, aided by the
warnings from the "Parking sensors"
system, until the indication of the end of the
manoeuvre. F At t
he end of the manoeuvre, the operating
indicator lamp goes out in the instrument
panel, accompanied by a message and an
audible signal.
the a

ssistance is deactivated: you can
take over control.
Driving

205
308_en_Chap06_conduite_ed02-2015

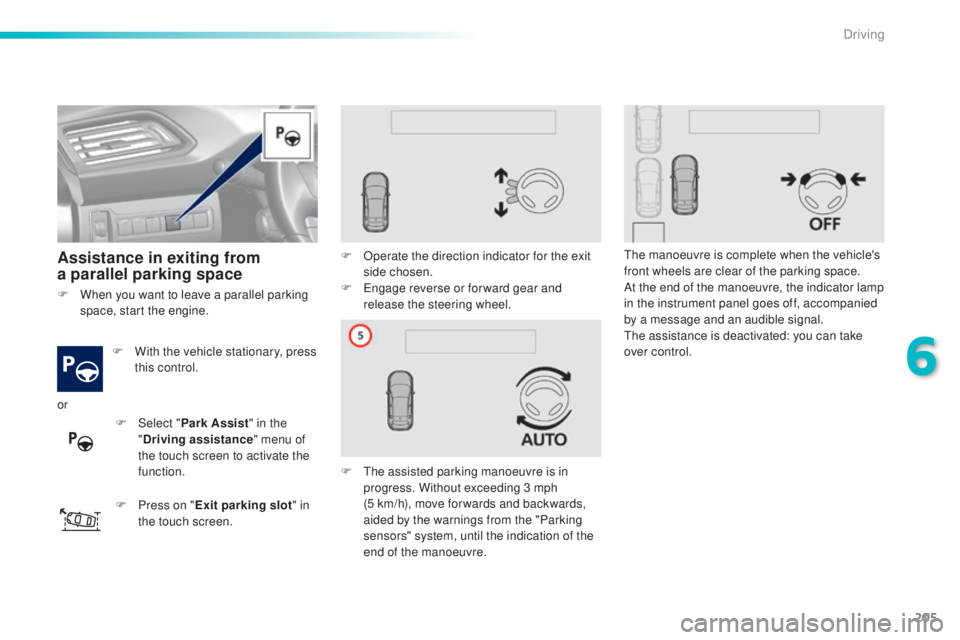

Assistance in exiting from
a parallel parking space
F With the vehicle stationary, press
t
his control.
F
Pr

ess on " Exit parking slot " in
the touch screen. F
Op

erate the direction indicator for the exit
side chosen.
F

e
ng
age reverse or for ward gear and
release the steering wheel.
F

t
he a
ssisted parking manoeuvre is in
progress. Without exceeding 3 mph
(5
k

m/h), move for wards and backwards,
aided by the warnings from the "Parking
sensors" system, until the indication of the
end of the manoeuvre.
the m
anoeuvre is complete when the vehicle's
front wheels are clear of the parking space.
At the end of the manoeuvre, the indicator lamp
in the instrument panel goes off, accompanied
by a message and an audible signal.the a ssistance is deactivated: you can take
over control.
F
Wh

en you want to leave a parallel parking
space, start the engine.
or F
Selec

t "Park Assist " in the
" Driving assistance " menu of
the touch screen to activate the
function.
6
Driving

206
308_en_Chap06_conduite_ed02-2015
F Once you have identified a
parking zone, press this control
at the steering wheel,

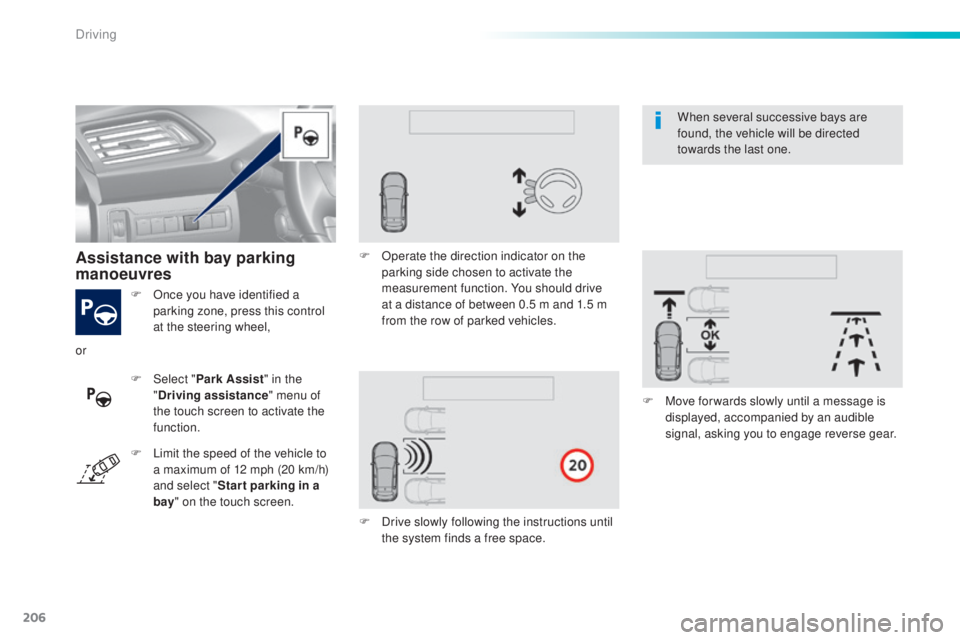

Assistance with bay parking
manoeuvres
F Select " P ark Assist" in the
" Driving assistance " menu of
the touch screen to activate the
function. F
Op

erate the direction indicator on the
parking side chosen to activate the
measurement function. You should drive
at a distance of between 0.5 m and 1.5 m
from the row of parked vehicles.
F
Dr
ive slowly following the instructions until
the system finds a free space. F
Mov

e for wards slowly until a message is
displayed, accompanied by an audible
signal, asking you to engage reverse gear.
or
F
Li
mit the speed of the vehicle to
a maximum of 12 mph (20 km/h)
and select " Star t parking in a
bay " on the touch screen. When several successive bays are
found, the vehicle will be directed
towards the last one.
Driving

207
308_en_Chap06_conduite_ed02-2015

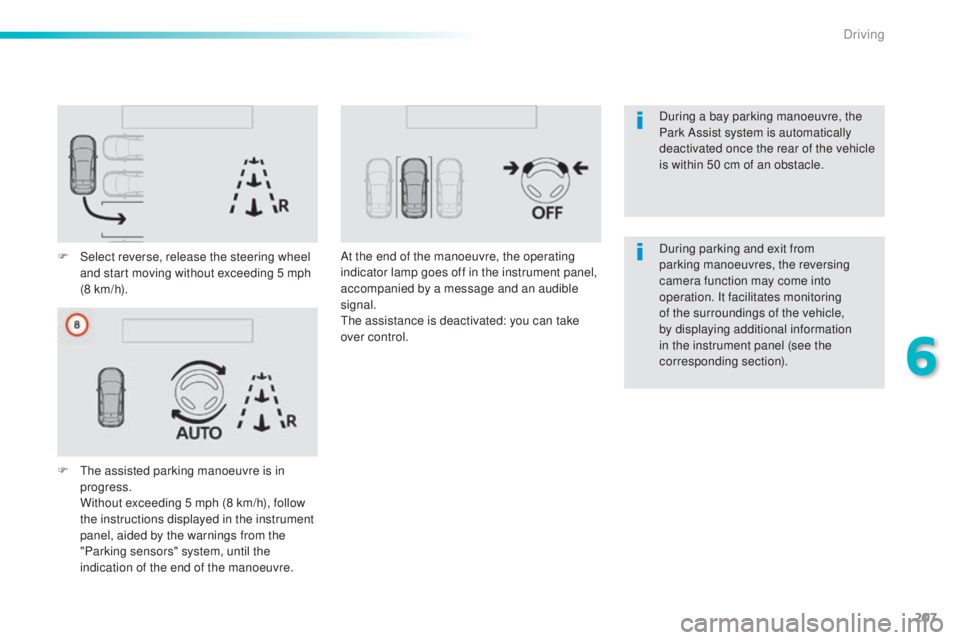

F Select reverse, release the steering wheel
and start moving without exceeding 5 mph
(8 km/h).
F


t
he a
ssisted parking manoeuvre is in
progress.
Wi

thout exceeding 5 mph (8 km/h), follow
the instructions displayed in the instrument
panel, aided by the warnings from the
"Parking sensors" system, until the
indication of the end of the manoeuvre. At the end of the manoeuvre, the operating
indicator lamp goes off in the instrument panel,
accompanied by a message and an audible
signal.
the a

ssistance is deactivated: you can take
over control. During parking and exit from
parking manoeuvres, the reversing
camera function may come into
operation. It facilitates monitoring
of the surroundings of the vehicle,
by displaying additional information
in the instrument panel (see the
corresponding section). During a bay parking manoeuvre, the
Park Assist system is automatically
deactivated once the rear of the vehicle
is within 50 cm of an obstacle.
6
Driving

208
308_en_Chap06_conduite_ed02-2015

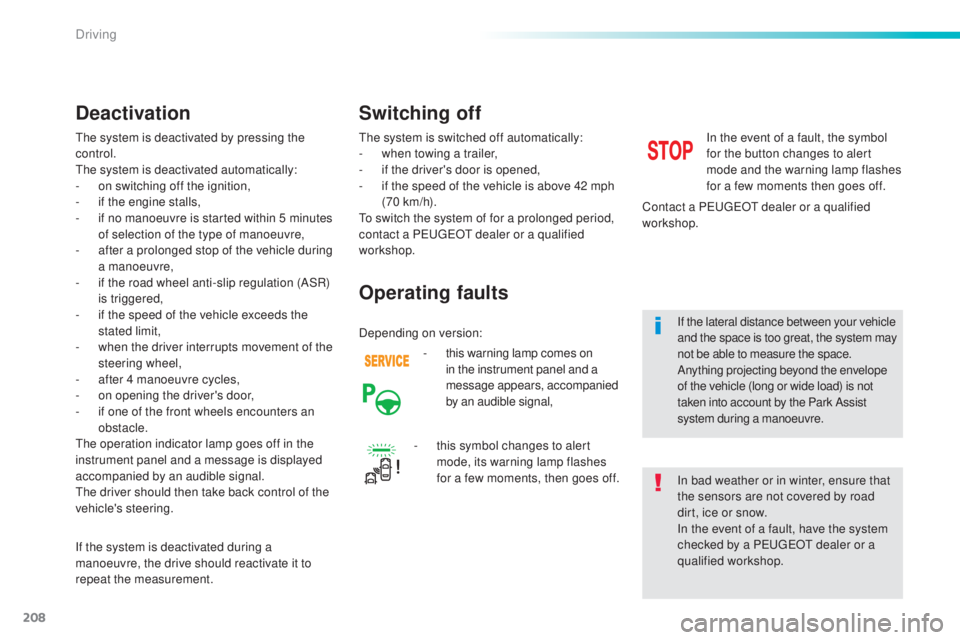

the system is deactivated by pressing the
c ontrol.
the s

ystem is deactivated automatically:
-
on s

witching off the ignition,
-
if t

he engine stalls,
-
if n

o manoeuvre is started within 5 minutes
of selection of the type of manoeuvre,
-
af

ter a prolonged stop of the vehicle during
a manoeuvre,
-
if t

he road wheel anti-slip regulation (ASR)
is triggered,
-
if t

he speed of the vehicle exceeds the
stated limit,
-
wh

en the driver interrupts movement of the
steering wheel,
-
af

ter 4 manoeuvre cycles,
-
on

opening the driver's door,
-
if o

ne of the front wheels encounters an
obstacle.
the o

peration indicator lamp goes off in the
instrument panel and a message is displayed
accompanied by an audible signal.
the d

river should then take back control of the
vehicle's steering.
Deactivation
If the system is deactivated during a
manoeuvre, the drive should reactivate it to
repeat the measurement.
the s
ystem is switched off automatically:
-
wh
en towing a trailer,
-
if t
he driver's door is opened,
-
if t
he speed of the vehicle is above 42 mph
(70 km/h).
to sw
itch the system of for a prolonged period,
contact a P
eu
ge
Ot d
ealer or a qualified
workshop.
-
th
is warning lamp comes on
in the instrument panel and a
message appears, accompanied
by an audible signal,
Operating faults
In the event of a fault, the symbol
for the button changes to alert
mode and the warning lamp flashes
for a few moments then goes off.
Contact a P
eu

ge
Ot d
ealer or a qualified
workshop.
Switching off
In bad weather or in winter, ensure that
the sensors are not covered by road
dirt, ice or snow.
In the event of a fault, have the system
checked by a P
eu

ge
Ot d
ealer or a
qualified workshop.
-
th

is symbol changes to alert
mode, its warning lamp flashes
for a few moments, then goes off. If the lateral distance between your vehicle
and the space is too great, the system may
not be able to measure the space.
Anything projecting beyond the envelope
of the vehicle (long or wide load) is not
taken into account by the Park Assist
system during a manoeuvre.
Depending on version:
Driving
