Peugeot 308 2016 Owner's Manual

259
308_en_Chap08_en-cas-de-panne_ed02-2015
For reassembly, carry out these operations in
reverse order.
Direction indicators
(halogen model)
Faster flashing of a direction indicator
warning lamp (left or right) indicates a
failed bulb on that side.
Daytime running lamps /
sidelamps
("full LED" technology model)
For the replacement of this type of "full LeD"
l ight emitting diode lamps, contact a Peu geOt
d
ealer or a qualified workshop.
Direction indicators
("full LED" technology model)
the direction indicator bulb is located below
t he front lamp.
F


u
nc
lip the finisher by pulling at the top
(cut-out).
F


u
ns
crew the bulb holder (1/4 turn).
F
Ch

ange the failed bulb.
For reassembly, carry out these operations in
reverse order. Faster flashing of a direction indicator
warning lamp (left or right) indicates a
failed bulb on that side.
F


u
ns

crew the bulb holder (1/4 turn).
F
Re

move the bulb holder.
F
Ch

ange the failed bulb.
8
In the event of a breakdown

260
308_en_Chap08_en-cas-de-panne_ed02-2015
Integrated direction indicator
side repeaters
You should contact a Peu geOt d ealer or a
qualified workshop for the replacement of these
bulbs. You should contact a P
eu
ge
Ot d
ealer or a
qualified workshop for the replacement of the
light emitting diode - L
eD.
Front foglamps
F unclip the finisher by pulling at the top
( cut-out).
F
Re

move the two screws to remove the unit
from its housing. F Di
sconnect the connector.
F uns crew the bulb holder (1/4 turn).
F
Re

move the bulb holder.
F
Ch

ange the failed bulb.
For reassembly, carry out these operations in
reverse order, pressing on the finisher to refit it.
Door mirror spotlamps
In the event of a breakdown

261
308_en_Chap08_en-cas-de-panne_ed02-2015
1. Sidelamps (light emitting diodes - LeDs ).
2. Re versing lamps (W16W).
3.
Di

rection indicators (PY21W amber).
4.
Br

ake lamps (light emitting diodes - L
eDs
).
5.
Fo

glamps (P21W).
Rear lamps
(hatchback)
Light emitting
diodes-LEDs
For replacement, contact a Peu geOt
d ealer or qualified workshop.
Reversing lamps, direction
indicators (on the wings)
F Disconnect the lamp connector.
F Re move the lamp fixing nut.
F
Ca

refully remove the lamp unit from
outside.
F


u
ns
crew the bulb holder (a quarter of a
turn) and change the bulb.
For reassembly, carry out these operations in
reverse order.
F Op
en the tailgate then remove the access
c ove r.
8
In the event of a breakdown

262
308_en_Chap08_en-cas-de-panne_ed02-2015
F unclip the left and right access covers.
F Re move the screws located in each
opening.
F


u
nc
lip the boot trim for access to the lamp
connector.
F
Di

sconnect the lamp connector.
F
Re

move the lamp fixing nut.
F
Ca

refully remove the lamp from the
outside.
F


u
ns
crew the bulb holder (a quarter of a
turn) and change the bulb.
For reassembly, carry out these operations in
reverse order.

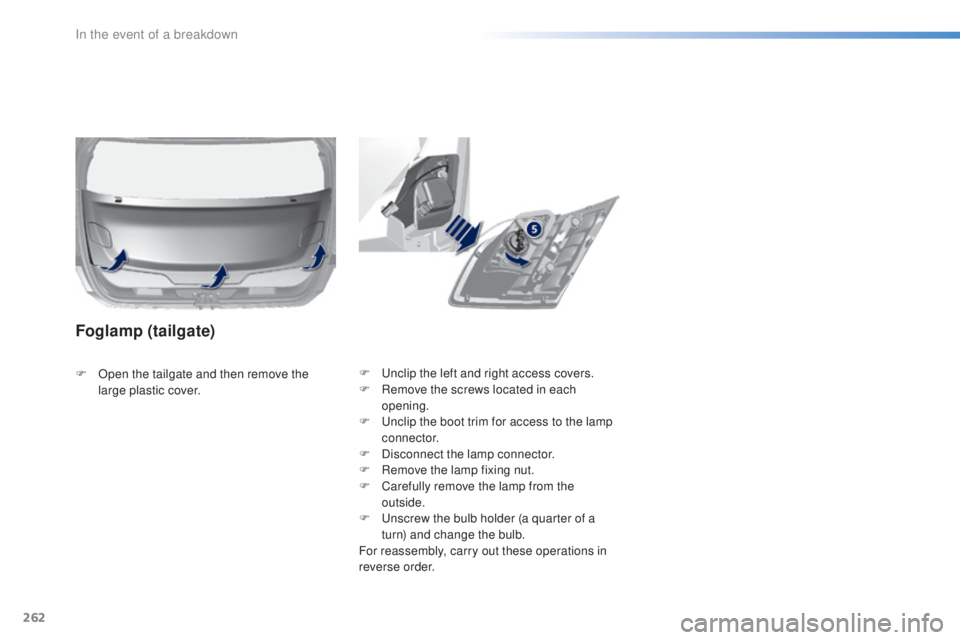

Foglamp (tailgate)
F Open the tailgate and then remove the
l arge plastic cover.
In the event of a breakdown

263
308_en_Chap08_en-cas-de-panne_ed02-2015

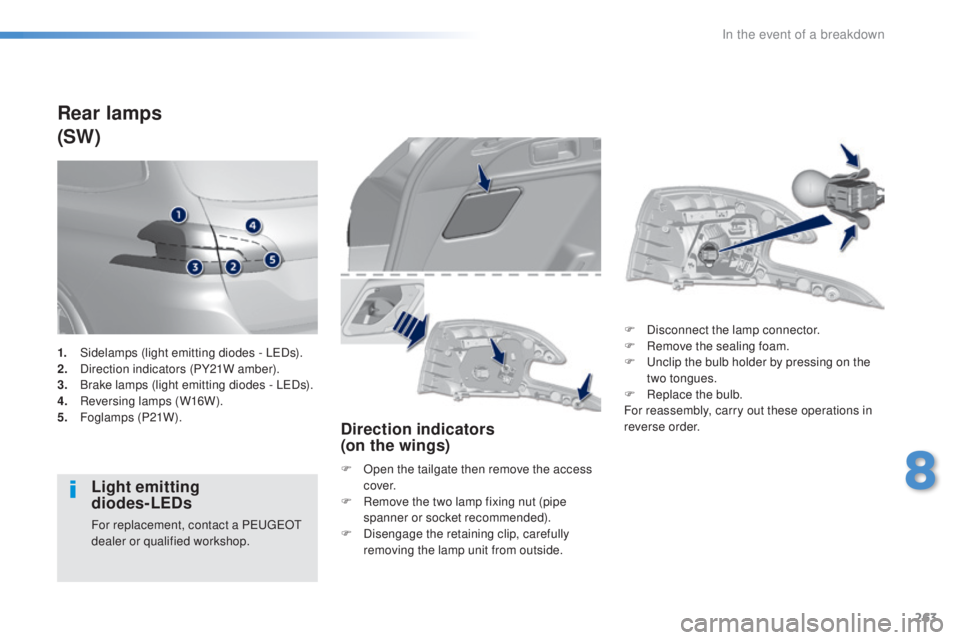

Rear lamps
(SW)
Light emitting
diodes-LEDs
For replacement, contact a Peu geOt
d ealer or qualified workshop.
Direction indicators
(on the wings)
F Open the tailgate then remove the access
c ove r.
F
Re

move the two lamp fixing nut (pipe
spanner or socket recommended).
F
Disenga

ge the retaining clip, carefully
removing the lamp unit from outside. F
Di

sconnect the lamp connector.
F
Rem
ove the sealing foam.
F

u
nc
lip the bulb holder by pressing on the
two tongues.
F
Re
place the bulb.
For reassembly, carry out these operations in
reverse order.
1.
Si

delamps (light emitting diodes - L
eDs

).
2.
Di

rection indicators (PY21W amber).
3.
Br

ake lamps (light emitting diodes - L
eDs

).
4.
Re

versing lamps (W16W).
5.
Fo

glamps (P21W).
8
In the event of a breakdown

264
308_en_Chap08_en-cas-de-panne_ed02-2015

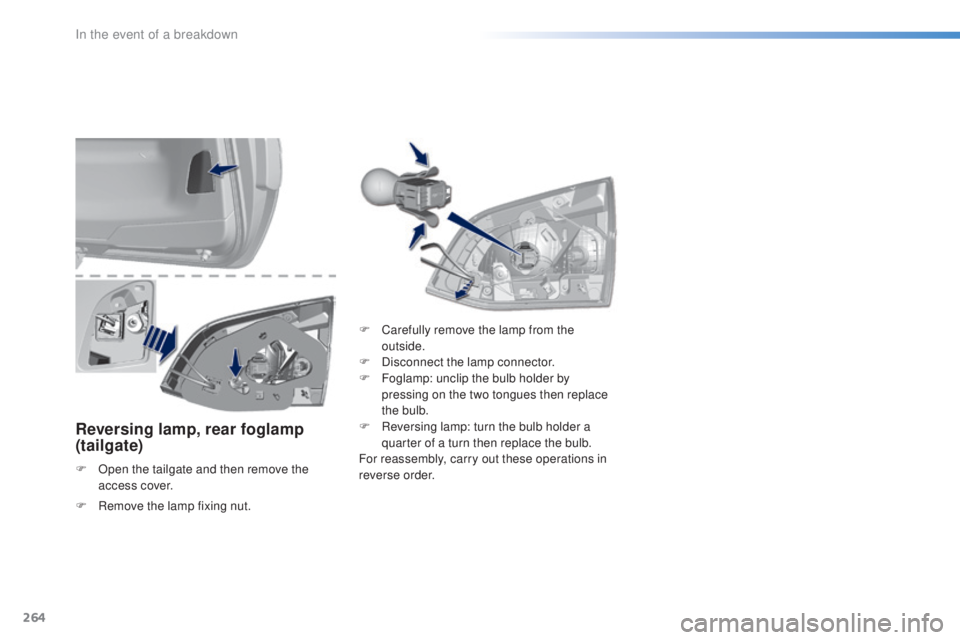

Reversing lamp, rear foglamp
(tailgate)
F Open the tailgate and then remove the
a
ccess cover. F
Ca

refully remove the lamp from the
outside.
F
Di
sconnect the lamp connector.
F
Fo
glamp: unclip the bulb holder by
pressing on the two tongues then replace
the bulb.
F
Re
versing lamp: turn the bulb holder a
quarter of a turn then replace the bulb.
For reassembly, carry out these operations in
reverse order.
F
Re

move the lamp fixing nut.
In the event of a breakdown

265
308_en_Chap08_en-cas-de-panne_ed02-2015
For the replacement of this type of lamp,
contact a Peu
geOt d ealer or a qualified
workshop.

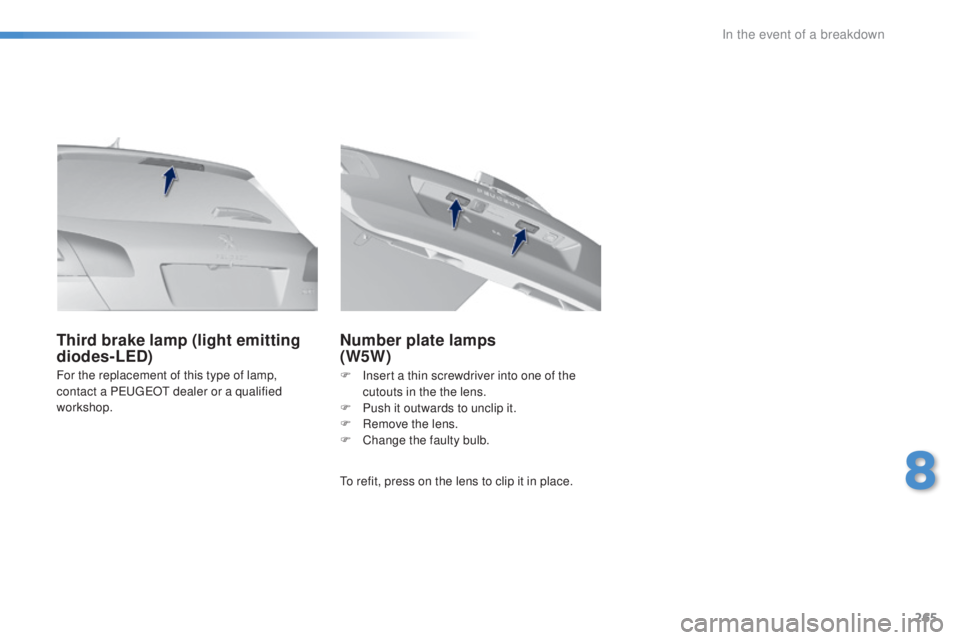

Third brake lamp (light emitting
diodes-LED) Number plate lamps
(W5W)
to refit, press on the lens to clip it in place.
F
In
sert a thin screwdriver into one of the
cutouts in the the lens.
F
Push
it outwards to unclip it.
F
Re
move the lens.
F
Ch
ange the faulty bulb.
8
In the event of a breakdown

266

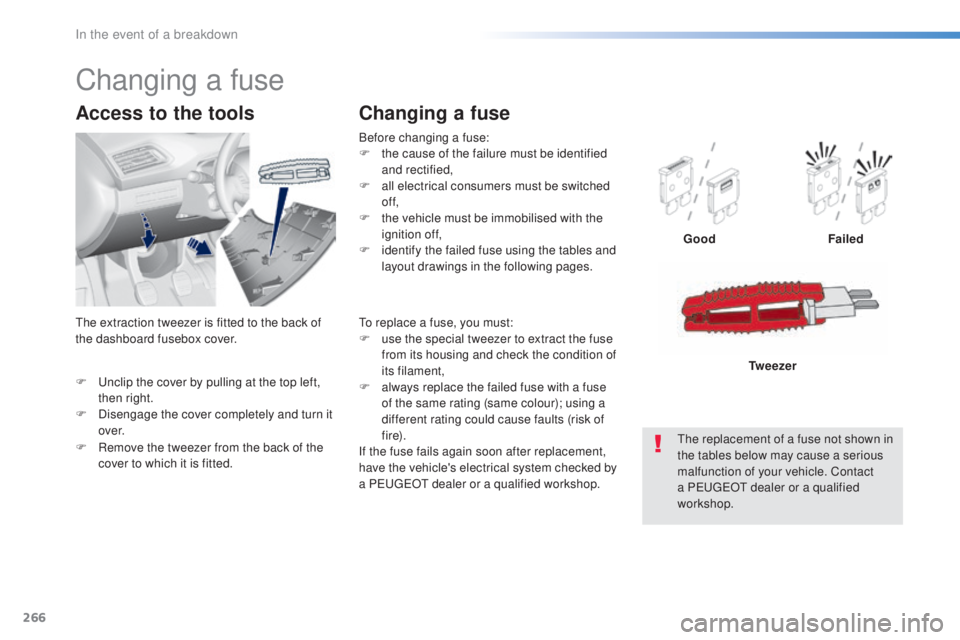

308_en_Chap08_en-cas-de-panne_ed02-2015
F unclip the cover by pulling at the top left,
t hen right.
F
Di

sengage the cover completely and turn it
ove r.
Access to the tools
Before changing a fuse:
F th e cause of the failure must be identified
and rectified,
F
al

l electrical consumers must be switched
of f,
F
th

e vehicle must be immobilised with the
ignition off,
F
id

entify the failed fuse using the tables and
layout drawings in the following pages.
Changing a fuse
Good Failed
the r

eplacement of a fuse not shown in
the tables below may cause a serious
malfunction of your vehicle. Contact
a P
eu

ge
Ot d
ealer or a qualified
workshop. Tw e e z e r
Changing a fuse
to replace a fuse, you must:
F us e the special tweezer to extract the fuse
from its housing and check the condition of
its filament,
F
al

ways replace the failed fuse with a fuse
of the same rating (same colour); using a
different rating could cause faults (risk of
f i r e).
If the fuse fails again soon after replacement,
have the vehicle's electrical system checked by
a P
eu

ge
Ot d
ealer or a qualified workshop.
F
Re

move the tweezer from the back of the
cover to which it is fitted.the e
xtraction tweezer is fitted to the back of
the dashboard fusebox cover.
In the event of a breakdown

267
308_en_Chap08_en-cas-de-panne_ed02-2015

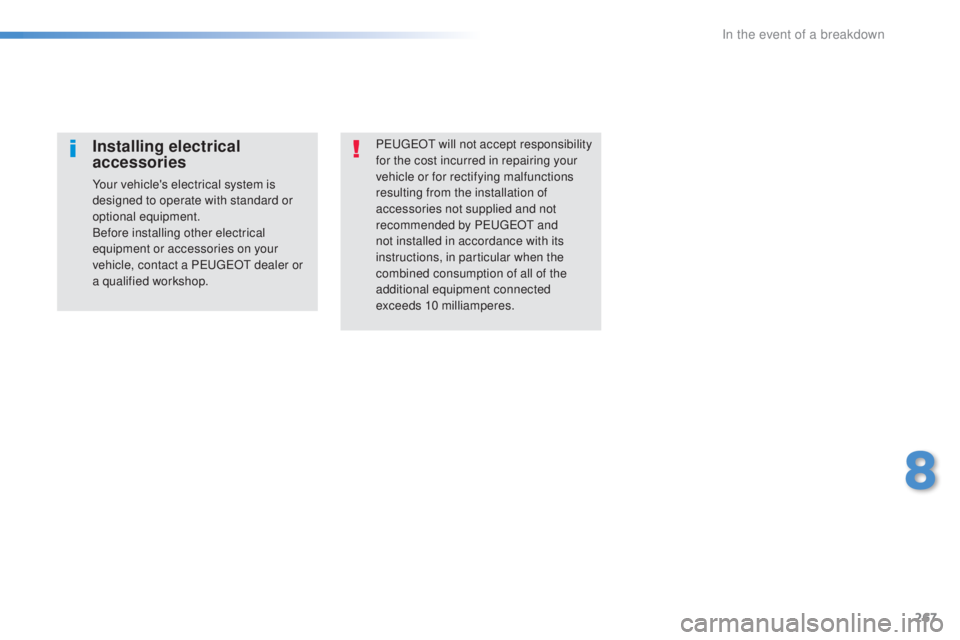

PeugeOt w ill not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by P
eu

ge
Ot a
nd
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.Installing electrical
accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a P
eu

ge
Ot d
ealer or
a qualified workshop.
8
In the event of a breakdown

268
308_en_Chap08_en-cas-de-panne_ed02-2015

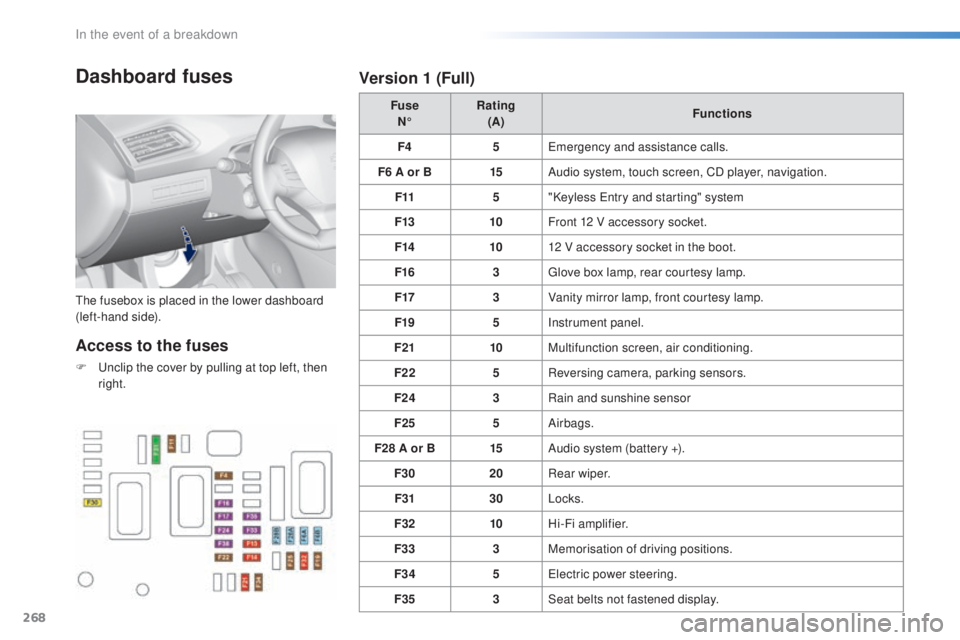

Dashboard fuses
the fusebox is placed in the lower dashboard
( left-hand side). Fuse
N° Rating
(A) Functions
F4 5
eme
rgency and assistance calls.
F6 A or B 15Audio system, touch screen, CD player, navigation.
F11 5"Keyless
ent
ry and starting" system
F13 10Front 12 V accessory socket.
F14 1012 V accessory socket in the boot.
F16 3
glov
e box lamp, rear courtesy lamp.
F17 3Vanity mirror lamp, front courtesy lamp.
F19 5Instrument panel.
F21 10Multifunction screen, air conditioning.
F22 5Reversing camera, parking sensors.
F24 3Rain and sunshine sensor
F25 5Airbags.
F28 A or B 15Audio system (battery +).
F30 20Rear wiper.
F31 30Locks.
F32 10Hi-Fi amplifier.
F33 3Memorisation of driving positions.
F34 5
ele

ctric power steering.
F35 3Seat belts not fastened display.
Access to the fuses
F unclip the cover by pulling at top left, then
r ight.
Version 1 (Full)
