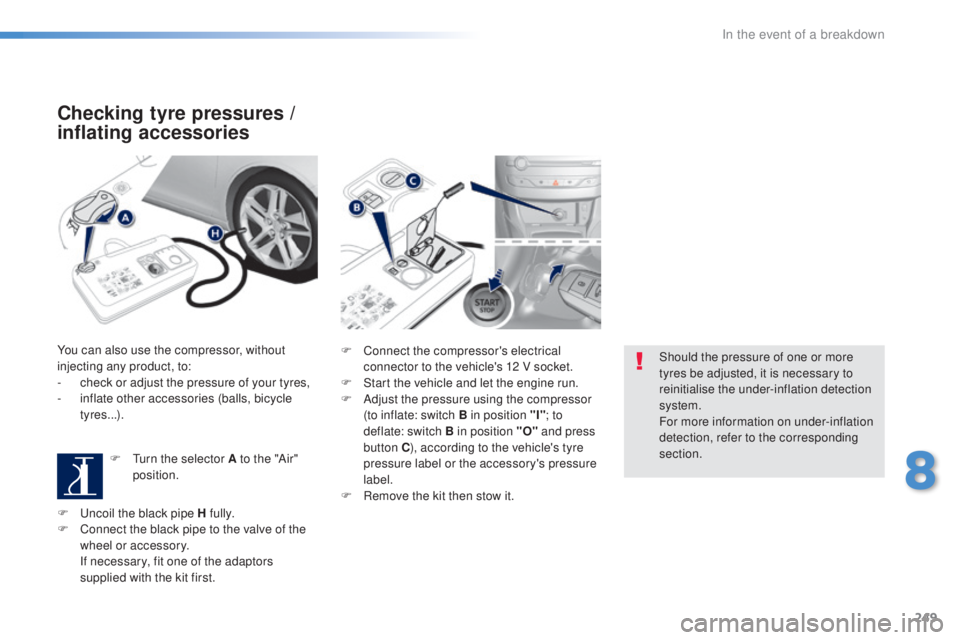

Checking tyre pressures /
inflating accessories
You can also use the compressor, without
injecting any product, to:
-
ch

eck or adjust the pressure of your tyres,
-
in

flate other accessories (balls, bicycle
tyres...).
F


t
ur
n the selector A to the "Air"
position. F Con
nect the compressor's electrical
connector to the vehicle's 12 V socket.
F
St

art the vehicle and let the engine run.
F
Ad

just the pressure using the compressor
(to inflate: switch B in position "I" ; to
deflate: switch B in position "O" and press
button C ), according to the vehicle's tyre
pressure label or the accessory's pressure
label.
F
Re

move the kit then stow it.Should the pressure of one or more
tyres be adjusted, it is necessary to
reinitialise the under-inflation detection
system.
For more information on under-inflation
detection, refer to the corresponding
section.
F


u
nc
oil the black pipe H fully.
F
Co

nnect the black pipe to the valve of the
wheel or accessory.
If n

ecessary, fit one of the adaptors
supplied with the kit first.
8
In the event of a breakdown

250
308_en_Chap08_en-cas-de-panne_ed02-2015
Changing a wheel
the tools are installed in the boot under the
f l o o r.

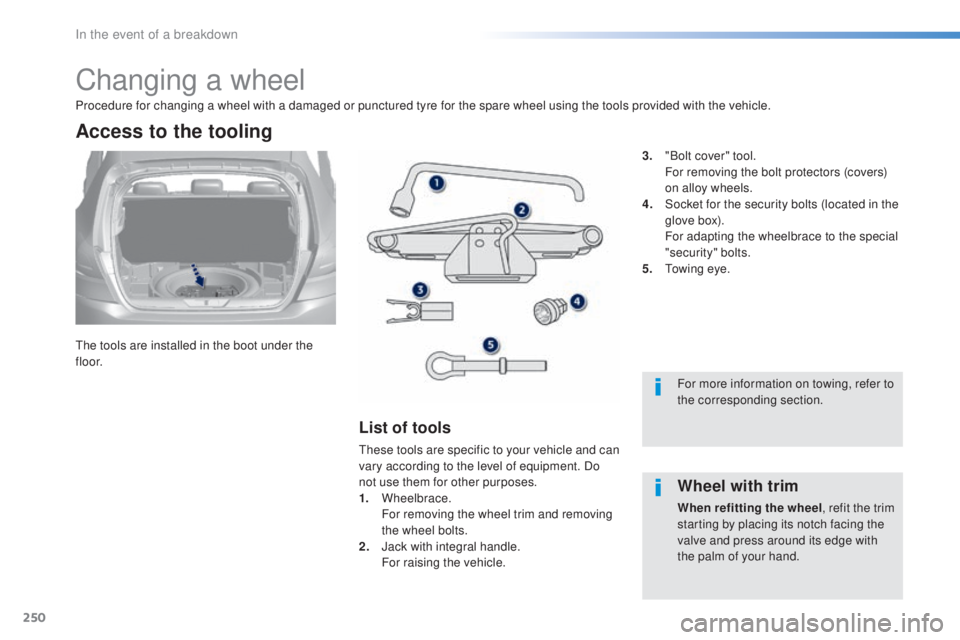

Access to the tooling
List of tools
these tools are specific to your vehicle and can
v ary according to the level of equipment. Do
not use them for other purposes.
1.
W

heelbrace.
Fo

r removing the wheel trim and removing
the wheel bolts.
2.
Ja

ck with integral handle.
Fo

r raising the vehicle. 3.
"B

olt cover" tool.
Fo

r removing the bolt protectors (covers)
on alloy wheels.
4.
So
cket for the security bolts (located in the
glove box).
Fo
r adapting the wheelbrace to the special
"security" bolts.
5.
tow
ing eye.
Procedure for changing a wheel with a damaged or punctured tyre for the spare wheel using the tools provided with the vehicle.
For more information on towing, refer to
the corresponding section.
Wheel with trim
When refitting the wheel, refit the trim
starting by placing its notch facing the
valve and press around its edge with
the palm of your hand.
In the event of a breakdown

251
308_en_Chap08_en-cas-de-panne_ed02-2015
Taking out the wheel
F unscrew the (coloured) central bolt.
F Ra ise the spare wheel towards you from
the rear.
F


t
ak
e the wheel out of the boot.

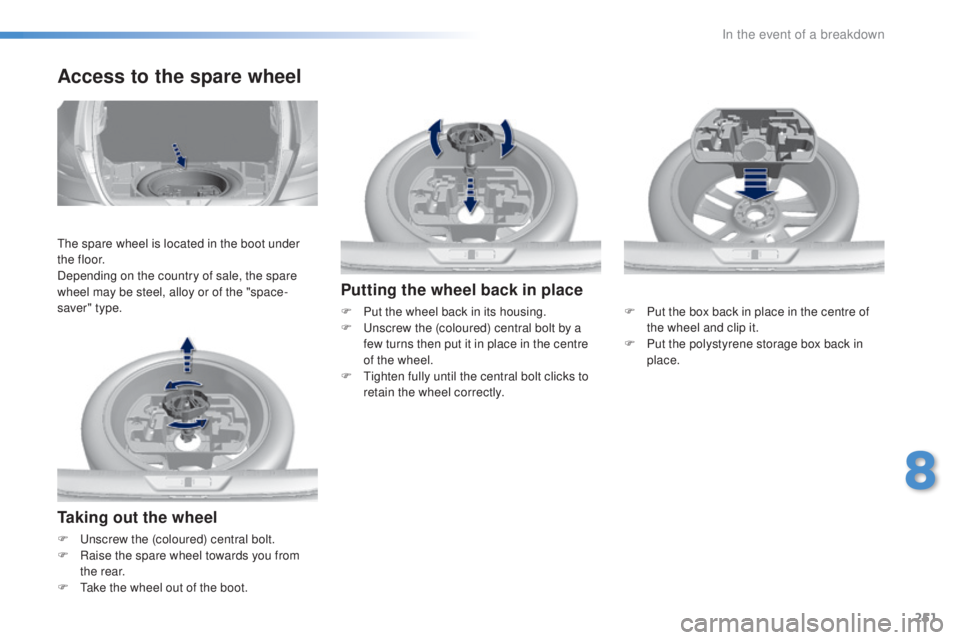

Access to the spare wheel
the spare wheel is located in the boot under
t h e f l o o r.
Depending on the country of sale, the spare
wheel may be steel, alloy or of the "space-
saver" type.
Putting the wheel back in place
F Put the wheel back in its housing.
F uns crew the (coloured) central bolt by a
few turns then put it in place in the centre
of the wheel.
F


t
ig
hten fully until the central bolt clicks to
retain the wheel correctly. F Pu
t the box back in place in the centre of
the wheel and clip it.
F
Pu

t the polystyrene storage box back in
place.
8
In the event of a breakdown

252
308_en_Chap08_en-cas-de-panne_ed02-2015
F Remove the bolt cover from each of
t
he bolts using the tool 3 (according to
equipment).
F
Fi

t the security socket 4 on the
wheelbrace
1

to slacken the security bolt
(if
f

itted).
F
Sl

acken the other bolts using the
wheelbrace 1 o n l y. F Po
sition the foot of the jack on the ground,
ensuring that it is directly below the
vehicle's jacking point A or B , the one
closest to the wheel to be changed.

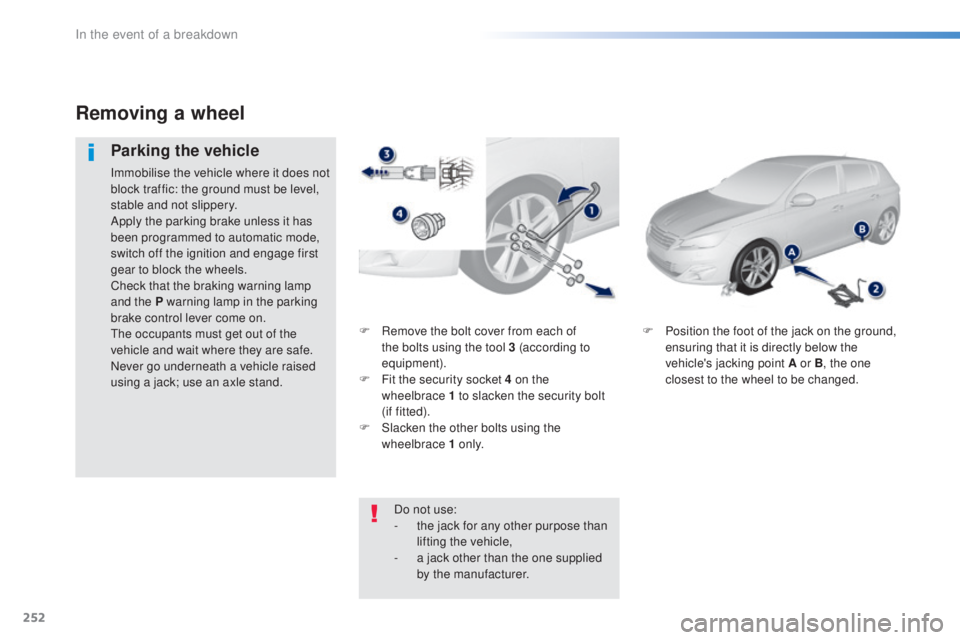

Removing a wheel
Parking the vehicle
Immobilise the vehicle where it does not
block traffic: the ground must be level,
stable and not slippery.
Apply the parking brake unless it has
been programmed to automatic mode,
switch off the ignition and engage first
gear to block the wheels.
Check that the braking warning lamp
and the P warning lamp in the parking
brake control lever come on.
the o

ccupants must get out of the
vehicle and wait where they are safe.
Never go underneath a vehicle raised
using a jack; use an axle stand.
Do not use:
-
th

e jack for any other purpose than
lifting the vehicle,
-
a ja

ck other than the one supplied
by the manufacturer.
In the event of a breakdown

253
308_en_Chap08_en-cas-de-panne_ed02-2015
ensure that the jack is stable. If the ground is slippery or loose, the jack may slip or drop -
R isk of injury!
ens

ure that the jack is positioned only at one of the jacking points A or B under the vehicle,
making sure that the vehicle's contact sur face is centred on the head of the jack. Other wise
there is a risk of damage to the vehicle and/or of the jack dropping - Risk of injury! F
Re

move the bolts and store them in a clean
place.
F
Re
move the wheel.
F


e
xt
end the jack 2
until its head comes into contact with the jacking point A or B used, with the
contact sur face A or B on the vehicle correctly engaged with the central part of the head of the jack.
F
Rai
se the vehicle until there is sufficient space between the wheel and the ground to admit the
spare (not punctured) wheel easily.
8
In the event of a breakdown

254
308_en_Chap08_en-cas-de-panne_ed02-2015

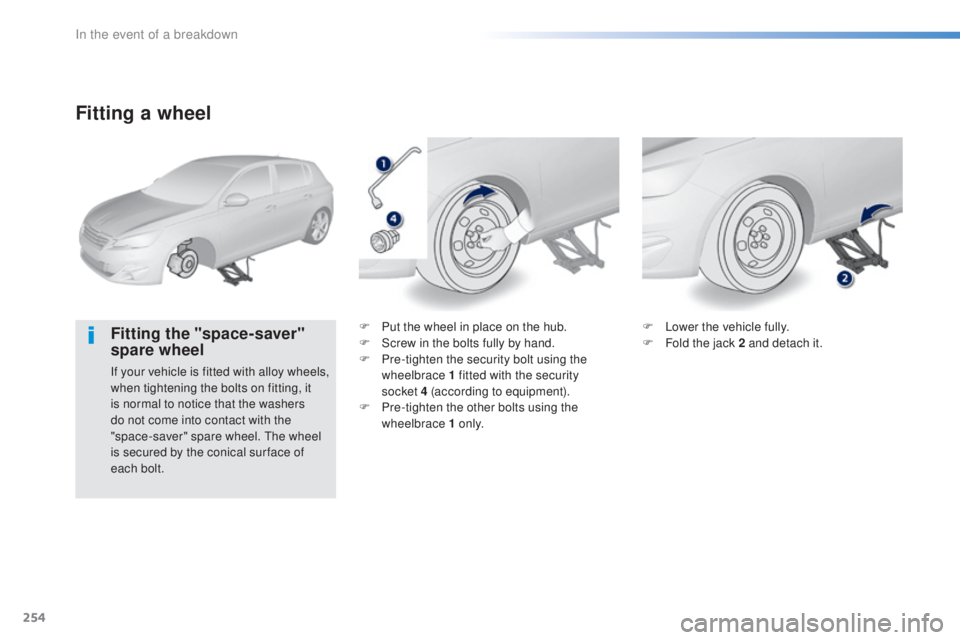

Fitting a wheel
Fitting the "space-saver"
spare wheel
If your vehicle is fitted with alloy wheels,
when tightening the bolts on fitting, it
is normal to notice that the washers
do not come into contact with the
"space-saver" spare wheel.
the w

heel
is secured by the conical sur face of
each bolt. F
Pu

t the wheel in place on the hub.
F
Sc
rew in the bolts fully by hand.
F Pr e-tighten the security bolt using the
wheelbrace 1 fitted with the security
socket 4 (according to equipment).
F
Pr

e-tighten the other bolts using the
wheelbrace 1 o n l y. F
Lo

wer the vehicle fully.
F
Fo
ld the jack 2 and detach it.
In the event of a breakdown

255
308_en_Chap08_en-cas-de-panne_ed02-2015
F tighten the security bolt using the
w heelbrace 1 fitted with the security
socket
4

(according to equipment).
F


t
ig
hten the other bolts using the
wheelbrace 1 o n l y.
F
Re

fit the bolt covers on each of the bolts
(according to equipment).
F
St

ore the tools in the box.
the t
yre inflation pressures are given on
this
lab

el.

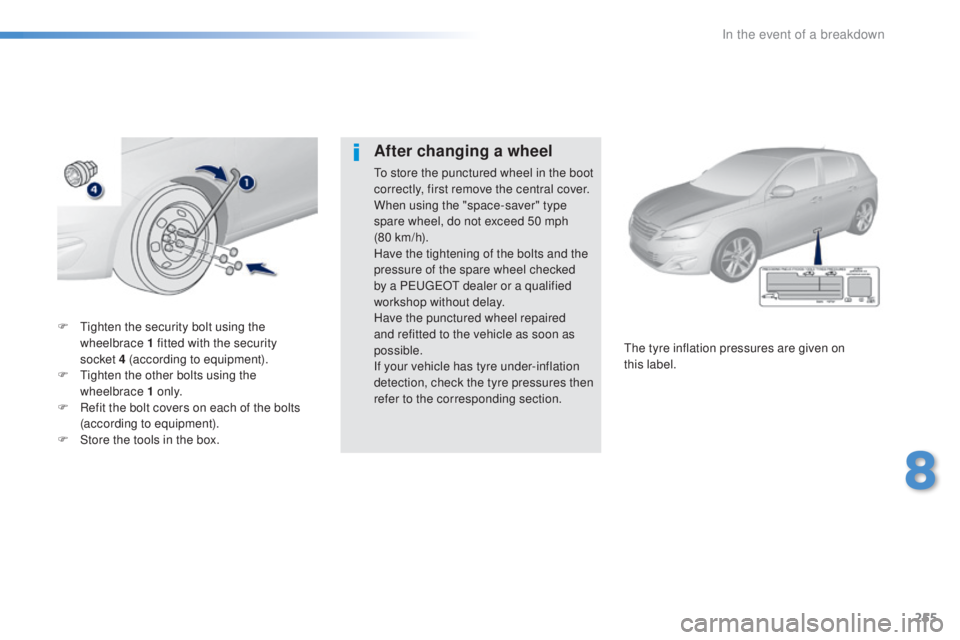

After changing a wheel
to store the punctured wheel in the boot
c orrectly, first remove the central cover.
When using the "space-saver" type
spare wheel, do not exceed 50 mph
(80
k

m/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a P
eu

ge
Ot d
ealer or a qualified
workshop without delay.
Have the punctured wheel repaired
and refitted to the vehicle as soon as
possible.
If your vehicle has tyre under-inflation
detection, check the tyre pressures then
refer to the corresponding section.
8
In the event of a breakdown

256
308_en_Chap08_en-cas-de-panne_ed02-2015
Changing a bulb
Front lamps
Model with "full LED" technology
headlamps
1. Daytime running lamps / sidelamps (light
e
mitting diodes - LeDs ).
2.
Dip

ped beam headlamps (light emitting
diodes - full L
eDs

).
3.
Ma

in beam headlamps (light emitting
diodes - full L
eDs

).
4.
Di

rection indicators (PY21-21W).
Model with halogen headlamps
1. Dipped beam headlamps (H7-55W).
2. Ma in beam headlamps (HB3).
3.
Di

rection indicators (PY21-21W).
4.
Da

ytime running lamps / sidelamps
(light emitting diodes - L
eDs

).
For H7 type bulbs with lugs... take care to
observe their correct installation so as to
ensure the best lighting performance.
Front fog lamps (H11)
Direction indicators
(GT version)
For the replacement of this type of LeD la mp,
contact a Peu geOt d ealer or a qualified
workshop.
A replacement kit for the L
eDs i

s available from
P
eu

ge
Ot dea
lers.
In the event of a breakdown

257
308_en_Chap08_en-cas-de-panne_ed02-2015
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.the h
eadlamps are fitted with
polycarbonate glass with a protective
coating:
F
do n

ot clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F
us

e a sponge and soapy water or a
pH neutral product,
F
wh

en using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F
Do n

ot touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (
uV) t

ype bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
Daytime running lamps / sidelamps
For the replacement of this type of LeD la mp
and lighting guides, contact a Peu geOt d ealer
or a qualified workshop.
A replacement kit for the L
eDs i

s available from
P
eu

ge
Ot dea
lers.
8
In the event of a breakdown

258
308_en_Chap08_en-cas-de-panne_ed02-2015
Main beam headlamps
(halogen model)
F Remove the protective plastic cover by
p
ulling on the tab.
F


t
ur
n the connector (with its bulb) towards
the top (1/4 turn).
F
Re

move the bulb by pulling it out and
change it.
For reassembly, carry out these operations in
reverse order.
Dipped beam headlamps
(halogen model)
F Remove the protective plastic cover by
p
ulling on the tab.
F
Di

sconnect the bulb connector.
F
Disenga

ge the two springs (press then
move them outwards).
F


e
xt
ract the bulb by pulling and change it.
For reassembly, carry out these operations in
reverse order.
Be aware that the area behind the
right-hand headlamp (facing forwards)
may be hot, with the risk of burns
(over flow
p

ipe).
to al

low the headlamp to be moved for ward
a few centimetres for access to the bulbs,
proceed as follows:
F Move the orange clip towards the rear
t hen while pressing on the black part
(located above the orange clip) pull on the
connector.
F
Re

move the two screws holding the lamp.
F
Disenga

ge the rear pin then the front
centre piece.
F
Mov

e the lamp for wards.
Tips for removing the headlamp (halogen model)
