1
i
34
INSTRUMENTS and CONTROLS
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.

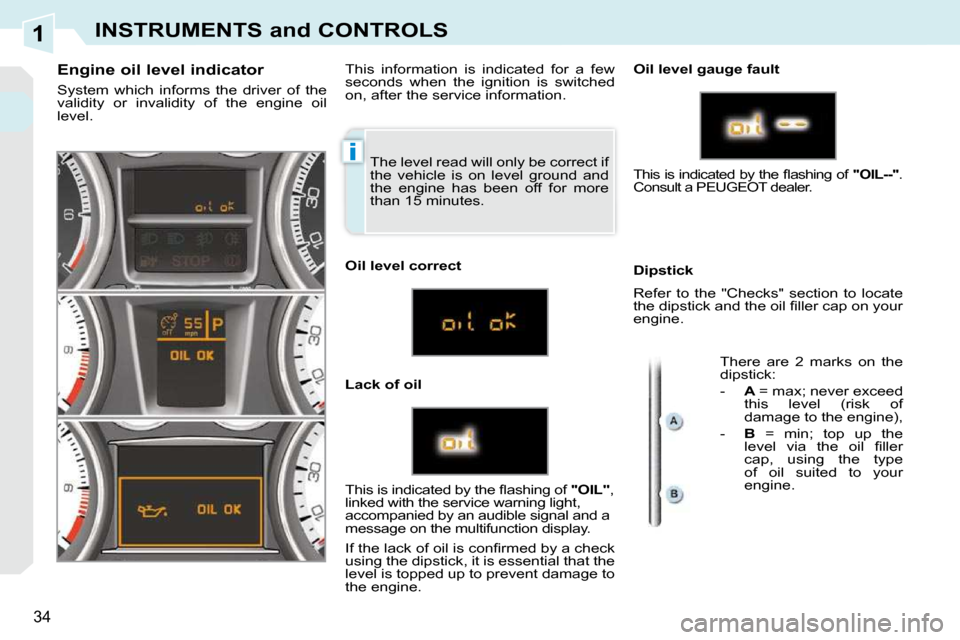

Engine oil level indicator
System which informs the driver of the
validity or invalidity of the engine oil
level.
This information is indicated for a few
seconds when the ignition is switched
on, after the service information.
Oil level correct
Lack of oil Oil level gauge fault
Dipstick
T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f "OIL" ,
linked with the service warning light,
accompanied by an audible signal and a
message on the multifunction display.
I f t h e l a c k o f o i l i s c o n fi r m e d b y a c h e c k
using the dipstick, it is essential that the
level is topped up to prevent damage to
the engine. T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f "OIL--" .
Consult a PEUGEOT dealer.
Refer to the "Checks" section to locate
t h e d i p s t i c k a n d t h e o i l fi l l e r c a p o n y o u r
engine.
There are 2 marks on the
dipstick:
- A = max; never exceed
this level (risk of
damage to the engine),
- B = min; top up the
l e v e l v i a t h e o i l fi l l e r
cap, using the type
of oil suited to your
engine.
Page 32 of 294
1
35
INSTRUMENTS and CONTROLS

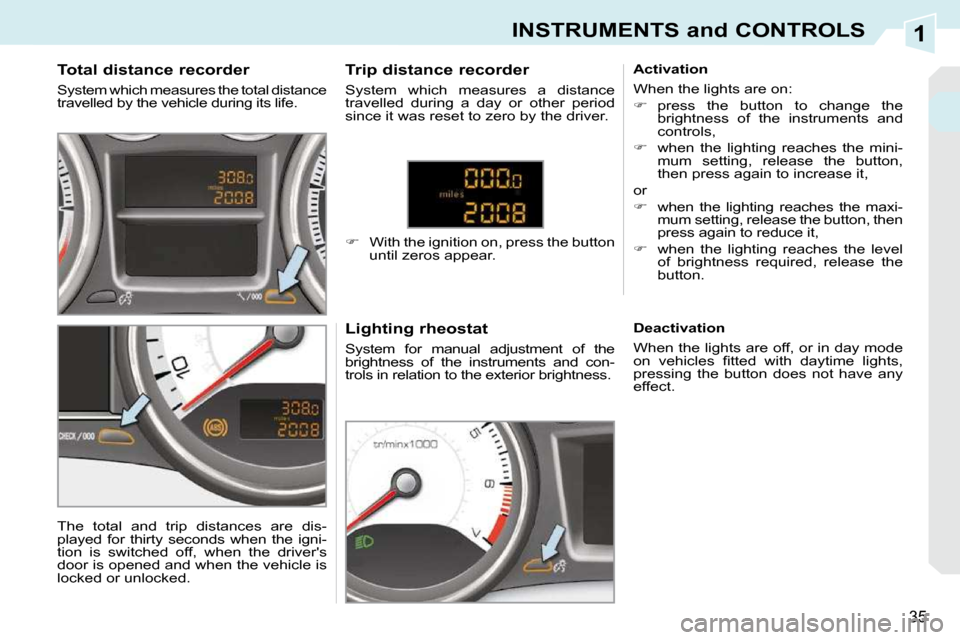

Total distance recorder
System which measures the total distance
travelled by the vehicle during its life. Lighting rheostat
System for manual adjustment of the
brightness of the instruments and con-
trols in relation to the exterior brightness.
The total and trip distances are dis-
played for thirty seconds when the igni-
tion is switched off, when the driver's
door is opened and when the vehicle is
locked or unlocked. Trip distance recorder
System which measures a distance
travelled during a day or other period
since it was reset to zero by the driver.
With the ignition on, press the button
until zeros appear. Activation
When the lights are on:
press the button to change the
brightness of the instruments and
controls,
when the lighting reaches the mini- mum setting, release the button,
then press again to increase it,
or
when the lighting reaches the maxi-
mum setting, release the button, then
press again to reduce it,
when the lighting reaches the level
of brightness required, release the
button.
Deactivation
When the lights are off, or in day mode
o n v e h i c l e s fi t t e d w i t h d a y t i m e l i g h t s ,
pressing the button does not have any
effect.
Page 33 of 294
2
36
MULTIFUNCTION DISPLAYS
General menu "Audio functions" menu
Press the "MENU" button to gain
access to the general menu :
- audio functions,
- vehicle diagnostics,
- p e r s o n a l i s a t i o n - c o n fi g u r a t i o n ,
- telephone (hands-free kit).
Press the " " or " " buttons to se-
l e c t t h e m e n u r e q u i r e d , t h e n c o n fi r m
by pressing the "OK" button.
With the PC Sound switched on, once
this menu has been selected you can
activate or deactivate the functions
linked with use of the radio (RDS, REG,
R a d i o T e x t ) o r t h e C D ( i n t r o s c a n , s h u f fl e ,
CD repeat).
For further details concerning the
"Audio functions" application, refer to
the PC Sound part of the "Audio and
Telematics" section.

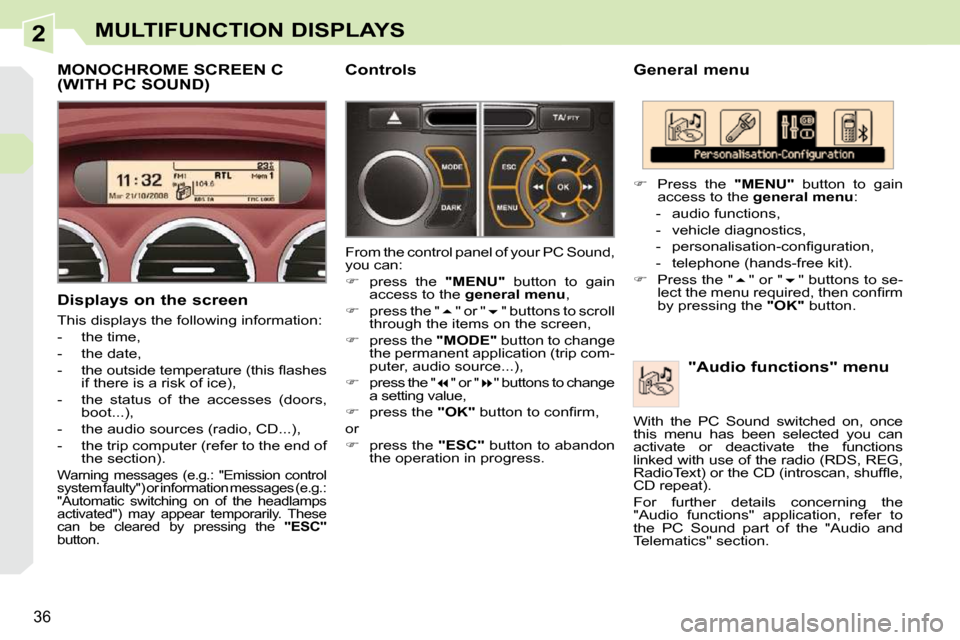

MONOCHROME SCREEN C (WITH PC SOUND)
Displays on the screen
This displays the following information:
- the time,
- the date,
- t h e o u t s i d e t e m p e r a t u r e ( t h i s fl a s h e s if there is a risk of ice),
- the status of the accesses (doors, boot...),
- the audio sources (radio, CD...),
- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission control
system faulty") or information messages (e.g.:
"Automatic switching on of the headlamps
activated") may appear temporarily. These
can be cleared by pressing the "ESC"
button.
Controls
From the control panel of your PC Sound,
you can:
press the "MENU" button to gain
access to the general menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the "MODE" button to change
the permanent application (trip com-
puter, audio source...),
press the " " or " " buttons to change
a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress.
Page 34 of 294
2MULTIFUNCTION DISPLAYS

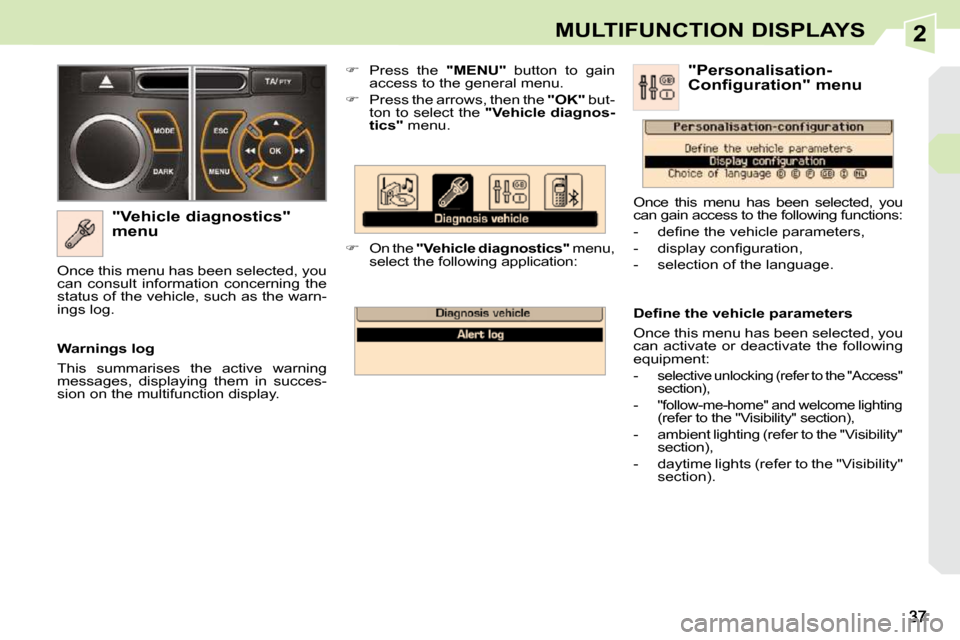

"Vehicle diagnostics"
menu
Press the "MENU" button to gain
access to the general menu.
Press the arrows, then the "OK" but-
ton to select the " Vehicle diagnos-
tics
" menu.
On the "
Vehicle diagnostics " menu,
select the following application:
Warnings log
This summarises the active warning
messages, displaying them in succes-
sion on the multifunction display.
Once this menu has been selected, you
can consult information concerning the
status of the vehicle, such as the warn-
ings log.
D e fi n e t h e v e h i c l e p a r a m e t e r s
Once this menu has been selected, you
can activate or deactivate the following
equipment:
-
selective unlocking (refer to the "Access"
section),
- "follow-me-home" and welcome lighting (refer to the "Visibility" section),
- ambient lighting (refer to the "Visibility" section),
- daytime lights (refer to the "Visibility" section). "Personalisation-
Configuration" menu
Once this menu has been selected, you
can gain access to the following functions:
- d e fi n e t h e v e h i c l e p a r a m e t e r s ,
- d i s p l a y c o n fi g u r a t i o n ,
- selection of the language.
Page 35 of 294
2
!
38
MULTIFUNCTION DISPLAYS
For safety reasons, it is imperative
t h a t c o n fi g u r a t i o n o f t h e m u l t i f u n c t i o n
displays by the driver takes place
when stationary. "Telephone" menu
D i s p l a y c o n fi g u r a t i o n
Once this menu has been selected, you
can gain access to the following settings:
- brightness-video setting,
- date and time setting,
- selection of the units.
Selection of the language
Once this menu has been selected,
you can change the language used by
the display (Deutsch, English, Espanol,
Français, Italiano, Nederlands, Portugues,
Portugues-Brasil, Türkçe * ).

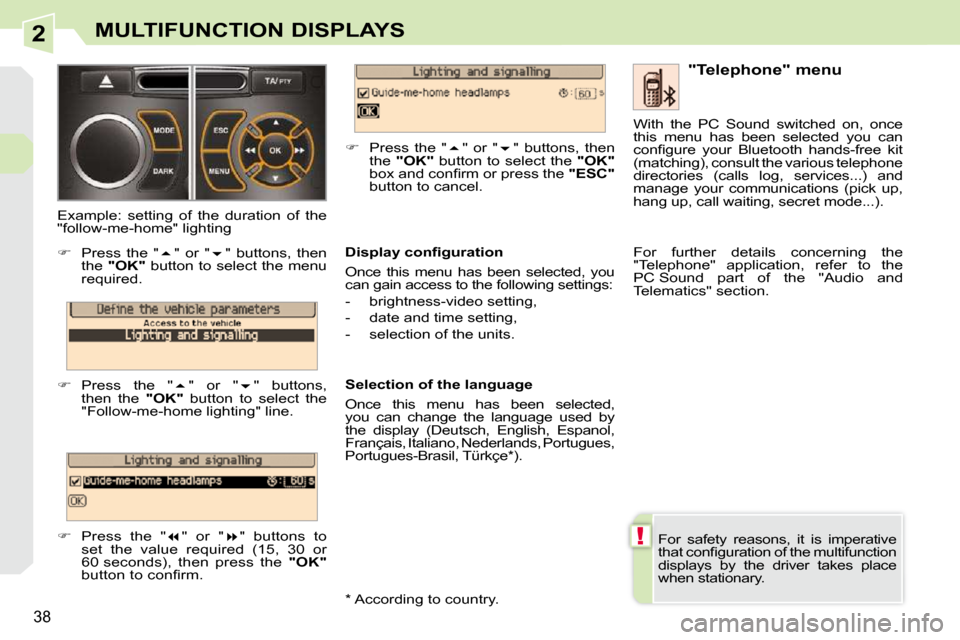

Example: setting of the duration of the
"follow-me-home" lighting
Press the " " or " " buttons, then
the "OK" button to select the menu
required.
Press the " " or " " buttons,
then the "OK" button to select the
"Follow-me-home lighting" line.
Press the " " or " " buttons to
set the value required (15, 30 or
60 seconds), then press the "OK"
b u t t o n t o c o n fi r m .
Press the " " or " " buttons, then
the "OK" button to select the "OK"
b o x a n d c o n fi r m o r p r e s s t h e "ESC"
button to cancel. With the PC Sound switched on, once
this menu has been selected you can
c o n fi g u r e y o u r B l u e t o o t h h a n d s - f r e e k i t
(matching), consult the various telephone
directories (calls log, services...) and
manage your communications (pick up,
hang up, call waiting, secret mode...).
For further details concerning the
"Telephone" application, refer to the
PC Sound part of the "Audio and
Telematics" section.
* According to country.
Page 36 of 294
2
i
39
MULTIFUNCTION DISPLAYS
Displays on the screen
When the screen is unfolded, it displays
the following information automatically
and directly:
- the time,
- the date,
- the altitude,
- the exterior temperature (the value dis- p l a y e d fl a s h e s i f t h e r e i s a r i s k o f i c e ) ,
- the accesses check,
- the warning and vehicle function status messages, displayed temporarily,
- the audio functions,
- the trip computer information,
- the satellite navigation system infor- mation.

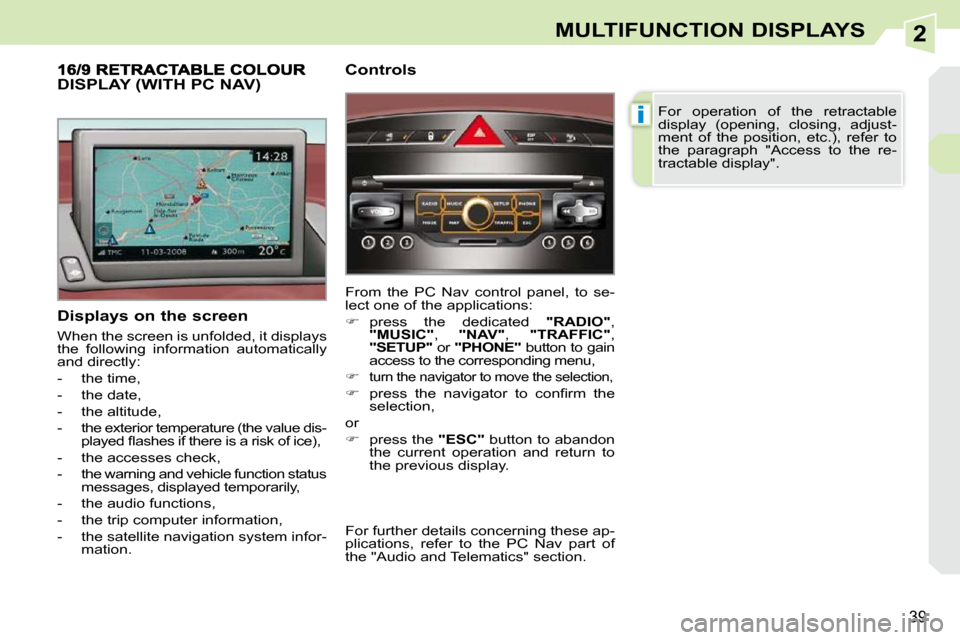

DISPLAY (WITH PC NAV) Controls
From the PC Nav control panel, to se-
lect one of the applications:
press the dedicated "RADIO" ,
"MUSIC" , "NAV" , "TRAFFIC" ,
"SETUP" or "PHONE" button to gain
access to the corresponding menu,
turn the navigator to move the selection,
p r e s s t h e n a v i g a t o r t o c o n fi r m t h e
selection,
or
press the "ESC" button to abandon
the current operation and return to
the previous display. For operation of the retractable
display (opening, closing, adjust-
ment of the position, etc.), refer to
the paragraph "Access to the re-
tractable display".
For further details concerning these ap-
plications, refer to the PC Nav part of
the "Audio and Telematics" section.
Page 37 of 294
2
!
40
MULTIFUNCTION DISPLAYS

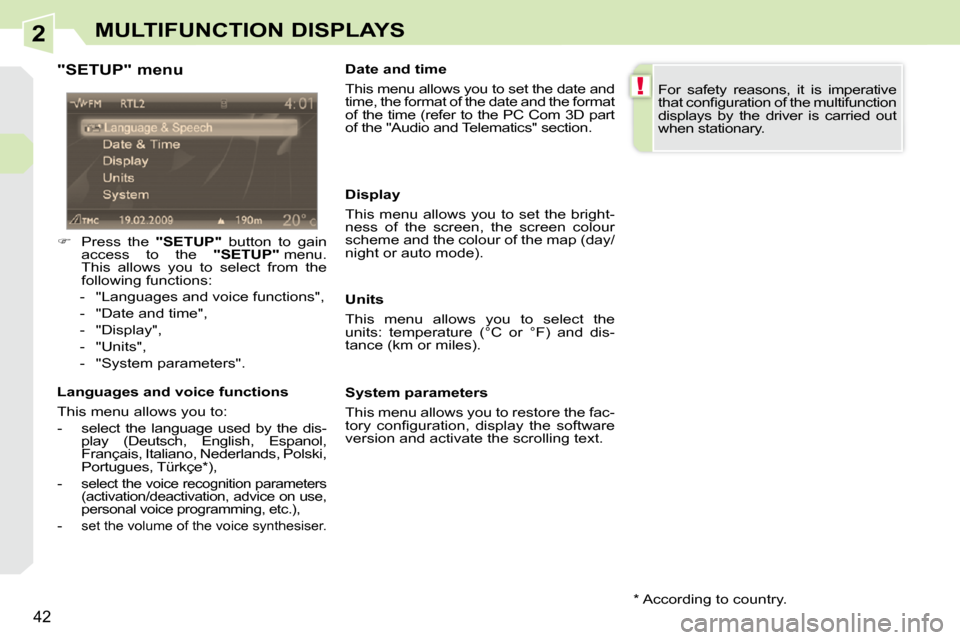

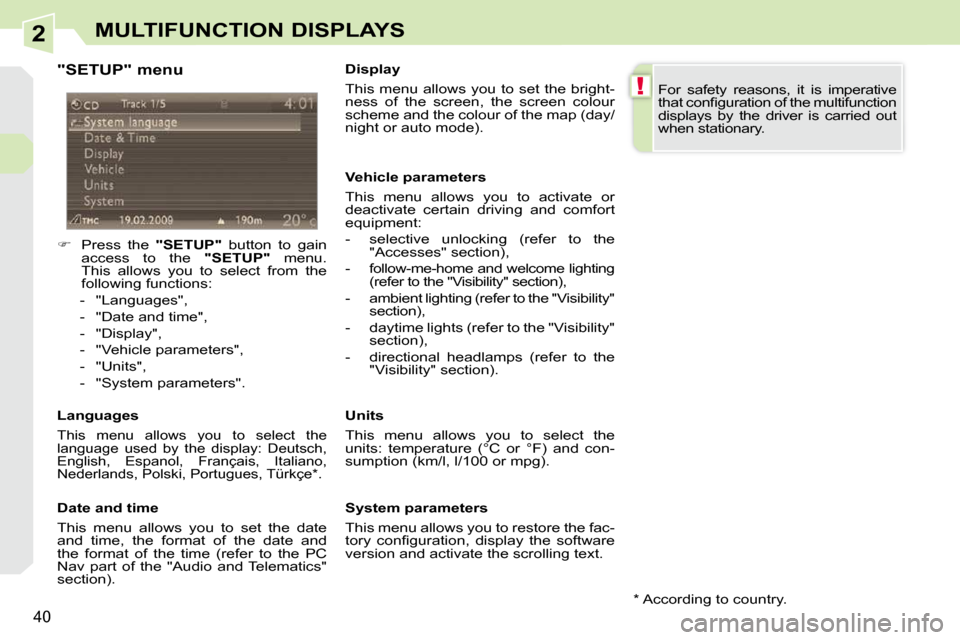

"SETUP" menu
Press the "SETUP" button to gain
access to the "SETUP" menu.
This allows you to select from the
following functions:
- "Languages",
- "Date and time",
- "Display",
- "Vehicle parameters",
- "Units",
- "System parameters".
Languages
This menu allows you to select the
language used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Polski, Portugues, Türkçe * .
Date and time
This menu allows you to set the date
and time, the format of the date and
the format of the time (refer to the PC
Nav part of the "Audio and Telematics"
section). Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).
Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment:
- selective unlocking (refer to the
"Accesses" section),
- follow-me-home and welcome lighting (refer to the "Visibility" section),
- ambient lighting (refer to the "Visibility" section),
- daytime lights (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section).
Units
This menu allows you to select the
units: temperature (°C or °F) and con-
sumption (km/l, l/100 or mpg).
System parameters
This menu allows you to restore the fac-
t o r y c o n fi g u r a t i o n , d i s p l a y t h e s o f t w a r e
version and activate the scrolling text. For safety reasons, it is imperative
t h a t c o n fi g u r a t i o n o f t h e m u l t i f u n c t i o n
displays by the driver is carried out
when stationary.
* According to country.
Page 38 of 294
2
i
41
MULTIFUNCTION DISPLAYS

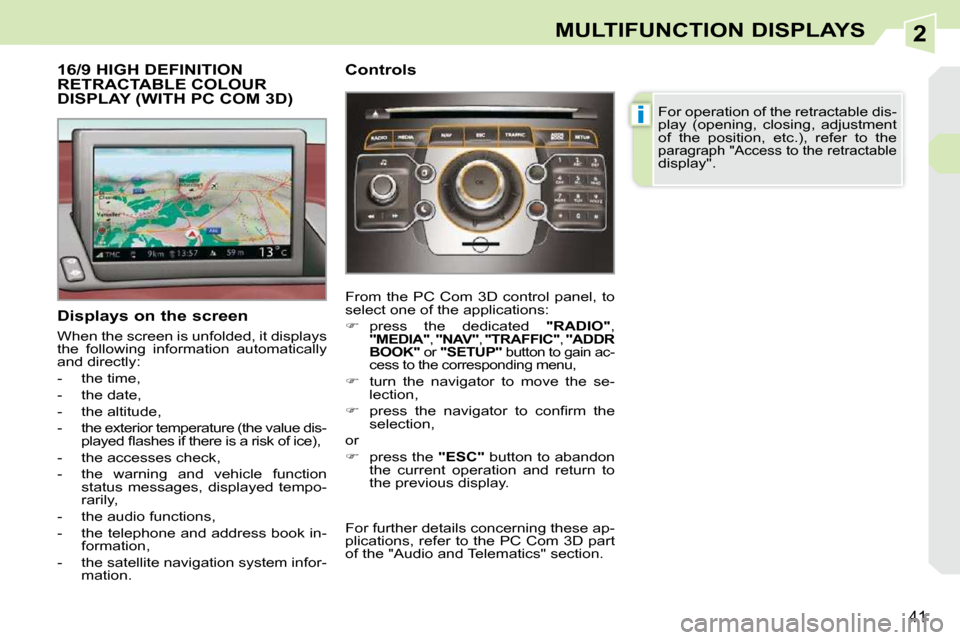

16/9 HIGH DEFINITION RETRACTABLE COLOUR DISPLAY (WITH PC COM 3D)
Displays on the screen
When the screen is unfolded, it displays
the following information automatically
and directly:
- the time,
- the date,
- the altitude,
- the exterior temperature (the value dis- p l a y e d fl a s h e s i f t h e r e i s a r i s k o f i c e ) ,
- the accesses check,
- the warning and vehicle function status messages, displayed tempo-
rarily,
- the audio functions,
- the telephone and address book in- formation,
- the satellite navigation system infor- mation. Controls
From the PC Com 3D control panel, to
select one of the applications:
press the dedicated "RADIO" ,
"MEDIA" , "NAV" , "TRAFFIC" , "ADDR
BOOK" or "SETUP" button to gain ac-
cess to the corresponding menu,
turn the navigator to move the se-
lection,
p r e s s t h e n a v i g a t o r t o c o n fi r m t h e
selection,
or
press the "ESC" button to abandon
the current operation and return to
the previous display. For operation of the retractable dis-
play (opening, closing, adjustment
of the position, etc.), refer to the
paragraph "Access to the retractable
display".
For further details concerning these ap-
plications, refer to the PC Com 3D part
of the "Audio and Telematics" section.
Page 39 of 294
2
!
42
MULTIFUNCTION DISPLAYS
"SETUP" menu
Press the "SETUP" button to gain
access to the "SETUP" menu.
This allows you to select from the
following functions:
- "Languages and voice functions",
- "Date and time",
- "Display",
- "Units",
- "System parameters".
L a n g u a g e s a n d v o i c e f u n c t i o n s
This menu allows you to:
- select the language used by the dis- play (Deutsch, English, Espanol,
Français, Italiano, Nederlands, Polski,
Portugues, Türkçe * ),
-
select the voice recognition parameters (activation/deactivation, advice on use,
personal voice programming, etc.),
- set the volume of the voice synthesiser.
Date and time
This menu allows you to set the date and
time, the format of the date and the format
of the time (refer to the PC Com 3D part
of the "Audio and Telematics" section.
Units
This menu allows you to select the
units: temperature (°C or °F) and dis-
tance (km or miles).
System parameters
This menu allows you to restore the fac-
t o r y c o n fi g u r a t i o n , d i s p l a y t h e s o f t w a r e
version and activate the scrolling text. For safety reasons, it is imperative
t h a t c o n fi g u r a t i o n o f t h e m u l t i f u n c t i o n
displays by the driver is carried out
when stationary.
Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).
* According to country.
Page 40 of 294
2
i
i
43
MULTIFUNCTION DISPLAYS

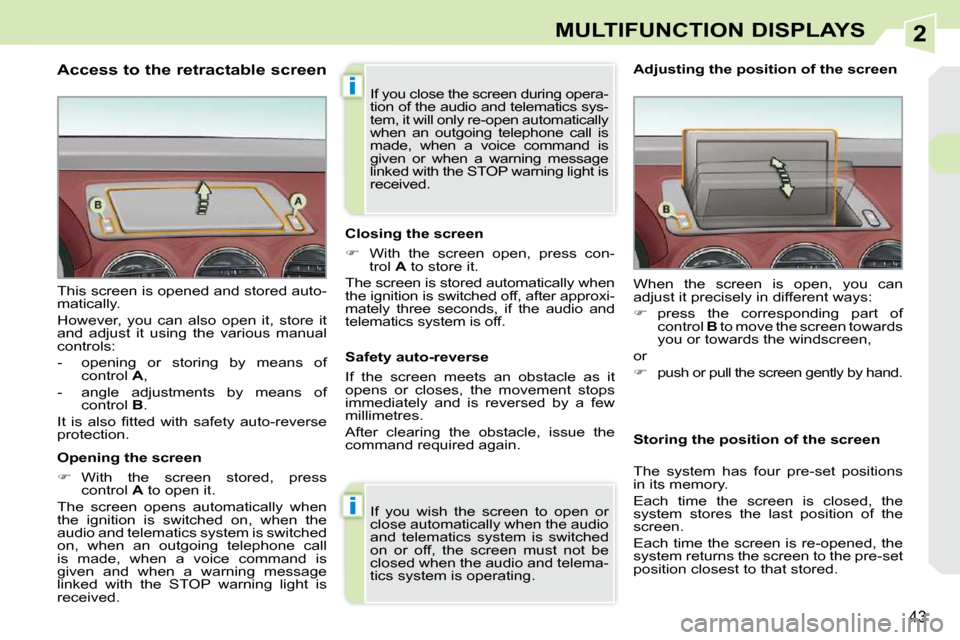

Access to the retractable screen
Opening the screen
With the screen stored, press
control A to open it.
The screen opens automatically when
the ignition is switched on, when the
audio and telematics system is switched
on, when an outgoing telephone call
is made, when a voice command is
given and when a warning message
linked with the STOP warning light is
received.
This screen is opened and stored auto-
matically.
However, you can also open it, store it
and adjust it using the various manual
controls:
- opening or storing by means of
control A ,
- angle adjustments by means of control B .
I t i s a l s o fi t t e d w i t h s a f e t y a u t o - r e v e r s e
protection. Closing the screen
With the screen open, press con-
trol A to store it.
The screen is stored automatically when
the ignition is switched off, after approxi-
mately three seconds, if the audio and
telematics system is off.
If you wish the screen to open or
close automatically when the audio
and telematics system is switched
on or off, the screen must not be
closed when the audio and telema-
tics system is operating. When the screen is open, you can
adjust it precisely in different ways:
press the corresponding part of
control B to move the screen towards
you or towards the windscreen,
or
push or pull the screen gently by hand.
Adjusting the position of the screen
S a f e t y a u t o - r e v e r s e
If the screen meets an obstacle as it
opens or closes, the movement stops
immediately and is reversed by a few
millimetres.
After clearing the obstacle, issue the
command required again. Storing the position of the screen
The system has four pre-set positions
in its memory.
Each time the screen is closed, the
system stores the last position of the
screen.
Each time the screen is re-opened, the
system returns the screen to the pre-set
position closest to that stored.
If you close the screen during opera-
tion of the audio and telematics sys-
tem, it will only re-open automatically
when an outgoing telephone call is
made, when a voice command is
given or when a warning message
linked with the STOP warning light is
received.
