FAMILIARISATION
SEE CLEARLY

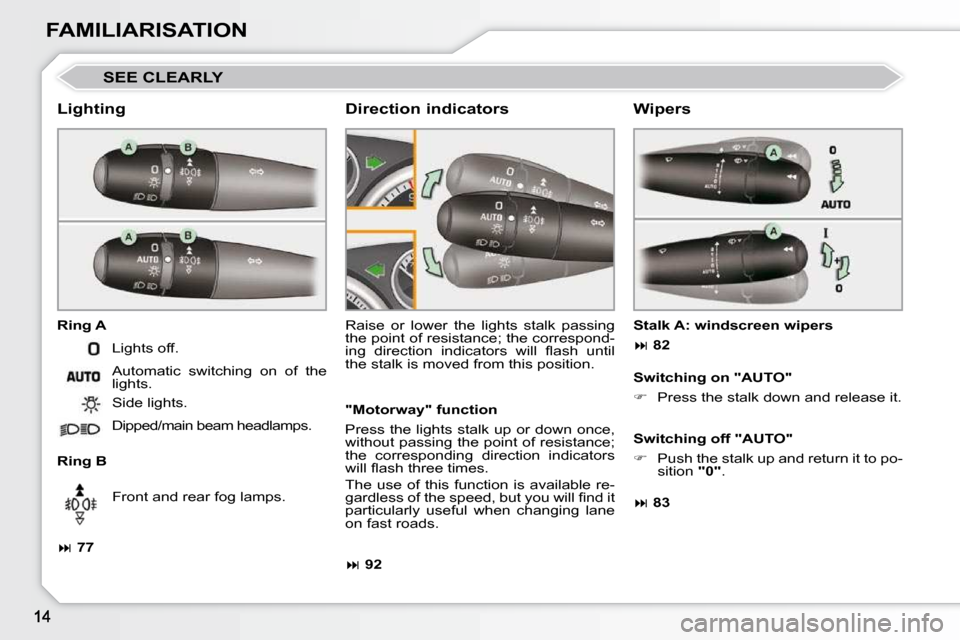

Lighting
Ring A
Ring B Raise or lower the lights stalk passing
the point of resistance; the correspond-
i n g d i r e c t i o n i n d i c a t o r s w i l l fl a s h u n t i l
the stalk is moved from this position.
Direction indicators
Switching on "AUTO"
Press the stalk down and release it.
77 Lights off.
Automatic switching on of the
lights.
Side lights.
Dipped/main beam headlamps.
Front and rear fog lamps.
S t a l k A : w i n d s c r e e n w i p e r s
82
Wipers
Switching off "AUTO"
Push the stalk up and return it to po-
sition "0" .
"Motorway" function
Press the lights stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
w i l l fl a s h t h r e e t i m e s .
The use of this function is available re-
g a r d l e s s o f t h e s p e e d , b u t y o u w i l l fi n d i t
particularly useful when changing lane
on fast roads.
92
83
Page 12 of 294
FAMILIARISATION

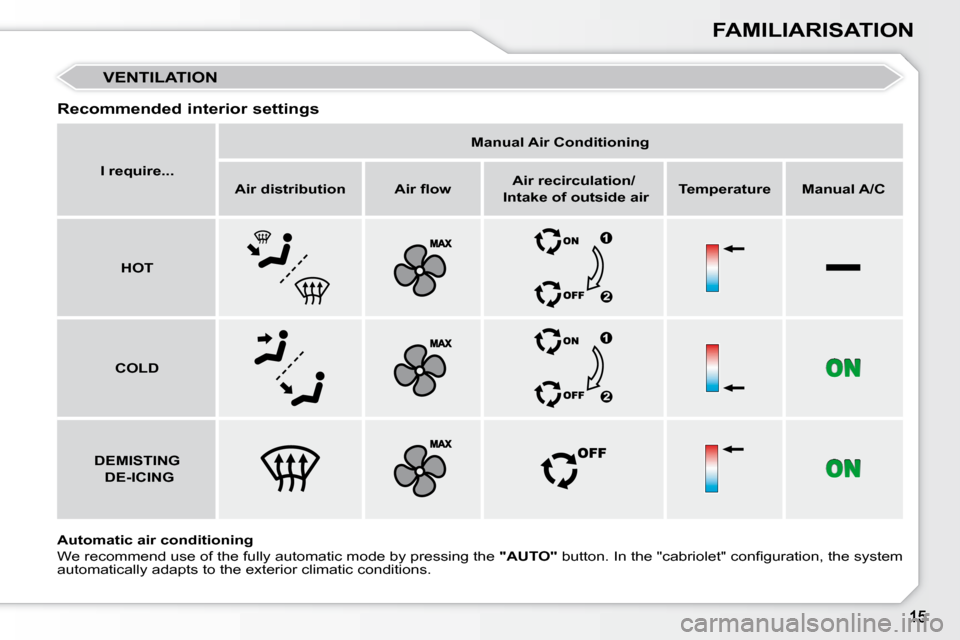

VENTILATION
Recommended interior settings
Automatic air conditioning
We recommend use of the fully automatic mode by pressing the "AUTO" b u t t o n . I n t h e " c a b r i o l e t " c o n fi g u r a t i o n , t h e s y s t e m
automatically adapts to the exterior climatic conditions. I require...
Manual Air Conditioning
Air distribution A i r fl o w Air recirculation/
Intake of outside air Temperature Manual A/C
HOT
COLD
DEMISTING DE-ICING
Page 13 of 294
FAMILIARISATION

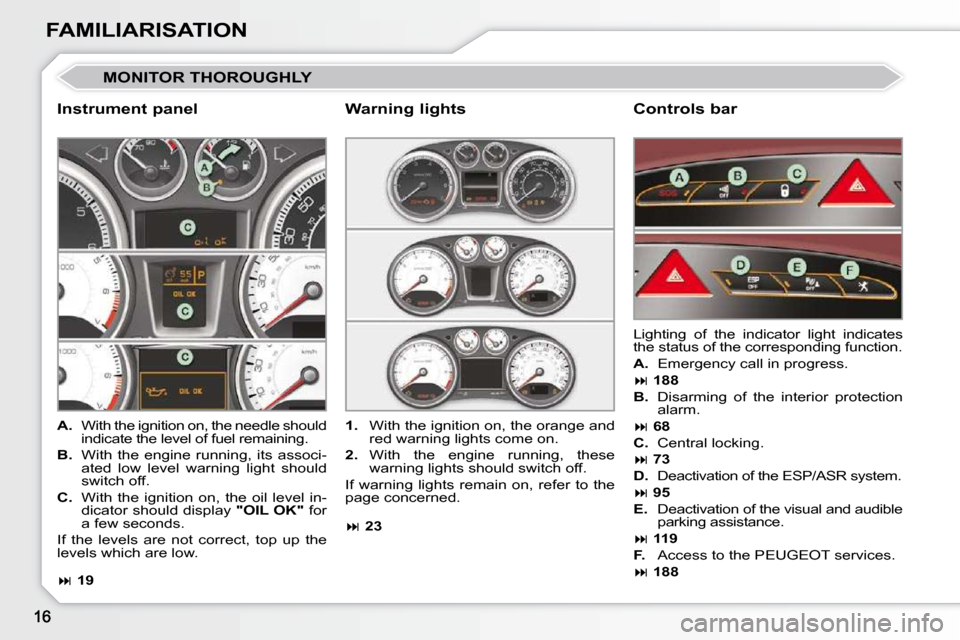

MONITOR THOROUGHLY
Instrument panel Controls bar
A. With the ignition on, the needle should
indicate the level of fuel remaining.
B. With the engine running, its associ-
ated low level warning light should
switch off.
C. With the ignition on, the oil level in-
dicator should display "OIL OK" for
a few seconds.
If the levels are not correct, top up the
levels which are low. Lighting of the indicator light indicates
the status of the corresponding function.
A. Emergency call in progress.
188
B. Disarming of the interior protection
alarm.
68
C. Central locking.
73
D. Deactivation of the ESP/ASR system.
95
E. Deactivation of the visual and audible
parking assistance.
119
F. Access to the PEUGEOT services.
188
1. With the ignition on, the orange and
red warning lights come on.
2. With the engine running, these
warning lights should switch off.
If warning lights remain on, refer to the
page concerned.
Warning lights
19
23
Page 14 of 294
i
FAMILIARISATION

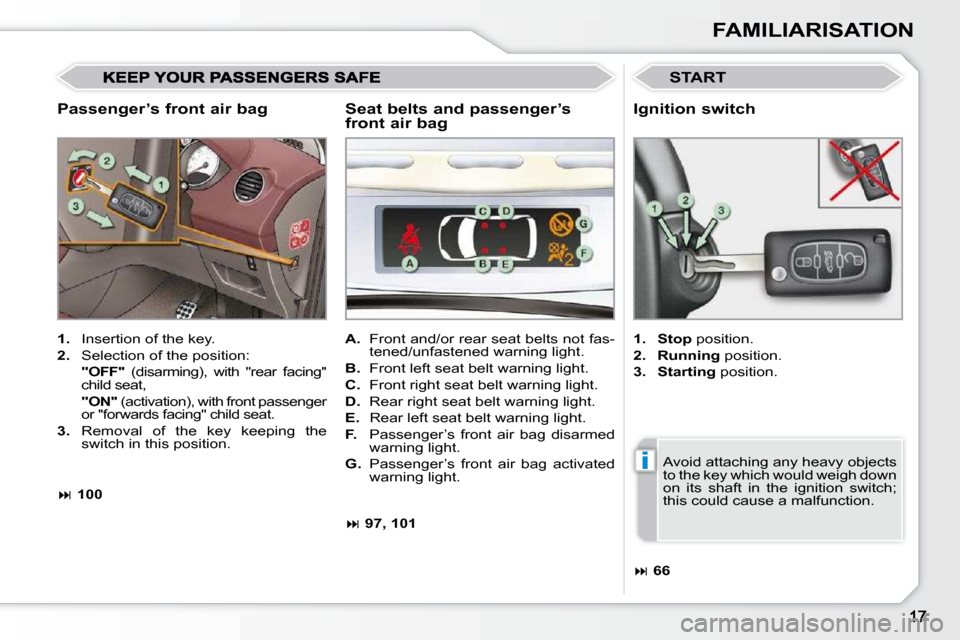

Passenger’s front air bag
START
1. Insertion of the key.
2. Selection of the position:
"OFF" (disarming), with "rear facing"
child seat,
"ON" (activation), with front passenger
or "forwards facing" child seat.
3. Removal of the key keeping the
switch in this position.
1. Stop position.
2. Running position.
3. Starting position.
A. Front and/or rear seat belts not fas-
tened/unfastened warning light.
B. Front left seat belt warning light.
C. Front right seat belt warning light.
D. Rear right seat belt warning light.
E. Rear left seat belt warning light.
F. Passenger’s front air bag disarmed
warning light.
G. Passenger’s front air bag activated
warning light.
Seat belts and passenger’s
front air bag
100
97, 101 Ignition switch
66
Avoid attaching any heavy objects
to the key which would weigh down
on its shaft in the ignition switch;
this could cause a malfunction.
Page 15 of 294
FAMILIARISATION

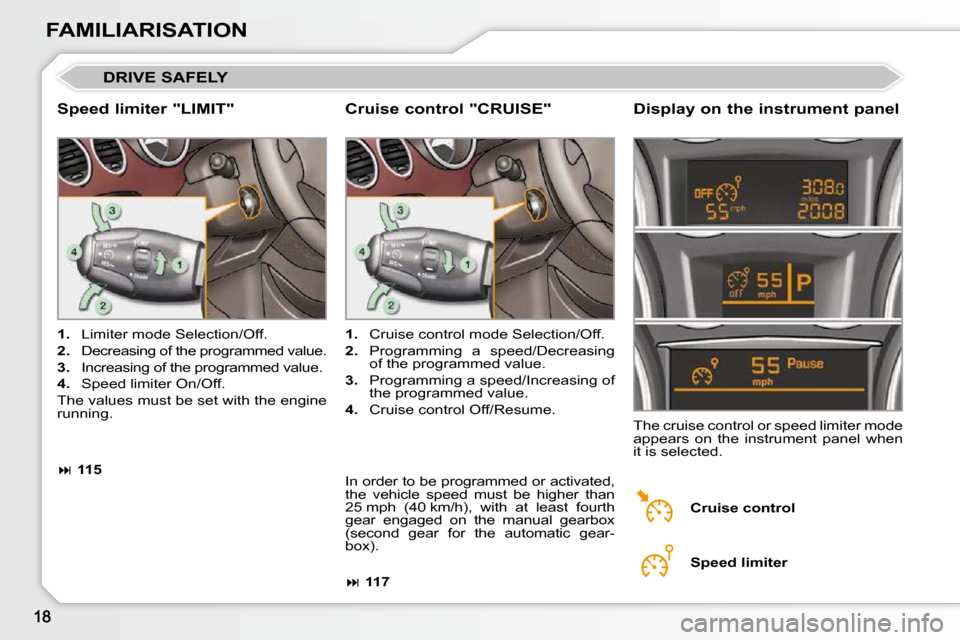

DRIVE SAFELY
Speed limiter "LIMIT" Display on the instrument panel
1. Limiter mode Selection/Off.
2. Decreasing of the programmed value.
3. Increasing of the programmed value.
4. Speed limiter On/Off.
The values must be set with the engine
running. The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.
1. Cruise control mode Selection/Off.
2. Programming a speed/Decreasing
of the programmed value.
3. Programming a speed/Increasing of
the programmed value.
4. Cruise control Off/Resume.
Cruise control "CRUISE"
Cruise control
Speed limiter
117
115
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on the manual gearbox
(second gear for the automatic gear-
box).
Page 16 of 294
1
i
19

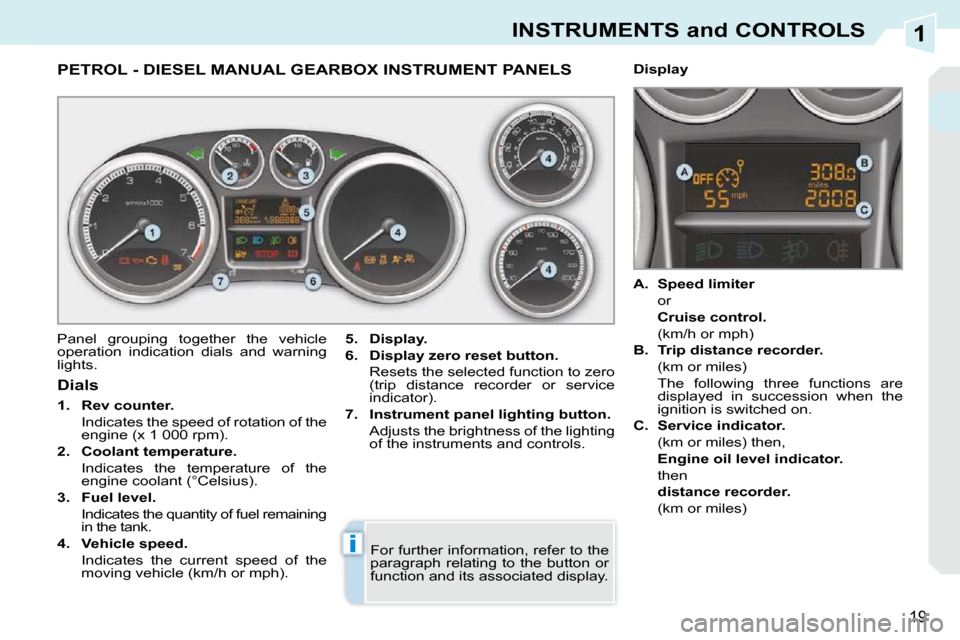

INSTRUMENTS and CONTROLS
PETROL - DIESEL MANUAL GEARBOX INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lights.
5. Display.
6. Display zero reset button.
Resets the selected function to zero (trip distance recorder or service
indicator).
7. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and controls.
Dials
1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).
2. Coolant temperature.
Indicates the temperature of the engine coolant (°Celsius).
3. Fuel level.
Indicates the quantity of fuel remaining in the tank.
4. Vehicle speed.
Indicates the current speed of the moving vehicle (km/h or mph).
A. Speed limiter
or
Cruise control.
(km/h or mph)
B. Trip distance recorder.
(km or miles)
The following three functions are displayed in succession when the
ignition is switched on.
C. Service indicator.
(km or miles) then,
Engine oil level indicator.
then
distance recorder.
(km or miles)
Display
For further information, refer to the
paragraph relating to the button or
function and its associated display.
Page 17 of 294
1
i
20
INSTRUMENTS and CONTROLS

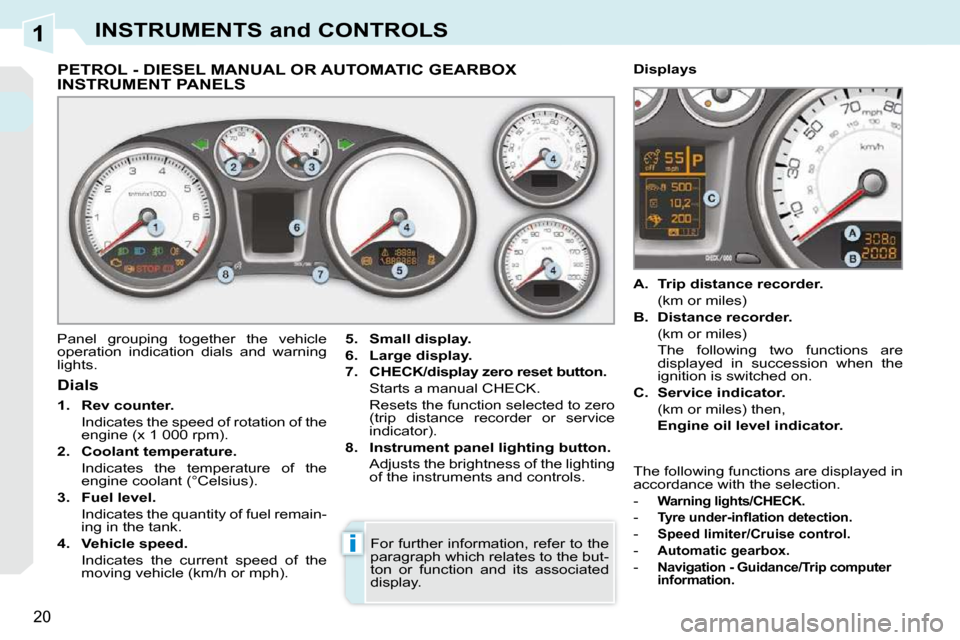

PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lights.
5. Small display.
6. Large display.
7. CHECK/display zero reset button.
Starts a manual CHECK.
Resets the function selected to zero (trip distance recorder or service
indicator).
8. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and controls.
Dials
1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).
2. Coolant temperature.
Indicates the temperature of the engine coolant (°Celsius).
3. Fuel level.
Indicates the quantity of fuel remain- ing in the tank.
4. Vehicle speed.
Indicates the current speed of the moving vehicle (km/h or mph).
A. Trip distance recorder.
(km or miles)
B. Distance recorder.
(km or miles)
The following two functions are displayed in succession when the
ignition is switched on.
C. Service indicator.
(km or miles) then,
Engine oil level indicator.
Displays
For further information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed in
accordance with the selection.
-
Warning lights/CHECK.
-
T y r e u n d e r - i n fl a t i o n d e t e c t i o n .
- Speed limiter/Cruise control.
-
Automatic gearbox.
-
Navigation - Guidance/Trip computer
information.
Page 18 of 294
1
i
21
INSTRUMENTS and CONTROLS

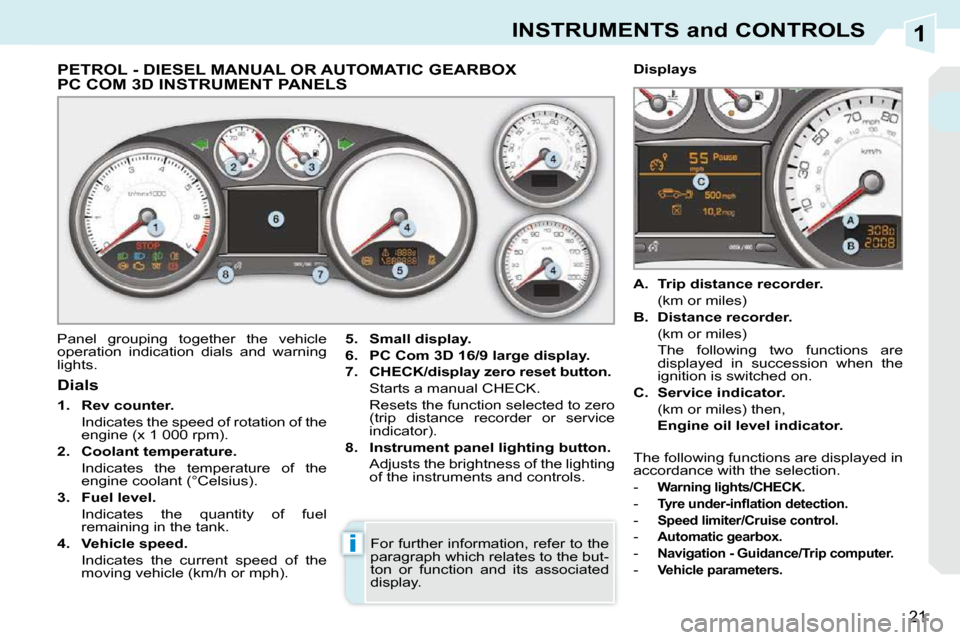

PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX PC COM 3D INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lights.
5. Small display.
6. PC Com 3D 16/9 large display.
7. CHECK/display zero reset button.
Starts a manual CHECK.
Resets the function selected to zero (trip distance recorder or service
indicator).
8. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and controls.
Dials
1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).
2. Coolant temperature.
Indicates the temperature of the engine coolant (°Celsius).
3. Fuel level.
Indicates the quantity of fuel remaining in the tank.
4. Vehicle speed.
Indicates the current speed of the moving vehicle (km/h or mph).
A. Trip distance recorder.
(km or miles)
B. Distance recorder.
(km or miles)
The following two functions are displayed in succession when the
ignition is switched on.
C. Service indicator.
(km or miles) then,
Engine oil level indicator.
Displays
For further information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed in
accordance with the selection.
-
Warning lights/CHECK.
- T y r e u n d e r - i n fl a t i o n d e t e c t i o n .
- Speed limiter/Cruise control.
- Automatic gearbox.
- Navigation - Guidance/Trip computer.
- Vehicle parameters.
Page 19 of 294
1
i
22
INSTRUMENTS and CONTROLS
* According to country.

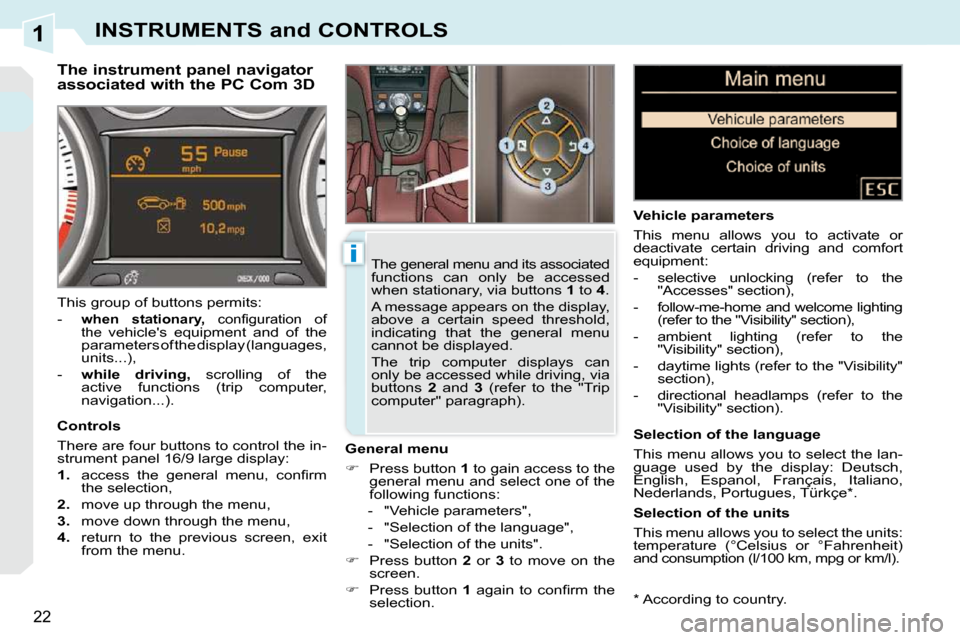

The instrument panel navigator
associated with the PC Com 3D
General menu
Press button 1 to gain access to the
general menu and select one of the
following functions:
- "Vehicle parameters",
- "Selection of the language",
- "Selection of the units".
Press button 2 or 3 to move on the
screen.
Press button 1 a g a i n t o c o n fi r m t h e
selection. Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment:
- selective unlocking (refer to the
"Accesses" section),
- follow-me-home and welcome lighting (refer to the "Visibility" section),
- ambient lighting (refer to the "Visibility" section),
- daytime lights (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section).
Selection of the language
This menu allows you to select the lan-
guage used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Portugues, Türkçe * .
Selection of the units
This menu allows you to select the units:
temperature (°Celsius or °Fahrenheit)
and consumption (l/100 km, mpg or km/l).
This group of buttons permits:
-
when stationary,stationary c o n fi g u r a t i o n o f
the vehicle's equipment and of the
parameters of the display (languages,
units...),
- while driving
, scrolling of the
active functions (trip computer,
navigation...).
Controls
There are four buttons to control the in-
strument panel 16/9 large display:
1. a c c e s s t h e g e n e r a l m e n u , c o n fi r m
the selection,
2. move up through the menu,
3. move down through the menu,
4. return to the previous screen, exit
from the menu. The general menu and its associated
functions can only be accessed
when stationary, via buttons
1 to 4 .
A message appears on the display,
above a certain speed threshold,
indicating that the general menu
cannot be displayed.
The trip computer displays can
only be accessed while driving, via
buttons 2 and 3 (refer to the "Trip
computer" paragraph).
Page 20 of 294
1
!
23
INSTRUMENTS and CONTROLS
The warning lights may come on c o n t i n u o u s l y o r fl a s h .
Certain warning lights may come on in two different modes. Only by relating the type of lighting to the operating status of the vehicle can it be ascertained whether the situa-tion is normal or whether a fault has occurred.

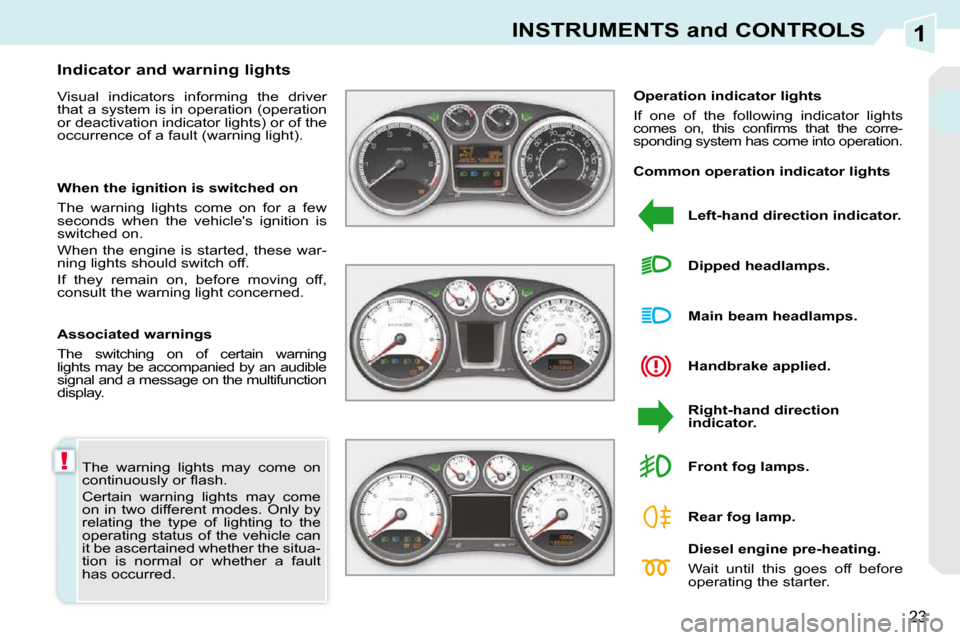

Indicator and warning lights
Visual indicators informing the driver that a system is in operation (operation or deactivation indicator lights) or of the occurrence of a fault (warning light).
Associated warnings
The switching on of certain warninglights may be accompanied by an audible signal and a message on the multifunction display.
Operation indicator lights
If one of the following indicator lights c o m e s o n , t h i s c o n fi r m s t h a t t h e c o r r e -sponding system has come into operation.
Left-hand direction indicator.
Handbrake applied.
Right-hand direction indicator.
Main beam headlamps.
Dipped headlamps.
Diesel engine pre-heating .
Wait until this goes off before
operating the starter.
Front fog lamps.
Rear fog lamp.
When the ignition is switched on
The warning lights come on for a few seconds when the vehicle's ignition is switched on.
When the engine is started, these war-ning lights should switch off.
If they remain on, before moving off, consult the warning light concerned.
Common operation indicator lights
