MULTIFUNCTION DISPLAYS

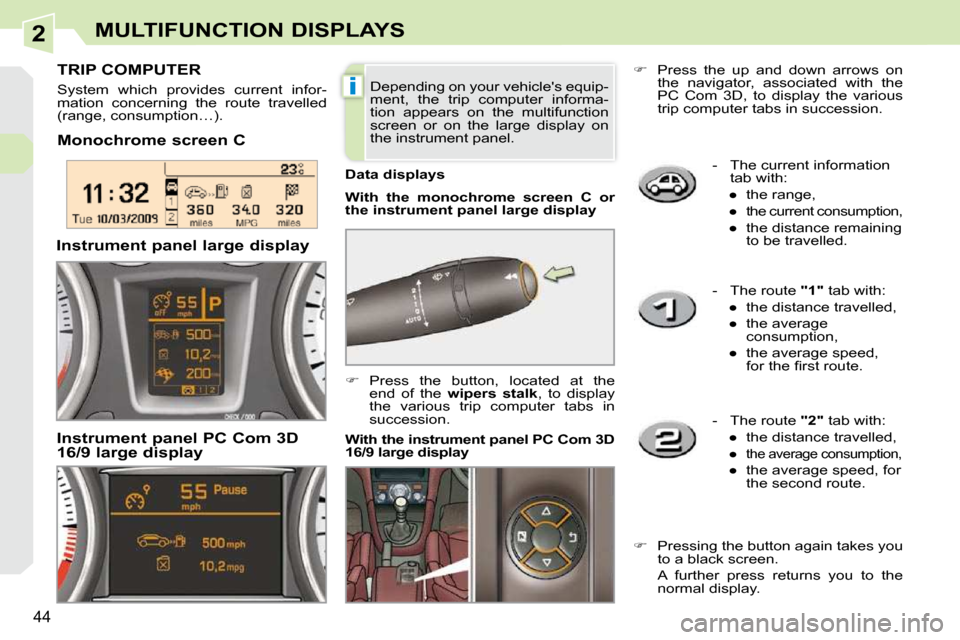

- The current information tab with:
Page 42 of 294
2
!
i
i
45
MULTIFUNCTION DISPLAYS
When the route required is dis-
played, press the control for more
than two seconds.

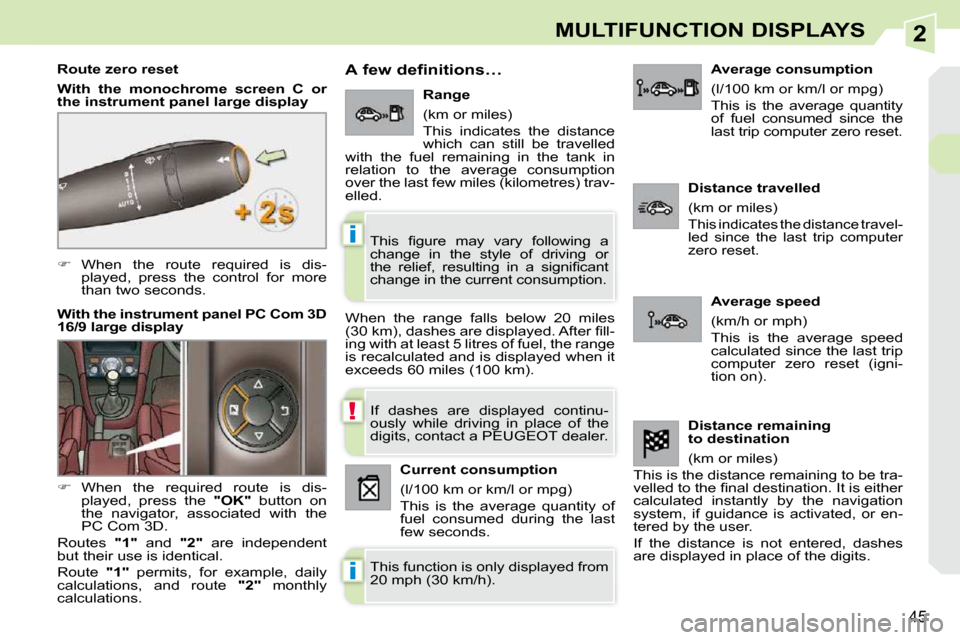

Route zero reset
With the monochrome screen C or
the instrument panel large display A few definitions…
When the range falls below 20 miles ( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r fi l l -ing with at least 5 litres of fuel, the range is recalculated and is displayed when it exceeds 60 miles (100 km).
If dashes are displayed continu-ously while driving in place of the digits, contact a PEUGEOT dealer.
This function is only displayed from 20 mph (30 km/h).
T h i s fi g u r e m a y v a r y f o l l o w i n g a change in the style of driving or t h e r e l i e f , r e s u l t i n g i n a s i g n i fi c a n t change in the current consumption.
Range
(km or miles)
This indicates the distance which can still be travelled with the fuel remaining in the tank in relation to the average consumption over the last few miles (kilometres) trav-elled.
Current consumption
(l/100 km or km/l or mpg)
This is the average quantity of fuel consumed during the last few seconds.
A v e r a g e c o n s u m p t i o n
(l/100 km or km/l or mpg)
This is the average quantity of fuel consumed since the last trip computer zero reset.
A v e r a g e s p e e d
(km/h or mph)
This is the average speed calculated since the last trip computer zero reset (igni-tion on).
D i s t a n c e t r a v e l l e d
(km or miles)
This indicates the distance travel-led since the last trip computer zero reset.
Distance remaining
to destination
(km or miles)
This is the distance remaining to be tra-
v e l l e d t o t h e fi n a l d e s t i n a t i o n . I t i s e i t h e r
calculated instantly by the navigation
system, if guidance is activated, or en-
tered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
With the instrument panel PC Com 3D
16/9 large display
When the required route is dis-
played, press the "OK" button on
the navigator, associated with the
PC Com 3D.
Routes "1" and "2" are independent
but their use is identical.
Route "1" permits, for example, daily
calculations, and route "2" monthly
calculations.
Page 43 of 294
3
46
COMFORT
VENTILATION
System which creates and maintains
comfortable conditions in the vehicle's
passenger compartment. Air treatment
The incoming air follows various routes
depending on the controls selected by
the driver:
- direct arrival in the passenger com-
partment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air conditioning).
The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits. The air distribution control enables you
to diffuse the air in the passenger com-
partment combining several air vents.
T h e a i r fl o w c o n t r o l e n a b l e s y o u t o
increase or reduce the speed of the
ventilation blower.
Air intake
The air circulating in the passenger com-
p a r t m e n t i s fi l t e r e d a n d o r i g i n a t e s e i t h e r
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode. Control panel
The controls of this system are grouped
together on control panel
A on the centre
console. Depending on the model, the
functions offered are:
- the level of comfort required,
- t h e a i r fl o w ,
- the air distribution,
- the de-icing and demisting,
- the manual or automatic air condi- tioning controls.

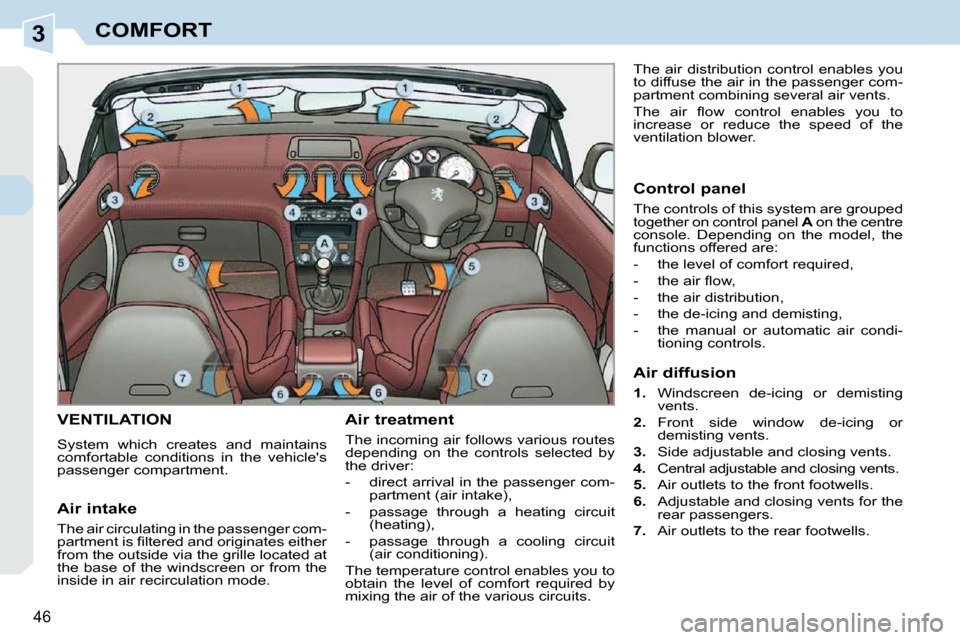

Air diffusion
1. Windscreen de-icing or demisting
vents.
2. Front side window de-icing or
demisting vents.
3. Side adjustable and closing vents.
4. Central adjustable and closing vents.
5. Air outlets to the front footwells.
6. Adjustable and closing vents for the
rear passengers.
7. Air outlets to the rear footwells.
Page 44 of 294
3
i
47
COMFORT
The air conditioning system does
not contain chlorine and does not
present any danger to the ozone

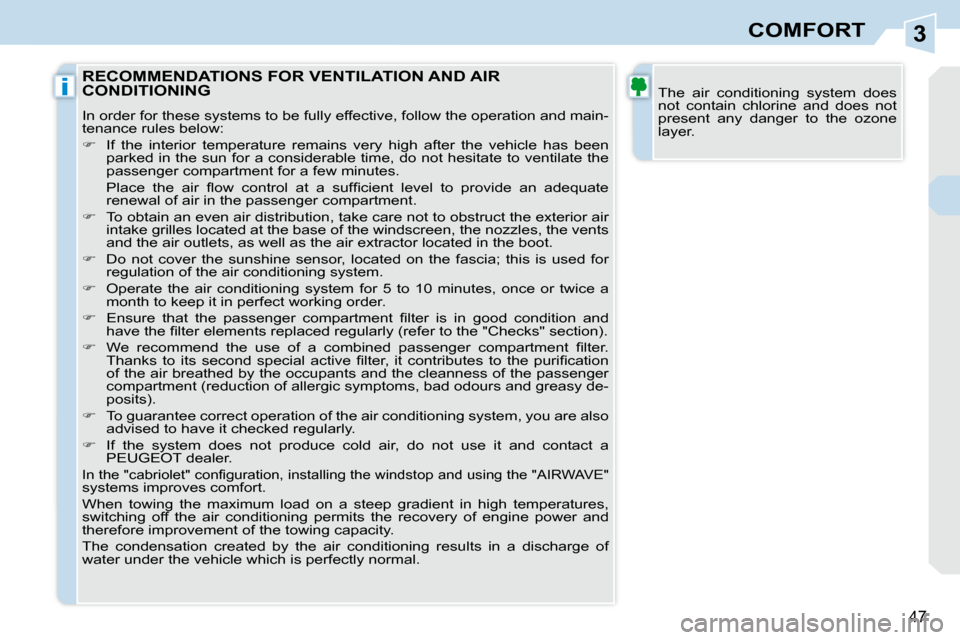

layer. RECOMMENDATIONS FOR VENTILATION AND AIR CONDITIONING
In order for these systems to be fully effective, follow the operation and main-
tenance rules below:
If the interior temperature remains very high after the vehicle has been
parked in the sun for a considerable time, do not hesitate t o ventilate the
passenger compartment for a few minutes.
P l a c e t h e a i r fl o w c o n t r o l a t a s u f fi c i e n t l e v e l t o p r o v i d e a n a d e q u a t e
renewal of air in the passenger compartment.
To obtain an even air distribution, take care not to obst ruct the exterior air
intake grilles located at the base of the windscreen, the n ozzles, the vents
and the air outlets, as well as the air extractor located in the boot.
Do not cover the sunshine sensor, located on the fascia; th is is used for
regulation of the air conditioning system.
Operate the air conditioning system for 5 to 10 minutes, on ce or twice a
month to keep it in perfect working order.
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t m e n t fi l t e r i s i n g o o d c o n d i t i o n a n d
h a v e t h e fi l t e r e l e m e n t s r e p l a c e d r e g u l a r l y ( r e f e r t o t h e " C h e c k s " s e c t i o n ) .
W e r e c o m m e n d t h e u s e o f a c o m b i n e d p a s s e n g e r c o m p a r t m e n t fi l t e r .
T h a n k s t o i t s s e c o n d s p e c i a l a c t i v e fi l t e r , i t c o n t r i b u t e s t o t h e p u r i fi c a t i o n
of the air breathed by the occupants and the cleanness of th e passenger
compartment (reduction of allergic symptoms, bad odours and greasy de-
posits).
To guarantee correct operation of the air conditioning syste m, you are also
advised to have it checked regularly.
If the system does not produce cold air, do not use it and contact a
PEUGEOT dealer.
I n t h e " c a b r i o l e t " c o n fi g u r a t i o n , i n s t a l l i n g t h e w i n d s t o p a n d u s i n g t h e " A I R W A V E " systems improves comfort.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning permits the recovery of engi ne power and
therefore improvement of the towing capacity.
The condensation created by the air conditioning results in a discharge of
water under the vehicle which is perfectly normal.
Page 45 of 294
3
i
48
COMFORT

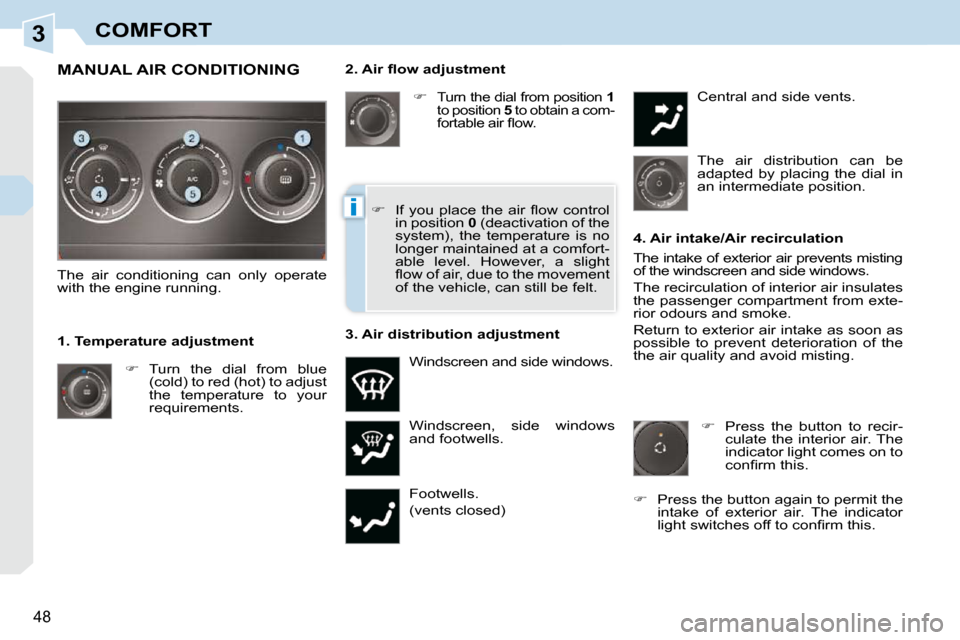

2 . A i r fl o w a d j u s t m e n t
