Page 171 of 292
10
i
169
PRACTICAL INFORMATION

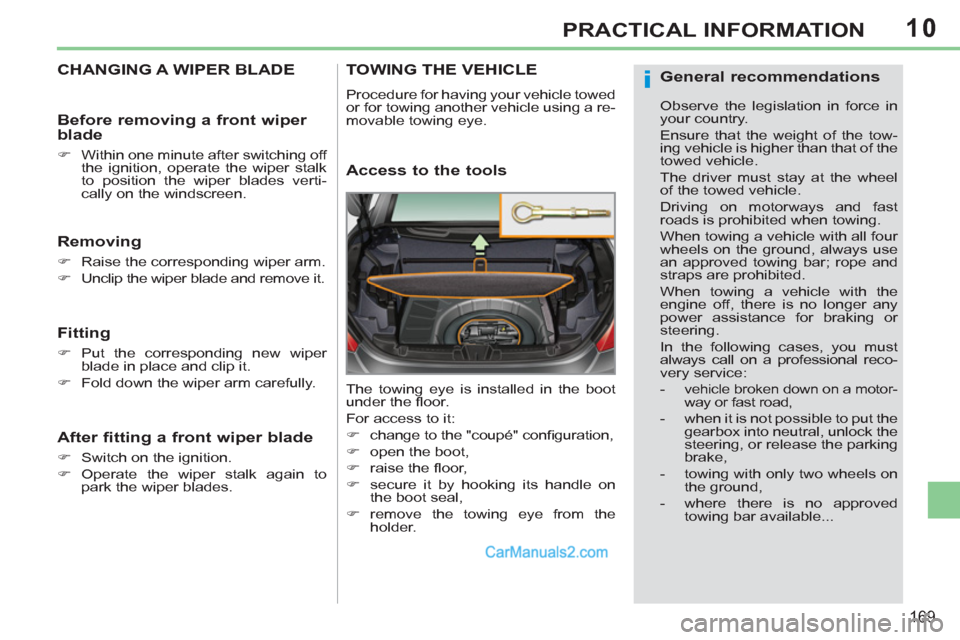

CHANGING A WIPER BLADE
Removing
)
Raise the corresponding wiper arm.
)
Unclip the wiper blade and remove it.
Fitting
)
Put the corresponding new wiper
blade in place and clip it.
)
Fold down the wiper arm carefully.
Before removing a front wiper
blade
)
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades verti-
cally on the windscreen.
After fitting a front wiper blade
)
Switch on the ignition.
)
Operate the wiper stalk again to
park the wiper blades.
TOWING THE VEHICLE
Procedure for having your vehicle towed
or for towing another vehicle using a re-
movable towing eye.
Access to the tools
The towing eye is installed in the boot
under the fl oor.
For access to it:
)
change to the "coupé" confi guration,
)
open the boot,
)
raise the fl oor,
)
secure it by hooking its handle on
the boot seal,
)
remove the towing eye from the
holder.
General recommendations
Observe the legislation in force in
your country.
Ensure that the weight of the tow-
ing vehicle is higher than that of the
towed vehicle.
The driver must stay at the wheel
of the towed vehicle.
Driving on motorways and fast
roads is prohibited when towing.
When towing a vehicle with all four
wheels on the ground, always use
an approved towing bar; rope and
straps are prohibited.
When towing a vehicle with the
engine off, there is no longer any
power assistance for braking or
steering.
In the following cases, you must
always call on a professional reco-
very service:
-
vehicle broken down on a motor-
way or fast road,
- when it is not possible to put the
gearbox into neutral, unlock the
steering, or release the parking
brake,
- towing with only two wheels on
the ground,
- where there is no approved
towing bar available...
Page 172 of 292
10
i
170
PRACTICAL INFORMATION

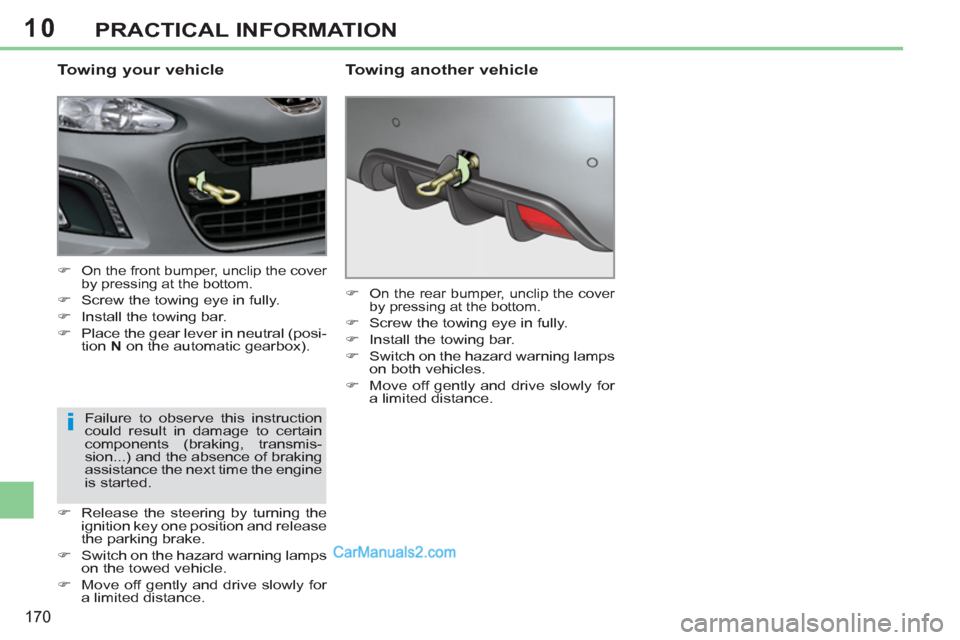

Towing your vehicle
)
On the front bumper, unclip the cover
by pressing at the bottom.
)
Screw the towing eye in fully.
)
Install the towing bar.
)
Place the gear lever in neutral (posi-
tion N
on the automatic gearbox).
)
Release the steering by turning the
ignition key one position and release
the parking brake.
)
Switch on the hazard warning lamps
on the towed vehicle.
)
Move off gently and drive slowly for
a limited distance.
Failure to observe this instruction
could result in damage to certain
components (braking, transmis-
sion...) and the absence of braking
assistance the next time the engine
is started.
)
On the rear bumper, unclip the cover
by pressing at the bottom.
)
Screw the towing eye in fully.
)
Install the towing bar.
)
Switch on the hazard warning lamps
on both vehicles.
)
Move off gently and drive slowly for
a limited distance.
Towing another vehicle
Page 173 of 292
10
i
i
171
PRACTICAL INFORMATION

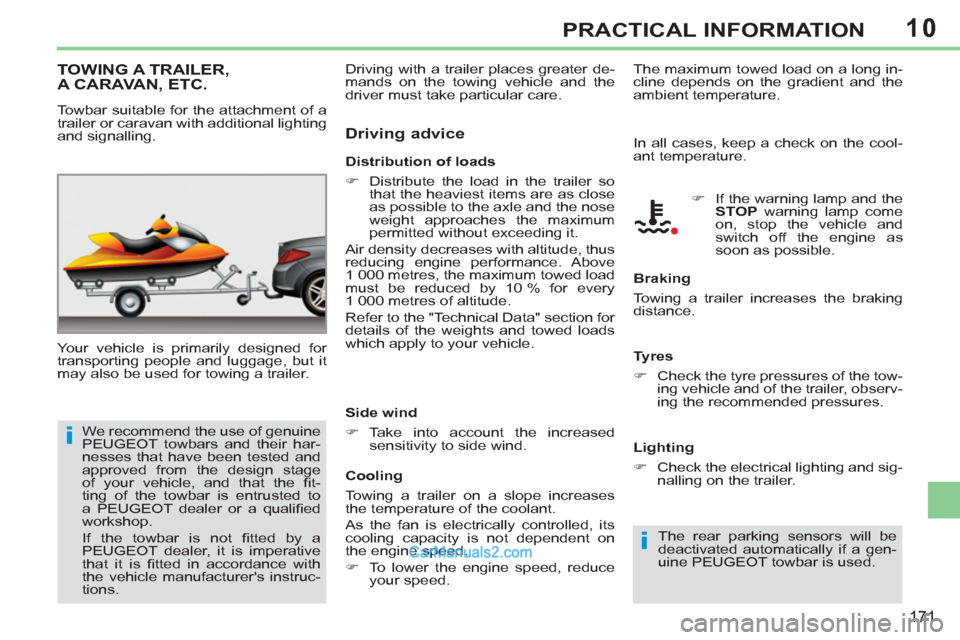

TOWING A TRAILER,
A CARAVAN, ETC.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer.
Distribution of loads
)
Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towed load
must be reduced by 10 % for every
1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towed loads
which apply to your vehicle.
Side wind
)
Take into account the increased
sensitivity to side wind.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
)
To lower the engine speed, reduce
your speed.
Towbar suitable for the attachment of a
trailer or caravan with additional lighting
and signalling.
Driving advice
We recommend the use of genuine
PEUGEOT towbars and their har-
nesses that have been tested and
approved from the design stage
of your vehicle, and that the fi t-
ting of the towbar is entrusted to
a PEUGEOT dealer or a qualifi ed
workshop.
If the towbar is not fi tted by a
PEUGEOT dealer, it is imperative
that it is fi tted in accordance with
the vehicle manufacturer's instruc-
tions. Driving with a trailer places greater de-
mands on the towing vehicle and the
driver must take particular care.
In all cases, keep a check on the cool-
ant temperature.
Braking
Towing a trailer increases the braking
distance.
Tyres
)
Check the tyre pressures of the tow-
ing vehicle and of the trailer, observ-
ing the recommended pressures.
Lighting
)
Check the electrical lighting and sig-
nalling on the trailer.
The rear parking sensors will be
deactivated automatically if a gen-
uine PEUGEOT towbar is used.
)
If the warning lamp and the
STOP
warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
The maximum towed load on a long in-
cline depends on the gradient and the
ambient temperature.
Page 174 of 292
10
i
!
172
PRACTICAL INFORMATION

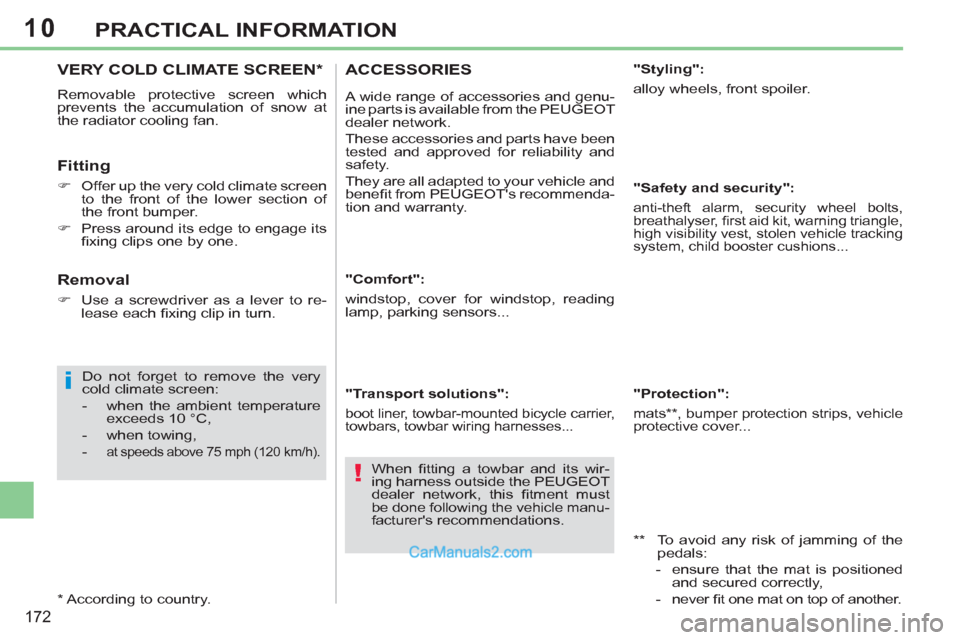

VERY COLD CLIMATE SCREEN *
Removable protective screen which
prevents the accumulation of snow at
the radiator cooling fan.
Fitting
)
Offer up the very cold climate screen
to the front of the lower section of
the front bumper.
)
Press around its edge to engage its
fi xing clips one by one.
Do not forget to remove the very
cold climate screen:
- when the ambient temperature
exceeds 10 °C,
- when towing,
-
at speeds above 75 mph (120 km/h).
* According to country.
Removal
)
Use a screwdriver as a lever to re-
lease each fi xing clip in turn.
"Comfort":
windstop, cover for windstop, reading
lamp, parking sensors...
"Transport solutions":
boot liner, towbar-mounted bicycle carrier,
towbars, towbar wiring harnesses...
ACCESSORIES
A wide range of accessories and genu-
ine parts is available from the PEUGEOT
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benefi t from PEUGEOT's recommenda-
tion and warranty.
"Styling":
alloy wheels, front spoiler.
"Safety and security":
anti-theft alarm, security wheel bolts,
breathalyser, fi rst aid kit, warning triangle,
high visibility vest, stolen vehicle tracking
system, child booster cushions...
** To avoid any risk of jamming of the
pedals:
- ensure that the mat is positioned
and secured correctly,
- never fi t one mat on top of another.
"Protection":
mats ** , bumper protection strips, vehicle
protective cover...
When fi tting a towbar and its wir-
ing harness outside the PEUGEOT
dealer network, this fi tment must
be done following the vehicle manu-
facturer's recommendations.
Page 175 of 292
10
!
i
i
173
PRACTICAL INFORMATION

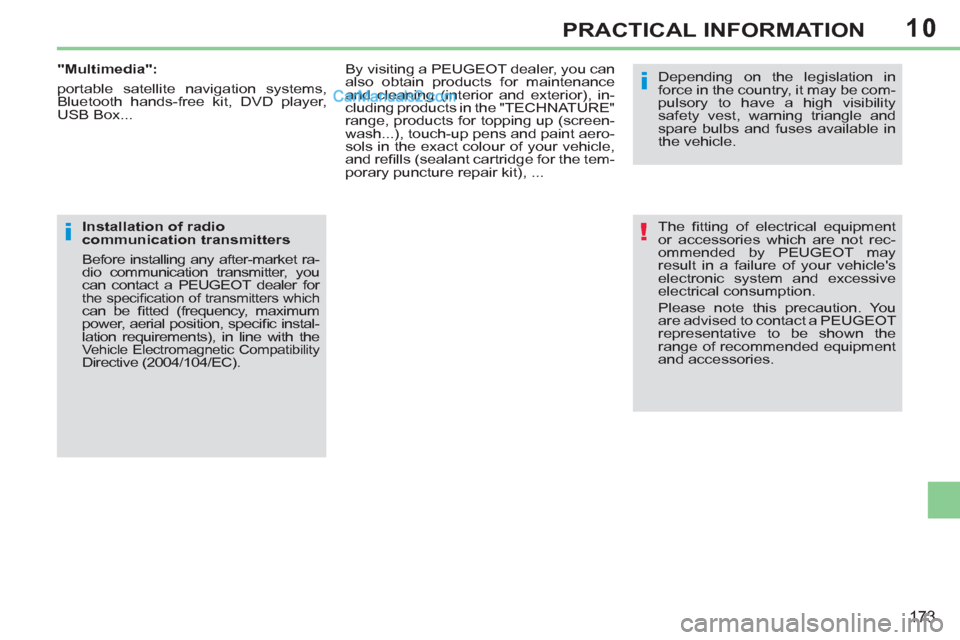

The fi tting of electrical equipment
or accessories which are not rec-
ommended by PEUGEOT may
result in a failure of your vehicle's
electronic system and excessive
electrical consumption.
Please note this precaution. You
are advised to contact a PEUGEOT
representative to be shown the
range of recommended equipment
and accessories.
Depending on the legislation in
force in the country, it may be com-
pulsory to have a high visibility
safety vest, warning triangle and
spare bulbs and fuses available in
the vehicle.
By visiting a PEUGEOT dealer, you can
also obtain products for maintenance
and cleaning (interior and exterior), in-
cluding products in the "TECHNATURE"
range, products for topping up (screen-
wash...), touch-up pens and paint aero-
sols in the exact colour of your vehicle,
and refi lls (sealant cartridge for the tem-
porary puncture repair kit), ...
Installation of radio
communication transmitters
Before installing any after-market ra-
dio communication transmitter, you
can contact a PEUGEOT dealer for
the specifi cation of transmitters which can be fi tted (frequency, maximum
power, aerial position, specifi c instal-
lation requirements), in line with the
Vehicle Electromagnetic Compatibility Directive (2004/104/EC).
"Multimedia":
portable satellite navigation systems,
Bluetooth hands-free kit, DVD player,
USB Box...

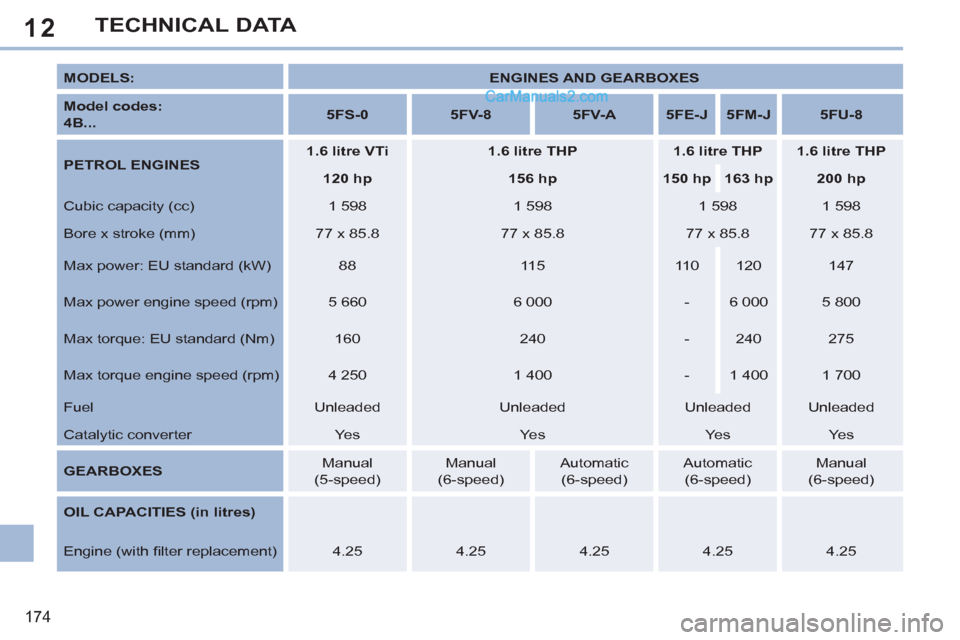

Page 176 of 292
12
174
TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
4B...
5FS-0
5FV-8
5FV-A
5FE-J
5FM-J
5FU-8
PETROL ENGINES
1.6 litre VTi
1.6 litre THP
1.6 litre THP
1.6 litre THP
120 hp
156 hp
150 hp
163 hp
200 hp
Cubic capacity (cc)
1 598
1 598
1 598
1 598
Bore x stroke (mm)
77 x 85.8
77 x 85.8
77 x 85.8
77 x 85.8
Max power: EU standard (kW)
88
11 5
110
120
147
Max power engine speed (rpm)
5 660
6 000
-
6 000
5 800
Max torque: EU standard (Nm)
160
240
-
240
275
Max torque engine speed (rpm)
4 250
1 400
-
1 400
1 700
Fuel
Unleaded
Unleaded
Unleaded
Unleaded
Catalytic converter
Ye s
Yes
Yes
Yes
GEARBOXES
Manual
(5-speed)
Manual
(6-speed)
Automatic
(6-speed)
Automatic
(6-speed)
Manual
(6-speed)
OIL CAPACITIES (in litres)
Engine (with fi lter replacement)
4.25
4.25
4.25
4.25
4.25
Page 177 of 292
12
175
TECHNICAL DATA
*
The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning: towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; when the ambi-
ent temperature is higher than 37 °C, limit the towed weight.

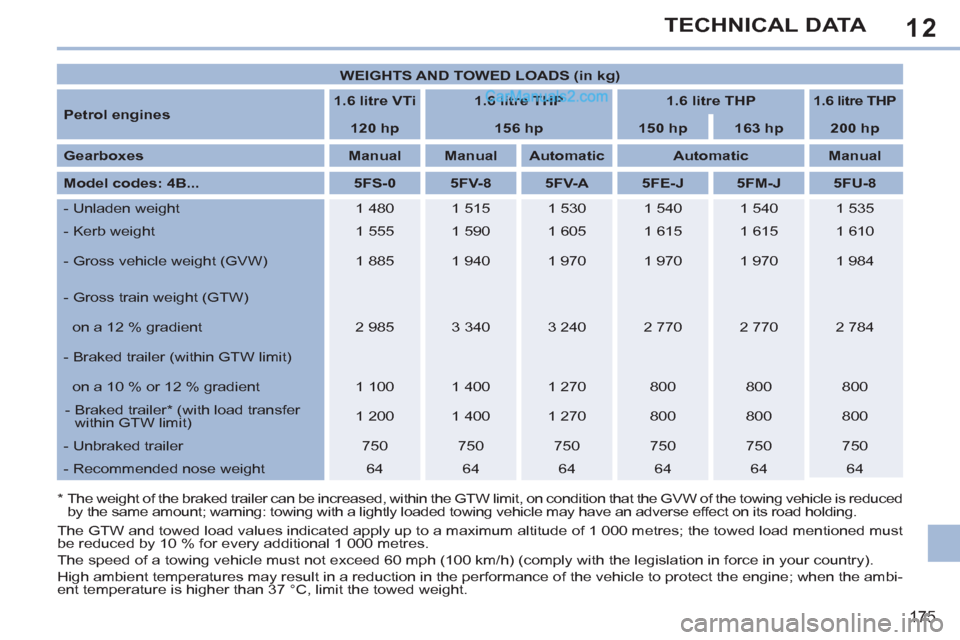

WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.6 litre VTi
1.6 litre THP
1.6 litre THP
1.6 litre THP
120 hp
156 hp
150 hp
163 hp
200 hp
Gearboxes
Manual
Manual
Automatic
Automatic
Manual
Model codes: 4B...
5FS-0
5FV-8
5FV-A
5FE-J
5FM-J
5FU-8
- Unladen weight
1 480
1 515
1 530
1 540
1 540
1 535
- Kerb weight
1 555
1 590
1 605
1 615
1 615
1 610
- Gross vehicle weight (GVW)
1 885
1 940
1 970
1 970
1 970
1 984
- Gross train weight (GTW)
on a 12 % gradient
2 985
3 340
3 240
2 770
2 770
2 784
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 100
1 400
1 270
800
800
800
- Braked trailer * (with load transfer
within GTW limit)
1 200
1 400
1 270
800
800
800
- Unbraked trailer
750
750
750
750
750
750
- Recommended nose weight
64
64
64
64
64
64
Page 178 of 292
12
176

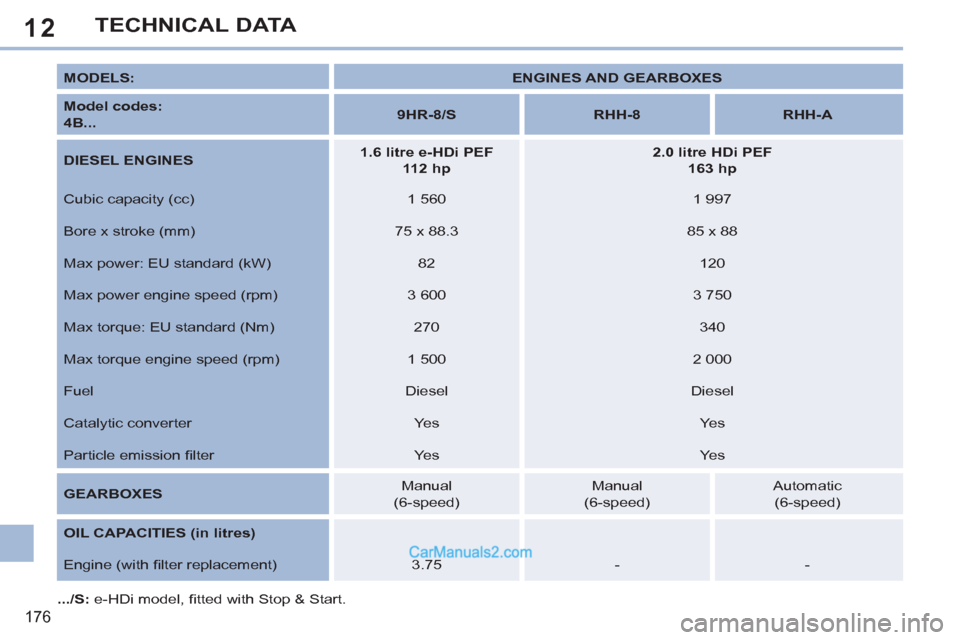

TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
4B...
9HR-8/S
RHH-8
RHH-A
DIESEL ENGINES
1.6 litre e-HDi PEF
112 hp
2.0 litre HDi PEF
163 hp
Cubic capacity (cc)
1 560
1 997
Bore x stroke (mm)
75 x 88.3
85 x 88
Max power: EU standard (kW)
82
120
Max power engine speed (rpm)
3 600
3 750
Max torque: EU standard (Nm)
270
340
Max torque engine speed (rpm)
1 500
2 000
Fuel
Diesel
Diesel
Catalytic converter
Yes
Yes
Particle emission fi lter
Yes
Yes
GEARBOXES
Manual
(6-speed)
Manual
(6-speed)
Automatic
(6-speed)
OIL CAPACITIES (in litres)
Engine (with fi lter replacement)
3.75
-
-
.../S:
e-HDi model, fi tted with Stop & Start.
Page 179 of 292
12
177

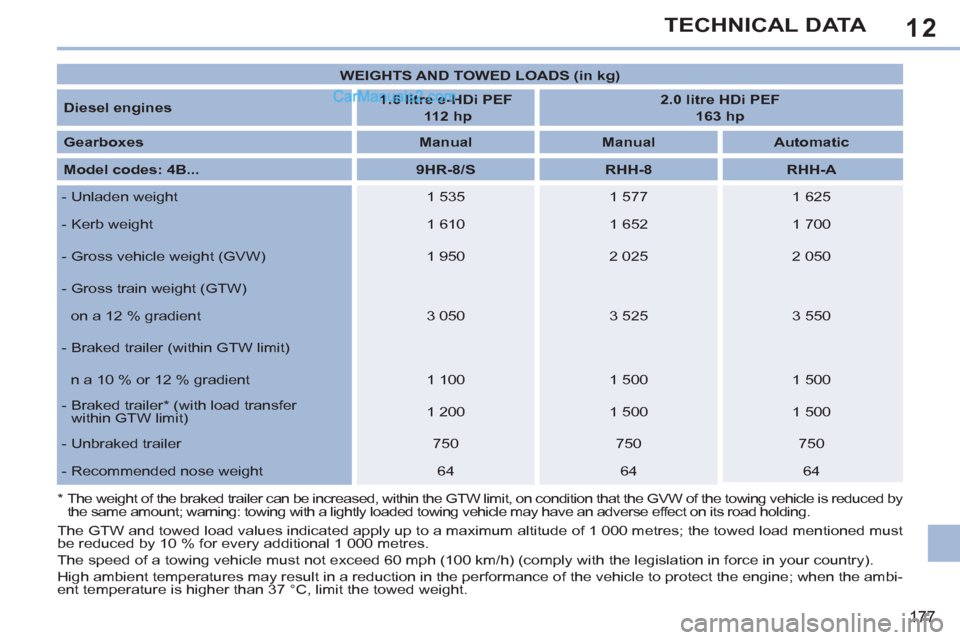

TECHNICAL DATA
*
The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced by
the same amount; warning: towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
1.6 litre e-HDi PEF
112 hp
2.0 litre HDi PEF
163 hp
Gearboxes
Manual
Manual
Automatic
Model codes: 4B...
9HR-8/S
RHH-8
RHH-A
- Unladen weight
1 535
1 577
1 625
- Kerb weight
1 610
1 652
1 700
- Gross vehicle weight (GVW)
1 950
2 025
2 050
- Gross train weight (GTW)
on a 12 % gradient
3 050
3 525
3 550
- Braked trailer (within GTW limit)
n a 10 % or 12 % gradient
1 100
1 500
1 500
- Braked trailer * (with load transfer
within GTW limit)
1 200
1 500
1 500
- Unbraked trailer
750
750
750
- Recommended nose weight
64
64
64
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; when the ambi-
ent temperature is higher than 37 °C, limit the towed weight.
Page 180 of 292
12
178
TECHNICAL DATA

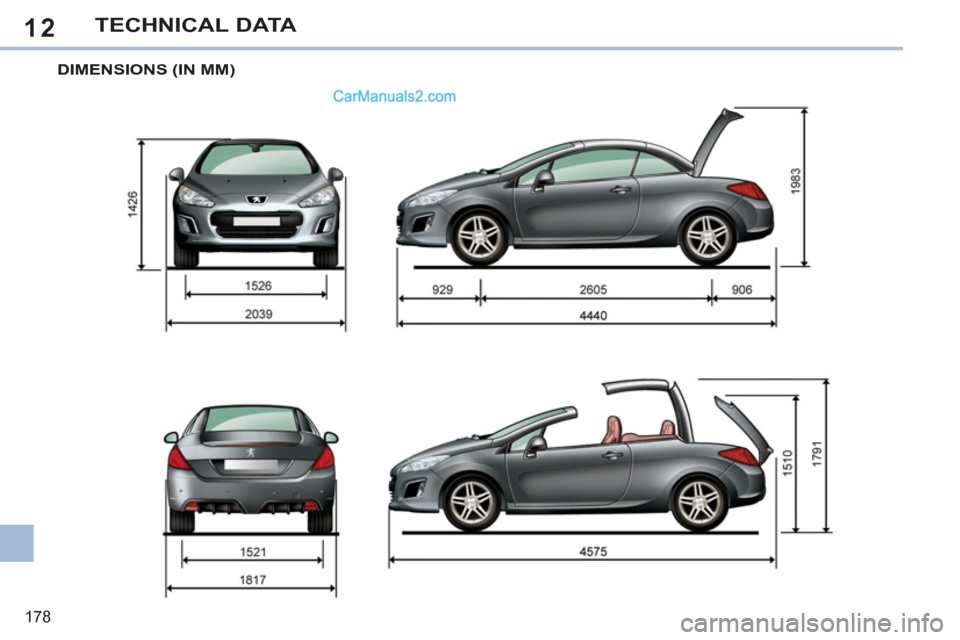

DIMENSIONS (IN MM)
