Peugeot 308 CC 2011 Owner's Manual

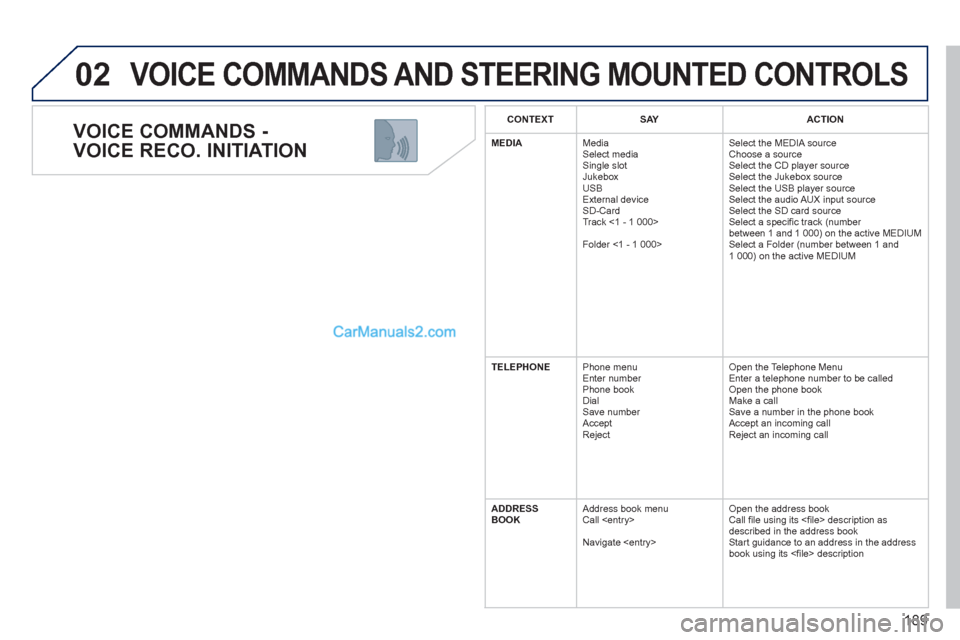

189
02

VOICE COMMANDS -
VOICE RECO. INITIATION
VOICE COMMANDS AND STEERING MOUNTED CONTROLS



CONTEXT


SAY


ACTION



MEDIA

Media
Select media
Single slot
Jukebox
USB
External device
SD-Card
Track <1 - 1 000>
Folder <1 - 1 000> Select the MEDIA source
Choose a source
Select the CD player source
Select the Jukebox source
Select the USB player source
Select the audio AUX input source
Select the SD card source
Select a specifi c track (number
between 1 and 1 000) on the active MEDIUM
Select a Folder (number between 1 and
1 000) on the active MEDIUM


TELEPHONE

Phone menu
Enter number
Phone book
Dial
Save number
Accept
Reject Open the Telephone Menu
Enter a telephone number to be called
Open the phone book
Make a call
Save a number in the phone book
Accept an incoming call
Reject an incoming call


ADDRESS
BOOK
Address book menu
Call
Navigate Open the address book
Call fi le using its <fi le> description as
described in the address book
Start guidance to an address in the address
book using its <fi le> description

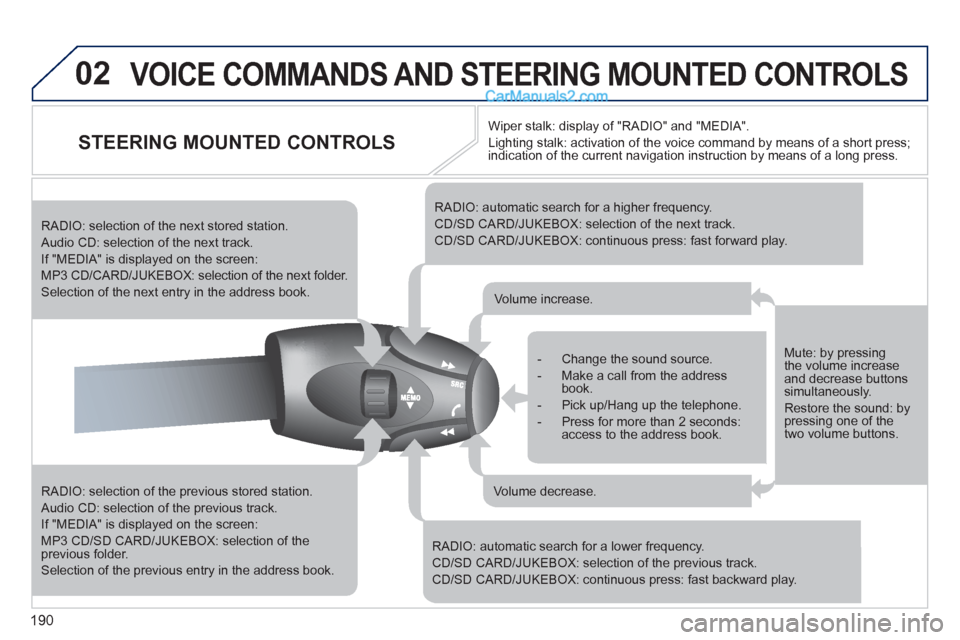

190
02 VOICE COMMANDS AND STEERING MOUNTED CONTROLS










STEERING MOUNTED CONTROLS


RADIO: selection of the previous stored station.
Audio CD: selection of the previous track.
If "MEDIA" is displayed on the screen:
MP3 CD/SD CARD/JUKEBOX: selection of the
previous folder.
Selection of the previous entry in the address book.
RADIO: selection of the next stored station.
Audio CD: selection of the next track.
If "MEDIA" is displayed on the screen:
MP3 CD/CARD/JUKEBOX: selection of the next folder.
Selection of the next entry in the address book.
RADIO: automatic search for a higher frequency.
CD/SD CARD/JUKEBOX: selection of the next track.
CD/SD CARD/JUKEBOX: continuous press: fast forward play.

RADIO: automatic search for a lower frequency.
CD/SD CARD/JUKEBOX: selection of the previous track.
CD/SD CARD/JUKEBOX: continuous press: fast backward play.



- Change the sound source.

- Make a call from the address
book.

- Pick up/Hang up the telephone.

- Press for more than 2 seconds:
access to the address book.

Volume increase.

Volume decrease.
Mute: by pressing
the volume increase
and decrease buttons
simultaneously.
Restore the sound: by
pressing one of the
two volume buttons.
Wiper stalk: display of "RADIO" and "MEDIA".
Lighting stalk: activation of the voice command by means of a short press;
indication of the current navigation instruction by means of a long press.

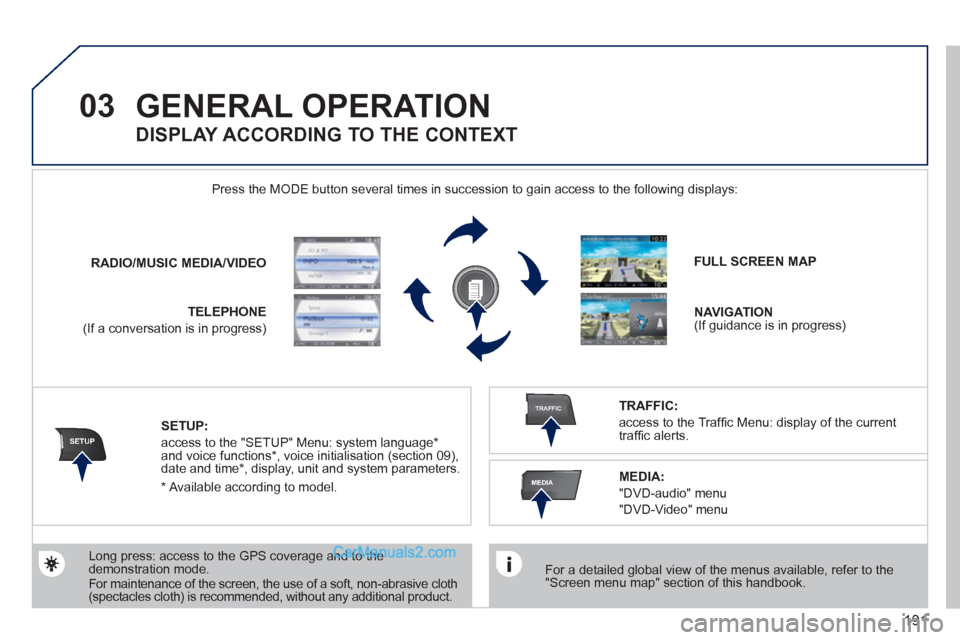

191
03
SETUP
TRAFFIC
MEDIA
GENERAL OPERATION


For a detailed global view of the menus available, refer to the
"Screen menu map" section of this handbook.
Press the MODE button several times in succession to gain access to the following displays:

Long press: access to the GPS coverage and to the
demonstration mode.
For maintenance of the screen, the use of a soft, non-abrasive cloth
(spectacles cloth) is recommended, without any additional product.

RADIO

/

MUSIC

MEDIA/VIDEO




TELEPHONE


(If a conversation is in progress)

FULL SCREEN MAP




NAVIGATION


(If guidance is in progress)


SETUP:


access to the "SETUP" Menu: system language *
and voice functions * , voice initialisation (section 09),
date and time * , display, unit and system parameters.

TRAFFIC:


access to the Traffi c Menu: display of the current
traffi c alerts.










DISPLAY ACCORDING TO THE CONTEXT



MEDIA:


"DVD-audio" menu
"DVD-Video" menu
*
Available according to model.

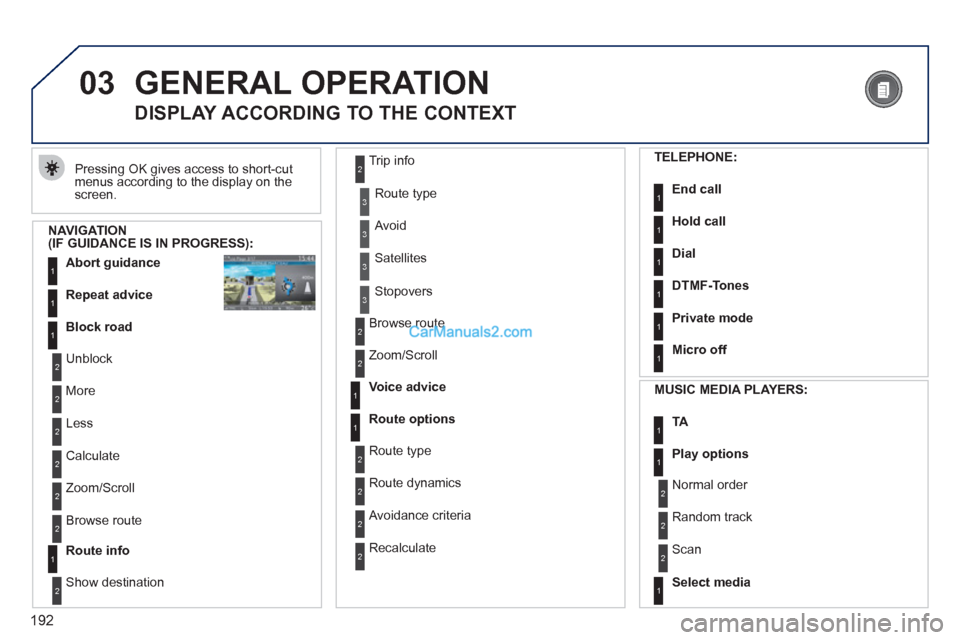

192
03 GENERAL OPERATION

Pressing OK gives access to short-cut
menus according to the display on the
screen.






DISPLAY ACCORDING TO THE CONTEXT


NAVIGATION
(IF GUIDANCE IS IN PROGRESS):

Abort guidance
1
1
1


Repeat advice


Block road

2
2

Unblock
More
2
Less
3
3

Route type
Avoid
3
Satellites
2
2

Calculate
Zoom/Scroll
2
Browse route
1

Route info

2
2

Show destination Trip info
3
Stopovers
2
2

Browse route

Zoom/Scroll
1
1


Voice advice


Route options

2
2

Route type
Route dynamics
2
Avoidance criteria
2
Recalculate
TELEPHONE:


End call
1
1
1
1


Hold call


Dial



DTMF-Tones

1

Private mode

1

Micro off



MUSIC MEDIA PLAYERS:


TA
1
1

Play options

1

Select media


2
2

Normal order
Random track
2
Scan

193

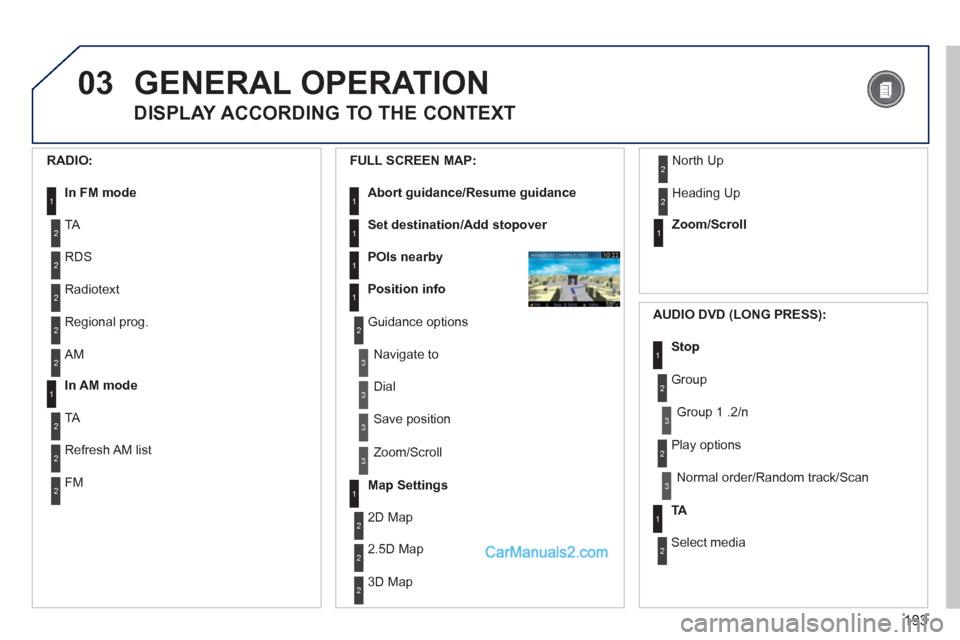

03 GENERAL OPERATION


DISPLAY ACCORDING TO THE CONTEXT


RADIO:


In FM mode
1
1

In AM mode

2
2

TA
RDS
2
Radiotext
2
Regional prog.
2
AM
2
2

TA
Refresh AM list
2
FM

FULL SCREEN MAP:


Abort guidance/Resume guidance
1
1
1
1


Set destination/Add stopover


POIs nearby


Position info

2
Guidance options
3
3

Navigate to
Dial
3
Save position
3
Zoom/Scroll


Map Settings
1
1

Zoom/Scroll


2
2

2D Map
2.5D Map
2
3D Map
2
North Up
2
Heading Up


AUDIO DVD (LONG PRESS):
1

Stop

2
Group
3
Group 1 .2/n


TA
1
2
Select media
2
Play options
3
Normal order/Random track/Scan

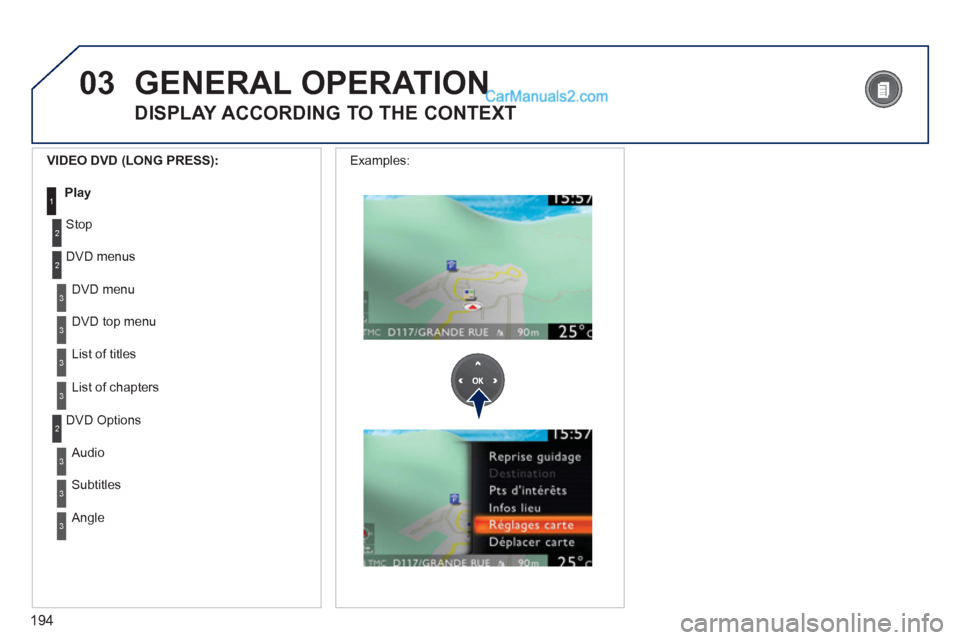

194
03
3
3
DVD menu
DVD top menu
3
List of titles
3
List of chapters
VIDEO DVD (LONG PRESS):


Play
1

GENERAL OPERATION


DISPLAY ACCORDING TO THE CONTEXT
2
2

Stop
DVD menus
3
3

Audio
Subtitles
3
Angle
2
DVD Options Examples:

195


- the map setting which allows the map to be displayed fl at, in perspective or in 3D.




- confi guration of the system by means of voice commands.



Map in 3D

Flat map


Map in perspective





Peugeot Connect Media IS:

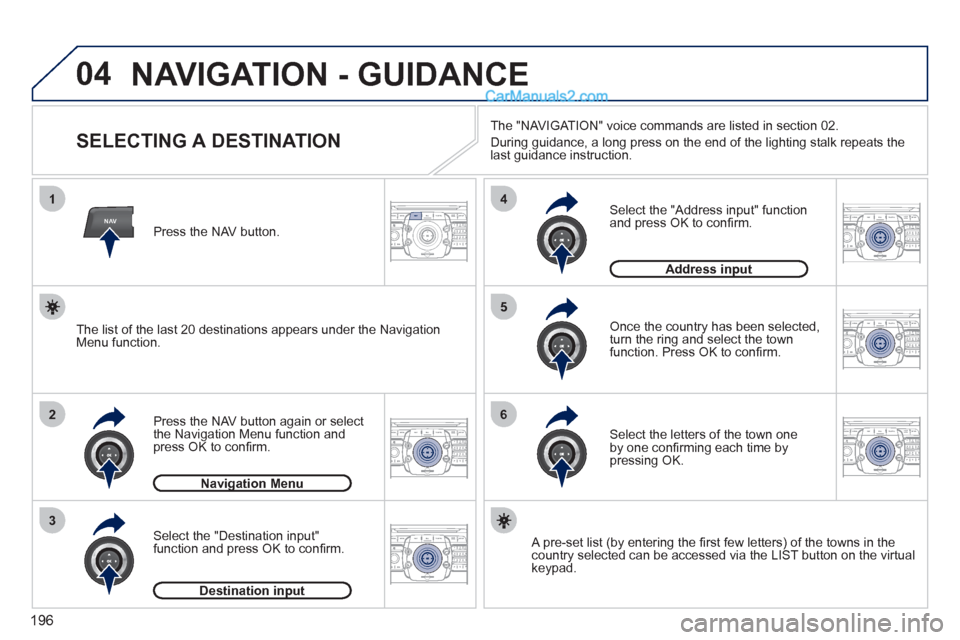

196
04
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAVESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
NAV
1
2
3
4
5
6
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
NAVIGATION - GUIDANCE
















SELECTING A DESTINATION


Press the NAV button again or select
the Navigation Menu function and
press OK to confi rm.

Select the "Destination input"
function and press OK to confi rm.
Press the NAV button.

Select the letters of the town one
by one confi rming each time by
pressing OK.


Once the country has been selected,
turn the ring and select the town
function. Press OK to confi rm.


Navigation Menu



Destination input


A pre-set list (by entering the fi rst few letters) of the towns in the
country selected can be accessed via the LIST button on the virtual
keypad.


Select the "Address input" function
and press OK to confi rm.

Address input



The list of the last 20 destinations appears under the Navigation
Menu function.
The "NAVIGATION" voice commands are listed in section 02.
During guidance, a long press on the end of the lighting stalk repeats the
last guidance instruction.

197
04
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK7
8
9
10
11
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
Repeat steps 5 to 7 for the "Street"
and "House number" functions.

To delete a destination; from steps 1 to 3, select "Choose from last
destinations".
A long press on one of the destinations displays a list of actions
from which you can select:
Select the "Save to address book" function to record the address
entered in a directory fi le. Press OK to confi rm the selection.
The Peugeot Connect Media allows more than 4 000 contact
records to be saved.
To speed up the process, the post code can be entered directly
after selecting the "Postal code" function.
Use the virtual keypad to enter the letters and digits.

Select the route type:
"Fast route", "Short route", or
"Optimized route" and press OK to
confi rm.
Then select "Start route guidance"
and the press OK to confi rm.


It is also possible to select a destination via "Choose from address
book" or "Choose from last destinations", by selecting a junction, a
town centre, geographic coordinates, or directly on the "Map".

Choose from address book


Choose from last destinations


Start route guidance


It is possible to scroll the map using the 4-direction navigator. It is possible
to select its orientation via the short-cut menu of the "Full screen map".
Press OK then select "Map Settings" and confi rm.

Select the road with the colour
corresponding to the route chosen
and press OK to confi rm and start
guidance.


Turn the ring and select OK.
Press OK to confi rm.


Delete entry

Delete list



NAVIGATION - GUIDANCE

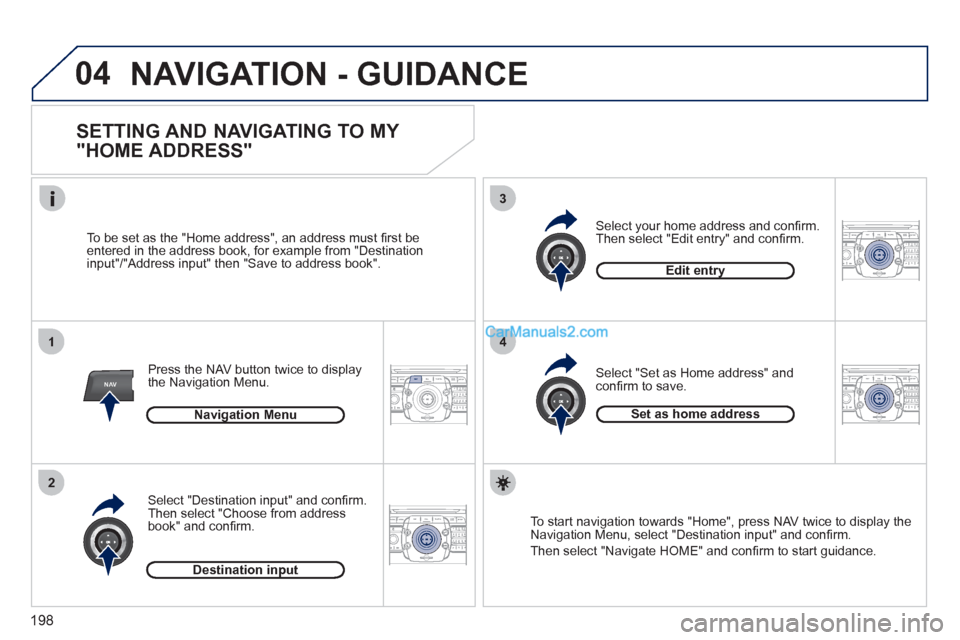

198
04
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
1
2
3
4
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAVESC TRAFFIC
SETUPADDR
BOOKNAV
NAVIGATION - GUIDANCE


SETTING AND NAVIGATING TO MY
"HOME ADDRESS"

Press the NAV button twice to display
the Navigation Menu.
To be set as the "Home address", an address must fi rst be
entered in the address book, for example from "Destination
input"/"Address input" then "Save to address book".

Select "Destination input" and confi rm.
Then select "Choose from address
book" and confi rm.
Select "Set as Home address" and
confi rm to save.
Select your home address and confi rm.
Then select "Edit entry" and confi rm.

To start navigation towards "Home", press NAV twice to display the
Navigation Menu, select "Destination input" and confi rm.
Then select "Navigate HOME" and confi rm to start guidance.



Navigation Menu




Destination input




Edit entry




Set as home address
