Peugeot 308 CC 2013.5 - RHD (UK. Australia) Workshop Manual

3
!
i
49
COMFORT

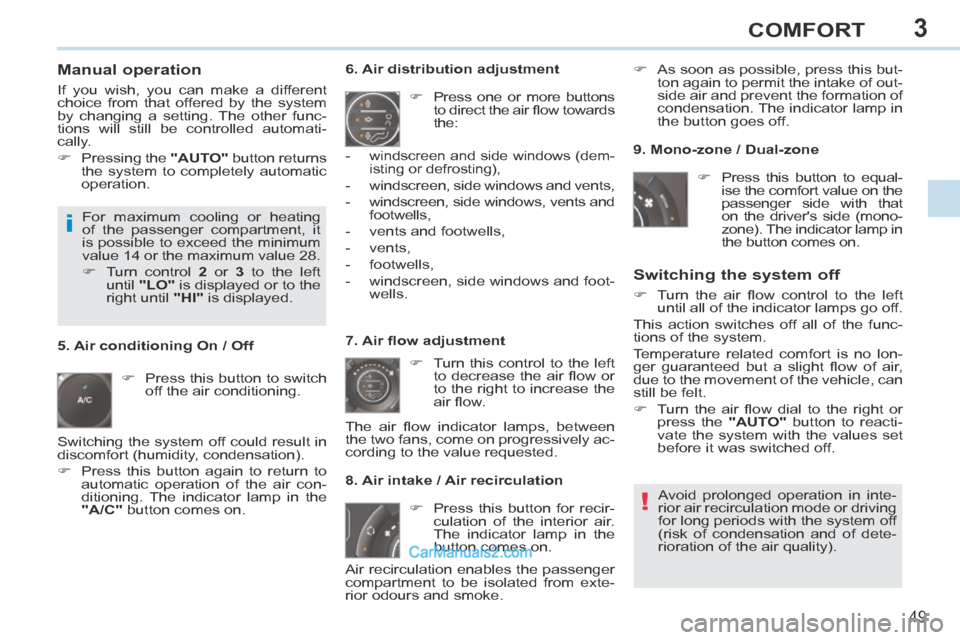

Manual operation
If you wish, you can make a different
choice from that offered by the system
by changing a setting. The other func-
tions will still be controlled automati-
cally.
 Pressing the "AUTO" button returns
the system to completely automatic
operation.
 Press this button to switch off the air conditioning. 6. Air distribution adjustment
 Press one or more buttons to direct the air fl ow towards
the:
7. Air fl ow adjustment  Turn this control to the left to decrease the air fl ow or
to the right to increase the
air fl ow.
8. Air intake / Air recirculation
Switching the system off
 Turn the air fl ow control to the left until all of the indicator lamps go off.
This action switches off all of the func-
tions of the system.
Temperature related comfort is no lon-
ger guaranteed but a slight fl ow of air,
due to the movement of the vehicle, can
still be felt.
 Turn the air fl ow dial to the right or press the "AUTO" button to reacti-
vate the system with the values set
before it was switched off.
 Press this button for recir- culation of the interior air.
The indicator lamp in the
button comes on.
5. Air conditioning On / Off
Avoid prolonged operation in inte-
rior air recirculation mode or driving
for long periods with the system off
(risk of condensation and of dete-
rioration of the air quality).
-
windscreen and side windows (dem-
isting or defrosting),
- windscreen, side windows and vents,
- windscreen, side windows, vents and
footwells,
- vents and footwells,
- vents,
- footwells,
- windscreen, side windows and foot- wells.
The air fl ow indicator lamps, between
the two fans, come on progressively ac-
cording to the value requested.  As soon as possible, press this but-
ton again to permit the intake of out-
side air and prevent the formation of
condensation. The indicator lamp in
the button goes off.
For maximum cooling or heating
of the passenger compartment, it
is possible to exceed the minimum
value 14 or the maximum value 28.
 Turn control 2 or 3 to the left
until "LO" is displayed or to the
right until "HI" is displayed. 9. Mono-zone / Dual-zone
 Press this button to equal-ise the comfort value on the
passenger side with that
on the driver's side (mono-
zone). The indicator lamp in
the button comes on.
Air recirculation enables the passenger
compartment to be isolated from exte-
rior odours and smoke.
Switching the system off could result in
discomfort (humidity, condensation).
 Press this button again to return to
automatic operation of the air con-
ditioning. The indicator lamp in the
"A/C" button comes on.

3

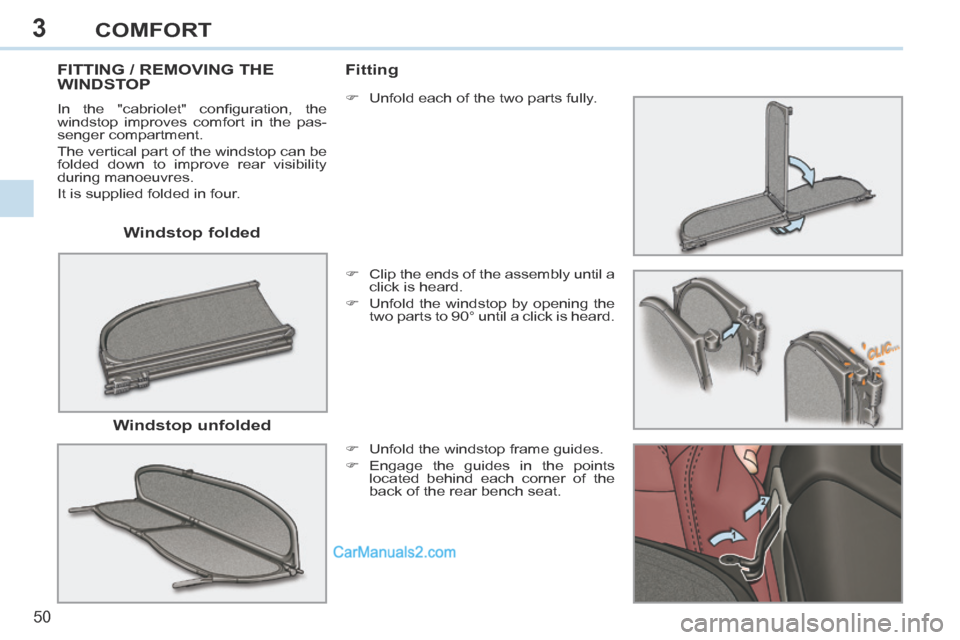

50
COMFORT
Windstop folded
FITTING / REMOVING THE WINDSTOP
In the "cabriolet" confi guration, the
windstop improves comfort in the pas-
senger compartment.
The vertical part of the windstop can be
folded down to improve rear visibility
during manoeuvres.
It is supplied folded in four.
Windstop unfolded Fitting
 Clip the ends of the assembly until a
click is heard.
 Unfold the windstop by opening the two parts to 90° until a click is heard.
 Unfold the windstop frame guides.
 Engage the guides in the points located behind each corner of the
back of the rear bench seat.
 Unfold each of the two parts fully.

3
i

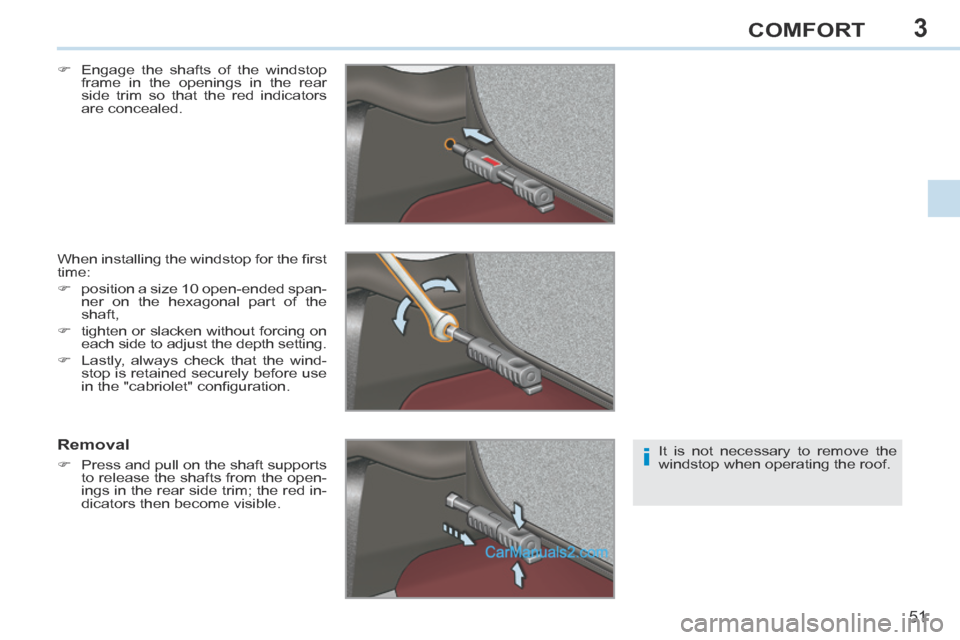

51
COMFORT
 Engage the shafts of the windstop frame in the openings in the rear
side trim so that the red indicators
are concealed.
When installing the windstop for the fi rst
time:
 position a size 10 open-ended span- ner on the hexagonal part of the
shaft,
 tighten or slacken without forcing on each side to adjust the depth setting.
 Lastly, always check that the wind- stop is retained securely before use
in the "cabriolet" confi guration.
Removal
 Press and pull on the shaft supports to release the shafts from the open-
ings in the rear side trim; the red in-
dicators then become visible. It is not necessary to remove the
windstop when operating the roof.

3

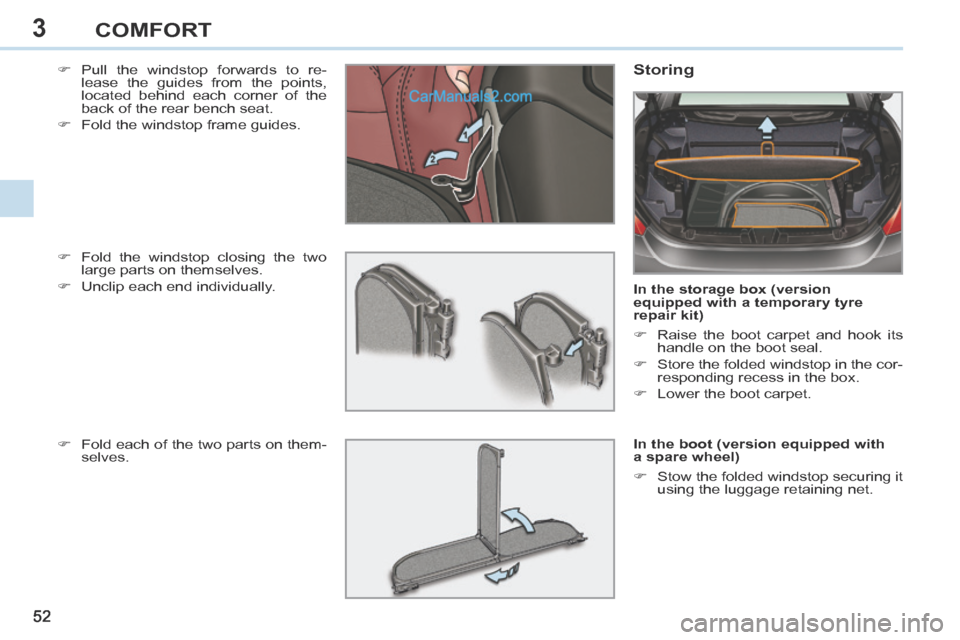

52
COMFORT
 Pull the windstop forwards to re-lease the guides from the points,
located behind each corner of the
back of the rear bench seat.
 Fold the windstop frame guides. Storing
In the storage box (version
equipped with a temporary tyre
repair kit)
 Raise the boot carpet and hook its handle on the boot seal.
 Store the folded windstop in the cor- responding recess in the box.
 Lower the boot carpet.
In the boot (version equipped with
a spare wheel)
 Stow the folded windstop securing it using the luggage retaining net.
 Fold the windstop closing the two
large parts on themselves.
 Unclip each end individually.
 Fold each of the two parts on them- selves.

3
!

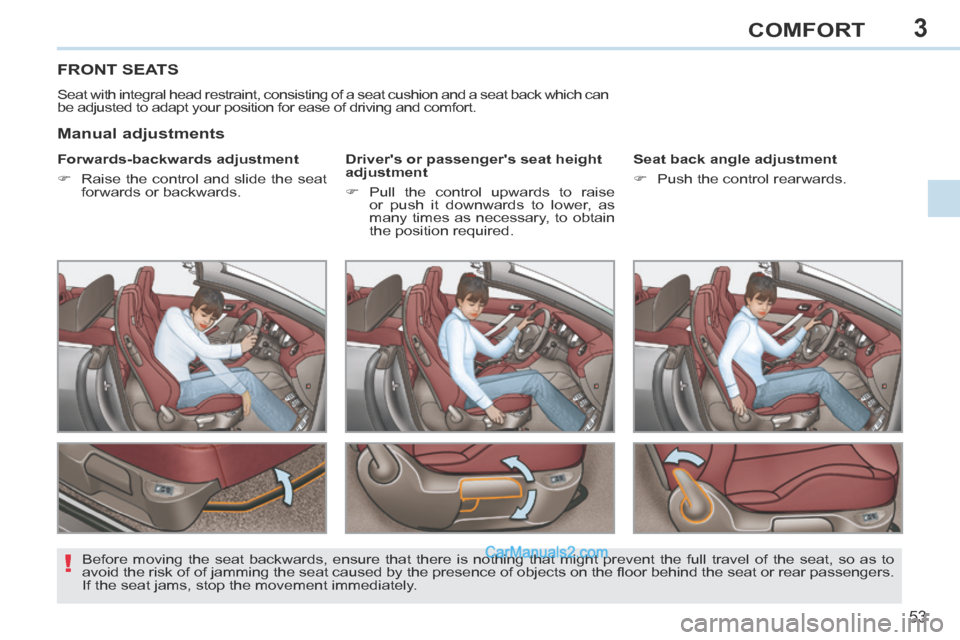

53
COMFORT
FRONT SEATS
Seat with integral head restraint, consisting of a seat cushion and a se\
at back which can
be adjusted to adapt your position for ease of driving and comfort.
Forwards-backwards adjustment
 Raise the control and slide the seat forwards or backwards. Driver's or passenger's seat height
adjustment
 Pull the control upwards to raise
or push it downwards to lower, as
many times as necessary, to obtain
the position required. Seat back angle adjustment
 Push the control rearwards.
Manual adjustments
Before moving the seat backwards, ensure that there is nothing that migh\
t prevent the full travel of the seat, so as to
avoid the risk of of jamming the seat caused by the presence of objects on the fl oor behind the seat or rear passengers.
If the seat jams, stop the movement immediately.

3
i
!

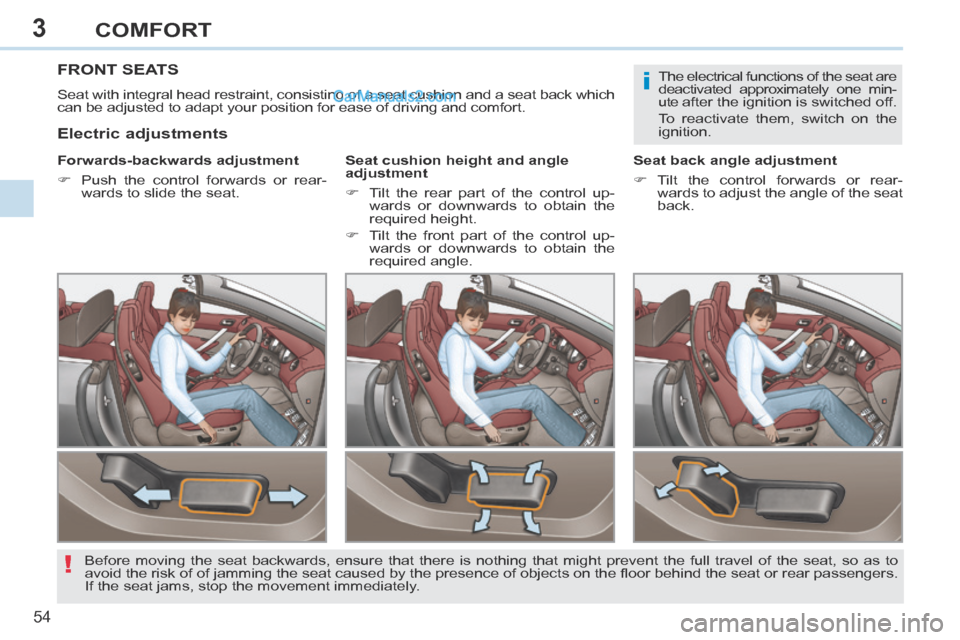

54
COMFORT
FRONT SEATS
Seat with integral head restraint, consisting of a seat cushion and a seat back which
can be adjusted to adapt your position for ease of driving and comfort.
Forwards-backwards adjustment
 Push the control forwards or rear-wards to slide the seat. Seat cushion height and angle
adjustment
 Tilt the rear part of the control up-
wards or downwards to obtain the
required height.
 Tilt the front part of the control up- wards or downwards to obtain the
required angle. Seat back angle adjustment
 Tilt the control forwards or rear-
wards to adjust the angle of the seat
back.
Electric adjustments
The electrical functions of the seat are
deactivated approximately one min-
ute after the ignition is switched off.
To reactivate them, switch on the
ignition.
Before moving the seat backwards, ensure that there is nothing that migh\
t prevent the full travel of the seat, so as to
avoid the risk of of jamming the seat caused by the presence of objects on the fl oor behind the seat or rear passengers.
If the seat jams, stop the movement immediately.

3
!
i

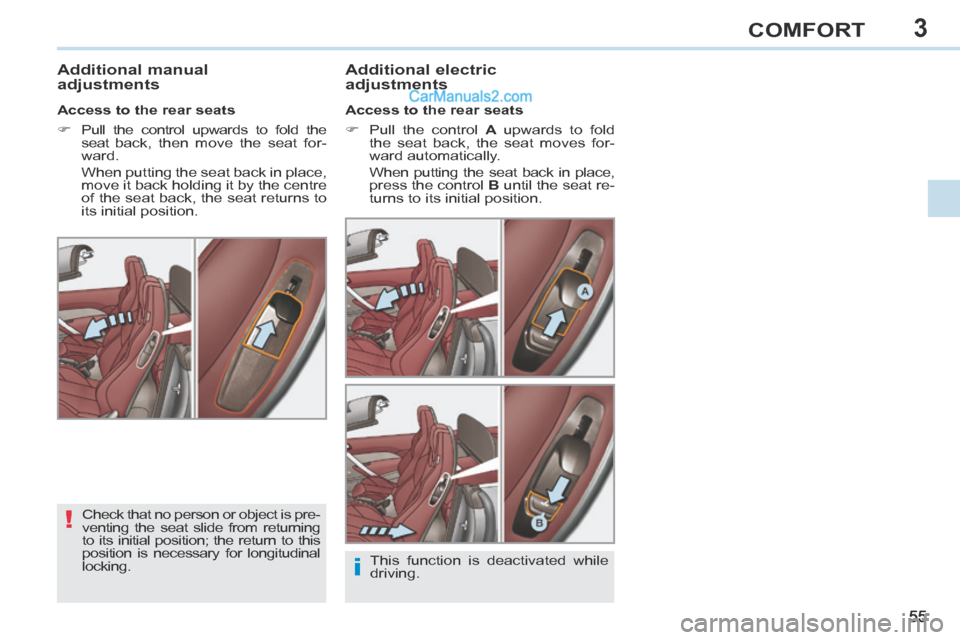

55
COMFORT

Additional manual
adjustments Additional electric
adjustments
Access to the rear seats
 Pull the control
A upwards to fold
the seat back, the seat moves for-
ward automatically.
When putting the seat back in place, press the control B until the seat re-
turns to its initial position.
Access to the rear seats
 Pull the control upwards to fold the
seat back, then move the seat for-
ward.
When putting the seat back in place, move it back holding it by the centre
of the seat back, the seat returns to
its initial position.
Check that no person or object is pre-
venting the seat slide from returning
to its initial position; the return to this
position is necessary for longitudinal
locking. This function is deactivated while
driving.

3
i!
i

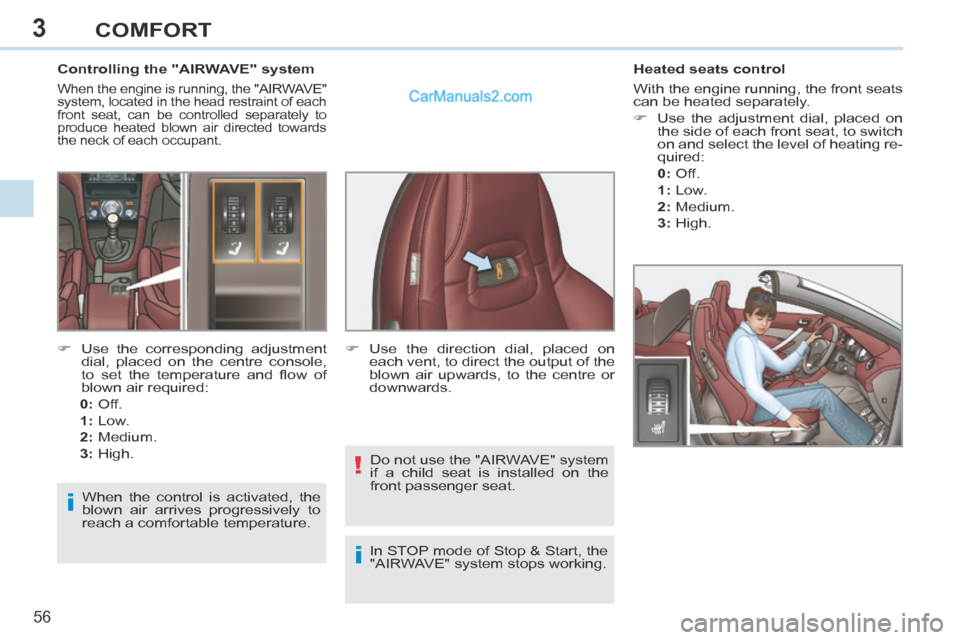

56
COMFORT
Controlling the "AIRWAVE" system
When the engine is running, the "AIRWAVE"
system, located in the head restraint of each
front seat, can be controlled separately to
produce heated blown air directed towards
the neck of each occupant.
Heated seats control
With the engine running, the front seats
can be heated separately.
 Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:
0 : Off.
1 : Low.
2 : Medium.
3 : High.
 Use the corresponding adjustment dial, placed on the centre console,
to set the temperature and fl ow of
blown air required:
0: Off.
1: Low.
2: Medium.
3: High.  Use the direction dial, placed on
each vent, to direct the output of the
blown air upwards, to the centre or
downwards.
When the control is activated, the
blown air arrives progressively to
reach a comfortable temperature. Do not use the "AIRWAVE" system
if a child seat is installed on the
front passenger seat.
In STOP mode of Stop & Start, the
"AIRWAVE" system stops working.

3
!
!

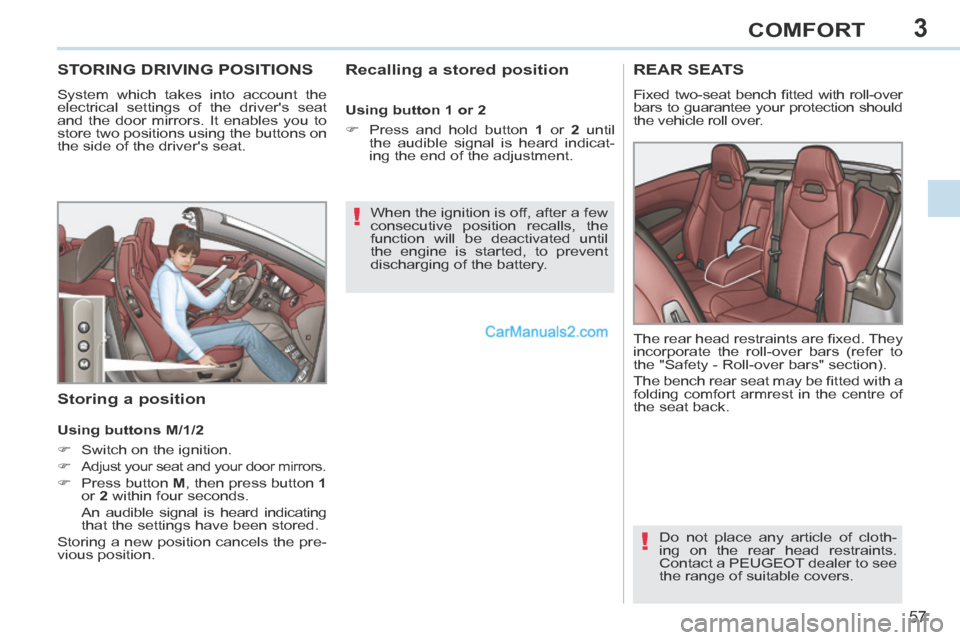

57
COMFORT
STORING DRIVING POSITIONS
System which takes into account the
electrical settings of the driver's seat
and the door mirrors. It enables you to
store two positions using the buttons on
the side of the driver's seat.
Recalling a stored position
Storing a position
When the ignition is off, after a few
consecutive position recalls, the
function will be deactivated until
the engine is started, to prevent
discharging of the battery.
Using buttons M/1/2
 Switch on the ignition.

Adjust your seat and your door mirrors.
 Press button M , then press button 1
or 2 within four seconds.
An audible signal is heard indicating that the settings have been stored.
Storing a new position cancels the pre-
vious position.
REAR SEATS
Fixed two-seat bench fi tted with roll-over
bars to guarantee your protection should
the vehicle roll over.
Do not place any article of cloth-
ing on the rear head restraints.
Contact a PEUGEOT dealer to see
the range of suitable covers.
The rear head restraints are fi xed. They
incorporate the roll-over bars (refer to
the "Safety - Roll-over bars" section).
The bench rear seat may be fi tted with a
folding comfort armrest in the centre of
the seat back.
Using button 1 or 2
 Press and hold button
1 or 2 until
the audible signal is heard indicat-
ing the end of the adjustment.

3
!
i
i
!
58
COMFORT
The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.

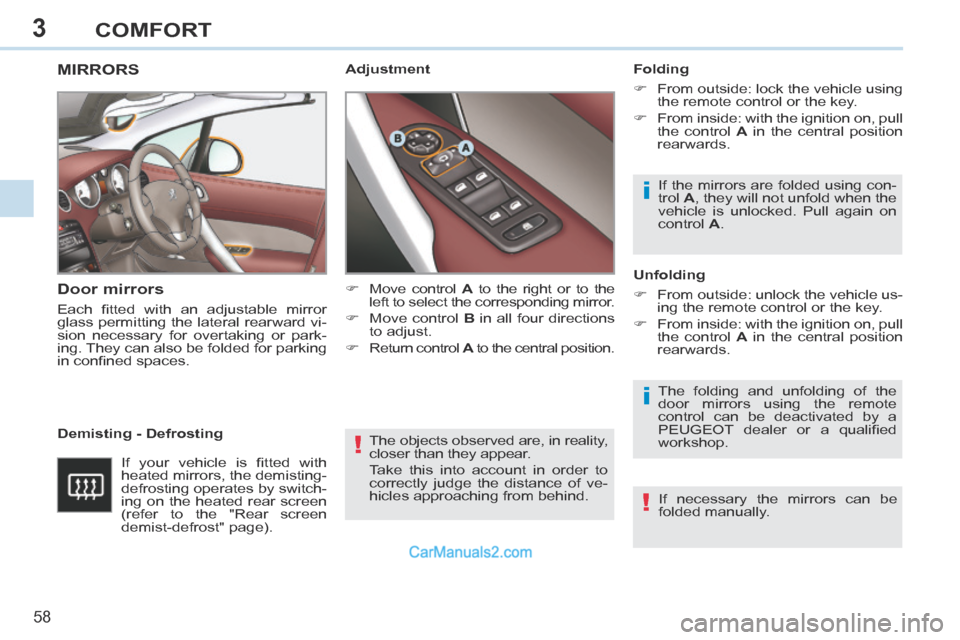

MIRRORS
Door mirrors
Each fi tted with an adjustable mirror
glass permitting the lateral rearward vi-
sion necessary for overtaking or park-
ing. They can also be folded for parking
in confi ned spaces. Folding
 From outside: lock the vehicle using
the remote control or the key.
 From inside: with the ignition on, pull the control A in the central position
rearwards.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
PEUGEOT dealer or a qualifi ed
workshop.
Demisting - Defrosting Unfolding
 From outside: unlock the vehicle us-
ing the remote control or the key.
 From inside: with the ignition on, pull the control A in the central position
rearwards. If the mirrors are folded using con-
trol
A , they will not unfold when the
vehicle is unlocked. Pull again on
control A .
If your vehicle is fi tted with
heated mirrors, the demisting-
defrosting operates by switch-
ing on the heated rear screen
(refer to the "Rear screen
demist-defrost" page).  Move control
A to the right or to the
left to select the corresponding mirror.
 Move control B in all four directions
to adjust.
 Return control A to the central position.
If necessary the mirrors can be
folded manually.
Adjustment
