11
155
TECHNICAL DATA

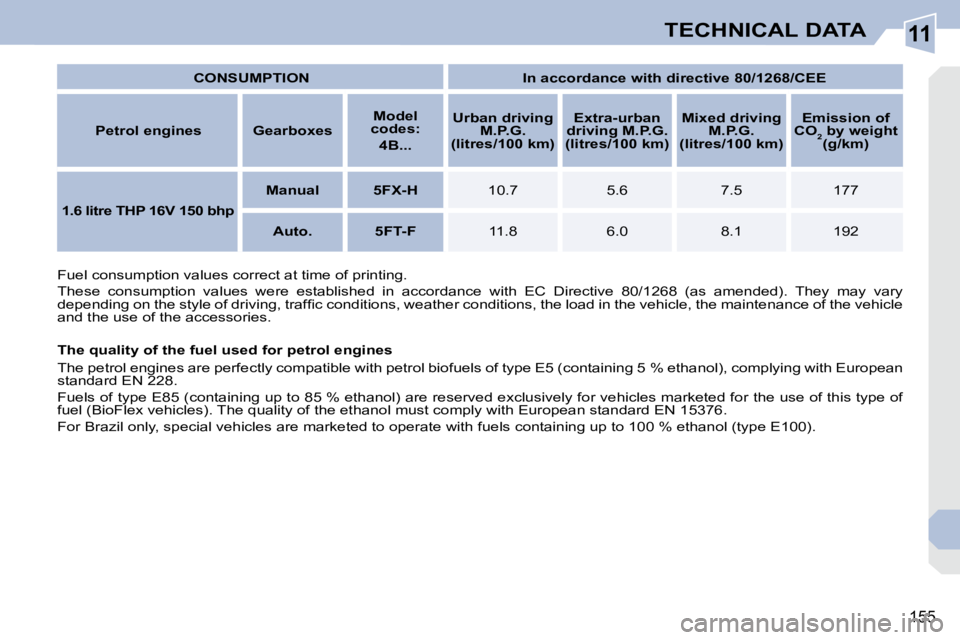

CONSUMPTION In accordance with directive 80/1268/CEE
Petrol engines Gearboxes
Model
codes:
4B...
Urban driving
M.P.G.
(litres/100 km)
Extra-urban
driving M.P.G.
(litres/100 km)
Mixed driving
M.P.G.
(litres/100 km)
Emission of
CO 2 by weight
(g/km)
1.6 litre THP 16V 150 bhp
Manual 5FX-H 10.7 5.6 7.5 177
Auto. 5FT-F 11.8 6.0 8.1 192
Fuel consumption values correct at time of printing.
These consumption values were established in accordance with EC Directive 80/1268 (as amended). They may vary
d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e
and the use of the accessories.
The quality of the fuel used for petrol engines
The petrol engines are perfectly compatible with petrol bio fuels of type E5 (containing 5 % ethanol), complying with Eu ropean
standard EN 228.
Fuels of type E85 (containing up to 85 % ethanol) are reserve d exclusively for vehicles marketed for the use of this type of
fuel (BioFlex vehicles). The quality of the ethanol must comply with European standard EN 15376.
For Brazil only, special vehicles are marketed to operate with f uels containing up to 100 % ethanol (type E100).
Page 172 of 221
11
158
TECHNICAL DATA

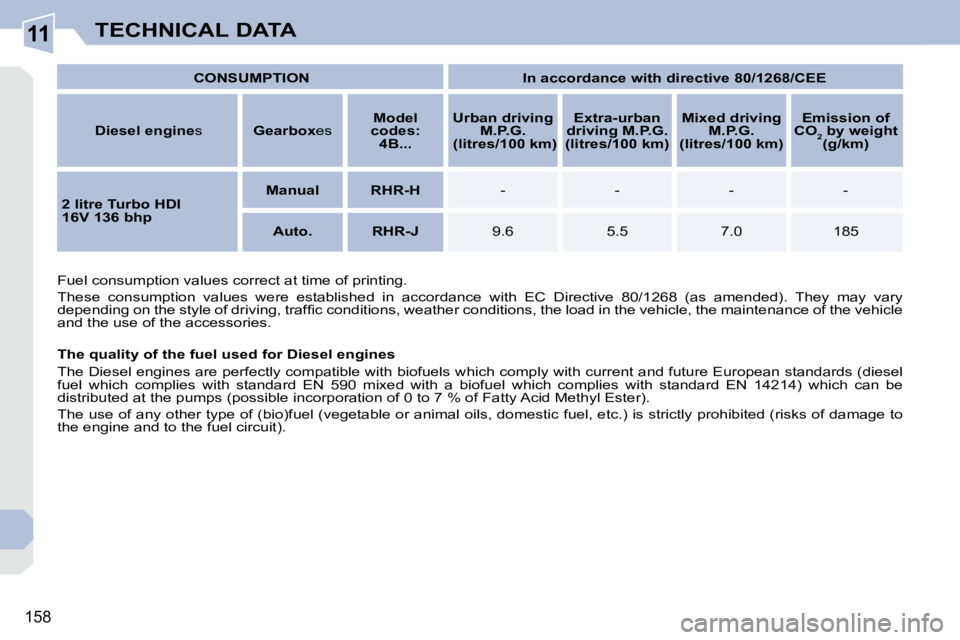

CONSUMPTION In accordance with directive 80/1268/CEE
Diesel engine s Gearbox es
Model
codes:
4B...
Urban driving
M.P.G.
(litres/100 km)
Extra-urban
driving M.P.G.
(litres/100 km)
Mixed driving
M.P.G.
(litres/100 km)
Emission of
CO 2 by weight
(g/km)
2 litre Turbo HDI
16V 136 bhp
Manual RHR-H - - - -
Auto. RHR-J 9.6 5.5 7.0 185
Fuel consumption values correct at time of printing.
These consumption values were established in accordance with EC Directive 80/1268 (as amended). They may vary
d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e
and the use of the accessories.
The quality of the fuel used for Diesel engines
The Diesel engines are perfectly compatible with biofuels w hich comply with current and future European standards (diesel
fuel which complies with standard EN 590 mixed with a biofue l which complies with standard EN 14214) which can be
distributed at the pumps (possible incorporation of 0 to 7 % of Fatty Acid Methyl Ester).
The use of any other type of (bio)fuel (vegetable or animal oils, domestic fuel, etc.) is strictly prohibited (risks of damage to
the engine and to the fuel circuit).
Page 173 of 221
11
156
TECHNICAL DATA

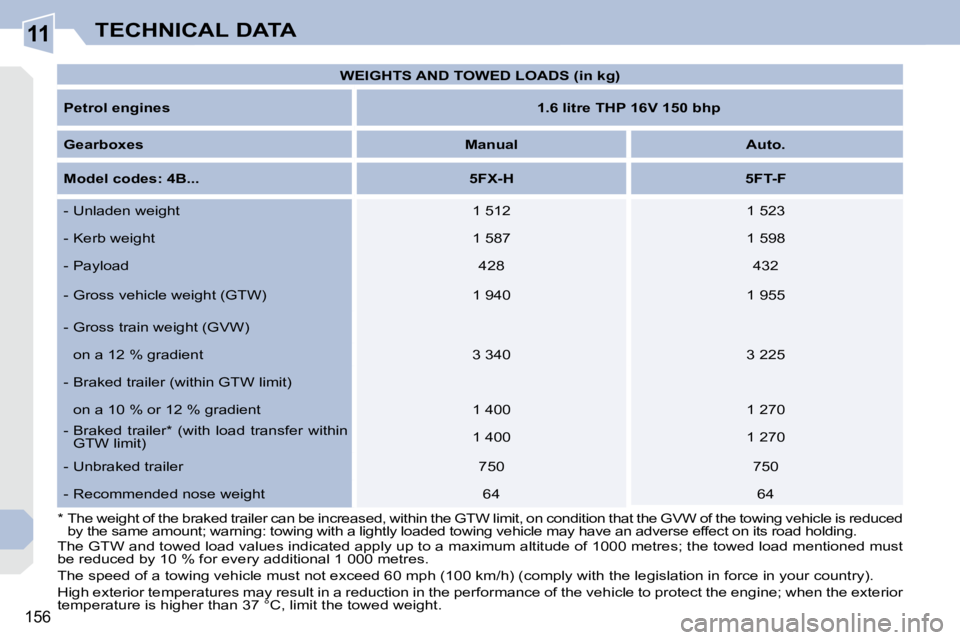

WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.6 litre THP 16V 150 bhp
Gearboxes
Manual Auto.
Model codes: 4B...
5FX-H 5FT-F
- Unladen weight 1 512 1 523
- Kerb weight 1 587 1 598
- Payload 428 432
- Gross vehicle weight (GTW) 1 940 1 955
- Gross train weight (GVW)
on a 12 % gradient 3 340 3 225
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 400 1 270
- Braked trailer * (with load transfer within GTW limit) 1 400 1 270
- Unbraked trailer 750 750
- Recommended nose weight 64 64
The GTW and towed load values indicated apply up to a maximum altitude of 1000 metres; the towed load mentioned mu st
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle to protect the engine; when the exterior
temperature is higher than 37 °C, limit the towed weight.
* The weight of the braked trailer can be incr
eased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning: towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 174 of 221
11
159
TECHNICAL DATA
* The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning: towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle to protect the engine; when the exterior
temperature is higher than 37 °C, limit the towed weight.

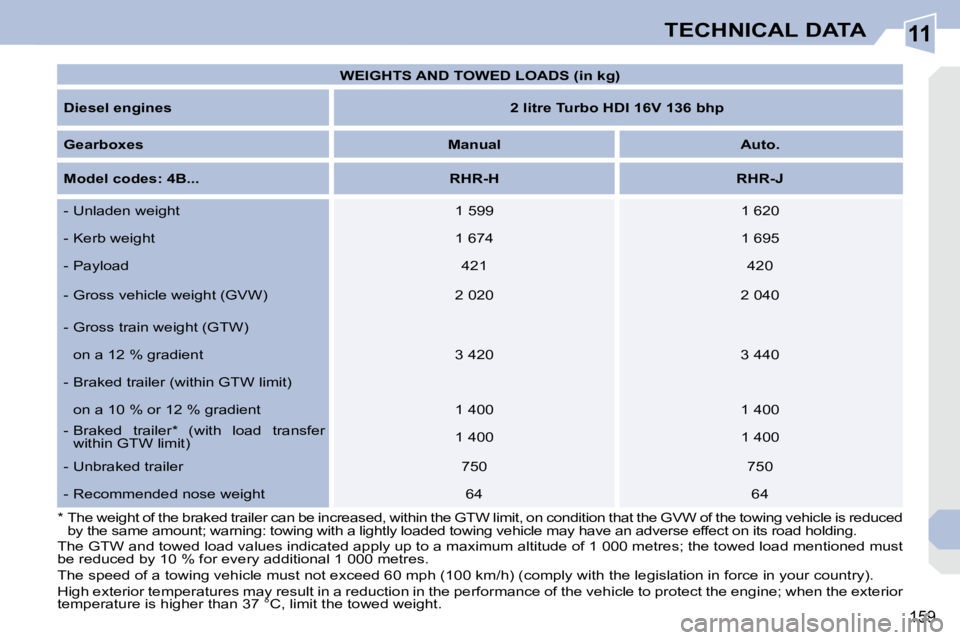

WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
2 litre Turbo HDI 16V 136 bhp
Gearboxes
Manual Auto.
Model codes: 4B... RHR-H RHR-J
- Unladen weight 1 599 1 620
- Kerb weight 1 674 1 695
- Payload 421 420
- Gross vehicle weight (GVW) 2 020 2 040
- Gross train weight (GTW)
on a 12 % gradient 3 420 3 440
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 400 1 400
- Braked trailer * (with load transfer within GTW limit) 1 400 1 400
- Unbraked trailer 750 750
- Recommended nose weight 64 64
Page 175 of 221
11
160
TECHNICAL DATA

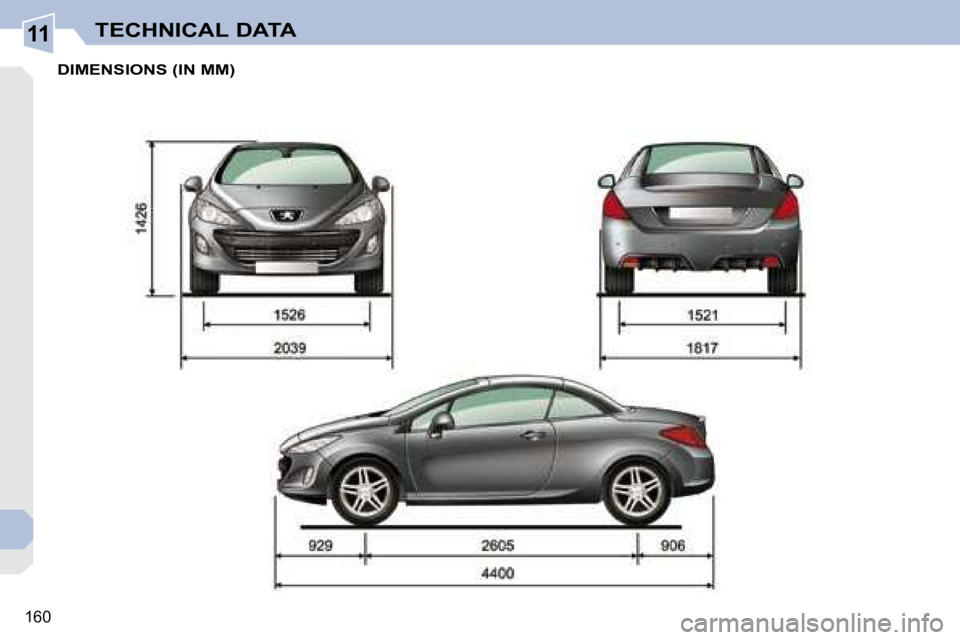

DIMENSIONS (IN MM)
Page 176 of 221
11
!
i
161
TECHNICAL DATA
IDENTIFICATION FEATURES
Various visible marking elements for the
i d e n t i fi c a t i o n a n d t r a c k i n g o f y o u r v e h i c l e . W h e e l s w h i c h a r e fi t t e d w i t h 2 2 5 / 4 0
R 1 8 t y r e s c a n n o t b e fi t t e d w i t h
snow chains. For further informa-
tion, contact a PEUGEOT dealer.
I f t h e i n fl a t i o n p r e s s u r e i s t o o l o w ,
this increases fuel consumption.
T h e i n fl a t i o n p r e s s u r e m u s t b e
checked when the tyres are cold,
at least once a month.

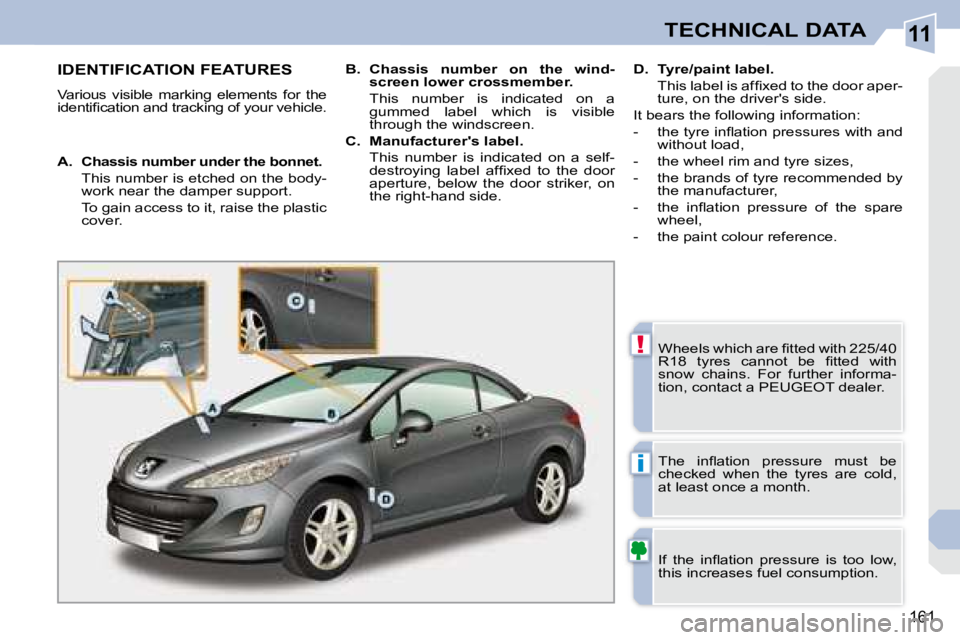

A. Chassis number under the bonnet.
This number is etched on the body- work near the damper support.
To gain access to it, raise the plastic cover.
B. Chassis number on the wind-
screen lower crossmember.
This number is indicated on a gummed label which is visible
through the windscreen.
C. Manufacturer's label.
This number is indicated on a self- d e s t r o y i n g l a b e l a f fi x e d t o t h e d o o r
aperture, below the door striker, on
the right-hand side.
D. Tyre/paint label.
T h i s l a b e l i s a f fi x e d t o t h e d o o r a p e r - ture, on the driver's side.
It bears the following information:
- t h e t y r e i n fl a t i o n p r e s s u r e s w i t h a n d without load,
- the wheel rim and tyre sizes,
- the brands of tyre recommended by the manufacturer,
- t h e i n fl a t i o n p r e s s u r e o f t h e s p a r e wheel,
- the paint colour reference.
Page 177 of 221
163

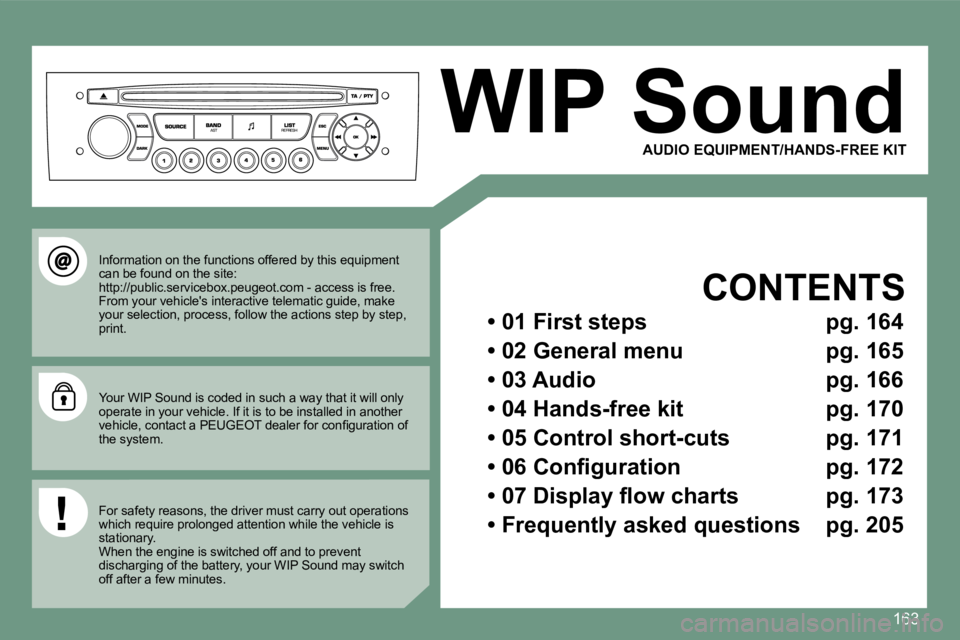

WIP Sound
CONTENTS
Page 178 of 221
164
11
22
10101111
131314141515
33445566778899
1212
01 FIRST STEPS
1. On/Off and volume adjustment.
2. CD eject.
3. Selection of the screen display mode.
4. Selection of the source: radio and CD.
5. Selection of the FM1, FM2, FMast and AM wavebands.
6. Setting the audio options: front/rear balance, left/right balance, loudness, sound ambiences.
7. Displaying of the list of local stations, of the tracks on the CD or of the MP3 directories.
8. Abandon current operation.
9. T A ( T r a f fi c A n n o u n c e m e n t ) f u n c t i o n o n / o f f . L o n g p r e s s : a c c e s s t o t h e P T Y ( T Y p e s o f r a d i o P r o g r a m m e ) mode.
10. C o n fi r m a t i o n .
11. Automatic search for a lower/higher frequency. Selection of previous/next CD or MP3 track.
12. Selection of a lower/higher radio frequency. Selection of the previous/next MP3 directory.
13. Displaying of the general menu.
14. Buttons 1 to 6: Selection of a stored radio station. Long press: storing of a station.
15. The DARK button changes the display on the screen to improve driving comfort at night. 1st press: lighting of the top banner only. 2nd press: black screen display. 3rd press: return to the standard display.
Page 179 of 221
165

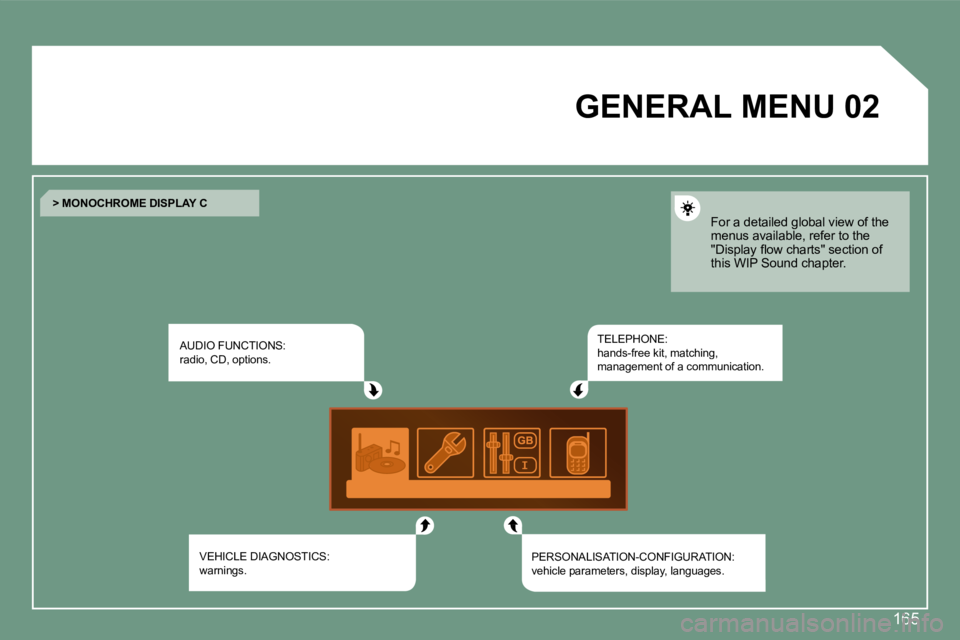

02 GENERAL MENU
AUDIO FUNCTIONS: radio, CD, options.
VEHICLE DIAGNOSTICS: warnings.
TELEPHONE: hands-free kit, matching, management of a communication.
PERSONALISATION-CONFIGURATION: vehicle parameters, display, languages.
> MONOCHROME DISPLAY C
For a detailed global view of the menus available, refer to the " D i s p l a y fl o w c h a r t s " s e c t i o n o f this WIP Sound chapter.
Page 180 of 221
166
03
11
22
33
44
22
44
33
11

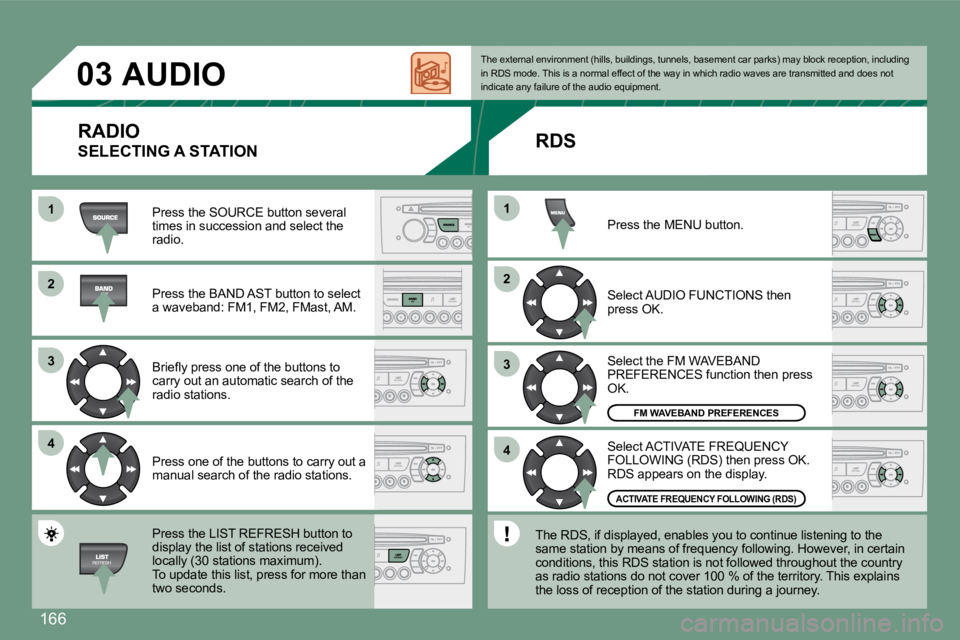

AUDIO
Press the SOURCE button several times in succession and select the radio.
Press the BAND AST button to select a waveband: FM1, FM2, FMast, AM.
B r i e fl y p r e s s o n e o f t h e b u t t o n s t o carry out an automatic search of the radio stations.
Press one of the buttons to carry out a manual search of the radio stations.
Press the LIST REFRESH button to display the list of stations received l o c a l l y ( 3 0 s t a t i o n s m a x i m u m ) . To update this list, press for more than two seconds.
Select ACTIVATE FREQUENCY F O L L O W I N G ( R D S ) t h e n p r e s s O K . RDS appears on the display.
Select the FM WAVEBAND PREFERENCES function then press OK.
Select AUDIO FUNCTIONS then press OK.
Press the MENU button.
FM WAVEBAND PREFERENCES
ACTIVATE FREQUENCY FOLLOWING (RDS)
T h e e x t e r n a l e n v i r o n m e n t ( h i l l s , b u i l d i n g s , t u n n e l s , b a s e m e n t c a r p a r k s ) m a y b l o c k r e c e p t i o n , i n c l u d i n g in RDS mode. This is a normal effect of the way in which radio waves are transmitted and does not indicate any failure of the audio equipment.
RDS
The RDS, if displayed, enables you to continue listening to the same station by means of frequency following. Howev er, in certain conditions, this RDS station is not followed throughout the country as radio stations do not cover 100 % of the territory. This explains the loss of reception of the station during a journey.
RADIO
SELECTING A STATION
