Page 151 of 221
10
138
PRACTICAL INFORMATION

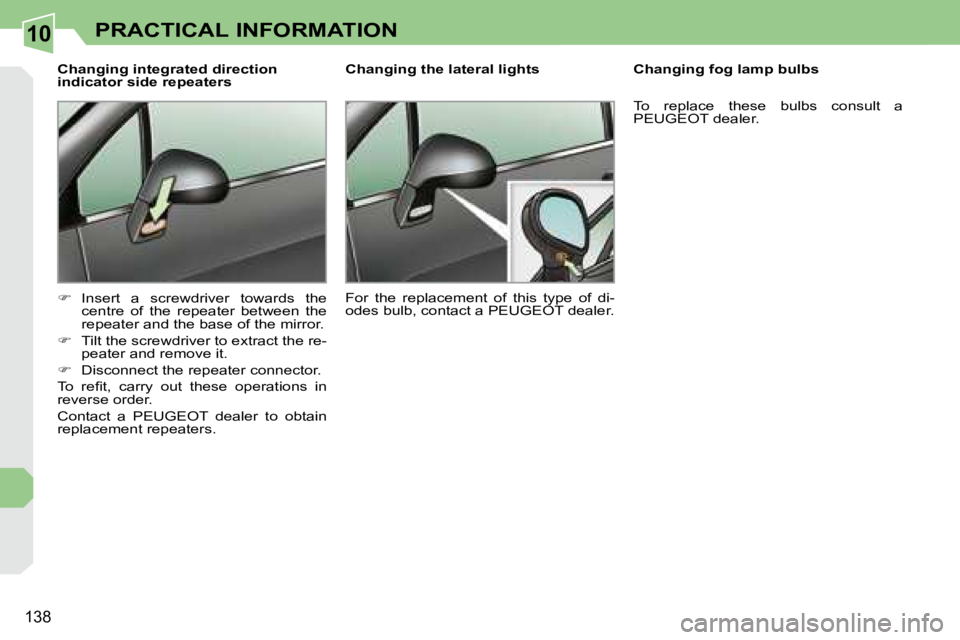

Changing integrated direction
indicator side repeaters
I n s e r t a s c r e w d r i v e r t o w a r d s t h e
centre of the repeater between the
r e p e a t e r a n d t h e b a s e o f t h e m i r r o r .
T i l t t h e s c r e w d r i v e r t o e x t r a c t t h e r e -
p e a t e r a n d r e m o v e i t .
D i s c o n n e c t t h e r e p e a t e r c o n n e c t o r .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
r e v e r s e o r d e r .
Contact a PEUGEOT dealer to obtain
r e p l a c e m e n t r e p e a t e r s . Changing fog lamp bulbs
To replace these bulbs consult a
P E U G E O T d e a l e r .
Changing the lateral lights
F o r t h e r e p l a c e m e n t o f t h i s t y p e o f d i -
o d e s b u l b , c o n t a c t a P E U G E O T d e a l e r .
Page 152 of 221
10
!
139
PRACTICAL INFORMATION

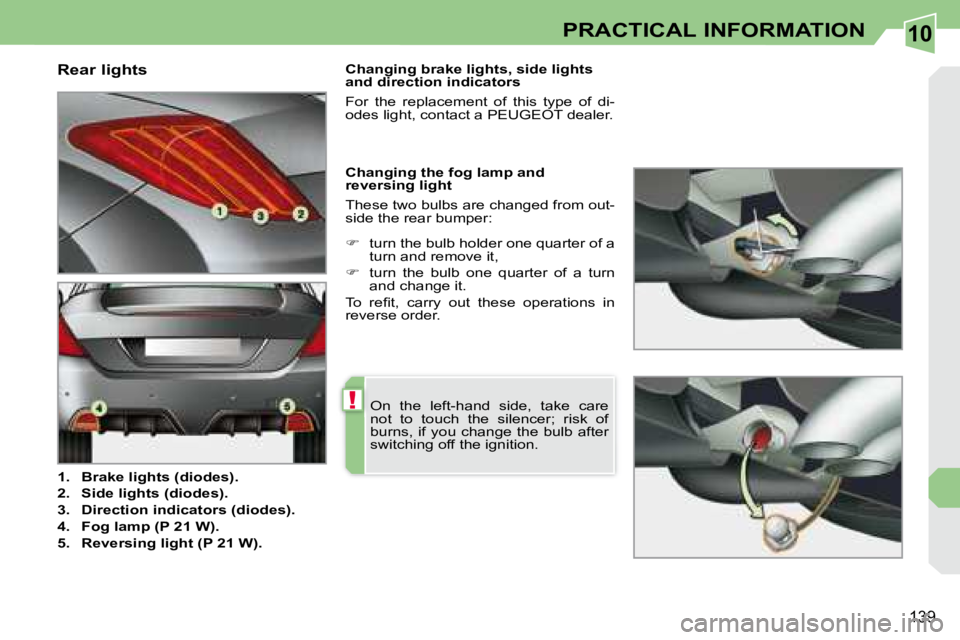

Rear lights
1. Brake lights (diodes).
2. Side lights (diodes).
3. Direction indicators (diodes).
4. Fog lamp (P 21 W).
5. Reversing light (P 21 W). Changing the fog lamp and
reversing light
T h e s e t w o b u l b s a r e c h a n g e d f r o m o u t -
s i d e t h e r e a r b u m p e r :
O n t h e l e f t - h a n d s i d e , t a k e c a r e
not to touch the silencer; risk of
burns, if you change the bulb after
s w i t c h i n g o f f t h e i g n i t i o n .
turn the bulb holder one quarter of a
t u r n a n d r e m o v e i t ,
turn the bulb one quarter of a turn
a n d c h a n g e i t .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
r e v e r s e o r d e r .
Changing brake lights, side lights
and direction indicators
F o r t h e r e p l a c e m e n t o f t h i s t y p e o f d i -
o d e s l i g h t , c o n t a c t a P E U G E O T d e a l e r .
Page 153 of 221
10
!
140
PRACTICAL INFORMATION

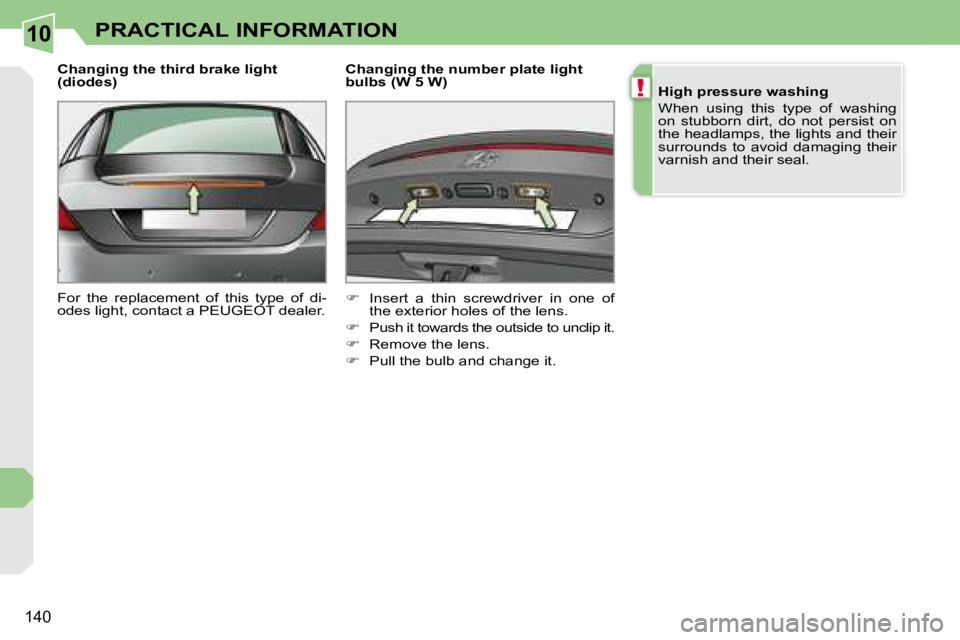

Changing the third brake light
(diodes)
F o r t h e r e p l a c e m e n t o f t h i s t y p e o f d i -
o d e s l i g h t , c o n t a c t a P E U G E O T d e a l e r . Changing the number plate light
bulbs (W 5 W)
I n s e r t a t h i n s c r e w d r i v e r i n o n e o f
t h e e x t e r i o r h o l e s o f t h e l e n s .
P u s h i t t o w a r d s t h e o u t s i d e t o u n c l i p i t .
R e m o v e t h e l e n s .
P u l l t h e b u l b a n d c h a n g e i t .
High pressure washing
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the lights and their
s u r r o u n d s t o a v o i d d a m a g i n g t h e i r
v a r n i s h a n d t h e i r s e a l .
Page 154 of 221
10
!
i
141
PRACTICAL INFORMATION
P E U G E O T w i l l n o t a c c e p t r e -
sponsibility for the cost incurred in
r e p a i r i n g y o u r v e h i c l e o r f o r r e c t i -
fying malfunctions resulting from
the installation of accessories not
supplied and not recommended
by PEUGEOT and not installed in
accordance with its instructions,
in particular when the combined
c o n s u m p t i o n o f a l l o f t h e a d d i t i o n -
al equipment connected exceeds
1 0 m i l l i a m p e r e s .
Installing electrical accessories
Y o u r v e h i c l e ' s e l e c t r i c a l s y s t e m i s
designed to operate with standard
o r o p t i o n a l e q u i p m e n t .
B e f o r e i n s t a l l i n g o t h e r e l e c t r i c a l e q u i p -
m e n t o r a c c e s s o r i e s o n y o u r v e h i c l e ,
c o n t a c t a P E U G E O T d e a l e r .

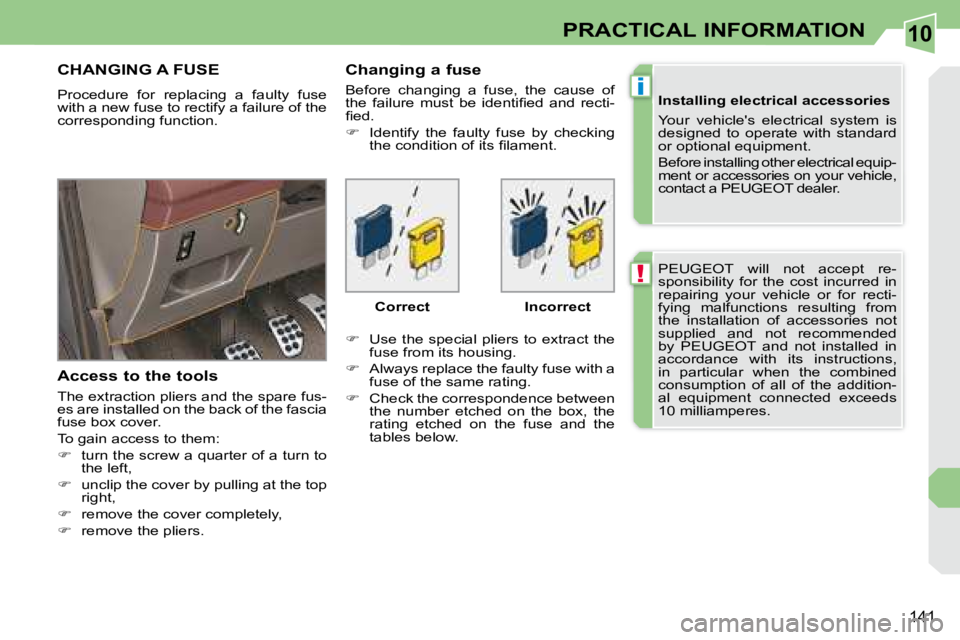

CHANGING A FUSE
Procedure for replacing a faulty fuse
with a new fuse to rectify a failure of the
c o r r e s p o n d i n g f u n c t i o n .
Access to the tools
T h e e x t r a c t i o n p l i e r s a n d t h e s p a r e f u s -
es are installed on the back of the fascia
f u s e b o x c o v e r .
T o g a i n a c c e s s t o t h e m :
turn the screw a quarter of a turn to
the left,
u n c l i p t h e c o v e r b y p u l l i n g a t t h e t o p
right,
r e m o v e t h e c o v e r c o m p l e t e l y ,
r e m o v e t h e p l i e r s . Changing a fuse
Before changing a fuse, the cause of
t h e f a i l u r e m u s t b e i d e n t i fi e d a n d r e c t i -
fi e d .
I d e n t i f y t h e f a u l t y f u s e b y c h e c k i n g
t h e c o n d i t i o n o f i t s fi l a m e n t .
Use the special pliers to extract the
f u s e f r o m i t s h o u s i n g .
A l w a y s r e p l a c e t h e f a u l t y f u s e w i t h a
f u s e o f t h e s a m e r a t i n g .
Check the correspondence between
the number etched on the box, the
rating etched on the fuse and the
t a b l e s b e l o w .
Correct Incorrect
Page 155 of 221
10PRACTICAL INFORMATION

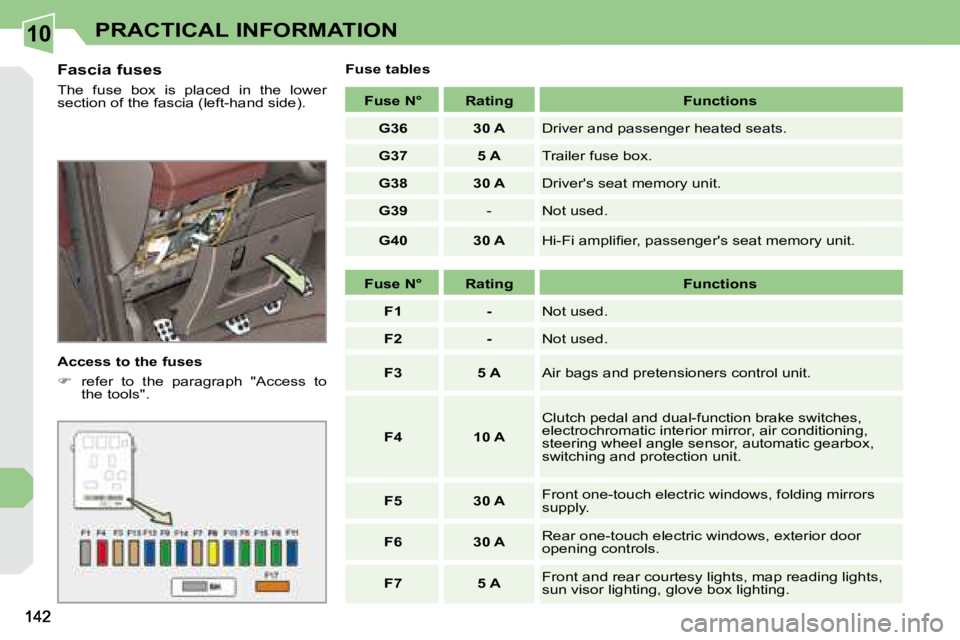

Fascia fuses
The fuse box is placed in the lower
s e c t i o n o f t h e f a s c i a ( l e f t - h a n d s i d e ) .
Access to the fuses
r e f e r t o t h e p a r a g r a p h " A c c e s s t o
t h e t o o l s " . Fuse tables
Fuse N° Rating Functions
G36 30 A D r i v e r a n d p a s s e n g e r h e a t e d s e a t s .
G37 5 A T r a i l e r f u s e b o x .
G38 30 A D r i v e r ' s s e a t m e m o r y u n i t .
G39 - N o t u s e d .
G40 30 A H i - F i a m p l i fi e r , p a s s e n g e r ' s s e a t m e m o r y u n i t .
Fuse N° Rating Functions
F1 - N o t u s e d .
F2 - N o t u s e d .
F3 5 A A i r b a g s a n d p r e t e n s i o n e r s c o n t r o l u n i t .
F4 10 A C l u t c h p e d a l a n d d u a l - f u n c t i o n b r a k e s w i t c h e s ,
electrochromatic interior mirror, air conditioning,
steering wheel angle sensor, automatic gearbox,
s w i t c h i n g a n d p r o t e c t i o n u n i t .
F5 30 A F r o n t o n e - t o u c h e l e c t r i c w i n d o w s , f o l d i n g m i r r o r s
s u p p l y .
F6 30 A R e a r o n e - t o u c h e l e c t r i c w i n d o w s , e x t e r i o r d o o r
o p e n i n g c o n t r o l s .
F7 5 A Front and rear courtesy lights, map reading lights,
s u n v i s o r l i g h t i n g , g l o v e b o x l i g h t i n g .
Page 156 of 221
10
143
PRACTICAL INFORMATION

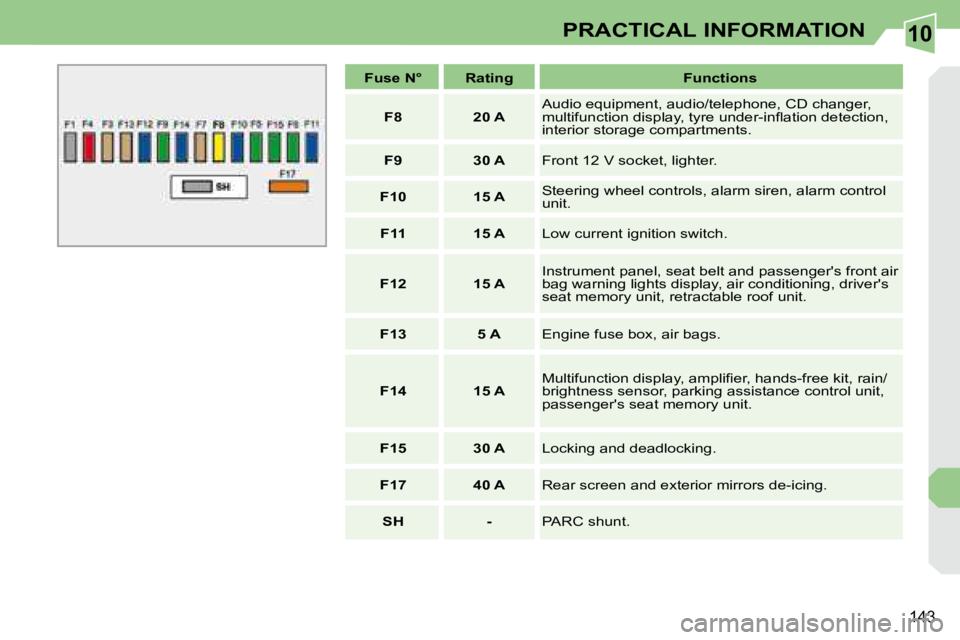

Fuse N° Rating Functions
F8 20 A A u d i o e q u i p m e n t , a u d i o / t e l e p h o n e , C D c h a n g e r ,
m u l t i f u n c t i o n d i s p l a y , t y r e u n d e r - i n fl a t i o n d e t e c t i o n ,
i n t e r i o r s t o r a g e c o m p a r t m e n t s .
F9 30 A F r o n t 1 2 V s o c k e t , l i g h t e r .
F10 15 A Steering wheel controls, alarm siren, alarm control
u n i t .
F11 15 A L o w c u r r e n t i g n i t i o n s w i t c h .
F12 15 A I n s t r u m e n t p a n e l , s e a t b e l t a n d p a s s e n g e r ' s f r o n t a i r
b a g w a r n i n g l i g h t s d i s p l a y , a i r c o n d i t i o n i n g , d r i v e r ' s
s e a t m e m o r y u n i t , r e t r a c t a b l e r o o f u n i t .
F13 5 A E n g i n e f u s e b o x , a i r b a g s .
F14 15 A M u l t i f u n c t i o n d i s p l a y , a m p l i fi e r , h a n d s - f r e e k i t , r a i n /
brightness sensor, parking assistance control unit,
p a s s e n g e r ' s s e a t m e m o r y u n i t .
F15 30 A L o c k i n g a n d d e a d l o c k i n g .
F17 40 A R e a r s c r e e n a n d e x t e r i o r m i r r o r s d e - i c i n g .
SH - P A R C s h u n t .
Page 157 of 221
10
144
PRACTICAL INFORMATION

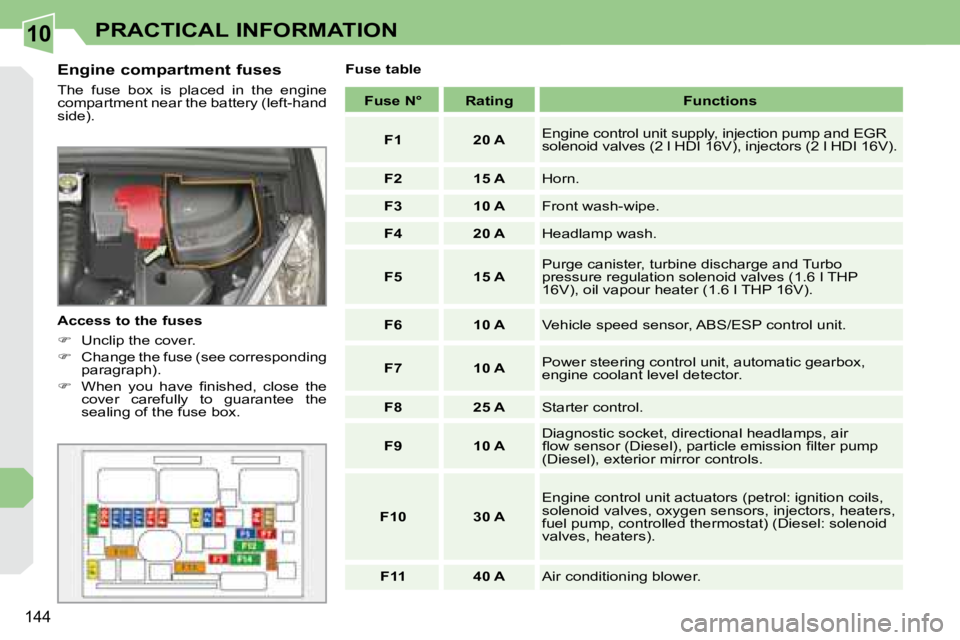

Engine compartment fuses
The fuse box is placed in the engine
c o m p a r t m e n t n e a r t h e b a t t e r y ( l e f t - h a n d
s i d e ) .
Access to the fuses
U n c l i p t h e c o v e r .
Change the fuse (see corresponding
p a r a g r a p h ) .
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
c o v e r c a r e f u l l y t o g u a r a n t e e t h e
s e a l i n g o f t h e f u s e b o x . Fuse table
Fuse N° Rating Functions
F1 20 A E n g i n e c o n t r o l u n i t s u p p l y , i n j e c t i o n p u m p a n d E G R
s o l e n o i d v a l v e s ( 2 l H D I 1 6 V ) , i n j e c t o r s ( 2 l H D I 1 6 V ) .
F2 15 A H o r n .
F3 10 A F r o n t w a s h - w i p e .
F4 20 A H e a d l a m p w a s h .
F5 15 A Purge canister, turbine discharge and Turbo
p r e s s u r e r e g u l a t i o n s o l e n o i d v a l v e s ( 1 . 6 l T H P
1 6 V ) , o i l v a p o u r h e a t e r ( 1 . 6 l T H P 1 6 V ) .
F6 10 A V e h i c l e s p e e d s e n s o r , A B S / E S P c o n t r o l u n i t .
F7 10 A Power steering control unit, automatic gearbox,
e n g i n e c o o l a n t l e v e l d e t e c t o r .
F8 25 A S t a r t e r c o n t r o l .
F9 10 A Diagnostic socket, directional headlamps, air
fl o w s e n s o r ( D i e s e l ) , p a r t i c l e e m i s s i o n fi l t e r p u m p
( D i e s e l ) , e x t e r i o r m i r r o r c o n t r o l s .
F10 30 A E n g i n e c o n t r o l u n i t a c t u a t o r s ( p e t r o l : i g n i t i o n c o i l s ,
s o l e n o i d v a l v e s , o x y g e n s e n s o r s , i n j e c t o r s , h e a t e r s ,
f u e l p u m p , c o n t r o l l e d t h e r m o s t a t ) ( D i e s e l : s o l e n o i d
v a l v e s , h e a t e r s ) .
F11 40 A A i r c o n d i t i o n i n g b l o w e r .
Page 158 of 221
10
145
PRACTICAL INFORMATION

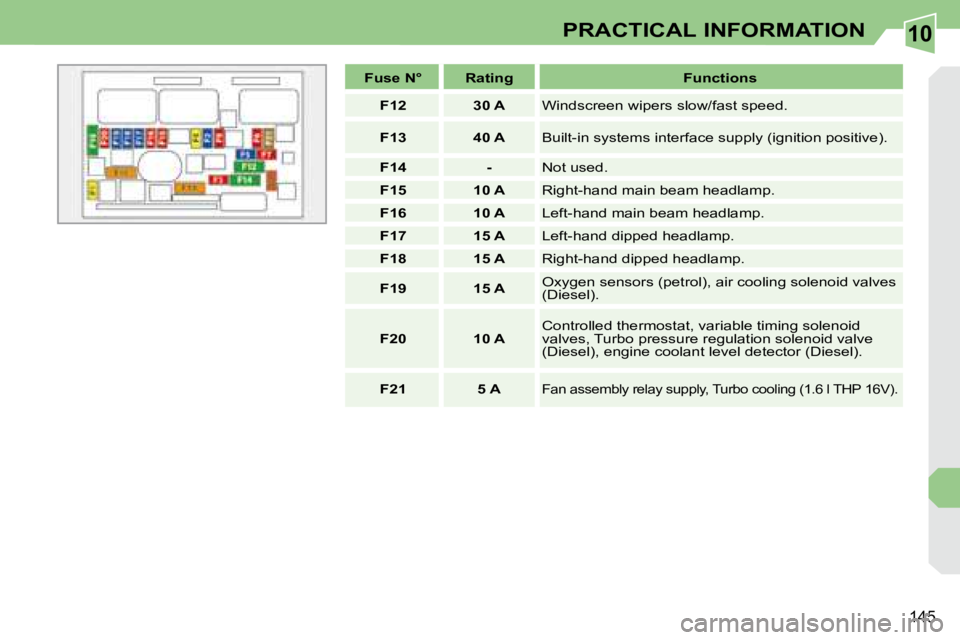

Fuse N° Rating Functions
F12 30 A W i n d s c r e e n w i p e r s s l o w / f a s t s p e e d .
F13 40 A B u i l t - i n s y s t e m s i n t e r f a c e s u p p l y ( i g n i t i o n p o s i t i v e ) .
F14 - N o t u s e d .
F15 10 A R i g h t - h a n d m a i n b e a m h e a d l a m p .
F16 10 A L e f t - h a n d m a i n b e a m h e a d l a m p .
F17 15 A L e f t - h a n d d i p p e d h e a d l a m p .
F18 15 A R i g h t - h a n d d i p p e d h e a d l a m p .
F19 15 A O x y g e n s e n s o r s ( p e t r o l ) , a i r c o o l i n g s o l e n o i d v a l v e s
( D i e s e l ) .
F20 10 A C o n t r o l l e d t h e r m o s t a t , v a r i a b l e t i m i n g s o l e n o i d
v a l v e s , T u r b o p r e s s u r e r e g u l a t i o n s o l e n o i d v a l v e
( D i e s e l ) , e n g i n e c o o l a n t l e v e l d e t e c t o r ( D i e s e l ) .
F21 5 A
F a n a s s e m b l y r e l a y s u p p l y , T u r b o c o o l i n g ( 1 . 6 l T H P 1 6 V ) .
Page 159 of 221
10
146
PRACTICAL INFORMATION

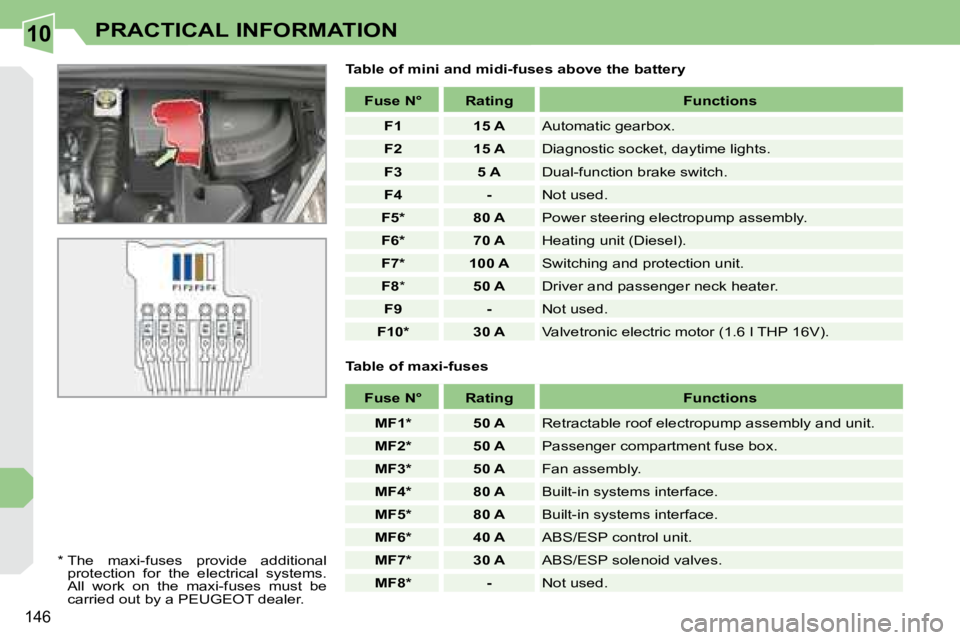

Table of mini and midi-fuses above the battery
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l p r o t e c t i o n f o r t h e e l e c t r i c a l s y s t e m s .
A l l w o r k o n t h e m a x i - f u s e s m u s t b e
c a r r i e d o u t b y a P E U G E O T d e a l e r .
Fuse N° Rating Functions
F1 15 A A u t o m a t i c g e a r b o x .
F2 15 A D i a g n o s t i c s o c k e t , d a y t i m e l i g h t s .
F3 5 A D u a l - f u n c t i o n b r a k e s w i t c h .
F4 - N o t u s e d .
F5 * 80 A P o w e r s t e e r i n g e l e c t r o p u m p a s s e m b l y .
F6 * 70 A H e a t i n g u n i t ( D i e s e l ) .
F7 * 100 A S w i t c h i n g a n d p r o t e c t i o n u n i t .
F8 *
50 A D r i v e r a n d p a s s e n g e r n e c k h e a t e r .
F9 - N o t u s e d .
F10 * 30 A V a l v e t r o n i c e l e c t r i c m o t o r ( 1 . 6 l T H P 1 6 V ) .
Table of maxi-fuses
Fuse N° Rating Functions
MF1 * 50 A R e t r a c t a b l e r o o f e l e c t r o p u m p a s s e m b l y a n d u n i t .
MF2 * 50 A P a s s e n g e r c o m p a r t m e n t f u s e b o x .
MF3 * 50 A F a n a s s e m b l y .
MF4 * 80 A B u i l t - i n s y s t e m s i n t e r f a c e .
MF5 * 80 A B u i l t - i n s y s t e m s i n t e r f a c e .
MF6 * 40 A A B S / E S P c o n t r o l u n i t .
MF7 * 30 A A B S / E S P s o l e n o i d v a l v e s .
MF8 * - N o t u s e d .
Page 160 of 221
10
147
PRACTICAL INFORMATION

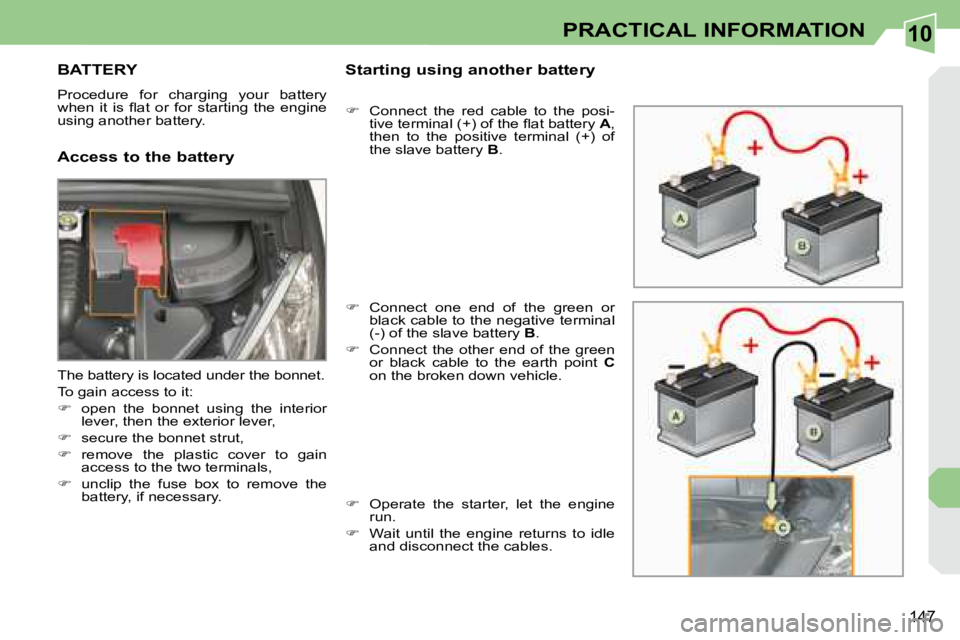

BATTERY
Procedure for charging your battery
w h e n i t i s fl a t o r f o r s t a r t i n g t h e e n g i n e
u s i n g a n o t h e r b a t t e r y .
Access to the battery Starting using another battery
C o n n e c t t h e r e d c a b l e t o t h e p o s i -
t i v e t e r m i n a l ( + ) o f t h e fl a t b a t t e r y A ,
t h e n t o t h e p o s i t i v e t e r m i n a l ( + ) o f
t h e s l a v e b a t t e r y B .
Connect one end of the green or
b l a c k c a b l e t o t h e n e g a t i v e t e r m i n a l
( - ) o f t h e s l a v e b a t t e r y B .
Connect the other end of the green
or black cable to the earth point C
o n t h e b r o k e n d o w n v e h i c l e .
Operate the starter, let the engine
r u n .
Wait until the engine returns to idle
a n d d i s c o n n e c t t h e c a b l e s .
T h e b a t t e r y i s l o c a t e d u n d e r t h e b o n n e t .
T o g a i n a c c e s s t o i t :
open the bonnet using the interior
l e v e r , t h e n t h e e x t e r i o r l e v e r ,
secure the bonnet strut,
r e m o v e t h e p l a s t i c c o v e r t o g a i n
access to the two terminals,
u n c l i p t h e f u s e b o x t o r e m o v e t h e
b a t t e r y , i f n e c e s s a r y .
