Peugeot 308 CC Dag 2009.5 User Guide

1
!
29

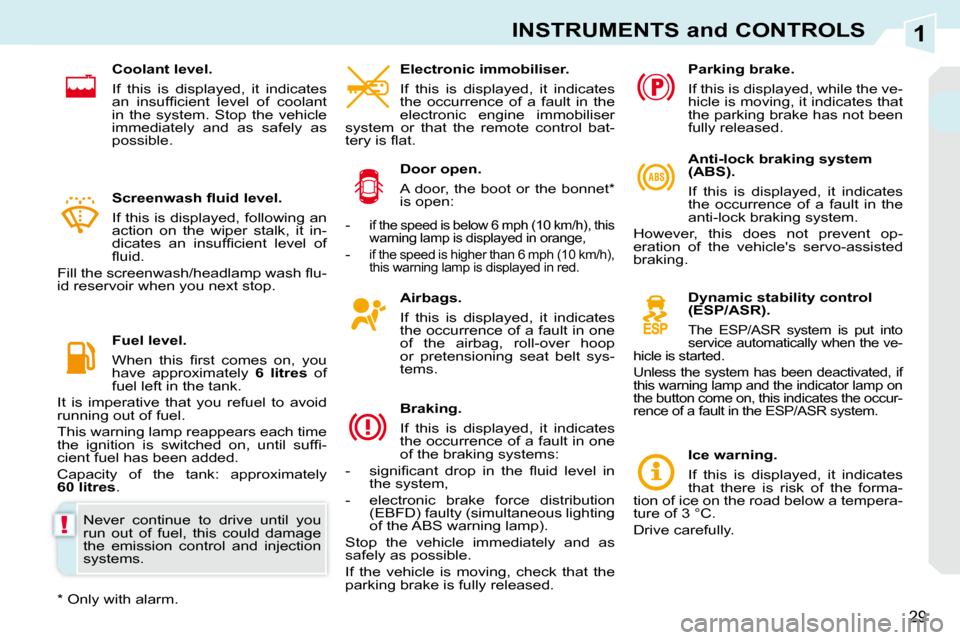

INSTRUMENTS and CONTROLS
Airbags.
If this is displayed, it indicates
the occurrence of a fault in one
of the airbag, roll-over hoop
or pretensioning seat belt sys-
tems.
Braking.
If this is displayed, it indicates
the occurrence of a fault in one
of the braking systems:
- signifi cant drop in the fl uid level in the system,
- electronic brake force distribution (EBFD) faulty (simultaneous lighting
of the ABS warning lamp).
Stop the vehicle immediately and as
safely as possible.
If the vehicle is moving, check that the
parking brake is fully released. Anti-lock braking system
(ABS).
If this is displayed, it indicates
the occurrence of a fault in the
anti-lock braking system.
However, this does not prevent op-
eration of the vehicle's servo-assisted
braking.
Dynamic stability control
(ESP/ASR).

The ESP/ASR system is put into
service automatically when the ve-
hicle is started.
Unless the system has been deactivated, if
this warning lamp and the indicator lamp on
the button come on, this indicates the occur-
rence of a fault in the ESP/ASR system.
Door open.
A door, the boot or the bonnet *
is open:
Ice warning.
If this is displayed, it indicates
that there is risk of the forma-
tion of ice on the road below a tempera-
ture of 3 °C.
Drive carefully. Parking brake.
If this is displayed, while the ve-
hicle is moving, it indicates that
the parking brake has not been
fully released.
Electronic immobiliser.
If this is displayed, it indicates
the occurrence of a fault in the
electronic engine immobiliser
system or that the remote control bat-
tery is fl at.
* Only with alarm. Fuel level.
When this fi rst comes on, you
have approximately
6 litres of
fuel left in the tank.
It is imperative that you refuel to avoid
running out of fuel.
This warning lamp reappears each time
the ignition is switched on, until suffi -
cient fuel has been added.
Capacity of the tank: approximately

60 litres .
Screenwash fl uid level.
If this is displayed, following an
action on the wiper stalk, it in-
dicates an insuffi cient level of
fl uid.
Fill the screenwash/headlamp wash fl u-
id reservoir when you next stop. -
if the speed is below 6 mph (10 km/h), this
warning lamp is displayed in orange,
- if the speed is higher than 6 mph (10 km/h),
this warning lamp is displayed in red.
Coolant level.
If this is displayed, it indicates
an insuffi cient level of coolant
in the system. Stop the vehicle
immediately and as safely as
possible.
Never continue to drive until you
run out of fuel, this could damage
the emission control and injection
systems.

1
AUTO
PRND
30
INSTRUMENTS and CONTROLS

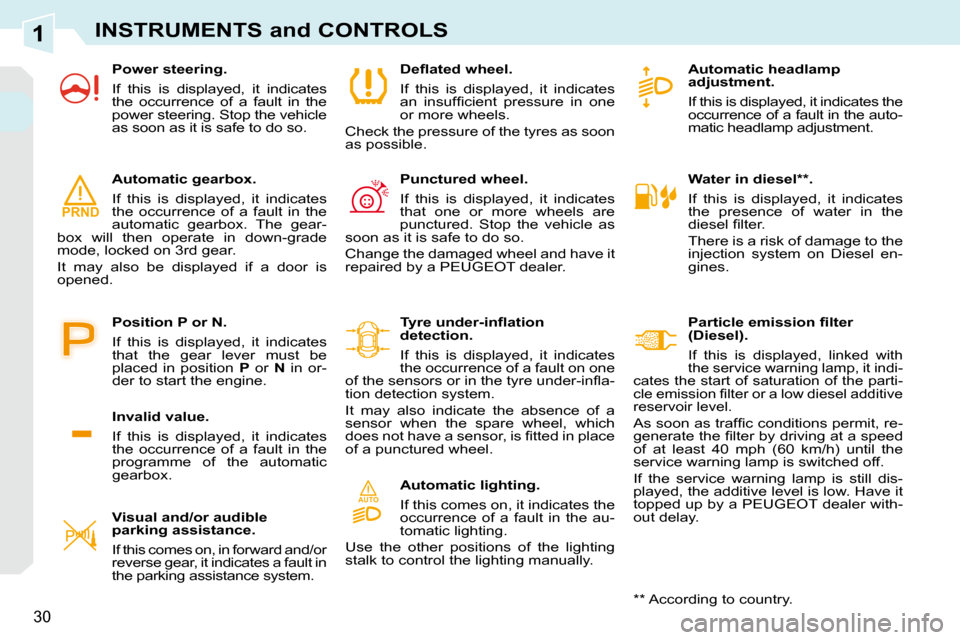

Water in diesel ** .
If this is displayed, it indicates
the presence of water in the
diesel fi lter.
There is a risk of damage to the
injection system on Diesel en-
gines.
Automatic headlamp
adjustment.
If this is displayed, it indicates the
occurrence of a fault in the auto-
matic headlamp adjustment.
Particle emission fi lter
(Diesel).

If this is displayed, linked with
the service warning lamp, it indi-
cates the start of saturation of the parti-
cle emission fi lter or a low diesel additive
reservoir level.

As soon as traffi c conditions permit, re-
generate the fi lter by driving at a speed
of at least 40 mph (60 km/h) until the
service warning lamp is switched off.
If the service warning lamp is still dis-
played, the additive level is low. Have it
topped up by a PEUGEOT dealer with-
out delay.
Defl ated wheel.
If this is displayed, it indicates
an insuffi cient pressure in one
or more wheels.
Check the pressure of the tyres as soon
as possible.
Punctured wheel.
If this is displayed, it indicates
that one or more wheels are
punctured. Stop the vehicle as
soon as it is safe to do so.
Change the damaged wheel and have it
repaired by a PEUGEOT dealer.
Tyre under-infl ation
detection.
If this is displayed, it indicates
the occurrence of a fault on one
of the sensors or in the tyre under-infl a-
tion detection system.
It may also indicate the absence of a
sensor when the spare wheel, which
does not have a sensor, is fi tted in place
of a punctured wheel.
Automatic lighting.
If this comes on, it indicates the
occurrence of a fault in the au-
tomatic lighting.
Use the other positions of the lighting
stalk to control the lighting manually.
Visual and/or audible
parking assistance.
If this comes on, in forward and/or
reverse gear, it indicates a fault in
the parking assistance system.
Automatic gearbox.
If this is displayed, it indicates
the occurrence of a fault in the
automatic gearbox. The gear-
box will then operate in down-grade
mode, locked on 3rd gear.
It may also be displayed if a door is
opened.
Invalid value.
If this is displayed, it indicates
the occurrence of a fault in the
programme of the automatic
gearbox.
Position P or N.
If this is displayed, it indicates
that the gear lever must be
placed in position
P or N in or-
der to start the engine.
** According to country.
Power steering.
If this is displayed, it indicates
the occurrence of a fault in the
power steering. Stop the vehicle
as soon as it is safe to do so.

1
31
INSTRUMENTS and CONTROLS

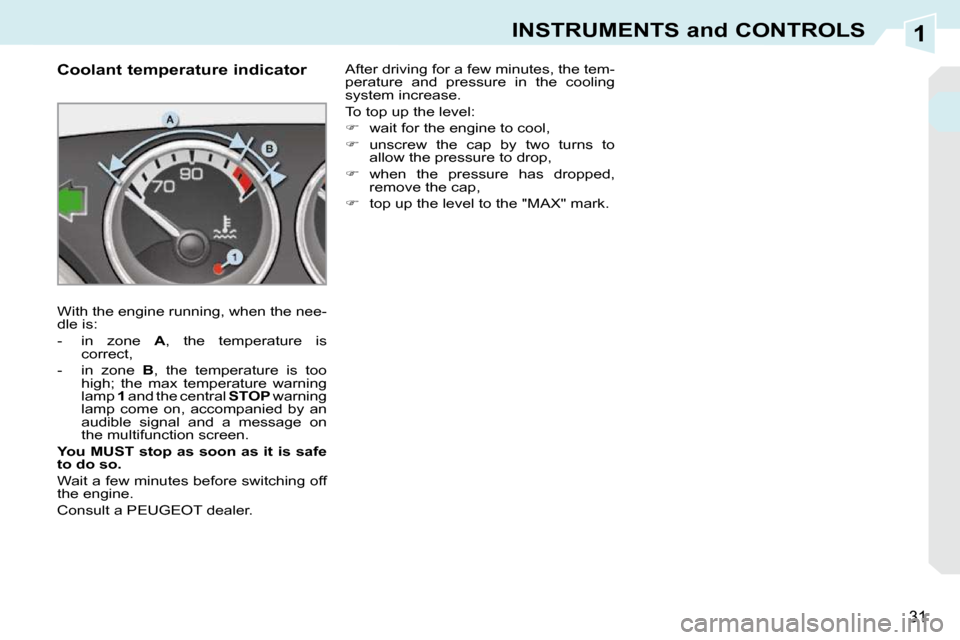

Coolant temperature indicator
With the engine running, when the nee-
dle is:
- in zone A , the temperature is
correct,
- in zone B , the temperature is too
high; the max temperature warning
lamp 1 and the central STOP warning
lamp come on, accompanied by an
audible signal and a message on
the multifunction screen.

You MUST stop as soon as it is safe
to do so.
Wait a few minutes before switching off
the engine.
Consult a PEUGEOT dealer. After driving for a few minutes, the tem-
perature and pressure in the cooling
system increase.
To top up the level:

 wait for the engine to cool,

 unscrew the cap by two turns to
allow the pressure to drop,

 when the pressure has dropped,
remove the cap,

 top up the level to the "MAX" mark.

1
i
32
INSTRUMENTS and CONTROLS
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.

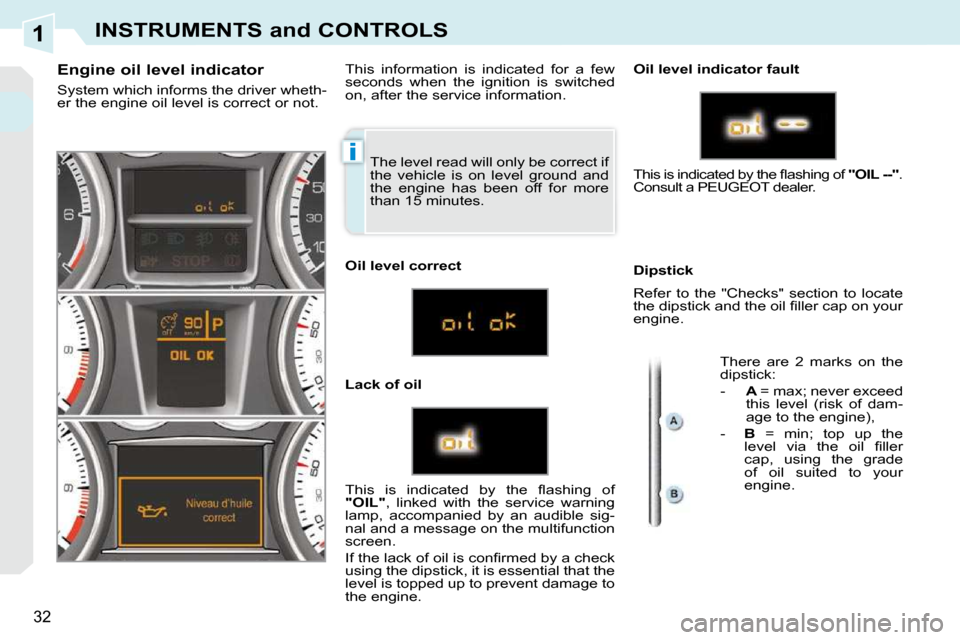

Engine oil level indicator
System which informs the driver wheth-
er the engine oil level is correct or not.
This information is indicated for a few
seconds when the ignition is switched
on, after the service information.
Oil level correct
Lack of oil Oil level indicator fault
Dipstick
This is indicated by the fl ashing of

"OIL" , linked with the service warning
lamp, accompanied by an audible sig-
nal and a message on the multifunction
screen.
If the lack of oil is confi rmed by a check
using the dipstick, it is essential that the
level is topped up to prevent damage to
the engine. This is indicated by the fl ashing of
"OIL --" .
Consult a PEUGEOT dealer.
Refer to the "Checks" section to locate
the dipstick and the oil fi ller cap on your
engine.
There are 2 marks on the
dipstick:
- A = max; never exceed
this level (risk of dam-
age to the engine),
- B = min; top up the
level via the oil fi ller
cap, using the grade
of oil suited to your
engine.

1
33
INSTRUMENTS and CONTROLS

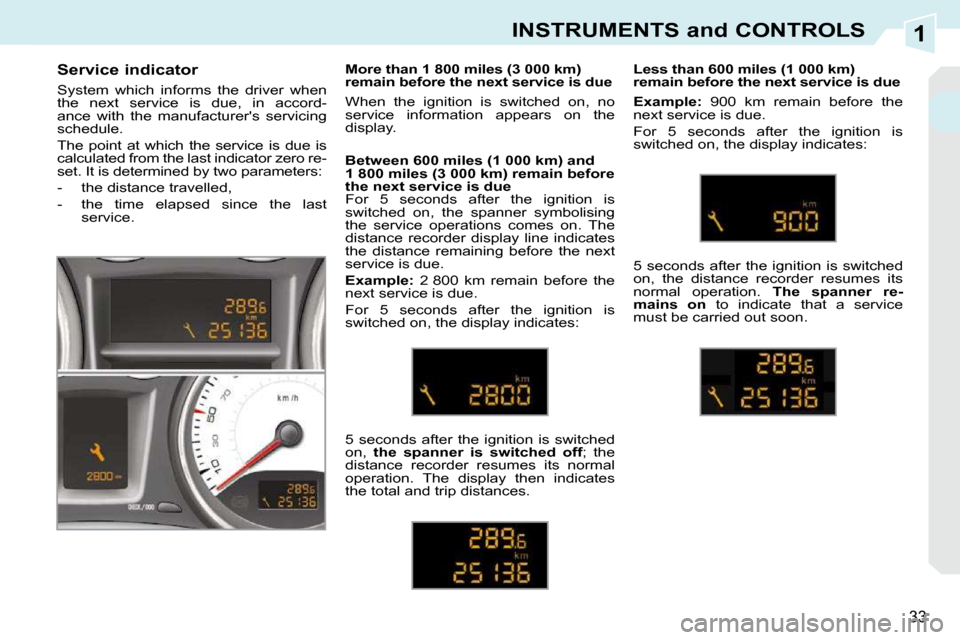

Service indicator
System which informs the driver when
the next service is due, in accord-
ance with the manufacturer's servicing
schedule.
The point at which the service is due is
calculated from the last indicator zero re-
set. It is determined by two parameters:
- the distance travelled,
- the time elapsed since the last service. Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain before
the next service is due
For 5 seconds after the ignition is
switched on, the spanner symbolising
the service operations comes on. The
distance recorder display line indicates
the distance remaining before the next
service is due.

Example: 2 800 km remain before the
next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the spanner is switched off ; the
distance recorder resumes its normal
operation. The display then indicates
the total and trip distances. Less than 600 miles (1 000 km)
remain before the next service is due

Example: 900 km remain before the
next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains on to indicate that a service
must be carried out soon.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no
service information appears on the
display.

1
i
i
34
INSTRUMENTS and CONTROLS
Following this operation, if you wish
to disconnect the battery, lock the
vehicle and wait at least fi ve min-
utes for the zero reset to be taken
into account.

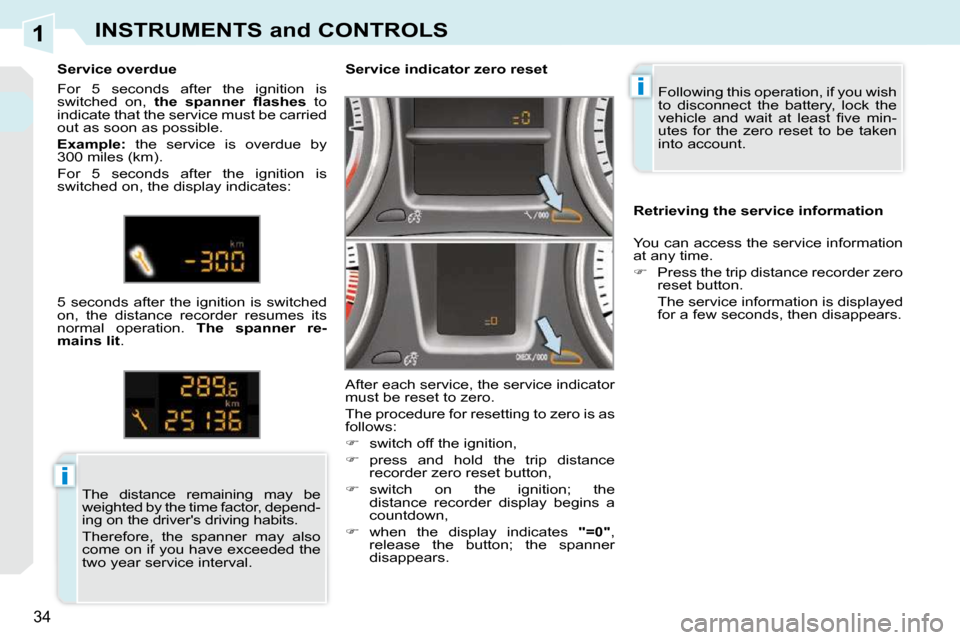

Service indicator zero reset
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:

 switch off the ignition,

 press and hold the trip distance
recorder zero reset button,

 switch on the ignition; the
distance recorder display begins a
countdown,

 when the display indicates "=0" ,
release the button; the spanner
disappears.
The distance remaining may be
weighted by the time factor, depend-
ing on the driver's driving habits.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.
Service overdue
For 5 seconds after the ignition is
switched on,
the spanner fl ashes to
indicate that the service must be carried
out as soon as possible.

Example: the service is overdue by
300 miles (km).
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains lit . Retrieving the service information
You can access the service information
at any time.

 Press the trip distance recorder zero
reset button.
The service information is displayed for a few seconds, then disappears.

1
35
INSTRUMENTS and CONTROLS

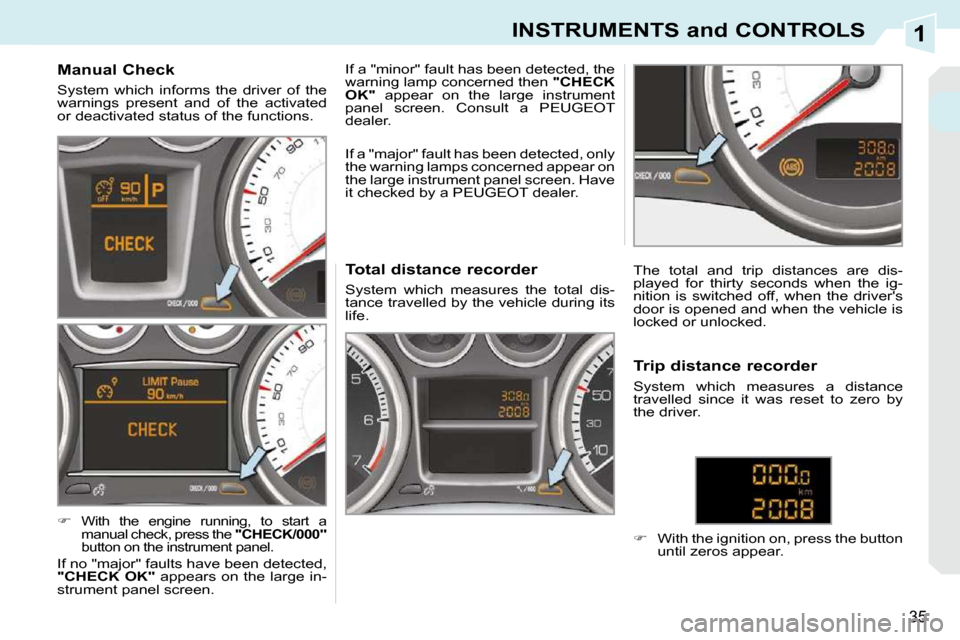

Manual Check
System which informs the driver of the
warnings present and of the activated
or deactivated status of the functions.


With the engine running, to start a
manual check, press the "CHECK/000"
button on the instrument panel.
If no "major" faults have been detected,

"CHECK OK" appears on the large in-
strument panel screen. If a "minor" fault has been detected, the
warning lamp concerned then
"CHECK
OK" appear on the large instrument
panel screen. Consult a PEUGEOT
dealer.
If a "major" fault has been detected, only
the warning lamps concerned appear on
the large instrument panel screen. Have
it checked by a PEUGEOT dealer.
Total distance recorder
System which measures the total dis-
tance travelled by the vehicle during its
life. The total and trip distances are dis-
played for thirty seconds when the ig-
nition is switched off, when the driver's
door is opened and when the vehicle is
locked or unlocked.
Trip distance recorder
System which measures a distance
travelled since it was reset to zero by
the driver.

 With the ignition on, press the button
until zeros appear.

1
36

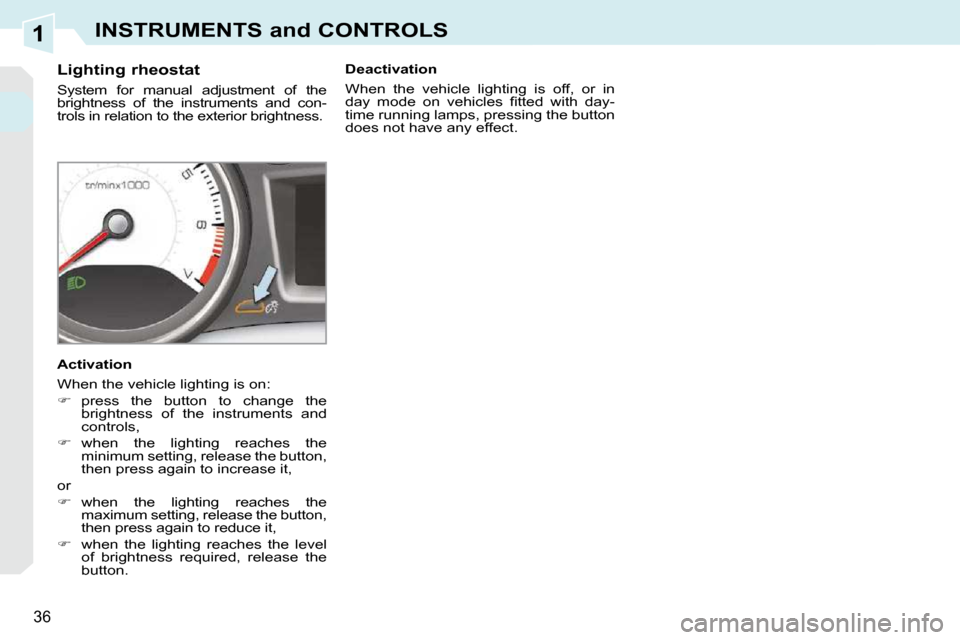

INSTRUMENTS and CONTROLS
Lighting rheostat
System for manual adjustment of the
brightness of the instruments and con-
trols in relation to the exterior brightness.
Activation
When the vehicle lighting is on:

 press the button to change the
brightness of the instruments and
controls,

 when the lighting reaches the
minimum setting, release the button,
then press again to increase it,
or

 when the lighting reaches the
maximum setting, release the button,
then press again to reduce it,

 when the lighting reaches the level
of brightness required, release the
button. Deactivation
When the vehicle lighting is off, or in
day mode on vehicles fi tted with day-
time running lamps, pressing the button
does not have any effect.

2
37

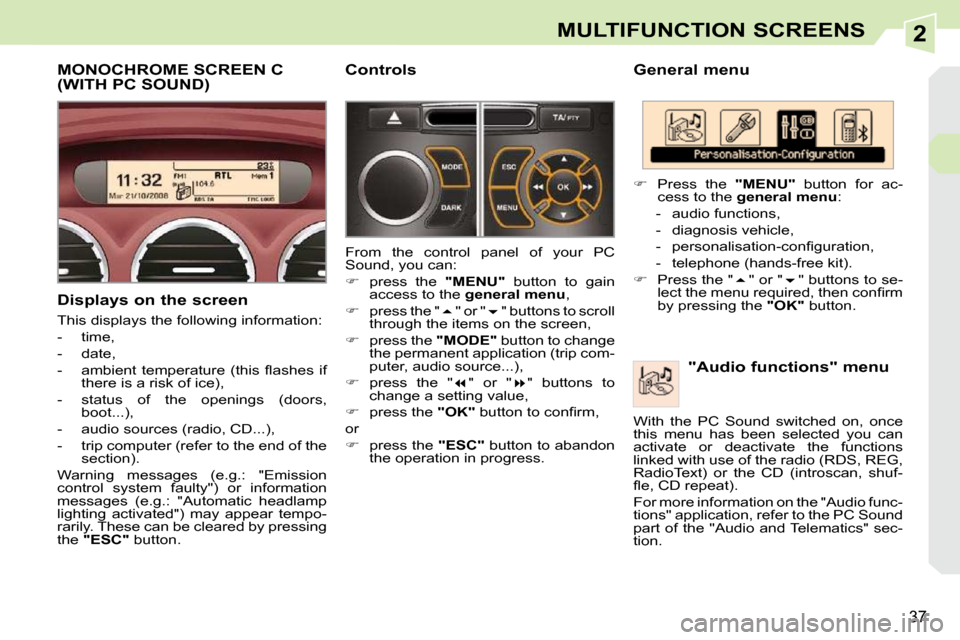

MULTIFUNCTION SCREENS
General menu "Audio functions" menu

 Press the "MENU" button for ac-
cess to the general menu :
- audio functions,
- diagnosis vehicle,
- personalisation-confi guration,
- telephone (hands-free kit).

 Press the "  " or "  " buttons to se-
lect the menu required, then confi rm
by pressing the "OK" button.
With the PC Sound switched on, once
this menu has been selected you can
activate or deactivate the functions
linked with use of the radio (RDS, REG,
RadioText) or the CD (introscan, shuf-
fl e, CD repeat).
For more information on the "Audio func-
tions" application, refer to the PC Sound
part of the "Audio and Telematics" sec-
tion.
MONOCHROME SCREEN C (WITH PC SOUND)
Displays on the screen
This displays the following information:
- time,
- date,
- ambient temperature (this fl ashes if there is a risk of ice),
- status of the openings (doors, boot...),
- audio sources (radio, CD...),
- trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic headlamp
lighting activated") may appear tempo-
rarily. These can be cleared by pressing
the "ESC" button. Controls
From the control panel of your PC
Sound, you can:

 press the "MENU" button to gain
access to the general menu ,

 press the "  " or "  " buttons to scroll
through the items on the screen,

 press the "MODE" button to change
the permanent application (trip com-
puter, audio source...),

 press the "  " or "  " buttons to
change a setting value,

 press the "OK" button to confi rm,
or

 press the "ESC" button to abandon
the operation in progress.

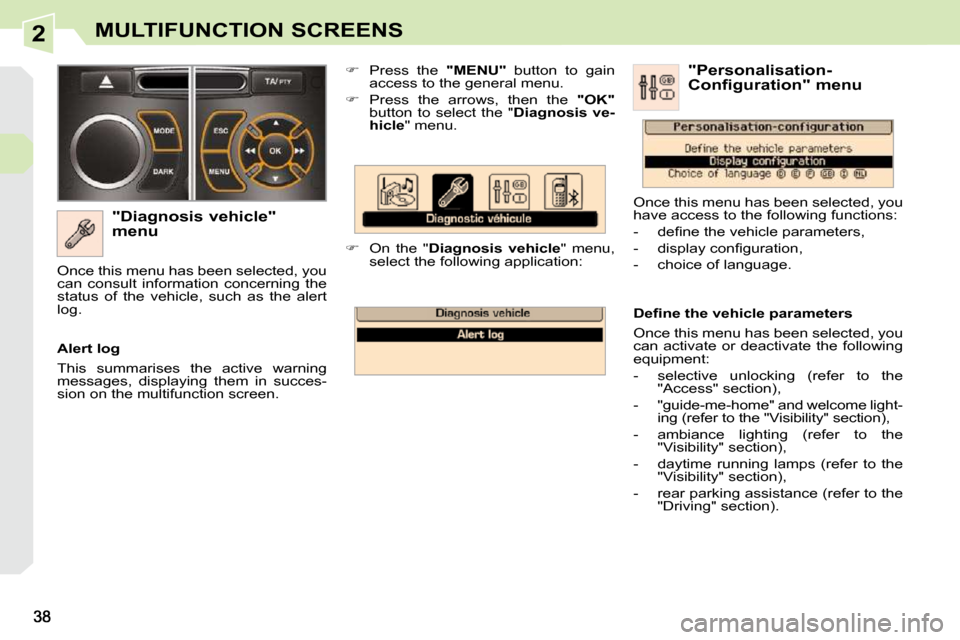

2MULTIFUNCTION SCREENS
"Diagnosis vehicle"
menu
 Press the "MENU" button to gain
access to the general menu.

 Press the arrows, then the "OK"
button to select the " Diagnosis ve-
hicle " menu.

 On the " Diagnosis vehicle " menu,
select the following application:
Alert log
This summarises the active warning
messages, displaying them in succes-
sion on the multifunction screen.
Once this menu has been selected, you
can consult information concerning the
status of the vehicle, such as the alert
log.
Defi ne the vehicle parameters
Once this menu has been selected, you
can activate or deactivate the following
equipment:
- selective unlocking (refer to the
"Access" section),
- "guide-me-home" and welcome light- ing (refer to the "Visibility" section),
- ambiance lighting (refer to the "Visibility" section),
- daytime running lamps (refer to the "Visibility" section),
- rear parking assistance (refer to the "Driving" section). "Personalisation-
Configuration" menu
Once this menu has been selected, you
have access to the following functions:
- defi ne the vehicle parameters,
- display confi guration,
- choice of language.
