Page 41 of 256
3
i
58
COMFORT
FRONT SEATS
Seat with integral head restraint, con-
sisting of a seat cushion and a seat back
which can be adjusted to adapt your po-
sition for ease of driving and comfort.
F o r w a r d s - b a c k w a r d s a d j u s t m e n t
Push the control forwards or rear-
wards to slide the seat. S e a t c u s h i o n h e i g h t a n d a n g l e
a d j u s t m e n t
Tilt the rear part of the control up-
wards or downwards to obtain the
required height.
Tilt the front part of the control up-
wards or downwards to obtain the
required angle. S e a t b a c k a n g l e a d j u s t m e n t
Tilt the control forwards or rearwards
to adjust the angle of the seat back.
E l e c t r i c a d j u s t m e n t s The electrical functions of the seat
are deactivated approximately one
minute after the ignition is switched
off.
To reactivate them, switch on the
ignition.
Page 42 of 256

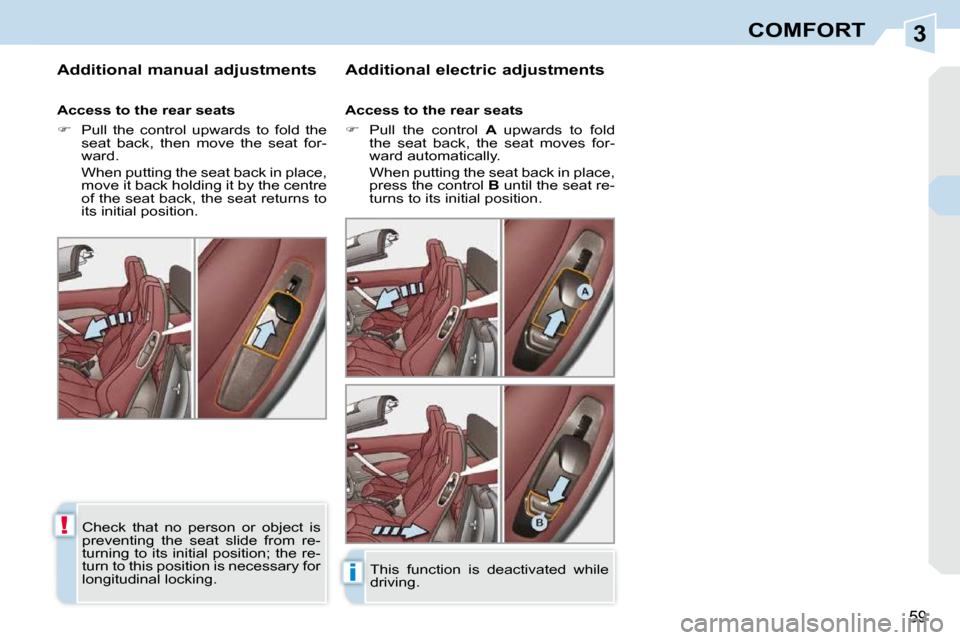

3
!
i
59
COMFORT
A d d i t i o n a l m a n u a l a d j u s t m e n t s A d d i t i o n a l e l e c t r i c a d j u s t m e n t s
A c c e s s t o t h e r e a r s e a t s
Pull the control A upwards to fold
the seat back, the seat moves for-
ward automatically.
When putting the seat back in place, press the control B until the seat re-
turns to its initial position.
A c c e s s t o t h e r e a r s e a t s
Pull the control upwards to fold the
seat back, then move the seat for-
ward.
When putting the seat back in place, move it back holding it by the centre
of the seat back, the seat returns to
its initial position.
Check that no person or object is
preventing the seat slide from re-
turning to its initial position; the re-
turn to this position is necessary for
longitudinal locking. This function is deactivated while
driving.
Page 43 of 256
3
i!
60
COMFORT
C o n t r o l l i n g t h e " A I R W A V E " s y s t e m
When the engine is running, the
" A I R W A V E " s y s t e m , l o c a t e d i n t h e h e a d
restraint of each front seat, can be con-
trolled separately to produce heated
blown air directed towards the neck of
each occupant. Heated seats control
With the engine running, the front seats
can be heated separately.
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:
0: Off.
1: Low.
2: Medium.
3: High.
Use the corresponding adjustment
dial, placed on the centre console,
t o s e t t h e t e m p e r a t u r e a n d fl o w o f
blown air required:
0: Off.
1: Low.
2: Medium.
3: High.
Use the direction dial, placed on
each vent, to direct the output of the
blown air upwards, to the centre or
downwards.
When the control is activated, the
blown air arrives progressively to
reach a comfortable temperature. D o n o t u s e t h e " A I R W A V E " s y s t e m
if a child seat is installed on the
front passenger seat.
Page 44 of 256
3
i
!
!
61
COMFORT
STORING DRIVING POSITIONS
System which takes into account the
electrical settings of the driver's seat
and exterior mirrors. It enables you to
store up to two positions using the but-
tons on the side of the driver's seat and
two further driving positions using the
two remote control keys. R e c a l l i n g a s t o r e d p o s i t i o n
S t o r i n g a p o s i t i o n Storing a new position cancels the
previous position.
When the ignition is off, after a few
consecutive position recalls, the
function will be deactivated until
the engine is started, to prevent
discharging of the battery.
U s i n g t h e r e m o t e c o n t r o l k e y s
When the vehicle is locked, the remote
control key stores the position of the
driver's seat and exterior mirrors.
Each remote control key can store one
s p e c i fi c s e t t i n g .
U s i n g b u t t o n s M / 1 / 2
Press and hold button 1 or 2 until
the audible signal is heard indicat-
ing the end of the adjustment.
U s i n g t h e r e m o t e c o n t r o l k e y s
When the vehicle is unlocked, the driv-
er's seat and the exterior mirrors return
to the position stored by the remote
control key.
U s i n g b u t t o n s M / 1 / 2
Switch on the ignition.
Adjust your seat and your exterior
mirrors.
Press button M , then press button 1
or 2 within four seconds.
An audible signal is heard indicating that the storing has been taken into
account.
REAR SEATS
F i x e d t w o - s e a t b e n c h fi t t e d w i t h r o l l -
over bars to guarantee your protection
should the vehicle roll over.
Do not place any covering on the
rear head restraints. Use a spe-
cial cover recommended by the
PEUGEOT network.
T h e r e a r h e a d r e s t r a i n t s a r e fi x e d . T h e y
incorporate the roll-over hoops (re-
f e r t o t h e s e c t i o n " S a f e t y - § R o l l - o v e r
h o o p s " ) .
T h e r e a r b e n c h s e a t m a y b e fi t t e d w i t h a
folding comfort armrest in the centre of
the seat back.
Page 45 of 256
3
i
!
!
61
COMFORT
STORING DRIVING POSITIONS
System which takes into account the
electrical settings of the driver's seat
and exterior mirrors. It enables you to
store up to two positions using the but-
tons on the side of the driver's seat and
two further driving positions using the
two remote control keys. R e c a l l i n g a s t o r e d p o s i t i o n
S t o r i n g a p o s i t i o n Storing a new position cancels the
previous position.
When the ignition is off, after a few
consecutive position recalls, the
function will be deactivated until
the engine is started, to prevent
discharging of the battery.
U s i n g t h e r e m o t e c o n t r o l k e y s
When the vehicle is locked, the remote
control key stores the position of the
driver's seat and exterior mirrors.
Each remote control key can store one
s p e c i fi c s e t t i n g .
U s i n g b u t t o n s M / 1 / 2
Press and hold button 1 or 2 until
the audible signal is heard indicat-
ing the end of the adjustment.
U s i n g t h e r e m o t e c o n t r o l k e y s
When the vehicle is unlocked, the driv-
er's seat and the exterior mirrors return
to the position stored by the remote
control key.
U s i n g b u t t o n s M / 1 / 2
Switch on the ignition.
Adjust your seat and your exterior
mirrors.
Press button M , then press button 1
or 2 within four seconds.
An audible signal is heard indicating that the storing has been taken into
account.
REAR SEATS
F i x e d t w o - s e a t b e n c h fi t t e d w i t h r o l l -
over bars to guarantee your protection
should the vehicle roll over.
Do not place any covering on the
rear head restraints. Use a spe-
cial cover recommended by the
PEUGEOT network.
T h e r e a r h e a d r e s t r a i n t s a r e fi x e d . T h e y
incorporate the roll-over hoops (re-
f e r t o t h e s e c t i o n " S a f e t y - § R o l l - o v e r
h o o p s " ) .
T h e r e a r b e n c h s e a t m a y b e fi t t e d w i t h a
folding comfort armrest in the centre of
the seat back.
Page 46 of 256

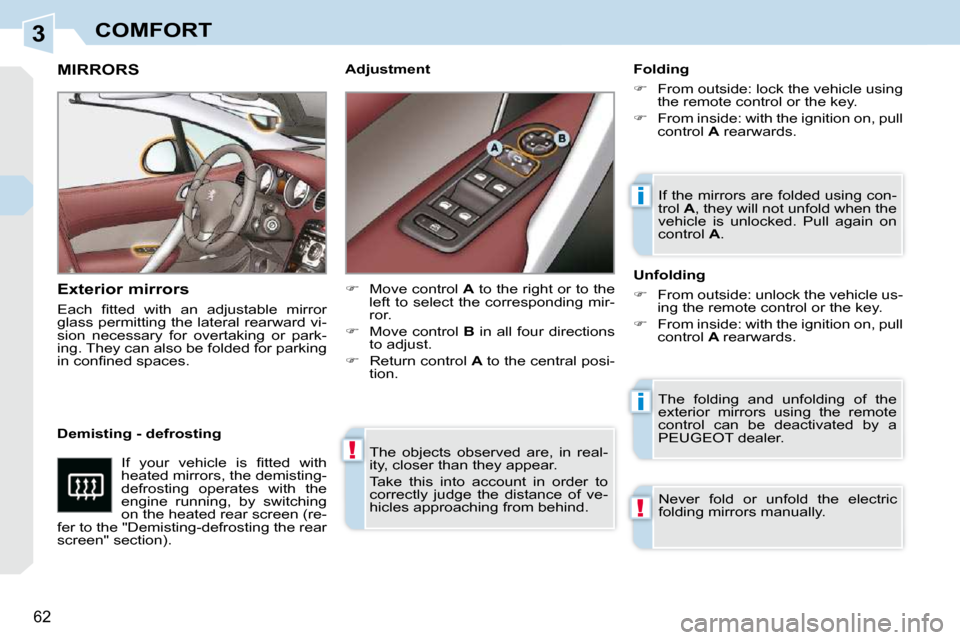

3
!
i
i
!
62
COMFORT
The objects observed are, in real-
ity, closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.
MIRRORS
E x t e r i o r m i r r o r s
E a c h fi t t e d w i t h a n a d j u s t a b l e m i r r o r
glass permitting the lateral rearward vi-
sion necessary for overtaking or park-
ing. They can also be folded for parking
i n c o n fi n e d s p a c e s . F o l d i n g
From outside: lock the vehicle using
the remote control or the key.
From inside: with the ignition on, pull
control A rearwards.
The folding and unfolding of the
exterior mirrors using the remote
control can be deactivated by a
PEUGEOT dealer.
D e m i s t i n g - d e f r o s t i n g U n f o l d i n g
From outside: unlock the vehicle us-
ing the remote control or the key.
From inside: with the ignition on, pull
control A rearwards.
If the mirrors are folded using con-
trol
A , they will not unfold when the
vehicle is unlocked. Pull again on
control A .
I f y o u r v e h i c l e i s fi t t e d w i t h
heated mirrors, the demisting-
defrosting operates with the
engine running, by switching
on the heated rear screen (re-
f e r t o t h e " D e m i s t i n g - d e f r o s t i n g t h e r e a r
s c r e e n " s e c t i o n ) .
Move control A to the right or to the
left to select the corresponding mir-
ror.
Move control B in all four directions
to adjust.
R e t u r n c o n t r o l A to the central posi-
tion.
Never fold or unfold the electric
folding mirrors manually.
A d j u s t m e n t
Page 47 of 256

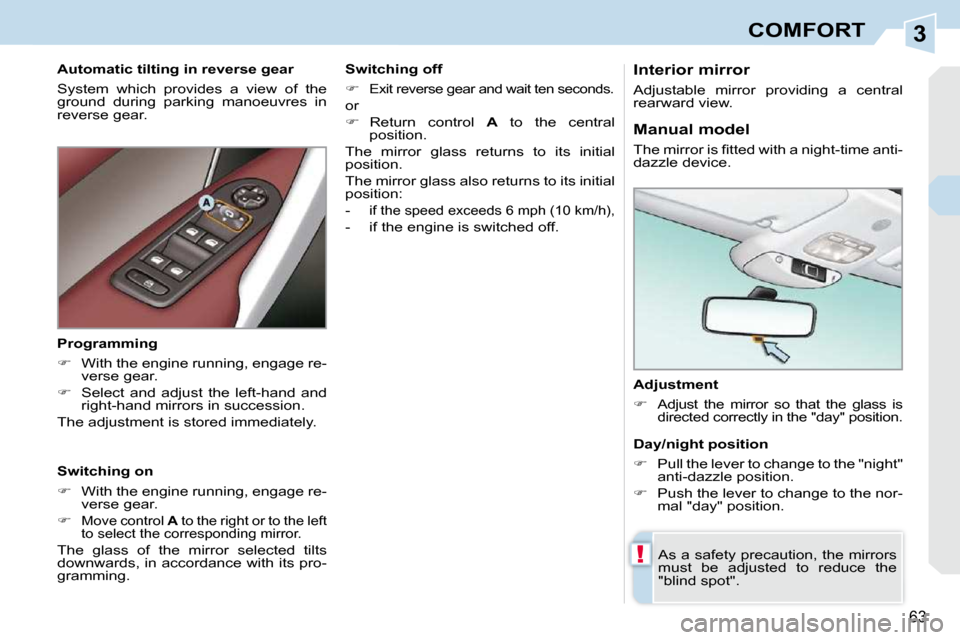

3
!
63
COMFORT
A d j u s t m e n t
Adjust the mirror so that the glass is
d i r e c t e d c o r r e c t l y i n t h e " d a y " p o s i t i o n .
As a safety precaution, the mirrors
must be adjusted to reduce the
" b l i n d s p o t " .
Manual model
T h e m i r r o r i s fi t t e d w i t h a n i g h t - t i m e a n t i -
dazzle device.
D a y / n i g h t p o s i t i o n
P u l l t h e l e v e r t o c h a n g e t o t h e " n i g h t "
anti-dazzle position.
Push the lever to change to the nor-
m a l " d a y " p o s i t i o n .
A u t o m a t i c t i l t i n g i n r e v e r s e g e a r
System which provides a view of the
ground during parking manoeuvres in
reverse gear.
S w i t c h i n g o n
With the engine running, engage re-
verse gear.
Move control A to the right or to the left
to select the corresponding mirror.
The glass of the mirror selected tilts
downwards, in accordance with its pro-
gramming.
P r o g r a m m i n g
With the engine running, engage re-
verse gear.
Select and adjust the left-hand and
right-hand mirrors in succession.
The adjustment is stored immediately. S w i t c h i n g o f f
Exit reverse gear and wait ten seconds.
or
R e t u r n c o n t r o l A to the central
position.
The mirror glass returns to its initial
position.
The mirror glass also returns to its initial
position:
-
if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off. Interior mirror
Adjustable mirror providing a central
rearward view.
Page 48 of 256
3
!
63
COMFORT
A d j u s t m e n t
Adjust the mirror so that the glass is
d i r e c t e d c o r r e c t l y i n t h e " d a y " p o s i t i o n .
As a safety precaution, the mirrors
must be adjusted to reduce the
" b l i n d s p o t " .
Manual model
T h e m i r r o r i s fi t t e d w i t h a n i g h t - t i m e a n t i -
dazzle device.
D a y / n i g h t p o s i t i o n
P u l l t h e l e v e r t o c h a n g e t o t h e " n i g h t "
anti-dazzle position.
Push the lever to change to the nor-
m a l " d a y " p o s i t i o n .
A u t o m a t i c t i l t i n g i n r e v e r s e g e a r
System which provides a view of the
ground during parking manoeuvres in
reverse gear.
S w i t c h i n g o n
With the engine running, engage re-
verse gear.
Move control A to the right or to the left
to select the corresponding mirror.
The glass of the mirror selected tilts
downwards, in accordance with its pro-
gramming.
P r o g r a m m i n g
With the engine running, engage re-
verse gear.
Select and adjust the left-hand and
right-hand mirrors in succession.
The adjustment is stored immediately. S w i t c h i n g o f f
Exit reverse gear and wait ten seconds.
or
R e t u r n c o n t r o l A to the central
position.
The mirror glass returns to its initial
position.
The mirror glass also returns to its initial
position:
-
if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off. Interior mirror
Adjustable mirror providing a central
rearward view.
Page 49 of 256
3
!
i
64

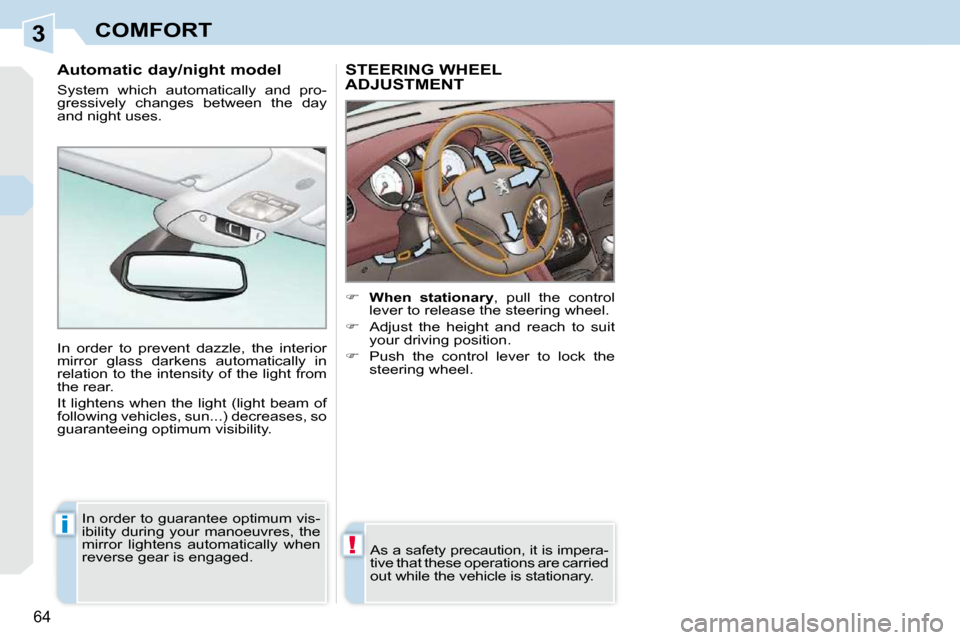

COMFORT
STEERING WHEEL ADJUSTMENT
W h e n s t a t i o n a r y , pull the control
lever to release the steering wheel.
Adjust the height and reach to suit
your driving position.
Push the control lever to lock the
steering wheel.
As a safety precaution, it is impera-
tive that these operations are carried
out while the vehicle is stationary.
A u t o m a t i c d a y / n i g h t m o d e l
System which automatically and pro-
gressively changes between the day
and night uses.
In order to prevent dazzle, the interior
mirror glass darkens automatically in
relation to the intensity of the light from
the rear.
It lightens when the light (light beam of
following vehicles, sun...) decreases, so
guaranteeing optimum visibility.
In order to guarantee optimum vis-
ibility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.
Page 50 of 256
3
!
i
64
COMFORT
STEERING WHEEL ADJUSTMENT
W h e n s t a t i o n a r y , pull the control
lever to release the steering wheel.
Adjust the height and reach to suit
your driving position.
Push the control lever to lock the
steering wheel.
As a safety precaution, it is impera-
tive that these operations are carried
out while the vehicle is stationary.
A u t o m a t i c d a y / n i g h t m o d e l
System which automatically and pro-
gressively changes between the day
and night uses.
In order to prevent dazzle, the interior
mirror glass darkens automatically in
relation to the intensity of the light from
the rear.
It lightens when the light (light beam of
following vehicles, sun...) decreases, so
guaranteeing optimum visibility.
In order to guarantee optimum vis-
ibility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.
