MULTIFUNCTION SCREENS
F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction screen by the
driver must be done only when sta-
tionary. "Telephone" menu
D i s p l a y c o n fi g u r a t i o n
Once this menu has been selected, you
have access to the following settings:
- brightness-video setting,
- date and time setting,
- choice of units.
Choice of language
Once this menu has been selected,
you can change the language used by
the display (Deutsch, English, Espanol,
Français, Italiano, Nederlands,
Portugues, Portugues-Brasil, Türkçe * ).

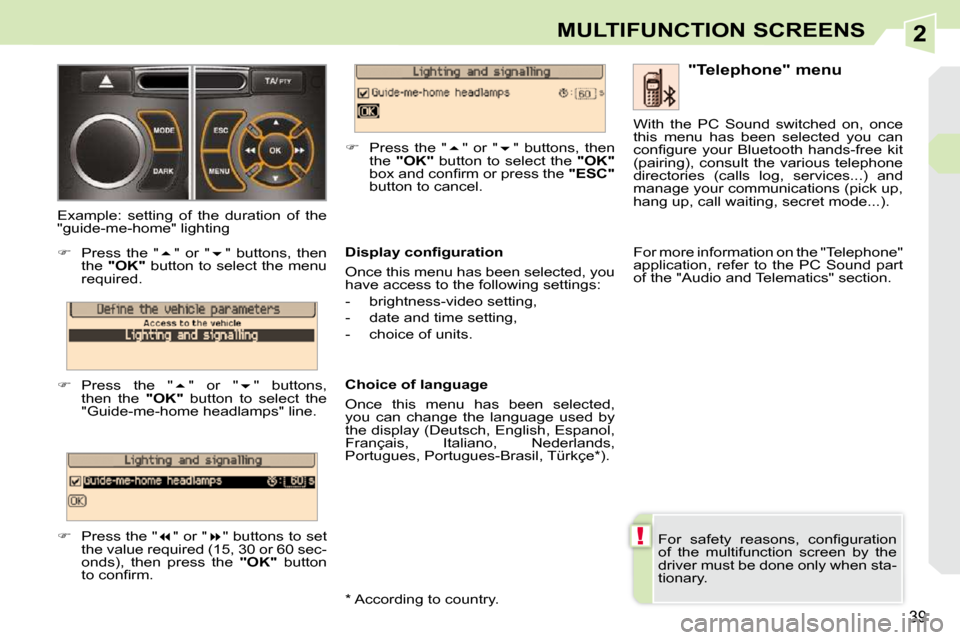

Example: setting of the duration of the
"guide-me-home" lighting
Press the " " or " " buttons, then
the "OK" button to select the menu
required.
Press the " " or " " buttons,
then the "OK" button to select the
"Guide-me-home headlamps" line.
Press the " " or " " buttons to set
the value required (15, 30 or 60 sec-
onds), then press the "OK" button
t o c o n fi r m .
Press the " " or " " buttons, then
the "OK" button to select the "OK"
b o x a n d c o n fi r m o r p r e s s t h e "ESC"
button to cancel. With the PC Sound switched on, once
this menu has been selected you can
c o n fi g u r e y o u r B l u e t o o t h h a n d s - f r e e k i t
(pairing), consult the various telephone
directories (calls log, services...) and
manage your communications (pick up,
hang up, call waiting, secret mode...).
For more information on the "Telephone"
application, refer to the PC Sound part
of the "Audio and Telematics" section.
* According to country.
Page 22 of 256
2
i
40
MULTIFUNCTION SCREENS
Displays on the screen
Once unfolded, it displays the following
information automatically and directly:
- time,
- date,
- altitude,
- ambient temperature (the value dis- p l a y e d fl a s h e s i f t h e r e i s a r i s k o f
ice),
- openings check,
- warning and vehicle function status messages, displayed temporarily,
- audio functions,
- trip computer information,
- satellite navigation system informa- tion.

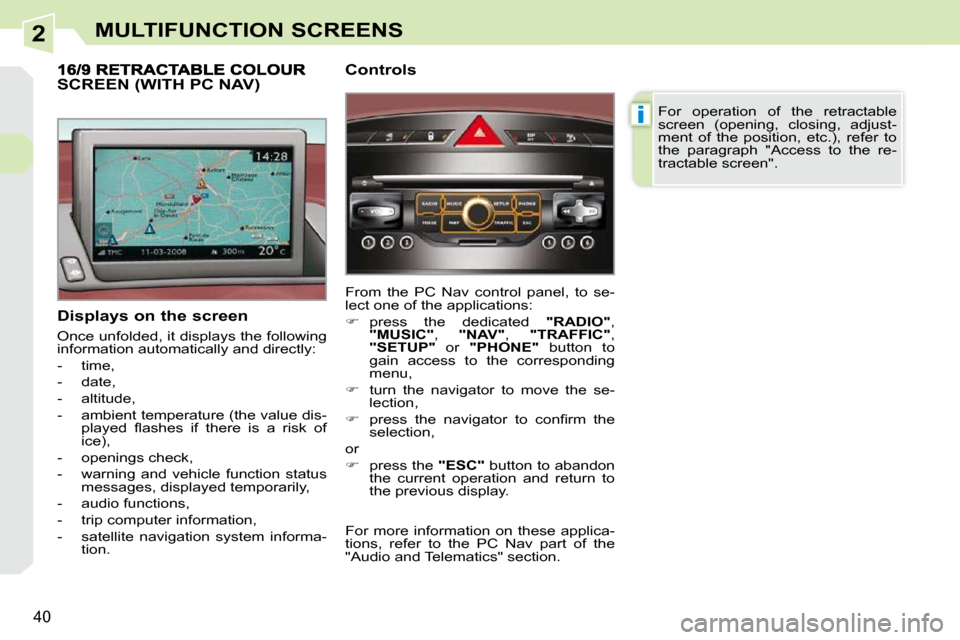

SCREEN (WITH PC NAV) Controls
From the PC Nav control panel, to se-
lect one of the applications:
press the dedicated "RADIO" ,
"MUSIC" , "NAV" , "TRAFFIC" ,
"SETUP" or "PHONE" button to
gain access to the corresponding
menu,
turn the navigator to move the se-
lection,
p r e s s t h e n a v i g a t o r t o c o n fi r m t h e
selection,
or
press the "ESC" button to abandon
the current operation and return to
the previous display. For operation of the retractable
screen (opening, closing, adjust-
ment of the position, etc.), refer to
the paragraph "Access to the re-
tractable screen".
For more information on these applica-
tions, refer to the PC Nav part of the
"Audio and Telematics" section.
Page 23 of 256
2
!
41
MULTIFUNCTION SCREENS

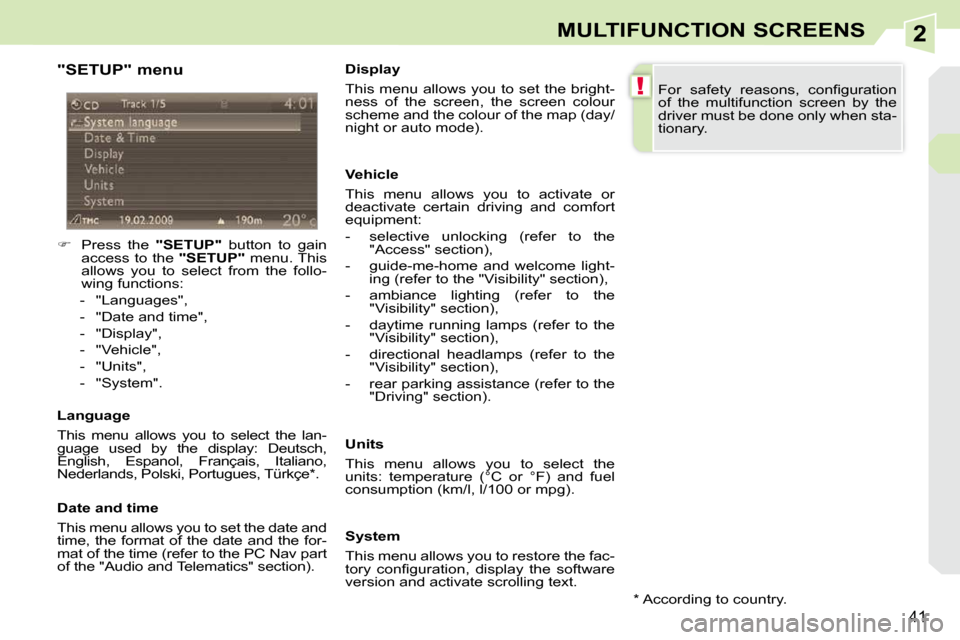

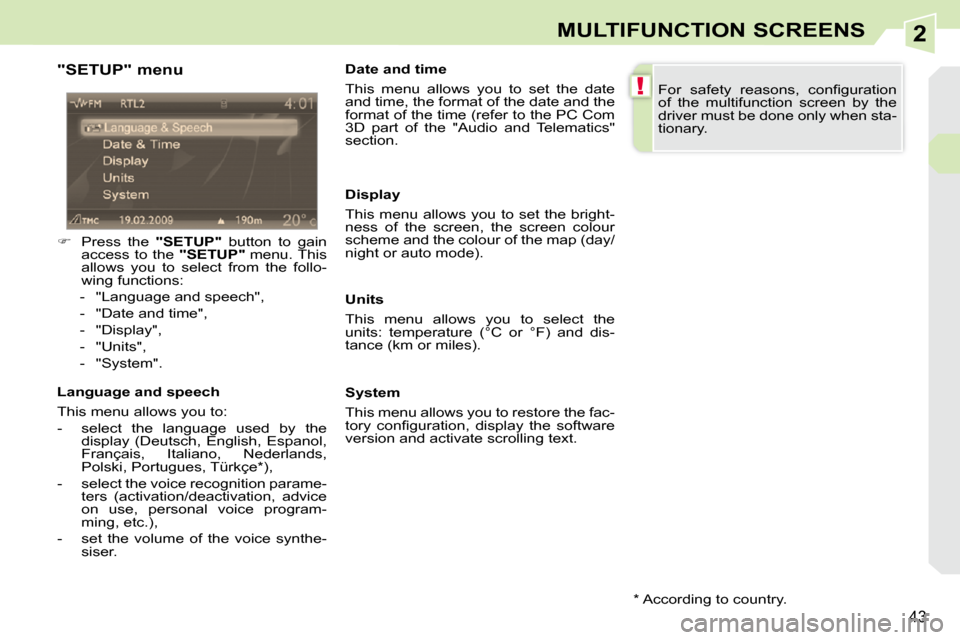

"SETUP" menu
Press the "SETUP" button to gain
access to the "SETUP" menu. This
allows you to select from the follo-
wing functions:
- "Languages",
- "Date and time",
- "Display",
- "Vehicle",
- "Units",
- "System".
Language
This menu allows you to select the lan-
guage used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Polski, Portugues, Türkçe * .
Date and time
This menu allows you to set the date and
time, the format of the date and the for-
mat of the time (refer to the PC Nav part
of the "Audio and Telematics" section). Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).
Vehicle
This menu allows you to activate or
deactivate certain driving and comfort
equipment:
- selective unlocking (refer to the
"Access" section),
- guide-me-home and welcome light- ing (refer to the "Visibility" section),
- ambiance lighting (refer to the "Visibility" section),
- daytime running lamps (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- rear parking assistance (refer to the "Driving" section).
Units
This menu allows you to select the
units: temperature (°C or °F) and fuel
consumption (km/l, l/100 or mpg).
System
This menu allows you to restore the fac-
t o r y c o n fi g u r a t i o n , d i s p l a y t h e s o f t w a r e
version and activate scrolling text. F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction screen by the
driver must be done only when sta-
tionary.
* According to country.
Page 24 of 256
2
i
42
MULTIFUNCTION SCREENS

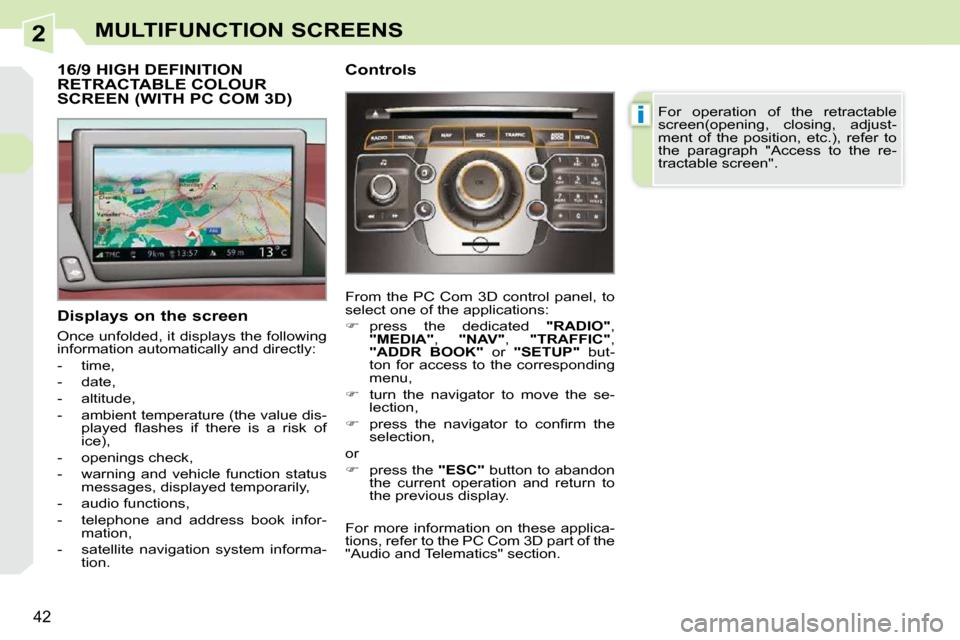

16/9 HIGH DEFINITION RETRACTABLE COLOUR SCREEN (WITH PC COM 3D)
Displays on the screen
Once unfolded, it displays the following
information automatically and directly:
- time,
- date,
- altitude,
- ambient temperature (the value dis- p l a y e d fl a s h e s i f t h e r e i s a r i s k o f
ice),
- openings check,
- warning and vehicle function status messages, displayed temporarily,
- audio functions,
- telephone and address book infor- mation,
- satellite navigation system informa- tion. Controls
From the PC Com 3D control panel, to
select one of the applications:
press the dedicated "RADIO" ,
"MEDIA" , "NAV" , "TRAFFIC" ,
"ADDR BOOK" or "SETUP" but-
ton for access to the corresponding
menu,
turn the navigator to move the se-
lection,
p r e s s t h e n a v i g a t o r t o c o n fi r m t h e
selection,
or
press the "ESC" button to abandon
the current operation and return to
the previous display. For operation of the retractable
screen(opening, closing, adjust-
ment of the position, etc.), refer to
the paragraph "Access to the re-
tractable screen".
For more information on these applica-
tions, refer to the PC Com 3D part of the
"Audio and Telematics" section.
Page 25 of 256
2
!
43
MULTIFUNCTION SCREENS
"SETUP" menu
Press the "SETUP" button to gain
access to the "SETUP" menu. This
allows you to select from the follo-
wing functions:
- "Language and speech",
- "Date and time",
- "Display",
- "Units",
- "System".
Language and speech
This menu allows you to:
- select the language used by the display (Deutsch, English, Espanol,
Français, Italiano, Nederlands,
Polski, Portugues, Türkçe * ),
- select the voice recognition parame- ters (activation/deactivation, advice
on use, personal voice program-
ming, etc.),
- set the volume of the voice synthe- siser. Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time (refer to the PC Com
3D part of the "Audio and Telematics"
section.
Units
This menu allows you to select the
units: temperature (°C or °F) and dis-
tance (km or miles).
System
This menu allows you to restore the fac-
t o r y c o n fi g u r a t i o n , d i s p l a y t h e s o f t w a r e
version and activate scrolling text. F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction screen by the
driver must be done only when sta-
tionary.
Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).
* According to country.
Page 26 of 256
2
i
i
44
MULTIFUNCTION SCREENS

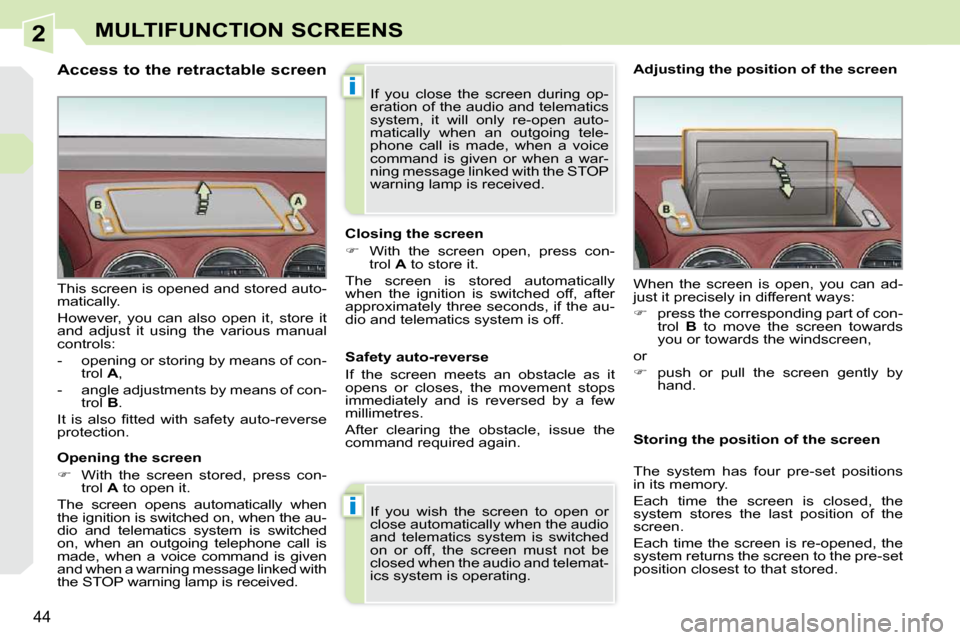

Access to the retractable screen
Opening the screen
With the screen stored, press con-
trol A to open it.
The screen opens automatically when
the ignition is switched on, when the au-
dio and telematics system is switched
on, when an outgoing telephone call is
made, when a voice command is given
and when a warning message linked with
the STOP warning lamp is received.
This screen is opened and stored auto-
matically.
However, you can also open it, store it
and adjust it using the various manual
controls:
- opening or storing by means of con-
trol A ,
- angle adjustments by means of con- trol B .
I t i s a l s o fi t t e d w i t h s a f e t y a u t o - r e v e r s e
protection. Closing the screen
With the screen open, press con-
trol A to store it.
The screen is stored automatically
when the ignition is switched off, after
approximately three seconds, if the au-
dio and telematics system is off.
If you wish the screen to open or
close automatically when the audio
and telematics system is switched
on or off, the screen must not be
closed when the audio and telemat-
ics system is operating. When the screen is open, you can ad-
just it precisely in different ways:
press the corresponding part of con-
trol B to move the screen towards
you or towards the windscreen,
or
push or pull the screen gently by
hand.
Adjusting the position of the screen
Safety auto-reverse
If the screen meets an obstacle as it
opens or closes, the movement stops
immediately and is reversed by a few
millimetres.
After clearing the obstacle, issue the
command required again. Storing the position of the screen
The system has four pre-set positions
in its memory.
Each time the screen is closed, the
system stores the last position of the
screen.
Each time the screen is re-opened, the
system returns the screen to the pre-set
position closest to that stored.
If you close the screen during op-
eration of the audio and telematics
system, it will only re-open auto-
matically when an outgoing tele-
phone call is made, when a voice
command is given or when a war-
ning message linked with the STOP
warning lamp is received.
Page 27 of 256
2
i
45
MULTIFUNCTION SCREENS
Monochrome screen C
With the monochrome screen C or
the instrument panel large
screen
Data displays

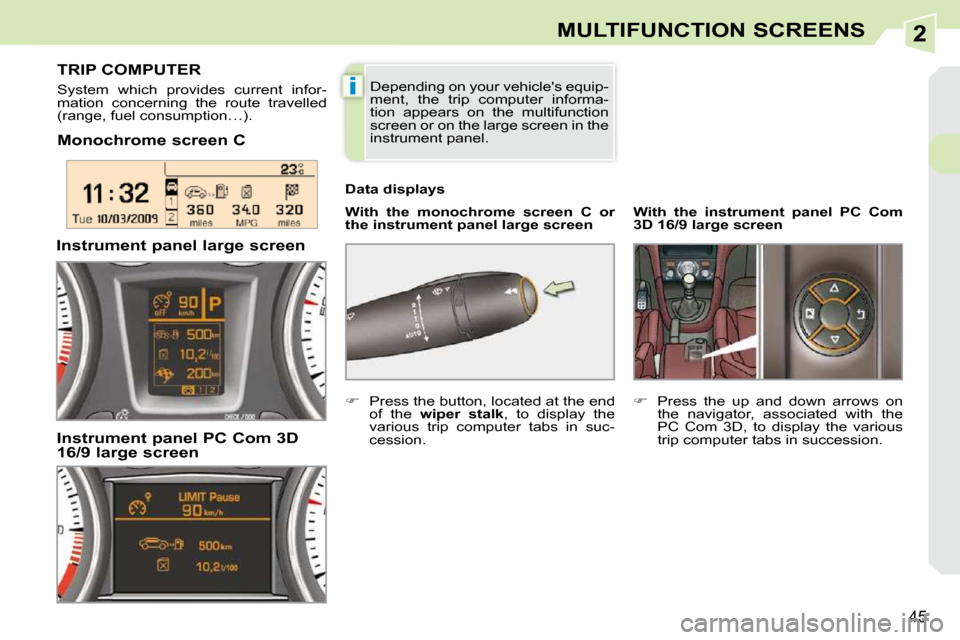

TRIP COMPUTER
System which provides current infor-
mation concerning the route travelled
(range, fuel consumption…).
Instrument panel large screen
Instrument panel PC Com 3D
16/9 large screen Depending on your vehicle's equip-
ment, the trip computer informa-
tion appears on the multifunction
screen or on the large screen in the
instrument panel.
With the instrument panel
PC Com
3D
16/9 large
screen
Press the up and down arrows on
the navigator, associated with the
PC Com 3D, to display the various
trip computer tabs in succession.
Press the button, located at the end
of the wiper
stalk , to display the
various trip computer tabs in suc-
cession.
Page 28 of 256
2
46
MULTIFUNCTION SCREENS
When the trip required is displayed,
press the control for more than two
seconds.

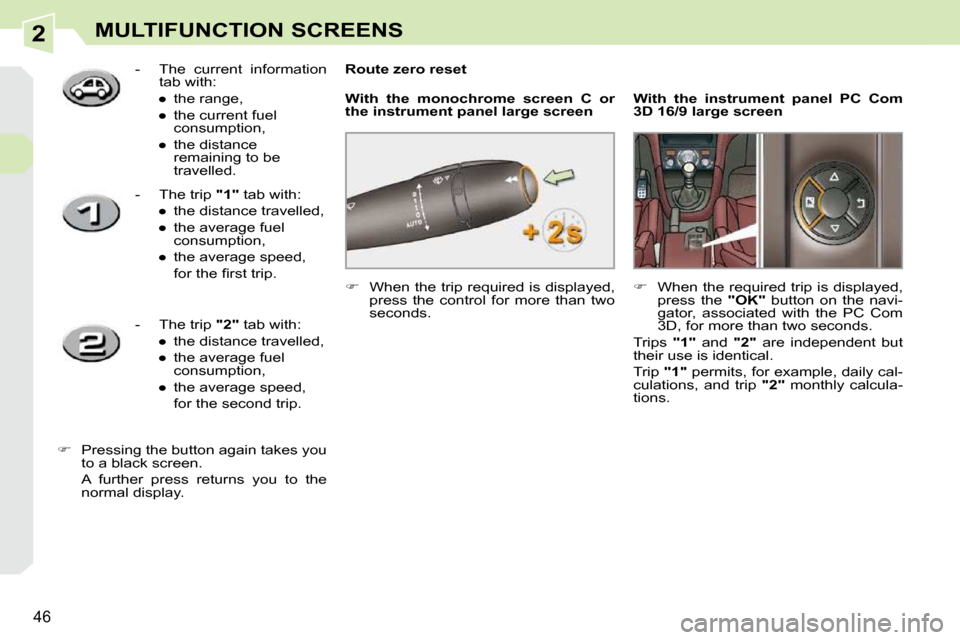

Route zero reset
With the instrument panel
PC Com
3D
16/9 large
screen
When the required trip is displayed,
press the "OK" button on the navi-
gator, associated with the PC Com
3D, for more than two seconds.
Trips "1" and "2" are independent but
their use is identical.
Trip "1" permits, for example, daily cal-
culations, and trip "2" monthly calcula-
tions.
With the monochrome screen C or
the instrument panel large
screen
- The current information
tab with:
Page 29 of 256
2
!
i
i
47
MULTIFUNCTION SCREENS

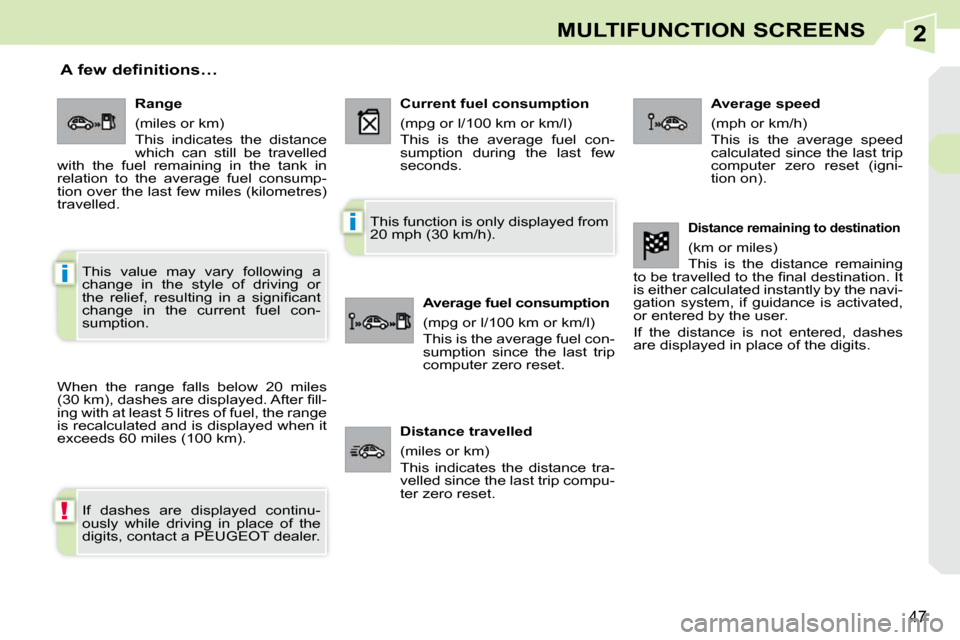

A few definitions…
When the range falls below 20 miles
( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r fi l l -
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km). If dashes are displayed continu-
ously while driving in place of the
digits, contact a PEUGEOT dealer. This function is only displayed from
20 mph (30 km/h).
This value may vary following a
change in the style of driving or
t h e r e l i e f , r e s u l t i n g i n a s i g n i fi c a n t
change in the current fuel con-
sumption. Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled. Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption during the last few
seconds.
Average fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip
computer zero reset. Average speed
(mph or km/h)
This is the average speed
calculated since the last trip
computer zero reset (igni-
tion on).
Distance travelled
(miles or km)
This indicates the distance tra-
velled since the last trip compu-
ter zero reset.
Distance remaining to destination
(km or miles)
This is the distance remaining
t o b e t r a v e l l e d t o t h e fi n a l d e s t i n a t i o n . I t
is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
Page 30 of 256
3
48
COMFORT
VENTILATION Air treatment
The incoming air follows various routes
depending on the controls selected by
the driver:
- direct arrival in the passenger com-partment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air conditioning).
The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits. The air distribution control enables you
to diffuse the air in the passenger com-
partment combining several air vents.
T h e a i r fl o w c o n t r o l e n a b l e s y o u t o
increase or reduce the speed of the
ventilation blower.
Air intake
The air circulating in the passenger com-
p a r t m e n t i s fi l t e r e d a n d o r i g i n a t e s e i t h e r
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode. Control panel
The controls of this system are grouped
together on control panel
A on the cen-
tre console. Depending on the model,
the functions offered are:
- level of comfort required,
- a i r fl o w ,
- air distribution,
- demisting and defrosting,
- manual or automatic air conditioning controls.
Air diffusion

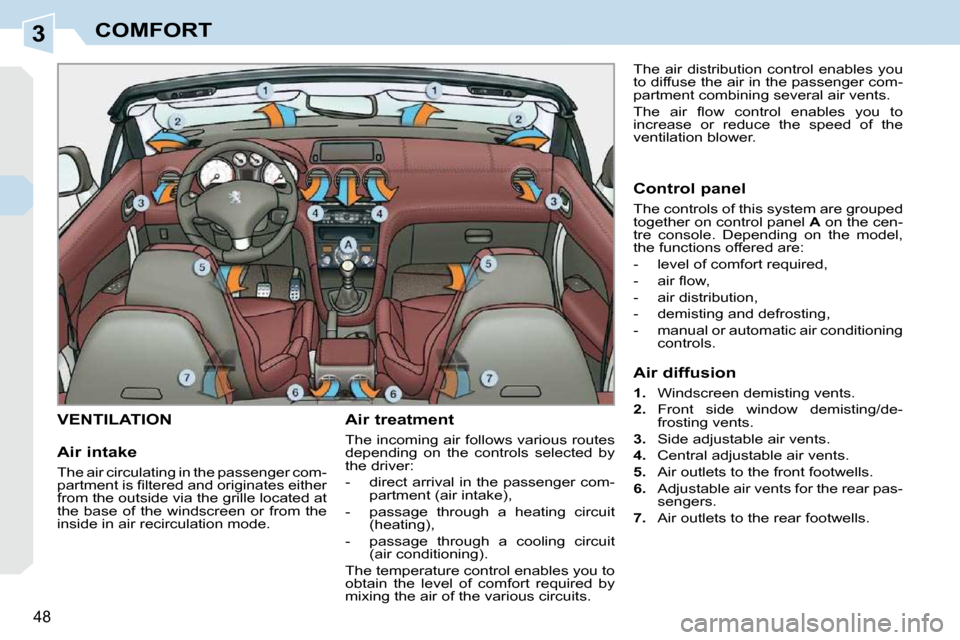

1. Windscreen demisting vents.
2. Front side window demisting/de-
frosting vents.
3. Side adjustable air vents.
4. Central adjustable air vents.
5. Air outlets to the front footwells.
6. Adjustable air vents for the rear pas-
sengers.
7. Air outlets to the rear footwells.
