Peugeot 308 SW BL 2008 Owners Manual

i
i
!

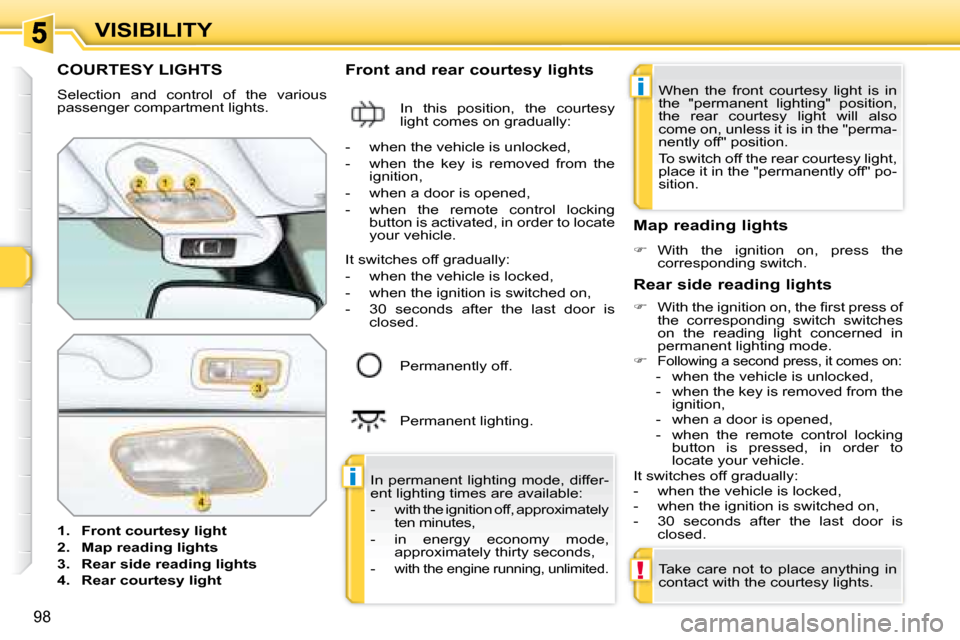

98
VISIBILITY
COURTESY LIGHTS
Selection and control of the various
passenger compartment lights.

1. Front courtesy light

2. Map reading lights

3. Rear side reading lights

4. Rear courtesy light Front and rear courtesy lights
In this position, the courtesy
light comes on gradually:
Map reading lights

 With the ignition on, press the
corresponding switch.
In permanent lighting mode, differ-
ent lighting times are available:
- with the ignition off, approximately ten minutes,
- in energy economy mode, approximately thirty seconds,
-
with the engine running, unlimited.
- when the vehicle is unlocked,
- when the key is removed from the
ignition,
- when a door is opened,
- when the remote control locking button is activated, in order to locate
your vehicle.
Permanently off.
Permanent lighting. When the front courtesy light is in
the "permanent lighting" position,
the rear courtesy light will also
come on, unless it is in the "perma-
nently off" position.
To switch off the rear courtesy light,
place it in the "permanently off" po-
sition.
Rear side reading lights

 With the ignition on, the fi rst press of
the corresponding switch switches
on the reading light concerned in
permanent lighting mode.


Following a second press, it comes on: - when the vehicle is unlocked,
- when the key is removed from the
ignition,
- when a door is opened,
- when the remote control locking button is pressed, in order to
locate your vehicle.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is closed.
Take care not to place anything in
contact with the courtesy lights.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.

i
i
99
VISIBILITY

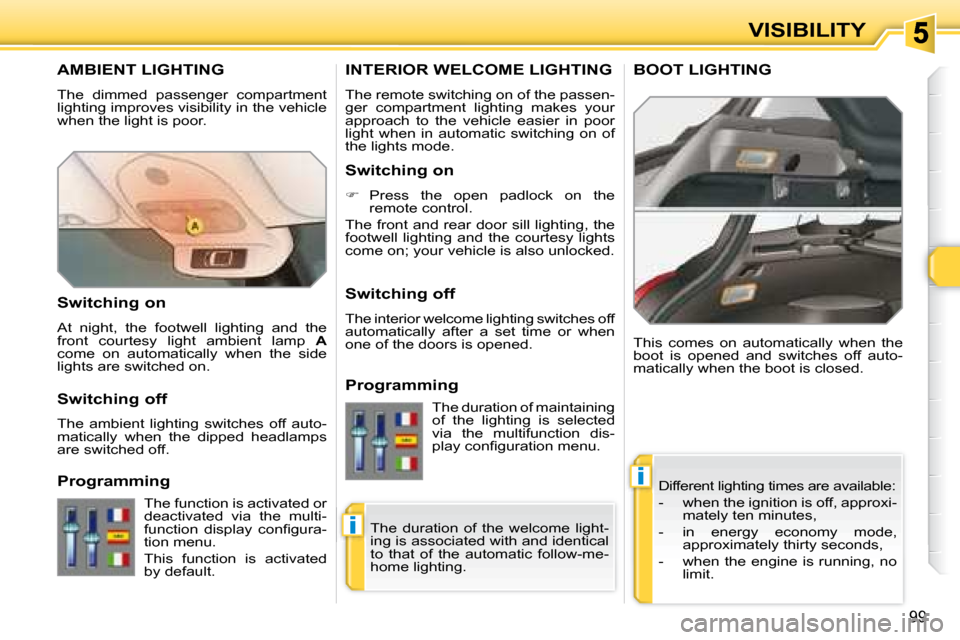

AMBIENT LIGHTING
The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor. Different lighting times are available:
- when the ignition is off, approxi-mately ten minutes,
- in energy economy mode, approximately thirty seconds,
- when the engine is running, no limit.
This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.
INTERIOR WELCOME LIGHTING
The remote switching on of the passen-
ger compartment lighting makes your
approach to the vehicle easier in poor
light when in automatic switching on of
the lights mode.
BOOT LIGHTING
Switching on

 Press the open padlock on the
remote control.
The front and rear door sill lighting, the
footwell lighting and the courtesy lights
come on; your vehicle is also unlocked.
Switching off
The interior welcome lighting switches off
automatically after a set time or when
one of the doors is opened.
Programming
Switching on
At night, the footwell lighting and the
front courtesy light ambient lamp
A
come on automatically when the side
lights are switched on.
Switching off
The ambient lighting switches off auto-
matically when the dipped headlamps
are switched off.
Programming
The duration of the welcome light-
ing is associated with and identical
to that of the automatic follow-me-
home lighting.
The function is activated or
deactivated via the multi-
function display confi gura-
tion menu.
This function is activated
by default. The duration of maintaining
of the lighting is selected
via the multifunction dis-
play confi guration menu.

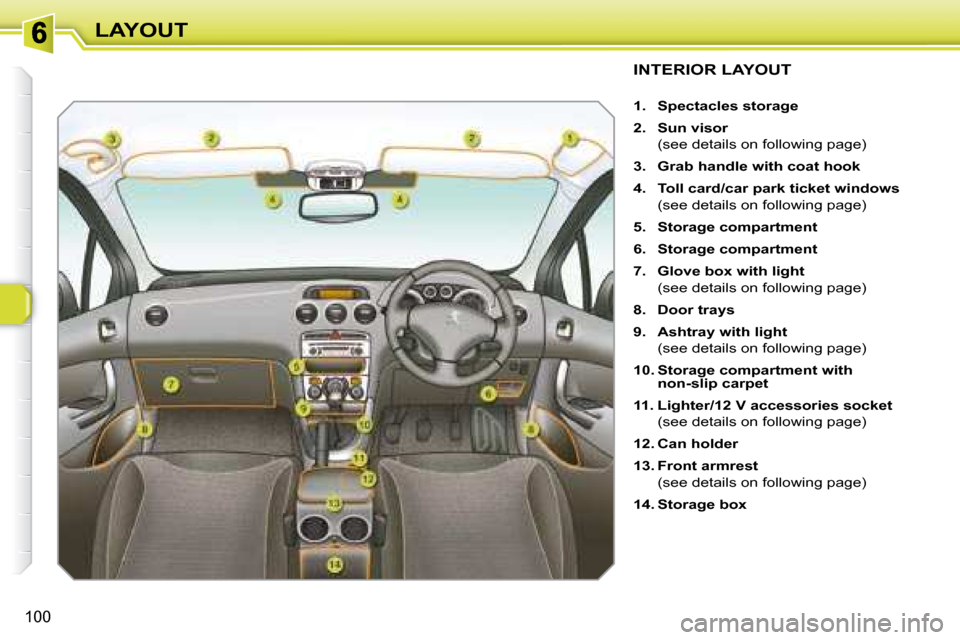

100
LAYOUT
INTERIOR LAYOUT

1. Spectacles storage

2. Sun visor
(see details on following page)

3. Grab handle with coat hook

4. Toll card/car park ticket windows
(see details on following page)

5. Storage compartment

6. Storage compartment

7. Glove box with light
(see details on following page)

8. Door trays

9. Ashtray with light
(see details on following page)

10. Storage compartment with
non-slip carpet

11. Lighter/12 V accessories socket
(see details on following page)

12. Can holder

13. Front armrest
(see details on following page)

14. Storage box

i

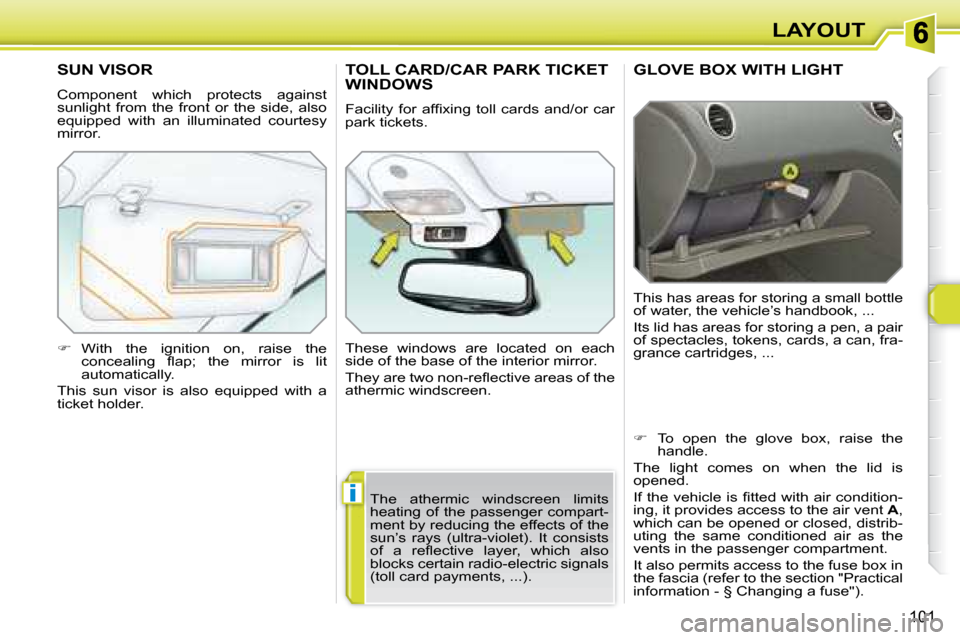

101
LAYOUT
GLOVE BOX WITH LIGHT
This has areas for storing a small bottle
of water, the vehicle’s handbook, ...
Its lid has areas for storing a pen, a pair
of spectacles, tokens, cards, a can, fra-
grance cartridges, ...
SUN VISOR
Component which protects against
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.

 With the ignition on, raise the
concealing fl ap; the mirror is lit
automatically.
This sun visor is also equipped with a
ticket holder.
TOLL CARD/CAR PARK TICKET WINDOWS
Facility for affi xing toll cards and/or car
park tickets.
These windows are located on each
side of the base of the interior mirror.
They are two non-refl ective areas of the
athermic windscreen.
The athermic windscreen limits
heating of the passenger compart-
ment by reducing the effects of the
sun’s rays (ultra-violet). It consists
of a refl ective layer, which also
blocks certain radio-electric signals
(toll card payments, ...).
 To open the glove box, raise the
handle.
The light comes on when the lid is
opened.
If the vehicle is fi tted with air condition-
ing, it provides access to the air vent A ,
which can be opened or closed, distrib-
uting the same conditioned air as the
vents in the passenger compartment.
It also permits access to the fuse box in
the fascia (refer to the section "Practical
information - § Changing a fuse").

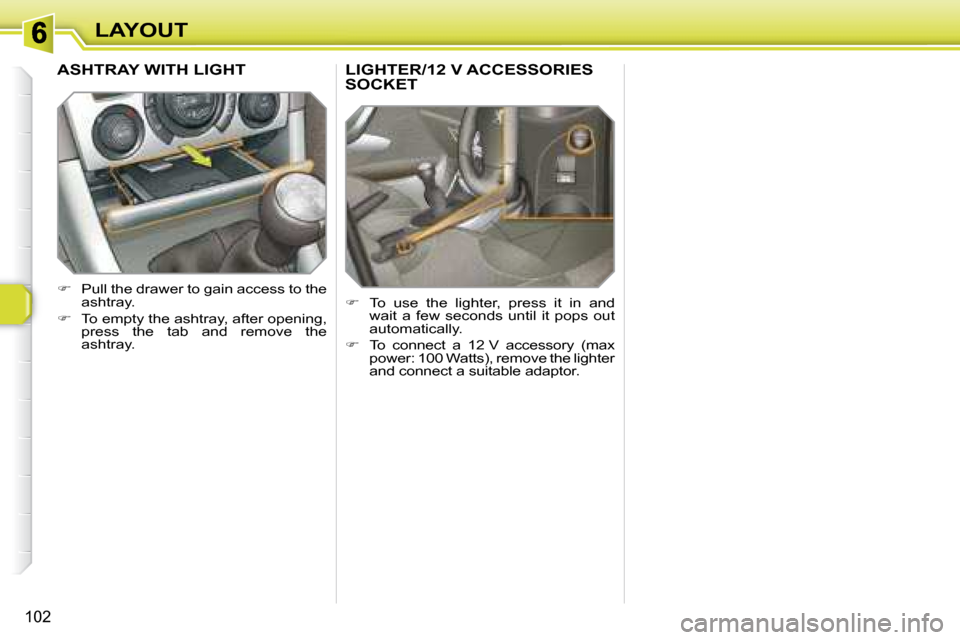

102
LAYOUT
LIGHTER/12 V ACCESSORIES SOCKET

 To use the lighter, press it in and
wait a few seconds until it pops out
automatically.

 To connect a 12 V accessory (max
power: 100 Watts), remove the lighter
and connect a suitable adaptor.
ASHTRAY WITH LIGHT

 Pull the drawer to gain access to the
ashtray.

 To empty the ashtray, after opening,
press the tab and remove the
ashtray.

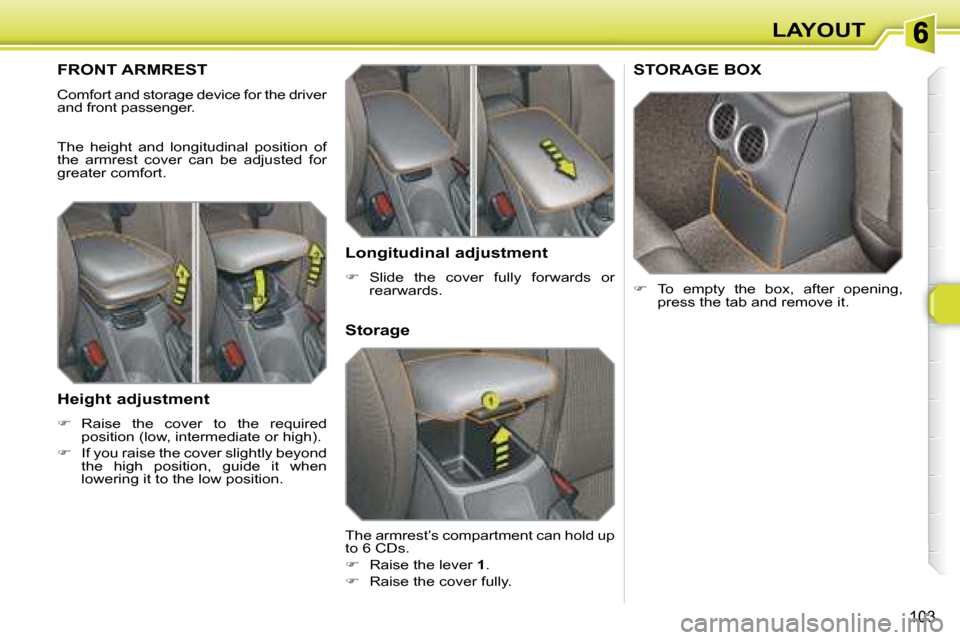

103
LAYOUT
FRONT ARMREST
Comfort and storage device for the driver
and front passenger.
The height and longitudinal position of
the armrest cover can be adjusted for
greater comfort.
Height adjustment

 Raise the cover to the required
position (low, intermediate or high).

 If you raise the cover slightly beyond
the high position, guide it when
lowering it to the low position.
STORAGE BOX

 To empty the box, after opening,
press the tab and remove it.
Storage
The armrest’s compartment can hold up
to 6 CDs.

 Raise the lever 1 .

 Raise the cover fully.
Longitudinal adjustment

 Slide the cover fully forwards or
rearwards.

!
!

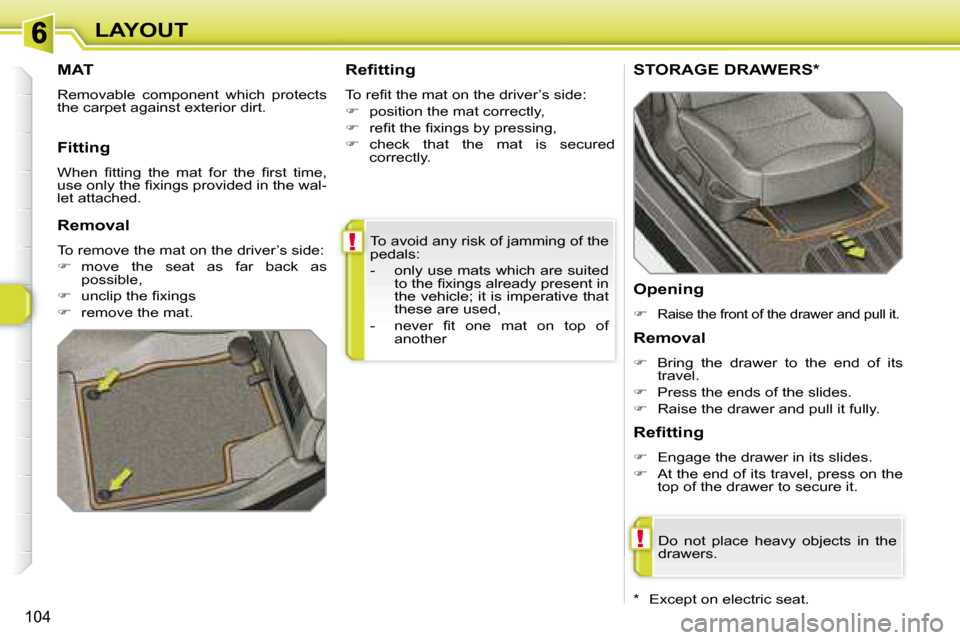

104
LAYOUT To avoid any risk of jamming of the
pedals:
- only use mats which are suited to the fi xings already present in
the vehicle; it is imperative that
these are used,
- never fi t one mat on top of another
MAT
Removable component which protects
the carpet against exterior dirt. Refitting
To refi t the mat on the driver’s side:

 position the mat correctly,

 refi t the fi xings by pressing,

 check that the mat is secured
correctly.
Fitting
When fi tting the mat for the fi rst time,
use only the fi xings provided in the wal-
let attached.
Removal
To remove the mat on the driver’s side:

 move the seat as far back as
possible,

 unclip the fi xings

 remove the mat.
STORAGE DRAWERS *
Opening


Raise the front of the drawer and pull it.
* Except on electric seat.
Do not place heavy objects in the
drawers.
Removal

 Bring the drawer to the end of its
travel.

 Press the ends of the slides.

 Raise the drawer and pull it fully.
Refitting

 Engage the drawer in its slides.

 At the end of its travel, press on the
top of the drawer to secure it.

!

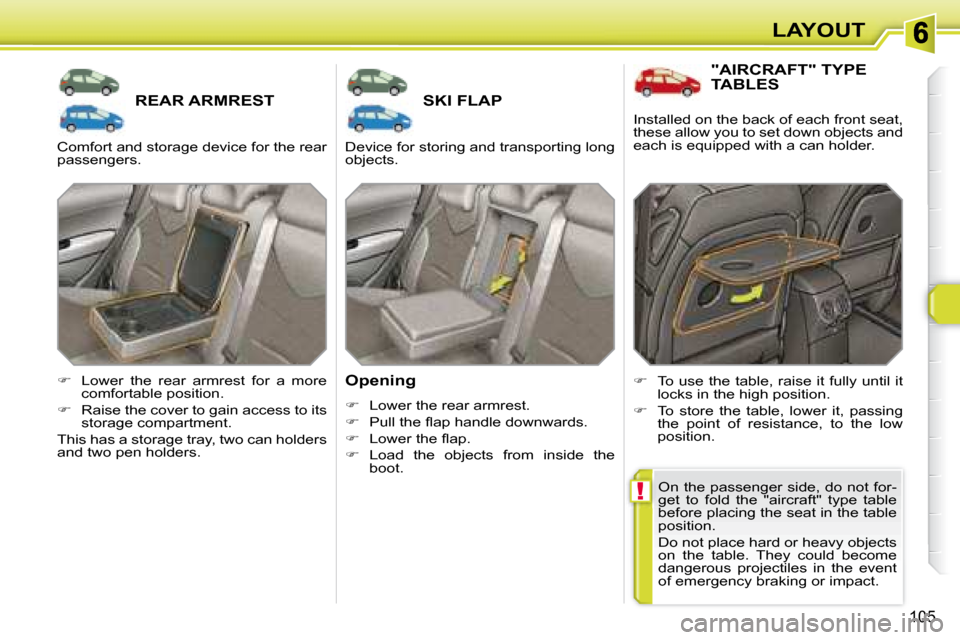

105
LAYOUT
REAR ARMREST SKI FLAP
Opening

 Lower the rear armrest.

 Pull the fl ap handle downwards.

 Lower the fl ap.

 Load the objects from inside the
boot.

 Lower the rear armrest for a more
comfortable position.

 Raise the cover to gain access to its
storage compartment.
This has a storage tray, two can holders
and two pen holders.
"AIRCRAFT" TYPE TABLES

 To use the table, raise it fully until it
locks in the high position.

 To store the table, lower it, passing
the point of resistance, to the low
position.
On the passenger side, do not for-
get to fold the "aircraft" type table
before placing the seat in the table
position.
Do not place hard or heavy objects
on the table. They could become
dangerous projectiles in the event
of emergency braking or impact.
Comfort and storage device for the rear
passengers.
Device for storing and transporting long
objects. Installed on the back of each front seat,
these allow you to set down objects and
each is equipped with a can holder.

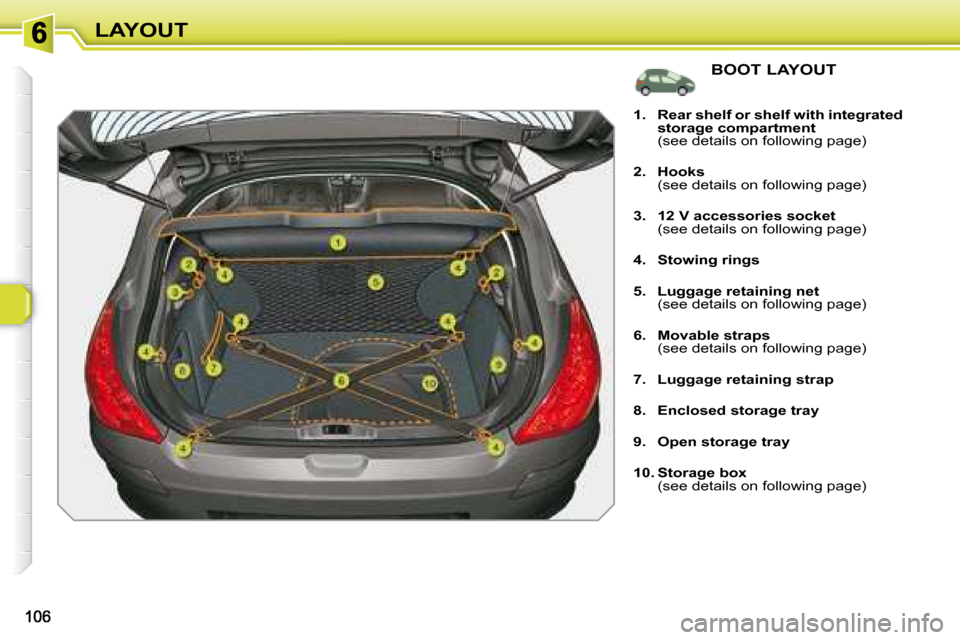

LAYOUT BOOT LAYOUT

1. Rear shelf or shelf with integrated
storage compartment
(see details on following page)

2. Hooks
(see details on following page)

3. 12 V accessories socket
(see details on following page)

4. Stowing rings

5. Luggage retaining net
(see details on following page)

6. Movable straps
(see details on following page)

7. Luggage retaining strap

8. Enclosed storage tray

9. Open storage tray

10. Storage box
(see details on following page)

i
107
LAYOUT
To remove the shelf:

 unhook the two cords,

 raise the shelf slightly, then remove it.
Rear shelf
When changing a wheel
An additional hook, under the shelf,
permits easy access to the spare
wheel by retaining the boot carpet
by means of its cord.
To remove the shelf:

 unhook the two cords,

 raise the shelf slightly, then remove it.
Shelf with integrated storage
compartment
This permits the storage of any object so
that it cannot be seen from the outside
and without hindering rearward visibility.
The hooks permit the securing of shop-
ping bags.
Hooks
There are several options for storing the
shelf:
- either upright behind the front seats,
- or upright behind the rear seats using one of the movable straps. There are several options for storing the
shelf:
- either upright behind the front
seats,
- or upright behind the rear seats using one of the movable straps.

 To open the cover, from inside
or outside, raise one of the two
handles.

 To close the cover, fi rst raise the
handle.

 To remove the cover, raise both
handles at the same time.
