CHILD SAFETY
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"RÖMER Baby-Safe Plus"
Installed in the rear-facing position.
Groups 1, 2 and 3: from 9 to 36 kg
L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT recommends use of the restraining cushion.
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start"’
L4
"KLIPPAN Optima"
From the age
of 6 years
( a p p r o x i m a t e l y
22 kg), the booster is used on its own.
Passenger air bag OFF

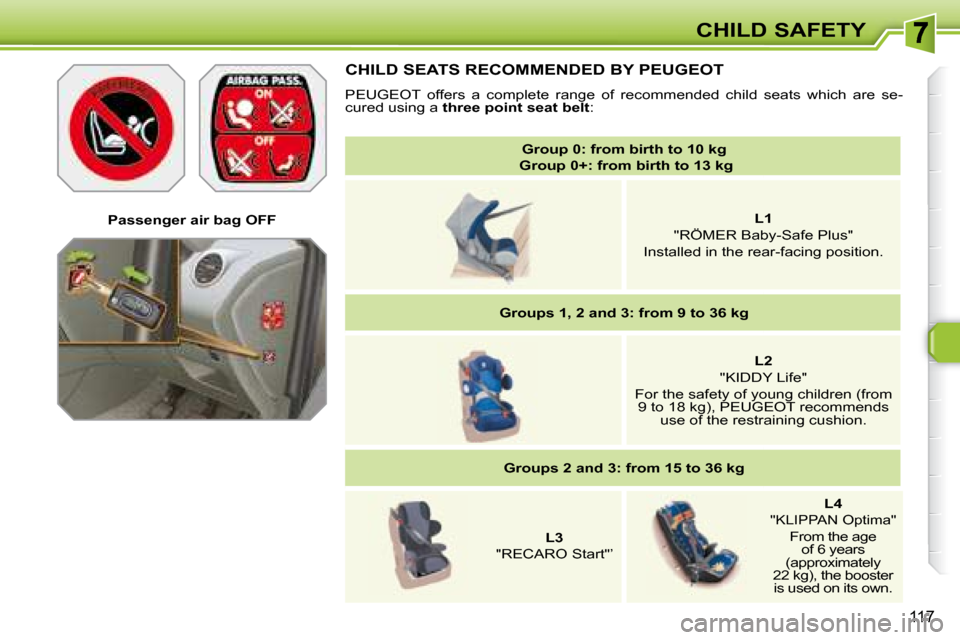

CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which
are se-
cured using a three point seat belt :
Page 112 of 260
118
CHILD SAFETY

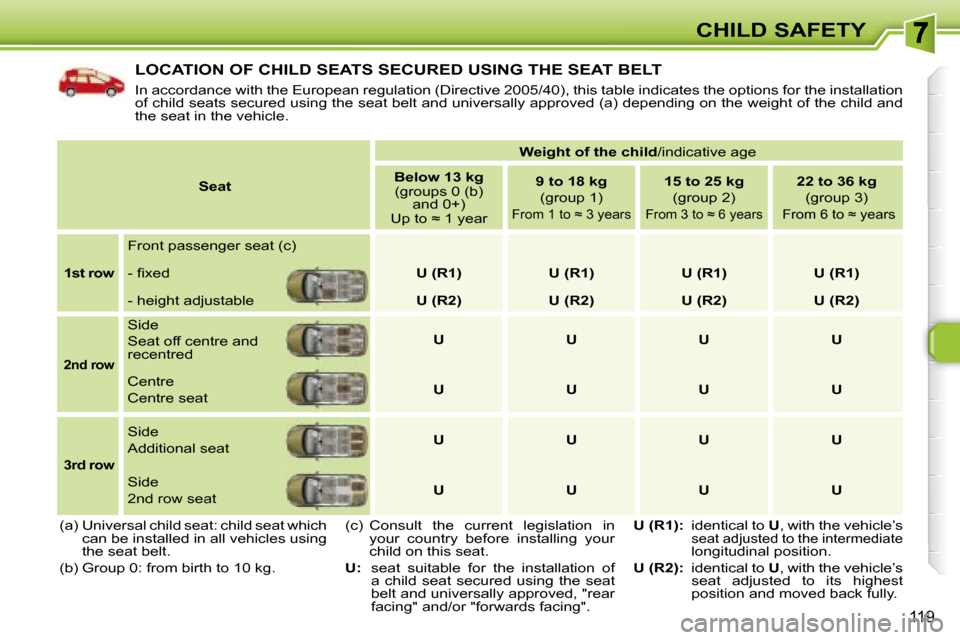

LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT
In accordance with European regulations (Directive 2005/40), this table indicates the options for installing child
seats secured using the seat belt and universally approved (a) in relation to the weight of the child and the seat
in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg.
(c) Consult the legislation in force in your country before inst alling your child on this seat.
U: seat suitable for the installation of a child seat secure d using the seat belt and universally approved "rear facing" and /or
"forward facing".
U (R1)
: identical to U , with the vehicle’s seat adjusted to the intermediate lo ngitudinal position.
U (R2)
: identical to U , with the vehicle’s seat adjusted to the highest positio n and moved back fully.
* The seat’s head restraint must be removed and stored.
Seat
Weight of the child/ indicative age
Less than 13 kg
(groups 0 (b) and 0+)
U p t o ≈ 1 y e a r
From 9 to 18 kg
(group 1)
F r o m 1 t o ≈ 3 y e a r s
From 15 to 25 kg
(group 2)
F r o m 3 t o ≈ 6 y e a r s
From 22 to 36 kg
(group 3)
F r o m 6 t o ≈ 1 0 y e a r s
Front passenger seat (c)
- fi x e d
U (R1) U (R1) U (R1) U (R1)
- height adjustable U (R2) U (R2) U (R2) U (R2)
Rear side seats U U * U * U *
Rear centre seat U U * U * U *
Page 113 of 260
119
CHILD SAFETY
LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT
In accordance with the European regulation (Directive 2005/40), this table indicates the options for the installation
of child seats secured using the seat belt and universally appro ved (a) depending on the weight of the child and
the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using
the seat belt.
(b) Group 0: from birth to 10 kg.
Seat
Weight of the child /indicative age
Below 13 kg
(groups 0 (b) and 0+)
U p t o ≈ 1 y e a r
9 to 18 kg
(group 1)
F r o m 1 t o ≈ 3 y e a r s
15 to 25 kg
(group 2)
F r o m 3 t o ≈ 6 y e a r s
22 to 36 kg
(group 3)
F r o m 6 t o ≈ y e a r s
1st row
Front passenger seat (c)
- fi x e d
U (R1) U (R1) U (R1) U (R1)
- height adjustable U (R2) U (R2) U (R2) U (R2)
2nd row
Side
Seat off centre and
recentred
U U U U
Centre
Centre seat
U U U U
3rd row
Side
Additional seat
U U U U
Side
2nd row seat
U U U U
(c) Consult the current legislation in your country before installing your
child on this seat.
U
: seat suitable for the installation of
a child seat secured using the seat
belt and universally approved, "rear
facing" and/or "forwards facing".
U (R1) : identical to U , with the vehicle’s
seat adjusted to the intermediate
longitudinal position.
U (R2)
: identical to U , with the vehicle’s
seat adjusted to its highest
position and moved back fully.
Page 114 of 260
!
120
CHILD SAFETY
Installing a booster seat
The chest part of the seat belt must
be positioned on the child’s shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child’s
thighs.
PEUGEOT recommends the use of
a b o o s t e r s e a t w h i c h h a s a b a c k , fi t -
ted with a seat belt guide at shoulder
level. As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle w h i c h i s e x p o s e d t o t h e s u n , w i t h
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors and rear windows, use the
"Child lock".
Take care not to open the rear windows
by more than one third.
To protect young children from the
r a y s o f t h e s u n , fi t s i d e b l i n d s o n t h e
rear windows.
The incorrect installation of a child
seat in a vehicle compromises the
child’s protection in the event of an ac-
cident.
Remember to fasten the seat belts
or the child seat harnesses
keeping
the slack in relation to the child’s
body to a minimum , even for short
journeys.
For optimum installation of the "for-
ward facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle’s seat and
that the head restraint does not cause
any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached se-
curely to prevent it from being thrown
around the vehicle in the event of sharp
braking.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Disarm the passenger air bag when a
"rear facing" child seat is installed on
the front seat.
Otherwise, the child would risk being
seriously injured or killed if the air bag
w e r e t o i n fl a t e .
Page 115 of 260
121
CHILD SAFETY

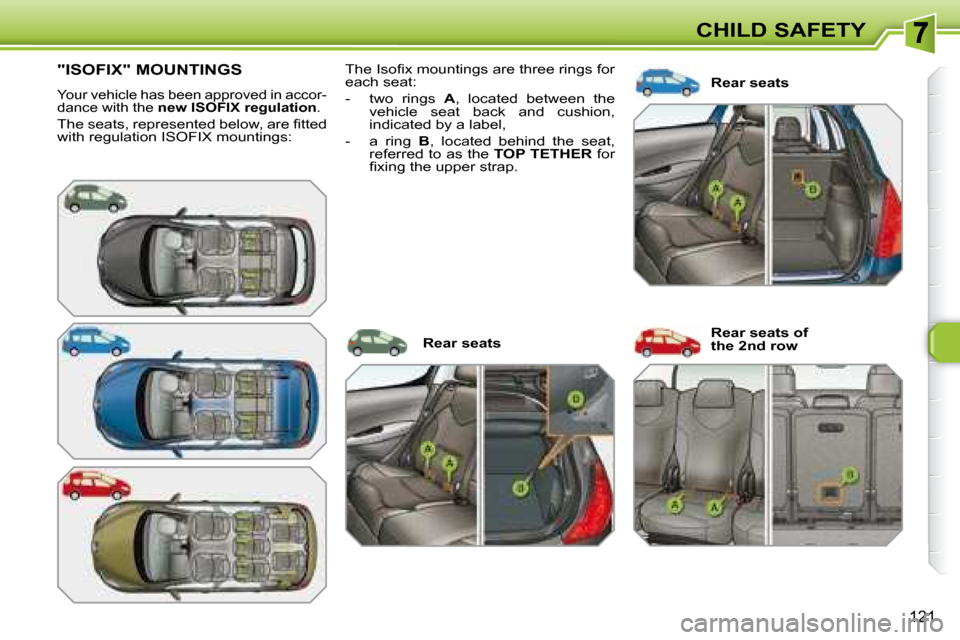

"ISOFIX" MOUNTINGS
Your vehicle has been approved in accor-
dance with the new ISOFIX regulation .
T h e s e a t s , r e p r e s e n t e d b e l o w , a r e fi t t e d
with regulation ISOFIX mountings: Rear seats
T h e I s o fi x m o u n t i n g s a r e t h r e e r i n g s f o r
each seat:
- two rings
A , located between the
vehicle seat back and cushion,
indicated by a label,
- a ring B , located behind the seat,
referred to as the TOP TETHER for
fi x i n g t h e u p p e r s t r a p .
Rear seats Rear seats of
the 2nd row
Page 116 of 260
i
122
CHILD SAFETY T h i s c h i l d s e a t c a n a l s o b e u s e d o n s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X
mountings. In this case, it must be attached to the vehicle se at using the
three point seat belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g t h e c h i l d s e a t g i v e n i n t h e s e a t m a n u -
facturer’s installation guide.

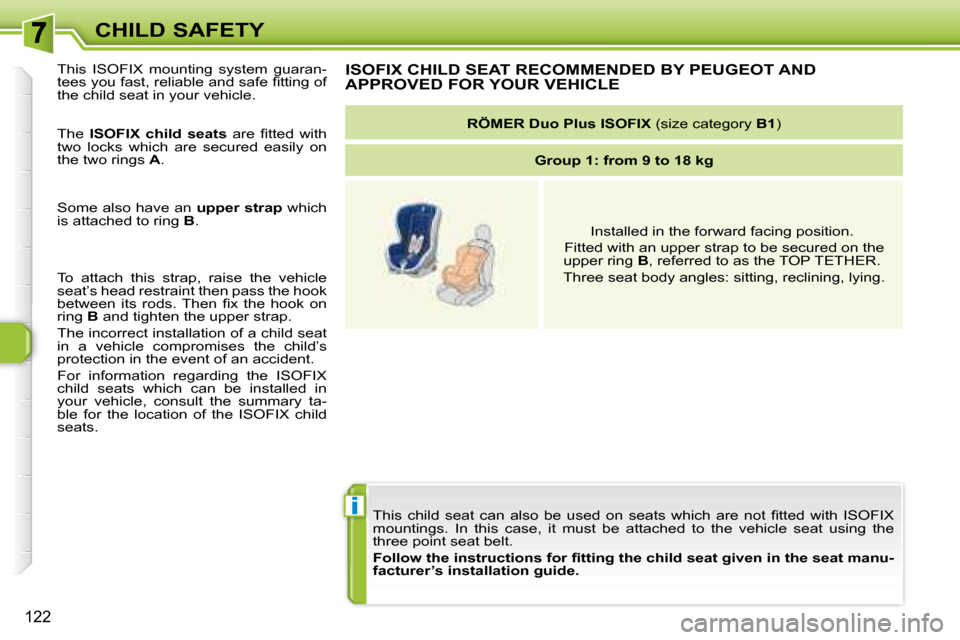

ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
RÖMER Duo Plus ISOFIX (size category B1 )
Group 1: from 9 to 18 kg
Installed in the forward facing position.
Fitted with an upper strap to be secured on the upper ring B , referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.
This ISOFIX mounting system guaran-
t e e s y o u f a s t , r e l i a b l e a n d s a f e fi t t i n g o f
the child seat in your vehicle.
The ISOFIX child seats a r e fi t t e d w i t h
two locks which are secured easily on
the two rings A .
Some also have an upper strap which
is attached to ring B .
To attach this strap, raise the vehicle
seat’s head restraint then pass the hook
b e t w e e n i t s r o d s . T h e n fi x t h e h o o k o n
ring B and tighten the upper strap.
The incorrect installation of a child seat
in a vehicle compromises the child’s
protection in the event of an accident.
For information regarding the ISOFIX
child seats which can be installed in
your vehicle, consult the summary ta-
ble for the location of the ISOFIX child
seats.
Page 117 of 260
i
122
CHILD SAFETY T h i s c h i l d s e a t c a n a l s o b e u s e d o n s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X
mountings. In this case, it must be attached to the vehicle se at using the
three point seat belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g t h e c h i l d s e a t g i v e n i n t h e s e a t m a n u -
facturer’s installation guide.
ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
RÖMER Duo Plus ISOFIX (size category B1 )
Group 1: from 9 to 18 kg
Installed in the forward facing position.
Fitted with an upper strap to be secured on the upper ring B , referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.
This ISOFIX mounting system guaran-
t e e s y o u f a s t , r e l i a b l e a n d s a f e fi t t i n g o f
the child seat in your vehicle.
The ISOFIX child seats a r e fi t t e d w i t h
two locks which are secured easily on
the two rings A .
Some also have an upper strap which
is attached to ring B .
To attach this strap, raise the vehicle
seat’s head restraint then pass the hook
b e t w e e n i t s r o d s . T h e n fi x t h e h o o k o n
ring B and tighten the upper strap.
The incorrect installation of a child seat
in a vehicle compromises the child’s
protection in the event of an accident.
For information regarding the ISOFIX
child seats which can be installed in
your vehicle, consult the summary ta-
ble for the location of the ISOFIX child
seats.
Page 118 of 260
123
CHILD SAFETY

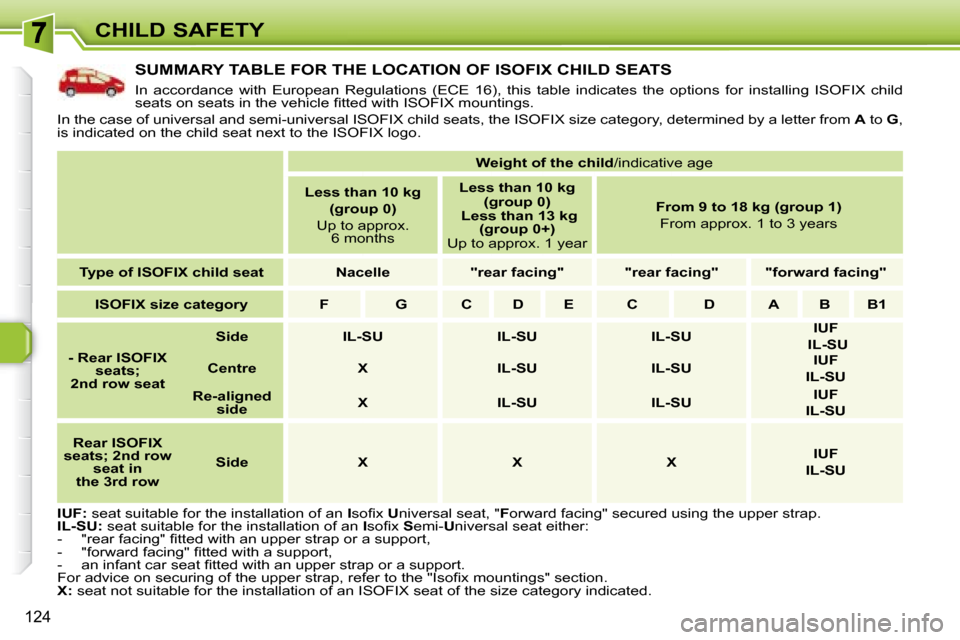

SUMMARY TABLE FOR THE LOCATION OF ISOFIX CHILD SEATS
In accordance with European Regulations (ECE 16), this table indicates the options for installing ISOFIX child
s e a t s o n s e a t s i n t h e v e h i c l e fi t t e d w i t h I S O F I X m o u n t i n g s .
In the case of universal and semi-universal ISOFIX child seats, th e ISOFIX size category, determined by a letter
from A to G , i s i n d i c a t e d o n t h e c h i l d s e a t n e x t t o t h e I S O F I X l o g o .
IUF: seat suitable for the installation of an I s o fi x U niversal seat, " F orward facing" secured using the upper strap.
IL-SU: seat suitable for the installation of an I s o fi x S emi- U niversal seat either:
- " r e a r f a c i n g " fi t t e d w i t h a n u p p e r s t r a p o r a s u p p o r t ,
- " f o r w a r d f a c i n g " fi t t e d w i t h a s u p p o r t ,
- a n i n f a n t c a r s e a t fi t t e d w i t h a n u p p e r s t r a p o r a s u p p o r t .
F o r a d v i c e o n s e c u r i n g o f t h e u p p e r s t r a p , r e f e r t o t h e p a r a g r a p h " I s o fi x m o u n t i n g s " .
* The ISOFIX infant car seat, secured on the lower rings o f a vehicle ISOFIX seat, occupies two rear seats.
Weight of the child /indicative age
Less than 10 kg
(group 0)
U p t o a p p r o x . 6 months
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
U p t o a p p r o x . 1 y e a r
From 9 to 18 kg (group 1)
F r o m a p p r o x . 1 t o 3 y e a r s
Type of ISOFIX child seat Nacelle "rear facing" "rear facing" "forward facing"
ISOFIX size category F G C D E C D A B B1
ISOFIX child seats universal
and semi-universal which
can be installed on the
rear
side seats
IL-SU * IL-SU IL-SU IUF
IL-SU
Page 119 of 260
124
CHILD SAFETY

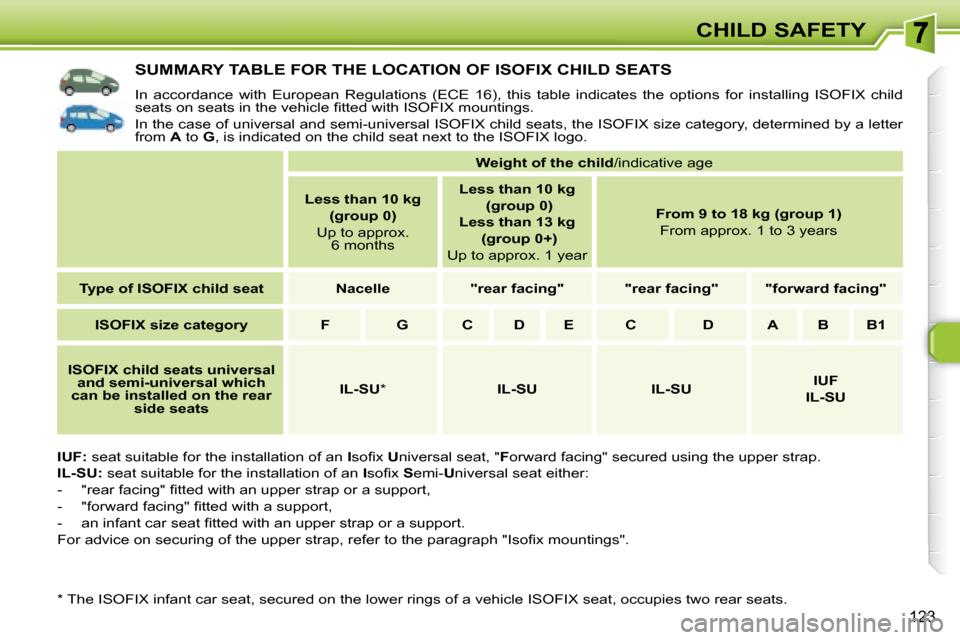

SUMMARY TABLE FOR THE LOCATION OF ISOFIX CHILD SEATS
In accordance with European Regulations (ECE 16), this table indicates the options for installing ISOFIX child
s e a t s o n s e a t s i n t h e v e h i c l e fi t t e d w i t h I S O F I X m o u n t i n g s .
In the case of universal and semi-universal ISOFIX child seats, th e ISOFIX size category, determined by a letter from A to G ,
i s i n d i c a t e d o n t h e c h i l d s e a t n e x t t o t h e I S O F I X l o g o .
IUF: seat suitable for the installation of an I s o fi x U niversal seat, " F orward facing" secured using the upper strap.
IL-SU: seat suitable for the installation of an I s o fi x S emi- U niversal seat either:
- " r e a r f a c i n g " fi t t e d w i t h a n u p p e r s t r a p o r a s u p p o r t ,
- " f o r w a r d f a c i n g " fi t t e d w i t h a s u p p o r t ,
- a n i n f a n t c a r s e a t fi t t e d w i t h a n u p p e r s t r a p o r a s u p p o r t .
F o r a d v i c e o n s e c u r i n g o f t h e u p p e r s t r a p , r e f e r t o t h e " I s o fi x m o u n t i n g s " s e c t i o n .
X: seat not suitable for the installation of an ISOFIX seat of the size category indicated.
Weight of the child /indicative age
Less than 10 kg
(group 0)
U p t o a p p r o x . 6 months
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
U p t o a p p r o x . 1 y e a r
From 9 to 18 kg (group 1)
F r o m a p p r o x . 1 t o 3 y e a r s
Type of ISOFIX child seat Nacelle "rear facing" "rear facing" "forward facing"
ISOFIX size category F G C D E C D A B B1
- Rear ISOFIX
seats;
2nd row seat
Side IL-SU IL-SU IL-SU
IUF
IL-SU
Centre X IL-SU IL-SU
IUF
IL-SU
Re-aligned
side
X IL-SU IL-SU
IUF
IL-SU
Rear ISOFIX
seats; 2nd row seat in
the 3rd row
Side X X X
IUF
IL-SU
Page 120 of 260
!
!
125
CHILD SAFETY

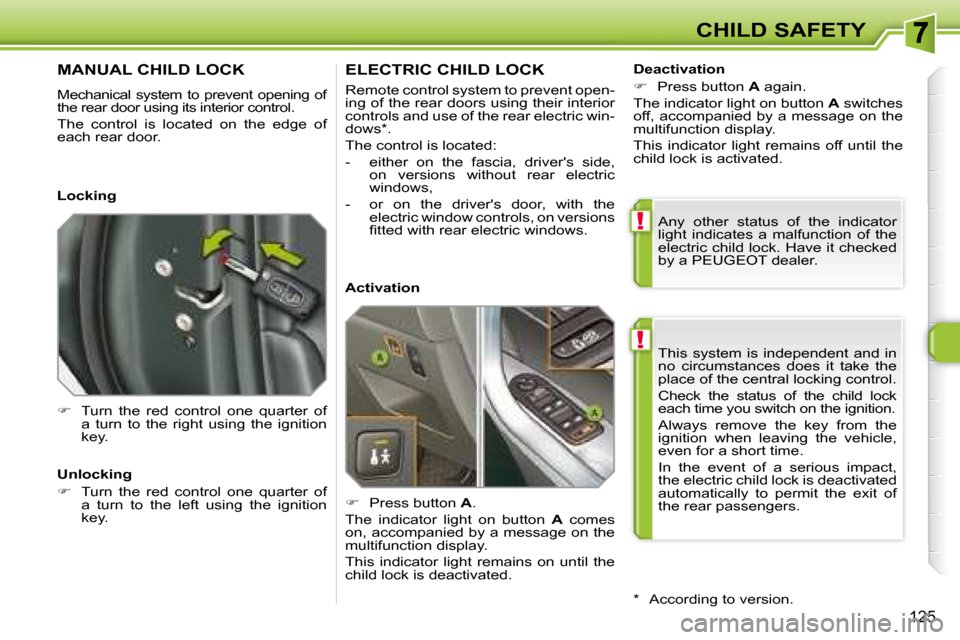

This system is independent and in
no circumstances does it take the
place of the central locking control.
Check the status of the child lock
each time you switch on the ignition.
Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of a serious impact,
the electric child lock is deactivated
a u t o m a t i c a l l y t o p e r m i t t h e e x i t o f
the rear passengers.
MANUAL CHILD LOCK
Mechanical system to prevent opening of
the rear door using its interior control.
The control is located on the edge of
each rear door.
Turn the red control one quarter of
a turn to the right using the ignition
key.
ELECTRIC CHILD LOCK
Remote control system to prevent open-
ing of the rear doors using their interior
controls and use of the rear electric win-
dows * .
The control is located:
- either on the fascia, driver's side, on versions without rear electric
windows,
- or on the driver's door, with the electric window controls, on versions
fi t t e d w i t h r e a r e l e c t r i c w i n d o w s .
Press button A .
The indicator light on button A comes
on, accompanied by a message on the
multifunction display.
This indicator light remains on until the
child lock is deactivated.
Locking
Unlocking
Turn the red control one quarter of
a turn to the left using the ignition
key. Activation
Deactivation
Press button A again.
The indicator light on button A switches
off, accompanied by a message on the
multifunction display.
This indicator light remains off until the
child lock is activated.
Any other status of the indicator
light indicates a malfunction of the
electric child lock. Have it checked
by a PEUGEOT dealer.
* According to version.
