MULTIFUNCTION DISPLAYS
A few definitions…
When the range falls below 20 miles
( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r fi l l -
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
e x c e e d s 6 0 m i l e s ( 1 0 0 k m ) .
If dashes are displayed continu-
ously while driving in place of the
digits, contact a PEUGEOT dealer. This function is only displayed from
20 mph (30 km/h).
T h i s fi g u r e m a y i n c r e a s e f o l l o w i n g
a change in the style of driving or
t h e r e l i e f , r e s u l t i n g i n a s i g n i fi c a n t
change in the current consumption.
Range
(km or miles)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average consumption
over the last few miles (kilometres) trav-
elled. Current consumption
(l/100 km or km/l or mpg)
This is the average quantity of
fuel consumed during the last
few seconds.
Average consumption
(l/100 km or km/l or mpg)
This is the average quantity
of fuel consumed since the
last trip computer zero reset.
Average speed
(km/h or mph)
This is the average speed
calculated since the last trip
computer zero reset (igni-
tion on).
Distance travelled
(km or miles)
This indicates the distance
travelled since the last trip
computer zero reset. Distance remaining to
destination
(km or miles)
This is the distance remaining to be trav-
e l l e d t o t h e fi n a l d e s t i n a t i o n . I t i s e i t h e r
calculated instantly by the navigation sys-
tem, if guidance is activated, or entered
by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
Page 32 of 260
52
COMFORT
VENTILATION
System which creates and maintains
comfortable conditions in the vehicle’s
passenger compartment. Air treatment
The incoming air follows various routes
depending on the controls selected by
the driver:
- direct arrival in the passenger
compartment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air conditioning).
The temperature control enables you to
obtain the level of comfort required by
m i x i n g t h e a i r o f t h e v a r i o u s c i r c u i t s . The air distribution control enables you
to diffuse the air in the passenger com-
partment combining several air vents.
T h e a i r fl o w c o n t r o l e n a b l e s y o u t o i n -
crease or reduce the speed of the ven-
tilation blower.
Air intake
The air circulating in the passenger com-
p a r t m e n t i s fi l t e r e d a n d o r i g i n a t e s e i t h e r
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode. Control panel
The controls of this system are grouped
together on control panel
A on the cen-
tre console. Depending on the model,
the functions offered are:
- the level of comfort required,
- t h e a i r fl o w ,
- the air distribution,
- the de-icing and demisting,
- the manual or automatic air condi- tioning controls.
Air diffusion
1. Windscreen de-icing or demisting
vents.
2. Front side window de-icing or
demisting vents.
3. Side adjustable and closing vents.
4. Central adjustable and closing
vents.
5. Air outlets to the front footwells.
6. Adjustable and closing vents for the
rear passengers.
7. Air outlets to the rear footwells.
Page 33 of 260
i
53
COMFORT
The air conditioning system does
not contain chlorine and does not
present any danger to the ozone
layer.
In order for these systems to be fully effective, follow the o peration and main-
tenance rules below:
If the interior temperature remains very high after the vehicle has been
parked in the sun for a considerable time, do not hesitate t o ventilate the
passenger compartment for a few minutes.
P l a c e t h e a i r fl o w c o n t r o l a t a s u f fi c i e n t l e v e l t o p r o v i d e a n a d e q u a t e
renewal of air in the passenger compartment.
T o o b t a i n a n e v e n a i r d i s t r i b u t i o n , t a k e c a r e n o t t o o b s t r u c t t h e e x t e r i o r a i r
intake grilles located at the base of the windscreen, the n ozzles, the vents
a n d t h e a i r o u t l e t s , a s w e l l a s t h e a i r e x t r a c t o r l o c a t e d i n t h e b o o t .
Do not cover the sunshine sensor, located on the fascia; th is is used for
regulation of the air conditioning system.
Operate the air conditioning system for 5 to 10 minutes, on ce or twice a
month to keep it in perfect working order.
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t m e n t fi l t e r i s i n g o o d c o n d i t i o n a n d
h a v e t h e fi l t e r e l e m e n t s r e p l a c e d r e g u l a r l y ( r e f e r t o t h e " C h e c k s " s e c t i o n ) .
W e r e c o m m e n d t h e u s e o f a c o m b i n e d p a s s e n g e r c o m p a r t m e n t fi l t e r .
T h a n k s t o i t s s e c o n d s p e c i a l a c t i v e fi l t e r , i t c o n t r i b u t e s t o t h e p u r i fi c a t i o n
of the air breathed by the occupants and the cleanness of th e passenger
compartment (reduction of allergic symptoms, bad odours and greasy
deposits).
To guarantee correct operation of the air conditioning syste m, you are also
advised to have it checked regularly.
If the system does not produce cold air, do not use it a nd contact a
PEUGEOT dealer.
W h e n t o w i n g t h e m a x i m u m l o a d o n a s t e e p g r a d i e n t i n h i g h t e m p e r a t u r e s ,
switching off the air conditioning permits the recovery of engi ne power and
therefore improvement of the towing capacity.
The condensation created by the air conditioning results in a discharge of
water under the vehicle which is perfectly normal.
Page 34 of 260
i
54
COMFORT 2 . A i r fl o w a d j u s t m e n t
Turn the dial from position
1 to position 5 to obtain a
c o m f o r t a b l e a i r fl o w .
Windscreen, side windows and
footwells. Footwells.
(vents closed)
Central and side vents.
Turn the dial from blue
(cold) to red (hot) to adjust
the temperature to your
requirements.
Windscreen and side windows.
1. Temperature adjustment
The air distribution can be
adapted by placing the dial in
an intermediate position.
The heating/ventilation or air condition-
ing systems can only operate with the
engine running. 4. Air intake/Air recirculation
T h e i n t a k e o f e x t e r i o r a i r p r e v e n t s m i s t i n g
of the windscreen and side windows.
The recirculation of interior air insulates
t h e p a s s e n g e r c o m p a r t m e n t f r o m e x t e -
rior odours and smoke.
R e t u r n t o e x t e r i o r a i r i n t a k e a s s o o n a s
possible to prevent deterioration of the
the air quality and avoid misting.
I f y o u p l a c e t h e a i r fl o w c o n t r o l
in position 0 (deactivation of the
system), the temperature is no
longer maintained at a comfortable
l e v e l . H o w e v e r , a s l i g h t fl o w o f
air, due to the movement of the
vehicle, can still be felt.
3. Air distribution adjustment
Press the button to recirculate
the interior air. The indicator
l i g h t c o m e s o n t o c o n fi r m
this.
Press the button again to permit the
i n t a k e o f e x t e r i o r a i r . T h e i n d i c a t o r
l i g h t s w i t c h e s o f f t o c o n fi r m t h i s .
HEATING/VENTILATION
MANUAL AIR CONDITIONING
Page 35 of 260
i
55
COMFORT
De-icing - Demisting
To quickly de-ice or demist the wind-
screen and side windows:
place the air intake control 4 in the
" E x t e r i o r a i r i n t a k e " p o s i t i o n ,
place the air distribution dial 3 in the
"Windscreen position",
place the temperature 1 a n d a i r fl o w
2 d i a l s a t m a x i m u m ,
close the central vents, The control button is located on
the heating or air conditioning
system control panel.
REAR SCREEN DE-ICING
Switch off the de-icing of the
r e a r s c r e e n a n d e x t e r i o r m i r r o r s
as soon as you consider this
necessary as lower current
consumption results in reduced
fuel consumption.
If the engine is switched off before
the de-icing is switched off auto-
m a t i c a l l y , d e - i c i n g w i l l r e s u m e n e x t
time the engine is switched on.
Switching on
The rear screen de-icing can only operate
when the engine is running.
Press this button to de-ice the rear
s c r e e n a n d t h e e x t e r i o r m i r r o r s . T h e
indicator light associated with the
button comes on.
Switching off
The de-icing switches off automatically
t o p r e v e n t a n e x c e s s i v e c o n s u m p t i o n o f
current.
It is possible to stop the de-icing
operation before it is switched off
automatically by pressing the button
again. The indicator light associated
with the button switches off.
5. Air conditioning On/Off
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the demisting in winter, above 0 °C.
Switching on
Press the "A/C" button, the
associated indicator light comes on.
The air conditioning does not op-
e r a t e w h e n t h e a i r fl o w a d j u s t m e n t
control 2 is in position "0".
Switching off
Press the "A/C" button again, the
associated indicator light switches off.
above 0 °C, switch on the air
conditioning by pressing the "A/C"
button.
Page 36 of 260
i
55
COMFORT
De-icing - Demisting
To quickly de-ice or demist the wind-
screen and side windows:
place the air intake control 4 in the
" E x t e r i o r a i r i n t a k e " p o s i t i o n ,
place the air distribution dial 3 in the
"Windscreen position",
place the temperature 1 a n d a i r fl o w
2 d i a l s a t m a x i m u m ,
close the central vents, The control button is located on
the heating or air conditioning
system control panel.
REAR SCREEN DE-ICING
Switch off the de-icing of the
r e a r s c r e e n a n d e x t e r i o r m i r r o r s
as soon as you consider this
necessary as lower current
consumption results in reduced
fuel consumption.
If the engine is switched off before
the de-icing is switched off auto-
m a t i c a l l y , d e - i c i n g w i l l r e s u m e n e x t
time the engine is switched on.
Switching on
The rear screen de-icing can only operate
when the engine is running.
Press this button to de-ice the rear
s c r e e n a n d t h e e x t e r i o r m i r r o r s . T h e
indicator light associated with the
button comes on.
Switching off
The de-icing switches off automatically
t o p r e v e n t a n e x c e s s i v e c o n s u m p t i o n o f
current.
It is possible to stop the de-icing
operation before it is switched off
automatically by pressing the button
again. The indicator light associated
with the button switches off.
5. Air conditioning On/Off
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the demisting in winter, above 0 °C.
Switching on
Press the "A/C" button, the
associated indicator light comes on.
The air conditioning does not op-
e r a t e w h e n t h e a i r fl o w a d j u s t m e n t
control 2 is in position "0".
Switching off
Press the "A/C" button again, the
associated indicator light switches off.
above 0 °C, switch on the air
conditioning by pressing the "A/C"
button.
Page 37 of 260
ii
56
COMFORT When the engine is cold, to prevent
too great a distribution of cold air,
t h e a i r fl o w w i l l r e a c h i t s o p t i m u m
level gradually.
In cold weather, it favours the dis-
tribution of warm air to the wind-
screen, side windows and footwells
only. On entering the vehicle, if the in-
terior temperature is much colder
or warmer than the comfort value,
there is no need to change the val-
ue displayed in order to obtain the
comfort required. The system cor-
rects the difference in temperature
automatically and as quickly as
possible.
The air conditioning only operates when
the engine is running. The driver and his front pas-
senger can each adjust the
temperature to their require-
ments.
Turn control 2 or 3 to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depending
on your requirements, a setting between
18 and 24 is normal.
You are advised to avoid a left/right set-
ting difference of more than 3. 4. Automatic visibility programme
The automatic comfort pro-
g r a m m e m a y n o t b e s u f fi c i e n t
to quickly demist or de-ice the
windscreen and side windows
(humidity, several passen-
gers, ice, etc.).
In this case, select the automatic
visibility programme.
The system automatically controls the
a i r c o n d i t i o n i n g , t h e a i r fl o w a n d t h e a i r
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.
Automatic operation
Press the "AUTO" button.
The indicator light on the
button comes on. 2. Driver’s side adjustment

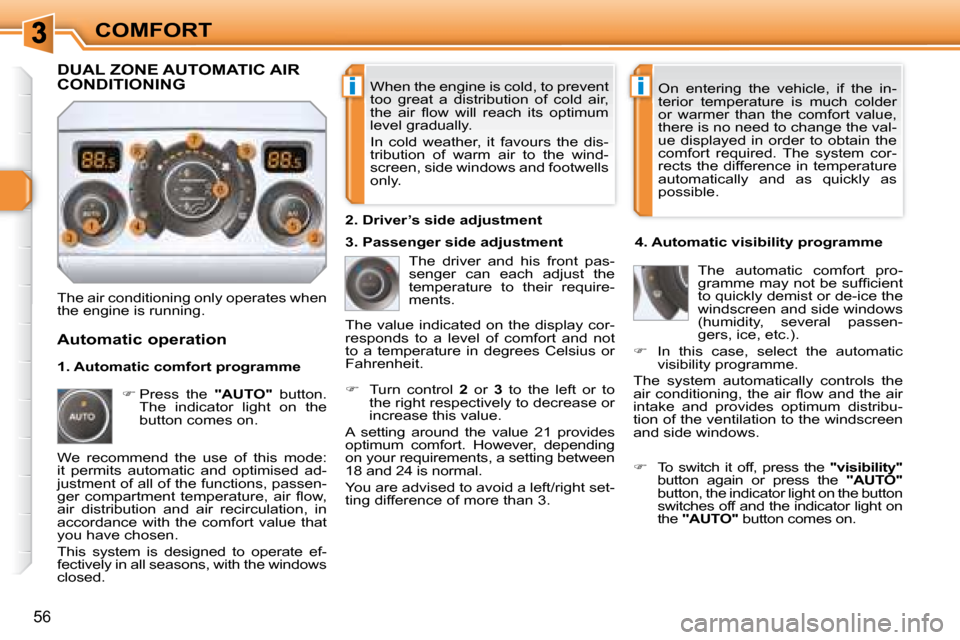

DUAL ZONE AUTOMATIC AIR CONDITIONING
We recommend the use of this mode:
it permits automatic and optimised ad-
justment of all of the functions, passen-
g e r c o m p a r t m e n t t e m p e r a t u r e , a i r fl o w ,
air distribution and air recirculation, in
accordance with the comfort value that
you have chosen.
This system is designed to operate ef-
fectively in all seasons, with the windows
closed. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.
To switch it off, press the "visibility"
button again or press the "AUTO"
button, the indicator light on the button
switches off and the indicator light on
the "AUTO" button comes on.
1. Automatic comfort programme
3. Passenger side adjustment
Page 38 of 260
!
!
i
57
COMFORT

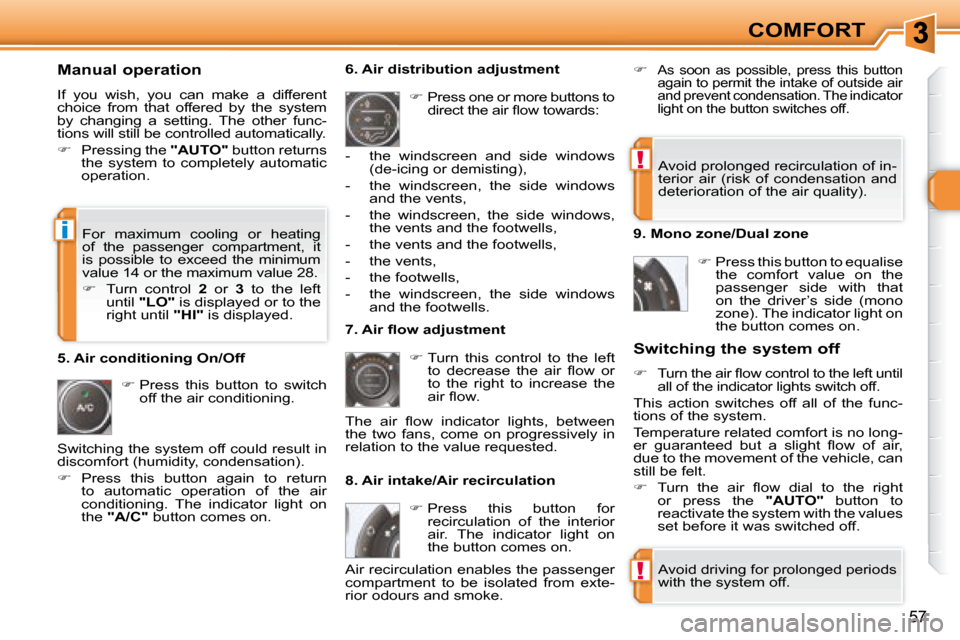

Manual operation
If you wish, you can make a different
choice from that offered by the system
by changing a setting. The other func-
tions will still be controlled automatically.
Pressing the "AUTO" button returns
the system to completely automatic
operation.
Press this button to switch
off the air conditioning. 6. Air distribution adjustment
Press one or more buttons to
d i r e c t t h e a i r fl o w t o w a r d s :
7 . A i r fl o w a d j u s t m e n t
Turn this control to the left
t o d e c r e a s e t h e a i r fl o w o r
to the right to increase the
a i r fl o w .
8. Air intake/Air recirculation Switching the system off
T u r n t h e a i r fl o w c o n t r o l t o t h e l e f t u n t i l
all of the indicator lights switch off.
This action switches off all of the func-
tions of the system.
Temperature related comfort is no long-
e r g u a r a n t e e d b u t a s l i g h t fl o w o f a i r ,
due to the movement of the vehicle, can
still be felt.
T u r n t h e a i r fl o w d i a l t o t h e r i g h t
or press the "AUTO" button to
reactivate the system with the values
set before it was switched off.
Press this button for
recirculation of the interior
air. The indicator light on
the button comes on.
5. Air conditioning On/Off
Avoid driving for prolonged periods
with the system off.
Avoid prolonged recirculation of in-
terior air (risk of condensation and
deterioration of the air quality).
- the windscreen and side windows
(de-icing or demisting),
- the windscreen, the side windows and the vents,
- the windscreen, the side windows, the vents and the footwells,
- the vents and the footwells,
- the vents,
- the footwells,
- the windscreen, the side windows and the footwells.
T h e a i r fl o w i n d i c a t o r l i g h t s , b e t w e e n
the two fans, come on progressively in
relation to the value requested.
As soon as possible, press this button
again to permit the intake of outside air
and prevent condensation. The indicator
light on the button switches off.
F o r m a x i m u m c o o l i n g o r h e a t i n g
of the passenger compartment, it
i s p o s s i b l e t o e x c e e d t h e m i n i m u m
v a l u e 1 4 o r t h e m a x i m u m v a l u e 2 8 .
Turn control 2 or 3 to the left
until "LO" is displayed or to the
right until "HI" is displayed. 9. Mono zone/Dual zone
Press this button to equalise
the comfort value on the
passenger side with that
on the driver’s side (mono
zone). The indicator light on
the button comes on.
Air recirculation enables the passenger
c o m p a r t m e n t t o b e i s o l a t e d f r o m e x t e -
rior odours and smoke.
Switching the system off could result in
discomfort (humidity, condensation).
Press this button again to return
to automatic operation of the air
conditioning. The indicator light on
the "A/C" button comes on.
Page 39 of 260
!
i
i
58
COMFORT As a safety precaution, do not car-
ry out any action on the cartridge
while driving.
Do not dismantle the cartridges.
D o n o t a t t e m p t t o r e fi l l t h e f r a g r a n c e
diffuser or the cartridges. Use origi-
nal PEUGEOT cartridges only.
Avoid all contact with the skin and
eyes.
Keep out of reach of children and
animals.
Leave the central vents open.
The intensity of diffusion of the fra-
grance may depend on the ventila-
tion or air conditioning settings.

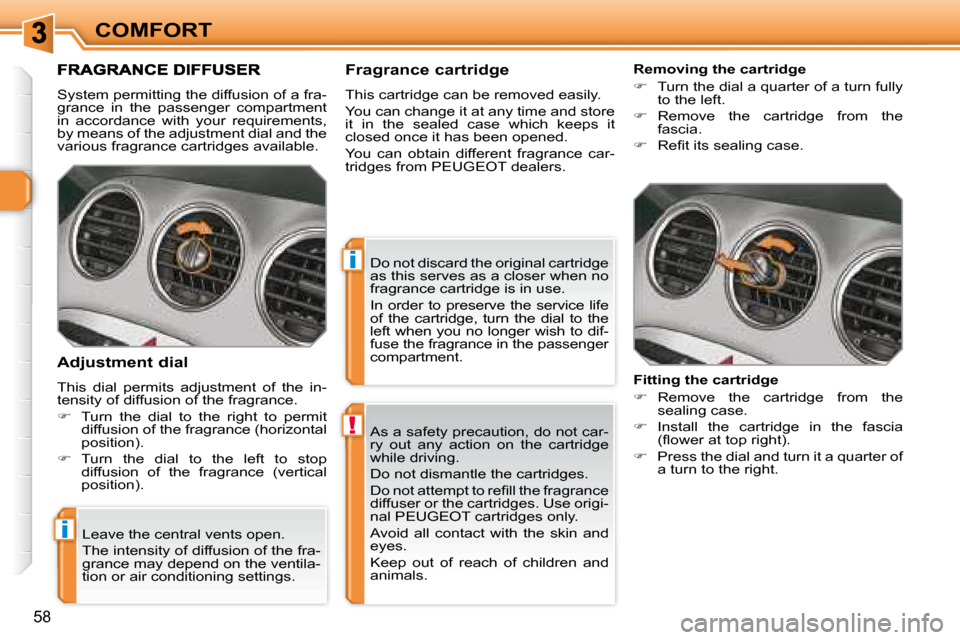

System permitting the diffusion of a fra-
grance in the passenger compartment
in accordance with your requirements,
by means of the adjustment dial and the
various fragrance cartridges available.
Fitting the cartridge
Remove the cartridge from the
sealing case.
Install the cartridge in the fascia
( fl o w e r a t t o p r i g h t ) .
Press the dial and turn it a quarter of
a turn to the right.
Adjustment dial
This dial permits adjustment of the in-
tensity of diffusion of the fragrance.
Turn the dial to the right to permit
diffusion of the fragrance (horizontal
position).
Turn the dial to the left to stop
diffusion of the fragrance (vertical
position). Fragrance cartridge
This cartridge can be removed easily.
You can change it at any time and store
it in the sealed case which keeps it
closed once it has been opened.
You can obtain different fragrance car-
tridges from PEUGEOT dealers.
Removing the cartridge
Turn the dial a quarter of a turn fully
to the left.
Remove the cartridge from the
fascia.
R e fi t i t s s e a l i n g c a s e .
Do not discard the original cartridge
as this serves as a closer when no
fragrance cartridge is in use.
In order to preserve the service life
of the cartridge, turn the dial to the
left when you no longer wish to dif-
fuse the fragrance in the passenger
compartment.
Page 40 of 260
59
COMFORT

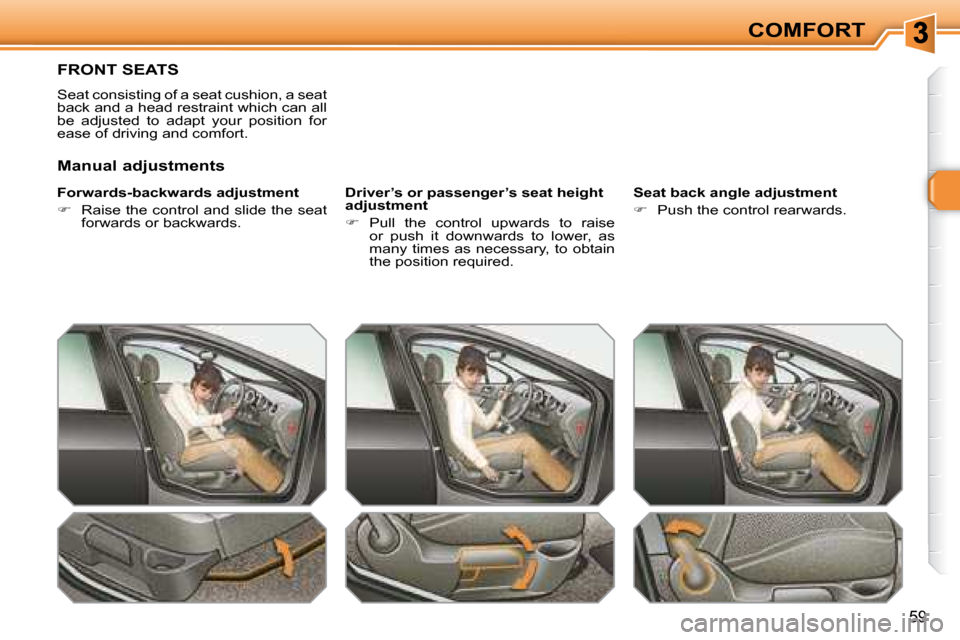

FRONT SEATS
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.
Forwards-backwards adjustment
Raise the control and slide the seat
forwards or backwards. Driver’s or passenger’s seat height
adjustment
Pull the control upwards to raise
or push it downwards to lower, as
many times as necessary, to obtain
the position required. Seat back angle adjustment
Push the control rearwards.
Manual adjustments
