Peugeot 308 SW BL 2008 User Guide

32

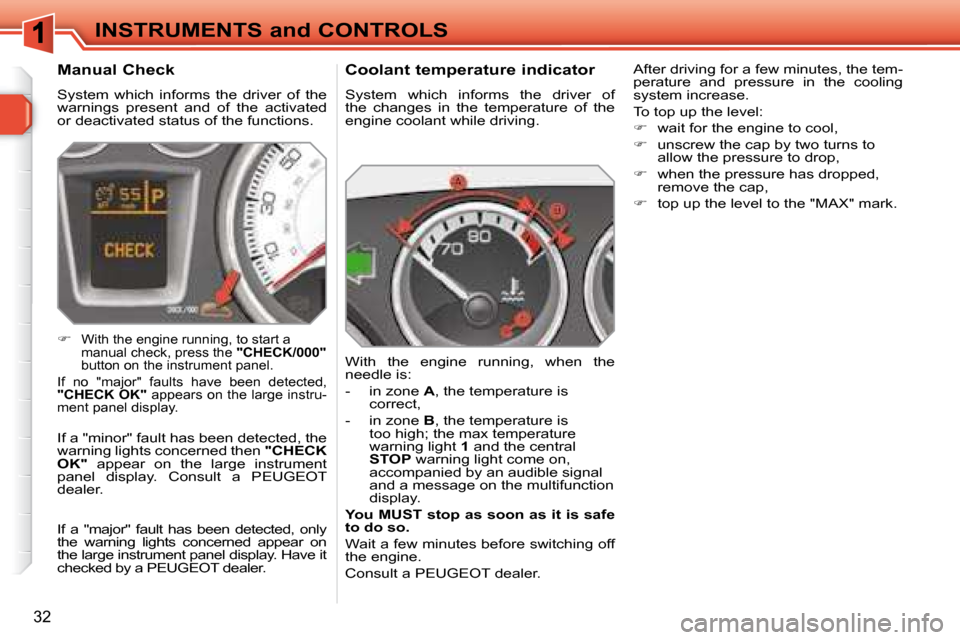

INSTRUMENTS and CONTROLS Coolant temperature indicator
System which informs the driver of
the changes in the temperature of the
engine coolant while driving.
With the engine running, when the
needle is:
- in zone A , the temperature is
correct,
- in zone B , the temperature is
too high; the max temperature
warning light 1 and the central

STOP warning light come on,
accompanied by an audible signal
and a message on the multifunction
display.

You MUST stop as soon as it is safe
to do so.
Wait a few minutes before switching off
the engine.
Consult a PEUGEOT dealer. After driving for a few minutes, the tem-
perature and pressure in the cooling
system increase.
To top up the level:

 wait for the engine to cool,

 unscrew the cap by two turns to
allow the pressure to drop,

 when the pressure has dropped,
remove the cap,

 top up the level to the "MAX" mark.
Manual Check
System which informs the driver of the
warnings present and of the activated
or deactivated status of the functions.


With the engine running, to start a
manual check, press the "CHECK/000"
button on the instrument panel.
If no "major" faults have been detected,

"CHECK OK" appears on the large instru-
ment panel display.
If a "minor" fault has been detected, the
warning lights concerned then "CHECK
OK" appear on the large instrument
panel display. Consult a PEUGEOT
dealer.
If a "major" fault has been detected, only
the warning lights concerned appear on
the large instrument panel display. Have it
checked by a PEUGEOT dealer.

33
INSTRUMENTS and CONTROLS

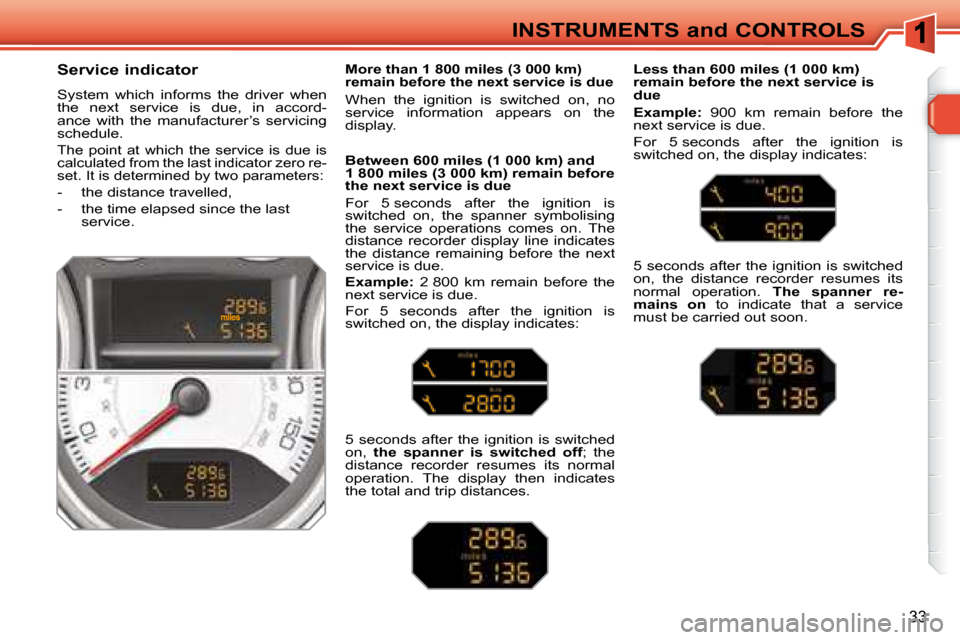

Service indicator
System which informs the driver when
the next service is due, in accord-
ance with the manufacturer’s servicing
schedule.
The point at which the service is due is
calculated from the last indicator zero re-
set. It is determined by two parameters:
- the distance travelled,
- the time elapsed since the last service. Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain before
the next service is due
For 5 seconds after the ignition is
switched on, the spanner symbolising
the service operations comes on. The
distance recorder display line indicates
the distance remaining before the next
service is due.

Example: 2 800 km remain before the
next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the spanner is switched off ; the
distance recorder resumes its normal
operation. The display then indicates
the total and trip distances. Less than 600 miles (1 000 km)
remain before the next service is
due

Example: 900 km remain before the
next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains on to indicate that a service
must be carried out soon.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no
service information appears on the
display.

i
i
34
INSTRUMENTS and CONTROLS

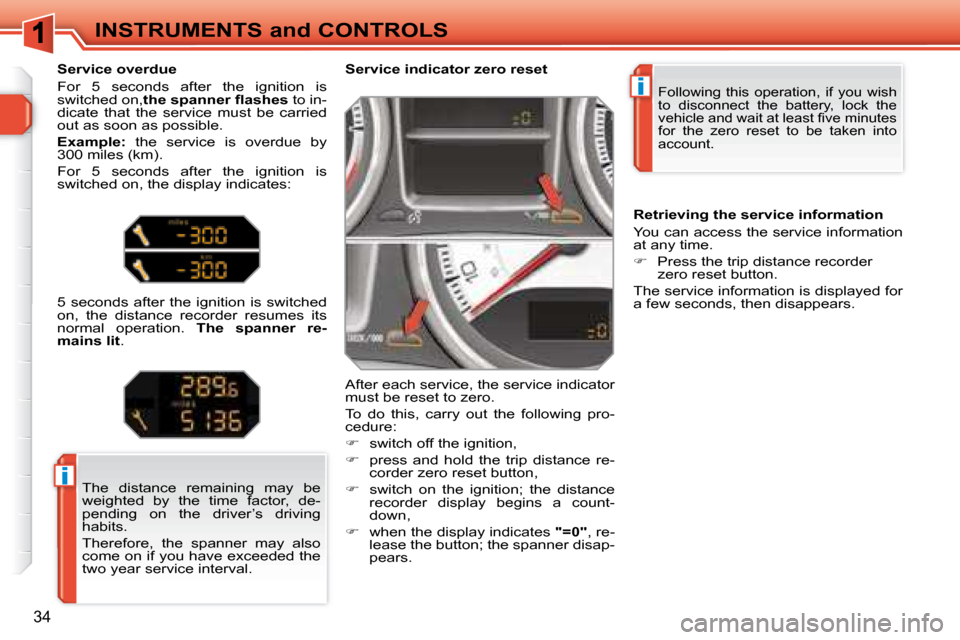

Following this operation, if you wish
to disconnect the battery, lock the
vehicle and wait at least fi ve minutes
for the zero reset to be taken into
account.
Service indicator zero reset
After each service, the service indicator
must be reset to zero.
To do this, carry out the following pro-
cedure:

 switch off the ignition,

 press and hold the trip distance re-
corder zero reset button,

 switch on the ignition; the distance
recorder display begins a count-
down,

 when the display indicates "=0" , re-
lease the button; the spanner disap-
pears.
The distance remaining may be
weighted by the time factor, de-
pending on the driver’s driving
habits.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.
Service overdue
For 5 seconds after the ignition is
switched on,
the spanner fl ashes to in-
dicate that the service must be carried
out as soon as possible.

Example: the service is overdue by
300 miles (km).
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains lit .

Retrieving the service information
You can access the service information
at any time.

 Press the trip distance recorder
zero reset button.
The service information is displayed for
a few seconds, then disappears.

i
35
INSTRUMENTS and CONTROLS
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.
Engine oil level indicator
System which informs the driver of the
validity or invalidity of the engine oil
level.
This information is indicated for a few sec-
onds when the ignition is switched on,
after the service information.
Oil level correct
Lack of oil
Oil level gauge fault
Dipstick
This is indicated by the fl ashing of

"OIL" , linked with the service warning
light, accompanied by an audible sig-
nal and a message on the multifunction
display.
If the lack of oil is confi rmed by a check
using the dipstick, it is essential that the
level is topped up to prevent damage to
the engine. This is indicated by the fl ashing of

"OIL --" . Consult a PEUGEOT dealer.
Refer to the "Checks" section to locate
the dipstick and the oil fi ller cap on your
engine. There are 2 marks on the
dipstick:
- A = max; never exceed
this level,
- B = min; top up the
level via the oil fi ller
cap, using the type of oil
suited to your engine.

36
INSTRUMENTS and CONTROLS

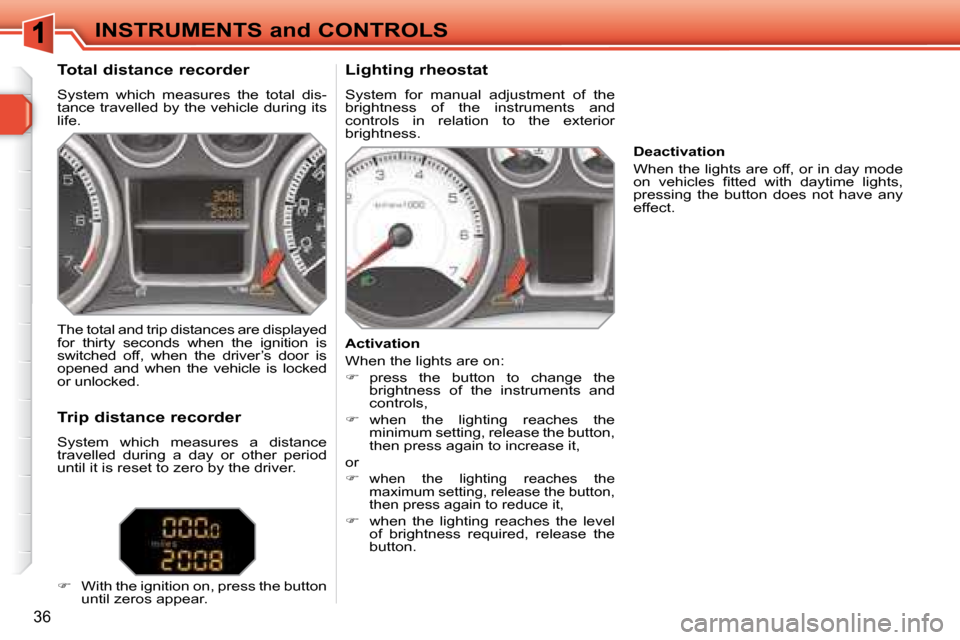

Total distance recorder
System which measures the total dis-
tance travelled by the vehicle during its
life. Lighting rheostat
System for manual adjustment of the
brightness of the instruments and
controls in relation to the exterior
brightness.
The total and trip distances are displayed
for thirty seconds when the ignition is
switched off, when the driver’s door is
opened and when the vehicle is locked
or unlocked.
Trip distance recorder
System which measures a distance
travelled during a day or other period
until it is reset to zero by the driver.

 With the ignition on, press the button
until zeros appear. Activation
When the lights are on:

 press the button to change the
brightness of the instruments and
controls,

 when the lighting reaches the
minimum setting, release the button,
then press again to increase it,
or


when the lighting reaches the
maximum setting, release the button,
then press again to reduce it,

 when the lighting reaches the level
of brightness required, release the
button. Deactivation
When the lights are off, or in day mode
on vehicles fi tted with daytime lights,
pressing the button does not have any
effect.

37
MULTIFUNCTION DISPLAYS
Displays on the screen
This displays the following information:
- the time,
- the date,
- the outside temperature * (this fl ashes if there is a risk of ice),
- the status of the accesses (doors, boot, ...),
- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. These can be cleared
by pressing the "ESC" button.
(WITHOUT RD4 AUDIO EQUIPMENT) Controls General menu
There are three display control buttons:
- "ESC" to abandon the operation in
progress,
- "MENU" to scroll through the menus
or sub-menus,
- "OK" to select the menu or sub-
menu required.
 Press the "MENU" button to scroll
through the various menus of the

general menu :
- vehicle confi guration,
- options,
- display settings,
- languages,
- units.

 Press the "OK" button to select the
menu required.
* With air conditioning only.

!
38
MULTIFUNCTION DISPLAYS
Vehicle confi guration Options
Once the "Options" menu has been
selected, you can start diagnostics of
the status of the equipment (active, not
active, faulty).
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode. Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).

 Once you have selected a setting,
press the "OK" button to change its
value.

 Wait for approximately ten seconds
without any action to allow the
changed data to be recorded or
press the "ESC" button to cancel.
The display then returns to the normal
display.
Once the "Vehicle confi guration" menu
has been selected, you can activate or
deactivate the following equipment:
- selective unlocking (refer to the "Access" section),
- wiper linked with reverse gear (refer to the "Visibility" section),
- "follow-me-home" and welcome light- ing (refer to the "Visibility" section),
- daytime lights (refer to the "Visibility" section).
For safety reasons, it is imperative
that confi guration of the multifunc-
tion displays by the driver takes
place when stationary.

39
MULTIFUNCTION DISPLAYS
MONOCHROME SCREEN A Controls
Displays on the screen
This displays the following information:
- the time,
- the date,
- the outside temperature * (this fl ashes if there is a risk of ice),
- the status of the accesses (doors, boot, ...),
- the audio sources (radio, CD, ...),
- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. These can be cleared
by pressing the "ESC" button. General menu

 Press the "MENU" button to gain
access to the general menu , then
press the " " or " " buttons to
scroll through the various menus:
- radio-CD,
- vehicle confi guration,
- options,
- display settings,
- languages,
- units.

 Press the "OK" button to select the
menu required.
From the RD4 audio equipment control
panel, you can:

 press the "MENU" button to gain
access to the general menu ,

 press the " " or " " buttons to
scroll through the items on the
screen,

 press the "MODE" button to change
the permanent application (trip
computer, audio source, ...),

 press the " " or " " buttons to
change a setting value,

 press the "OK" button to confi rm,
or

 press the "ESC" button to abandon
the operation in progress. Radio-CD
With the RD4 audio equipment switched
on, once the "Radio-CD" menu has been
selected you can activate or deactivate
the functions linked with use of the radio
(RDS, REG), the CD or the CD changer
(introscan, shuffl e, CD repeat).
For further details concerning the
"Radio-CD" application, refer to the
RD4 part of the "Audio and Telematics"
section.
* With air conditioning only.

!
40
MULTIFUNCTION DISPLAYS For safety reasons, it is imperative
that confi guration of the multifunc-
tion displays by the driver takes
place when stationary.
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).

 Once you have selected a setting,
press the " " or " " buttons to
change its value.

 Press the " " or " " buttons to
switch respectively to the previous
or next setting.

 Press the "OK" button to record
the change and return to the normal
display or press the "ESC" button to
cancel.
Vehicle confi guration
Options
Once the "Options" menu has been
selected, you can start diagnostics of
the status of the equipment (active, not
active, faulty).
Once the "Vehicle Confi guration" menu
has been selected, you can activate or
deactivate the following equipment:
- selective unlocking (refer to the
"Access" section),
- wiper linked with reverse gear (refer to the "Visibility" section),
- "follow-me-home" and welcome light- ing (refer to the "Visibility" section),
- daytime lights (refer to the "Visibility" section).

41
MULTIFUNCTION DISPLAYS
MONOCHROME SCREEN C AND COLOUR SCREEN C General menu
Displays on the screen
This displays the following information:
- the time,
- the date,
- the outside temperature * (this fl ashes if there is a risk of ice),
- the status of the accesses (doors, boot, ...),
- the audio sources (radio, CD, ...),
- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic switching
on of the headlamps activated") may ap-
pear temporarily. These can be cleared
by pressing the "ESC" button. "Audio functions" menu Controls
From the RD4 audio equipment control
panel, you can:

 press the "MENU" button to gain
access to the general menu ,

 press the " " or " " buttons to
scroll through the items on the
screen,

 press the "MODE" button to change
the permanent application (trip
computer, audio source, ...),

 press the " " or " " buttons to
change a setting value,

 press the "OK" button to confi rm,
or

 press the "ESC" button to abandon
the operation in progress.
 Press the "MENU" button to gain
access to the general menu :
- audio functions,
- vehicle diagnostics,
- personalisation-confi guration,
- telephone (hands-free kit).

 Press the " " or " " buttons to
select the menu required, then
confi rm by pressing the "OK"
button.
* With air conditioning only.
With the RD4 audio equipment switched
on, once this menu has been select-
ed you can activate or deactivate the
functions linked with use of the radio
(RDS, REG, RadioText), the CD or the
CD changer (introscan, shuffl e, CD
repeat).
For further details concerning the "Audio
functions" application, refer to the RD4
part of the "Audio and Telematics"
section.
