60
COMFORT

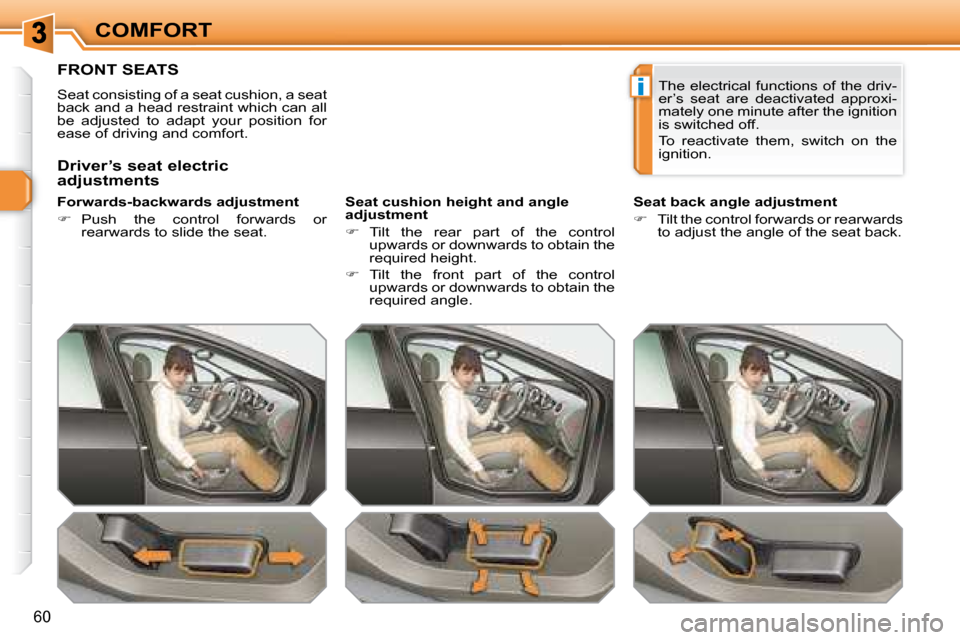

FRONT SEATS
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.
Forwards-backwards adjustment
Push the control forwards or
rearwards to slide the seat. Seat cushion height and angle
adjustment
Tilt the rear part of the control
upwards or downwards to obtain the
required height.
Tilt the front part of the control
upwards or downwards to obtain the
required angle. Seat back angle adjustment
Tilt the control forwards or rearwards
to adjust the angle of the seat back.
Driver’s seat electric
adjustments The electrical functions of the driv-
e r ’ s s e a t a r e d e a c t i v a t e d a p p r o x i -
mately one minute after the ignition
is switched off.
To reactivate them, switch on the
ignition.
Page 42 of 260
!
!
61
COMFORT
No person or object should prevent
the seat slide from returning to its
initial position; the return to this po-
sition is necessary for longitudinal
locking.
Access to the rear seats (3-door)
Pull the control upwards to fold
the seat back and move the seat
forward.
When put back in place, the seat returns to its initial position.
Head restraint height and angle
adjustment
To raise the head restraint, pull it
forwards and upwards at the same
time.
To remove the head restraint, press
the lug A and pull the head restraint
upwards.
To put the head restraint back in
place, engage the head restraint
stems in the openings keeping them
in line with the seat back.
To lower the head restraint, press
the lug A and the head restraint at
the same time.
To adjust the angle of the head
restraint, tilt its lower part forwards
or rearwards. T h e h e a d r e s t r a i n t i s fi t t e d w i t h a
frame with notches which prevents
it from lowering; this is a safety de-
vice in case of impact.
The adjustment is correct when
the upper edge of the head re-
straint is level with the top of the
head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
Lumbar adjustment
Turn the dial to obtain the correct
lumbar position.
Additional adjustments
Lower the support B incorporated in
the control to rest the seat belt on
it. It enables you to retrieve the seat
belt more easily when you need to
put it back on.
Page 43 of 260
i
62
COMFORT

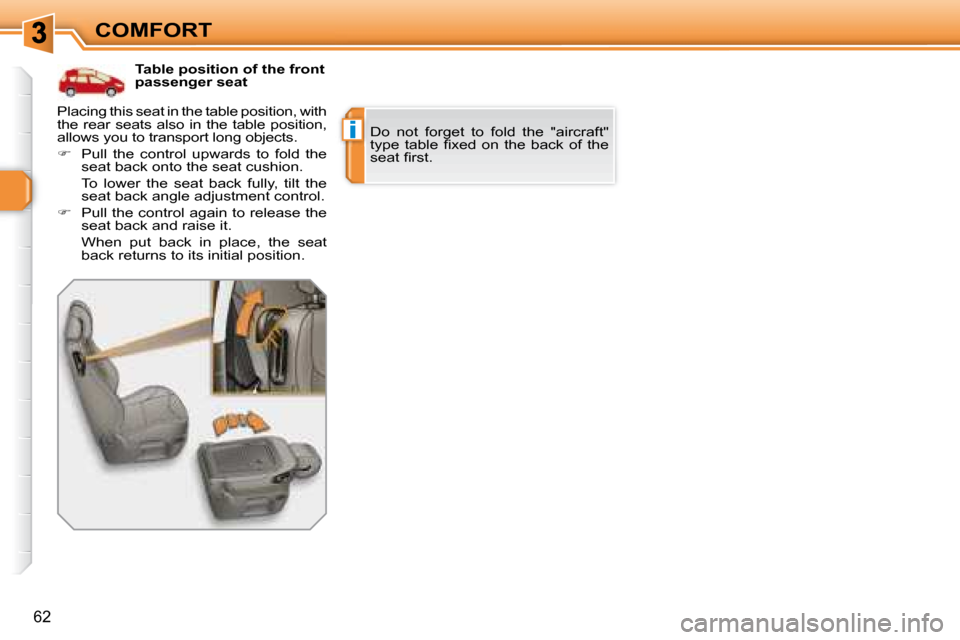

Table position of the front
passenger seat
Do not forget to fold the "aircraft"
t y p e t a b l e fi x e d o n t h e b a c k o f t h e
s e a t fi r s t .
Placing this seat in the table position, with
the rear seats also in the table position,
allows you to transport long objects.
Pull the control upwards to fold the
seat back onto the seat cushion.
To lower the seat back fully, tilt the seat back angle adjustment control.
Pull the control again to release the
seat back and raise it.
When put back in place, the seat back returns to its initial position.
Page 44 of 260
i!
63
COMFORT

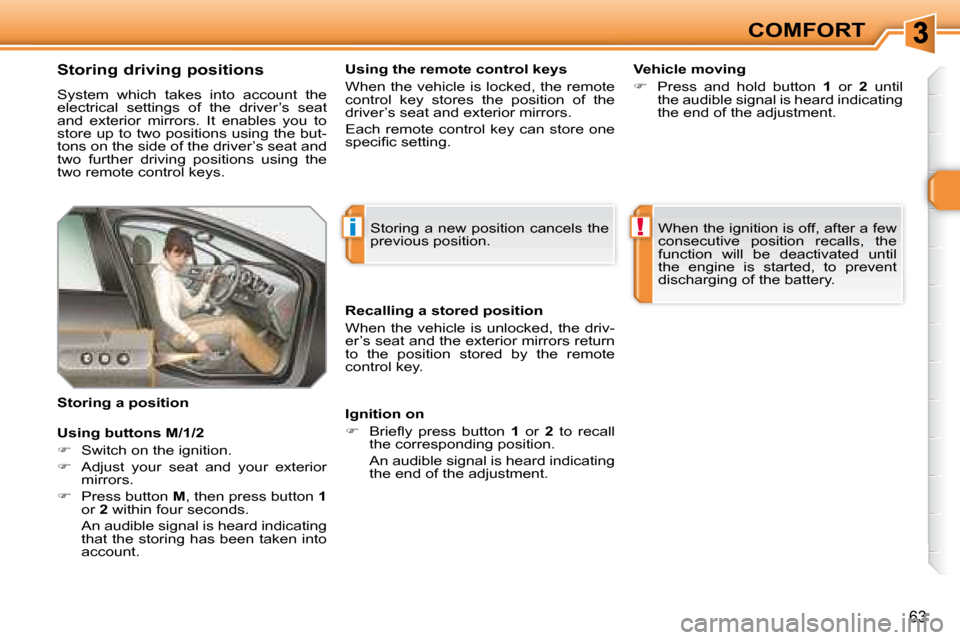

Storing driving positions
System which takes into account the
electrical settings of the driver’s seat
a n d e x t e r i o r m i r r o r s . I t e n a b l e s y o u t o
store up to two positions using the but-
tons on the side of the driver’s seat and
two further driving positions using the
two remote control keys.
Recalling a stored position
When the vehicle is unlocked, the driv-
e r ’ s s e a t a n d t h e e x t e r i o r m i r r o r s r e t u r n
to the position stored by the remote
control key.
Storing a position Storing a new position cancels the
previous position.
When the ignition is off, after a few
consecutive position recalls, the
function will be deactivated until
the engine is started, to prevent
discharging of the battery.
Using the remote control keys
When the vehicle is locked, the remote
control key stores the position of the
d r i v e r ’ s s e a t a n d e x t e r i o r m i r r o r s .
Each remote control key can store one
s p e c i fi c s e t t i n g .
Ignition on
B r i e fl y p r e s s b u t t o n 1 or 2 to recall
the corresponding position.
An audible signal is heard indicating the end of the adjustment. Vehicle moving
Press and hold button 1 or 2 until
the audible signal is heard indicating
the end of the adjustment.
Using buttons M/1/2
Switch on the ignition.
A d j u s t y o u r s e a t a n d y o u r e x t e r i o r
mirrors.
Press button M , then press button 1
or 2 within four seconds.
An audible signal is heard indicating that the storing has been taken into
account.
Page 45 of 260
!
64
COMFORT
REAR SEATS
Never drive with the head restraints
removed; they must be in place
and in the high position when pas-
sengers are seated in the rear.
Rear head restraints
These have a high position (comfort
and safety) and a low position (rear visi-
bility).
They can also be removed.
To remove a head restraint:
pull the head restraint fully forwards
and upwards at the same time,
then, press the lug A . Removing the seat cushion
Move the corresponding front seat
forwards if necessary.
Pull the handle 1 forwards to raise
the seat cushion 2 .
Tilt the seat cushion 2 fully against
the front seat.
Remove the seat cushion 2 from its
fi x i n g s b y p u l l i n g u p w a r d s .
Refitting the seat cushion
Position the seat cushion 2 vertically
i n i t s fi x i n g s .
Fold down the seat cushion 2 .
Press on the seat cushion to secure it.
Bench seat the left-hand (2/3) or right-
hand (1/3) section of which can be folded
to adapt the boot load space.
Page 46 of 260
!
i
65
COMFORT

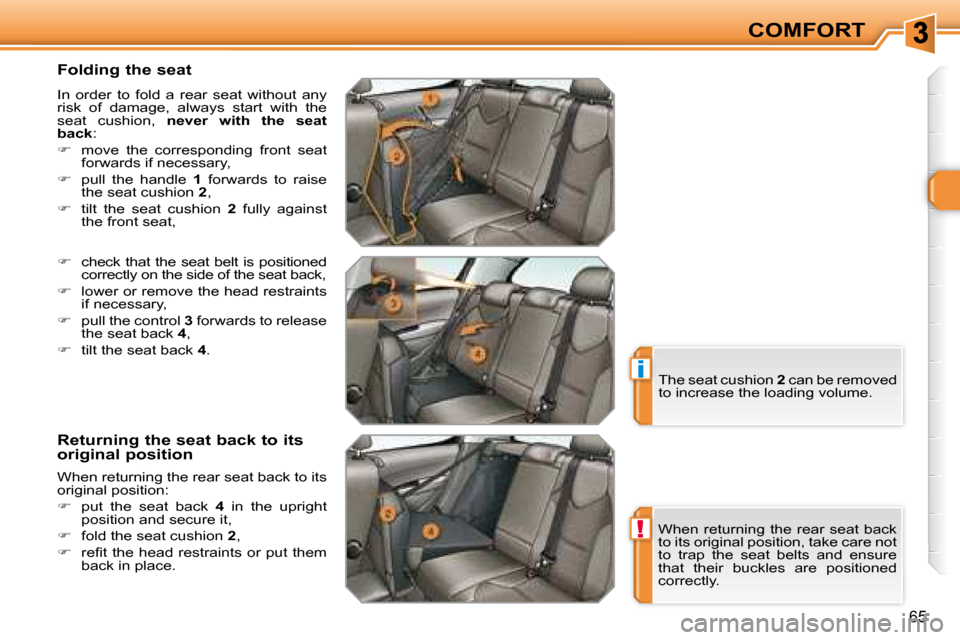

Folding the seat
In order to fold a rear seat without any
risk of damage, always start with the
seat cushion, never with the seat
back :
move the corresponding front seat
forwards if necessary,
pull the handle 1 forwards to raise
the seat cushion 2 ,
tilt the seat cushion 2 fully against
the front seat,
Returning the seat back to its
original position
When returning the rear seat back to its
original position:
put the seat back 4 in the upright
position and secure it,
fold the seat cushion 2 ,
r e fi t t h e h e a d r e s t r a i n t s o r p u t t h e m
back in place.
check that the seat belt is positioned
correctly on the side of the seat back,
lower or remove the head restraints
if necessary,
pull the control 3 forwards to release
the seat back 4 ,
tilt the seat back 4 .
When returning the rear seat back
to its original position, take care not
to trap the seat belts and ensure
that their buckles are positioned
correctly. The seat cushion
2 can be removed
to increase the loading volume.
Page 47 of 260
ii
i
66
COMFORT
REAR SEATS
Forwards-backwards
adjustment
Seat back angle adjustment
Pull one of the straps B , located
at the front of the seat, then adjust
the angle to one of the 7 positions
offered.
Release the strap to lock the seat
back in this position. Table position
Raise the bar A and slide the seat
forwards or backwards.
Place the head restraint in the low
position.
Pull one of the straps B , located at
the front of the seat.
Fold the seat back fully onto the
seat cushion; the seat automatically
moves back fully.
Press on the seat back to lock it. Folding
Once the seat has been placed in the
table position, carry out the following
operations:
move back the seat fully using the
bar A ,
raise the lever C , located at the rear
right of the seat, to release the rear
feet,
raise the seat fully so that it remains
in the fully folded position.
You can also carry out these op-
erations from the 3rd row using the
strap B , located at the rear of the
seat. These operations allow access to
the 3rd
r o w , e x i t f r o m t h e 3 r d r o w
and folding of the seats from the
boot.
In the 2nd row, these three seats are
strictly identical and can be adjusted for
your comfort. They can be placed in the
table position, folded or removed to ob-
t a i n a v a r i e t y o f l o a d i n g c o n fi g u r a t i o n s .
During the forwards-backwards and
seat back angle adjustment opera-
tions, take care not to apply any force
to the load space screen roller.
Page 48 of 260
!
67
COMFORT

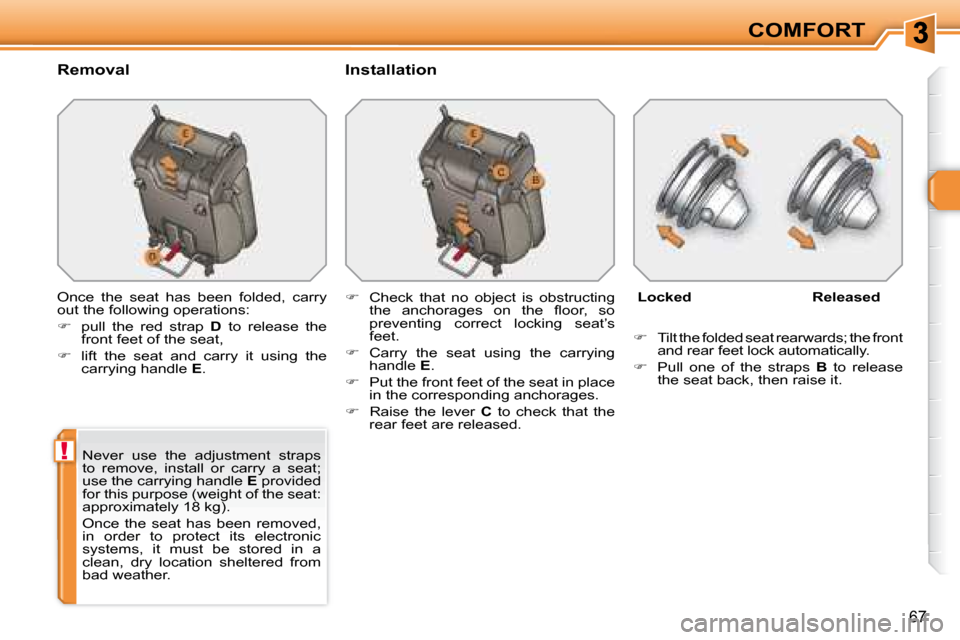

Removal Installation
Once the seat has been folded, carry
out the following operations:
pull the red strap D to release the
front feet of the seat,
lift the seat and carry it using the
carrying handle E .
Never use the adjustment straps
to remove, install or carry a seat;
use the carrying handle E provided
for this purpose (weight of the seat:
a p p r o x i m a t e l y 1 8 k g ) .
Once the seat has been removed,
in order to protect its electronic
systems, it must be stored in a
clean, dry location sheltered from
bad weather.
Locked Released
Tilt the folded seat rearwards; the front
and rear feet lock automatically.
Pull one of the straps B to release
the seat back, then raise it.
Check that no object is obstructing
t h e a n c h o r a g e s o n t h e fl o o r , s o
preventing correct locking seat’s
feet.
Carry the seat using the carrying
handle E .
Put the front feet of the seat in place
in the corresponding anchorages.
Raise the lever C to check that the
rear feet are released.
Page 49 of 260
!
68
COMFORT
ADDITIONAL SEATS
Table position
Place the head restraint in the low
position.
Pull the strap A , located at the rear
left of the seat.
Fold the seat back onto the seat
cushion. Folding
Once the seat has been placed in the
table position, carry out the following
operations:
remove the load space screen
roller,
raise the bar B , located at the rear of
the seat, to release the rear feet,
raise the seat and secure it to the
head restraint rod of the 2nd row
seat, using the integrated retaining
strap C . Removal
Once the seat has been folded, carry
out the following operations:
pull the red strap D to release the
front feet of the seat,
lift the seat and carry it using the
carrying handle E ,
put the anchorage covers back in
p l a c e t o o b t a i n a fl a t b o o t fl o o r .
Never use the adjustment and re-
taining straps to remove, install
or carry a seat; use the carrying
handle E provided for this purpose
( w e i g h t o f t h e s e a t : a p p r o x i m a t e l y
15 kg).
In the 3rd row, these two seats are strictly
identical and are used for the occasional
transportation of additional passengers.
They can be placed in the table position,
folded or removed to obtain a variety of
l o a d i n g c o n fi g u r a t i o n s .
Page 50 of 260
69
COMFORT

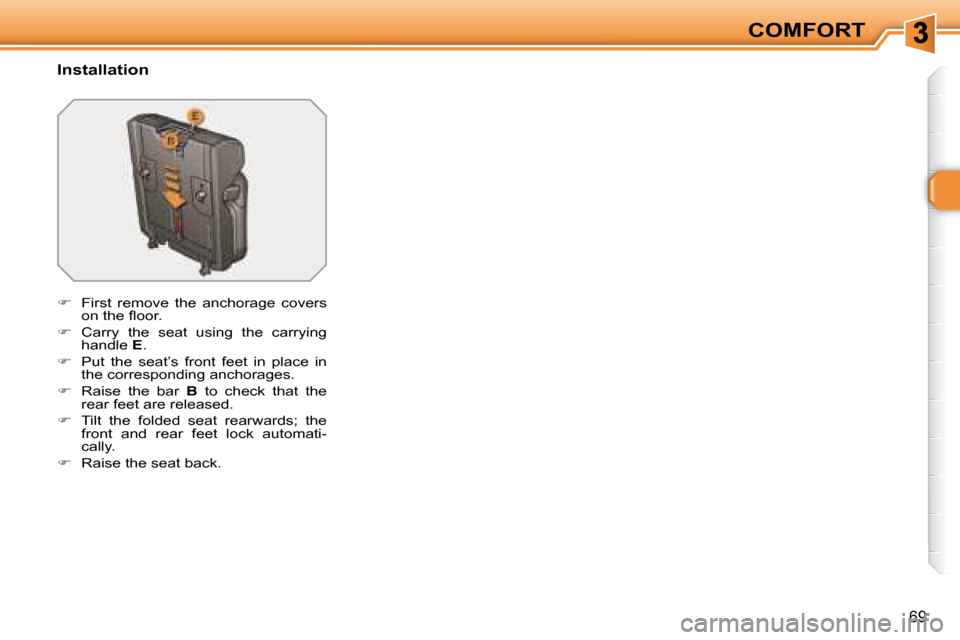

Installation
First remove the anchorage covers
o n t h e fl o o r .
Carry the seat using the carrying
handle E .
Put the seat’s front feet in place in
the corresponding anchorages.
Raise the bar B to check that the
rear feet are released.
Tilt the folded seat rearwards; the
front and rear feet lock automati-
cally.
Raise the seat back.
