Page 41 of 329
44

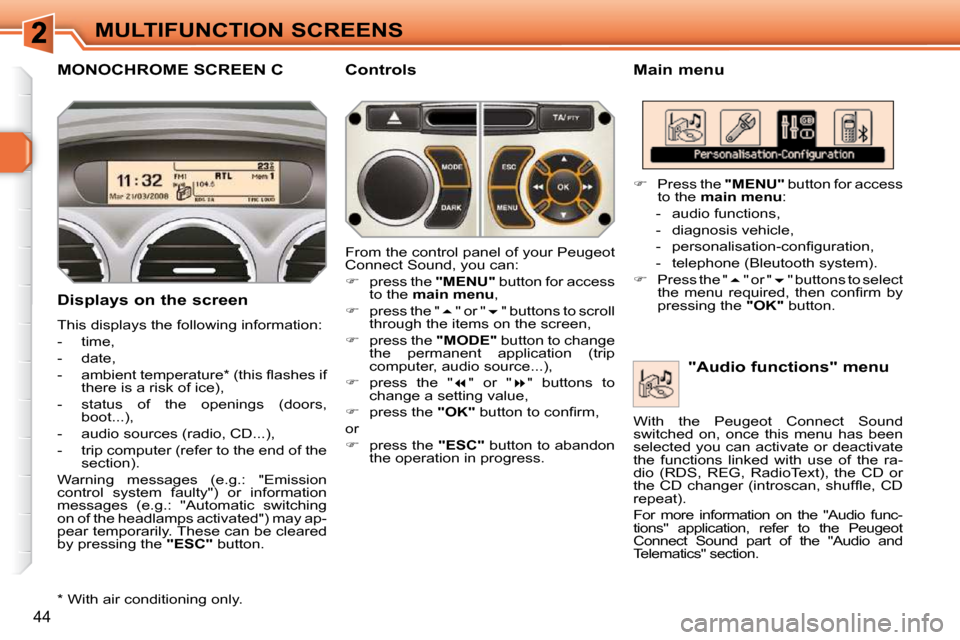

MULTIFUNCTION SCREENS
MONOCHROME SCREEN C Main menu
Displays on the screen
This displays the following information:
- time,
- date,
- a m b i e n t t e m p e r a t u r e * ( t h i s fl a s h e s i f there is a risk of ice),
- status of the openings (doors, boot...),
- audio sources (radio, CD...),
- trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic switching
on of the headlamps activated") may ap-
pear temporarily. These can be cleared
by pressing the "ESC" button. "Audio functions" menu Controls
From the control panel of your Peugeot
Connect Sound, you can:
press the "MENU" button for access
to the main
menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the "MODE" button to change
the permanent application (trip
computer, audio source...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress.
Press the "MENU" button for access
to the main
menu :
- audio functions,
- diagnosis vehicle,
- p e r s o n a l i s a t i o n - c o n fi g u r a t i o n ,
- telephone (Bleutooth system).
Press the " " or " " buttons to select
t h e m e n u r e q u i r e d , t h e n c o n fi r m b y
pressing the "OK" button.
* With air conditioning only. With the Peugeot Connect Sound
switched on, once this menu has been
selected you can activate or deactivate
the functions linked with use of the ra-
dio (RDS, REG, RadioText), the CD or
t h e C D c h a n g e r ( i n t r o s c a n , s h u f fl e , C D
repeat).
For more information on the "Audio func-
tions" application, refer to the Peugeot
Connect Sound part of the "Audio and
Telematics" section.
Page 42 of 329
45
MULTIFUNCTION SCREENS

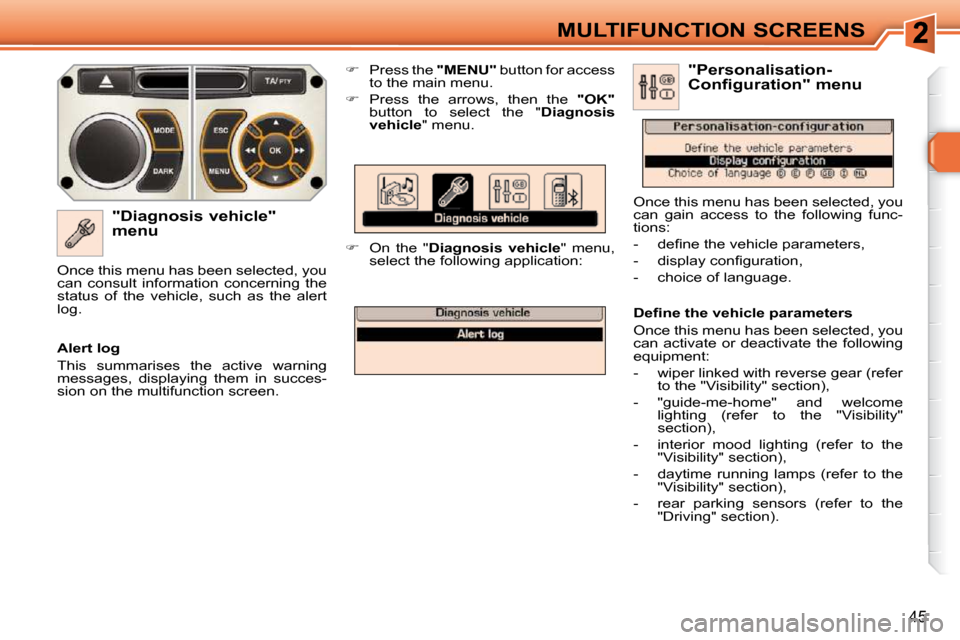

"Diagnosis vehicle"
menu
Press the "MENU" button for access
to the main menu.
Press the arrows, then the "OK"
button to select the " Diagnosis
vehicle " menu.
On the " Diagnosis vehicle " menu,
select the following application:
Alert log
This summarises the active warning
messages, displaying them in succes-
sion on the multifunction screen.
Once this menu has been selected, you
can consult information concerning the
status of the vehicle, such as the alert
log.
D e fi n e t h e v e h i c l e p a r a m e t e r s
Once this menu has been selected, you
can activate or deactivate the following
equipment:
- wiper linked with reverse gear (refer
to the "Visibility" section),
- "guide-me-home" and welcome lighting (refer to the "Visibility"
section),
- interior mood lighting (refer to the "Visibility" section),
- daytime running lamps (refer to the "Visibility" section),
- rear parking sensors (refer to the "Driving" section). "Personalisation-
Configuration" menu
Once this menu has been selected, you
can gain access to the following func-
tions:
- d e fi n e t h e v e h i c l e p a r a m e t e r s ,
- d i s p l a y c o n fi g u r a t i o n ,
- choice of language.
Page 43 of 329
!
46
MULTIFUNCTION SCREENS

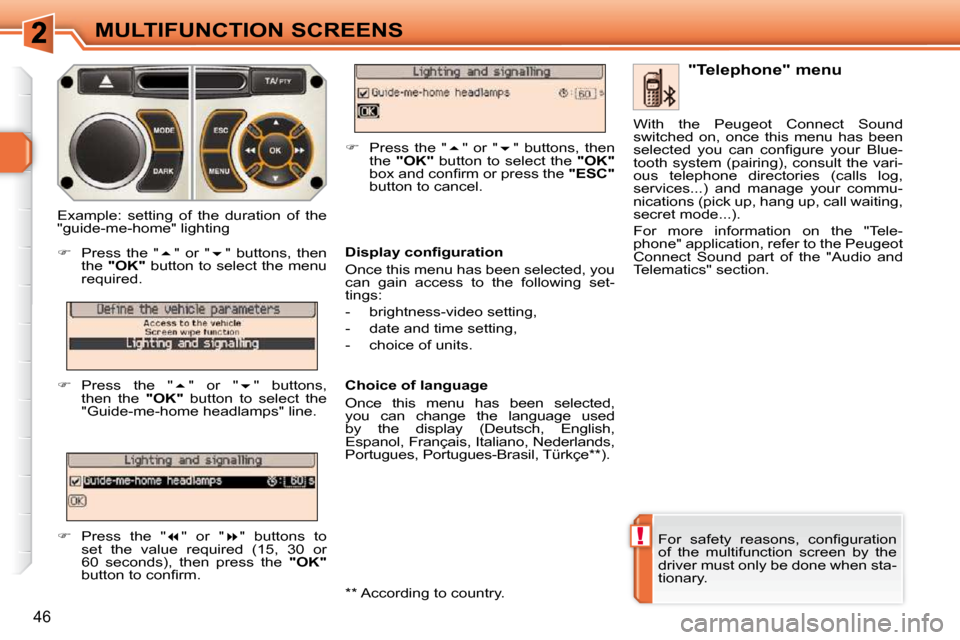

F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction screen by the
driver must only be done when sta-
tionary. "Telephone" menu
D i s p l a y c o n fi g u r a t i o n
Once this menu has been selected, you
can gain access to the following set-
tings:
- brightness-video setting,
- date and time setting,
- choice of units.
Choice of language
Once this menu has been selected,
you can change the language used
by the display (Deutsch, English,
Espanol, Français, Italiano, Nederlands,
Portugues, Portugues-Brasil, Türkçe ** ).
Example: setting of the duration of the
"guide-me-home" lighting
Press the " " or " " buttons, then
the "OK" button to select the menu
required.
Press the " " or " " buttons,
then the "OK" button to select the
"Guide-me-home headlamps" line.
Press the " " or " " buttons to
set the value required (15, 30 or
60 seconds), then press the "OK"
b u t t o n t o c o n fi r m .
Press the " " or " " buttons, then
the "OK" button to select the "OK"
b o x a n d c o n fi r m o r p r e s s t h e "ESC"
button to cancel. With the Peugeot Connect Sound
switched on, once this menu has been
s e l e c t e d y o u c a n c o n fi g u r e y o u r B l u e -
tooth system (pairing), consult the vari-
ous telephone directories (calls log,
services...) and manage your commu-
nications (pick up, hang up, call waiting,
secret mode...).
For more information on the "Tele-
phone" application, refer to the Peugeot
Connect Sound part of the "Audio and
Telematics" section.
** According to country.

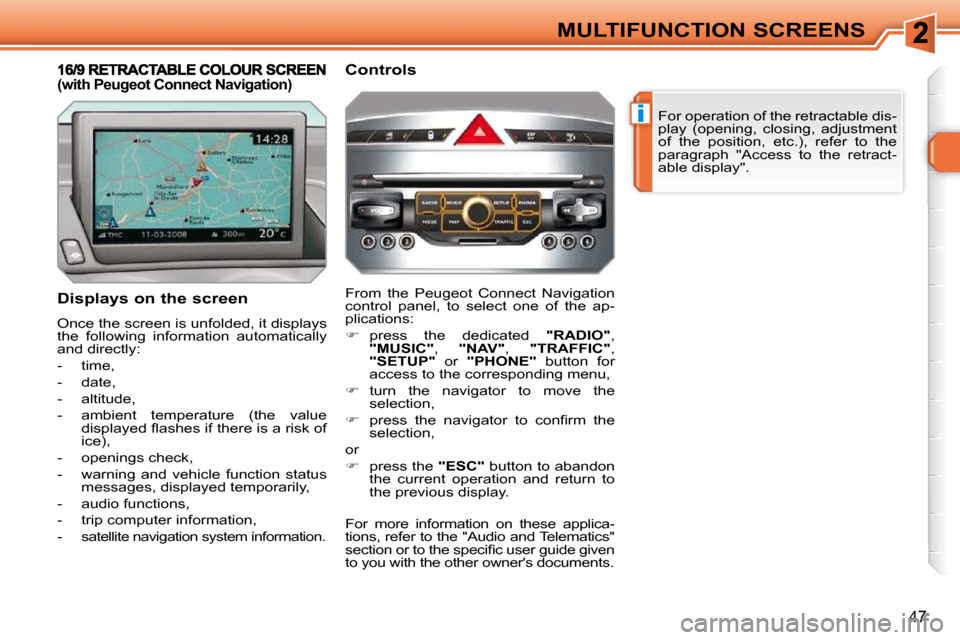

Page 44 of 329
i
47
MULTIFUNCTION SCREENS For operation of the retractable dis-
play (opening, closing, adjustment
of the position, etc.), refer to the
paragraph "Access to the retract-
able display".
Displays on the screen
Once the screen is unfolded, it displays
the following information automatically
and directly:
- time,
- date,
- altitude,
- ambient temperature (the value d i s p l a y e d fl a s h e s i f t h e r e i s a r i s k o f
ice),
- openings check,
- warning and vehicle function status messages, displayed temporarily,
- audio functions,
- trip computer information,
- satellite navigation system information. From the Peugeot Connect Navigation
control panel, to select one of the ap-
plications:
press the dedicated "RADIO" ,
"MUSIC" , "NAV" , "TRAFFIC" ,
"SETUP" or "PHONE" button for
access to the corresponding menu,
turn the navigator to move the
selection,
p r e s s t h e n a v i g a t o r t o c o n fi r m t h e
selection,
or
press the "ESC" button to abandon
the current operation and return to
the previous display.
(with Peugeot Connect Navigation) Controls
For more information on these applica-
tions, refer to the "Audio and Telematics"
s e c t i o n o r t o t h e s p e c i fi c u s e r g u i d e g i v e n
to you with the other owner's documents.
Page 45 of 329
!
48
MULTIFUNCTION SCREENS

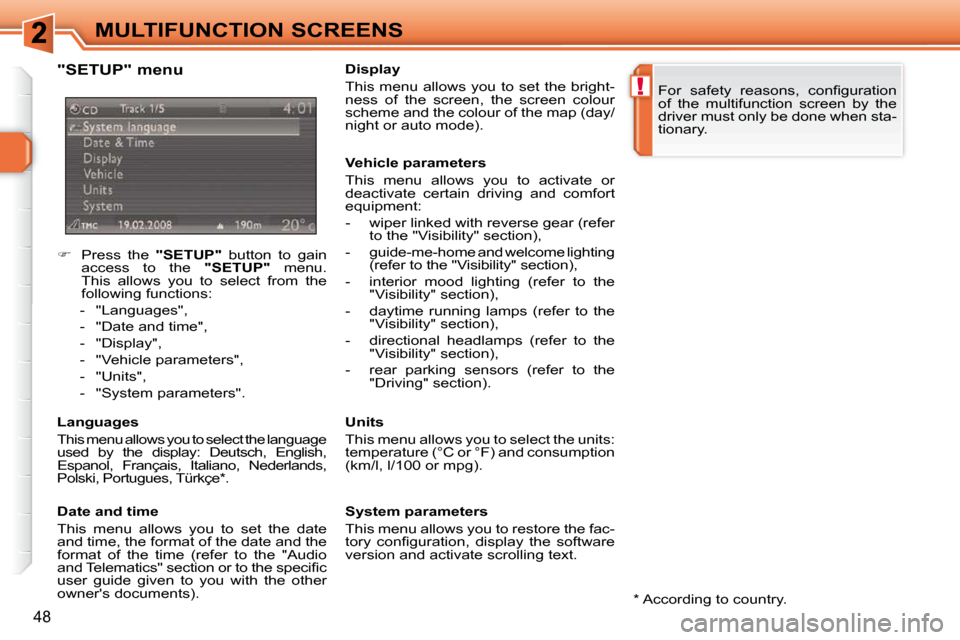

Press the "SETUP" button to gain
access to the "SETUP" menu.
This allows you to select from the
following functions:
- "Languages",
- "Date and time",
- "Display",
- "Vehicle parameters",
- "Units",
- "System parameters".
Languages
This menu allows you to select the language
used by the display: Deutsch, English,
Espanol, Français, Italiano, Nederlands,
Polski, Portugues, Türkçe * .
Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time (refer to the "Audio
a n d T e l e m a t i c s " s e c t i o n o r t o t h e s p e c i fi c
user guide given to you with the other
owner's documents). F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction screen by the
driver must only be done when sta-
tionary.
System parameters
This menu allows you to restore the fac-
t o r y c o n fi g u r a t i o n , d i s p l a y t h e s o f t w a r e
version and activate scrolling text.
Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment:
- wiper linked with reverse gear (refer
to the "Visibility" section),
- guide-me-home and welcome lighting (refer to the "Visibility" section),
- interior mood lighting (refer to the "Visibility" section),
- daytime running lamps (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- rear parking sensors (refer to the "Driving" section).
Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).
Units
This menu allows you to select the units:
temperature (°C or °F) and consumption
(km/l, l/100 or mpg).
"SETUP" menu
* According to country.
Page 46 of 329
i
49
MULTIFUNCTION SCREENS

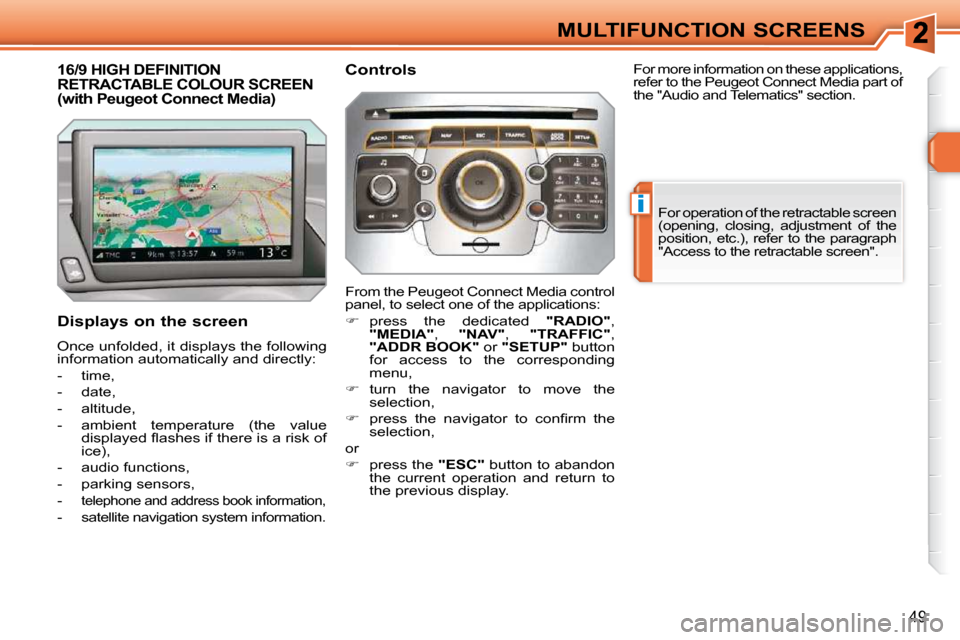

16/9 HIGH DEFINITION RETRACTABLE COLOUR SCREEN (with Peugeot Connect Media)
Displays on the screen
Once unfolded, it displays the following
information automatically and directly:
- time,
- date,
- altitude,
- ambient temperature (the value d i s p l a y e d fl a s h e s i f t h e r e i s a r i s k o f
ice),
- audio functions,
- parking sensors,
-
telephone and address book information,
- satellite navigation system information. From the Peugeot Connect Media control
panel, to select one of the applications:
press the dedicated "RADIO" ,
"MEDIA" , "NAV" , "TRAFFIC" ,
"ADDR BOOK" or "SETUP" button
for access to the corresponding
menu,
turn the navigator to move the
selection,
p r e s s t h e n a v i g a t o r t o c o n fi r m t h e
selection,
or
press the "ESC" button to abandon
the current operation and return to
the previous display. For operation of the retractable screen
(opening, closing, adjustment of the
position, etc.), refer to the paragraph
"Access to the retractable screen".
For more information on these applications,
refer to the Peugeot Connect Media part of
the "Audio and Telematics" section.
Controls

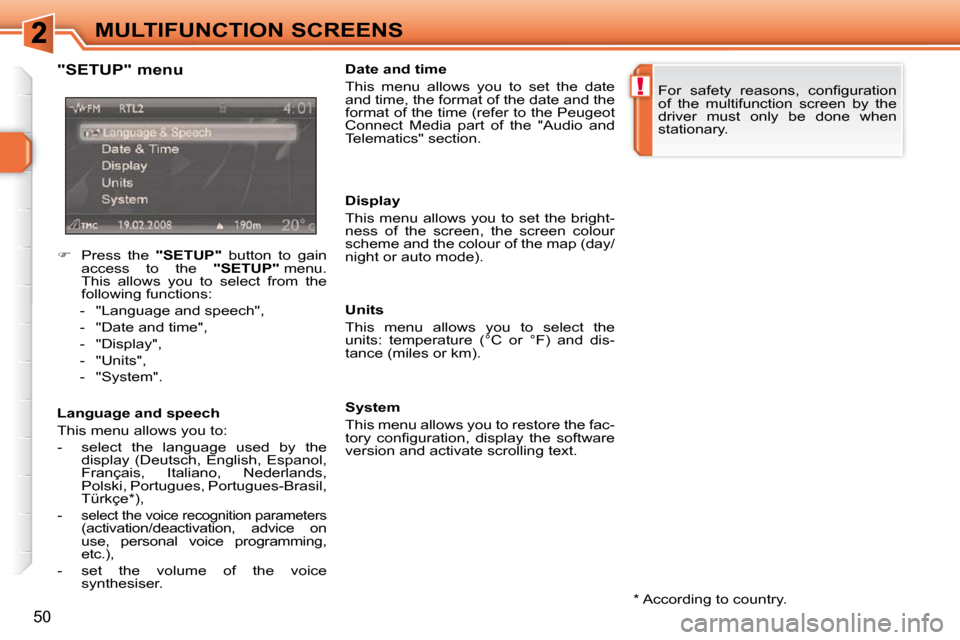

Page 47 of 329
!
50
MULTIFUNCTION SCREENS * According to country.
"SETUP" menu
Language and speech
This menu allows you to:
- select the language used by the
display (Deutsch, English, Espanol,
Français, Italiano, Nederlands,
Polski, Portugues, Portugues-Brasil,
Türkçe * ),
-
select the voice recognition parameters
(activation/deactivation, advice on
use, personal voice programming,
etc.),
- set the volume of the voice synthesiser. Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time (refer to the Peugeot
Connect Media part of the "Audio and
Telematics" section.
Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).
Units
This menu allows you to select the
units: temperature (°C or °F) and dis-
tance (miles or km).
System
This menu allows you to restore the fac-
t o r y c o n fi g u r a t i o n , d i s p l a y t h e s o f t w a r e
version and activate scrolling text.
F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction screen by the
driver must only be done when
stationary.
Press the "SETUP" button to gain
access to the "SETUP" menu.
This allows you to select from the
following functions:
- "Language and speech",
- "Date and time",
- "Display",
- "Units",
- "System".
Page 48 of 329
i
i
51
MULTIFUNCTION SCREENS

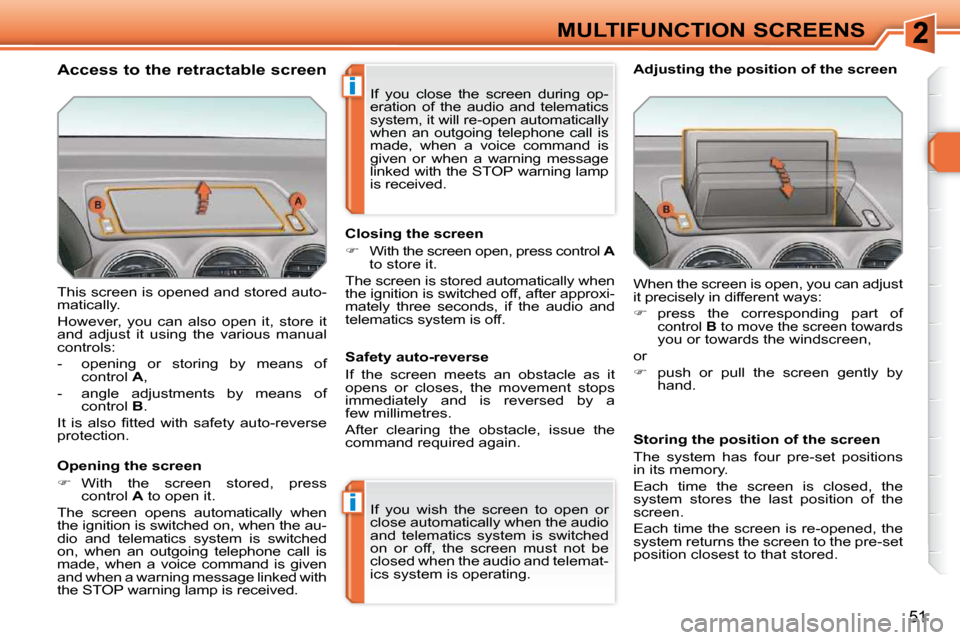

This screen is opened and stored auto-
matically.
However, you can also open it, store it
and adjust it using the various manual
controls:
- opening or storing by means of control A ,
- angle adjustments by means of control B .
I t i s a l s o fi t t e d w i t h s a f e t y a u t o - r e v e r s e
protection.
Opening the screen
With the screen stored, press
control A to open it.
The screen opens automatically when
the ignition is switched on, when the au-
dio and telematics system is switched
on, when an outgoing telephone call is
made, when a voice command is given
and when a warning message linked with
the STOP warning lamp is received. Closing the screen
With the screen open, press control A
to store it.
The screen is stored automatically when
the ignition is switched off, after approxi-
mately three seconds, if the audio and
telematics system is off.
If you wish the screen to open or
close automatically when the audio
and telematics system is switched
on or off, the screen must not be
closed when the audio and telemat-
ics system is operating. When the screen is open, you can adjust
it precisely in different ways:
press the corresponding part of
control B to move the screen towards you or towards the windscreen,
or
push or pull the screen gently by
hand.
Adjusting the position of the screen
Safety auto-reverse
If the screen meets an obstacle as it
opens or closes, the movement stops
immediately and is reversed by a
few millimetres.
After clearing the obstacle, issue the
command required again. Storing the position of the screen
The system has four pre-set positions
in its memory.
Each time the screen is closed, the
system stores the last position of the
screen.
Each time the screen is re-opened, the
system returns the screen to the pre-set
position closest to that stored.
If you close the screen during op-
eration of the audio and telematics
system, it will re-open automatically
when an outgoing telephone call is
made, when a voice command is
given or when a warning message
linked with the STOP warning lamp
is received.
Access to the retractable screen
Page 49 of 329

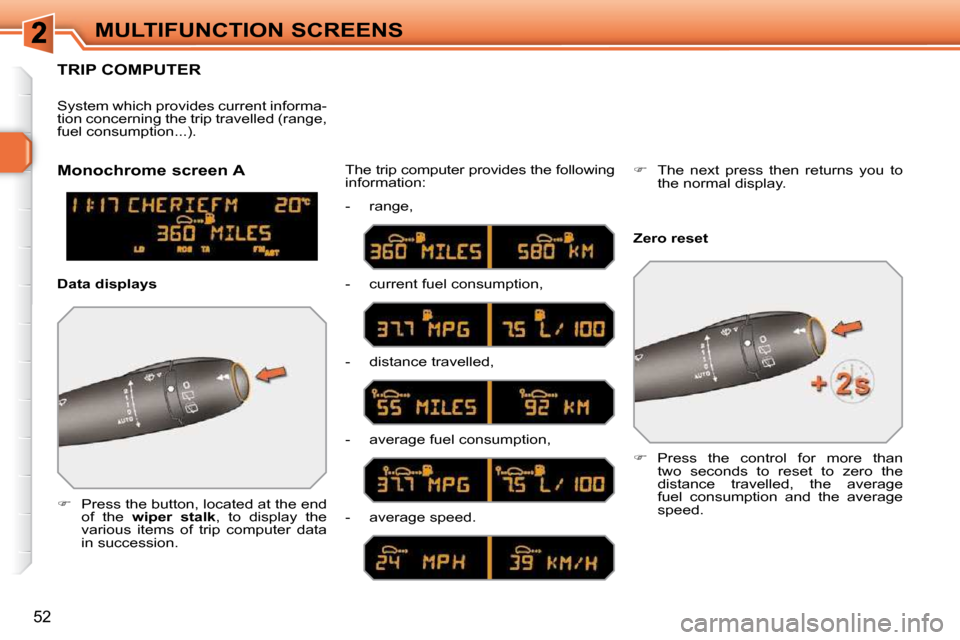

52
MULTIFUNCTION SCREENS
TRIP COMPUTER
Press the button, located at the end
of the wiper stalk , to display the
various items of trip computer data
in succession. The trip computer provides the following
information:
System which provides current informa-
tion concerning the trip travelled (range,
fuel consumption...).
Press the control for more than
two seconds to reset to zero the
distance travelled, the average
fuel consumption and the average
speed.
Monochrome screen A
Zero reset
Data displays - range,
- current fuel consumption,
- distance travelled,
- average fuel consumption,
- average speed.
The next press then returns you to
the normal display.
Page 50 of 329
!
i
i

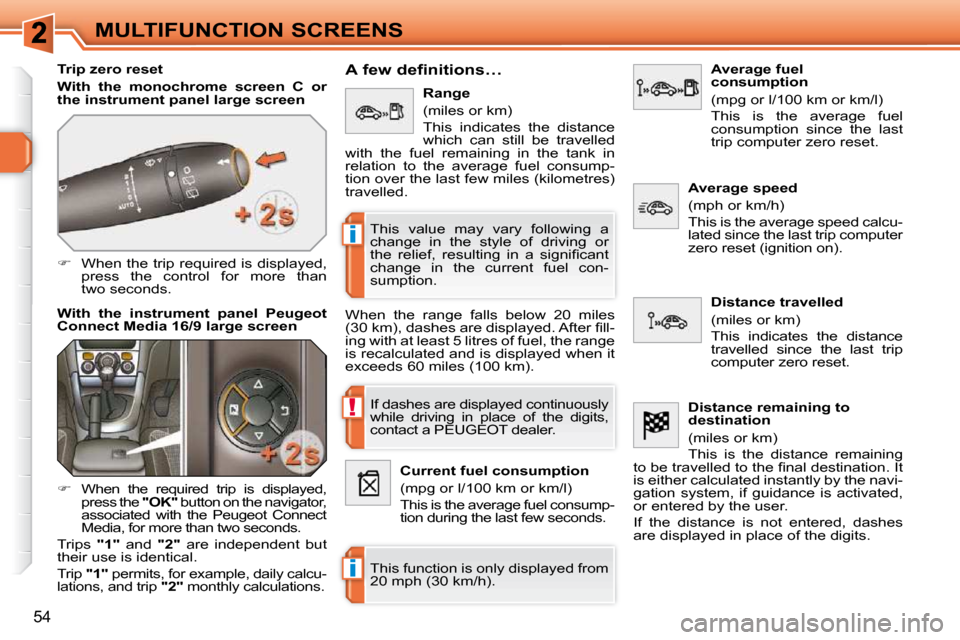

54
MULTIFUNCTION SCREENS
Trip zero reset
With the monochrome screen C or
the instrument panel large screen
When the trip required is displayed,
press the control for more than
two seconds.
With the instrument panel
Peugeot
Connect Media
16/9 large screen A few definitions…
When the range falls below 20 miles
( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r fi l l -
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).
If dashes are displayed continuously
while driving in place of the digits,
contact a PEUGEOT dealer.
This function is only displayed from
20 mph (30 km/h).
This value may vary following a
change in the style of driving or
t h e r e l i e f , r e s u l t i n g i n a s i g n i fi c a n t
change in the current fuel con-
sumption.
Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled.
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel consump-
tion during the last few seconds. Average fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel
consumption since the last
trip computer zero reset.
Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.
Average speed
(mph or km/h)
This is the average speed calcu-
lated since the last trip computer
zero reset (ignition on).
Distance remaining to
destination
(miles or km)
This is the distance remaining
t o b e t r a v e l l e d t o t h e fi n a l d e s t i n a t i o n . I t
is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
When the required trip is displayed,
press the "OK" button on the navigator,
associated with the Peugeot Connect
Media, for more than two seconds.
Trips "1" and "2" are independent but
their use is identical.
Trip "1" permits, for example, daily calcu-
lations, and trip "2" monthly calculations.
