i
24
INSTRUMENTS and CONTROLS
PETROL - DIESEL MANUAL OR 6-SPEED ELECTRONIC GEAR CONTROL OR AUTOMATIC GEARBOX PEUGEOT CONNECT MEDIA INSTRUMENT PANELS
Dials
1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).
2. Coolant temperature.
Indicates the temperature of the engine coolant (° Celsius).
3. Fuel level.
Indicates the quantity of fuel remaining in the tank.
4. Vehicle speed.
Indicates the current speed of the moving vehicle (km/h or mph).
A. Trip distance recorder.
(miles or km)
B. Distance recorder.
(miles or km).
C. Engine oil level indicator,
service indicator.
(miles or km)
These two functions are displayed when the ignition is switched on,
then disappear after a few seconds.
The following functions are displayed
depending on the selection.
- Warning
lamps
/CHECK.
- T y r e u n d e r - i n fl a t i o n d e t e c t i o n .
- Speed limiter/Cruise control.
- Gear
shift
indicator.
- 6-speed
electronic gear control
or automatic gearbox.
- Navigation - Guidance/
Trip computer.
- Vehicle parameters.
Panel grouping together the vehicle
operation indication dials and warning
lamps. Displays
5. Small
screen
.
6. Peugeot Connect Media
16/9
large central screen.
7. Display management button.
Starts a manual CHECK and recalls the service information.
Resets the function selected to zero (trip distance recorder or
service indicator).
8. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and controls.
For further information, refer to the
paragraph which relates to the but-
ton or function and its associated
display.
Page 22 of 329
i
25
INSTRUMENTS and CONTROLS * According to country.

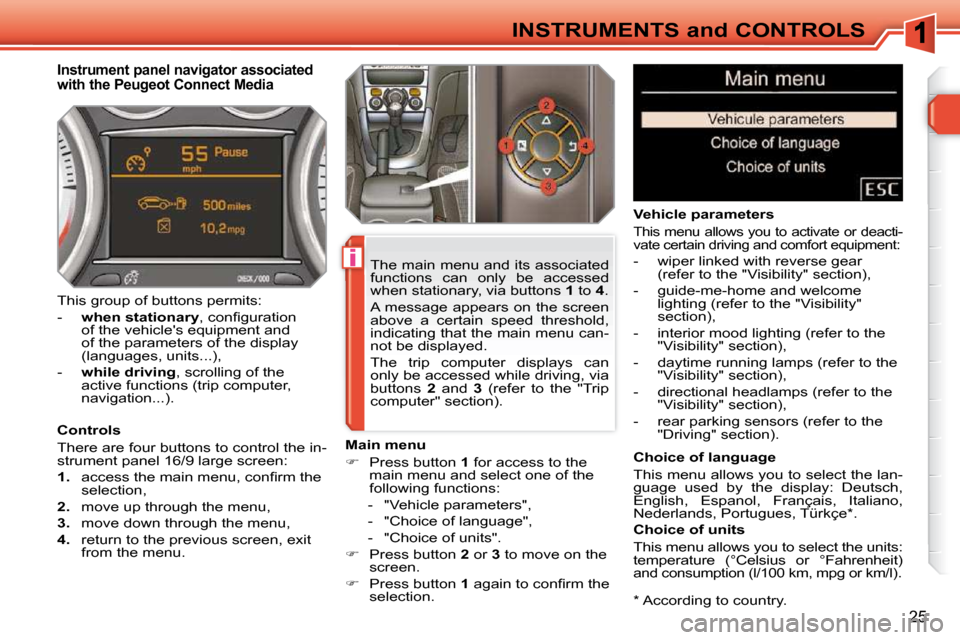

Instrument panel navigator associated
with the Peugeot Connect Media
Controls
There are four buttons to control the in-
strument panel 16/9 large screen:
1. a c c e s s t h e m a i n m e n u , c o n fi r m t h e
selection,
2. move up through the menu,
3. move down through the menu,
4. return to the previous screen, exit
from the menu. Main menu
Press button 1 for access to the
main menu and select one of the
following functions:
- "Vehicle parameters",
- "Choice of language",
- "Choice of units".
Press button 2 or 3 to move on the
screen.
Press button 1 a g a i n t o c o n fi r m t h e
selection. The main menu and its associated
functions can only be accessed
when stationary, via buttons
1 to 4 .
A message appears on the screen
above a certain speed threshold,
indicating that the main menu can-
not be displayed.
The trip computer displays can
only be accessed while driving, via
buttons 2 and 3 (refer to the "Trip
computer" section).
This group of buttons permits:
-
when stationary , c o n fi g u r a t i o n
of the vehicle's equipment and
of the parameters of the display
(languages, units...),
- while driving , scrolling of the
active functions (trip computer,
navigation...).
Vehicle parameters
This menu allows you to activate or deacti-
vate certain driving and comfort equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- guide-me-home and welcome lighting (refer to the "Visibility"
section),
- interior mood lighting (refer to the "Visibility" section),
- daytime running lamps (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- rear parking sensors (refer to the "Driving" section).
Choice of language
This menu allows you to select the lan-
guage used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Portugues, Türkçe * .
Choice of units
This menu allows you to select the units:
temperature (°Celsius or °Fahrenheit)
and consumption (l/100 km, mpg or km/l).
Page 23 of 329
!
26
INSTRUMENTS and CONTROLS
The warning lamps may come on
c o n t i n u o u s l y o r fl a s h .
Certain warning lamps may come
on in two different modes. Only by
relating the type of lighting to the
operating status of the vehicle can
it be ascertained whether the situ-
ation is normal or whether a fault
has occurred.

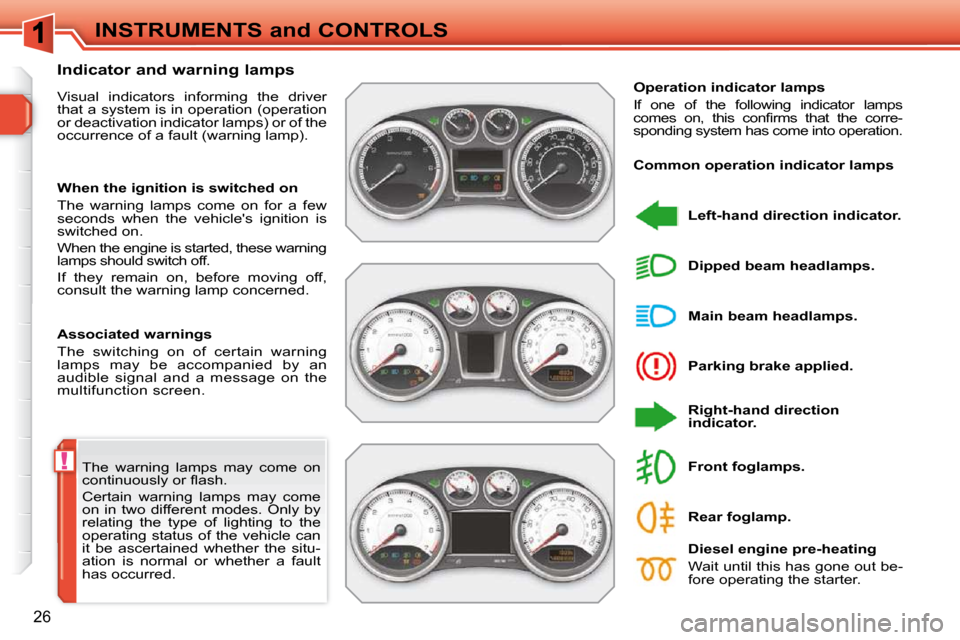

Indicator and warning lamps
Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lamps) or of the
occurrence of a fault (warning lamp).
Associated warnings
The switching on of certain warning
lamps may be accompanied by an
audible signal and a message on the
multifunction screen.
Operation indicator lamps
If one of the following indicator lamps
c o m e s o n , t h i s c o n fi r m s t h a t t h e c o r r e -
sponding system has come into operation.
Left-hand direction indicator.
Parking brake applied.
Right-hand direction
indicator.
Main beam headlamps.
Dipped beam headlamps.
Diesel engine pre-heating
Wait until this has gone out be-
fore operating the starter.
Front foglamps.
When the ignition is switched on
The warning lamps come on for a few
seconds when the vehicle's ignition is
switched on.
When the engine is started, these warning
lamps should switch off.
If they remain on, before moving off,
consult the warning lamp concerned.
Common operation indicator lamps
Rear foglamp.
Page 24 of 329
27
INSTRUMENTS and CONTROLS
Foot on brake.
Press the brake pedal to start
the engine with the 6-speed
electronic gear control gearbox
or automatic gearbox.

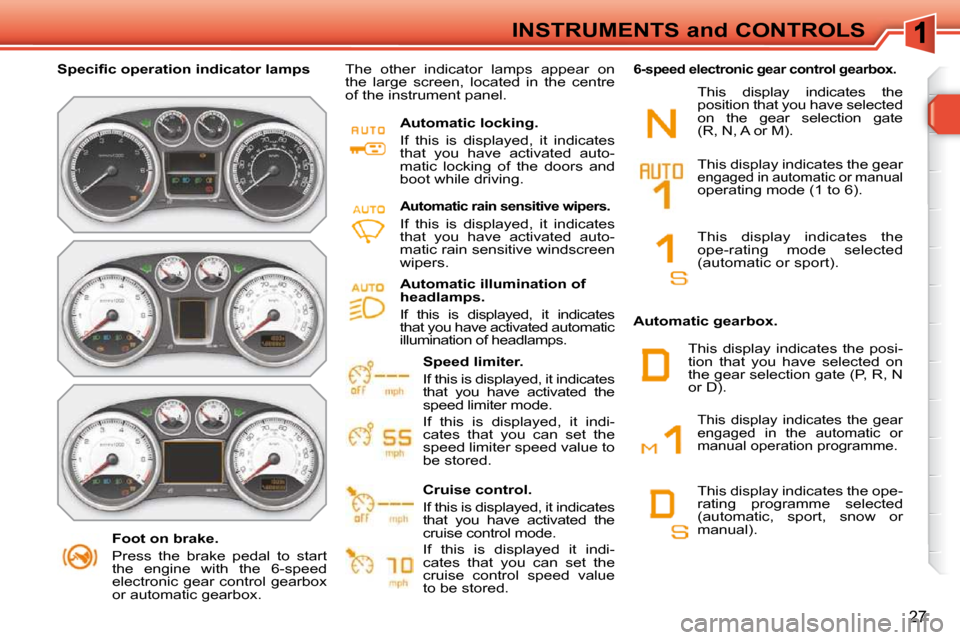

S p e c i fi c o p e r a t i o n i n d i c a t o r l a m p s
The other indicator lamps appear on
the large screen, located in the centre
of the instrument panel.
Automatic locking.
If this is displayed, it indicates
that you have activated auto-
matic locking of the doors and
boot while driving.
Speed limiter.
If this is displayed, it indicates
that you have activated the
speed limiter mode.
If this is displayed, it indi-
cates that you can set the
speed limiter speed value to
be stored.
Cruise control.
If this is displayed, it indicates
that you have activated the
cruise control mode.
If this is displayed it indi-
cates that you can set the
cruise control speed value
to be stored. Automatic gearbox.
This display indicates the
position that you have selected
on the gear selection gate
(R, N, A or M).
Automatic rain sensitive wipers.
If this is displayed, it indicates
that you have activated auto-
matic rain sensitive windscreen
wipers.
Automatic illumination of
headlamps.
If this is displayed, it indicates
that you have activated automatic
illumination of headlamps.
This display indicates the gear
engaged in automatic or manual
operating mode (1 to 6).
This display indicates the
ope-rating mode selected
(automatic or sport).
This display indicates the gear
engaged in the automatic or
manual operation programme.
This display indicates the ope-
rating programme selected
(automatic, sport, snow or
manual).
6-speed electronic gear control gearbox.
This display indicates the posi-
tion that you have selected on
the gear selection gate (P, R, N
or D).
Page 25 of 329
28
INSTRUMENTS and CONTROLS

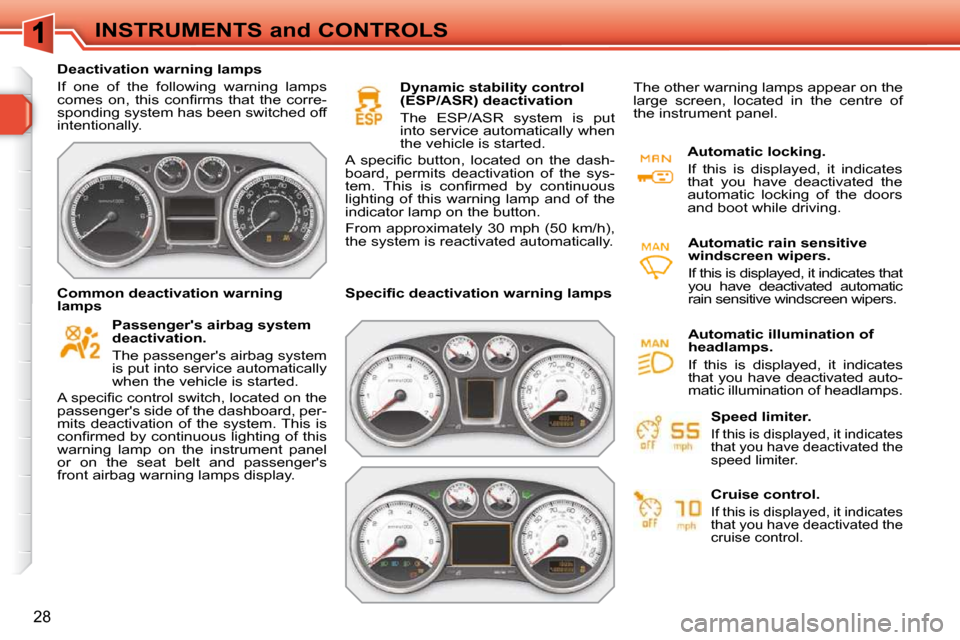

Deactivation warning lamps
If one of the following warning lamps
c o m e s o n , t h i s c o n fi r m s t h a t t h e c o r r e -
sponding system has been switched off
intentionally.
Passenger's airbag system
deactivation.
The passenger's airbag system
is put into service automatically
when the vehicle is started.
A s p e c i fi c c o n t r o l s w i t c h , l o c a t e d o n t h e
passenger's side of the dashboard, per-
mits deactivation of the system. This is
c o n fi r m e d b y c o n t i n u o u s l i g h t i n g o f t h i s
warning lamp on the instrument panel
or on the seat belt and passenger's
front airbag warning lamps display. Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically when
the vehicle is started.
A s p e c i fi c b u t t o n , l o c a t e d o n t h e d a s h -
board, permits deactivation of the sys-
t e m . T h i s i s c o n fi r m e d b y c o n t i n u o u s
lighting of this warning lamp and of the
indicator lamp on the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically.
Common deactivation warning
lamps S p e c i fi c d e a c t i v a t i o n w a r n i n g l a m p s Automatic locking.
If this is displayed, it indicates
that you have deactivated the
automatic locking of the doors
and boot while driving.
Automatic rain sensitive
windscreen wipers.
If this is displayed, it indicates that
you have deactivated automatic
rain sensitive windscreen wipers.
The other warning lamps appear on the
large screen, located in the centre of
the instrument panel.
Speed limiter.
If this is displayed, it indicates
that you have deactivated the
speed limiter.
Cruise control.
If this is displayed, it indicates
that you have deactivated the
cruise control.
Automatic illumination of
headlamps.
If this is displayed, it indicates
that you have deactivated auto-
matic illumination of headlamps.
Page 26 of 329
!
29
INSTRUMENTS and CONTROLS
When the engine is running or the ve-
hicle is moving, the lighting of one of the
following warning lamps indicates the
occurrence of a fault requiring interven-
tion on the part of the driver.

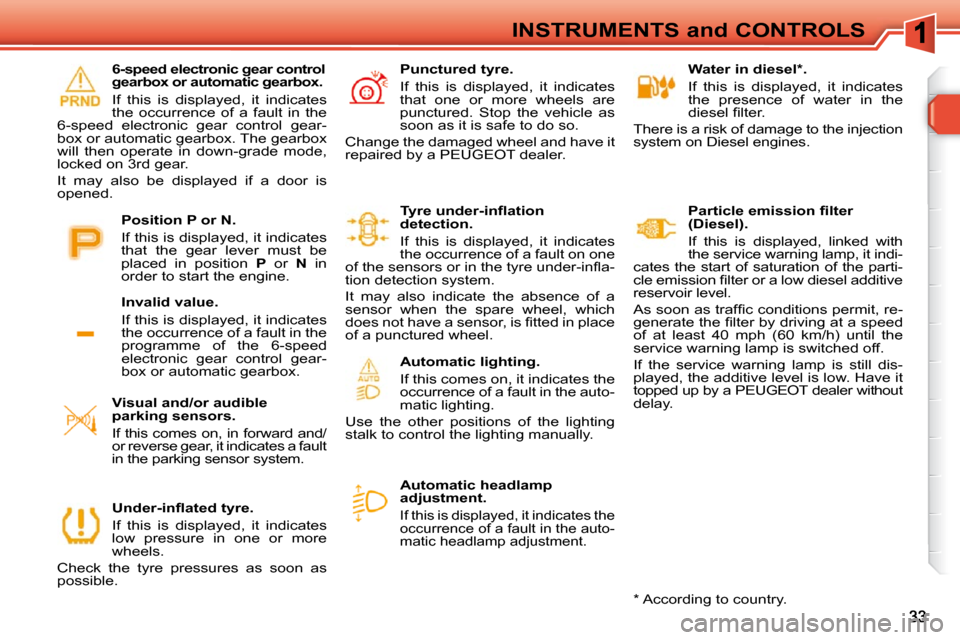

Central alert.
Lighting is associated with
the displaying of another
warning lamp:
- punctured wheel,
- braking,
- power steering,
- engine oil pressure,
- coolant temperature,
stop the vehicle as soon as it is safe to
do so.
Service.
If this comes on, it indicates the
occurrence of a problem in one
of the systems which does not
h a v e a s p e c i fi c w a r n i n g l a m p .
To identify the problem, consult the

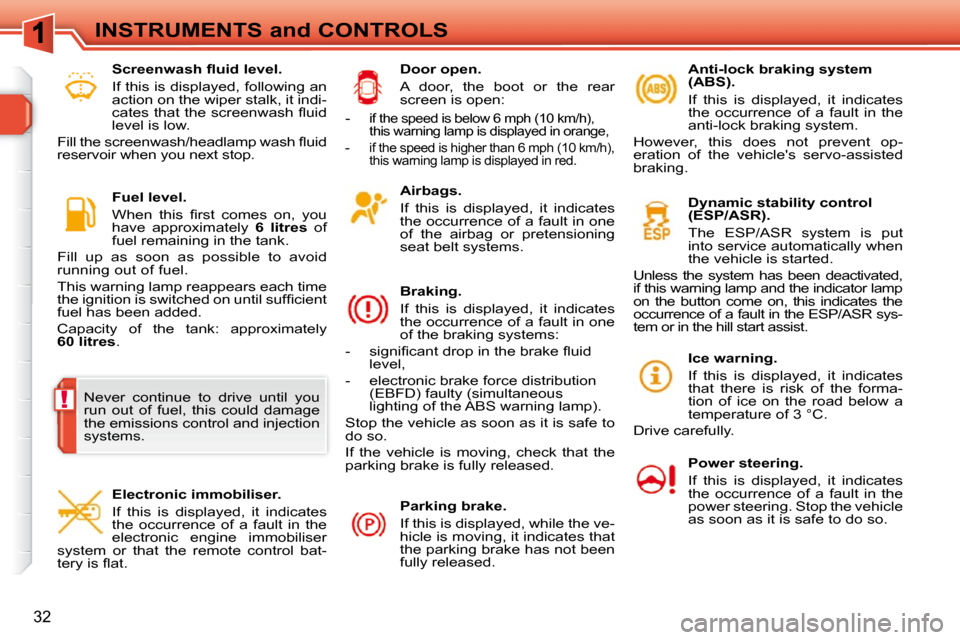

message on the multifunction screen. Braking.
If this comes on, it indicates the
occurrence of a fault in one of
the braking systems:
- s i g n i fi c a n t d r o p i n t h e b r a k e fl u i d level,
- electronic brake force distribution (EBFD) faulty (simultaneous
lighting of the ABS warning lamp),
stop the vehicle as soon as it is safe to
do so.
When the vehicle is moving, check that
the parking brake is fully released.
Any fault resulting in the displaying
of a warning lamp must be investi-
gated further by reading the associ-
ated message on the multifunction
screen.
I n t h e e v e n t o f d i f fi c u l t y , d o n o t
hesitate to contact a PEUGEOT
dealer.
Warning lamps
Common warning lamps After checking:
- that the doors, boot, the rear
screen and bonnet are closed,
- the engine oil level,
- t h e s c r e e n w a s h fl u i d l e v e l ,
- the remote control battery,
- the pressure of the tyres,
- the end of saturation of the particle e m i s s i o n fi l t e r ( D i e s e l ) ,
for any other situations, contact a
PEUGEOT dealer.
Anti-lock braking system
(ABS).
If this comes on, it indicates the
occurrence of a fault in the anti-
lock braking system.
However, this does not prevent operation
of the vehicle's servo-assisted braking.
Page 27 of 329
!
30
INSTRUMENTS and CONTROLS Engine autodiagnostics
system.
If this comes on, it indicates
the occurrence of a fault in the
engine management system.
I f i t fl a s h e s , i t i n d i c a t e s t h e o c c u r r e n c e o f
a fault in the emission control system.
Low fuel level.
W h e n t h i s fi r s t c o m e s o n , y o u
have approximately 6 litres of
fuel left in the tank.
It is imperative that you refuel to avoid
running out of fuel.
This warning lamp comes on again
each time the ignition is switched on,
u n t i l s u f fi c i e n t f u e l h a s b e e n a d d e d .
Capacity of the tank: approximately
60 litres . Maximum coolant
temperature.
If this comes on, it indicates that
the temperature in the cooling
system is too high. Stop the vehicle as
soon as it is safe to do so.
Airbags.
If this comes on, it indicates the
occurrence of a fault in one of
the airbag or seat belt preten-
sioner systems.
Seat belt not fastened/
unfastened.
If this comes on, it indicates
that the driver and/or the front
passenger has not fastened or has un-
fastened their seat belt. According to
version and/or country, the unfastening
of the seat belt only may be detected for
the front passenger.
It also indicates that one or more rear
passengers have unfastened their seat
belt (on the 2nd row rear seats only on
the SW with panoramic sunroof).
Water in diesel * .
If this comes on, it indicates the
presence of water in the diesel
fi l t e r .
There is a risk of damage to the injection
system on Diesel engines. Door open.
A door, the boot or the rear
screen is open:
Battery charge.
If this comes on, it indicates
the occurrence of a fault in the
battery charging circuit (dirty or
loose terminals, slack or cut alternator
belt...). Engine oil pressure.
If this comes on, it indicates the
occurrence of a fault in the en-
gine lubrication circuit. Stop the
vehicle as soon as it is safe to
do so.
S p e c i fi c w a r n i n g l a m p s
* According to country.
Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deactivat-
ed, if this warning lamp and the indicator
lamp on the button come on continuously,
this indicates the occurrence of a fault in
the ESP/ASR system or in the hill start
assist system. -
if the speed is below 6 mph (10 km/h), this
warning lamp comes on continuously.
- if the speed is higher than 6 mph (10 km/h),
this warning lamp comes on continuously,
accompanied by an audible signal.
Never continue to drive until you
run out of fuel, this could damage
the emission control and injection
systems.
Page 28 of 329
i
!
31
INSTRUMENTS and CONTROLS
The displaying of certain warning
lamps may be accompanied by an
audible signal and a message on
the multifunction screen.
S p e c i fi c w a r n i n g l a m p s
The other warning lamps appear on the
large screen, located in the centre of
the instrument panel.
Depending on the seriousness of the
fault, they may be displayed in orange
or red. Certain warning lamps may be
linked with those of the instrument
panel.
If they are linked with the
STOP
warning lamp, stop the vehicle as
soon as it is safe to do so.
Directional headlamps.
I f t h i s fl a s h e s , i t i n d i c a t e s t h e
occurrence of a fault in the
directional headlamps system. Engine oil pressure.
If this is displayed, it indicates
the occurrence of a fault in the
engine lubrication circuit. Stop
the vehicle as soon as it is safe
to do so.
Service.
If this is displayed, it indicates
the occurrence of a fault in one
of the following: Engine autodiagnostics
system.
If this is displayed, it indicates
the occurrence of a fault in the
engine management system. Engine oil level.
If this is displayed, it indicates
that the engine oil level is too
low. Stop the vehicle as soon
as it is safe to do so.
Coolant temperature.
If this is displayed, it indicates
that the temperature in the cool-
ing system is too high. Stop the
vehicle as soon as it is safe to do so.
Coolant level.
If this is displayed, it indicates
that the coolant level is too low.
Stop the vehicle as soon as it is
safe to do so.
Battery charge.
If this is displayed, it indicates
the occurrence of a fault in the
battery charging circuit (dirty or
loose terminals, slack or cut alternator
belt...).
- the engine management system,
- the emissions control system.
Page 29 of 329
!
32
INSTRUMENTS and CONTROLS Airbags.
If this is displayed, it indicates
the occurrence of a fault in one
of the airbag or pretensioning
seat belt systems.
Braking.
If this is displayed, it indicates
the occurrence of a fault in one
of the braking systems:
- s i g n i fi c a n t d r o p i n t h e b r a k e fl u i d level,
- electronic brake force distribution (EBFD) faulty (simultaneous
lighting of the ABS warning lamp).
Stop the vehicle as soon as it is safe to
do so.
If the vehicle is moving, check that the
parking brake is fully released. Anti-lock braking system
(ABS).
If this is displayed, it indicates
the occurrence of a fault in the
anti-lock braking system.
However, this does not prevent op-
eration of the vehicle's servo-assisted
braking.
Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deactivated,
if this warning lamp and the indicator lamp
on the button come on, this indicates the
occurrence of a fault in the ESP/ASR sys-
tem or in the hill start assist.
Power steering.
If this is displayed, it indicates
the occurrence of a fault in the
power steering. Stop the vehicle
as soon as it is safe to do so.
Door open.
A door, the boot or the rear
screen is open:
Ice warning.
If this is displayed, it indicates
that there is risk of the forma-
tion of ice on the road below a
temperature of 3 °C.
Drive carefully.
Parking brake.
If this is displayed, while the ve-
hicle is moving, it indicates that
the parking brake has not been
fully released.
Electronic immobiliser.
If this is displayed, it indicates
the occurrence of a fault in the
electronic engine immobiliser
system or that the remote control bat-
t e r y i s fl a t . Fuel level.
W h e n t h i s fi r s t c o m e s o n , y o u
have approximately
6 litres of
fuel remaining in the tank.
Fill up as soon as possible to avoid
running out of fuel.
This warning lamp reappears each time
t h e i g n i t i o n i s s w i t c h e d o n u n t i l s u f fi c i e n t
fuel has been added.
Capacity of the tank: approximately
60 litres .
S c r e e n w a s h fl u i d l e v e l .
If this is displayed, following an
action on the wiper stalk, it indi-
c a t e s t h a t t h e s c r e e n w a s h fl u i d
level is low.
F i l l t h e s c r e e n w a s h / h e a d l a m p w a s h fl u i d
reservoir when you next stop. -
if the speed is below 6 mph (10 km/h),
this warning lamp is displayed in orange,
- if the speed is higher than 6 mph (10 km/h),
this warning lamp is displayed in red.
Never continue to drive until you
run out of fuel, this could damage
the emissions control and injection
systems.
Page 30 of 329
INSTRUMENTS and CONTROLS Water in diesel * .
If this is displayed, it indicates
the presence of water in the
d i e s e l fi l t e r .
There is a risk of damage to the injection
system on Diesel engines.
Automatic headlamp
adjustment.
If this is displayed, it indicates the
occurrence of a fault in the auto-
matic headlamp adjustment.
P a r t i c l e e m i s s i o n fi l t e r
(Diesel).
If this is displayed, linked with
the service warning lamp, it indi-
cates the start of saturation of the parti-
c l e e m i s s i o n fi l t e r o r a l o w d i e s e l a d d i t i v e
reservoir level.
A s s o o n a s t r a f fi c c o n d i t i o n s p e r m i t , r e -
g e n e r a t e t h e fi l t e r b y d r i v i n g a t a s p e e d
of at least 40 mph (60 km/h) until the
service warning lamp is switched off.
If the service warning lamp is still dis-
played, the additive level is low. Have it
topped up by a PEUGEOT dealer without
delay.
U n d e r - i n fl a t e d t y r e .
If this is displayed, it indicates
low pressure in one or more
wheels.
Check the tyre pressures as soon as
possible. Punctured tyre.
If this is displayed, it indicates
that one or more wheels are
punctured. Stop the vehicle as
soon as it is safe to do so.
Change the damaged wheel and have it
repaired by a PEUGEOT dealer.
T y r e u n d e r - i n fl a t i o n
detection.
If this is displayed, it indicates
the occurrence of a fault on one
o f t h e s e n s o r s o r i n t h e t y r e u n d e r - i n fl a -
tion detection system.
It may also indicate the absence of a
sensor when the spare wheel, which
d o e s n o t h a v e a s e n s o r , i s fi t t e d i n p l a c e
of a punctured wheel.
Automatic lighting.
If this comes on, it indicates the
occurrence of a fault in the auto-
matic lighting.
Use the other positions of the lighting
stalk to control the lighting manually.
Visual and/or audible
parking sensors.
If this comes on, in forward and/
or reverse gear, it indicates a fault
in the parking sensor system.
6-speed electronic gear control
gearbox or automatic gearbox.
If this is displayed, it indicates
the occurrence of a fault in the
6-speed electronic gear control gear-
box or automatic gearbox. The gearbox
will then operate in down-grade mode,
locked on 3rd gear.
It may also be displayed if a door is
opened.
Invalid value.
If this is displayed, it indicates
the occurrence of a fault in the
programme of the 6-speed
electronic gear control gear-
box or automatic gearbox.
Position P or N.
If this is displayed, it indicates
that the gear lever must be
placed in position
P or N in
order to start the engine.
* According to country.
