Peugeot 308 SW BL 2009.5 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2009.5, Model line: 308 SW BL, Model: Peugeot 308 SW BL 2009.5Pages: 329, PDF Size: 25.38 MB
Page 1 of 329
Welcome lighting
This additional exterior and interior ligh-
ting, controlled remotely, makes your
approach to the vehicle easier when the
light is poor.
96, 102
Directional lighting
This lighting automatically provides
additional visibility when cornering.
97 Panoramic sunroof
This roof provides incomparable visibility
and light in the passenger compartment.
90
Temporary puncture repair kit
This kit is a complete system, consist-
ing of a compressor and an integrated
sealant product, for temporary repair
of a tyre.
165
Page 2 of 329

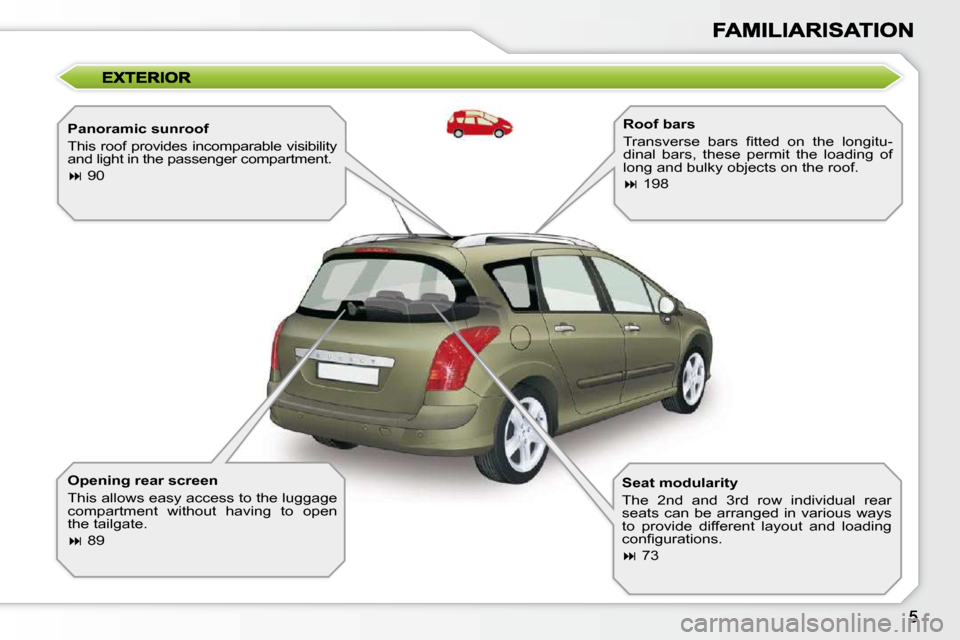

Panoramic sunroof
This roof provides incomparable visibility
and light in the passenger compartment.
90
Opening rear screen
This allows easy access to the luggage
compartment without having to open
the tailgate.
89 Roof bars
T r a n s v e r s e b a r s fi t t e d o n t h e l o n g i t u -
dinal bars, these permit the loading of
long and bulky objects on the roof.
198
Seat modularity
The 2nd and 3rd row individual rear
seats can be arranged in various ways
to provide different layout and loading
c o n fi g u r a t i o n s .
73
Page 3 of 329

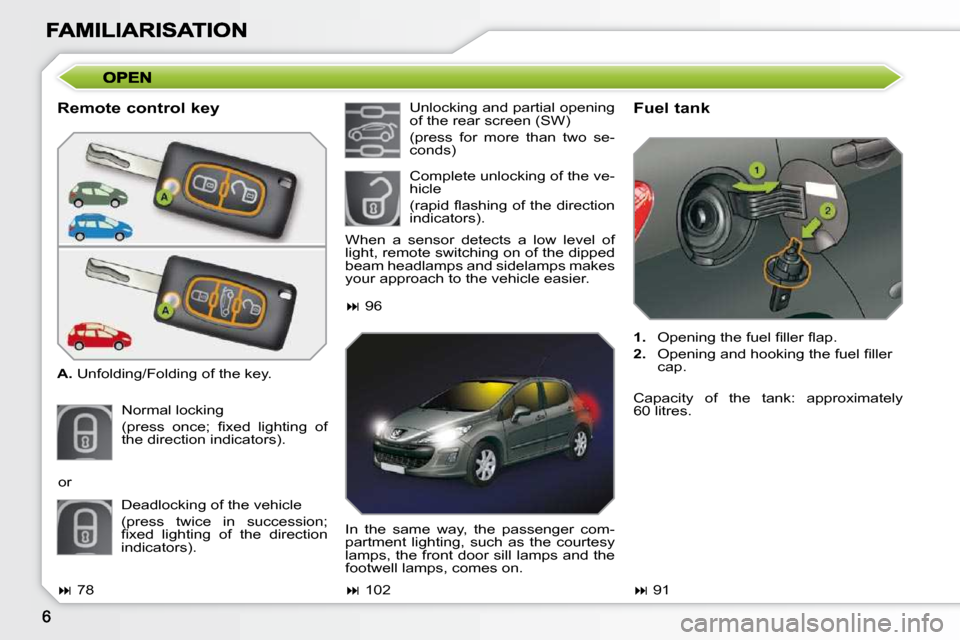

Remote control key
A. Unfolding/Folding of the key.
Normal locking
( p r e s s o n c e ; fi x e d l i g h t i n g o f
the direction indicators). Fuel tank
1. O p e n i n g t h e f u e l fi l l e r fl a p .
2. O p e n i n g a n d h o o k i n g t h e f u e l fi l l e r
cap.
Unlocking and partial opening
of the rear screen (SW)
(press for more than two se-
conds)
When a sensor detects a low level of
light, remote switching on of the dipped
beam headlamps and sidelamps makes
your approach to the vehicle easier.
In the same way, the passenger com-
partment lighting, such as the courtesy
lamps, the front door sill lamps and the
footwell lamps, comes on.
or
Deadlocking of the vehicle
(press twice in succession;
fi x e d l i g h t i n g o f t h e d i r e c t i o n
indicators).
78 102 91
Capacity of the tank: approximately
60 litres.
96 Complete unlocking of the ve-
hicle
( r a p i d fl a s h i n g o f t h e d i r e c t i o n
indicators).
Page 4 of 329
i

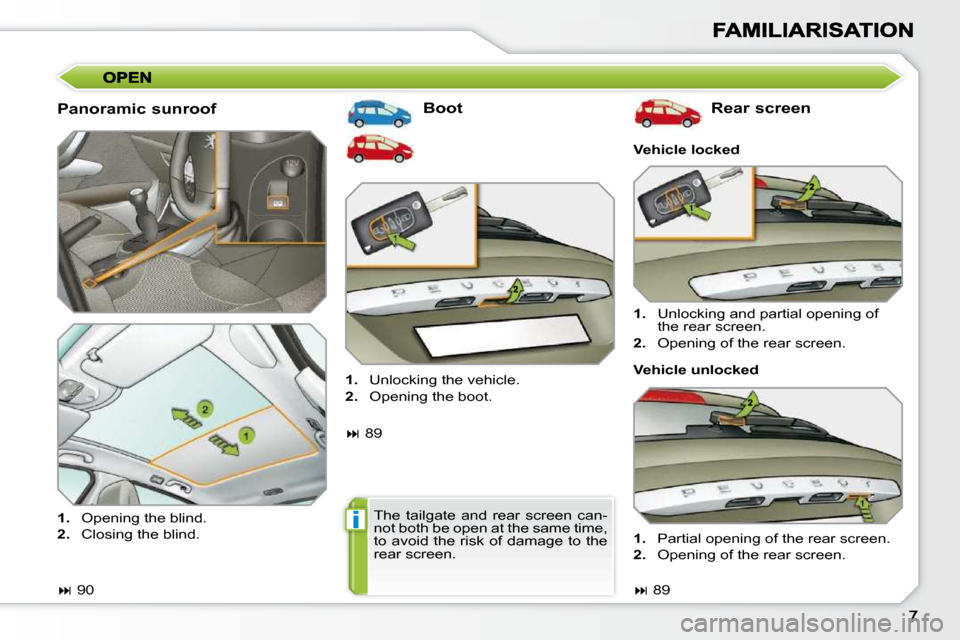

Panoramic sunroof Boot Rear screen
1. Unlocking and partial opening of
the rear screen.
2. Opening of the rear screen.
90
1. Opening the blind.
2. Closing the blind.
1. Unlocking the vehicle.
2. Opening the boot.
89
The tailgate and rear screen can-
not both be open at the same time,
to avoid the risk of damage to the
rear screen.
1. Partial opening of the rear screen.
2. Opening of the rear screen.
Vehicle locked
Vehicle unlocked
89
Page 5 of 329

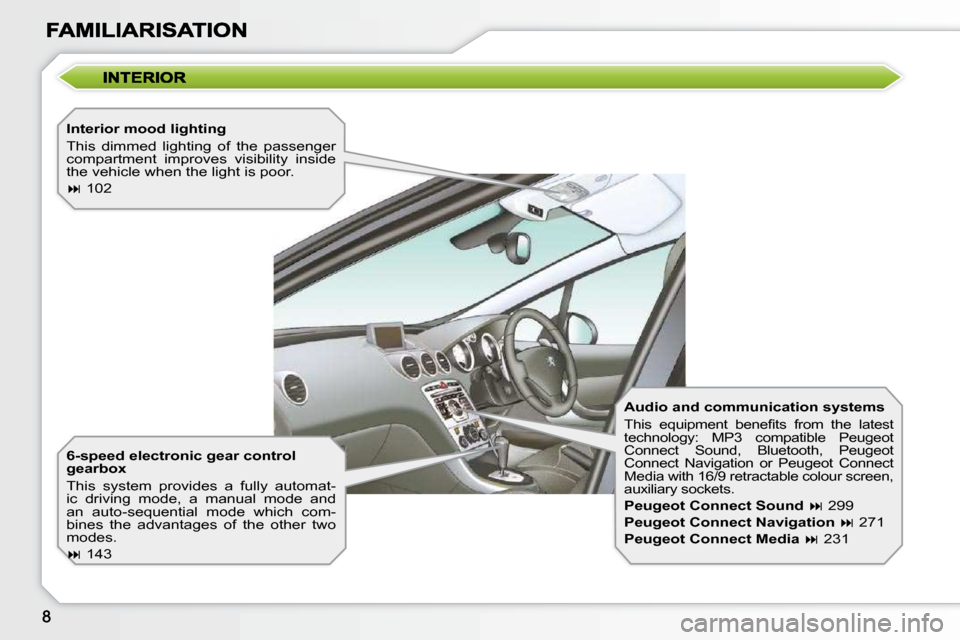

Interior mood lighting
This dimmed lighting of the passenger
compartment improves visibility inside
the vehicle when the light is poor.
102
6-speed electronic gear control
gearbox
This system provides a fully automat-
ic driving mode, a manual mode and
an auto-sequential mode which com-
bines the advantages of the other two
modes.
143 Audio and communication systems
T h i s e q u i p m e n t b e n e fi t s f r o m t h e l a t e s t
technology: MP3 compatible Peugeot
Connect Sound, Bluetooth, Peugeot
Connect Navigation or Peugeot Connect
Media with 16/9 retractable colour screen,
auxiliary sockets.
Peugeot Connect Sound
299
Peugeot Connect Navigation
271
Peugeot Connect Media
231
Page 6 of 329

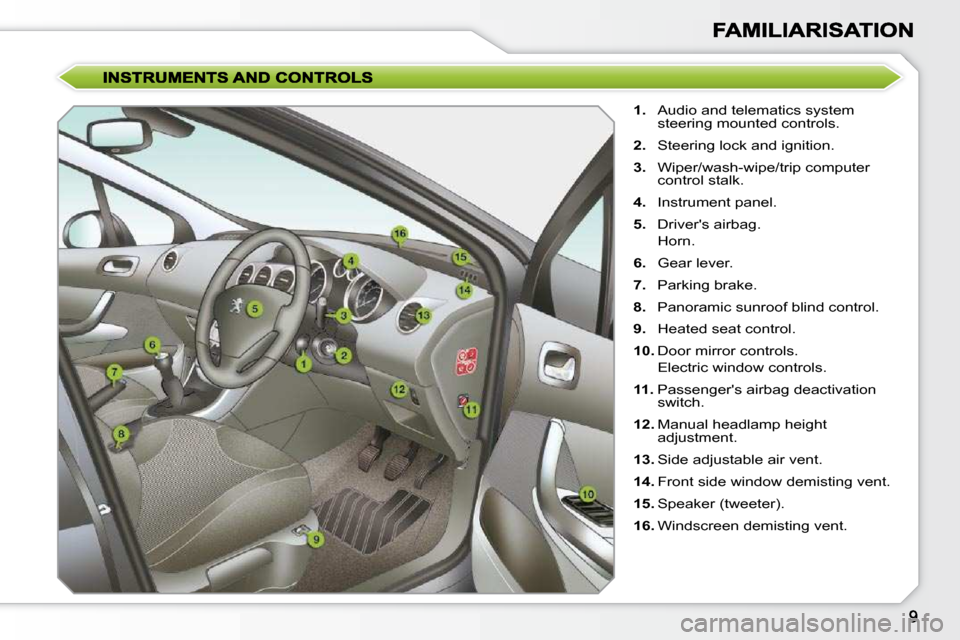

1. Audio and telematics system
steering mounted controls.
2. Steering lock and ignition.
3. Wiper/wash-wipe/trip computer
control stalk.
4. Instrument panel.
5. Driver's airbag.
Horn.
6. Gear lever.
7. Parking brake.
8. Panoramic sunroof blind control.
9. Heated seat control.
10. Door mirror controls.
Electric window controls.
11. Passenger's airbag deactivation
switch.
12. Manual headlamp height
adjustment.
13. Side adjustable air vent.
14. Front side window demisting vent.
15. Speaker (tweeter).
16. Windscreen demisting vent.
Page 7 of 329

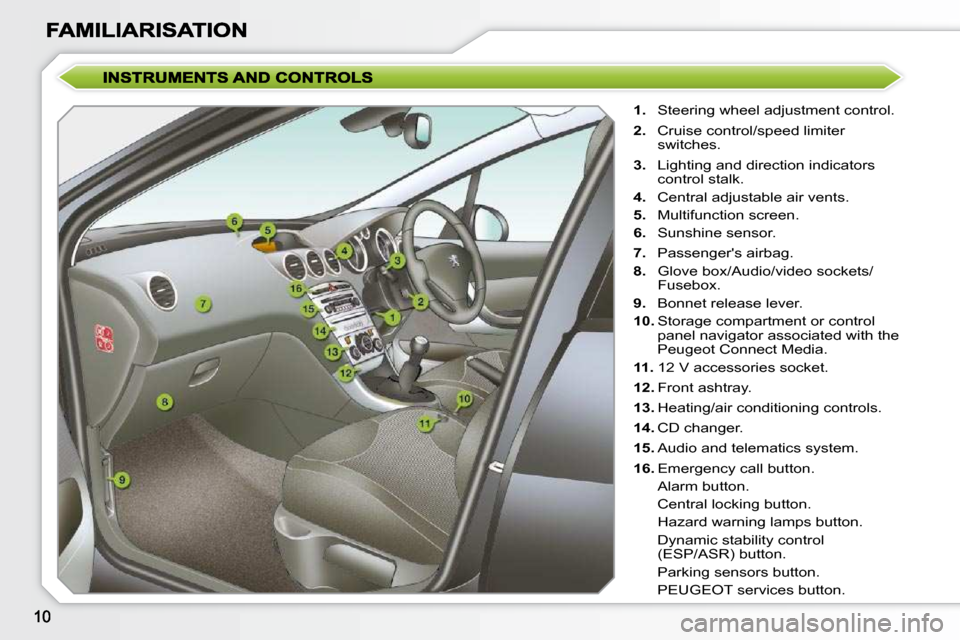

1. Steering wheel adjustment control.
2. Cruise control/speed limiter
switches.
3. Lighting and direction indicators
control stalk.
4. Central adjustable air vents.
5. Multifunction screen.
6. Sunshine sensor.
7. Passenger's airbag.
8. Glove box/Audio/video sockets/
Fusebox.
9. Bonnet release lever.
10. Storage compartment or control
panel navigator associated with the
Peugeot Connect Media.
11. 12 V accessories socket.
12. Front ashtray.
13. Heating/air conditioning controls.
14. CD changer.
15. Audio and telematics system.
16. Emergency call button.
Alarm button.
Central locking button.
Hazard warning lamps button.
Dynamic stability control (ESP/ASR) button.
Parking sensors button.
PEUGEOT services button.
Page 8 of 329
Driver’s seat Manual adjustment
Electric adjustment
Forwards-backwards
62
63 Seat back angle
Height
Page 9 of 329
i
!

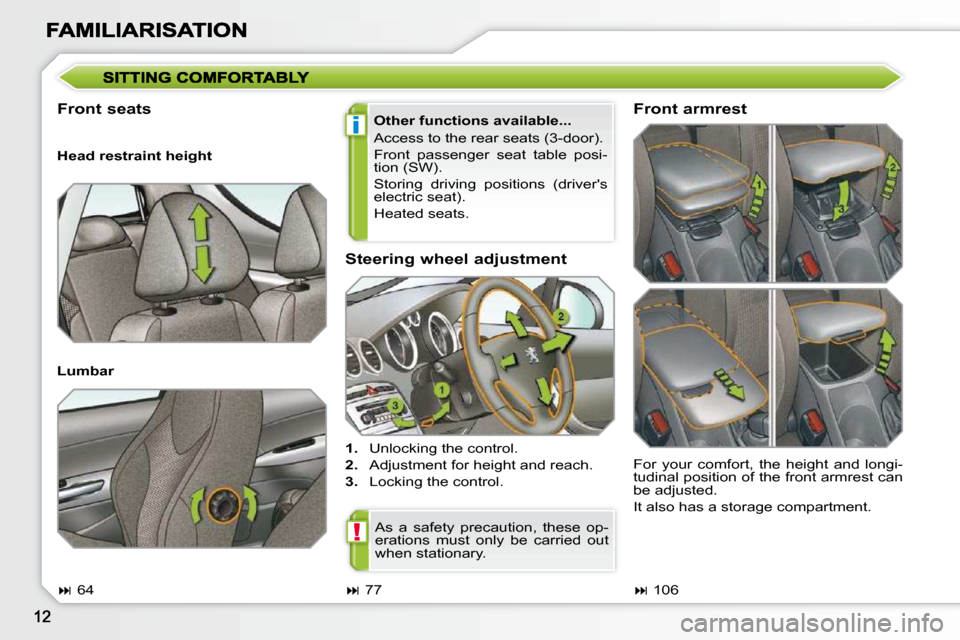

Steering wheel adjustment
1. Unlocking the control.
2. Adjustment for height and reach.
3. Locking the control.
Front seats
Other functions available...
Access to the rear seats (3-door).
Front passenger seat table posi-
tion (SW).
Storing driving positions (driver's
electric seat).
Heated seats.
Head restraint height
Lumbar Front armrest
64
106
77 For your comfort, the height and longi-
tudinal position of the front armrest can
be adjusted.
It also has a storage compartment.
As a safety precaution, these op-
erations must only be carried out
when stationary.
Page 10 of 329
i

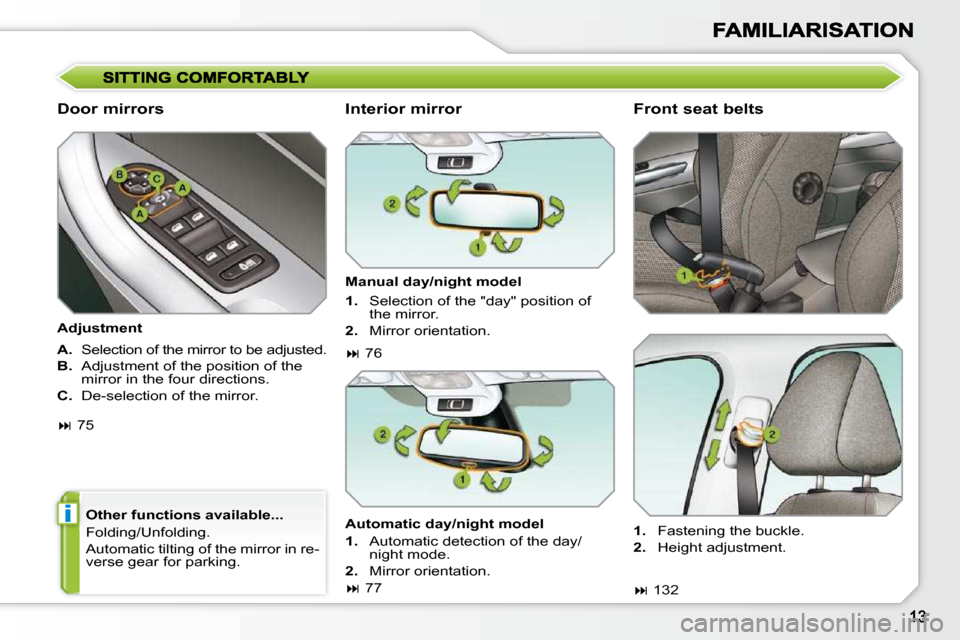

Door mirrors
A. Selection of the mirror to be adjusted.
B. Adjustment of the position of the
mirror in the four directions.
C. De-selection of the mirror.
Other functions available...
Folding/Unfolding.
Automatic tilting of the mirror in re-
verse gear for parking. Interior mirror
Manual day/night model
Front seat belts
1. Fastening the buckle.
2. Height adjustment.
76
132
75
1. Selection of the "day" position of
the mirror.
2. Mirror orientation.
Automatic day/night model
1. Automatic detection of the day/
night mode.
2. Mirror orientation.
77
Adjustment
