CHECKS

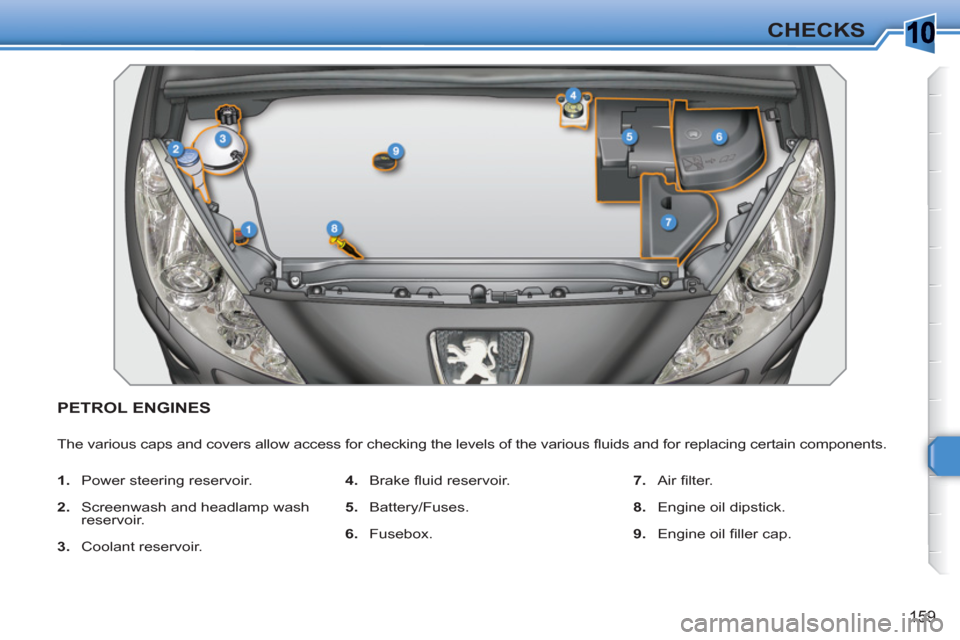

PETROL ENGINES
The various caps and covers allow access for checking the levels of the various fl uids and for replacing certain components.


1.
Power steering reservoir.

2.
Screenwash and headlamp wash
reservoir.

3.
Coolant reservoir.
4.
Brake fl uid reservoir.

5.
Battery/Fuses.

6.
Fusebox.
7.
Air fi lter.

8.
Engine oil dipstick.

9.
Engine oil fi ller cap.

1
160
CHECKS

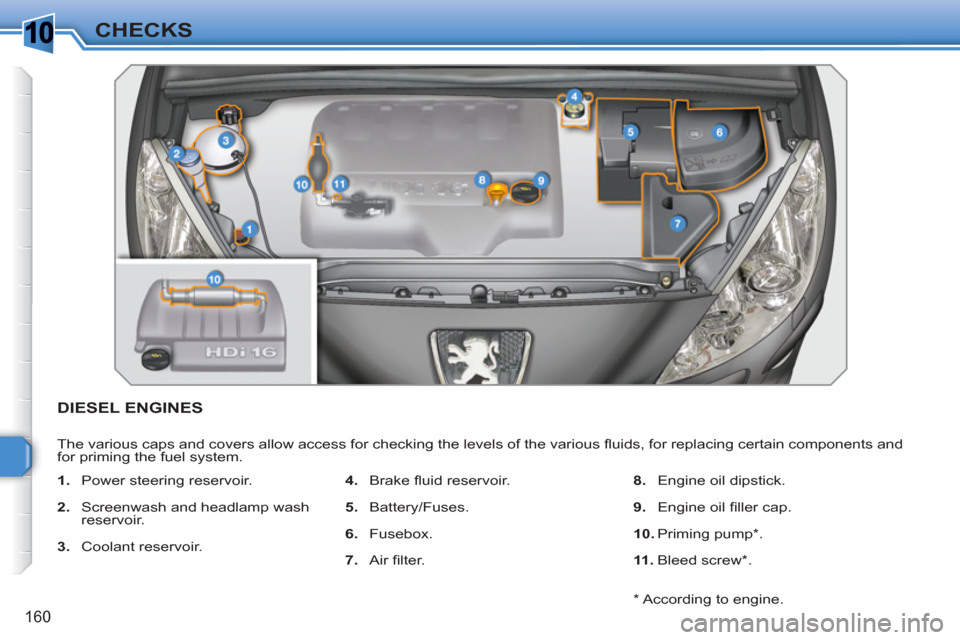

DIESEL ENGINES
The various caps and covers allow access for checking the levels of the various fl uids, for replacing certain components and
for priming the fuel system.


1.
Power steering reservoir.

2.
Screenwash and headlamp wash
reservoir.

3.
Coolant reservoir.
4.
Brake fl uid reservoir.

5.
Battery/Fuses.

6.
Fusebox.

7.
Air fi lter.
8.
Engine oil dipstick.

9.
Engine oil fi ller cap.

10.
Priming pump * .

11 .
Bleed screw * .

*
According to engine.

10
!
161
CHECKS

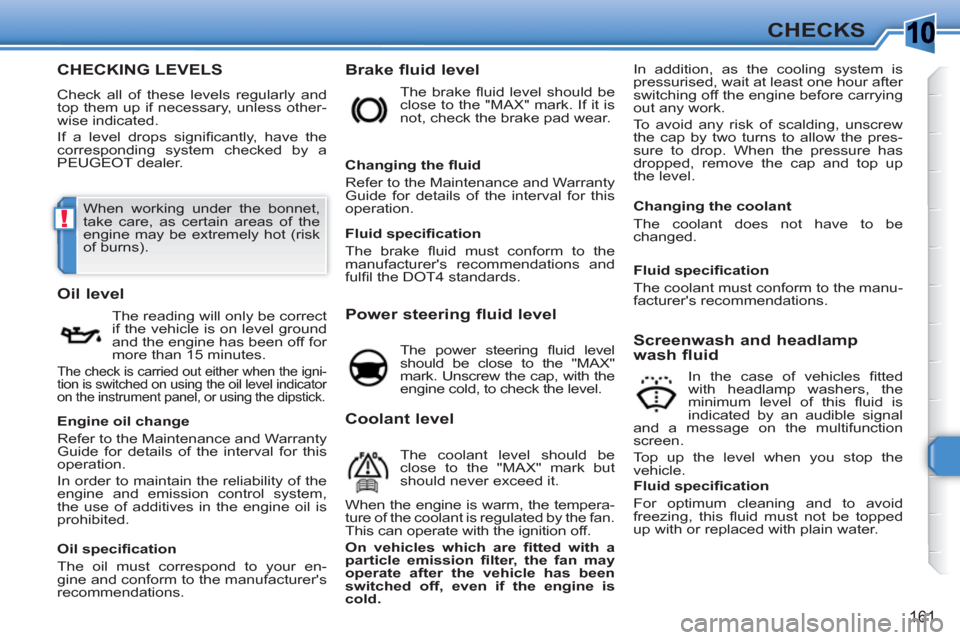

CHECKING LEVELS
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
If a level drops signifi cantly, have the
corresponding system checked by a
PEUGEOT dealer.

Brake fluid level
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.

Oil level

The reading will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 15 minutes.
The check is carried out either when the igni-
tion is switched on using the oil level indicator
on the instrument panel, or using the dipstick.
The brake fl uid level should be
close to the "MAX" mark. If it is
not, check the brake pad wear.

Changing the fl uid
Refer to the Maintenance and Warranty
Guide for details of the interval for this
operation.


Power steering fluid level

The power steering fl uid level
should be close to the "MAX"
mark. Unscrew the cap, with the
engine cold, to check the level.

Screenwash and headlamp
wash fluid
In the case of vehicles fi tted
with headlamp washers, the
minimum level of this fl uid is
indicated by an audible signal
and a message on the multifunction
screen.
Top up the level when you stop the
vehicle.
Engine oil change
Refer to the Maintenance and Warranty
Guide for details of the interval for this
operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.

Oil specifi cation
The oil must correspond to your en-
gine and conform to the manufacturer's
recommendations.

Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations and
fulfi l the DOT4 standards.

Changing the coolant
The coolant does not have to be
changed.

Fluid specifi cation
For optimum cleaning and to avoid
freezing, this fl uid must not be topped
up with or replaced with plain water.



Coolant level

The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the tempera-
ture of the coolant is regulated by the fan.
This can operate with the ignition off.

On vehicles which are fi tted with a
particle emission fi lter, the fan may
operate after the vehicle has been
switched off, even if the engine is
cold.

Fluid specifi cation
The coolant must conform to the manu-
facturer's recommendations.

When working under the bonnet,
take care, as certain areas of the
engine may be extremely hot (risk
of burns).

1
!
i
162
CHECKS
Avoid prolonged contact of used oil
or fl uids with the skin.
Most of these fl uids are harmful to
health or indeed very corrosive.
Do not discard used oil or fl uids
into sewers or onto the ground.
Take used oil to a PEUGEOT dealer
(France) or an authorised waste dis-
posal site.










Diesel additive level (Diesel
engine with particle emission
filter)
A low additive level is indicated by light-
ing of the service warning lamp, accom-
panied by an audible warning and a
message on the multifunction screen.








Used products
CHECKS

Unless otherwise indicated, check
these components in accordance with
the Maintenance and Warranty Guide
and according to your engine.
Otherwise, have them checked by a
PEUGEOT dealer.

Battery

The battery does not require
any maintenance.

However, check that the ter-
minals are clean and correctly
tightened, particularly in sum-
mer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.

Air filter and passenger compartment filter


Refer to the Maintenance and
Warranty Guide for details of
the replacement intervals for
these components.
Depending on the environ-
ment (e.g. dusty atmosphere) and the
use of the vehicle (e.g. city driving),
replace them twice as often if neces-
sary
(refer to the "Engines" section).
A clogged passenger compartment fi lter
may have an adverse effect on the per-
formance of the air conditioning system
and generate undesirable odours.


Particle emission filter (Diesel)



It is imperative that the maintenance of
the particle emission fi lter is carried out
by a PEUGEOT dealer.


Oil filter

Replace the oil fi lter each time
the engine oil is changed.
Refer to the Maintenance and
Warranty Guide for details of
the replacement interval for
this component.
Following prolonged operation of
the vehicle at very low speed or at
idle, you may, in exceptional cir-
cumstances, notice the emission
of water vapour at the exhaust on
acceleration. This does not affect
the behaviour of the vehicle or the
environment.
Topping up
This additive must be topped up by a
PEUGEOT dealer without delay.

10
!
163
CHECKS
Only use products recommended by
PEUGEOT or products of equivalent
quality and specifi cations.
In order to optimise the operation
of units as important as the braking
system, PEUGEOT selects and of-
fers very specifi c products.
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment
is strictly prohibited
.


Brake disc wear




















Brake pads

Parking brake

Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak in the circuit, a
drop in the brake fl uid level indicates
that the brake pads are worn.
For information relating to
checking the brake disc wear,
contact a PEUGEOT dealer.
If a loss of effectiveness of this
system is noticed, the parking
brake must be checked, even
between two services.

This system must be checked
by a PEUGEOT dealer.






Manual gearbox

The gearbox does not re-
quire any maintenance (no oil
change).

Refer to the Maintenance and
Warranty Guide for the details
of the level checking interval
for this component.


6-speed electronic gear control
gearbox
The gearbox does not re-
quire any maintenance (no oil
change).

Refer to the Warranty and
Maintenance and Record for
details of the checking interval
for this component.







Automatic gearbox

The gearbox does not re-
quire any maintenance (no oil
change).

Refer to the Maintenance and
Warranty Guide for details of
the level checking interval for
this component.

1
i
PRACTICAL INFORMATION

The speed limit sticker I
must be
affi xed to the vehicle's steering
wheel to remind you that a wheel is
in temporary use.
Do not exceed a speed of 50 mph
(80 km/h) when driving with a tyre
repaired using this type of kit.

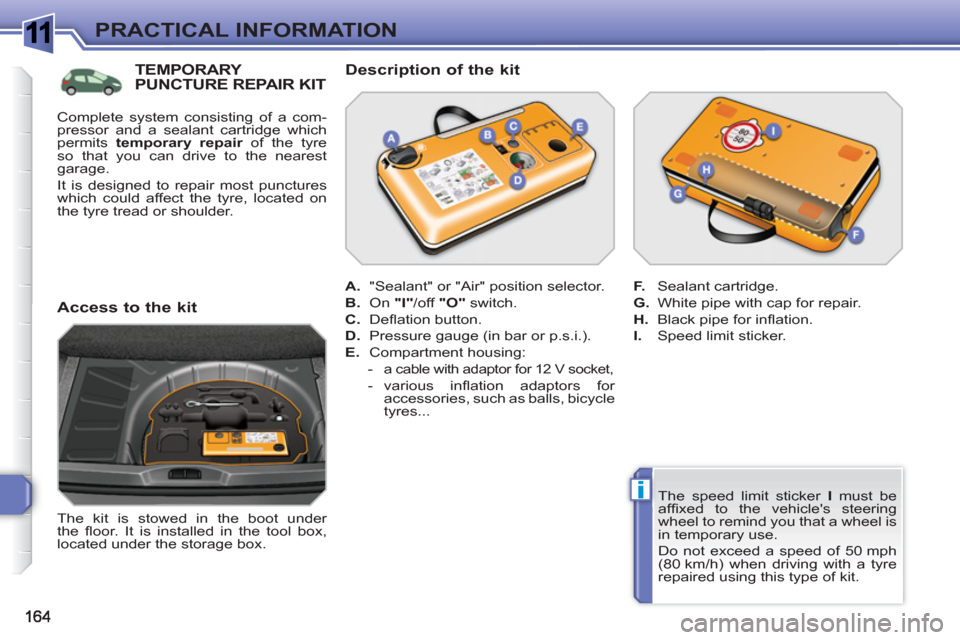

TEMPORARY PUNCTURE REPAIR KIT

The kit is stowed in the boot under
the fl oor. It is installed in the tool box,
located under the storage box.


Description of the kit



A.
"Sealant" or "Air" position selector.

B.
On "I"
/off "O"
switch.

C.
Defl ation button.

D.
Pressure gauge (in bar or p.s.i.).

E.
Compartment housing:



- a cable with adaptor for 12 V socket,


- various infl ation adaptors for
accessories, such as balls, bicycle
tyres...
F.
Sealant cartridge.

G.
White pipe with cap for repair.

H.
Black pipe for infl ation.

I.
Speed limit sticker.


Access to the kit

Complete system consisting of a com-
pressor and a sealant cartridge which
permits temporary repair
of the tyre
so that you can drive to the nearest
garage.
It is designed to repair most punctures
which could affect the tyre, located on
the tyre tread or shoulder.

1
i!
165
PRACTICAL INFORMATION

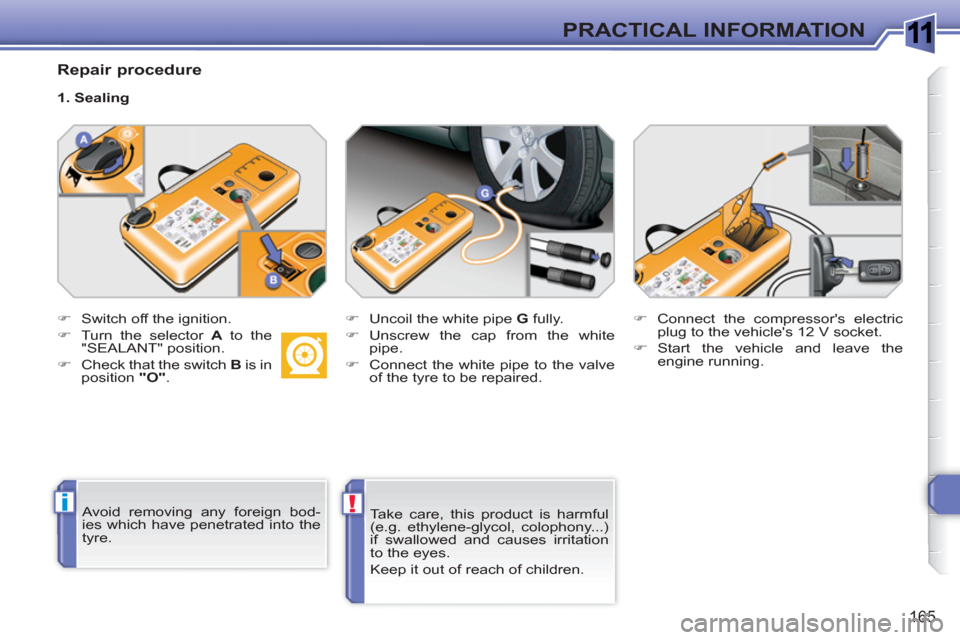

Repair procedure



)
Switch off the ignition.

)
Turn the selector A
to the
"SEALANT" position.

)
Check that the switch B
is in
position "O"
.
1. Sealing

)
Uncoil the white pipe G
fully.

)
Unscrew the cap from the white
pipe.

)
Connect the white pipe to the valve
of the tyre to be repaired.
)
Connect the compressor's electric
plug to the vehicle's 12 V socket.

)
Start the vehicle and leave the
engine running.

Avoid removing any foreign bod-
ies which have penetrated into the
tyre.
Take care, this product is harmful
(e.g. ethylene-glycol, colophony...)
if swallowed and causes irritation
to the eyes.
Keep it out of reach of children.

1
ii
166
PRACTICAL INFORMATION

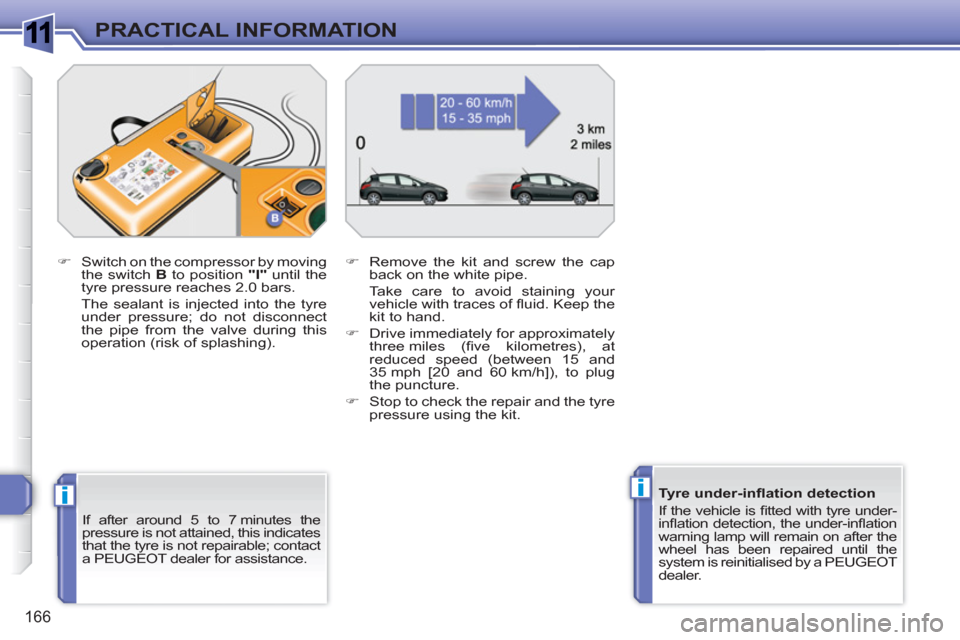

If after around 5 to 7 minutes the
pressure is not attained, this indicates
that the tyre is not repairable; contact
a PEUGEOT dealer for assistance.
)
Switch on the compressor by moving
the switch B
to position "I"
until the
tyre pressure reaches 2.0 bars.
The sealant is injected into the tyre
under pressure; do not disconnect
the pipe from the valve during this
operation (risk of splashing).
)
Remove the kit and screw the cap
back on the white pipe.
Take care to avoid staining your
vehicle with traces of fl uid. Keep the
kit to hand.

)
Drive immediately for approximately
three miles (fi ve kilometres), at
reduced speed (between 15 and
35 mph [20 and 60 km/h]), to plug
the puncture.

)
Stop to check the repair and the tyre
pressure using the kit.



Tyre under-infl ation detection
If the vehicle is fi tted with tyre under-
infl ation detection, the under-infl ation
warning lamp will remain on after the
wheel has been repaired until the
system is reinitialised by a PEUGEOT
dealer.

1
!
167
PRACTICAL INFORMATION


)

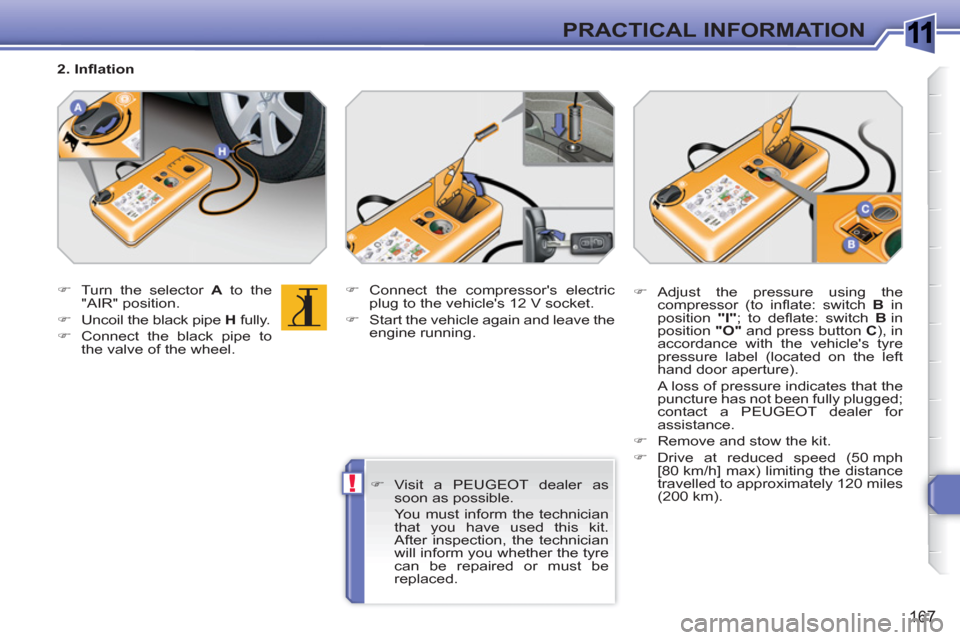

Turn the selector A
to the
"AIR" position.

)
Uncoil the black pipe H
fully.

)
Connect the black pipe to
the valve of the wheel.
)
Connect the compressor's electric
plug to the vehicle's 12 V socket.

)
Start the vehicle again and leave the
engine running.

)
Visit a PEUGEOT dealer as
soon as possible.
You must inform the technician
that you have used this kit.
After inspection, the technician
will inform you whether the tyre
can be repaired or must be
replaced.


2. Infl ation

)
Adjust the pressure using the
compressor (to infl ate: switch B
in
position "I"
; to defl ate: switch B
in
position "O"
and press button C
), in
accordance with the vehicle's tyre
pressure label (located on the left
hand door aperture).
A loss of pressure indicates that the
puncture has not been fully plugged;
contact a PEUGEOT dealer for
assistance.

)
Remove and stow the kit.

)
Drive at reduced speed (50 mph
[80 km/h] max) limiting the distance
travelled to approximately 120 miles
(200 km).

1
!

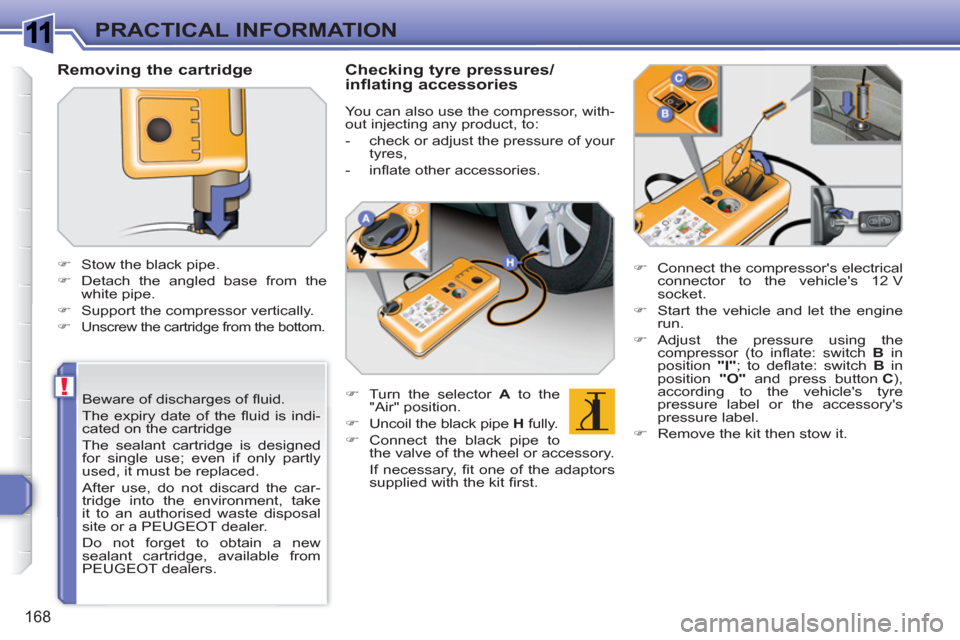

168
PRACTICAL INFORMATION

Beware of discharges of fl uid.
The expiry date of the fl uid is indi-
cated on the cartridge
The sealant cartridge is designed
for single use; even if only partly
used, it must be replaced.
After use, do not discard the car-
tridge into the environment, take
it to an authorised waste disposal
site or a PEUGEOT dealer.
Do not forget to obtain a new
sealant cartridge, available from
PEUGEOT dealers.



Removing the cartridge




)
Stow the black pipe.

)
Detach the angled base from the
white pipe.

)
Support the compressor vertically.


)
Unscrew the cartridge from the bottom.



Checking tyre pressures/
inflating accessories

You can also use the compressor, with-
out injecting any product, to:


- check or adjust the pressure of your
tyres,

- infl ate other accessories.


)
Turn the selector A
to the
"Air" position.

)
Uncoil the black pipe H
fully.

)
Connect the black pipe to
the valve of the wheel or accessory.
If necessary, fi t one of the adaptors
supplied with the kit fi rst.
)
Connect the compressor's electrical
connector to the vehicle's 12 V
socket.

)
Start the vehicle and let the engine
run.

)
Adjust the pressure using the
compressor (to infl ate: switch B
in
position "I"
; to defl ate: switch B
in
position "O"
and press button C
),
according to the vehicle's tyre
pressure label or the accessory's
pressure label.

)
Remove the kit then stow it.
