Page 51 of 336

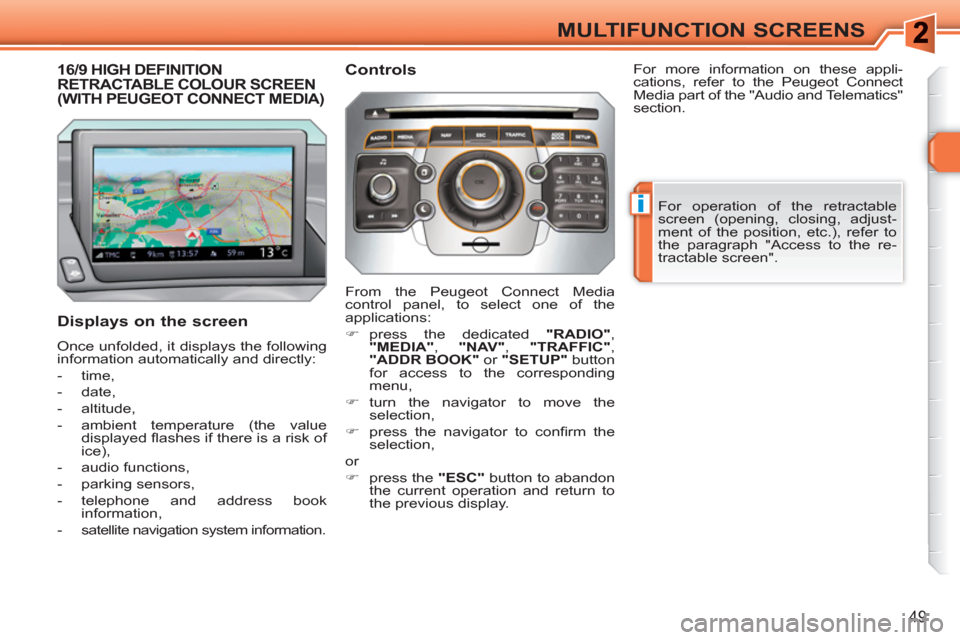

i
49
MULTIFUNCTION SCREENS
16/9 HIGH DEFINITION RETRACTABLE COLOUR SCREEN(WITH PEUGEOT CONNECT MEDIA)
Displays on the screen
Once unfolded, it displays the following
information automatically and directly:
- time,
- date,
- altitude,
- ambient temperature (the value
displayed fl ashes if there is a risk of
ice),
- audio functions,
- parking sensors,
- telephone and address book
information,
- satellite navigation system information.
From the Peugeot Connect Media
control panel, to select one of the
applications:
)
press the dedicated "RADIO"
,
"MEDIA"
, "NAV"
, "TRAFFIC"
,
"ADDR BOOK"
or "SETUP"
button
for access to the corresponding
menu,
)
turn the navigator to move the
selection,
)
press the navigator to confi rm the
selection,
or
)
press the "ESC"
button to abandon
the current operation and return to
the previous display. For operation of the retractable
screen (opening, closing, adjust-
ment of the position, etc.), refer to
the paragraph "Access to the re-
tractable screen". For more information on these appli-
cations, refer to the Peugeot Connect
Media part of the "Audio and Telematics"
section.
Controls
Page 52 of 336
!

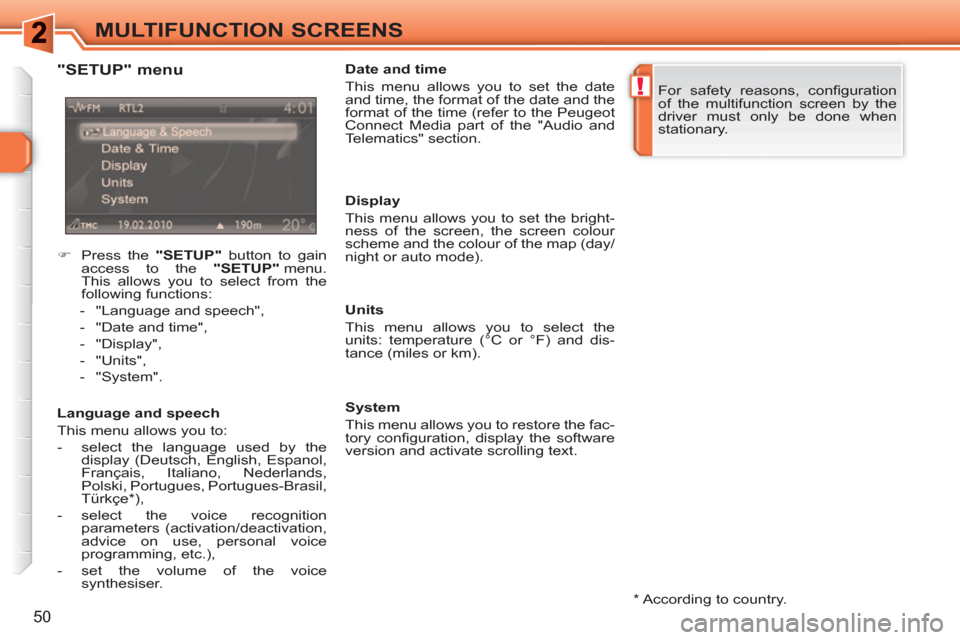

50
MULTIFUNCTION SCREENS
*
According to country.
"SETUP" menu
Language and speech
This menu allows you to:
- select the language used by the
display (Deutsch, English, Espanol,
Français, Italiano, Nederlands,
Polski, Portugues, Portugues-Brasil,
Türkçe * ),
- select the voice recognition
parameters (activation/deactivation,
advice on use, personal voice
programming, etc.),
- set the volume of the voice
synthesiser.
Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time (refer to the Peugeot
Connect Media part of the "Audio and
Telematics" section.
Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).
Units
This menu allows you to select the
units: temperature (°C or °F) and dis-
tance (miles or km).
System
This menu allows you to restore the fac-
tory confi guration, display the software
version and activate scrolling text.
For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when
stationary.
)
Press the "SETUP"
button to gain
access to the "SETUP"
menu.
This allows you to select from the
following functions:
- "Language and speech",
- "Date and time",
- "Display",
- "Units",
- "System".
Page 53 of 336

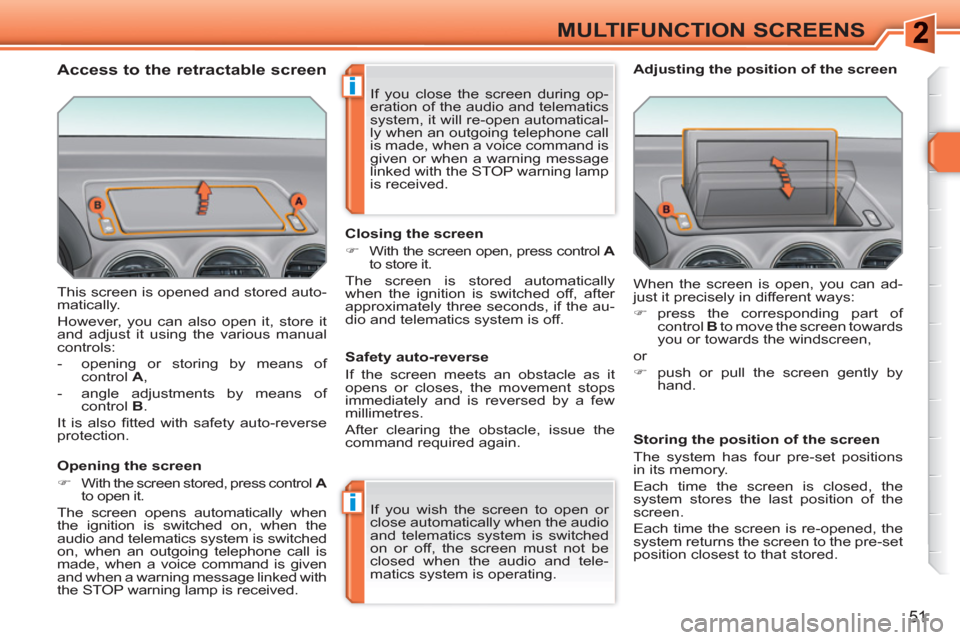

i
i
51
MULTIFUNCTION SCREENS
This screen is opened and stored auto-
matically.
However, you can also open it, store it
and adjust it using the various manual
controls:
- opening or storing by means of
control A
,
- angle adjustments by means of
control B
.
It is also fi tted with safety auto-reverse
protection.
Opening the screen
)
With the screen stored, press control A
to open it.
The screen opens automatically when
the ignition is switched on, when the
audio and telematics system is switched
on, when an outgoing telephone call is
made, when a voice command is given
and when a warning message linked with
the STOP warning lamp is received.
Closing the screen
)
With the screen open, press control A
to store it.
The screen is stored automatically
when the ignition is switched off, after
approximately three seconds, if the au-
dio and telematics system is off.
If you wish the screen to open or
close automatically when the audio
and telematics system is switched
on or off, the screen must not be
closed when the audio and tele-
matics system is operating. When the screen is open, you can ad-
just it precisely in different ways:
)
press the corresponding part of
control B
to move the screen towards
you or towards the windscreen,
or
)
push or pull the screen gently by
hand.
Adjusting the position of the screen
Safety auto-reverse
If the screen meets an obstacle as it
opens or closes, the movement stops
immediately and is reversed by a few
millimetres.
After clearing the obstacle, issue the
command required again.
Storing the position of the screen
The system has four pre-set positions
in its memory.
Each time the screen is closed, the
system stores the last position of the
screen.
Each time the screen is re-opened, the
system returns the screen to the pre-set
position closest to that stored.
If you close the screen during op-
eration of the audio and telematics
system, it will re-open automatical-
ly when an outgoing telephone call
is made, when a voice command is
given or when a warning message
linked with the STOP warning lamp
is received.
Access to the retractable screen
Page 54 of 336

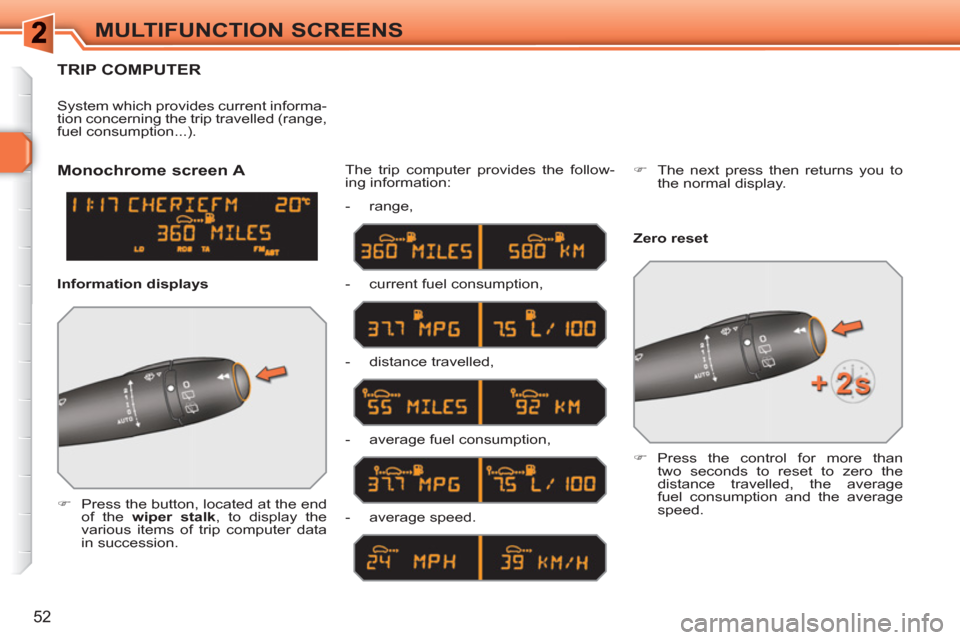

52
MULTIFUNCTION SCREENS
TRIP COMPUTER
)
Press the button, located at the end
of the wiper stalk
, to display the
various items of trip computer data
in succession. The trip computer provides the follow-
ing information: System which provides current informa-
tion concerning the trip travelled (range,
fuel consumption...).
)
Press the control for more than
two seconds to reset to zero the
distance travelled, the average
fuel consumption and the average
speed.
Monochrome screen A
Zero reset
Information displays
- range,
- current fuel consumption,
- distance travelled,
- average fuel consumption,
- average speed.
)
The next press then returns you to
the normal display.
Page 55 of 336

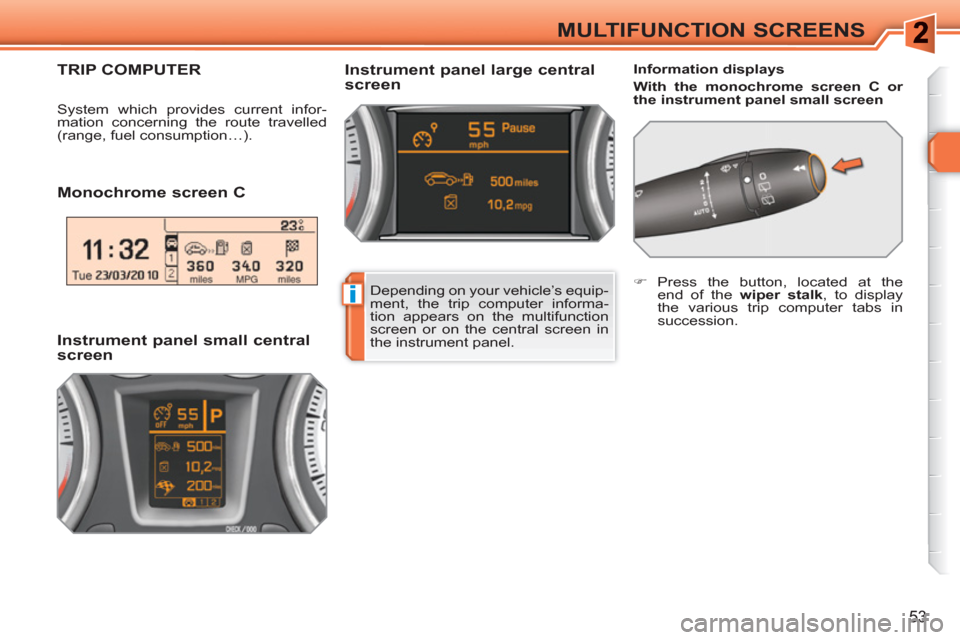

i
53
MULTIFUNCTION SCREENS
Monochrome screen C
Information displays
With the monochrome screen C or
the instrument panel small screen
Instrument panel large central
screen TRIP COMPUTER
System which provides current infor-
mation concerning the route travelled
(range, fuel consumption…).
Instrument panel small central
screen
Depending on your vehicle’s equip-
ment, the trip computer informa-
tion appears on the multifunction
screen or on the central screen in
the instrument panel.
)
Press the button, located at the
end of the wiper stalk
, to display
the various trip computer tabs in
succession.
Page 56 of 336
54
MULTIFUNCTION SCREENS
Trip zero reset
With the monochrome screen C or
the instrument panel small screen
)
When the trip required is displayed,
press the button on the end of
the wiper stalk
for more than two
seconds.
With the instrument panel
large cen-
tral screen
)
When the required trip is displayed,
press the "OK"
button on the
instrument panel navigator
,
associated with Peugeot Connect
Media, for more than two seconds.
Trips "1"
and "2"
are independent but
their use is identical.
For example, trip "1"
can be used for
daily fi gures, and trip "2"
for monthly
fi gures.
- The trip "2"
tab with:
●
the distance travelled,
●
the average fuel
consumption,
●
the average speed,
for the second trip.
)
Pressing the button again takes you
to a black screen.
A further press returns you to the
normal display.
With the instrument panel
large cen-
tral screen
- The current information
tab with:
●
the range,
●
the current fuel
consumption,
●
the distance remaining
to be travelled.
)
Press the up and down arrows on
the instrument panel
navigator
,
associated with Peugeot Connect
Media, to display the various trip
computer tabs in succession.
- The trip "1"
tab with:
●
the distance travelled,
●
the average fuel
consumption,
●
the average speed,
for the fi rst trip.
Page 57 of 336
!

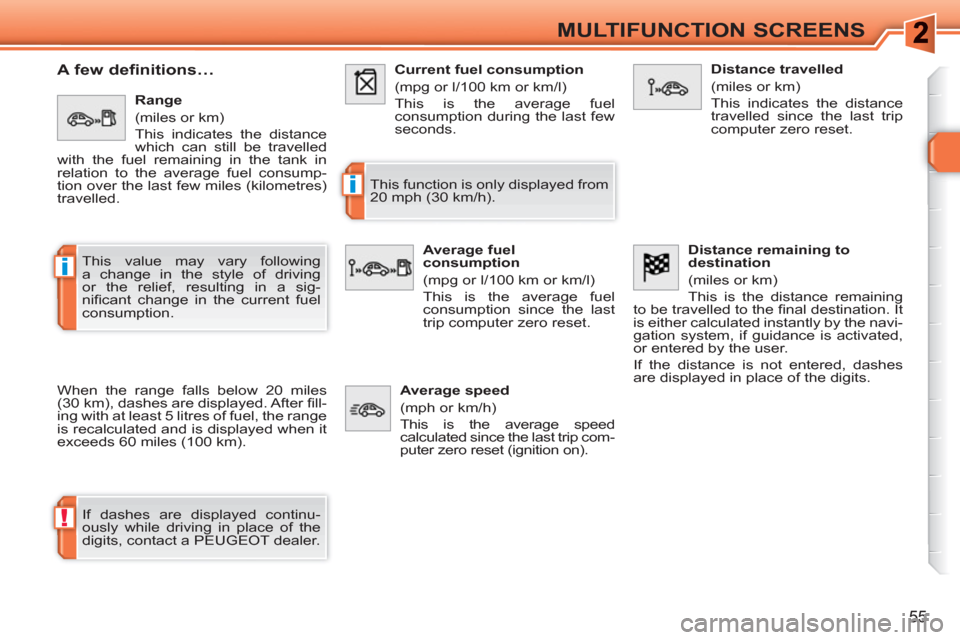

i
i
55
MULTIFUNCTION SCREENS
A few definitions…
When the range falls below 20 miles
(30 km), dashes are displayed. After fi ll-
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).
If dashes are displayed continu-
ously while driving in place of the
digits, contact a PEUGEOT dealer. This function is only displayed from
20 mph (30 km/h).
This value may vary following
a change in the style of driving
or the relief, resulting in a sig-
nifi cant change in the current fuel
consumption.
Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled.
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel
consumption during the last few
seconds.
Average fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel
consumption since the last
trip computer zero reset.
Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.
Average speed
(mph or km/h)
This is the average speed
calculated since the last trip com-
puter zero reset (ignition on).
Distance remaining to
destination
(miles or km)
This is the distance remaining
to be travelled to the fi nal destination. It
is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
Page 58 of 336

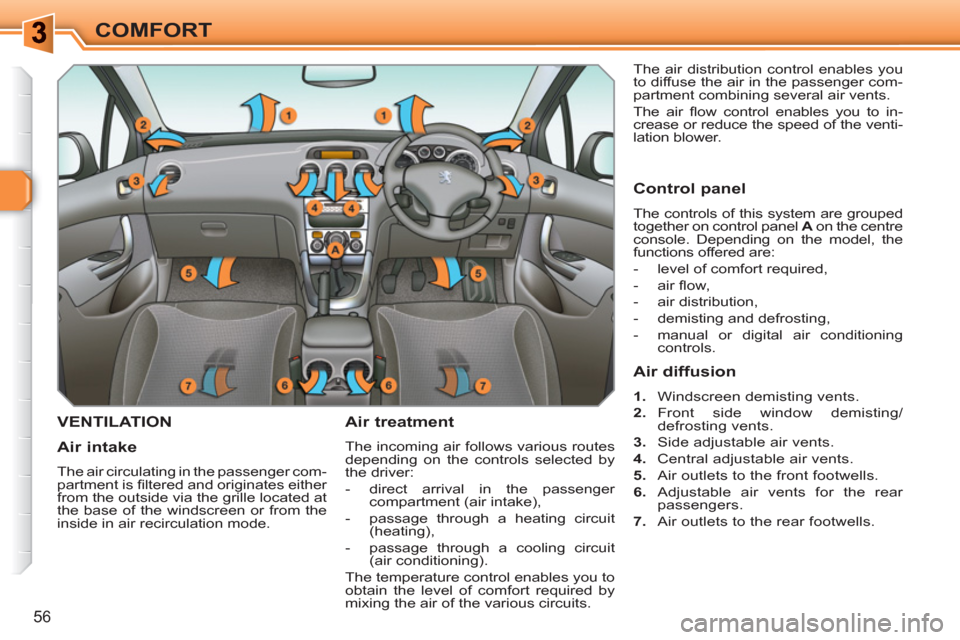

56
COMFORT
VENTILATION
Air treatment
The incoming air follows various routes
depending on the controls selected by
the driver:
- direct arrival in the passenger
compartment (air intake),
- passage through a heating circuit
(heating),
- passage through a cooling circuit
(air conditioning).
The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits. The air distribution control enables you
to diffuse the air in the passenger com-
partment combining several air vents.
The air fl ow control enables you to in-
crease or reduce the speed of the venti-
lation blower.
Air intake
The air circulating in the passenger com-
partment is fi ltered and originates either
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode.
Control panel
The controls of this system are grouped
together on control panel A
on the centre
console. Depending on the model, the
functions offered are:
- level of comfort required,
- air fl ow,
- air distribution,
- demisting and defrosting,
- manual or digital air conditioning
controls.
Air diffusion
1.
Windscreen demisting vents.
2.
Front side window demisting/
defrosting vents.
3.
Side adjustable air vents.
4.
Central adjustable air vents.
5.
Air outlets to the front footwells.
6.
Adjustable air vents for the rear
passengers.
7.
Air outlets to the rear footwells.

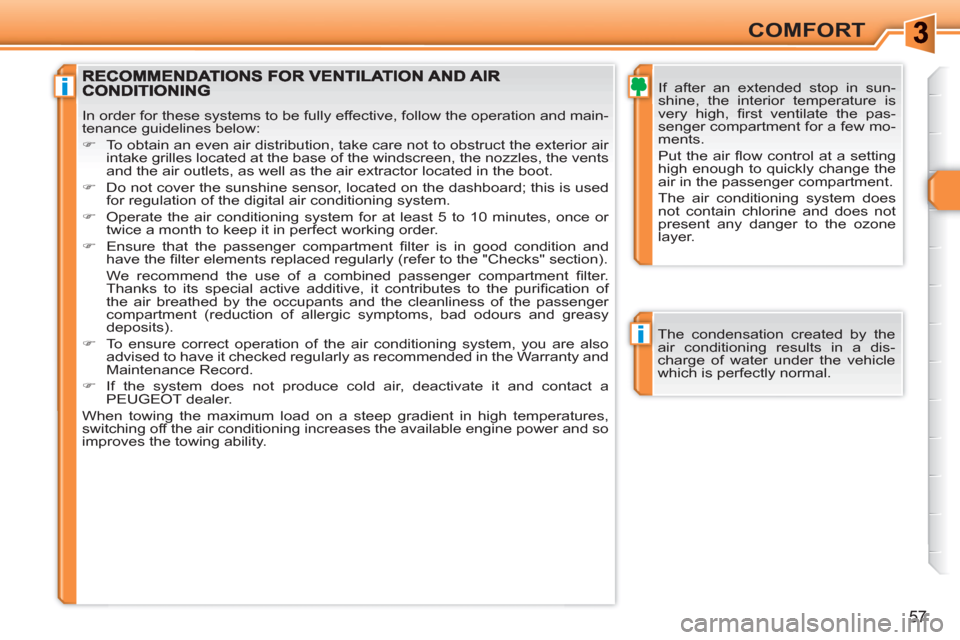

Page 59 of 336
i
i
57
COMFORT
If after an extended stop in sun-
shine, the interior temperature is
very high, fi rst ventilate the pas-
senger compartment for a few mo-
ments.
Put the air fl ow control at a setting
high enough to quickly change the
air in the passenger compartment.
The air conditioning system does
not contain chlorine and does not
present any danger to the ozone
layer.
In order for these systems to be fully effective, follow the operation and main-
tenance guidelines below:
)
To obtain an even air distribution, take care not to obstruct the exterior air
intake grilles located at the base of the windscreen, the nozzles, the vents
and the air outlets, as well as the air extractor located in the boot.
)
Do not cover the sunshine sensor, located on the dashboard; this is used
for regulation of the digital air conditioning system.
)
Operate the air conditioning system for at least 5 to 10 minutes, once or
twice a month to keep it in perfect working order.
)
Ensure that the passenger compartment fi lter is in good condition and
have the fi lter elements replaced regularly (refer to the "Checks" section).
We recommend the use of a combined passenger compartment fi lter.
Thanks to its special active additive, it contributes to the purifi cation of
the air breathed by the occupants and the cleanliness of the passenger
compartment (reduction of allergic symptoms, bad odours and greasy
deposits).
)
To ensure correct operation of the air conditioning system, you are also
advised to have it checked regularly as recommended in the Warranty and
Maintenance Record.
)
If the system does not produce cold air, deactivate it and contact a
PEUGEOT dealer.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning increases the available engine power and so
improves the towing ability.
The condensation created by the
air conditioning results in a dis-
charge of water under the vehicle
which is perfectly normal.
Page 60 of 336
i

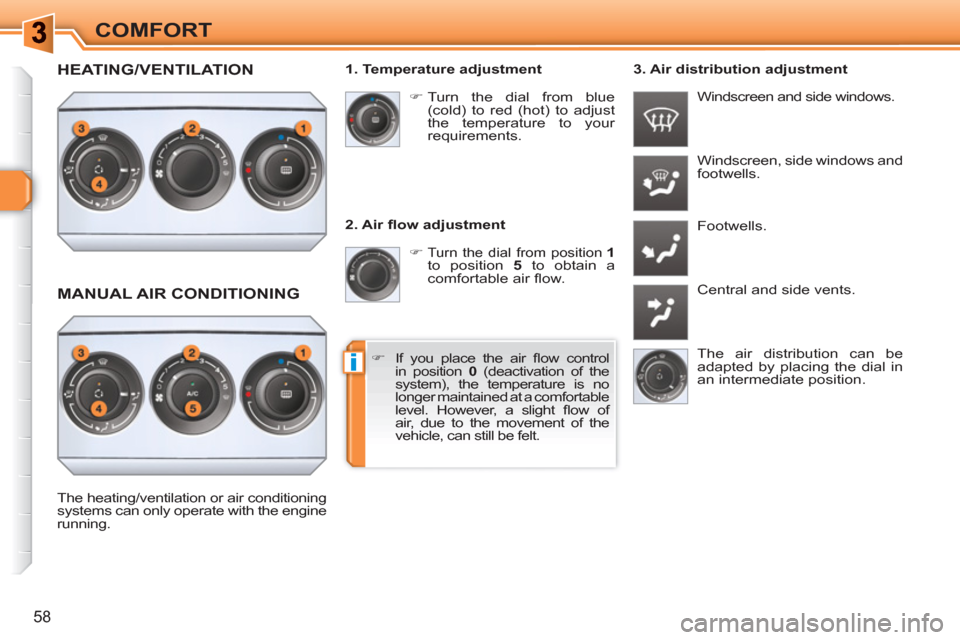

58
COMFORT
2. Air fl ow adjustment
)
Turn the dial from position
1
to position 5
to obtain a
comfortable air fl ow. Windscreen, side windows and
footwells.
Footwells.
Central and side vents.
)
Turn the dial from blue
(cold) to red (hot) to adjust
the temperature to your
requirements.
Windscreen and side windows.
1. Temperature adjustment
The air distribution can be
adapted by placing the dial in
an intermediate position.
The heating/ventilation or air conditioning
systems can only operate with the engine
running.
)
If you place the air fl ow control
in position 0
(deactivation of the
system), the temperature is no
longer maintained at a comfortable
level. However, a slight fl ow of
air, due to the movement of the
vehicle, can still be felt.
3. Air distribution adjustment
HEATING/VENTILATION
MANUAL AIR CONDITIONING
