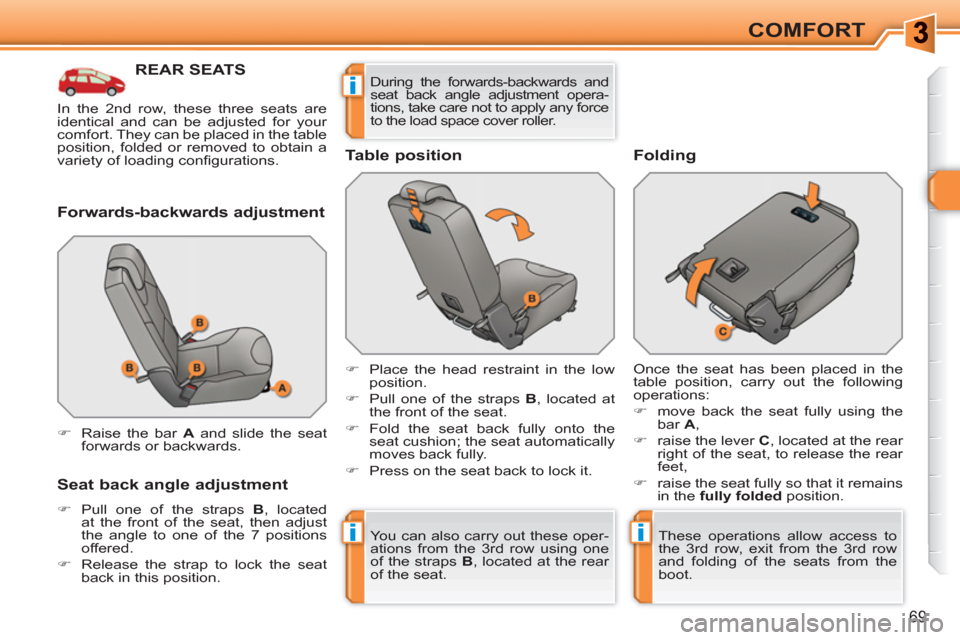

Page 71 of 336
ii
i
69
COMFORT
REAR SEATS
Forwards-backwards adjustment
Seat back angle adjustment
)
Pull one of the straps B
, located
at the front of the seat, then adjust
the angle to one of the 7 positions
offered.
)
Release the strap to lock the seat
back in this position.
Table position
)
Raise the bar A
and slide the seat
forwards or backwards.
)
Place the head restraint in the low
position.
)
Pull one of the straps B
, located at
the front of the seat.
)
Fold the seat back fully onto the
seat cushion; the seat automatically
moves back fully.
)
Press on the seat back to lock it.
Folding
Once the seat has been placed in the
table position, carry out the following
operations:
)
move back the seat fully using the
bar A
,
)
raise the lever C
, located at the rear
right of the seat, to release the rear
feet,
)
raise the seat fully so that it remains
in the fully folded
position.
You can also carry out these oper-
ations from the 3rd row using one
of the straps B
, located at the rear
of the seat. These operations allow access to
the 3 rd row, exit from the 3 rd row
and folding of the seats from the
boot. In the 2nd row, these three seats are
identical and can be adjusted for your
comfort. They can be placed in the table
position, folded or removed to obtain a
variety of loading confi gurations. During the forwards-backwards and
seat back angle adjustment opera-
tions, take care not to apply any force
to the load space cover roller.

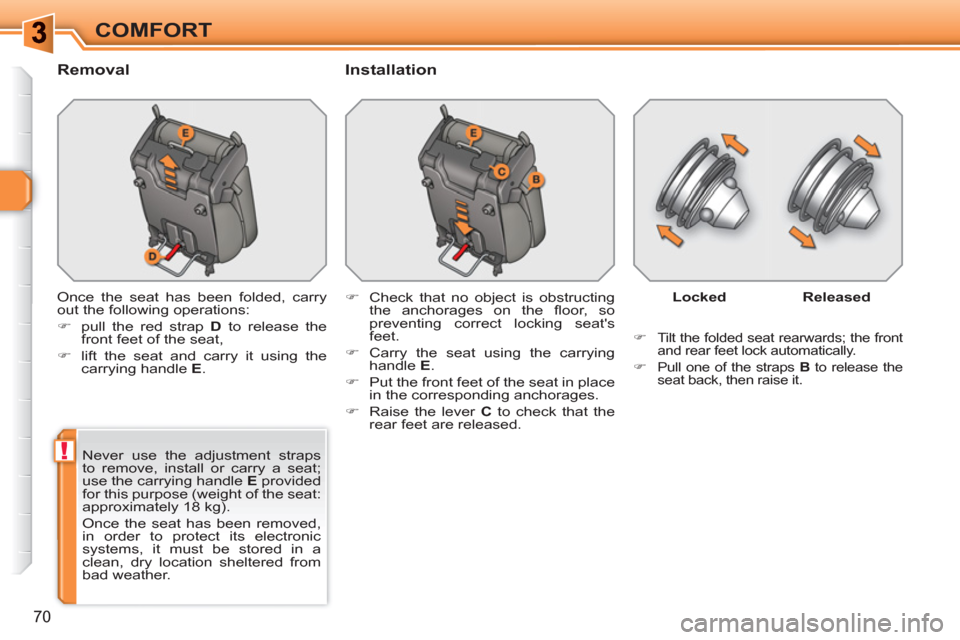

Page 72 of 336
!
70
COMFORT
Removal
Installation
Once the seat has been folded, carry
out the following operations:
)
pull the red strap D
to release the
front feet of the seat,
)
lift the seat and carry it using the
carrying handle E
.
Never use the adjustment straps
to remove, install or carry a seat;
use the carrying handle E
provided
for this purpose (weight of the seat:
approximately 18 kg).
Once the seat has been removed,
in order to protect its electronic
systems, it must be stored in a
clean, dry location sheltered from
bad weather. Locked
Released
)
Tilt the folded seat rearwards; the front
and rear feet lock automatically.
)
Pull one of the straps B
to release the
seat back, then raise it.
)
Check that no object is obstructing
the anchorages on the fl oor, so
preventing correct locking seat's
feet.
)
Carry the seat using the carrying
handle E
.
)
Put the front feet of the seat in place
in the corresponding anchorages.
)
Raise the lever C
to check that the
rear feet are released.

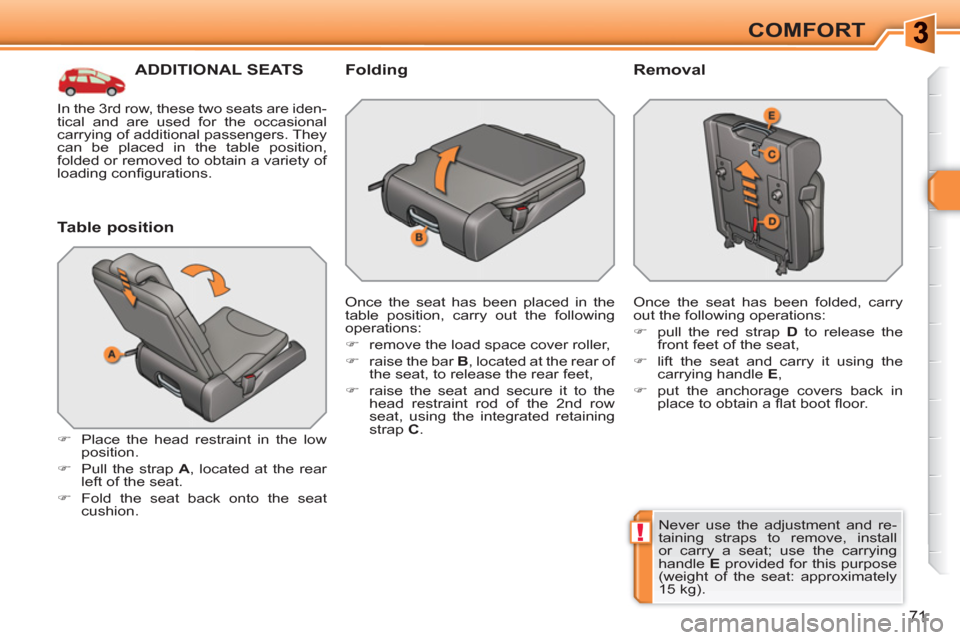

Page 73 of 336
!
71
COMFORT
ADDITIONAL SEATS
Table position
)
Place the head restraint in the low
position.
)
Pull the strap A
, located at the rear
left of the seat.
)
Fold the seat back onto the seat
cushion.
Folding
Once the seat has been placed in the
table position, carry out the following
operations:
)
remove the load space cover roller,
)
raise the bar B
, located at the rear of
the seat, to release the rear feet,
)
raise the seat and secure it to the
head restraint rod of the 2nd row
seat, using the integrated retaining
strap C
.
Removal
Once the seat has been folded, carry
out the following operations:
)
pull the red strap D
to release the
front feet of the seat,
)
lift the seat and carry it using the
carrying handle E
,
)
put the anchorage covers back in
place to obtain a fl at boot fl oor.
Never use the adjustment and re-
taining straps to remove, install
or carry a seat; use the carrying
handle E
provided for this purpose
(weight of the seat: approximately
15 kg). In the 3rd row, these two seats are iden-
tical and are used for the occasional
carrying of additional passengers. They
can be placed in the table position,
folded or removed to obtain a variety of
loading confi gurations.

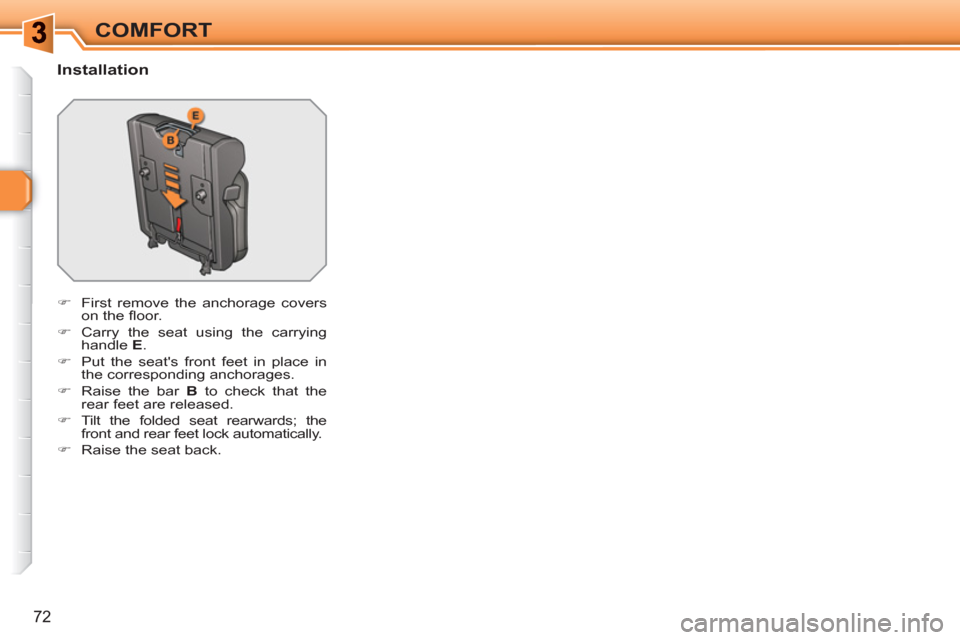

Page 74 of 336
72
COMFORT
Installation
)
First remove the anchorage covers
on the fl oor.
)
Carry the seat using the carrying
handle E
.
)
Put the seat's front feet in place in
the corresponding anchorages.
)
Raise the bar B
to check that the
rear feet are released.
)
Tilt the folded seat rearwards; the
front and rear feet lock automatically.
)
Raise the seat back.

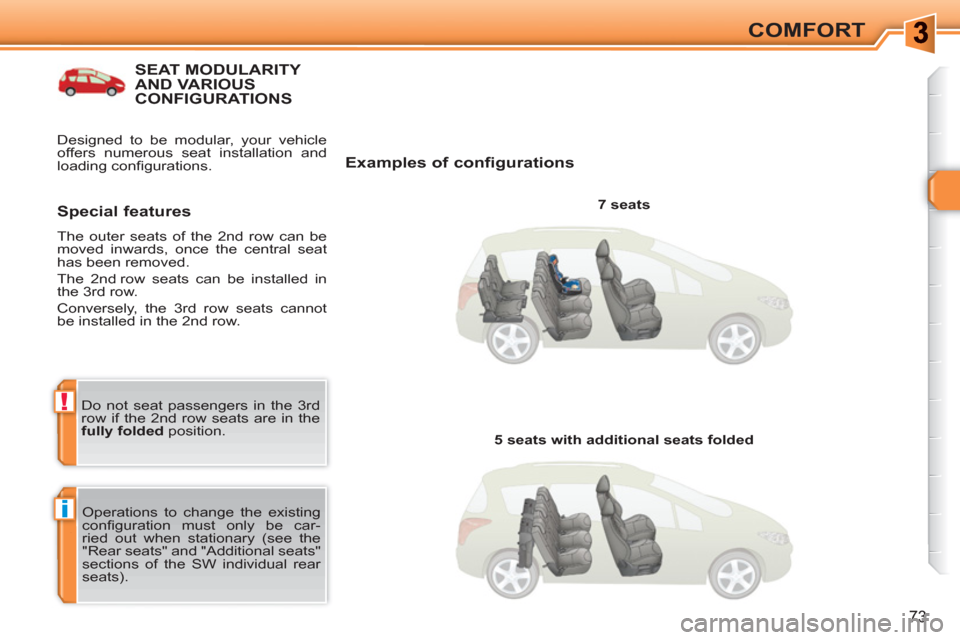

Page 75 of 336
i
!
73
COMFORT
SEAT MODULARITY AND VARIOUSCONFIGURATIONS
Examples of configurations
7 seats
Operations to change the existing
confi guration must only be car-
ried out when stationary (see the
"Rear seats" and "Additional seats"
sections of the SW individual rear
seats).
Special features
The outer seats of the 2nd row can be
moved inwards, once the central seat
has been removed.
The 2nd
row seats can be installed in
the 3rd row.
Conversely, the 3rd row seats cannot
be installed in the 2nd row.
5 seats with additional seats folded Do not seat passengers in the 3rd
row if the 2nd row seats are in the
fully folded
position. Designed to be modular, your vehicle
offers numerous seat installation and
loading confi gurations.

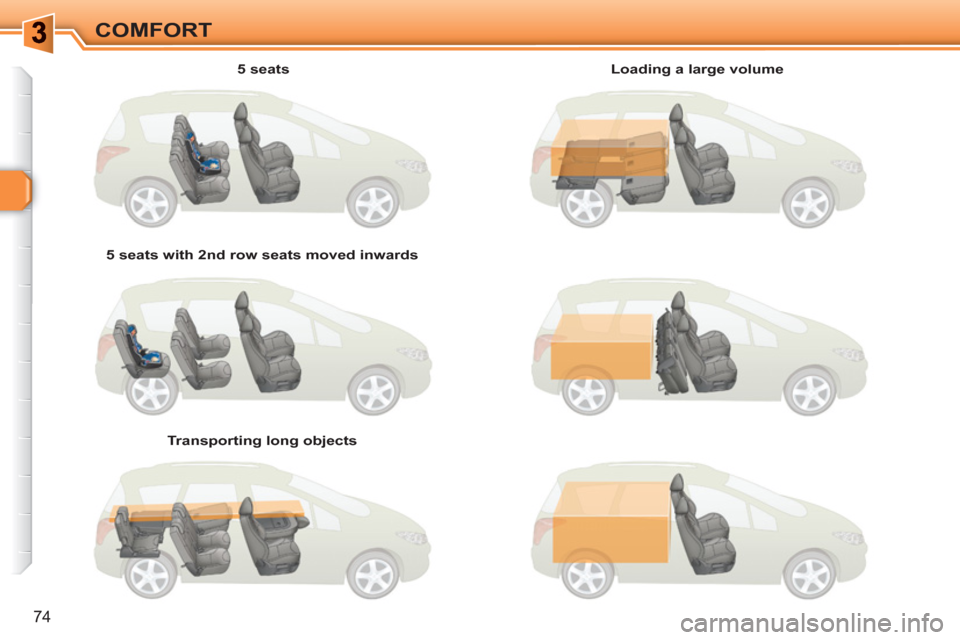

Page 76 of 336
74
COMFORT
5 seats
5 seats with 2nd row seats moved inwards
Transporting long objects
Loading a large volume

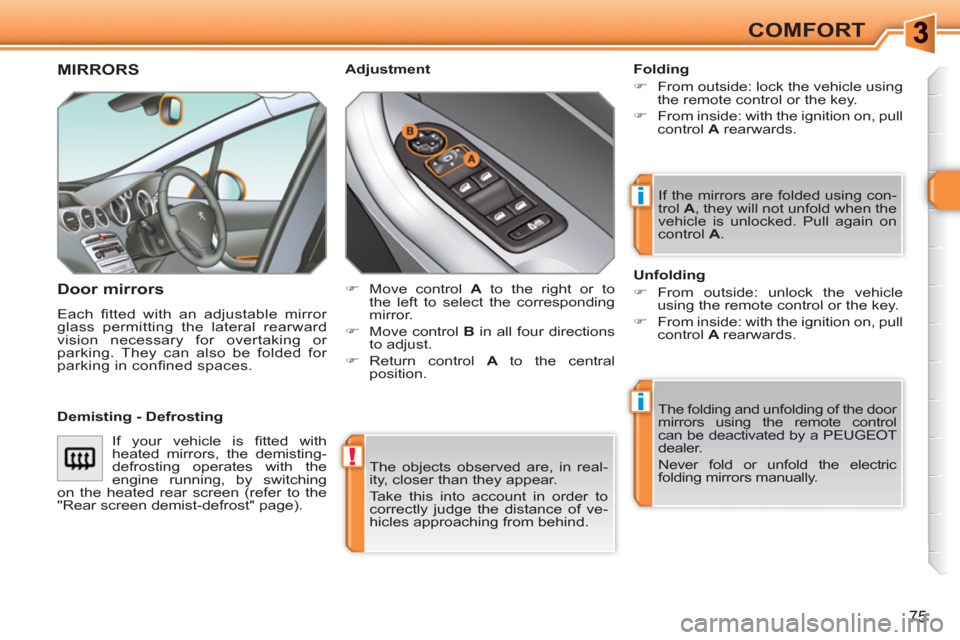

Page 77 of 336
!
i
i
75
COMFORT
The objects observed are, in real-
ity, closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.
MIRRORS
Door mirrors
Each fi tted with an adjustable mirror
glass permitting the lateral rearward
vision necessary for overtaking or
parking. They can also be folded for
parking in confi ned spaces.
Folding
)
From outside: lock the vehicle using
the remote control or the key.
)
From inside: with the ignition on, pull
control A
rearwards.
The folding and unfolding of the door
mirrors using the remote control
can be deactivated by a PEUGEOT
dealer.
Never fold or unfold the electric
folding mirrors manually.
Adjustment
Unfolding
)
From outside: unlock the vehicle
using the remote control or the key.
)
From inside: with the ignition on, pull
control A
rearwards. If the mirrors are folded using con-
trol A
, they will not unfold when the
vehicle is unlocked. Pull again on
control A
.
)
Move control A
to the right or to
the left to select the corresponding
mirror.
)
Move control B
in all four directions
to adjust.
)
Return control A
to the central
position.
Demisting - Defrosting
If your vehicle is fi tted with
heated mirrors, the demisting-
defrosting operates with the
engine running, by switching
on the heated rear screen (refer to the
"Rear screen demist-defrost" page).

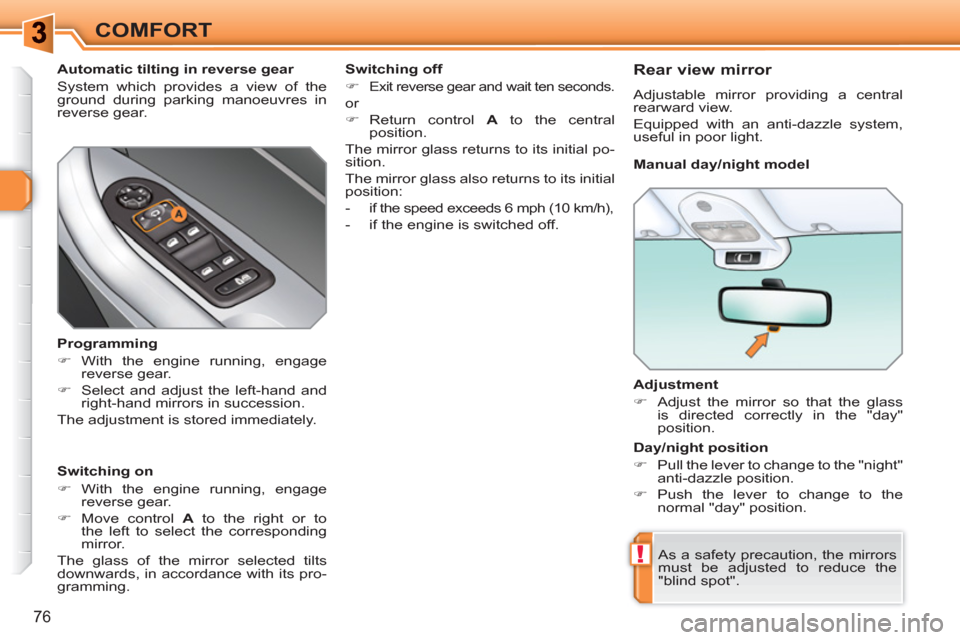

Page 78 of 336
!
76
COMFORT
Adjustment
)
Adjust the mirror so that the glass
is directed correctly in the "day"
position.
As a safety precaution, the mirrors
must be adjusted to reduce the
"blind spot".
Manual day/night model
Day/night position
)
Pull the lever to change to the "night"
anti-dazzle position.
)
Push the lever to change to the
normal "day" position.
Automatic tilting in reverse gear
System which provides a view of the
ground during parking manoeuvres in
reverse gear.
Switching on
)
With the engine running, engage
reverse gear.
)
Move control A
to the right or to
the left to select the corresponding
mirror.
The glass of the mirror selected tilts
downwards, in accordance with its pro-
gramming.
Programming
)
With the engine running, engage
reverse gear.
)
Select and adjust the left-hand and
right-hand mirrors in succession.
The adjustment is stored immediately.
Switching off
)
Exit reverse gear and wait ten seconds.
or
)
Return control A
to the central
position.
The mirror glass returns to its initial po-
sition.
The mirror glass also returns to its initial
position:
-
if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off.
Rear view mirror
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
useful in poor light.

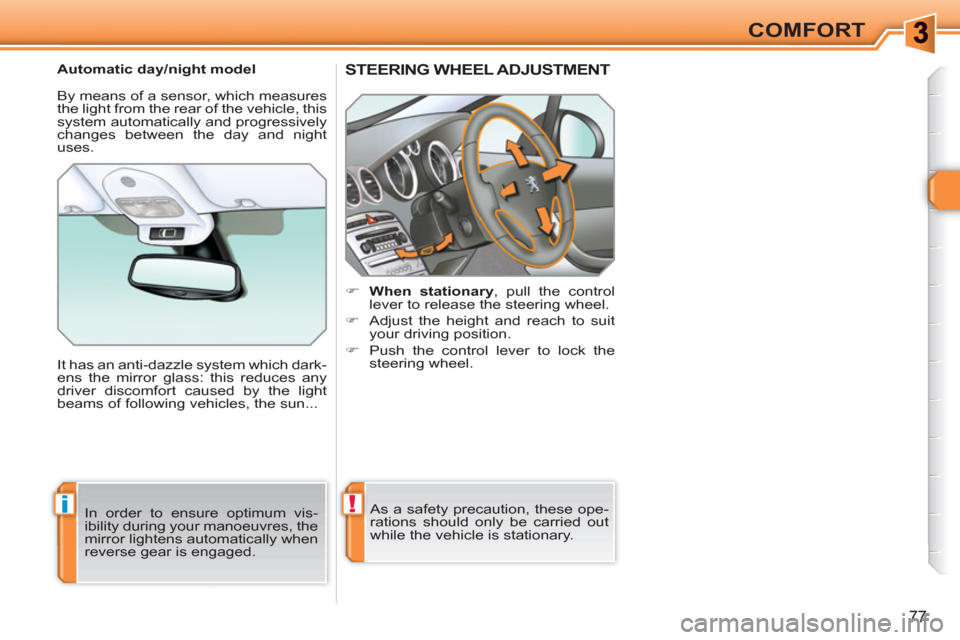

Page 79 of 336
!i
77
COMFORT
STEERING WHEEL ADJUSTMENT
)
When stationary
, pull the control
lever to release the steering wheel.
)
Adjust the height and reach to suit
your driving position.
)
Push the control lever to lock the
steering wheel.
As a safety precaution, these ope-
rations should only be carried out
while the vehicle is stationary.
Automatic day/night model
It has an anti-dazzle system which dark-
ens the mirror glass: this reduces any
driver discomfort caused by the light
beams of following vehicles, the sun...
In order to ensure optimum vis-
ibility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.
By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.

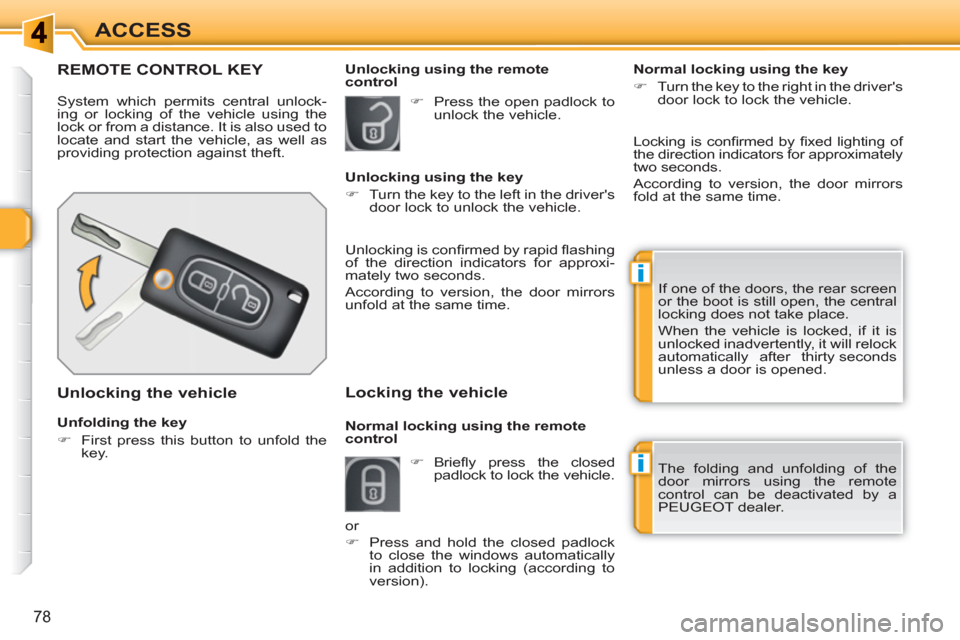

Page 80 of 336
i
i
78
ACCESS
REMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It is also used to
locate and start the vehicle, as well as
providing protection against theft.
Unfolding the key
)
First press this button to unfold the
key.
Unlocking the vehicle
)
Press the open padlock to
unlock the vehicle.
Unlocking using the key
)
Turn the key to the left in the driver's
door lock to unlock the vehicle.
Unlocking using the remote
control
If one of the doors, the rear screen
or the boot is still open, the central
locking does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after thirty seconds
unless a door is opened.
Normal locking using the key
)
Turn the key to the right in the driver's
door lock to lock the vehicle.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
PEUGEOT dealer.
Locking the vehicle
)
Briefl y press the closed
padlock to lock the vehicle.
or
)
Press and hold the closed padlock
to close the windows automatically
in addition to locking (according to
version).
Normal locking using the remote
control Locking is confi rmed by fi xed lighting of
the direction indicators for approximately
two seconds.
According to version, the door mirrors
fold at the same time.
Unlocking is confi rmed by rapid fl ashing
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
unfold at the same time.
