i
59
COMFORT

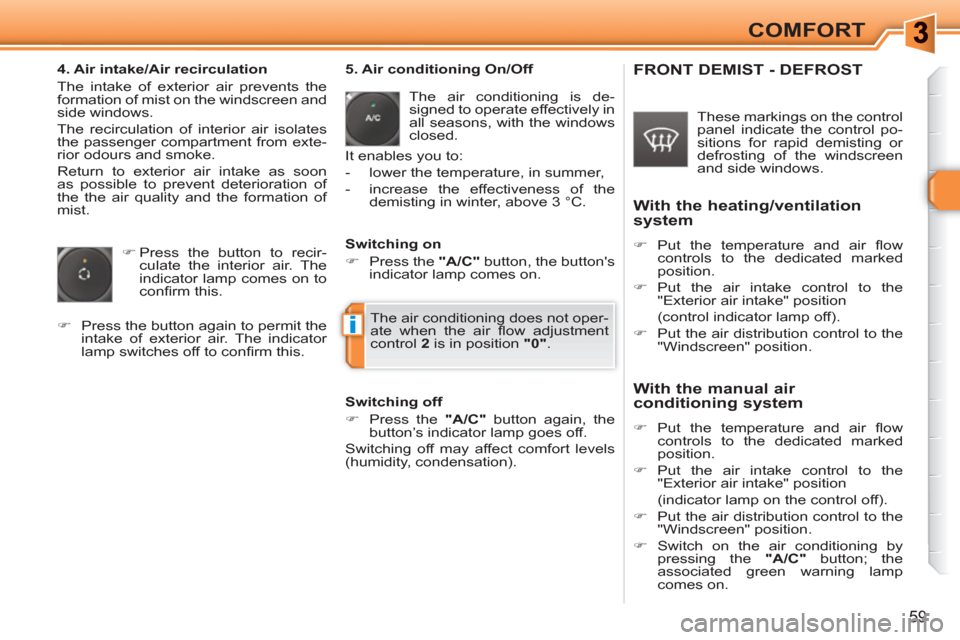

4. Air intake/Air recirculation
The intake of exterior air prevents the
formation of mist on the windscreen and
side windows.
The recirculation of interior air isolates
the passenger compartment from exte-
rior odours and smoke.
Return to exterior air intake as soon
as possible to prevent deterioration of
the the air quality and the formation of
mist.
)
Press the button to recir-
culate the interior air. The
indicator lamp comes on to
confi rm this.
)
Press the button again to permit the
intake of exterior air. The indicator
lamp switches off to confi rm this.
5. Air conditioning On/Off
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the
demisting in winter, above 3 °C.
Switching off
)
Press the "A/C"
button again, the
button’s indicator lamp goes off.
Switching off may affect comfort levels
(humidity, condensation).
Switching on
)
Press the "A/C"
button, the button's
indicator lamp comes on.
FRONT DEMIST - DEFROST
These markings on the control
panel indicate the control po-
sitions for rapid demisting or
defrosting of the windscreen
and side windows.
With the heating/ventilation
system
)
Put the temperature and air fl ow
controls to the dedicated marked
position.
)
Put the air intake control to the
"Exterior air intake" position
(control indicator lamp off).
)
Put the air distribution control to the
"Windscreen" position.
With the manual air
conditioning system
)
Put the temperature and air fl ow
controls to the dedicated marked
position.
)
Put the air intake control to the
"Exterior air intake" position
(indicator lamp on the control off).
)
Put the air distribution control to the
"Windscreen" position.
)
Switch on the air conditioning by
pressing the "A/C"
button; the
associated green warning lamp
comes on.
The air conditioning does not oper-
ate when the air fl ow adjustment
control 2
is in position "0"
.
Page 62 of 336
i
60
COMFORT
The control button is located on
the heating or air conditioning
system control panel.

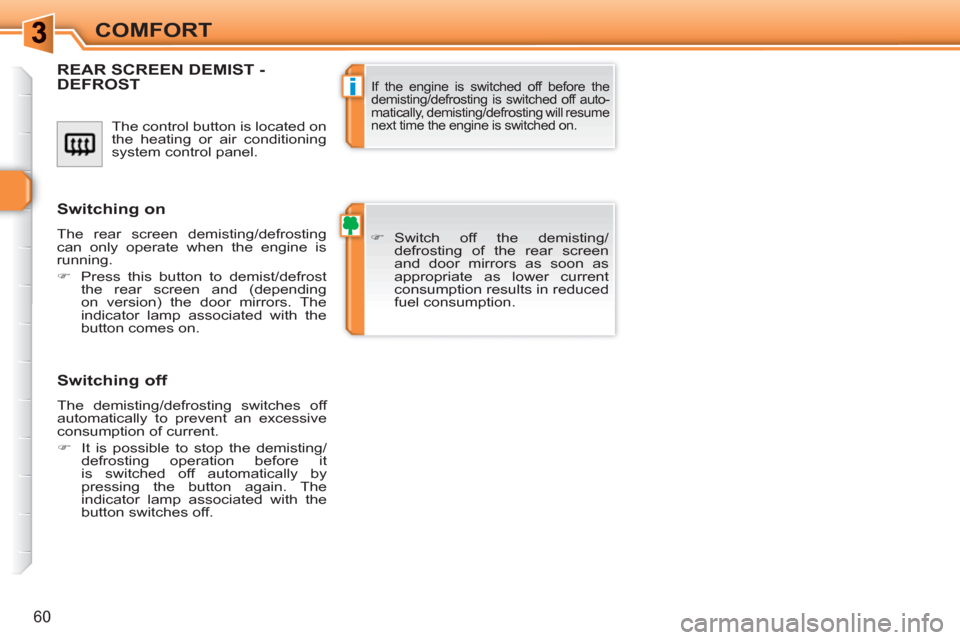

REAR SCREEN DEMIST -DEFROST
)
Switch off the demisting/
defrosting of the rear screen
and door mirrors as soon as
appropriate as lower current
consumption results in reduced
fuel consumption.
If the engine is switched off before the
demisting/defrosting is switched off auto-
matically, demisting/defrosting will resume
next time the engine is switched on.
Switching on
The rear screen demisting/defrosting
can only operate when the engine is
running.
)
Press this button to demist/defrost
the rear screen and (depending
on version) the door mirrors. The
indicator lamp associated with the
button comes on.
Switching off
The demisting/defrosting switches off
automatically to prevent an excessive
consumption of current.
)
It is possible to stop the demisting/
defrosting operation before it
is switched off automatically by
pressing the button again. The
indicator lamp associated with the
button switches off.
Page 63 of 336
ii
61
COMFORT
When the engine is cold, to prevent
too great a distribution of cold air,
the air fl ow will reach its optimum
level gradually.
In cold weather, it favours the dis-
tribution of warm air to the wind-
screen, side windows and footwells
only. On entering the vehicle, if the in-
terior temperature is much colder
or warmer than the comfort value,
there is no need to change the val-
ue displayed in order to obtain the
comfort required. The system cor-
rects the difference in temperature
automatically and as quickly as
possible.
The air conditioning only operates when
the engine is running. The driver and front passenger
can each adjust the tempera-
ture to their requirements.
)
Turn control 2
or 3
to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depending
on your requirements, a setting between
18 and 24 is normal.
You are advised to avoid a left/right set-
ting difference of more than 3.
4. Automatic visibility programme
The automatic comfort pro-
gramme may not be suffi cient
to quickly demist or defrost
the windscreen and side win-
dows (humidity, several pas-
sengers, ice, etc.).
Automatic operation
)
Press the "AUTO"
button.
The indicator lamp on the
button comes on.
2. Driver's side adjustment

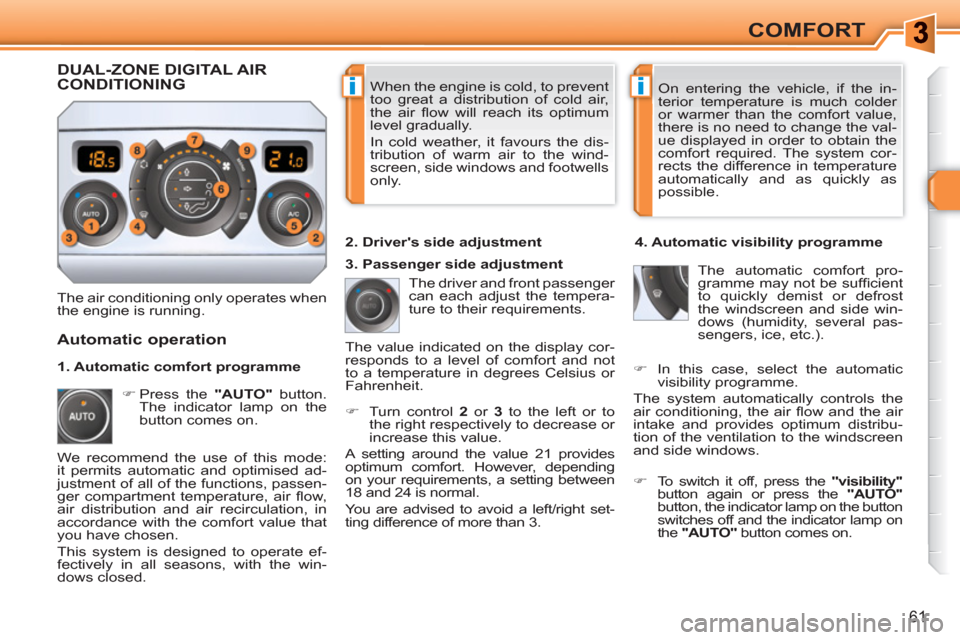

DUAL-ZONE DIGITAL AIRCONDITIONING
We recommend the use of this mode:
it permits automatic and optimised ad-
justment of all of the functions, passen-
ger compartment temperature, air fl ow,
air distribution and air recirculation, in
accordance with the comfort value that
you have chosen.
This system is designed to operate ef-
fectively in all seasons, with the win-
dows closed. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.
)
To switch it off, press the "visibility"
button again or press the "AUTO"
button, the indicator lamp on the button
switches off and the indicator lamp on
the "AUTO"
button comes on.
1. Automatic comfort programme
3. Passenger side adjustment
)
In this case, select the automatic
visibility programme.
The system automatically controls the
air conditioning, the air fl ow and the air
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.
Page 64 of 336
!
i
62
COMFORT

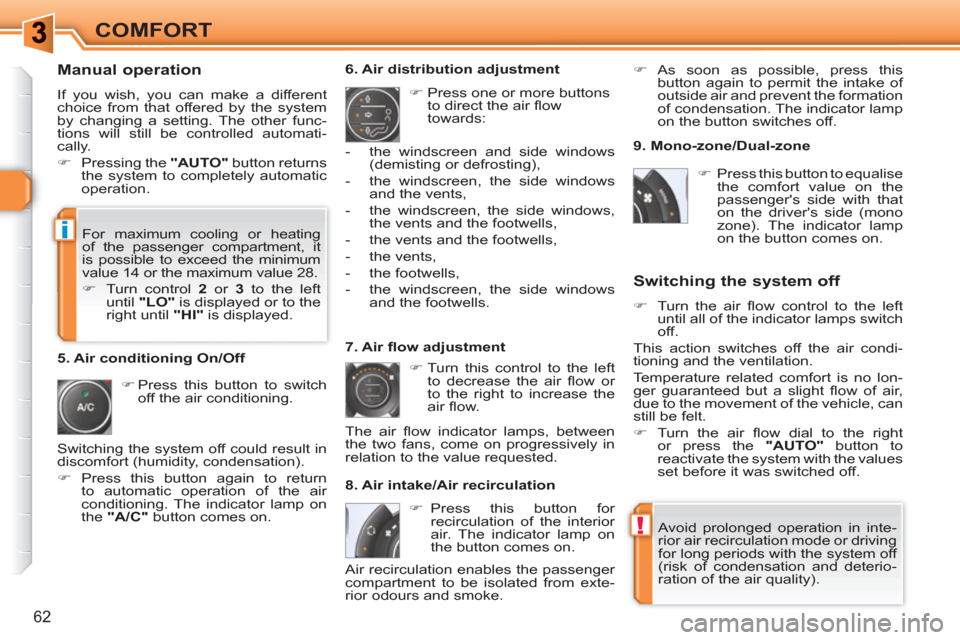

Manual operation
If you wish, you can make a different
choice from that offered by the system
by changing a setting. The other func-
tions will still be controlled automati-
cally.
)
Pressing the "AUTO"
button returns
the system to completely automatic
operation.
)
Press this button to switch
off the air conditioning.
6. Air distribution adjustment
)
Press one or more buttons
to direct the air fl ow
towards:
7. Air fl ow adjustment
)
Turn this control to the left
to decrease the air fl ow or
to the right to increase the
air fl ow.
8. Air intake/Air recirculation
Switching the system off
)
Turn the air fl ow control to the left
until all of the indicator lamps switch
off.
This action switches off the air condi-
tioning and the ventilation.
Temperature related comfort is no lon-
ger guaranteed but a slight fl ow of air,
due to the movement of the vehicle, can
still be felt.
)
Turn the air fl ow dial to the right
or press the "AUTO"
button to
reactivate the system with the values
set before it was switched off.
)
Press this button for
recirculation of the interior
air. The indicator lamp on
the button comes on.
5. Air conditioning On/Off
Avoid prolonged operation in inte-
rior air recirculation mode or driving
for long periods with the system off
(risk of condensation and deterio-
ration of the air quality).
- the windscreen and side windows
(demisting or defrosting),
- the windscreen, the side windows
and the vents,
- the windscreen, the side windows,
the vents and the footwells,
- the vents and the footwells,
- the vents,
- the footwells,
- the windscreen, the side windows
and the footwells.
The air fl ow indicator lamps, between
the two fans, come on progressively in
relation to the value requested.
)
As soon as possible, press this
button again to permit the intake of
outside air and prevent the formation
of condensation. The indicator lamp
on the button switches off.
For maximum cooling or heating
of the passenger compartment, it
is possible to exceed the minimum
value 14 or the maximum value 28.
)
Turn control 2
or 3
to the left
until "LO"
is displayed or to the
right until "HI"
is displayed.
9. Mono-zone/Dual-zone
)
Press this button to equalise
the comfort value on the
passenger's side with that
on the driver's side (mono
zone). The indicator lamp
on the button comes on.
Air recirculation enables the passenger
compartment to be isolated from exte-
rior odours and smoke. Switching the system off could result in
discomfort (humidity, condensation).
)
Press this button again to return
to automatic operation of the air
conditioning. The indicator lamp on
the "A/C"
button comes on.
Page 65 of 336
63
COMFORT

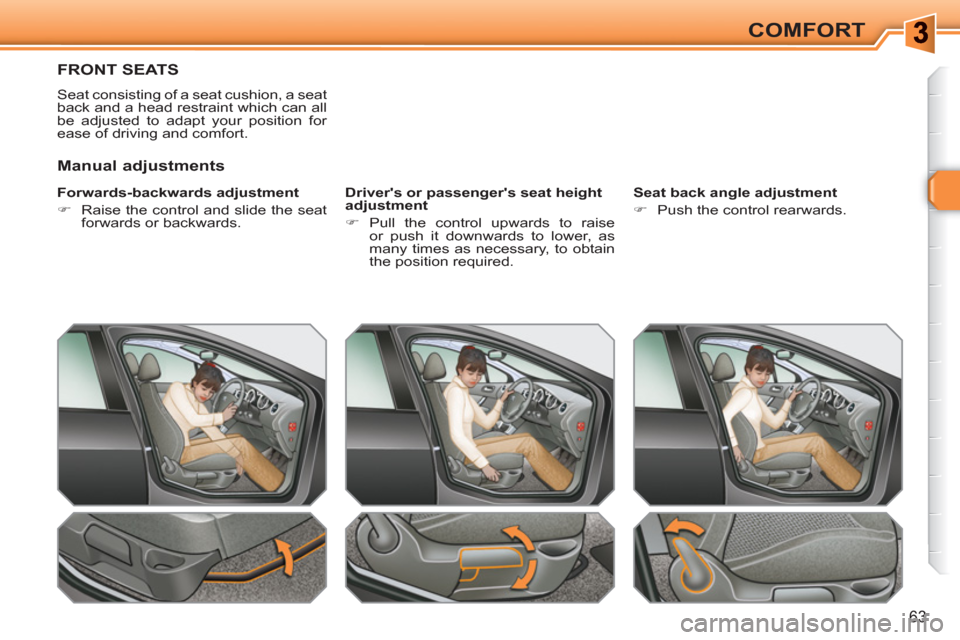

FRONT SEATS
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.
Forwards-backwards adjustment
)
Raise the control and slide the seat
forwards or backwards.
Driver's or passenger's seat height
adjustment
)
Pull the control upwards to raise
or push it downwards to lower, as
many times as necessary, to obtain
the position required.
Seat back angle adjustment
)
Push the control rearwards.
Manual adjustments
Page 66 of 336
i

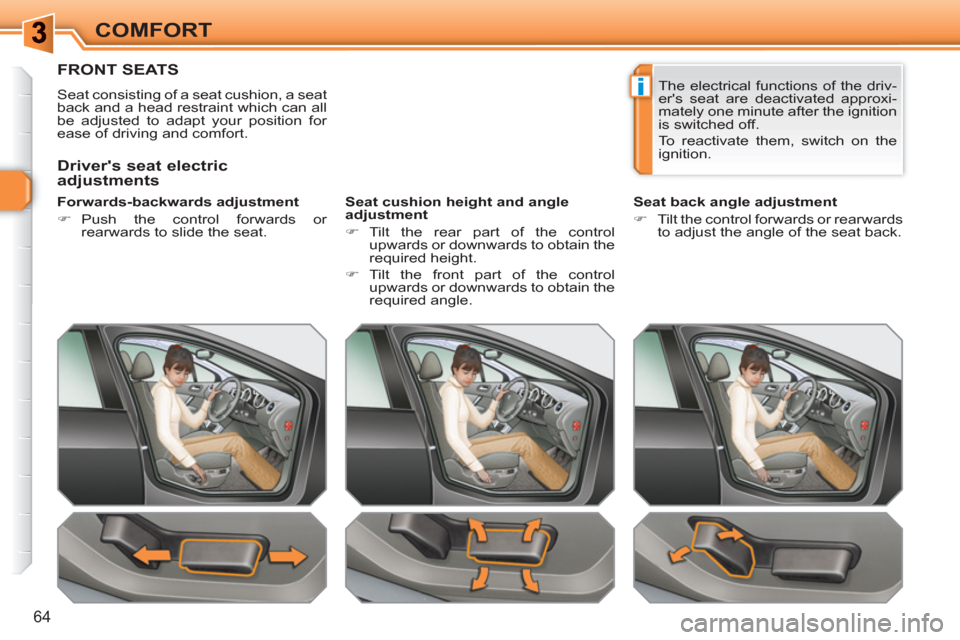

64
COMFORT
FRONT SEATS
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.
Forwards-backwards adjustment
)
Push the control forwards or
rearwards to slide the seat.
Seat cushion height and angle
adjustment
)
Tilt the rear part of the control
upwards or downwards to obtain the
required height.
)
Tilt the front part of the control
upwards or downwards to obtain the
required angle.
Seat back angle adjustment
)
Tilt the control forwards or rearwards
to adjust the angle of the seat back.
Driver's seat electric
adjustments
The electrical functions of the driv-
er's seat are deactivated approxi-
mately one minute after the ignition
is switched off.
To reactivate them, switch on the
ignition.
Page 67 of 336
i
!
65
COMFORT

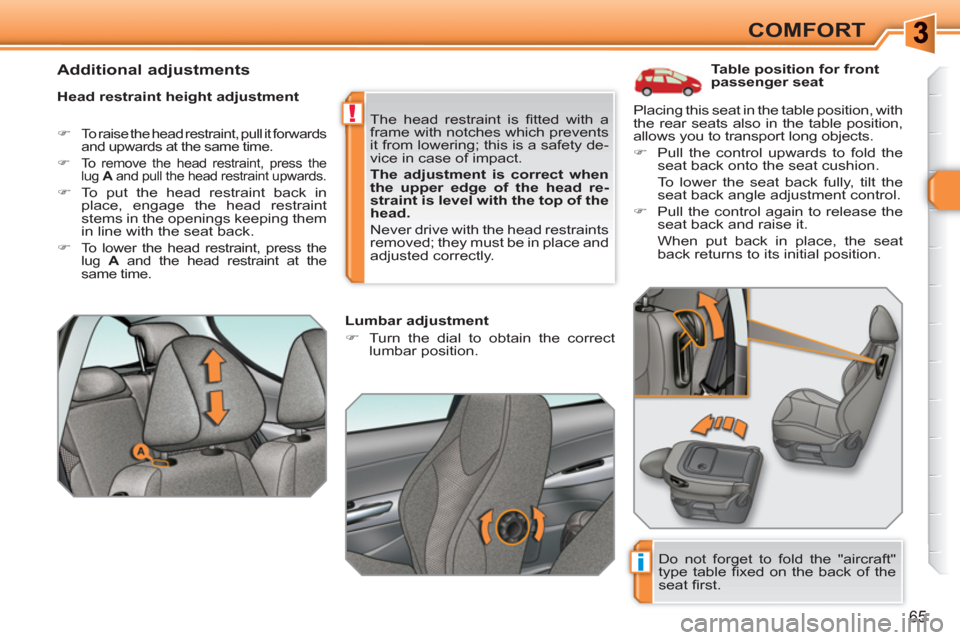

Table position for front
passenger seat
Head restraint height adjustment
)
To raise the head restraint, pull it forwards
and upwards at the same time.
)
To remove the head restraint, press the
lug A
and pull the head restraint upwards.
)
To put the head restraint back in
place, engage the head restraint
stems in the openings keeping them
in line with the seat back.
)
To lower the head restraint, press the
lug A
and the head restraint at the
same time.
The head restraint is fi tted with a
frame with notches which prevents
it from lowering; this is a safety de-
vice in case of impact.
The adjustment is correct when
the upper edge of the head re-
straint is level with the top of the
head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
Lumbar adjustment
)
Turn the dial to obtain the correct
lumbar position.
Additional adjustments
Placing this seat in the table position, with
the rear seats also in the table position,
allows you to transport long objects.
)
Pull the control upwards to fold the
seat back onto the seat cushion.
To lower the seat back fully, tilt the
seat back angle adjustment control.
)
Pull the control again to release the
seat back and raise it.
When put back in place, the seat
back returns to its initial position.
Do not forget to fold the "aircraft"
type table fi xed on the back of the
seat fi rst.
Page 68 of 336
i
!

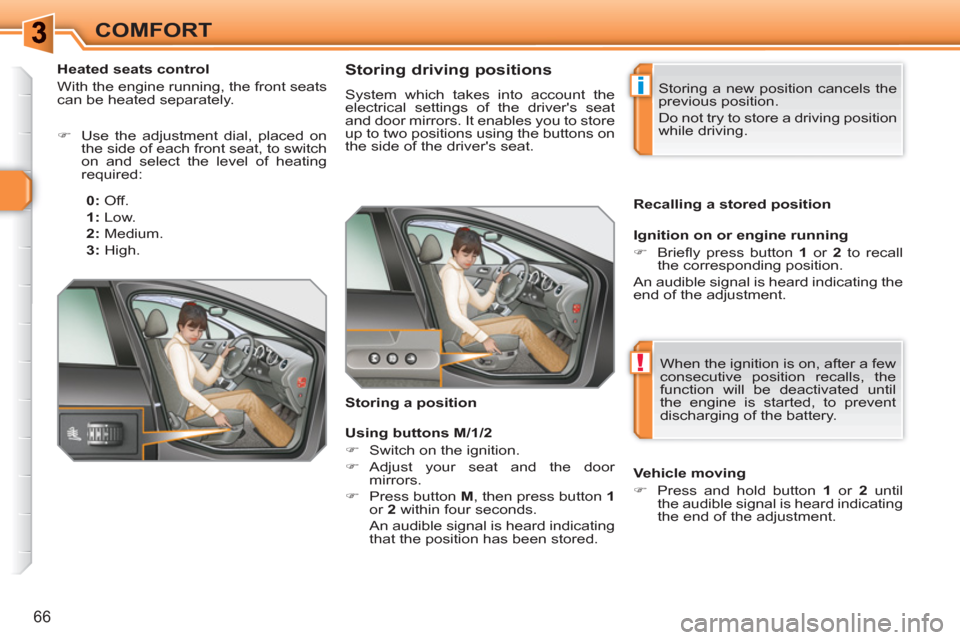

66
COMFORT
Storing driving positions
System which takes into account the
electrical settings of the driver's seat
and door mirrors. It enables you to store
up to two positions using the buttons on
the side of the driver's seat.
Ignition on or engine running
)
Briefl y press button 1
or 2
to recall
the corresponding position.
An audible signal is heard indicating the
end of the adjustment.
Storing a position Storing a new position cancels the
previous position.
Do not try to store a driving position
while driving.
Recalling a stored position
Vehicle moving
)
Press and hold button 1
or 2
until
the audible signal is heard indicating
the end of the adjustment.
Using buttons M/1/2
)
Switch on the ignition.
)
Adjust your seat and the door
mirrors.
)
Press button M
, then press button 1
or 2
within four seconds.
An audible signal is heard indicating
that the position has been stored. When the ignition is on, after a few
consecutive position recalls, the
function will be deactivated until
the engine is started, to prevent
discharging of the battery.
Heated seats control
With the engine running, the front seats
can be heated separately.
)
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating
required:
0:
Off.
1
:
Low.
2
:
Medium.
3
:
High.
Page 69 of 336
!

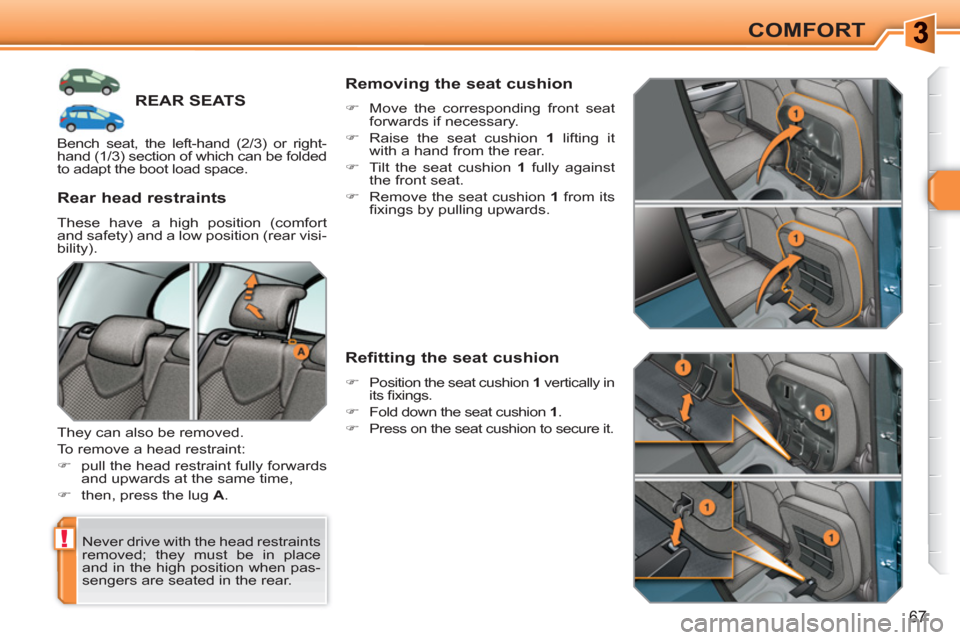

67
COMFORT
REAR SEATS
Never drive with the head restraints
removed; they must be in place
and in the high position when pas-
sengers are seated in the rear.
Rear head restraints
These have a high position (comfort
and safety) and a low position (rear visi-
bility).
They can also be removed.
To remove a head restraint:
)
pull the head restraint fully forwards
and upwards at the same time,
)
then, press the lug A
.
Removing the seat cushion
)
Move the corresponding front seat
forwards if necessary.
)
Raise the seat cushion 1
lifting it
with a hand from the rear.
)
Tilt the seat cushion 1
fully against
the front seat.
)
Remove the seat cushion 1
from its
fi xings by pulling upwards.
Refitting the seat cushion
)
Position the seat cushion 1
vertically in
its fi xings.
)
Fold down the seat cushion 1
.
)
Press on the seat cushion to secure it.
Bench seat, the left-hand (2/3) or right-
hand (1/3) section of which can be folded
to adapt the boot load space.
Page 70 of 336
!
i

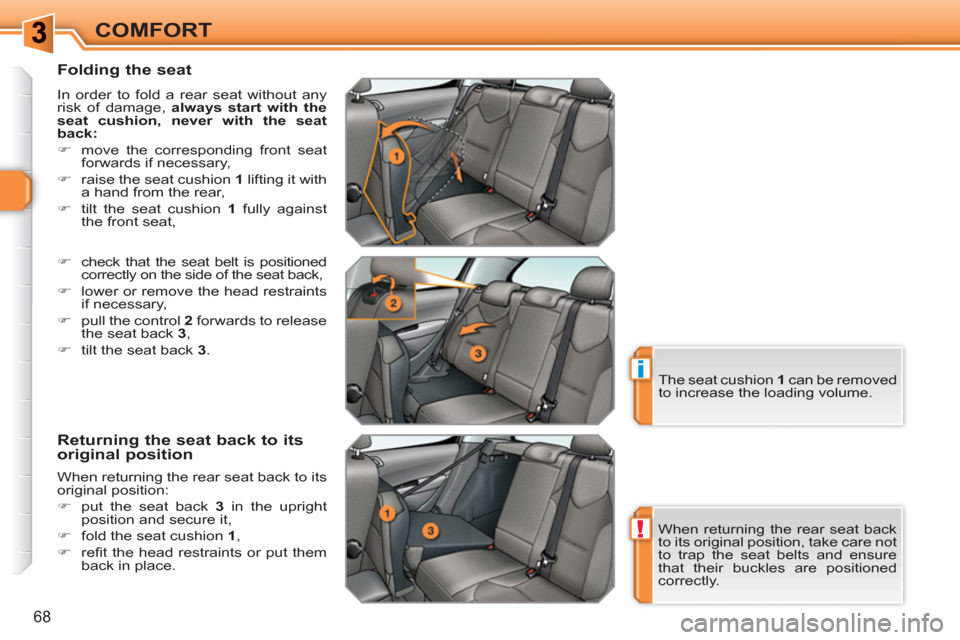

68
COMFORT
Folding the seat
In order to fold a rear seat without any
risk of damage, always start with the
seat cushion,
never with the seat
back:
)
move the corresponding front seat
forwards if necessary,
)
raise the seat cushion 1
lifting it with
a hand from the rear,
)
tilt the seat cushion 1
fully against
the front seat,
Returning the seat back to its
original position
When returning the rear seat back to its
original position:
)
put the seat back 3
in the upright
position and secure it,
)
fold the seat cushion 1
,
)
refi t the head restraints or put them
back in place.
)
check that the seat belt is positioned
correctly on the side of the seat back,
)
lower or remove the head restraints
if necessary,
)
pull the control 2
forwards to release
the seat back 3
,
)
tilt the seat back 3
.
When returning the rear seat back
to its original position, take care not
to trap the seat belts and ensure
that their buckles are positioned
correctly. The seat cushion 1
can be removed
to increase the loading volume.
