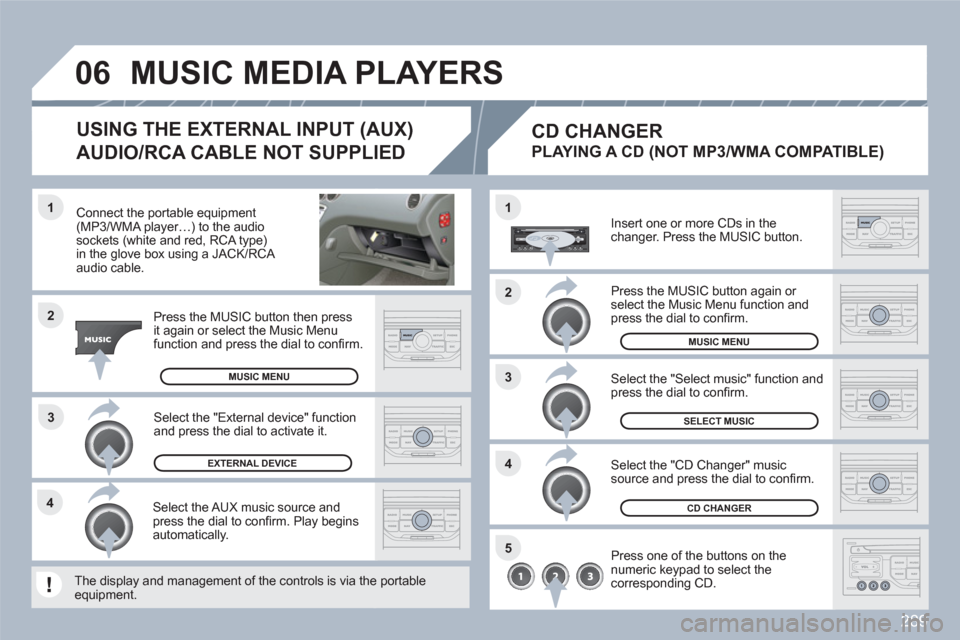

Connect the portable equipment(MP3/WMA player…) to the audiosockets (white and red, RCA type) in the glove box using a JACK/RCA audio cable.
Press the MUSIC button then pressit again or select the Music Menufunction and press the dial to confi rm.
Select the AUX music source andpress the dial to confi rm. Play beginsautomatically.
Select the "External device" function and press the dial to activate it.
EXTERNAL DEVICE


The display and management of the controls is via thee portableequipment.
USING THE EXTERNAL INPUT (AUX)
AUDIO/RCA CABLE NOT SUPPLIED

MUSIC MEDIA PLAYERS

MUSIC MENU

CD CHANGER
SELECT MUSIC

MUSIC MENU


Insert one or more CDs in the changer. Press the MUSIC button.

Press one of the buttons on the numeric keypad to select thecorresponding CD.

Select the "CD Changer" musicsource and press the dial to confi rm.

Select the "Select music" function and press the dial to confi rm.
CD CHANGER
PLAYING A CD (NOT MP3/WMA COMPATIBLE)


Press the MUSIC button again or select the Music Menu function and press the dial to confi rm.

290
1
2
3
2 1 4
07
*
The services available depend on the network, the SIM card and the compatibility of the Bluetooth telephone used. Check the telephone manual and with your network provider for details of theservices available to you. A list of mobile telephones with the best level of compatibility is available from the dealer network.

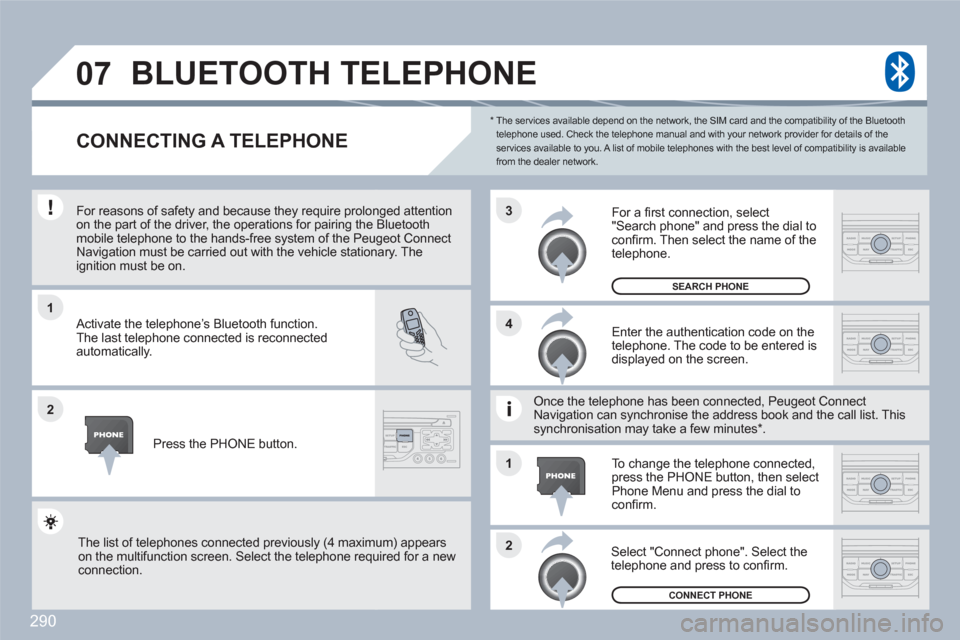

BLUETOOTH TELEPHONE
CONNECTING A TELEPHONE


For reasons of safety and because they require prolonnged attention on the part of the driver, the operations for pairing the Bluetoothmobile telephone to the hands-free system of the Peuugeot ConnectNavigation must be carried out with the vehicle stationnary. Theignition must be on.


Activate the telephone’s Bluetooth function.
The last telephone connected is reconnected automatically.


Enter the authentication code on thetelephone. The code to be entered is displayed on the screen.


To change the telephone connected,press the PHONE button, then select Phone Menu and press the dial to confi rm.
Once the telephone has been connected, Peugeot CoonnectNavigation can synchronise the address book and thee call list. Thissynchronisation may take a few minutes * .

Select "Connect phone". Select the telephone and press to confi rm.
The list of telephones connected previously (4 maximum) appearson the multifunction screen. Select the telephone requuired for a new connection.
Press the PHONE button.


For a fi rst connection, select"Search phone" and press the dial to confi rm. Then select the name of the telephone.

SEARCH PHONE

CONNECT PHONE

291
07
2 1
1
3 2
Press the end of the steering mounted control to accept the call or end the call in progress.
Select the "Yes" tab to accept or "No"to refuse and confi rm by pressing thedial.

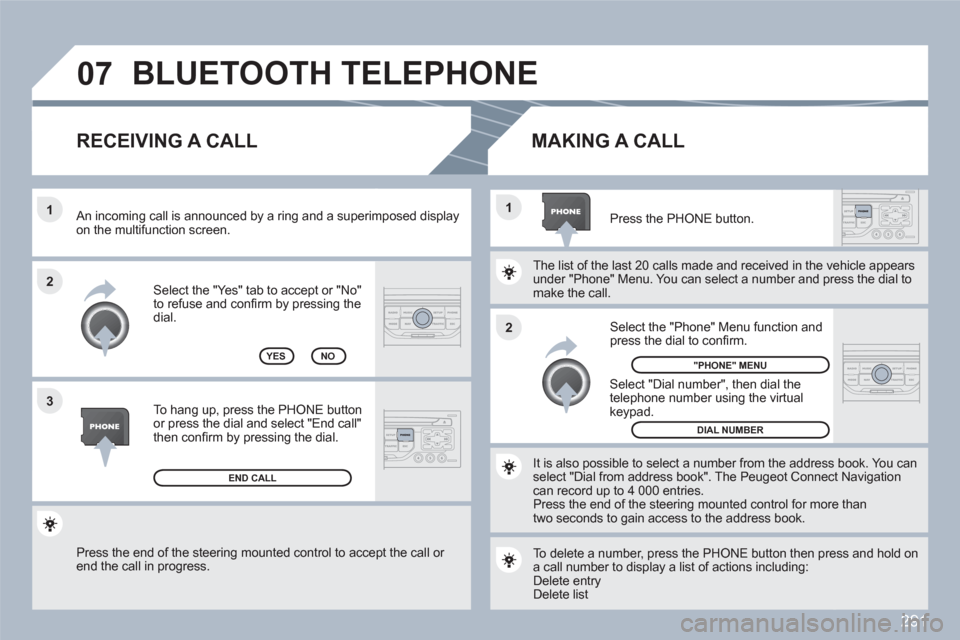

RECEIVING A CALL

MAKING A CALL
An incoming call is announced by a ring and a superimmposed display on the multifunction screen.
YES
To hang up, press the PHONE button or press the dial and select "End call"then confi rm by pressing the dial.
END CALL
Press the PHONE button.
Select "Dial number", then dial the telephone number using the virtualkeypad.
Select the "Phone" Menu function and press the dial to confi rm.

The list of the last 20 calls made and received in the veehicle appears under "Phone" Menu. You can select a number and prress the dial tomake the call.
NO

It is also possible to select a number from the addresss book. You canselect "Dial from address book". The Peugeot Connecct Navigation can record up to 4 000 entries.
Press the end of the steering mounted control for moree thantwo seconds to gain access to the address book.

"PHONE" MENU

DIAL NUMBER

To delete a number, press the PHONE button then preess and hold ona call number to display a list of actions including:
Delete entry Delete list
BLUETOOTH TELEPHONE

292
4 3 2 1
6 5
08CONFIGURATION
SETTING THE DATE AND TIMEThe SETUP function gives access to the following options: System language, Date & Time, Display (Brightness, Colour, Map colour), Vehicle, Units, System.
Set the parameters one by one using the direction arrows and confi rm by means of the dial.

Select the "Date format" function andpress the dial to confi rm.
Select the "Set date & time" functionand press the dial to confi rm.


Confi rm the format required using the dial.
Pressing the SET UP button for more than 2 secondds gives access to:
These settings must be re-entered if the battery has bbeen disconnected.


Press the SET UP button.

Confi rm the format required using the dial. Select the "Time format" function and press the dial to confi rm.
SET DATE & TIME
Select the "Date & Time" function and press the dial to confi rm.

DESCRIPTION OF THE UNIT

DEMO MODE



GPS COVERAGE

DATE & TIME

293

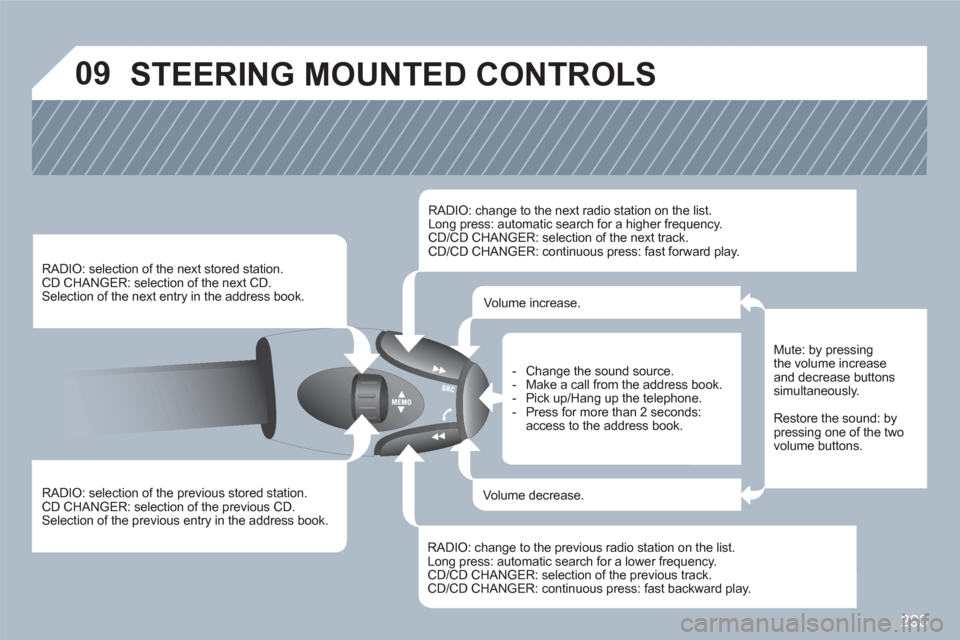

09 STEERING MOUNTED CONTROLS


RADIO: selection of the previous stored station.
CD CHANGER: selection of the previous CD. Selection of the previous entry in the address book.
RADIO: selection of the next stored station. CD CHANGER: selection of the next CD.
Selection of the next entry in the address book.


RADIO: change to the next radio station on the list.
Long press: automatic search for a higher frequency. CD/CD CHANGER: selection of the next track.
CD/CD CHANGER: continuous press: fast forward play.
RADIO: change to the previous radio station on the list. Long press: automatic search for a lower frequency.CD/CD CHANGER: selection of the previous track.CD/CD CHANGER: continuous press: fast backward play.




- Change the sound source.

- Make a call from the address book.

- Pick up/Hang up the telephone.

- Press for more than 2 seconds:access to the address book.


Volume increase.
Volume decrease.
Mute: by pressingthe volume increase and decrease buttonssimultaneously.
Restore the sound: by pressing one of the twovolume buttons.

294
10
1
2
3
1
2
4
1
2
3
4
3
3
3
3
2
2
2
2
4
4
4
4
4
3
3
3
3
3
2
3
2
2
3
3
3
4
4
4
4
4
3
3
12332
3
3
"RADIO" MENU
MAIN FUNCTION CHOICE A choice A1 choice A2 CHOICE B...

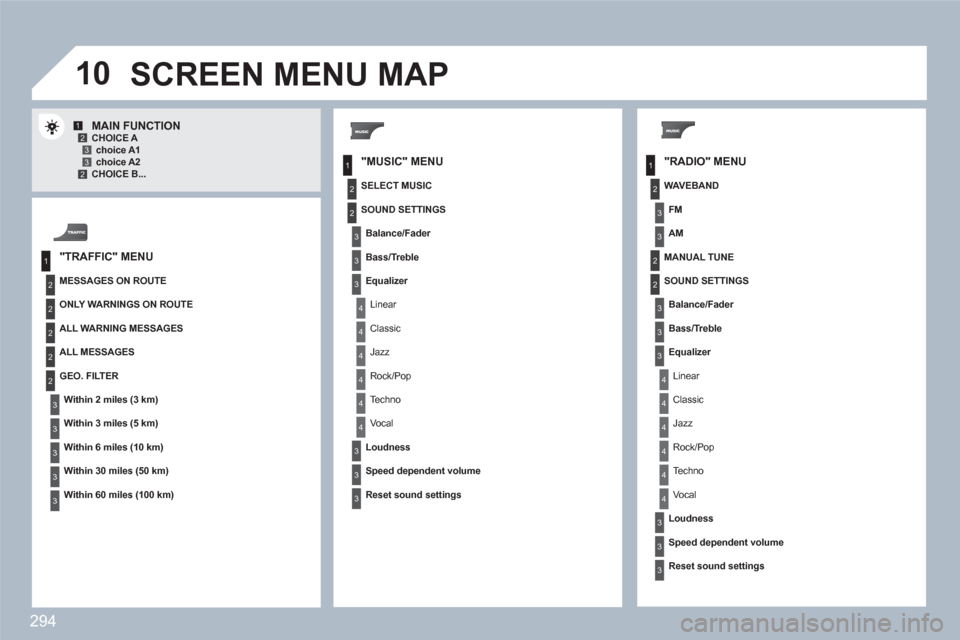

SCREEN MENU MAP


"MUSIC" MENU


"TRAFFIC" MENU


MESSAGES ON ROUTE

ONLY WARNINGS ON ROUTE

ALL WARNING MESSAGES

ALL MESSAGES

GEO. FILTER

Within
2 miles (3 km)

Within
3 miles (5 km)

Within
6 miles (10 km)

Within
30 miles (50 km)


Within 60 miles (100 km)




SELECT MUSIC
SOUND SETTINGS

Balance/Fader

Bass/Treble
Equalizer
Linear

Classic
Jazz

Rock/Pop
Techno
Vocal

Loudness


Speed dependent volume

Reset sound settings

WAVEBAND
FM
AM


MANUAL TUNE

SOUND SETTINGS
Balance/Fader
Bass/Treble
Equalizer
Linear
Classic
Jazz
Rock/Pop
Techno
Vocal
Loudness
Speed dependent volume
Reset sound settings

295
1
2
4
2
3
4
2
3
4
4
4
4
4
4
4
4
4
4
4
3
3
3
3
24
4
4
3
3
3
3
4
4
4
2
3
3
3
3
3
3
3
3
4
4
2
4
4
4
4
4
3
3
3
3
4
4
4

ROUTE OPTIONS
Route type
Fast route
Short route
Optimized route
Route dynamics
Traffi c independent
Semi-dynamic
Avoidance criteria
Avoid motorways
Avoid toll roads
Avoid ferries
Recalculate
STOPOVERS

Add stopover
Address input

Navigate HOME

Choose from address book
Choose from last destinations

Rearrange route
Replace stopover
Delete stopover

Recalculate

Fast route
Short route
Optimized route

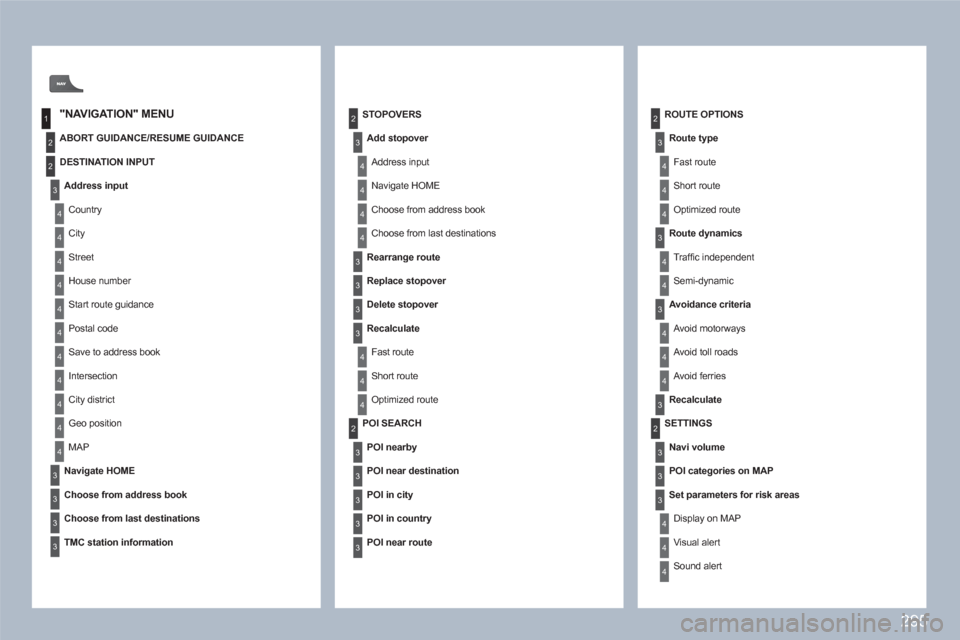

"NAVIGATION" MENU


ABORT GUIDANCE/RESUME GUIDANCE
POI SEARCH

POI nearby

POI near destination

POI in city

POI in country

POI near route

SETTINGS
Navi volume
POI categories on MAP
Set parameters for risk areas
Display on MAP
Visual alert
Sound alert



DESTINATION INPUT
Address input

Country

City
Street
House number
Start route guidance

Postal code
Save to address book

Intersection
City district
Geo position
MAP

Navigate HOME

Choose from address book

Choose from last destinations


TMC station information

296
1
2
3
4
1
3
4
3
4
2
2
2
3
4
4
4
4
2
3
3
3
2
3
3
3
2
3
4
4
4
4
2
4
3
4
3
3
3
3
3
3
3
3
2
4
4
2
3
4
4
3
4
4
4
2
3
3
3

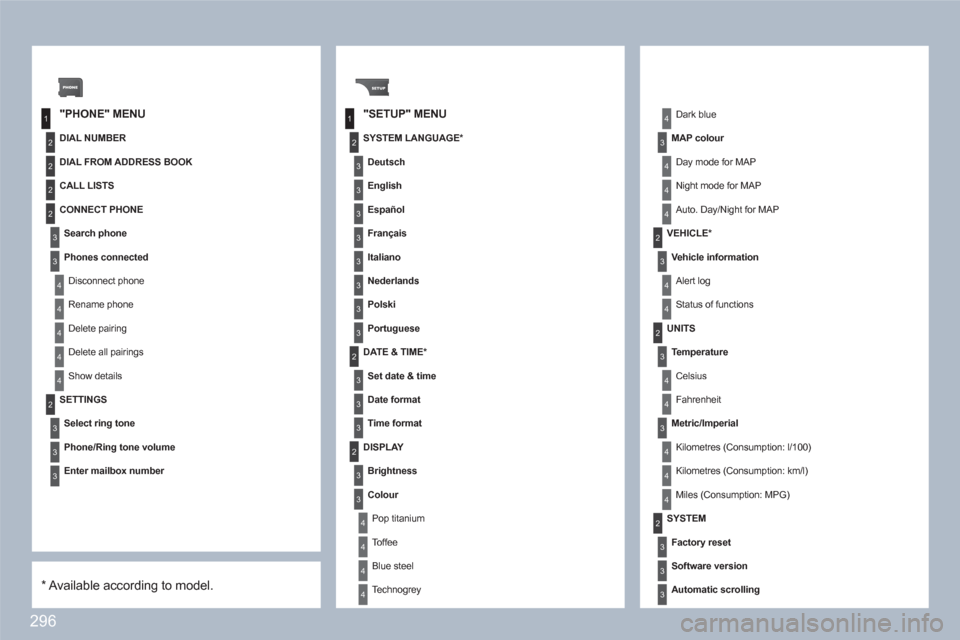

"PHONE" MENU"SETUP" MENU


DIAL NUMBER


SETTINGS

Select ring tone

Phone/Ring tone volume

Enter mailbox number



SYSTEM LANGUAGE *
Deutsch
English

Español

Français

Italiano
Nederlands
Polski

Portuguese


DATE & TIME *

Set date & time

Date format

Time format
Dark blue
MAP colour
Day mode for MAP
Night mode for MAP
Auto. Day/Night for MAP
VEHICLE *
Vehicle information
Alert log
Status of functions


DISPLAY

Brightness

Colour
Pop titanium
Toffee
Blue steel
Technogrey
UNITS
Temperature
Celsius
Fahrenheit
Metric/Imperial
Kilometres (Consumption: l/100)
Kilometres (Consumption: km/l)
Miles (Consumption: MPG)
SYSTEM
Factory reset
Software version
Automatic scrolling
*
Available according to model.


DIAL FROM ADDRESS BOOK


CALL LISTS


CONNECT PHONE

Search phone


Phones connected
Disconnect phone
Rename phone

Delete pairing

Delete all pairings
Show details

297

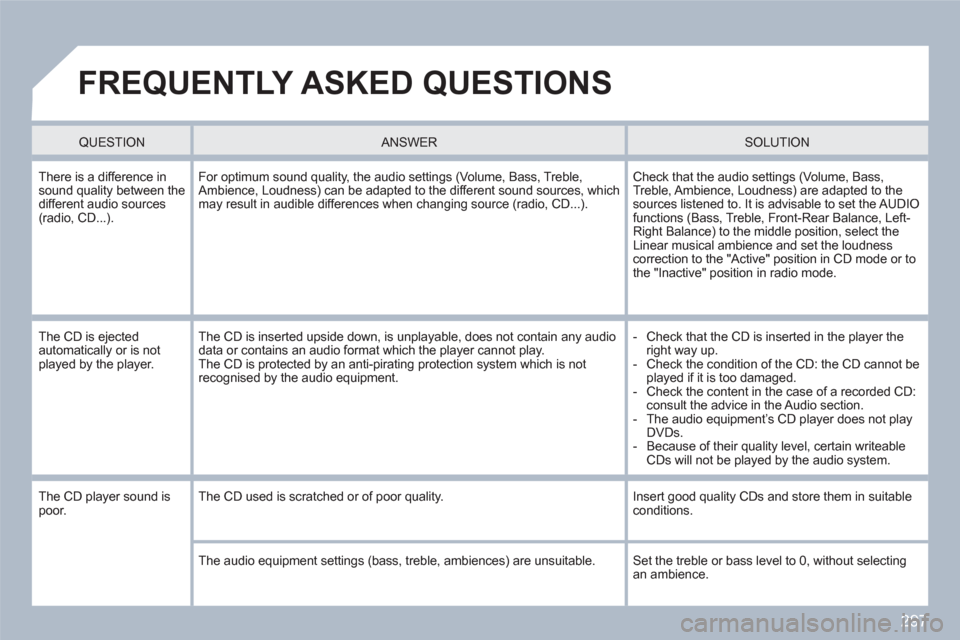

FREQUENTLY ASKED QUESTIONS

QUESTION

ANSWER SOLUTION

There is a difference insound quality between thedifferent audio sources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble,Ambience, Loudness) can be adapted to the different sound sources, whichmay result in audible differences when changing source (radio, CD...).
Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIOfunctions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select theLinear musical ambience and set the loudnesscorrection to the "Active" position in CD mode or tothe "Inactive" position in radio mode.

The CD is ejected automatically or is not played by the player.
The CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play. The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.


- Check that the CD is inserted in the player the right way up.

- Check the condition of the CD: the CD cannot beplayed if it is too damaged.

- Check the content in the case of a recorded CD: consult the advice in the Audio section.

- The audio equipment’s CD player does not play DVDs.

- Because of their quality level, certain writeable CDs will not be played by the audio system.

The CD player sound is poor. The CD used is scratched or of poor quality.
Insert good quality CDs and store them in suitableconditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selectingan ambience.

298
QUESTION

ANSWER SOLUTION

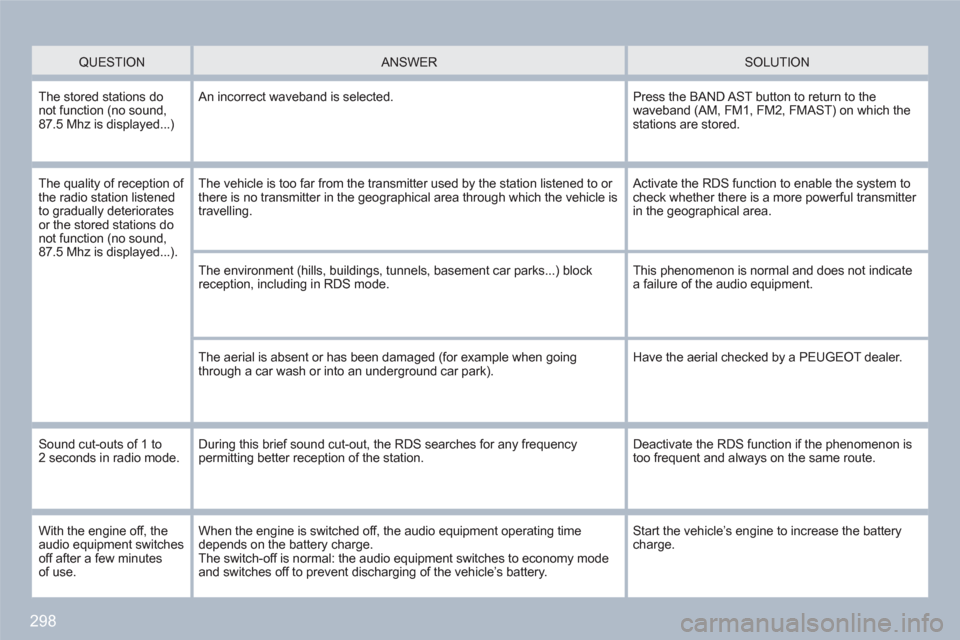

The stored stations do not function (no sound,87.5 Mhz is displayed...)

An incorrect waveband is selected.
Press the BAND AST button to return to thewaveband (AM, FM1, FM2, FMAST) on which the stations are stored.

The quality of reception of the radio station listened to gradually deterioratesor the stored stations donot function (no sound,87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listened to or there is no transmitter in the geographical area through which the vehicle is travelling.
Activate the RDS function to enable the system tocheck whether there is a more powerful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode.
This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when goingthrough a car wash or into an underground car park).
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to 2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequencypermitting better reception of the station.
Deactivate the RDS function if the phenomenon istoo frequent and always on the same route.

With the engine off, theaudio equipment switches off after a few minutesof use.
When the engine is switched off, the audio equipment operating time depends on the battery charge.The switch-off is normal: the audio equipment switches to economy modeand switches off to prevent discharging of the vehicle’s battery.
Start the vehicle’s engine to increase the batterycharge.
