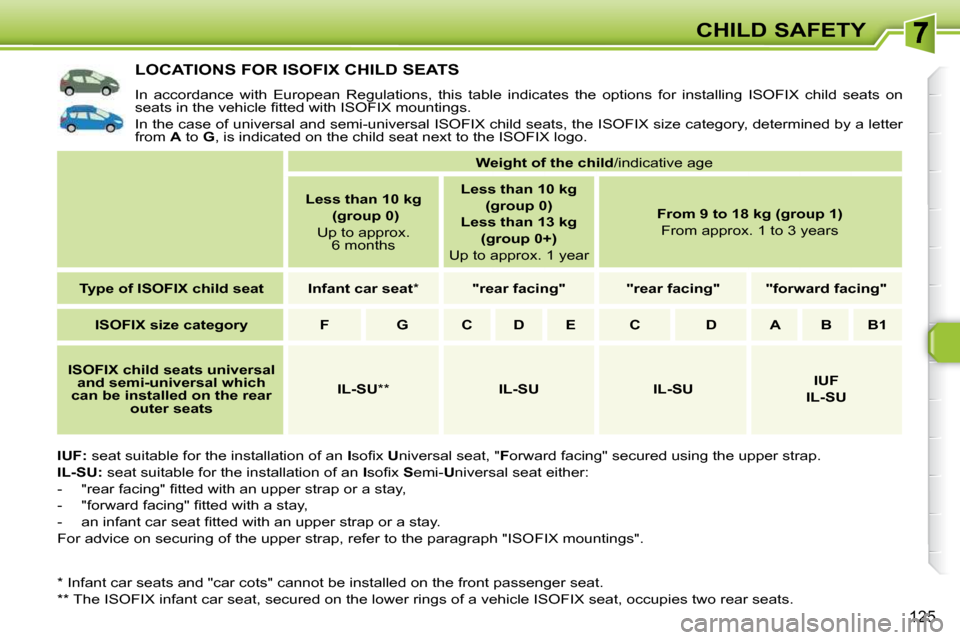

125
CHILD SAFETY
LOCATIONS FOR ISOFIX CHILD SEATS
I n a c c o r d a n c e w i t h E u r o p e a n R e g u l a t i o n s , t h i s t a b l e i n d i c a t e s t h e o p t i o n s f o r i n s t a l l i n g I S O F I X c h i l d s e a t s o n
s e a t s i n t h e v e h i c l e fi t t e d w i t h I S O F I X m o u n t i n g s .
In the case of universal and semi-universal ISOFIX child seats, th e ISOFIX size category, determined by a letter
from A to G , is indicated on the child seat next to the ISOFIX logo.
IUF: seat suitable for the installation of an I s o fi x U niversal seat, " F orward facing" secured using the upper strap.
IL-SU: seat suitable for the installation of an I s o fi x S emi- U niversal seat either:
- " r e a r f a c i n g " fi t t e d w i t h a n u p p e r s t r a p o r a s t a y ,
- " f o r w a r d f a c i n g " fi t t e d w i t h a s t a y ,
- a n i n f a n t c a r s e a t fi t t e d w i t h a n u p p e r s t r a p o r a s t a y .
For advice on securing of the upper strap, refer to the paragra ph "ISOFIX mountings".
* Infant car seats and "car cots" cannot be installed on th e front passenger seat.
** The ISOFIX infant car seat, secured on the lower rings of a vehicle ISOFIX seat, occupies two rear seats.
Weight of the child /indicative age
Less than 10 kg
(group 0)
Up to approx. 6 months
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to approx. 1 year
From 9 to 18 kg (group 1)
F r o m a p p r o x . 1 t o 3 y e a r s
Type of ISOFIX child seat Infant car seat * "rear facing" "rear facing" "forward facing"
ISOFIX size category F G C D E C D A B B1
ISOFIX child seats universal
and semi-universal which
can be installed on the rear
outer
seats
IL-SU ** IL-SU IL-SU
IUF
IL-SU
Page 122 of 313

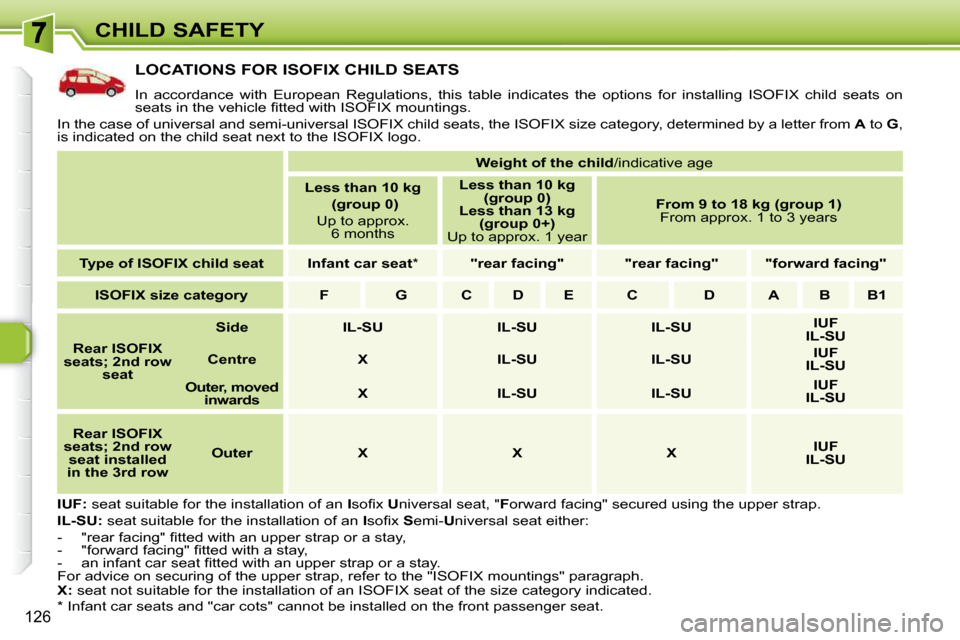

126
CHILD SAFETY
LOCATIONS FOR ISOFIX CHILD SEATS
I n a c c o r d a n c e w i t h E u r o p e a n R e g u l a t i o n s , t h i s t a b l e i n d i c a t e s t h e o p t i o n s f o r i n s t a l l i n g I S O F I X c h i l d s e a t s o n
s e a t s i n t h e v e h i c l e fi t t e d w i t h I S O F I X m o u n t i n g s .
In the case of universal and semi-universal ISOFIX child seats, th e ISOFIX size category, determined by a letter from A to G ,
is indicated on the child seat next to the ISOFIX logo.
IUF: seat suitable for the installation of an I s o fi x U niversal seat, " F orward facing" secured using the upper strap.
IL-SU: seat suitable for the installation of an I s o fi x S emi- U niversal seat either:
- " r e a r f a c i n g " fi t t e d w i t h a n u p p e r s t r a p o r a s t a y ,
- " f o r w a r d f a c i n g " fi t t e d w i t h a s t a y ,
- a n i n f a n t c a r s e a t fi t t e d w i t h a n u p p e r s t r a p o r a s t a y .
For advice on securing of the upper strap, refer to the "ISOFIX mountings" paragraph.
X: seat not suitable for the installation of an ISOFIX seat of the size category indicated.
Weight of the child /indicative age
Less than 10 kg
(group 0)
Up to approx. 6 months
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to approx. 1 year
From 9 to 18 kg (group 1)
F r o m a p p r o x . 1 t o 3 y e a r s
Type of ISOFIX child seat Infant car seat * "rear facing" "rear facing" "forward facing"
ISOFIX size category F G C D E C D A B B1
Rear ISOFIX
seats; 2nd row seat
Side IL-SU IL-SU IL-SU
IUF
IL-SU
Centre X IL-SU IL-SU
IUF
IL-SU
Outer, moved
inwards
X IL-SU IL-SU
IUF
IL-SU
Rear ISOFIX
seats; 2nd row seat installed
in the 3rd row
Outer X X X
IUF
IL-SU
* Infant car seats and "car cots" cannot be installed on th e front passenger seat.
Page 123 of 313
!
!

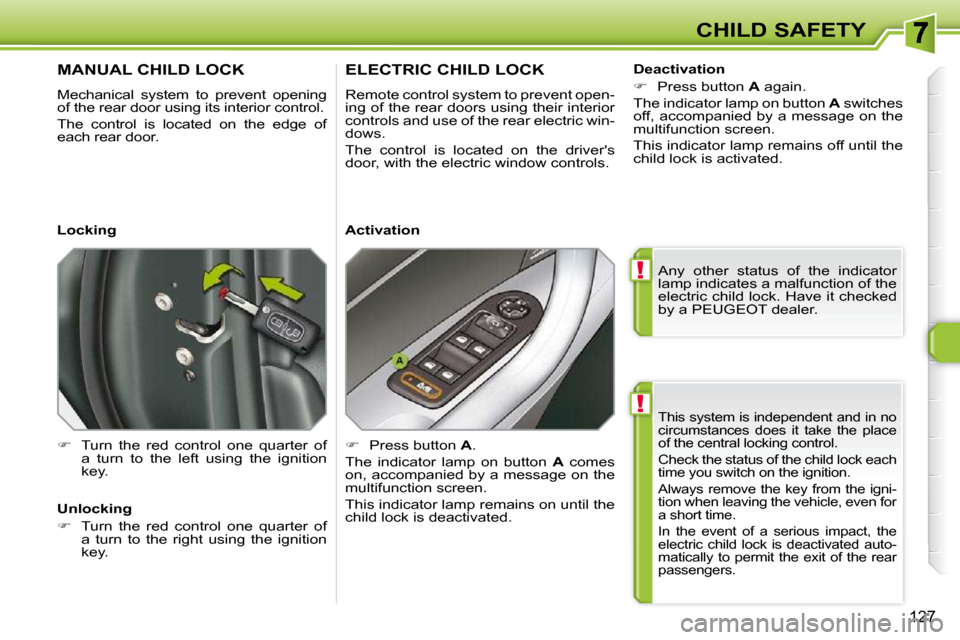

127
CHILD SAFETY
This system is independent and in no
circumstances does it take the place
of the central locking control.
C h e c k t h e s t a t u s o f t h e c h i l d l o c k e a c h
time you switch on the ignition.
Always remove the key from the igni-
tion when leaving the vehicle, even for
a short time.
In the event of a serious impact, the
electric child lock is deactivated auto-
matically to permit the exit of the rear
passengers.
MANUAL CHILD LOCK
M e c h a n i c a l s y s t e m t o p r e v e n t o p e n i n g
of the rear door using its interior control.
The control is located on the edge of
each rear door.
Turn the red control one quarter of
a turn to the left using the ignition
key.
ELECTRIC CHILD LOCK
R e m o t e c o n t r o l s y s t e m t o p r e v e n t o p e n -
ing of the rear doors using their interior
controls and use of the rear electric win-
dows.
The control is located on the driver's
door, with the electric window controls.
Press button A .
The indicator lamp on button A comes
on, accompanied by a message on the
multifunction screen.
This indicator lamp remains on until the
child lock is deactivated.
Locking
Unlocking
Turn the red control one quarter of
a turn to the right using the ignition
key. Activation
Deactivation
Press button A again.
The indicator lamp on button A switches
off, accompanied by a message on the
multifunction screen.
This indicator lamp remains off until the
child lock is activated.
Any other status of the indicator
lamp indicates a malfunction of the
electric child lock. Have it checked
by a PEUGEOT dealer.
Page 124 of 313
ii

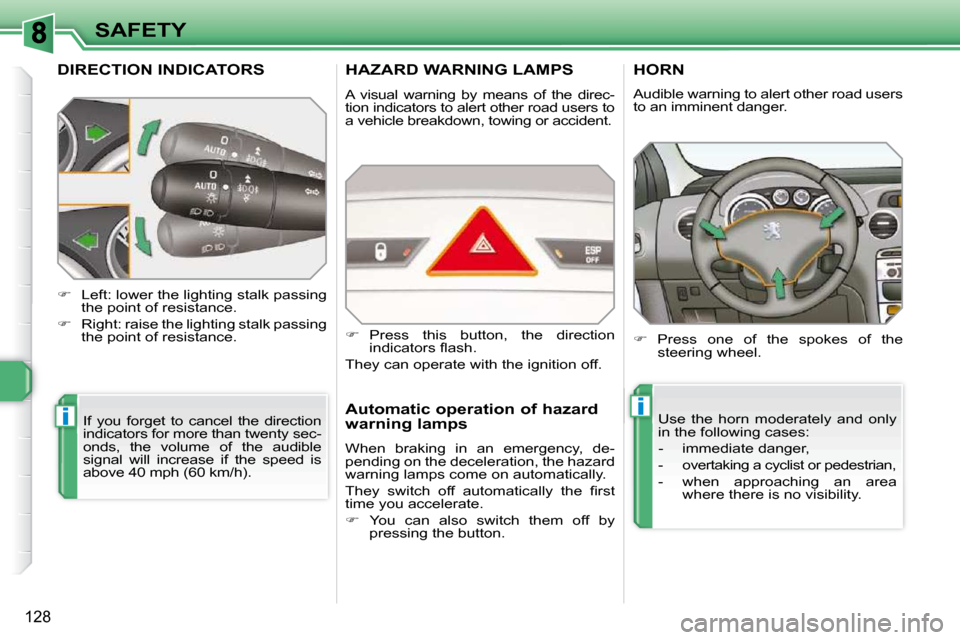

128
SAFETY
DIRECTION INDICATORS
If you forget to cancel the direction
indicators for more than twenty sec-
onds, the volume of the audible
signal will increase if the speed is
above 40 mph (60 km/h).
Left: lower the lighting stalk passing
the point of resistance.
Right: raise the lighting stalk passing
the point of resistance.
HAZARD WARNING LAMPS
A visual warning by means of the direc-
tion indicators to alert other road users to
a vehicle breakdown, towing or accident.
Press this button, the direction
i n d i c a t o r s fl a s h .
They can operate with the ignition off.
Automatic operation of hazard
warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on automatically.
T h e y s w i t c h o f f a u t o m a t i c a l l y t h e fi r s t
time you accelerate.
You can also switch them off by
pressing the button.
HORN
Press one of the spokes of the
steering wheel.
Use the horn moderately and only
in the following cases:
- immediate danger,
- overtaking a cyclist or pedestrian,
- when approaching an area where there is no visibility.
Audible warning to alert other road users
to an imminent danger.
Page 125 of 313
!
i
i
i
129
SAFETY

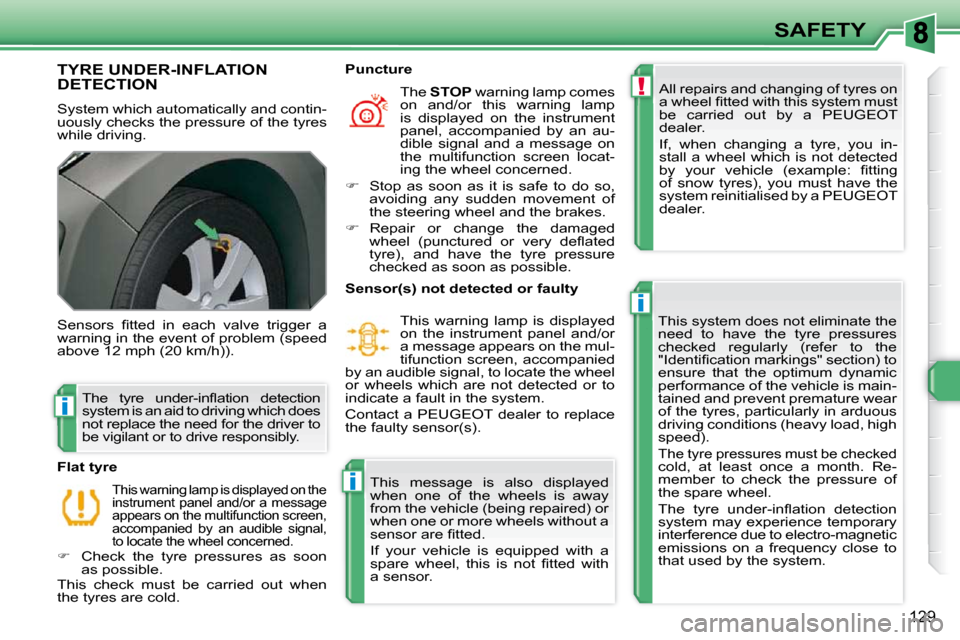

TYRE UNDER-INFLATION DETECTION
System which automatically and contin-
uously checks the pressure of the tyres
while driving. All repairs and changing of tyres on
a w h e e l fi t t e d w i t h t h i s s y s t e m m u s t
be carried out by a PEUGEOT
dealer.
If, when changing a tyre, you in-
stall a wheel which is not detected
b y y o u r v e h i c l e ( e x a m p l e : fi t t i n g
of snow tyres), you must have the
system reinitialised by a PEUGEOT
dealer.
This system does not eliminate the
need to have the tyre pressures
checked regularly (refer to the
" I d e n t i fi c a t i o n m a r k i n g s " s e c t i o n ) t o
ensure that the optimum dynamic
performance of the vehicle is main-
tained and prevent premature wear
of the tyres, particularly in arduous
driving conditions (heavy load, high
speed).
The tyre pressures must be checked cold, at least once a month. Re-
member to check the pressure of
the spare wheel.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system may experience temporary
interference due to electro-magnetic
emissions on a frequency close to
that used by the system.
S e n s o r s fi t t e d i n e a c h v a l v e t r i g g e r a
warning in the event of problem (speed
above 12 mph (20 km/h)).
This warning lamp is displayed on the
instrument panel and/or a message
appears on the multifunction screen,
accompanied by an audible signal,
to locate the wheel concerned.
Check the tyre pressures as soon
as possible.
This check must be carried out when
the tyres are cold.
Flat tyre The
STOP warning lamp comes
on and/or this warning lamp
is displayed on the instrument
panel, accompanied by an au-
dible signal and a message on
the multifunction screen locat-
ing the wheel concerned.
Stop as soon as it is safe to do so,
avoiding any sudden movement of
the steering wheel and the brakes.
Repair or change the damaged
w h e e l ( p u n c t u r e d o r v e r y d e fl a t e d
tyre), and have the tyre pressure
checked as soon as possible.
Puncture
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system is an aid to driving which does
not replace the need for the driver to
be vigilant or to drive responsibly. Sensor(s) not detected or faulty
This warning lamp is displayed
on the instrument panel and/or
a message appears on the mul-
tifunction screen, accompanied
by an audible signal, to locate the wheel
or wheels which are not detected or to
indicate a fault in the system.
Contact a PEUGEOT dealer to replace
the faulty sensor(s).
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
s e n s o r a r e fi t t e d .
If your vehicle is equipped with a
s p a r e w h e e l , t h i s i s n o t fi t t e d w i t h
a sensor.
Page 126 of 313
!
i
!

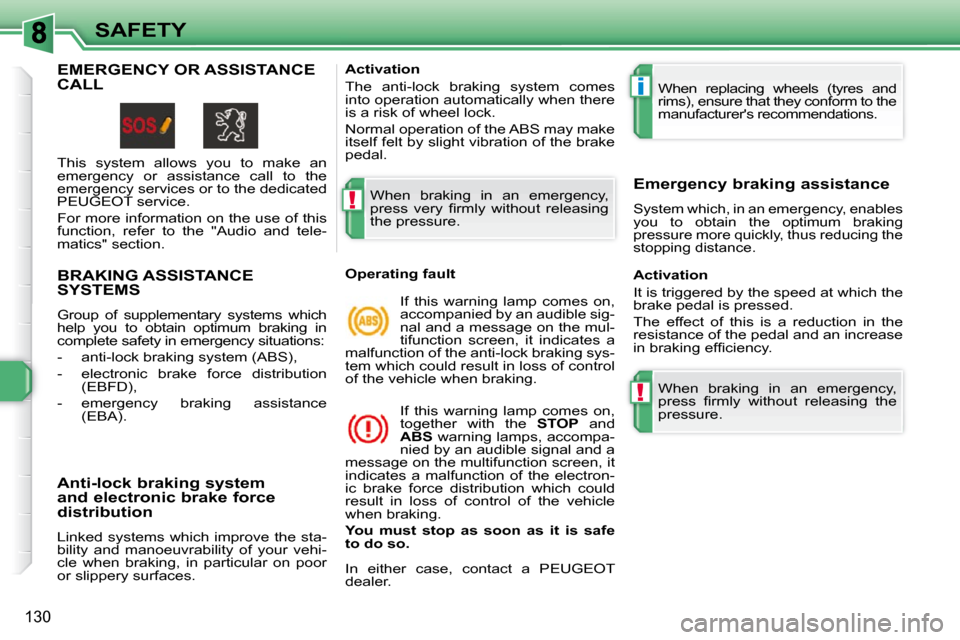

130
SAFETY
BRAKING ASSISTANCE SYSTEMS
Group of supplementary systems which
help you to obtain optimum braking in
complete safety in emergency situations:
- anti-lock braking system (ABS),
- electronic brake force distribution (EBFD),
- emergency braking assistance (EBA).
Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the sta-
bility and manoeuvrability of your vehi-
cle when braking, in particular on poor
or slippery surfaces. When braking in an emergency,
p r e s s v e r y fi r m l y w i t h o u t r e l e a s i n g
the pressure.
When replacing wheels (tyres and
rims), ensure that they conform to the
manufacturer's recommendations.
Operating fault If this warning lamp comes on,
accompanied by an audible sig-
nal and a message on the mul-
tifunction screen, it indicates a
malfunction of the anti-lock braking sys-
tem which could result in loss of control
of the vehicle when braking.
If this warning lamp comes on,
together with the STOP and
ABS warning lamps, accompa-
nied by an audible signal and a
message on the multifunction screen, it
indicates a malfunction of the electron-
ic brake force distribution which could
result in loss of control of the vehicle
when braking.
You
must
stop as soon as it is safe
to do so. Emergency braking assistance
System which, in an emergency, enables
you to obtain the optimum braking
pressure more quickly, thus reducing the
stopping distance.
Activation
The anti-lock braking system comes
into operation automatically when there
is a risk of wheel lock.
Normal operation of the ABS may make
itself felt by slight vibration of the brake
pedal.
Activation
It is triggered by the speed at which the
brake pedal is pressed.
The effect of this is a reduction in the
resistance of the pedal and an increase
i n b r a k i n g e f fi c i e n c y .
In either case, contact a PEUGEOT
dealer. When braking in an emergency,
p r e s s fi r m l y w i t h o u t r e l e a s i n g t h e
pressure. EMERGENCY OR ASSISTANCE CALL
This system allows you to make an
emergency or assistance call to the
emergency services or to the dedicated
PEUGEOT service.
For more information on the use of this
function, refer to the "Audio and tele-
matics" section.
Page 127 of 313
!
SAFETY
The ESP/ASR systems offer ex-
ceptional safety in normal driving,
but this should not encourage the
driver to take extra risks or drive at
high speed.
The correct functioning of these
systems depends on observation
of the manufacturer's recommen-
dations regarding the wheels (tyres
and rims), the braking components,
the electronic components and the
repair and assembly procedures
used by PEUGEOT dealers.
After an impact, have these systems
checked by a PEUGEOT dealer.
Disarming
In exceptional conditions (starting a
vehicle which is bogged down, stuck
in snow, on soft ground, ...), it may be
advisable to disarm the ASR and ESP
systems, so that the wheels can move
freely and regain grip.
Press the "ESP OFF" button, located
in the centre of the dashboard.
If this warning lamp comes on on
the instrument panel and the indi-
cator lamp on the button comes
on, this indicates that the ASR and
ESP systems are deactivated.
Reactivation
These systems are reactivated automat-
ically each time the ignition is switched
back on or from 30 mph (50 km/h)
(except in the case of the 1.6 l THP 16V
175 bhp petrol engine).
Press the "ESP OFF" button again
to reactivate them manually. Operating fault
If this warning lamp comes on,
accompanied by an audible sig-
nal and a message on the multi-
function screen, this indicates a
malfunction of these systems.
Have the systems checked by a PEUGEOT
dealer.

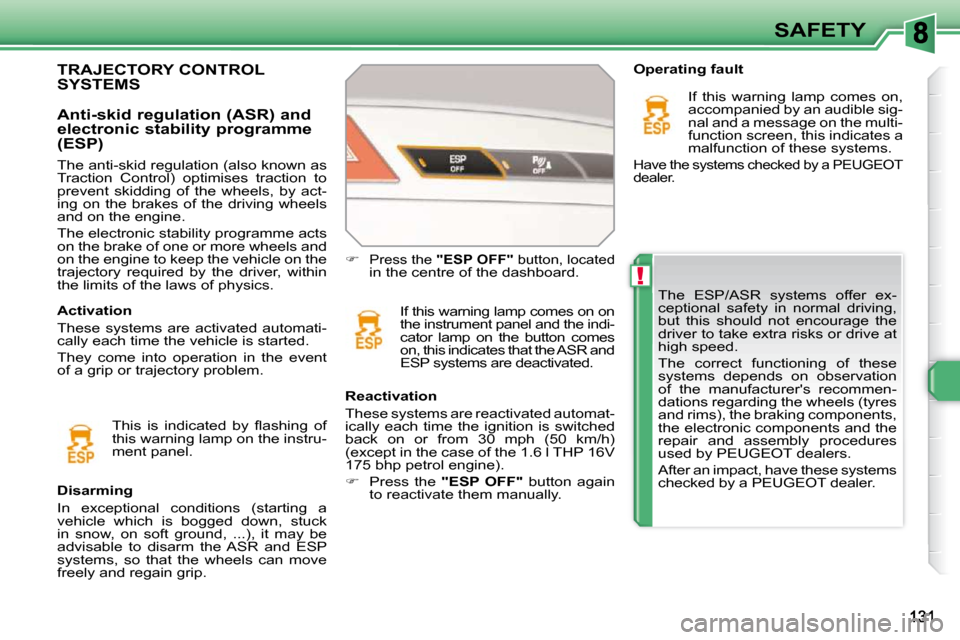

TRAJECTORY CONTROL SYSTEMS
Activation
These systems are activated automati-
cally each time the vehicle is started.
They come into operation in the event
of a grip or trajectory problem.
Anti-skid regulation (ASR) and
electronic stability programme
(ESP)
T h i s i s i n d i c a t e d b y fl a s h i n g o f
this warning lamp on the instru-
ment panel.
The anti-skid regulation (also known as
Traction Control) optimises traction to
prevent skidding of the wheels, by act-
ing on the brakes of the driving wheels
and on the engine.
The electronic stability programme acts
on the brake of one or more wheels and
on the engine to keep the vehicle on the
trajectory required by the driver, within
the limits of the laws of physics.
Page 128 of 313
132
SAFETY

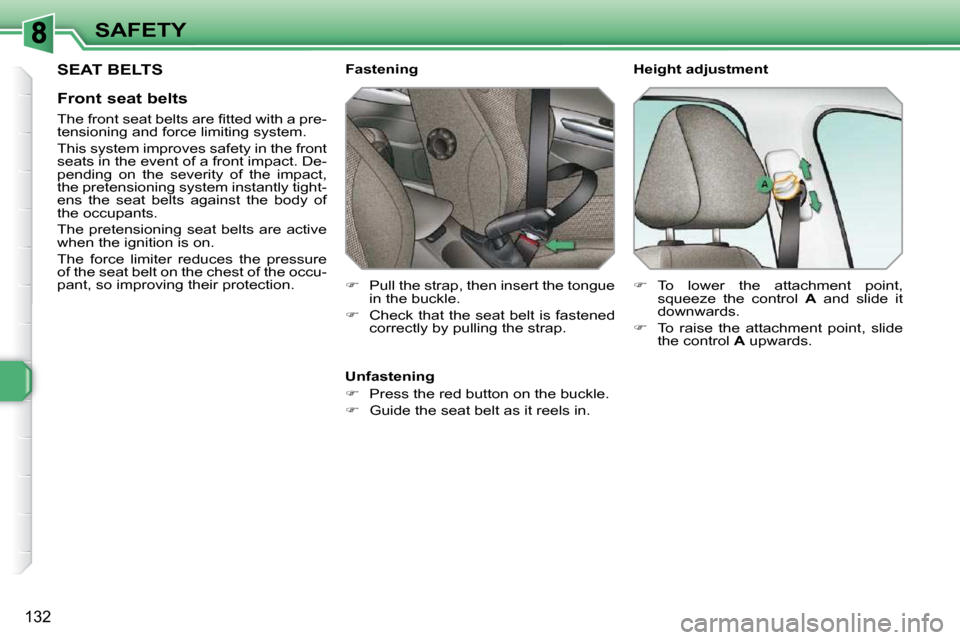

SEAT BELTS
Front seat belts
T h e f r o n t s e a t b e l t s a r e fi t t e d w i t h a p r e -
tensioning and force limiting system.
This system improves safety in the front
seats in the event of a front impact. De-
pending on the severity of the impact,
the pretensioning system instantly tight-
ens the seat belts against the body of
the occupants.
The pretensioning seat belts are active
when the ignition is on.
The force limiter reduces the pressure
of the seat belt on the chest of the occu-
pant, so improving their protection. Fastening
Unfastening
Press the red button on the buckle.
Guide the seat belt as it reels in. Height adjustment
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
To lower the attachment point,
squeeze the control A and slide it
downwards.
To raise the attachment point, slide
the control A upwards.
Page 129 of 313
133
SAFETY

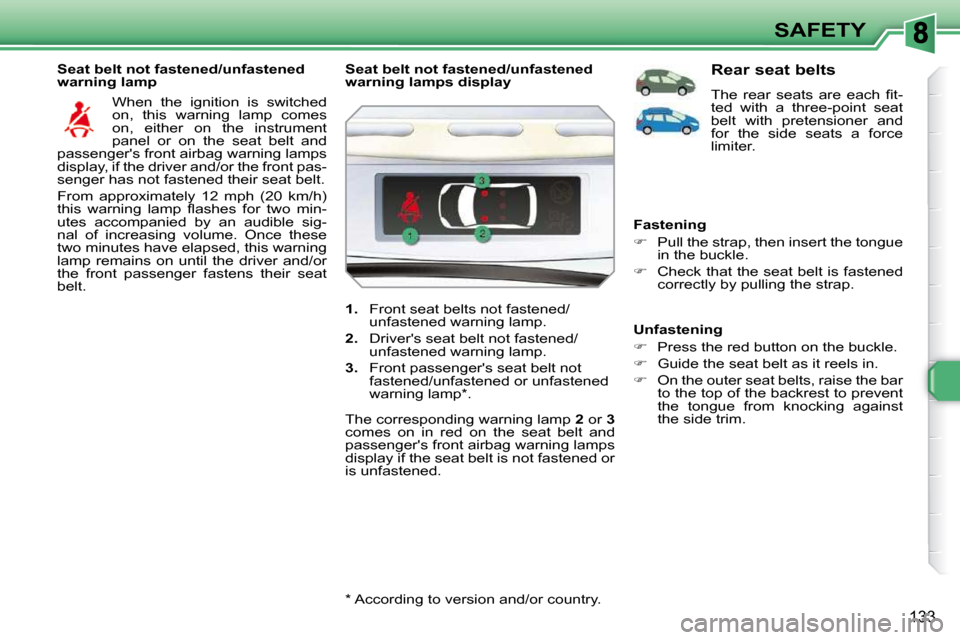

Seat belt not fastened/unfastened
warning lamp When the ignition is switched
on, this warning lamp comes
on, either on the instrument
panel or on the seat belt and
passenger's front airbag warning lamps
display, if the driver and/or the front pas-
senger has not fastened their seat belt.
From approximately 12 mph (20 km/h)
t h i s w a r n i n g l a m p fl a s h e s f o r t w o m i n -
utes accompanied by an audible sig-
nal of increasing volume. Once these
two minutes have elapsed, this warning
lamp remains on until the driver and/or
the front passenger fastens their seat
belt.
* According to version and/or country.
Seat belt not fastened/unfastened
warning lamps display
1. Front seat belts not fastened/
unfastened warning lamp.
2. Driver's seat belt not fastened/
unfastened warning lamp.
3. Front passenger's seat belt not
fastened/unfastened or unfastened
warning lamp * .
The corresponding warning lamp 2 or 3
comes on in red on the seat belt and
passenger's front airbag warning lamps
display if the seat belt is not fastened or
is unfastened. Rear seat belts
T h e r e a r s e a t s a r e e a c h fi t -
ted with a three-point seat
belt with pretensioner and
for the side seats a force
limiter.
Fastening
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
Unfastening
Press the red button on the buckle.
Guide the seat belt as it reels in.
On the outer seat belts, raise the bar
to the top of the backrest to prevent
the tongue from knocking against
the side trim.
Page 130 of 313
134
SAFETY

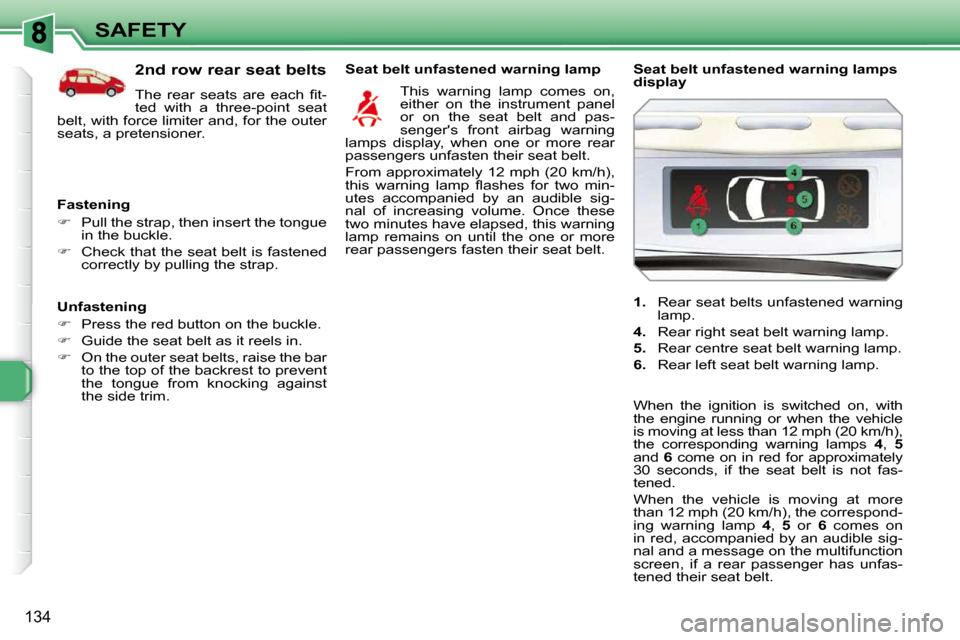

Unfastening
Press the red button on the buckle.
Guide the seat belt as it reels in.
On the outer seat belts, raise the bar
to the top of the backrest to prevent
the tongue from knocking against
the side trim. Seat belt unfastened warning lamp
This warning lamp comes on,
either on the instrument panel
or on the seat belt and pas-
senger's front airbag warning
lamps display, when one or more rear
passengers unfasten their seat belt.
From approximately 12 mph (20 km/h),
t h i s w a r n i n g l a m p fl a s h e s f o r t w o m i n -
utes accompanied by an audible sig-
nal of increasing volume. Once these
two minutes have elapsed, this warning
lamp remains on until the one or more
rear passengers fasten their seat belt.
1. Rear seat belts unfastened warning
lamp.
4. Rear right seat belt warning lamp.
5. Rear centre seat belt warning lamp.
6. Rear left seat belt warning lamp.
Seat belt unfastened warning lamps
display
When the ignition is switched on, with
the engine running or when the vehicle
is moving at less than 12 mph (20 km/h),
the corresponding warning lamps
4 , 5
and 6 come on in red for approximately
30 seconds, if the seat belt is not fas-
tened.
When the vehicle is moving at more
than 12 mph (20 km/h), the correspond-
ing warning lamp 4 , 5 or 6 comes on
in red, accompanied by an audible sig-
nal and a message on the multifunction
screen, if a rear passenger has unfas-
tened their seat belt.
2nd row rear seat belts
T h e r e a r s e a t s a r e e a c h fi t -
ted with a three-point seat
belt, with force limiter and, for the outer
seats, a pretensioner.
Fastening
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
